Atheros wireless driver OS X 10.11/12 for unsupported cards


jalavoui
 Share

631 posts in this topic

Recommended Posts

On 6/26/2016 at 11:40 AM, TheRacerMaster said:

Excellent work jalavoui and coolstar. I have a supported card (AR9380) but it has an invalid regdomain (0x21); using your info I figured out how to patch AirPortAtheros40 to change it:


Comment:	Override regdomain (1 of 2)
Find:		83bb2008 00000674 64
Name:		com.apple.driver.AirPort.Atheros40
Replace:	83bb2008 000006eb 36

Comment:	Override regdomain (2 of 2)
Find:		66c78316 09000043 0066b843 00
Name:		com.apple.driver.AirPort.Atheros40
Replace:	66c78316 09000000 0066b800 00

Just had to change one JE at 0xb1b37 to a JMP pointing to 0xb1b6f (where rbx+0x916 and ax are set to 0x43), then used coolstar's patch (the second one) to change the regdomain from 0x43 (JP) to 0x00 (US - thanks to ReddestDream for clarifying).



10.11.5 patch (the second patch is identical):


Comment:	Override regdomain (1 of 2)
Find:		83bb2008 00000674 5f
Name:		com.apple.driver.AirPort.Atheros40
Replace:	83bb2008 000006eb 31



This is not working for me in 10.13.6. Anyone have an alternate find/replace?

Link to comment
Share on other sites

  • 2 weeks later...

For DW1707 (AR9565), when connecting to a mobile phone hotspot, the Tx rate is 11Mbps, and there is no way to access the Internet. I don't know why, can it be solved? Thank you!

On 8/21/2018 at 3:15 PM, zainanjum100 said:

Please update AR9565 patch for high sierra 10.13.6

patch is not working on 10.13.6

10.13.6 is normal, you can use this method:
https://github.com/black-dragon74/ATH9KFixup/releases

However, when connecting with some routers, there will be situations where you can't access the Internet. For example, I am connected to the mobile phone hotspot.

Link to comment
Share on other sites

19 hours ago, ic005k said:

For DW1707 (AR9565), when connecting to a mobile phone hotspot, the Tx rate is 11Mbps, and there is no way to access the Internet. I don't know why, can it be solved? Thank you!

10.13.6 is normal, you can use this method:
https://github.com/black-dragon74/ATH9KFixup/releases

However, when connecting with some routers, there will be situations where you can't access the Internet. For example, I am connected to the mobile phone hotspot.

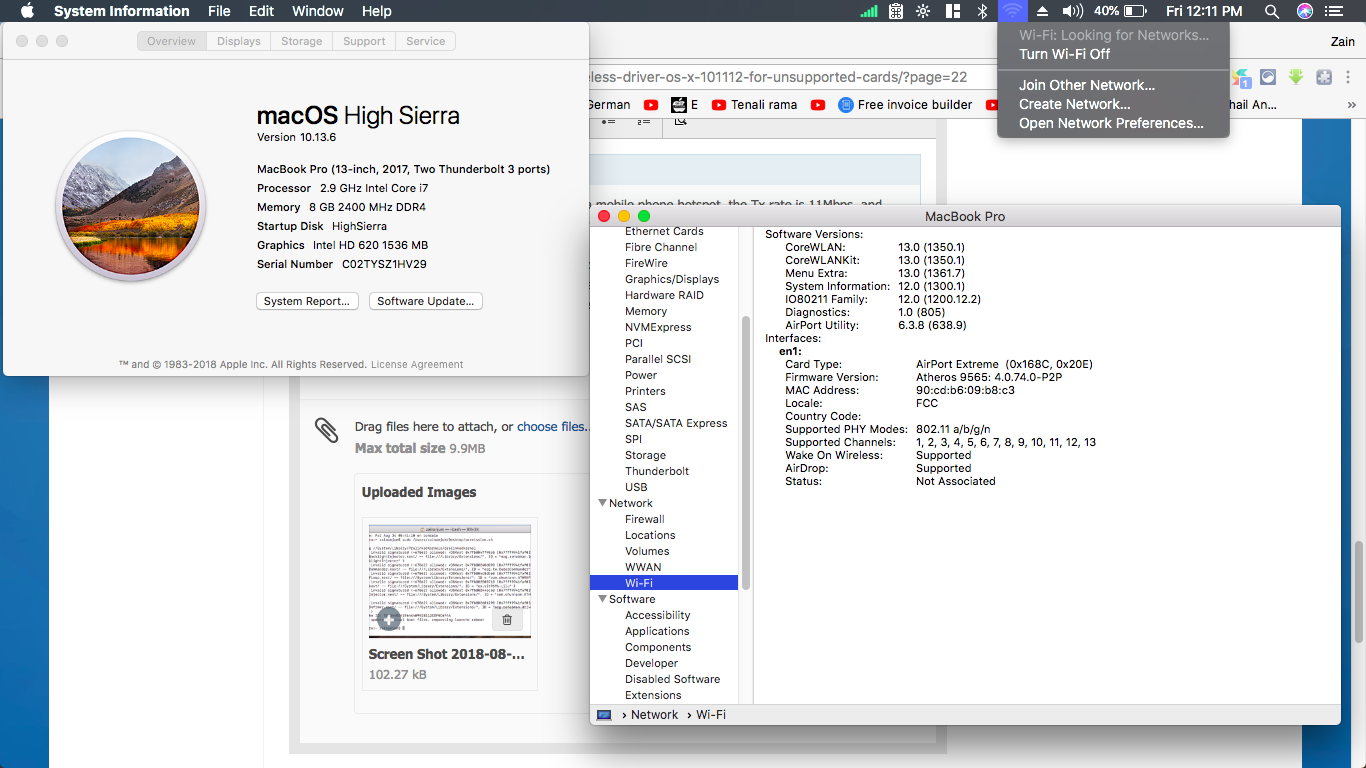

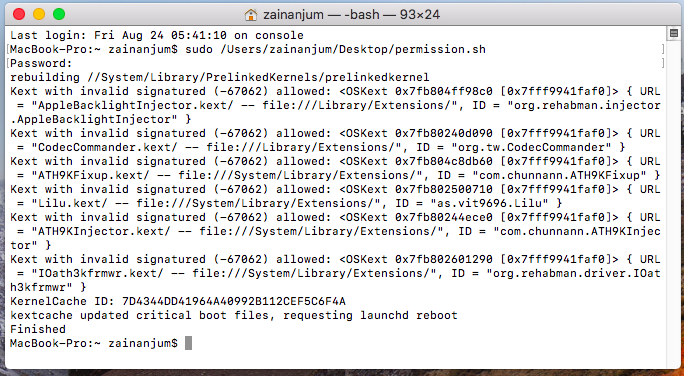

couldn't scan any wifi



1511266335_ScreenShot2018-08-24at12_11_55PM.thumb.png.a0034cd474063b4db1a602acfa4689be.png495012077_ScreenShot2018-08-24at5_44_52AM.png.841ef38a8bdc3c447bd0a779fcffae7a.png

Edited by zainanjum100
Link to comment
Share on other sites

20 hours ago, zainanjum100 said:

couldn't scan any wifi



1511266335_ScreenShot2018-08-24at12_11_55PM.thumb.png.a0034cd474063b4db1a602acfa4689be.png495012077_ScreenShot2018-08-24at5_44_52AM.png.841ef38a8bdc3c447bd0a779fcffae7a.png

  • User -ath9485 boot arg for AR9485 and -ath9565 for AR9565 (If you don't use any boot args it will do the patching for AR946X by default)

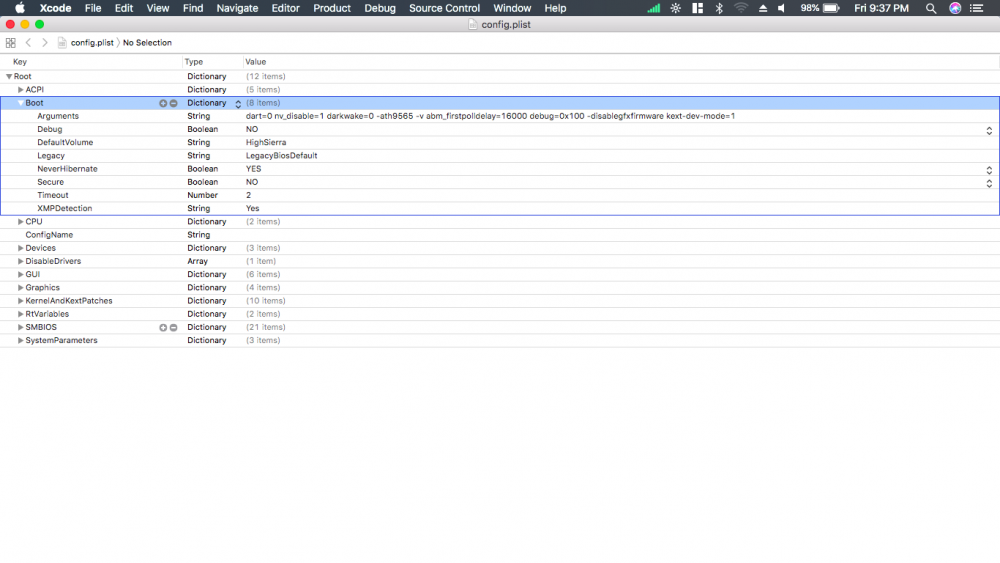

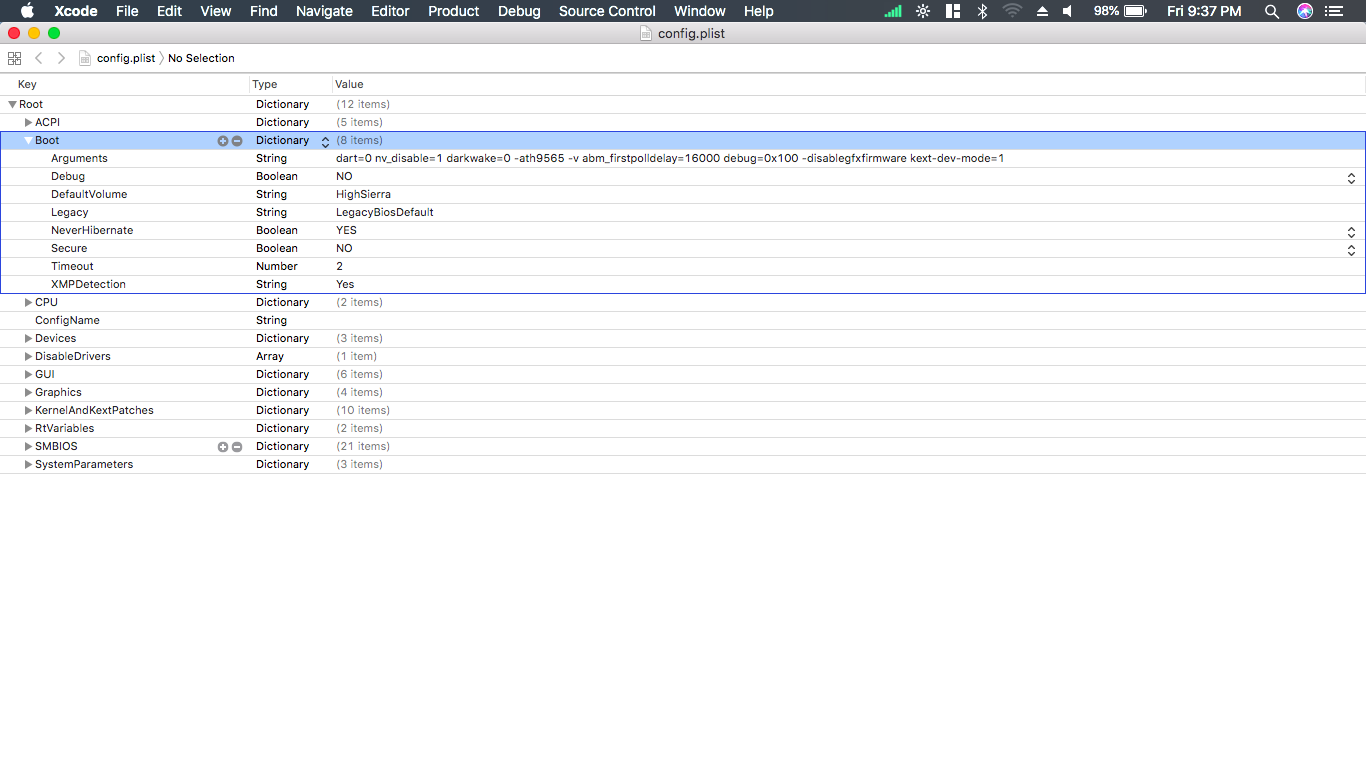

Please include the boot tag in Clover's configuration file: -ath9565

Edited by ic005k
Link to comment
Share on other sites

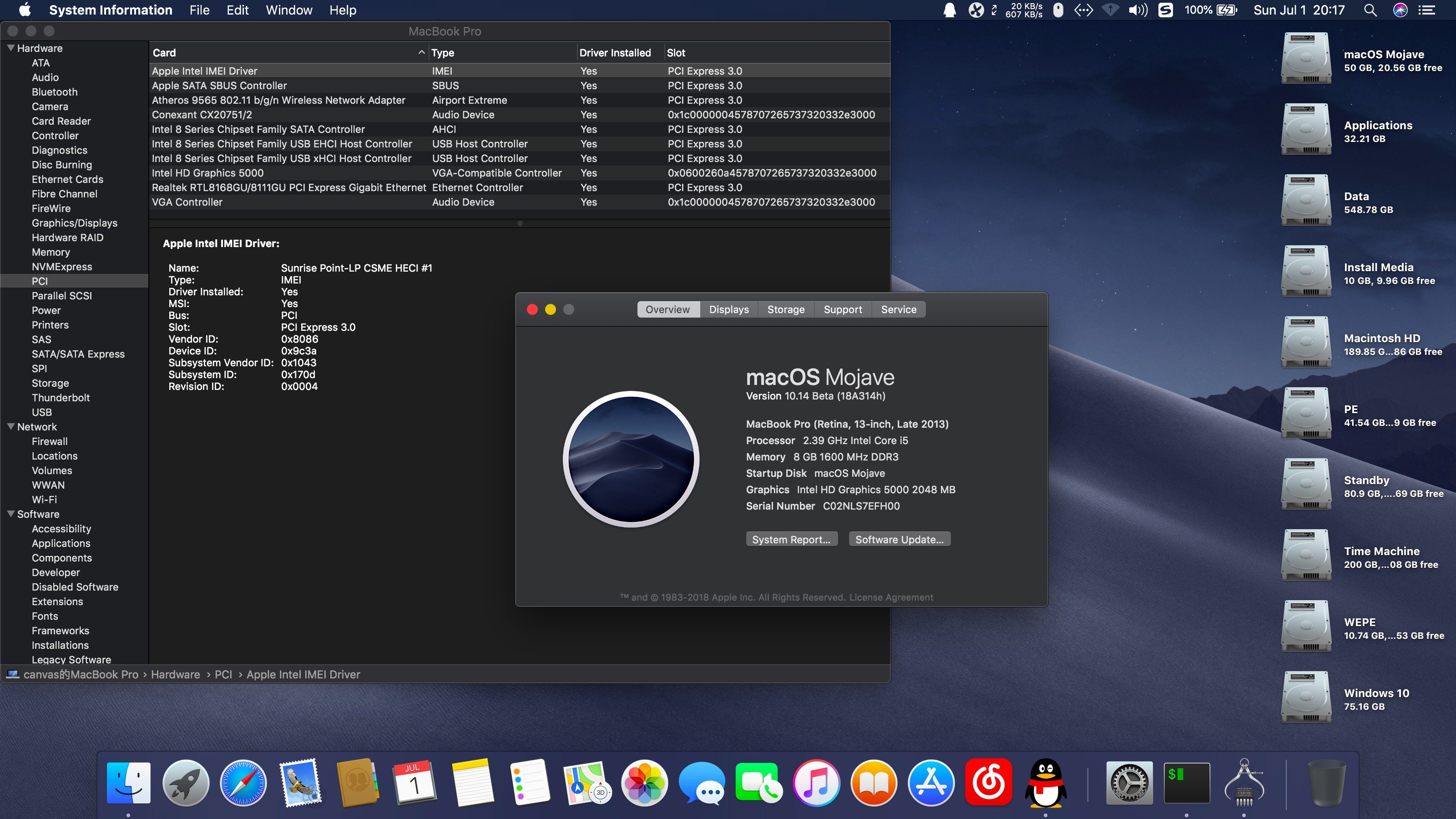

On 7/1/2018 at 5:35 PM, athlonreg said:

Hi everyone here,  today i driver my ar9565 wireless adaptor in macOS Mojave successfully, and i has commit the pull requests, https://github.com/chunnann/ATH9KFixup/pull/6

and there are the drivers i am usingATH9K-10.14.zip

You can install atherosairport40 to /system/library/extensions/io80211family.kext/contents/plugins,install lilu and ath9kfixup to clover, good luck for you




i have the same wifi device AR9565 and i am on Mojave public beta 8

i followed your method but it did not work even hardware did not recognize

Can some one come up like an angel and fix my problem.?

Link to comment
Share on other sites

1 hour ago, zainanjum100 said:

i have the same wifi device AR9565 and i am on Mojave public beta 8

i followed your method but it did not work even hardware did not recognize

Can some one come up like an angel and fix my problem.?

Is the network card hardware broken? Try to see if this NIC is working properly under Windows or Linux.

Link to comment
Share on other sites

Has anyone been able to get 9485 to work with ATH9kFixup on Mojave? Or even High Sierra?



If so, where exactly did you place the kexts? Clover? S/L/E?



I was never able to get ATH9KFixup to work

Edited by Dr. Hurt
Link to comment
Share on other sites

On 9/9/2018 at 2:21 AM, abheedevta said:

Can't have my Wifi at all. I am using Dell Vostro 14 3446, has AR 9565.
It doesn't even show up in the SysPref.

I tried almost every method mentioned in this thread and whatever could be found on internet.

same here same device but laptop 3468

Link to comment
Share on other sites
