Joshua60 Posted April 16, 2016 Share Posted April 16, 2016 Hi All, El Capitan installer could not recognize Intel 750 Nvme pcie ssd when trying to fresh-install (UEFI) thru GA-M170-D3H. Any success reported so far? Your comment and/or recommendation, if any, will be greatly appreciated. Hi arthurmo, Google is your friend or try: http://www.insanelymac.com/forum/topic/309311-nvme-express-digging/ 1 Link to comment Share on other sites More sharing options...
amit_talkin Posted April 16, 2016 Share Posted April 16, 2016 I need help here. I tried all possible ways ( tried many config.plist and kexts ) to install 10.11 on my MSI Gaming M5 Z170A motherboard + i7 6700k + 980TI GTX system. Everytime I try to boot from USB, it just reboots after pressing enter to boot from USB in clover menu. No error or anything, it just reboots after 2-5 seconds. Tried everything I could find out on google about fixing the issue ( IOAPIC patch ) as well as tried various config.plist from other skylake guides but it all giving me same thing. I have disabled VT-d, CFG LOck and enabled XHCI in bios. After messing up with it for 2 days I finally think I would ask You guys for help. Does anyone have clue whats going wrong here? Link to comment Share on other sites More sharing options...
C.Frio Posted April 16, 2016 Share Posted April 16, 2016 hi... supposing you used all the .app to make your usb... did you try boot with nv_disable=1? boot with arguments..verbose, nv_disable=1, dart=0 disable serial port.. play with usb ports..if you have a hub ,use it.. c.frio Link to comment Share on other sites More sharing options...
amit_talkin Posted April 16, 2016 Share Posted April 16, 2016 @C.Frio, Thanks for the reply. Yes, I have tried all the boot args nv_disable=1, dart=0 kext-dev-mode=1 -v -x -f everything. disabled serial port as well in BIOS. tried different USB Ports ( I have tried different ports except usb 3.1gen2 on mobo ) . It always reboot just after that 1st ++++++++++++++++++ line. I dunno whats wrong here. Link to comment Share on other sites More sharing options...
chris1111 Posted April 16, 2016 Author Share Posted April 16, 2016 @C.Frio, Thanks for the reply. Yes, I have tried all the boot args nv_disable=1, dart=0 kext-dev-mode=1 -v -x -f everything. disabled serial port as well in BIOS. tried different USB Ports ( I have tried different ports except usb 3.1gen2 on mobo ) . It always reboot just after that 1st ++++++++++++++++++ line. I dunno whats wrong here. -x not working since Yosemite on USB installer dont using annymore Link to comment Share on other sites More sharing options...
C.Frio Posted April 16, 2016 Share Posted April 16, 2016 hi.. ..check serial and parallels ports disable... CFG lock disable.. secure mode disable intel virtual.. disable lan ROM disable but annotate your changes each time... ADD: boot ...verbose,dart=0 nv_disable=1 c.frio Link to comment Share on other sites More sharing options...
amit_talkin Posted April 16, 2016 Share Posted April 16, 2016 Hi again @C.Frio, Here are few BIOS changes I have made. VT-d Disabled CFG Lock Disabled Win 8/10 Support Disabled Win 7 Installation Support Disabled Fast Boot Disabled Secure Boot Disabled LAN Rom Disabled Memory uses XMP profile, BIOS is up to date. ( I have also modded BIOS to show IOAPIC option so I can disable them even though it is patched in config.plist. But somehow BIOS still not showing me that option ). I tried iMac 17.1 SMBIOS but it gives me error "this version of mac is not supported on this platform". -x not working since Yosemite on USB installer dont using annymore Thanks for headsup. I actually just gave it a shot as nothing is working for me. Thanks to letting me know that this is obsolete. Link to comment Share on other sites More sharing options...
C.Frio Posted April 16, 2016 Share Posted April 16, 2016 hi.. with my MSI z170a pc mate..the el capitan skylake made basically all.. even the choice for SMBIOS... and I think..or you patch IOAPIC or you have an modded bios one..not booth at same time..but this is not my "beach".. play with usb ports...turn AC off then change port..I had I fight too c.frio 1 Link to comment Share on other sites More sharing options...
chris1111 Posted April 17, 2016 Author Share Posted April 17, 2016 Update V5 2 Link to comment Share on other sites More sharing options...
amit_talkin Posted April 18, 2016 Share Posted April 18, 2016 Anyways, I successfully installed it on physical partition using VMWare and now will boot from that partition on real machine and fix kexts. I had no luck installing it from real machine. But as always virtual installation trick helped me. 1 Link to comment Share on other sites More sharing options...
C.Frio Posted April 24, 2016 Share Posted April 24, 2016 hi... @chris1111.. at chat ,I saw a config from @stehor ..on MSI MBs z170 , without any kext patched..real so simple config..if this is real now (10.11.4), seam the clover config special edition can be used to install on skylake... could you check this,if you have time.. c.frio Link to comment Share on other sites More sharing options...
chris1111 Posted April 24, 2016 Author Share Posted April 24, 2016 hi... @chris1111.. at chat ,I saw a config from @stehor ..on MSI MBs z170 , without any kext patched..real so simple config..if this is real now (10.11.4), seam the clover config special edition can be used to install on skylake... could you check this,if you have time.. c.frio Sorry dont understand what you whant exacly Link to comment Share on other sites More sharing options...
C.Frio Posted April 24, 2016 Share Posted April 24, 2016 hi.. @chris1111.. just to report...as "el capitan skylake usb",has some kexts patched.. maybe it does not need it anymore, and "clover special edition " can install os x on skylake too.. if I recover his config ,I will send to you.. c.frio 1 Link to comment Share on other sites More sharing options...
chris1111 Posted April 24, 2016 Author Share Posted April 24, 2016 hi.. @chris1111.. just to report...as "el capitan skylake usb",has some kexts patched.. maybe it does not need it anymore, and "clover special edition " can install os x on skylake too.. if I recover his config ,I will send to you.. c.frio Ok great thanks Link to comment Share on other sites More sharing options...
William Parker Posted April 25, 2016 Share Posted April 25, 2016 Hey chris1111 I envy you. Canada is a beautiful country & I hope to visit it someday and break some bread with you maybe ;-) But right now I am sweating it out on my new build here http://www.insanelymac.com/forum/topic/311934-gigabyte-z170m-d3h-6700k-build-pm/?hl=%2B6700k&do=findComment&comment=2234330 This is Power management related & instead of discussing it here I would really appreciate if you could join us there. Thanks. Link to comment Share on other sites More sharing options...
chris1111 Posted April 25, 2016 Author Share Posted April 25, 2016 Hey chris1111 I envy you. Canada is a beautiful country & I hope to visit it someday and break some bread with you maybe ;-) But right now I am sweating it out on my new build here http://www.insanelymac.com/forum/topic/311934-gigabyte-z170m-d3h-6700k-build-pm/?hl=%2B6700k&do=findComment&comment=2234330 This is Power management related & instead of discussing it here I would really appreciate if you could join us there. Thanks. Thanks you!Sorry but I dont have à skylake mtherboard and dont have a Time to put My Head on the power management ::/ Link to comment Share on other sites More sharing options...
C.Frio Posted May 3, 2016 Share Posted May 3, 2016 hi.. if you have time could you update to clover 35... tks.. c.frio 1 Link to comment Share on other sites More sharing options...
William Parker Posted May 4, 2016 Share Posted May 4, 2016 Updated Clover to 3504, not any visible changes on PM & working stable. 1 Link to comment Share on other sites More sharing options...

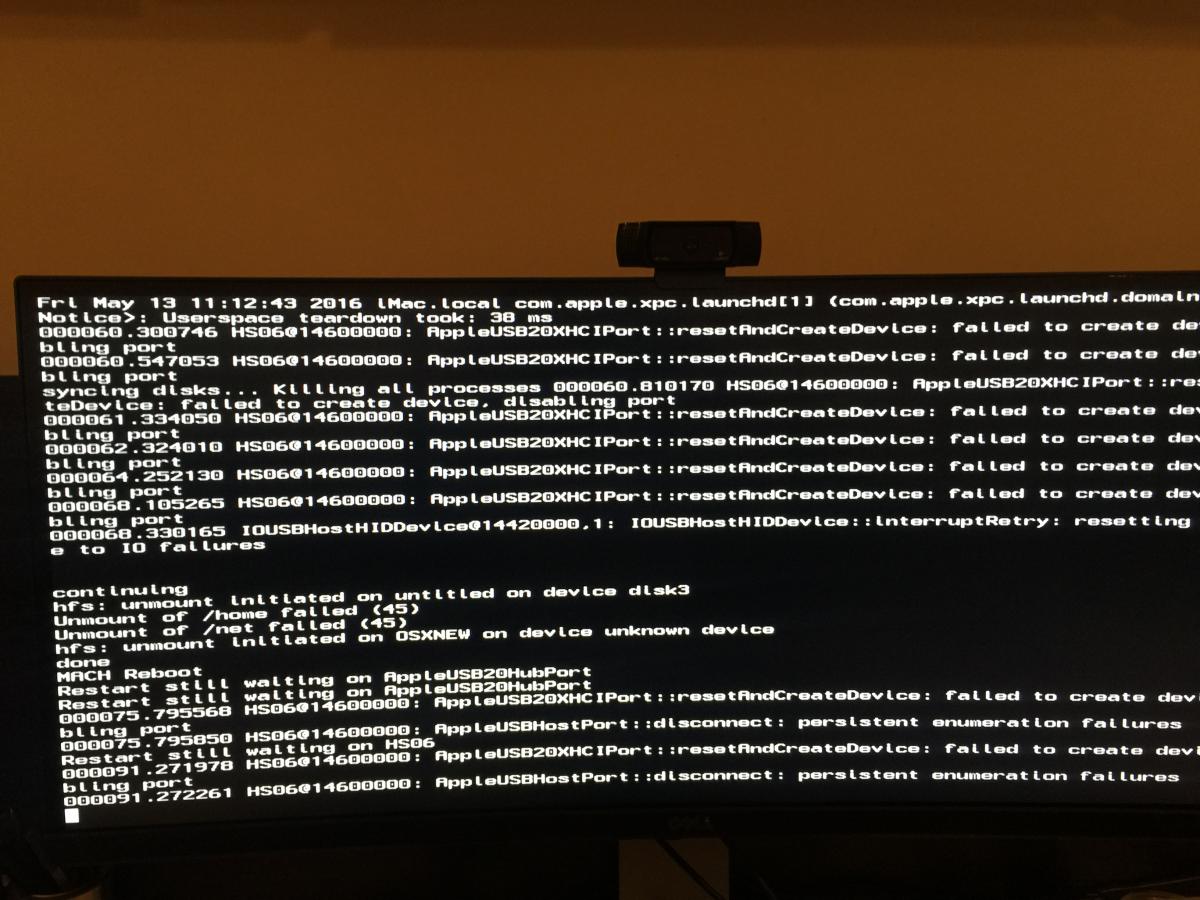

CyberEvil Posted May 13, 2016 Share Posted May 13, 2016 Hi, I have an ASUS Z170 PRO Gaming, and installed it successfully using this guide. The problem is when it finishes installing, upon restarting the hard drive (all works) the welcome screen appears, then I select the country, keyboard, and then network. Once hitting next (after the network) it goes back to the console and throws the errors in the picture attached here, and reboots on its own. I can go back to the hard drive, which asks me to fill again country, keyboard, network and restarts again :loop:. Any ideas on what may be wrong? Thank you! Link to comment Share on other sites More sharing options...
C.Frio Posted May 13, 2016 Share Posted May 13, 2016 hi.. you have tried yet but... and did you accept the network? if yes..try "my computer does not connect to internet"or something like that.. and / or try using "USBInjectAll.kext" c.frio 1 Link to comment Share on other sites More sharing options...
telepati Posted May 14, 2016 Share Posted May 14, 2016 @chris1111 Hi, will you make update anytime soon? Link to comment Share on other sites More sharing options...
chris1111 Posted May 14, 2016 Author Share Posted May 14, 2016 @chris1111 Hi, will you make update anytime soon? Done ! Installer V6 Clover r3526 2 Link to comment Share on other sites More sharing options...
telepati Posted May 14, 2016 Share Posted May 14, 2016 Done ! Installer V6 Clover r3526 Wow. You are amazing. Thank you. Link to comment Share on other sites More sharing options...
chris1111 Posted May 17, 2016 Author Share Posted May 17, 2016 Update V7 See change Log 1 Link to comment Share on other sites More sharing options...
C.Frio Posted May 28, 2016 Share Posted May 28, 2016 hi... is "clover special edition" now Skylake capable now? did this skylake .pkg stopped? c.frio Link to comment Share on other sites More sharing options...
