Creative CA0132 (G1.Sniper M3) patch for AppleHDA or VoodooHDA

[abdouoi]

10.11.4 kext old mic settings



AppleHDA_2chann.kext.zip

This one works. Thanks!

[abdouoi]

Hi

10.11.4 not work for me.

Can you upload config.plist

thanks.

There is nothing related to audio that needs to be done in config.plist but you need to set your layout-id to 0 in your dsdt

[nmano]

Clover x99 patch not work 10.11.4

Fixed x99 patch

Find 208C

Replace All 208D

Get tool Hex Fiend

Now sound worked.

[abdouoi]

Clover x99 patch not work 10.11.4

Fixed x99 patch

Find 208C

Replace All 208D

Get tool Hex Fiend

Now sound worked.

I'm not using any patch so that's why it worked for me just after installing the Kext provided by Wern Apfel. But the patch you're talking about might be helpful to some people using a patch

[Blacky]

Hei guys,



I just upgraded to 10.11.4 and after one day of struggle I've managed to get everything back up and running.

Unfortunately I can;t get the sound to work. The problems is my DSDT.



The DSDT that I used until 10.11.3 can be found here: GA-X99-Gaming 5P



But this Dsdt is not working anymore with 10.11.4 and either kernel panics or just hangs during boot. Therefore I can no longer set my layout ID and consequently I can't get your AppleHDA to work.

[wern apfel]

Here is the patched DSDT, now you can use one of my kexts, if you use the hole package you should remove the applehdadisabler and voodoohda



DSDT.aml.zip



PS: NullCPUPM is not recommended

[Blacky]

Thank you very much! My system boots with this DSDT.

Unfortunately I can't get the sound to work because OSX will kernel panic if I enable the kext patch 208C to 208D in clover.

Without the kernel patch I get assertion errors in AppleHDAController during boot and the sound won't work.

[wern apfel]

If your system works without dsdt remove it and set the clover HDA fix for audio, and the controller patch.

[Blacky]

It works without the DSDT. But I have no idea what the HDA fix is or the controller patch.

Plus without the DSDT I have no HDMI audio or any audio of any kind. The system doesn't detect any audio card without your DSDT.

[wern apfel]

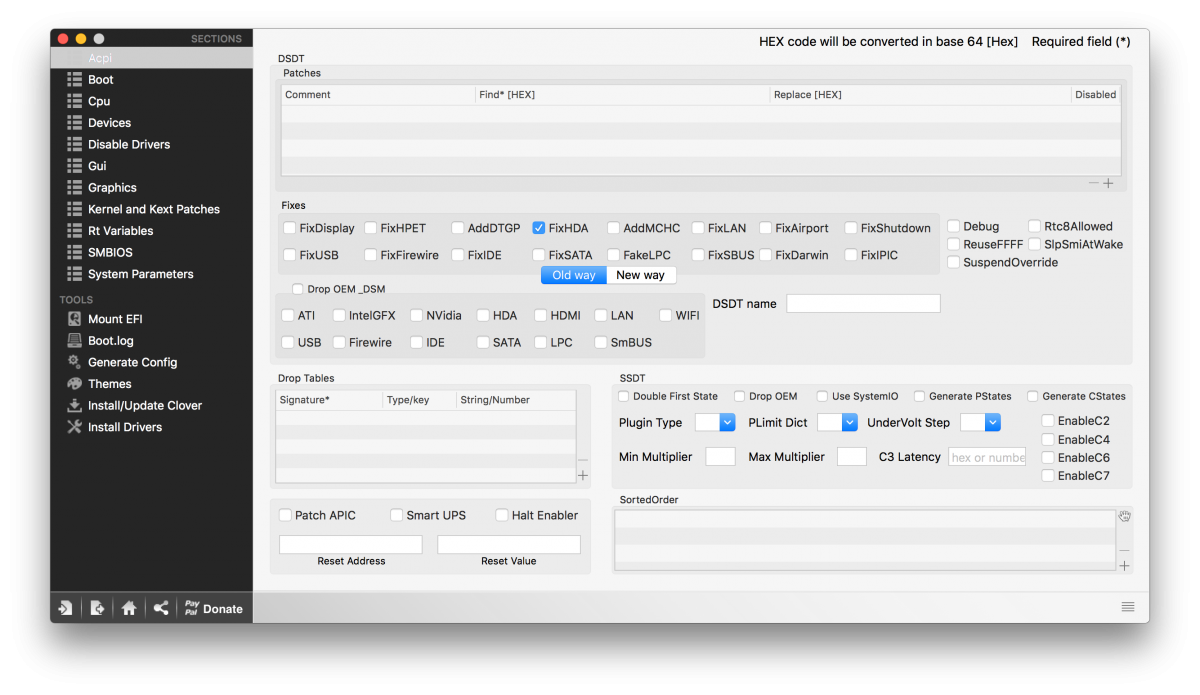

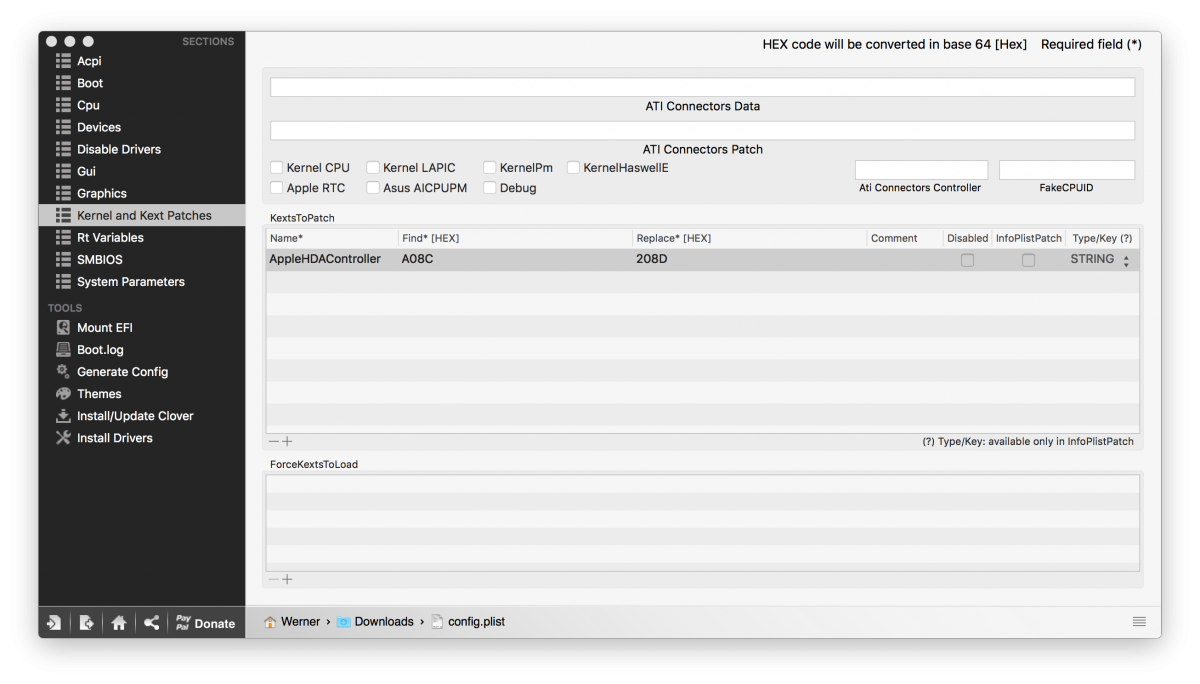

FixHDA see picture, controller patch = 208C to 208D



[Blacky]

Oh, that!

Unfortunately, if I enable FixHDA and the kext patch I get the exact same kernel panic as the with your DSDT.

The kernel error is because of HDAController

[wern apfel]

You can try another supported device-Id



http://www.insanelymac.com/forum/topic/310914-applehdacontroller-native-intel-ids/?hl=%2Bcontroller+%2Bid

[Blacky]

You mean to try to patch 208C to something else?

Or to patch a different string to 208D.



From what I see, in your DSDT the device-id is set 0xBB, 0x0F, 0x00, 0x00 - which I have no idea what it means.



EDIT:

My understanding from that thread is that I should patch 208C to A08C . Which in my case leads to a similar kernel panic. I am sorry, I really don't understand very well what I am supposed to do.

[wern apfel]

I've removed the layout-id entry from HDEF device, your id should be 0 now



Find = supported ID, replace = your ID



Try the intel 9 series

[Blacky]

It worked!



I have

Output: Line Out (rear), Digital Out

Input: Internal Microphone



I suppose I would be asking too much if I wanted my front Line Out to work as well...



Either way, wern apfel you are the greatest. If you have BTC account I will send a small token of appreciation.

[wern apfel]

Have you tried the rear HP jack ?, it should als work.

Here a kext with front HP, 5.1 is also possible, if someone needs the rear orange jack i will upload a kext with working 5.1 @ rear green, black, and orange jack



AppleHDA.kext_10.11.4_front_HP.zip

[nmano]

Have you tried the rear HP jack ?, it should als work.

Here a kext with front HP, 5.1 is also possible, if someone needs the rear orange jack i will upload a kext with working 5.1 @ rear green, black, and orange jack



AppleHDA.kext_10.11.4_front_HP.zip

Thanks Apfel

First time worked HP I like this I know how long you spend this.

thank you so much your hard work.

[wern apfel]

Thanks Apfel

First time worked HP I like this I know how long you spend this.

thank you so much your hard work.



I guess this i the first time you use one of my kexts in its initial state, you've always changed the layout-id and unfortunately also removed some needed entries.

I don't remember that someone asked for working front HP.

[Blacky]

Have you tried the rear HP jack ?, it should als work.

Here a kext with front HP, 5.1 is also possible, if someone needs the rear orange jack i will upload a kext with working 5.1 @ rear green, black, and orange jack



AppleHDA.kext_10.11.4_front_HP.zip



Sorry for my earlier reply. Your kext works flawlessly! Thank you very much!

[alex88]

Did someone tried this on the Gigabyte z170x-gaming 7? It should have the same audio card, I tried the kext available here http://www.insanelymac.com/forum/topic/309729-gigabyte-z170x-gaming-7-success-hackintosh/page-1but I got just sound from the back jack of speakers, front headphones doesn't work.



Trying just this one doesn't work, no sound output detected

[wern apfel]

You can try the kext from post 216, remove the dummy kext, disable the clover OTF patch and set layout-id to 0.

If you can't do it, upload your dsdt and config.plist, i will edit the files for you.

[yassinex]

Have you tried the rear HP jack ?, it should als work.

Here a kext with front HP, 5.1 is also possible, if someone needs the rear orange jack i will upload a kext with working 5.1 @ rear green, black, and orange jack



AppleHDA.kext_10.11.4_front_HP.zip



hi can you upload the full feature one please ?

[yassinex]

I you people don't mind, try this "on the fly patch" from vit9696 with the valuable help of vandroiy2012 for CA0132.



I'm using wern apfel AppleHDA.kext_10.11.4_front_HP.zip in /S*/L*/E* and it works.



I dont have the same result with the Clover Version you can find here



http://www.insanelymac.com/forum/topic/311293-applealc-—-dynamic-applehda-patching/?p=2237829



It's a great sollution, that keep AppleHDA.ket untouched, so no problem after any system update....



Give it a try, and give your comments.



Cheers

[wern apfel]

hi can you upload the full feature one please ?

I don't no if i have a full featured kext, i've no front panel, no 5.1 system only two headphones for testing.

You have to ask nmano (manor) Andress and Mirone, regarding to this post they made some non public tests, here is also an discussion, maybe they know more about this kext, they/he also quickly repatch the kexts after i've had upload a test sample. I don't now what they/he intend but they keep user away from my test files, because a lack of testers and poor feedback i've give it up.



At this point i wanna say thanks to the few users how give me feedback.



You can also ask @Andress topic for testers, maybe you have more luck, i guess all those users have this codec.

[yassinex]

I don't no if i have a full featured kext, i've no front panel, no 5.1 system only two headphones for testing.



Thanks wern apfel. I was just referring to your post #216 where you were saying :



if someone needs the rear orange jack i will upload a kext with working 5.1 @ rear green, black, and orange jack.





So I need that kext, if you can find it



Thank you.
