wern apfel Posted January 18, 2016 Author Share Posted January 18, 2016 Please don't upload your kext with other layout-ids, new users get confused. I made some progress but i'm not sure if it makes sense to upload it, at the end we have one kext with all possible layout-ids. I think the best is if someone can patch that creative control panel, maybe there is only a simple device check, we have a lot of programmers here. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2207986 Share on other sites More sharing options...
abdouoi Posted January 20, 2016 Share Posted January 20, 2016 Can you help me please? After updating to 10.11.3, sound doesn't work anymore. I was using the patched applehda 2 channels Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208337 Share on other sites More sharing options...
wern apfel Posted January 20, 2016 Author Share Posted January 20, 2016 volume control worked 4 output worked 2 input worked Set DSDT LayoutID=0 have you tried it with a multichannel file, i guess both jacks use the same DAC Can you help me please? After updating to 10.11.3, sound doesn't work anymore. I was using the patched applehda 2 channels You can reinstall the old kext, i will update it later Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208360 Share on other sites More sharing options...
nmano Posted January 20, 2016 Share Posted January 20, 2016 have you tried it with a multichannel file, i guess both jacks use the same DAC You can reinstall the old kext, i will update it later i don't know How to config volume control 2=2 I have HDAPatcher for Creative CA0132 but waiting for VConrol. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208410 Share on other sites More sharing options...

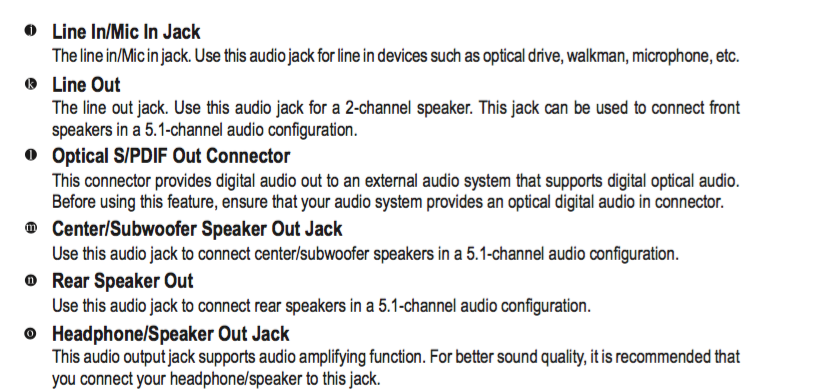

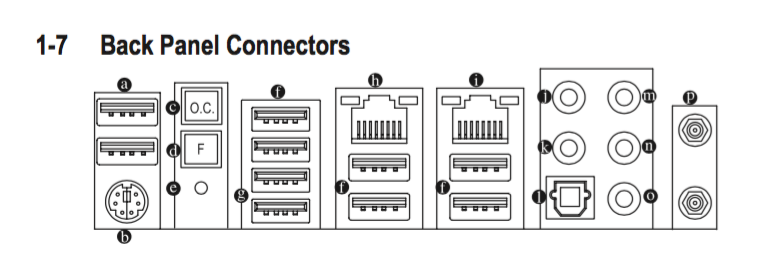

Blacky Posted January 20, 2016 Share Posted January 20, 2016 Just a friendly reminder, our audio cards have: OUTPUT REAR 1 x SPDIF 1 x OUTPUT (Main) 1 x OUTPUT (Headphone) 1 x OUTPUT (Rear) 1 x OUTPUT (C/Sub) FRONT 1 x OUTPUT Headphones INPUT REAR 1 x INPUT Microphone FRONT 1 x INPUT Microphone So in total there are 6 outputs and 2 inputs. Correct me if I am wrong. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208424 Share on other sites More sharing options...
Andres ZeroCross Posted January 20, 2016 Share Posted January 20, 2016 Thank you Andrea, here is my folder. Joe 1. Change your Clover with ones that i have uploaded 2. Install "AppleHDA.kext" with kext Utility Let's me know if it works for you CLOVER.zip AppleHDA.kext.zip Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208426 Share on other sites More sharing options...
nmano Posted January 20, 2016 Share Posted January 20, 2016 10.11.3 Set layout ID: 0 AppleHDA-272.51.3-Creative-CA0132_files.zip Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208452 Share on other sites More sharing options...
abdouoi Posted January 21, 2016 Share Posted January 21, 2016 10.11.3 Set layout ID: 0 I've tried with your kext, it doesn't work Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208691 Share on other sites More sharing options...
buyjoey Posted January 21, 2016 Share Posted January 21, 2016 1. Change your Clover with ones that i have uploaded 2. Install "AppleHDA.kext" with kext Utility Let's me know if it works for you Hi, Andres I did replace it and install the Kext. and Reboot. No audio detected. Joe. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208694 Share on other sites More sharing options...
Andres ZeroCross Posted January 21, 2016 Share Posted January 21, 2016 Hi, Andres I did replace it and install the Kext. and Reboot. No audio detected. Joe. Take a screenshot of DPCIManager. I want to see it Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208748 Share on other sites More sharing options...
nmano Posted January 21, 2016 Share Posted January 21, 2016 I've tried with your kext, it doesn't work I can't help without information Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208788 Share on other sites More sharing options...
Blacky Posted January 21, 2016 Share Posted January 21, 2016 I can't help without information Works for me. No volume control and not all outputs but hei. At least I have the sound. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208855 Share on other sites More sharing options...
nmano Posted January 21, 2016 Share Posted January 21, 2016 Works for me. No volume control and not all outputs but hei. At least I have the sound. If you want v/conrol try same kext ID 9 Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208872 Share on other sites More sharing options...
Blacky Posted January 21, 2016 Share Posted January 21, 2016 If you want v/conrol try same kext ID 9 To be honest, I think the sound quality is a lot better on layout 0. But maybe it's my impression. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208882 Share on other sites More sharing options...
buyjoey Posted January 21, 2016 Share Posted January 21, 2016 Take a screenshot of DPCIManager. I want to see twitch your With your file applied one? or mine? And Is it ok update 10.11.3? I don't know which screen I should capture. I put some of screen shots. let me know what exact you want. Archive.zip Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2208884 Share on other sites More sharing options...
abdouoi Posted January 21, 2016 Share Posted January 21, 2016 I can't help without information I was using the patched kext (2channels version) on 10.11.2 and it was working fine. After updating to 10.11.3 no audio is detected even after replacing applehda with the patched one Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2209016 Share on other sites More sharing options...
buyjoey Posted January 22, 2016 Share Posted January 22, 2016 With your file applied one? or mine? And Is it ok update 10.11.3? I don't know which screen I should capture. I put some of screen shots. let me know what exact you want. Andres, My sound is working with your kext. But now volume controller is disabled. Before install your files, my sound was working and volume controller abled to show feedback(but not control actual sound strength) Now sound still working but controller is showing disabled. Joe. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2209050 Share on other sites More sharing options...
abdouoi Posted January 24, 2016 Share Posted January 24, 2016 Can someone help me please? I used to have sound on 10.11.2. After updating to 10.11.3 no more sound even after reinstalling the patched applehda from 10.11.2 Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2209890 Share on other sites More sharing options...

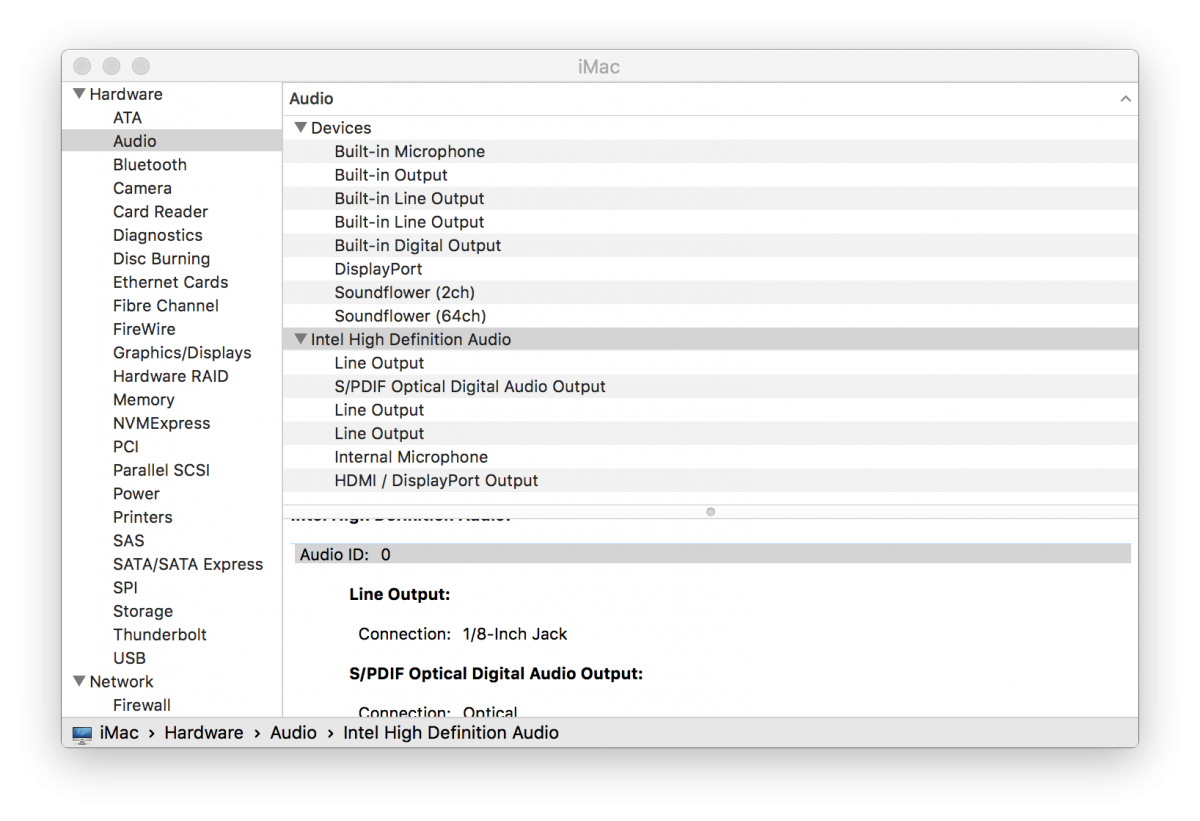

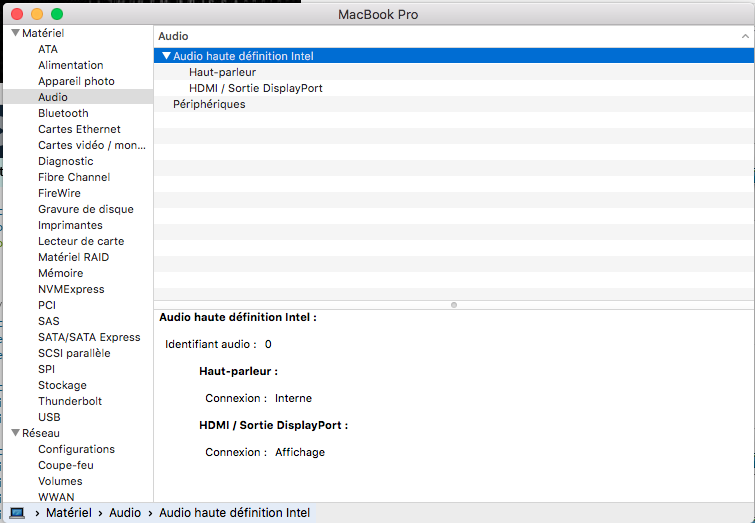

wern apfel Posted January 24, 2016 Author Share Posted January 24, 2016 What kext do you use ?, look at the system profiler if your audio-id is 0 the 2channel kext should work otherwise change it Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210043 Share on other sites More sharing options...
abdouoi Posted January 25, 2016 Share Posted January 25, 2016 What kext do you use ?, look at the system profiler if your audio-id is 0 the 2channel kext should work otherwise change it I'm using the kext from post #25 and my audio-id is set to 0 Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210100 Share on other sites More sharing options...
nmano Posted January 25, 2016 Share Posted January 25, 2016 I'm using the kext from post #25 and my audio-id is set to 0 Try this 10.11.3 LayoutID = 9 AppleHDA-272.51.3-Creative-CA0132_files.zip Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210101 Share on other sites More sharing options...
abdouoi Posted January 25, 2016 Share Posted January 25, 2016 Try this 10.11.3 LayoutID = 9 It doesn't work. No audio device detected Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210103 Share on other sites More sharing options...
nmano Posted January 25, 2016 Share Posted January 25, 2016 It doesn't work. No audio device detected <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Rename Codec 1</string> <key>Find</key> <data> AIjsGg== </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> EQACEQ== </data> </dict> <dict> <key>Comment</key> <string>Rename Codec 2</string> <key>Find</key> <data> dBmtFQ== </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> AAAAAA== </data> </dict> <dict> <key>Comment</key> <string>X99 Chipsets Audio controller</string> <key>Find</key> <data> IIw= </data> <key>Name</key> <string>AppleHDAController</string> <key>Replace</key> <data> II0= </data> </dict> </array> </dict> </plist> Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210109 Share on other sites More sharing options...
abdouoi Posted January 25, 2016 Share Posted January 25, 2016 <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Rename Codec 1</string> <key>Find</key> <data> AIjsGg== </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> EQACEQ== </data> </dict> <dict> <key>Comment</key> <string>Rename Codec 2</string> <key>Find</key> <data> dBmtFQ== </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> AAAAAA== </data> </dict> <dict> <key>Comment</key> <string>X99 Chipsets Audio controller</string> <key>Find</key> <data> IIw= </data> <key>Name</key> <string>AppleHDAController</string> <key>Replace</key> <data> II0= </data> </dict> </array> </dict> </plist> Still doesn't work, no audio device detected Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210129 Share on other sites More sharing options...
nmano Posted January 25, 2016 Share Posted January 25, 2016 Anybody work headphone jack o please conform thank you. Link to comment https://www.insanelymac.com/forum/topic/309283-creative-ca0132-g1sniper-m3-patch-for-applehda-or-voodoohda/page/4/#findComment-2210164 Share on other sites More sharing options...
