zhhbc Posted September 24, 2017 Share Posted September 24, 2017 @Mieze, I am running into a problem potential related to the drive. Here is the symptom: when computer boot up, the everything works fine, but when the computer wakes up from sleep, sometimes ( not always), the computer freezes: i.e. No KP, but screens just freezes, keyboard stops working as well. After removing IntelMausiEthernet.kext, there is no more freezes. The computer is HP EliteDesk 800 G1. The NIC is onboard Intel Corporation Ethernet Connection I217-LM (rev 04). I am running macOS 10.12.6. I tried IntelMausiEthernet version 2.2.0. And recompiled from latest codebase (2.3.0), both show the same symptom. Any hint to how can I debug this problem? I really hope that I could get your driver working on the computer. Thanks a lot! Link to comment Share on other sites More sharing options...
Mieze Posted September 25, 2017 Author Share Posted September 25, 2017 @Mieze, I am running into a problem potential related to the drive. Here is the symptom: when computer boot up, the everything works fine, but when the computer wakes up from sleep, sometimes ( not always), the computer freezes: i.e. No KP, but screens just freezes, keyboard stops working as well. After removing IntelMausiEthernet.kext, there is no more freezes. The computer is HP EliteDesk 800 G1. The NIC is onboard Intel Corporation Ethernet Connection I217-LM (rev 04). I am running macOS 10.12.6. I tried IntelMausiEthernet version 2.2.0. And recompiled from latest codebase (2.3.0), both show the same symptom. Any hint to how can I debug this problem? I really hope that I could get your driver working on the computer. Thanks a lot! First of all, as your system has a Q87 chipset and an I217LM, there is probably some remote management software built into the BIOS. Make sure that it's disabled completely. As you don't get a KP but a system freeze I assume that the ME is in control of the NIC which may explain the freeze. Also check other BIOS settings and take a look at the DSDT. Sleep wake problems often result form BIOS and/or DSDT problems and are hard to debug. Also try to disable WoL in System Preferences as it may help too. I had an instant reboot on wakeup with WoL enabled on my development machine too and was able so resolve it with a DSDT patch and a change in the BIOS settings. Good luck! Mieze 1 Link to comment Share on other sites More sharing options...
zhhbc Posted September 26, 2017 Share Posted September 26, 2017 First of all, as your system has a Q87 chipset and an I217LM, there is probably some remote management software built into the BIOS. Make sure that it's disabled completely. As you don't get a KP but a system freeze I assume that the ME is in control of the NIC which may explain the freeze. Also check other BIOS settings and take a look at the DSDT. Sleep wake problems often result form BIOS and/or DSDT problems and are hard to debug. Also try to disable WoL in System Preferences as it may help too. I had an instant reboot on wakeup with WoL enabled on my development machine too and was able so resolve it with a DSDT patch and a change in the BIOS settings. Good luck! Mieze @Mieze, Thanks a lot for your tip. You are right, there is an AMT built into BIOS. I tried to disable it completely from BIOS. But, the computer couldn't boot up anymore, it seems waiting for something after loading ethernet driver. The good news is that after I disabled the watchdog, (the watchdog is 5 seconds, and it is more or less matching the delay between computer wakes up and hang when watchdog is enabled), and disabled WOL, I didn't see hang problem(crossing fingers). thanks for a lot for your great effort providing the driver, and your suggestion that fixed the hang problem! Link to comment Share on other sites More sharing options...
losinka Posted October 15, 2017 Share Posted October 15, 2017 @Mieze Vielen Dank! Vielen Dank fuer Deine Arbeit! Die Version 2.3.0 funktioniert perfekt! Bin gluecklich Link to comment Share on other sites More sharing options...
Mork vom Ork Posted October 19, 2017 Share Posted October 19, 2017 @Mieze love this kext, but... is there any feature to "hide" the whole bootlog messages while using this kext during verbose boot? Any bootvariable to set "silent boot" w/o any printouts in the bootlog while verbose booting? Just a question and please don't worry, if this is not a feature yet, neither planned for a common release. Thanx in advance. Regards. Link to comment Share on other sites More sharing options...
Mieze Posted October 19, 2017 Author Share Posted October 19, 2017 @Mieze love this kext, but... is there any feature to "hide" the whole bootlog messages while using this kext during verbose boot? Any bootvariable to set "silent boot" w/o any printouts in the bootlog while verbose booting? Just a question and please don't worry, if this is not a feature yet, neither planned for a common release. Thanx in advance. RegardsWhat. Personally I wonder why anybody wants to have this feature? By the way, it's an open source driver any everybody is free to modify it according to his/her needs. Mieze Link to comment Share on other sites More sharing options...
xiyue Posted November 10, 2017 Share Posted November 10, 2017 Hi, I am running an AsRock H170M-ITX-ac with an Intel I219V interface under 10.12.1 with version 2.2.0d4, injected by Clover. When I boot the system with the cable connected, everything works fine. If I pull the cable and then reinsert, the status of the interface starts to toggle between 'Cable Unplugged' and 'Not Connected' and I have to reboot to get ethernet working again. This board also has an extra Realtek 8111H interface. At first I had not installed the Realtek driver and the problems described above already appeared. I installed the Realtek driver and if then I pull and reinsert the cable on the Realtek 8111h interface, ethernet comes back up again with no problems. Anyone any ideas what could be going wrong with the I219V port? Rgds, Tom The problem I encountered is the same as yours, the difference is my laptop is HP820G4, and the driver is v2.3.0Mieze also helpless... Link to comment Share on other sites More sharing options...
Mieze Posted November 15, 2017 Author Share Posted November 15, 2017 The problem I encountered is the same as yours, the difference is my laptop is HP820G4, and the driver is v2.3.0 Mieze also helpless... These kind of problem results from something else being in control of the NIC. Check your BIOS settings and make sure that any kind of remote management software and the UEFI network stack are disabled. Mieze Link to comment Share on other sites More sharing options...
xiyue Posted November 15, 2017 Share Posted November 15, 2017 @Mieze These kind of problem results from something else being in control of the NIC. Check your BIOS settings and make sure that any kind of remote management software and the UEFI network stack are disabled. Mieze Thank you for your attention. I have checked the BIOS settings, the relevant options only "wake on lan" and "lan/wan switch", and are disabled. I installed windows 10, kali linux, centos linux, freebsd with this laptop, the NIC works fine. I guess the problem is handle of the cable plug state, Can you make a tool to debug and log data? I will be a dedicated tester. I hope my poor English can express my wishes correctly. Link to comment Share on other sites More sharing options...
Mieze Posted November 15, 2017 Author Share Posted November 15, 2017 I guess the problem is handle of the cable plug state, Can you make a tool to debug and log data? I will be a dedicated tester. There is no need to make anything because you can use the debug version of the driver as it logs such events in detail. If there was a problem with link state detection, you should find some related log messages in the kernel logs when you plug/unplug the cable. Mieze Link to comment Share on other sites More sharing options...
ACIDSkyRU Posted November 22, 2017 Share Posted November 22, 2017 @Mieze Please help i219V not working Mac OS 10.13.2 beta Kext version 2.3.0 log - https://www.dropbox.com/s/wld3161s3vn0prt/123.zip?dl=0 Link to comment Share on other sites More sharing options...
Mieze Posted November 22, 2017 Author Share Posted November 22, 2017 @ACIDSkyRU: Looks like the Intel NIC has been disabled in UEFI setup. Mieze Link to comment Share on other sites More sharing options...

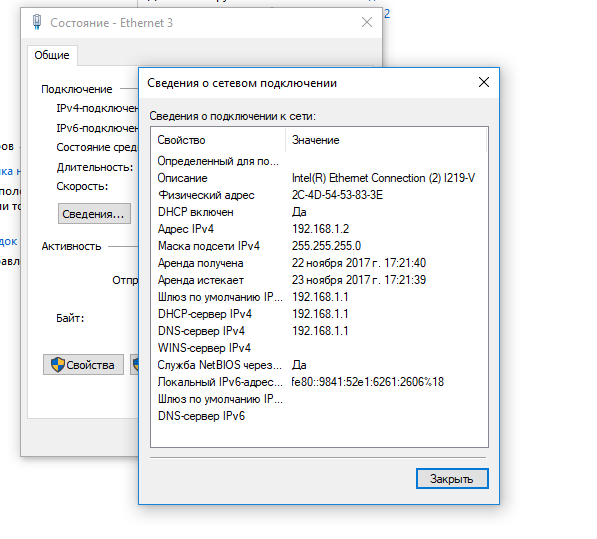

ACIDSkyRU Posted November 22, 2017 Share Posted November 22, 2017 @ACIDSkyRU: Looks like the Intel NIC has been disabled in UEFI setup. Mieze In the BIOS is enabled. Runs in Windows. Link to comment Share on other sites More sharing options...
Mieze Posted November 22, 2017 Author Share Posted November 22, 2017 @ACIDSkyRU: Use the debug version of the driver to collect more detailed logs and report back with log data containing at least one complete boot sequence. Please don't upload the complete file as it's no fun to search for log messages in a > 500MB file. Mieze Link to comment Share on other sites More sharing options...
ACIDSkyRU Posted November 22, 2017 Share Posted November 22, 2017 Link to comment Share on other sites More sharing options...

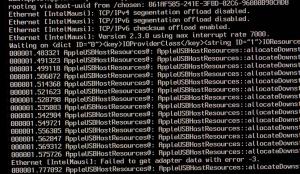

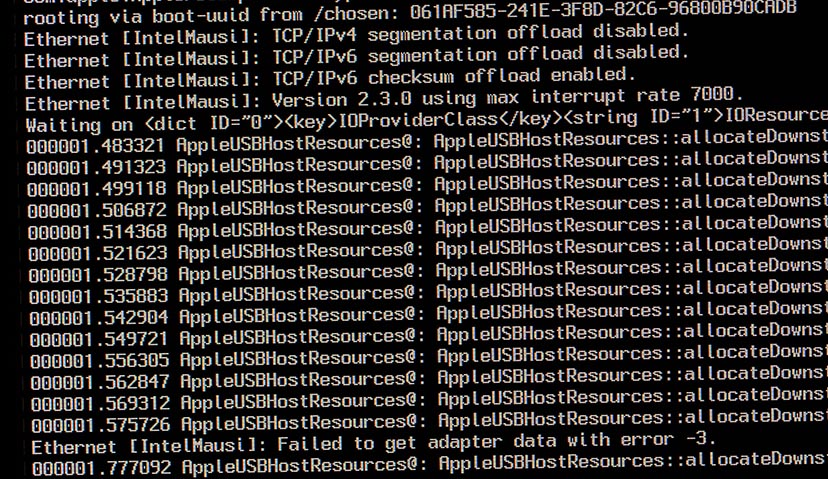

Mieze Posted November 22, 2017 Author Share Posted November 22, 2017 IMG_3553.jpg The management engine is in control of the NIC so that the driver is unable to take control. Make sure that the UEFI network stack and any remote management function is disabled in UEFI setup. Mieze Link to comment Share on other sites More sharing options...
TheRacerMaster Posted November 22, 2017 Share Posted November 22, 2017 This is probably a GbE firmware or ME issue. I encountered the same -3 error (with e1000e in Linux) when I was running coreboot (perhaps the GbE region wasn't being used?). You may want to try reflashing your firmware. 1 Link to comment Share on other sites More sharing options...
Fergarth Posted November 22, 2017 Share Posted November 22, 2017 Hi Mieze, Ok it's off topic and maybe not! I was sensitized with your topic and the dedication made in memory of your cat. You are certainly a good person! I also have and love my Pipo and Gui. A hug ? 2 Link to comment Share on other sites More sharing options...
ACIDSkyRU Posted November 22, 2017 Share Posted November 22, 2017 Nothing helped. Rolled back BIOS to older versions. On the website Tony, there are reports on the plant of my Board (ASUS Z170i gaming pro) and it works. There is a possibility of conflict with Lilu.kext and plugins? Link to comment Share on other sites More sharing options...
Mieze Posted November 22, 2017 Author Share Posted November 22, 2017 Nothing helped. Rolled back BIOS to older versions. On the website Tony, there are reports on the plant of my Board (ASUS Z170i gaming pro) and it works. There is a possibility of conflict with Lilu.kext and plugins? Provided the BIOS updates also contain a ME firmware update, have you chosen to update the ME firmware too while installing the BIOS update? I don't think that a Lilu plugin is causing the driver failure, at least I have no reason to assume it might be but, as not all of them are open source, it's hard to rule out completely. Please post an IOReg dump. Use version 3.0.2 of IORegistryExplorer to create the dump. Mieze Link to comment Share on other sites More sharing options...

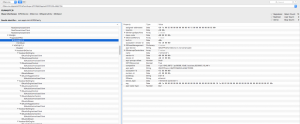

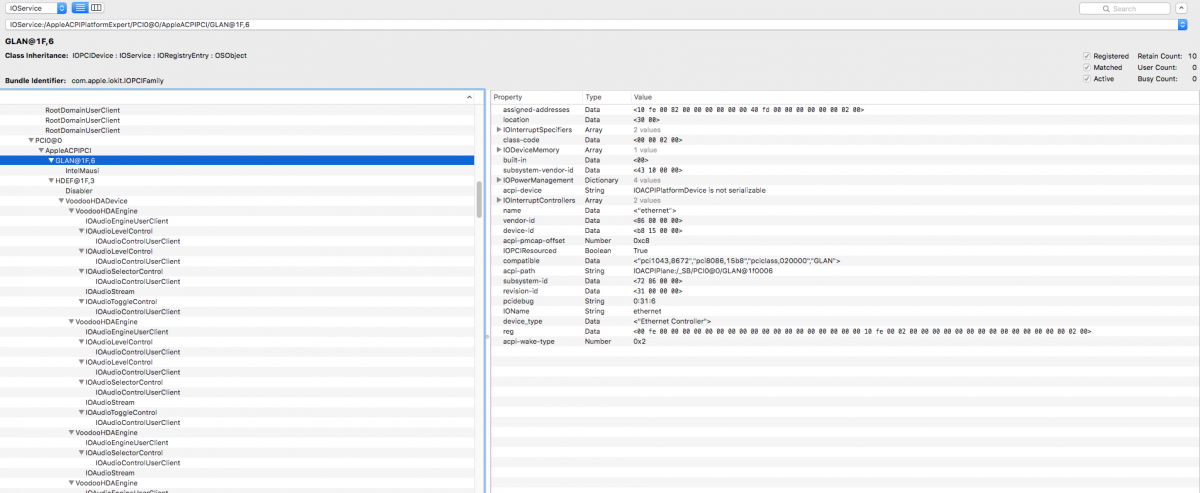

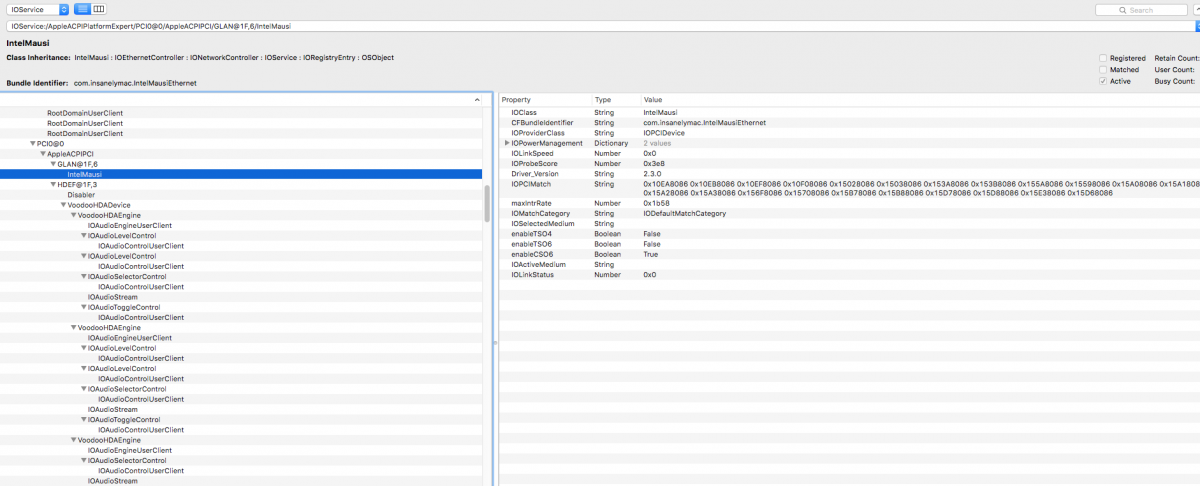

ACIDSkyRU Posted November 23, 2017 Share Posted November 23, 2017 Provided the BIOS updates also contain a ME firmware update, have you chosen to update the ME firmware too while installing the BIOS update? I don't think that a Lilu plugin is causing the driver failure, at least I have no reason to assume it might be but, as not all of them are open source, it's hard to rule out completely. Please post an IOReg dump. Use version 3.0.2 of IORegistryExplorer to create the dump. Mieze dump attached iMac.zip Link to comment Share on other sites More sharing options...
Slice Posted November 23, 2017 Share Posted November 23, 2017 @Mieze May be you already know this, may be no LAN Disable register A0h, bit0=1 -> disable LAN controller Is it causing such error? Link to comment Share on other sites More sharing options...
Mieze Posted November 23, 2017 Author Share Posted November 23, 2017 (edited) @Mieze May be you already know this, may be no LAN Disable register A0h, bit0=1 -> disable LAN controller Is it causing such error? The driver fails with "Failed to get adapter data with error -3." which means that the NIC's flash region isn't mapped but I have no idea why. Mieze EDIT: Have you enabled FixRegions in your Clover config file? Edited November 23, 2017 by Mieze Link to comment Share on other sites More sharing options...
ACIDSkyRU Posted November 23, 2017 Share Posted November 23, 2017 The driver fails with "Failed to get adapter data with error -3." which means that the NIC's flash region isn't mapped but I have no idea why. Mieze EDIT: Have you enabled FixRegions in your Clover config file? I blocked in the BIOS the option "IOAPIC 24-119 Entries" error was - "failed to get adapter data with error -2" Link to comment Share on other sites More sharing options...
Mieze Posted November 23, 2017 Author Share Posted November 23, 2017 I blocked in the BIOS the option "IOAPIC 24-119 Entries" error was - "failed to get adapter data with error -2" The screenshot you posted yesterday shows error -3 but error -2 means that there is a problem with the PHY which is most likely still under control of the management engine (ME). Link to comment Share on other sites More sharing options...
