max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Intanto mi consigli qualcosa per avere l'icona della batteria con la carica, sistemare le usb che non vengono viste e il trackpad? Ho già messo i file dal Pandora Installer ma non vanno lo stesso Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2014 Share Posted January 12, 2014 Voodoo battery, voodooPS2 e genericUSBXhci Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Sempre dal Pandora dici? Il voodoo lo ho già provato ma piantava l'avvio,ora intanto provo il genericUSBXhci Col genericUSB le usb ora vanno. Volevo chiederti se secondo te il chipset di questo pc, che è iINTEL HM76 è un misto Sandy/Ivy Bridges? Perché avrei trovato un AppleIntelSNBGraphicsFB.kext e un AppleIntelFramebufferCapri.kext per abilitare le HD3000 e HD4000 su un pc con quella configurazione. Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2014 Share Posted January 12, 2014 Prova, fatti un backup con TM Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Non trovo il VoodooPS2 in Pandora. Se installo quei due kext che ho detto e da problemi all'avvio, li bypasso col flags -x? Devo mettere GraphicsEnabler=Yes per attivarli? Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2014 Share Posted January 12, 2014 Pandora non usa il voodoo, il trackpad funzionava con i kext di Pandora? Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Penso di no, li ho su adesso e non và Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2014 Share Posted January 12, 2014 Riprova, magari funzionano Link to comment Share on other sites More sharing options...
>Federico< Posted January 12, 2014 Share Posted January 12, 2014 OK ecco il dsdt se esce ancora schermo nero bisogna iniettare l'edid, quindi se non riesci a visualizzare il desktop avvia dal boot con DSDT=No e -x. Nel dsdt è presente anche la patch per l'audio che devi attivare con i due kexts nel pacchetto. Archivio.zip Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Lo provo subito subito Link to comment Share on other sites More sharing options...
>Federico< Posted January 12, 2014 Share Posted January 12, 2014 Se ancora non va metti il kext che si trova in allegato nel primo post di questo topic http://www.insanelymac.com/forum/topic/284755-video-hdmi-con-audio-su-intel-hd4000-mobile/ Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Purtroppo ancora schermo nero al boot sia col DSDT e i due file che aggiungendo quello del link. Mi è venuto un dubbio, GraphicsEnabler va messo su Yes o No? Link to comment Share on other sites More sharing options...

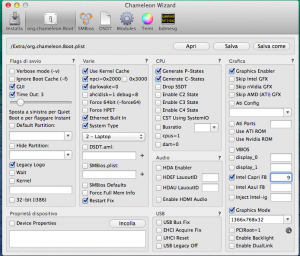

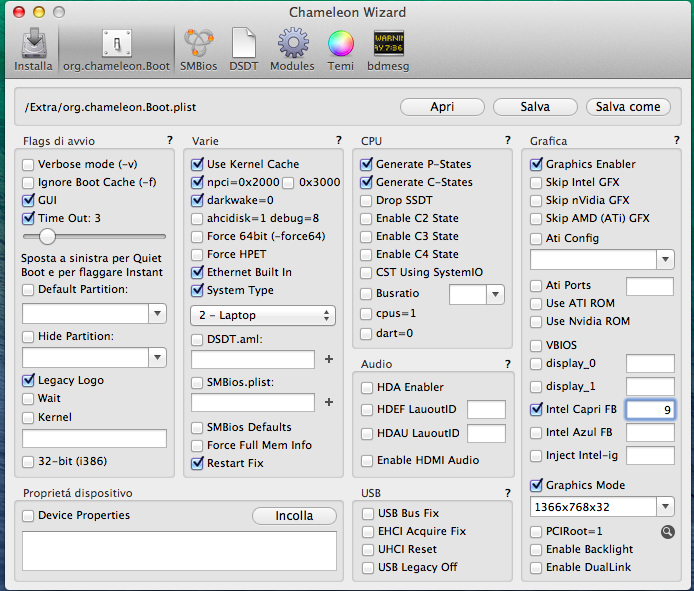

>Federico< Posted January 12, 2014 Share Posted January 12, 2014 yes Facciamo un altro tentativo. 1. Installa questo: Enoch Bootloader (avviando con DSDT=No -x) 2. Sostituisci il dsdt con quello in allegato 3. Copia le impostazioni (foto in allegato) per ocbp con chameleon wizard (IntelCapriFB prova da un n° da 1 a 11 se non va con 9, ti consiglio 4 o 3) Prova anche a cambiare smbios con un MacBook Pro 9,1 o 9,2 DSDT.aml.zip Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Allora fatto tutto, ma schermo nero. Però una cosa è cambiata, ora si sente l'audio. Spiego meglio, ho messo il bootloader, il dsdt, copiato le impostazioni, cambiato in MacBookPro 9,1 e messo valore 9 al FB Capri, ma niente. Poi messo 4 e sempre schermo nero, ma premendo i tasti si sentiva il bip prodotto e anche alzando e abbassando il volume con il suo tasto Funzione e F7 o F8 il volume si alza e abbassa. Ora si riesce ad eliminare solo la parte del video e tenere l'audio dalle ultime modifiche fatte? Link to comment Share on other sites More sharing options...
>Federico< Posted January 12, 2014 Share Posted January 12, 2014 Il problema è legato al fatto che il kext che si occupa della scheda video non riesce a rilevare il monitor interno infatti quando ti dà la schermata nera il sistema sotto lavora di fatto se colleghi un monitor esterno tramite hdmi si vedrà tutto perfettamente. L'audio se hai messo i kexts che ti ho allegato precedentemente ti funzionerà Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Purtroppo non ne ho la possibilità Deve essere qualcosa nel DSDT perché si avvia solo se metto DSDT=No Link to comment Share on other sites More sharing options...
>Federico< Posted January 12, 2014 Share Posted January 12, 2014 Sicuro che è il modello di notebook è lo stesso del link nel primo post e che abbia una risoluzione massima di 1366x768? Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Si si preciso quello. Ottenuto col seriale sotto al Pc. Link to comment Share on other sites More sharing options...
>Federico< Posted January 12, 2014 Share Posted January 12, 2014 Proviamo con delle efi string -ig-platform-id: 01660000, Stolen RAM for FB: 96MB, Pipes: 3, Ports: 4, FBMem: 3 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000000006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01660001, Stolen RAM for FB: 96MB, Pipes: 3, Ports: 4, FBMem: 3 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000001006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01660002, Stolen RAM for FB: 64MB, Pipes: 3, Ports: 1, FBMem: 1 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000002006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01660003, Stolen RAM for FB: 64MB, Pipes: 2, Ports: 2, FBMem: 2 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000003006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01660004, Stolen RAM for FB: 32MB, Pipes: 3, Ports: 1, FBMem: 1 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000004006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01660008, Stolen RAM for FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000008006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01660009, Stolen RAM for FB: 64MB, Pipes: 3, Ports: 3, FBMem: 3 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000009006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 0166000A, Stolen RAM for FB: 32MB, Pipes: 2, Ports: 3, FBMem: 2 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d00690064000000080000000a006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 0166000B, Stolen RAM for FB: 32MB, Pipes: 2, Ports: 3, FBMem: 2 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d00690064000000080000000b006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 -ig-platform-id: 01620005, Stolen RAM for FB: 32MB, Pipes: 2, Ports: 3, FBMem: 2 7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000005006201140000006800640061002d0067006600780000000d0000006f6e626f6172642d31 Copia una di queste in device proprieties di chamaleon wizard ed elimina intel capri fb. Credo però che se hai ancora schermo nero con una di queste al riavvio il boot non dovrebbe partire con -x quindi se hai la possibilità almeno di collegare una tv hd sennò al momento lascia perdere sempre se tu non voglia ripristinare con tm Link to comment Share on other sites More sharing options...
>Federico< Posted January 12, 2014 Share Posted January 12, 2014 Prova anche a cambiare bootloader ad esempio prova ad utilizzare clover Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Purtroppo non ho proprio la possibilità di collegarlo ad uno schermo esterno. Faccio un backup per sicurezza con TM. Il bootloader lo trovo qui sul sito nei download? Link to comment Share on other sites More sharing options...

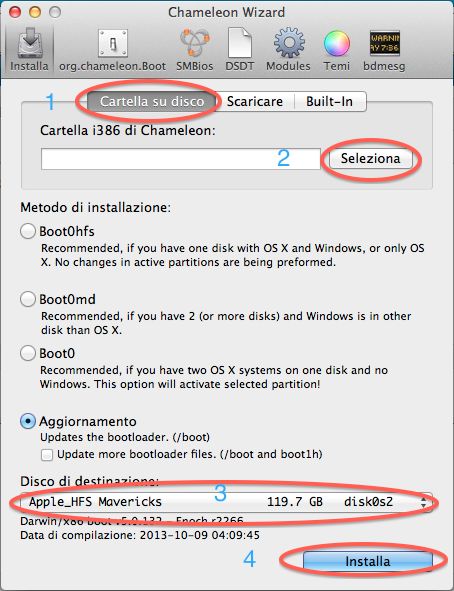

carbo178 Posted January 12, 2014 Share Posted January 12, 2014 si, scarica enoch cartella i386 (binaries.zip) e aggiorna il bootloader con chameleon wizard Link to comment Share on other sites More sharing options...
max70 Posted January 12, 2014 Author Share Posted January 12, 2014 Per le efi strings ho provato la prima, ma ho dovuto ripristinare il backup di TM, non partiva con nessun comando. Ora provo a cambiare il bootloader. Link to comment Share on other sites More sharing options...
max70 Posted January 13, 2014 Author Share Posted January 13, 2014 Ragazzi lasciamo stare la grafica e proviamo l'audio che è la cosa che mi serve di più. Con il metodo al post 213 si sentiva ma non si vedeva. Si riesce a mantenere l'audio e lasciare la grafica con solo i 64 mega che riconosce? Link to comment Share on other sites More sharing options...
carbo178 Posted January 13, 2014 Share Posted January 13, 2014 Vai con questo DSDT.aml.zip Link to comment Share on other sites More sharing options...
