yoyoyo

hey guys

thanks anyways i finally solved it thanks so much for all the replies



i did not use any terminal commands

just did this-



dwnlded the PCGenUSBEHCI.kext for 9.1.0

deleted AppleUSBEHCI.kext from /s/l/e/IOUSBFamily.kext/Contents/Plugins

copied PCGenUSBEHCI.kext to /s/l/e/IOUSBFamily.kext/Contents/Plugins

repaired permissions

reboot

and voila it worked



and now i'm really sleepy

cya

Link to comment
Share on other sites

Hi I'm fairly new to this so bare with me please :D



My USB is working, and it mounts my devices, but it's only running at USB 1.1 speed (12mb/sec)



I see alot of pages here, and alot of different versions of OS X (Tiger, Leopard etc) and I'm abit confused about wether or not this will work on my system.



Is there some who who knows and is able to post a nice walkthough?



My system is:



XPC Shuttle SD39P2 (all intel parts, don't know if this is relevant)

Leopard 10.5.2

Darwin 9.2.2 kernel

Link to comment
Share on other sites

Hey guys, I'm having USB drive issues as well. My HP USB printer works fine, not at all slow, as well as the USB transceiver for my wireless keyboard/mouse. They both show up on the high-speed USB bus, but USB drives...flash and hard drives are not auto-detected. If I boot with them connected Leopard 10.5.2 will see them, but they transfer at absurdly slow speeds...close to 1.5 megabytes per second. I have used the updater posted in this thread. I have also made sure that my kernel version matches my system.kext version using the USB FIX 1.3.mpkg. None of this has done anything to fix my USB issues. I'm running on an Intel D5400XS(Skulltrail) board, with Kalyway's 10.5.2 DVD. Any help is greatly appreciated.

Link to comment
Share on other sites

yoyoyo

hey guys

thanks anyways i finally solved it thanks so much for all the replies



i did not use any terminal commands

just did this-



dwnlded the PCGenUSBEHCI.kext for 9.1.0

deleted AppleUSBEHCI.kext from /s/l/e/IOUSBFamily.kext/Contents/Plugins

copied PCGenUSBEHCI.kext to /s/l/e/IOUSBFamily.kext/Contents/Plugins

repaired permissions

reboot

and voila it worked



and now i'm really sleepy

cya



repair permissons will NOT WORK for PCGenUSBEHCI.kext !!!!

because OS X didnt now about PCGenUSBEHCI.kext rights - so rights stay wrong and plugin didnt load

own:groop must be root:wheel for all content of PCGenUSBEHCI.kext

Link to comment
Share on other sites

  • 2 weeks later...

yeah well, a 10.5.3 work & compile would be great - PCGen 10.5 was still working here with Leo .2 but stopped working with 10.5.3 .. :thumbsup_anim:



Is anybody else feasible of compiling apart from orByte? orByte apparently is missing the time.



Thanks,

Bugs

Link to comment
Share on other sites

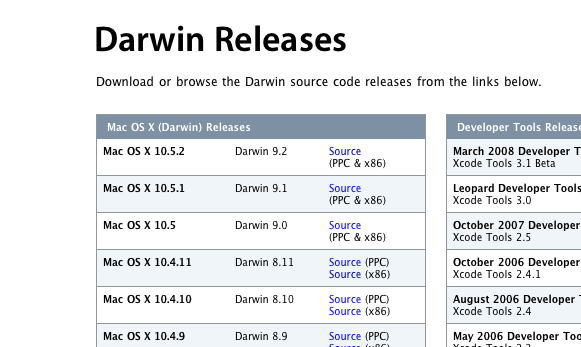

here you can see which 10.5.3 sources have been published .. :P



edit: has EHCI changed at all in 10.5.3? I have not checked in the non-combo update. Slice, is this your source for the 10.5.2 USB?

Yes, I use 308.4.0 sources and I think they are latest.



Sorry for the mislead, I confused the IOUSB Log with the sources :D

Not all targets can be compiled. But EHCI, OHCI, UHCI - yes!

Link to comment
Share on other sites

SOURCE - PCGen-303.4.5-src (1.3MB, MD5 (PCGen-303.4.5.zip) = 69c29c39850e50c5d27e774ed076d399)



your patch diff.txt from the source ZIP is not applicable, could you use option "diff -u" instead, in order to make it recognizable by patch tool?

thanks

Link to comment
Share on other sites

Yes, please always post unified diffs, personally I use "diff -Naur".

confirm, -Naur is what FSF recommend to be "standard-de-facto", so please follow

waiting for new source pack

thanks

Link to comment
Share on other sites
