Patched AppleUSBXHCI from OS 10.8.2

caitabrava · August 6, 2013

Hello and thanks for this kexts, I have a question.

I have a n5110 with 10.8.4, and with the last update kexts work ok, but if I have a usb plugged in usb3 port, i got kernel panic on boot, but if I unplug the usb, boot ok.

Sorry for my bad english.

Can anyone help me???

Thanks a lot!

real3x · September 15, 2013

Did i make a mistake or this patch don't work anymore with 10.8.5 ? (i'm using the patch into clover)

shiecldk · September 16, 2013

Updated to 10.8.5:

"Intel & Fresco Logic USB3.0 controllers check" code had been changed after 10.8.5. So I changed the patch to this one:

0000000000010192 jne 0x101ce
75 3a
--->
0000000000010192 jmp 0x101ce
EB 3a

But there are more than one "753a", so we have to replace "753a488b05ed9e0000" with "eb3a488b05ed9e0000" instead.

Other patches are still same as previous Mountain Lion's versions which you can see in this post.

10.8.5_Patched AppleUSBXHCI.kext.zip

PS. After updating to 10.8.5, some USB3.0 device errors disappeared in Console app.

p.H · September 16, 2013

Updated to 10.8.5:

"Intel & Fresco Logic USB3.0 controllers check" code had been changed after 10.8.5. So I changed the patch to this one:
0000000000010192 jne 0x101ce
75 3a
--->
0000000000010192 jmp 0x101ce
EB 3a
But there are more than one "753a", so we have to replace "753a488b05ed9e0000" with "eb3a488b05ed9e0000" instead.

Other patches are still same as previous Mountain Lion's versions which you can see in this post.

10.8.5_Patched AppleUSBXHCI.kext.zip

PS. After updating to 10.8.5, some USB3.0 device errors disappeared in Console app.

Wow. You rock the world!

real3x · September 16, 2013

It's just perfect, thx shiecldk

Clover patch for 10.8.5 :

<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dSZIi7voAQAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				6yZIi7voAQAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dTpIiwXtngAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				6zpIiwXtngAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				Zj0AAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				Zj0AAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				gUkIAABAAA==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				gUkIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				QcdEJAgAAEAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QcdEJAgAAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				QcdGCAAAQAA=
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QcdGCAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				xoDIAAAAAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				xoDIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dSZIi7voAQAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				6yZIi7voAQAA
				</data>
			</dict>
		</array>

shiecldk · October 6, 2013

Update to 10.9 GM:

Disable Intel & Fresco Logic USB3.0 controllers check:

0000000000010342 jne 0x1037e
75 3A 75 3A 48 8B 05 3D 9D 00 00
-->
0000000000010342 jmp 0x1037e
EB 3A 48 8B 05 3D 9D 00 00

This one is actually 75 3A--->EB 3A, but there are more than one 75 3A in the binary.

Disable XHCI 1.0 check:

0000000000010429 cmpw $0x100, %ax
66 3D 00 01
-->
0000000000010429 cmpw $0x000, %ax
66 3D 00 00

Patch MSI or pin interrupts:

000000000001249d orl $0x400000, 0x8(%rcx)
81 49 08 00 00 40 00
-->
000000000001249d orl $0x000000, 0x8(%rcx)
81 49 08 00 00 00 00

00000000000135fc movl $0x400000, 0x8(%r15)
41 C7 47 08 00 00 40 00
-->
00000000000135fc movl $0x000000, 0x8(%r15)
41 C7 47 08 00 00 00 00

0000000000013822 movl $0x400000, 0x8(%r15)
41 C7 47 08 00 00 40 00
-->
0000000000013822 movl $0x000000, 0x8(%r15)
41 C7 47 08 00 00 00 00

Disable the sleep code leaving the controller in non-working state after wake:

0000000000005b0e movb $0x1, 0xc8(%rax)
C6 80 C8 00 00 00 01
-->
0000000000005b0e movb $0x0, 0xc8(%rax)
C6 80 C8 00 00 00 00

Enable PCI power management if there is no such code in DSDT:

0000000000005b76 jne 0x5bc5
75 4D 48 8B BB E8 01 00 00
-->
0000000000005b76 jmp 0x5bc5
EB 4D 48 8B BB E8 01 00 00

This one is actually 75 4D--->EB 4D, but we can't be sure if next OSX update would bring more than one 75 4D in the binary.

Patched Kext can be download right here

JahRastaMaN · October 6, 2013

Thanks! I will try it!

shiecldk · October 7, 2013

Hello, Zenith I tested AppleUSBXHCI and it works kext USB 3.0 and 2.0 mouse works but do not flash driver 2.0 and hard disk 2.0.

any solution?

Try to inject this DSDT into your USB 3.0 device.

See the reply #6 by Lionel Luthor in this Taiwanese blog:

http://benjenq.pixnet.net/blog/post/32216159-%E9%BB%91%E8%98%8B%E6%9E%9C%E5%8D%87%E7%B4%9A-10.8.4

real3x · October 20, 2013

Perfect again, thx shiecldk

Clover patch for 10.9 :

<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dTpIiwU9nQAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				6zpIiwU9nQAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				Zj0AAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				Zj0AAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				gUkIAABAAA==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				gUkIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				QcdHCAAAQAA=
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QcdHCAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				QcdHCAAAQAA=
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QcdHCAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				xoDIAAAAAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				xoDIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dU1Ii7voAQAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				601Ii7voAQAA
				</data>
			</dict>
		</array>

edit : no change for 10.9.1

Allan · December 31, 2013

have to use with the GenericUSBXHCI?

Allan · January 1, 2014

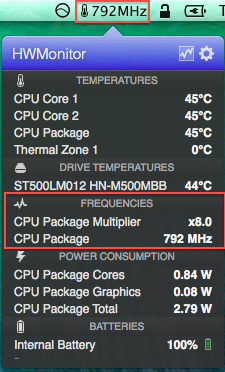

i try with and without GenericUSBXHCI, and i have the same problem about speed step and turbo, look:

very very sloooowww!!

maleorderbride · January 1, 2014

i try with and without GenericUSBXHCI, and i have the same problem about speed step and turbo, look:

Screen Shot 2013-12-31 at 22.49.36.png

very very sloooowww!!

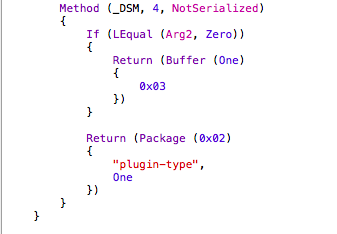

Are you injecting CPU plugin-type 1 in an SSDT or your DSDT? That can cause a stuck multiplier of x8.0.

Allan · January 2, 2014

Are you injecting CPU plugin-type 1 in an SSDT or your DSDT? That can cause a stuck multiplier of x8.0.

I have CPU-plugin type 1 in SSDT.

but do not know if I have the DSDT.

please see my DSDT

DSDT.aml.zip

so I have to delete plugin type 1?

Allan · January 2, 2014

don't work man!!

i try without "plugin-type" but my clock still hangs at 700 MHz.

Allan · January 9, 2014

finally managed to make it work states and turbo, and USB 3.

what I did:

deleted "plugin-type 1" in an SSDT. and put DropOem> False in config.plist

I will create a tutorial of my fight!

thanks @maleorderbride

maleorderbride · January 13, 2014

finally managed to make it work states and turbo, and USB 3.

what I did:

deleted "plugin-type 1" in an SSDT. and put DropOem> False in config.plist

I will create a tutorial of my fight!

thanks @maleorderbride

Great! Glad that worked

Allan · January 13, 2014

yeah!!

see my quick guide, thanks for u help!!

[Quick Guide] Enable Intel Panther Point USB 3.0

JUN Ho · January 31, 2014

This patch doesn't work on Mavericks 10.9.2.

I test it on 10.9.2 build 13C48.

I think we need new patch code for the 10.9.2

But using GenericUSBXHCI.kext works good.

JUN Ho · February 27, 2014

New patch for 10.9.2 works fine now. Thank you, shiecldk !!

http://www.insanelymac.com/forum/files/file/150-patched-appleusbxhci/

real3x · February 28, 2014

As usual, thx shiecldk

Clover patch for 10.9.2 :

<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dTpIiwWLoAAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				6zpIiwWLoAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				Zj0AAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				Zj0AAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				gUkIAABAAA==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				gUkIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				QcdHCAAAQAA=
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QcdHCAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				xoDIAAAAAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				xoDIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable USB3</string>
				<key>Find</key>
				<data>
				dU1Ii7voAQAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				601Ii7voAQAA
				</data>
			</dict>
		</array>

frankiee · March 4, 2014

Does this work with ASM1042? I tried the clover patch, and while I see the USB3 Bus, no attached devices are visible.

Maniac10 · March 16, 2014

As usual, thx shiecldk

Clover patch for 10.9.2 :

Looks like this patch doesn't work in the latest 10.9.3 beta 13D17.

EDIT: fixed it myself in a minute and it works but I'm not sure it's 100% correct.

<dict>
	<key>Comment</key>
	<string>Disable Intel & Fresco USB3.0 controllers</string>
	<key>Find</key>
	<data>
	dTpIiwW7oAAA
	</data>
	<key>Name</key>
	<string>AppleUSBXHCI</string>
	<key>Replace</key>
	<data>
	6zpIiwW7oAAA
	</data>
</dict>
<dict>
	<key>Comment</key>
	<string>Disable XHCI 1.0</string>
	<key>Find</key>
	<data>
	Zj0AAQ==
	</data>
	<key>Name</key>
	<string>AppleUSBXHCI</string>
	<key>Replace</key>
	<data>
	Zj0AAA==
	</data>
</dict>
<dict>
	<key>Comment</key>
	<string>Patch MSI or pin interrupts</string>
	<key>Find</key>
	<data>
	gUkIAABAAA==
	</data>
	<key>Name</key>
	<string>AppleUSBXHCI</string>
	<key>Replace</key>
	<data>
	gUkIAAAAAA==
	</data>
</dict>
<dict>
	<key>Comment</key>
	<string>Patch MSI or pin interrupts 2</string>
	<key>Find</key>
	<data>
	QcdHCAAAQAAx
	</data>
	<key>Name</key>
	<string>AppleUSBXHCI</string>
	<key>Replace</key>
	<data>
	QcdHCAAAAAAx
	</data>
</dict>
<dict>
	<key>Comment</key>
	<string>Disable sleep code</string>
	<key>Find</key>
	<data>
	xoDIAAAAAQ==
	</data>
	<key>Name</key>
	<string>AppleUSBXHCI</string>
	<key>Replace</key>
	<data>
	xoDIAAAAAA==
	</data>
</dict>
<dict>
	<key>Comment</key>
	<string>Enable PCI power management</string>
	<key>Find</key>
	<data>
	dU1Ii7voAQAA
	</data>
	<key>Name</key>
	<string>AppleUSBXHCI</string>
	<key>Replace</key>
	<data>
	601Ii7voAQAA
	</data>
</dict>

Simonej · May 20, 2014

With 10.9.3 update AppleUSBXHCI 677.4.0 version, there is a Clover patch?

Maniac10 · May 20, 2014

The patch I posted above is still working for me in 10.9.3.

Simonej · May 21, 2014

Thank you maniac, I'm using your patch but I have some problems with USB3. Now testing GenericUSBXHCI, works better.

Patched AppleUSBXHCI from OS 10.8.2

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
