Clover General discussion

[Slice]

I see no

	<key>SetupVirtualMap</key>
	<false/>

In the clover config.plist. Default value is true which is not the same as you previously used.

[pkdesign]

No, that isn't in my current OcQuirks plist. I added it to the quirks section of Clover config and I still can not boot:

	<key>Quirks</key>
	<dict>
		<key>ProtectUefiServices</key>
		<true/>
		<key>RebuildAppleMemoryMap</key>
		<true/>
		<key>EnableSafeModeSlide</key>
		<true/>
		<key>ProvideMaxSlide</key>
		<integer>0</integer>
		<key>SetupVirtualMap</key>
		<true/>
		<key>SyncRuntimePermissions</key>
		<true/>
		<key>DevirtualiseMmio</key>
		<true/>
		<key>ProvideCustomSlide</key>
		<true/>
		<key>AvoidRuntimeDefrag</key>
		<true/>
		<key>ProvideConsoleGopEnable</key>
		<true/>
		<key>EnableWriteUnprotector</key>
		<true/>
	</dict>



[Slice]

In you OcQuirks.plist the value is false. With this value you can boot.

[Matgen84]

Hi @Slice

I build and test latest r5120 commit f7c13f0b (Big Sur DP Beta 2):

• can't boot Installer Big Sur or Installed Big Sur HD: always stucks at IOUSBHostinterface, follow by crossed out circle.

I made a mistake somewhere !





debug.log



EDIT: I download Beta 3. This version is named now: 11.0.20A5323l macOS Big Sur Beta in Apple catalog instead of 10.16

Edited July 23, 2020 by Matgen84

[Slice]

51 minutes ago, Matgen84 said:

Hi @Slice

I build and test latest r5120 commit f7c13f0b:

• can't boot Installer Big Sur or Installed Big Sur HD: always stucks at IOUSBHostinterface, follow by crossed out circle.

I made a mistake somewhere !





debug.log

I have no idea what to test.

[Matgen84]

2 minutes ago, Slice said:

I have no idea what to test.

I am not english, I don't understand what you mean. Sorry.

[Slice]

37 minutes ago, Matgen84 said:

I am not english, I don't understand what you mean. Sorry.

I see you can't boot. My question is "What shall I do?".

[Matgen84]

1 hour ago, Slice said:

I see you can't boot. My question is "What shall I do?".



Ok, I understand now.
If other users can boot Big Sur from a USB stick or hard drive, my Clover config has a problem, I guess. How to identify it! In fact, I don't know.
If other users have succeeded which would allow me to compare.

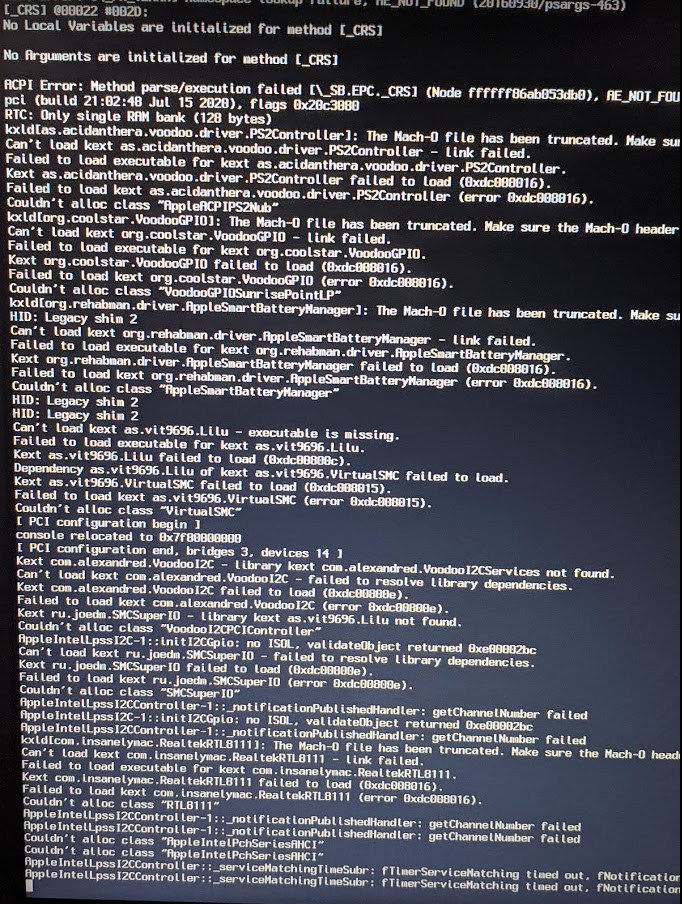

EDIT: I test latest commit with USB Installer Beta 3. I see several messages "couldn't alloc" for kexts as Lilu for example.



Spoiler



Edited July 23, 2020 by Matgen84

[MICKHAEL]

4 hours ago, Matgen84 said:



Ok, I understand now.
If other users can boot Big Sur from a USB stick or hard drive, my Clover config has a problem, I guess. How to identify it! In fact, I don't know.
If other users have succeeded which would allow me to compare.



EDIT: I test latest commit with USB Installer Beta 3. I see several messages "couldn't alloc" for kexts as Lilu for example.



  Hide contents



you are not alone. Big Sur beta3 compiled latest Clover... with beta2 and Clover compiled from 2 days ago I was able to boot to install screen)


Spoiler



Edited July 23, 2020 by MICKHAEL

[Dragster27]

7 hours ago, Matgen84 said:



Ok, I understand now.
If other users can boot Big Sur from a USB stick or hard drive, my Clover config has a problem, I guess. How to identify it! In fact, I don't know.
If other users have succeeded which would allow me to compare.



EDIT: I test latest commit with USB Installer Beta 3. I see several messages "couldn't alloc" for kexts as Lilu for example.



  Hide contents

Same issue here...  I was able to boot with clover BS Beta 2..



[pkdesign]

17 hours ago, Slice said:

In you OcQuirks.plist the value is false. With this value you can boot.

I can not boot with or without this value. Do you need to add <false> values for Clover Quirks plist? If you look above, all I have are true values in the Clover Quirks plist. I'm hate to admit I used Clover Configurator and put check marks for values. It only generates true ones.



Does it need to look like the OcQuirks plist with true and false values?

[Slice]

TextEdit is your friend. Open config.plist and change <true/> to <false/>.

Or use Clover.app to do the work but not Clover Configurator.

[Matgen84]

7 hours ago, pkdesign said:

I can not boot with or without this value. Do you need to add <false> values for Clover Quirks plist? If you look above, all I have are true values in the Clover Quirks plist. I'm hate to admit I used Clover Configurator and put check marks for values. It only generates true ones.



Does it need to look like the OcQuirks plist with true and false values?



I upload my working OcQuirks.plist for Z390 Aorus Master. If you want, you can add the settings to Quirks section in your config.plist.

All keys must be present even the value is false or array/, of course



OcQuirks.plist

[Matgen84]



Hi @Slice



I build latest commit c87aabd: it's better I think. Thanks.

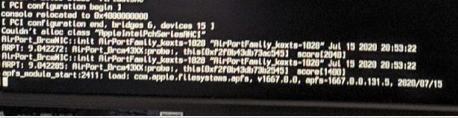

• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module

I see "couldn't load" kexts and "couldn't alloc"



EDIT: one more time, I double check all my Z390 config settings. After this test.



Spoiler



Edited July 24, 2020 by Matgen84

[aryaone]

1 hour ago, Matgen84 said:



Hi @Slice



I build latest commit c87aabd: it's better I think. Thanks.



• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module

I see "couldn't load" kexts and "couldn't alloc"



EDIT: one more time, I double check all my Z390 config settings. After this test.



same with me, still not succeeded to boot Big Sur using latest clover, booting to Catalina is perfect

[MICKHAEL]

8 minutes ago, aryaone said:

same with me, still not succeeded to boot Big Sur using latest clover, booting to Catalina is perfect

well, the funniest thing, beta 2 boots, but that's not happening with beta 3. also Catalina boots.

[iCanaro]

13 minuti fa, aryaone ha detto:

lo stesso con me, non sono ancora riuscito ad avviare Big Sur usando l'ultimo trifoglio, l'avvio su Catalina è perfetto

Z370 idem

Edited July 24, 2020 by iCanaro

[MICKHAEL]

hello @Slice
i will post it here, maybe its helpful
commit c87aabd

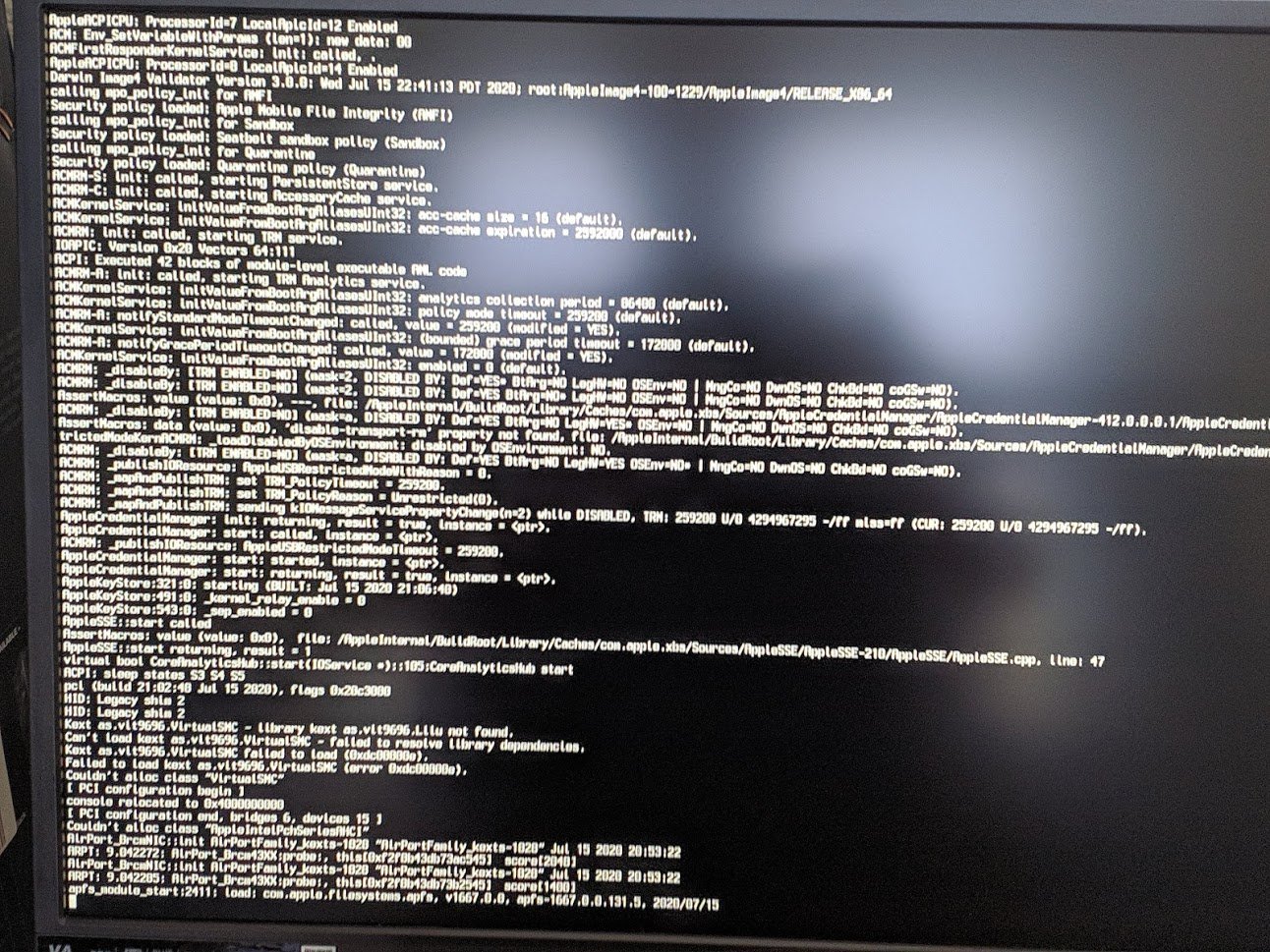

boot log for Big Sur Beta2
boot log for Big Sur Beta3

same EFI are booting Catalina without any other problem
if you think I must post my EFI, just ask
regards

[Dragster27]

4 hours ago, MICKHAEL said:

well, the funniest thing, beta 2 boots, but that's not happening with beta 3. also Catalina boots.

ditto

6 hours ago, Matgen84 said:



Hi @Slice



I build latest commit c87aabd: it's better I think. Thanks.

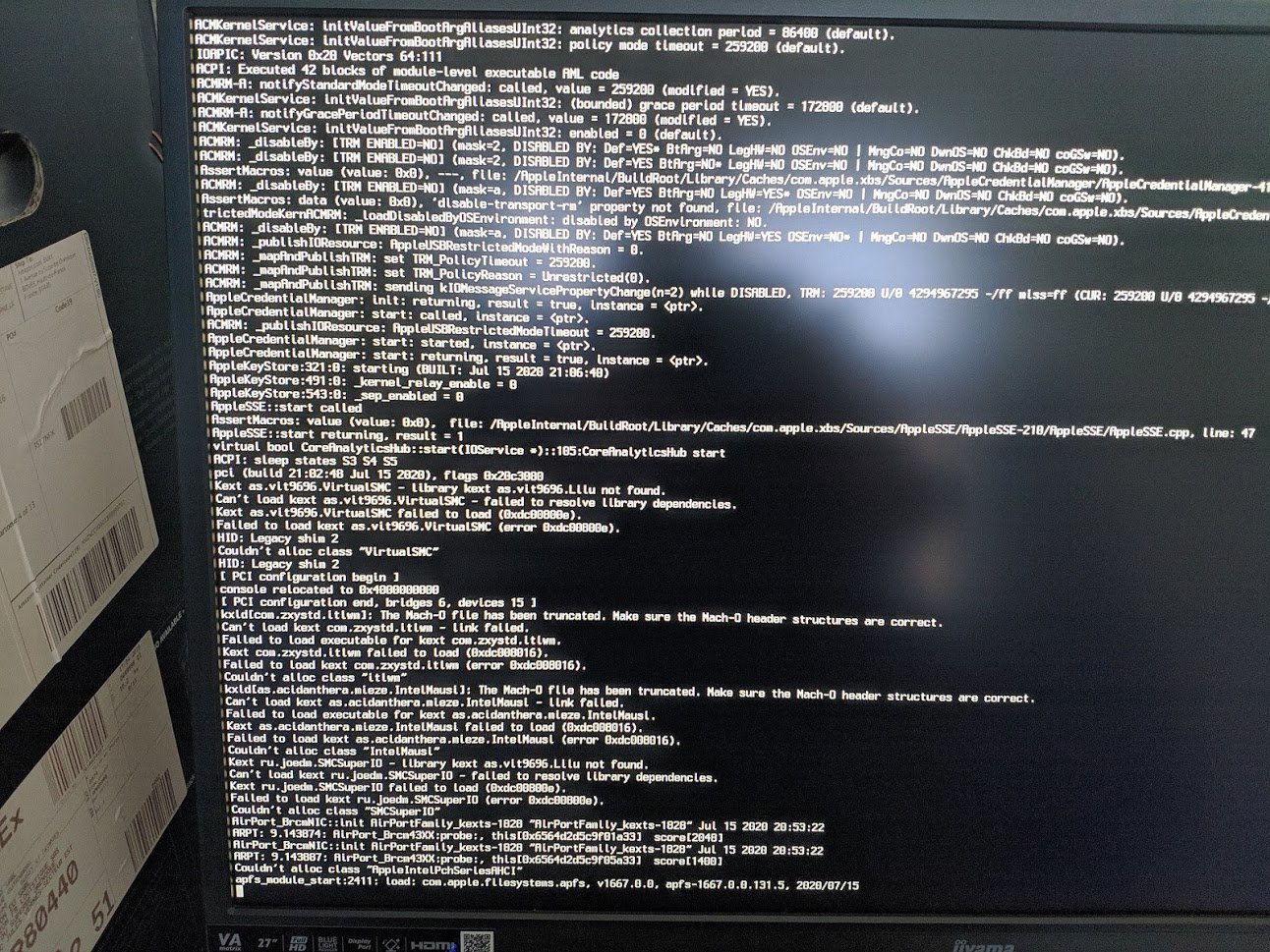

• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module

I see "couldn't load" kexts and "couldn't alloc"



EDIT: one more time, I double check all my Z390 config settings. After this test.



  Reveal hidden contents



I have the exact same issue here...

[lesvink]

Hi,



I tried to boot on Big Sur Beta 2 USB key (Clover 5120) with no hope...and I reached the installer !



I didn't continue because I had no hard drive ready for trying install but I'll test soon.



Z77 DS3H rev 1.0 (socket 1155)

Ivy Bridge (!) i3 3225

GTX 770

8 GB RAM



Tried with SMBIOS iMacPro1,1 and latest Virtual SMC, Lilu and Whatevergreen (no other change on Clover 5120).



Edited July 24, 2020 by lesvink

[iCanaro]

Big Slice



habemus ductus



translations are now missing "only"

[pkdesign]

14 hours ago, Matgen84 said:



I upload my working OcQuirks.plist for Z390 Aorus Master. If you want, you can add the settings to Quirks section in your config.plist.

All keys must be present even the value is false or array/, of course



OcQuirks.plist

Thanks Matgen but I have a fully working OcQuirks.plist. The issue I am having is the incorporation of these quirks into the Clover config.plist and not having them on their own in the drivers folder.



I think Slice is misunderstanding me. What I was asking is, do I have to have both false and true statements for all the quirks. Currently I only have the true statements listed (see above) in the Clover config.plist.



What I will do when I get a minute is literally copy ALL the quirks from my current OcQurks.plist (true AND false) and copy them into the Clover config.plist.

[MICKHAEL]

38 minutes ago, pkdesign said:

Thanks Matgen but I have a fully working OcQuirks.plist. The issue I am having is the incorporation of these quirks into the Clover config.plist and not having them on their own in the drivers folder.



I think Slice is misunderstanding me. What I was asking is, do I have to have both false and true statements for all the quirks. Currently I only have the true statements listed (see above) in the Clover config.plist.



What I will do when I get a minute is literally copy ALL the quirks from my current OcQurks.plist (true AND false) and copy them into the Clover config.plist.

yes. positive. you must have all quirks entries in clovers config.plist, just like you have in OcQuirks.plist. and, don't forget, use OcQuirks.efi from Clover installer

[Matgen84]

8 hours ago, pkdesign said:

Thanks Matgen but I have a fully working OcQuirks.plist. The issue I am having is the incorporation of these quirks into the Clover config.plist and not having them on their own in the drivers folder.



I think Slice is misunderstanding me. What I was asking is, do I have to have both false and true statements for all the quirks. Currently I only have the true statements listed (see above) in the Clover config.plist.



What I will do when I get a minute is literally copy ALL the quirks from my current OcQurks.plist (true AND false) and copy them into the Clover config.plist.



You says that you want to copy the quirks into the Clover config.plist, it's exactly what I told you. Just have a look to Config sample.plist in Clover repo.



What do you means by "I have a fully working OcQuirks.plist" ?

Edited July 25, 2020 by Matgen84

[Matgen84]

23 hours ago, Matgen84 said:



Hi @Slice



I build latest commit c87aabd: it's better I think. Thanks.



• Can't boot on Big Sur Installer and Installed Big Sur: stuck this time at apfs_module

I see "couldn't load" kexts and "couldn't alloc"



EDIT: one more time, I double check all my Z390 config settings. After this test.



  Reveal hidden contents





Hi @Slice



I build latest commit fab169d: exactly same issue



Have you see kuckkuck Clover r5119 mod + kexttopatch in Hackintool-forum.de: it's to boot BS Beta 3.
