Shaneee
Shaneee
Posted
Posted











try this file. report

Still the same. I've tried to sort this in the past. If I replace boot.efi in S/L/CoreServices with the one from Yosemite it boots but then there is no control of SIP and the system becomes sluggish with isn't very good.



Sent from my SM-G920F using Tapatalk

RehabMan
RehabMan
Posted
Posted

Thanks, more clear. @asradu can provide a dump (?), I'm curious.

And I have no idea why some SKL HDA uses class=040100, and others use class=040300. May be BIOS dependent...



For example, my SKL NUC6 uses 040300 so would probably work with Clover just fine (not using it as I'm using ACPI for injection, but...).



But I've seen quite a few other SKL boards (from helping others) that use the 040100.

RehabMan
RehabMan
Posted
Posted

Real Macs should unify those class somehow. If that happen.

The iMac17,1 uses 0403 but AppleHDAController was still changed to accommodate either. It could have been that prototypes in house at Apple were using 0401...

  • Like 2
arsradu
arsradu
Posted
Posted

An EFI/Clover + Clover bootlog + ioreg should help clarify what is happening...

Looks like this one is using class=040100 as you can see in the log.

0:100  0:000  PCI (00|00:1F.03) : 8086 A170 class=040100

Keep in mind that I didn't have HDEF by default. I had to rename it from HDAS. So maybe that's why Clover can't find what it's looking for.



Clover zip attached

Boot log attached

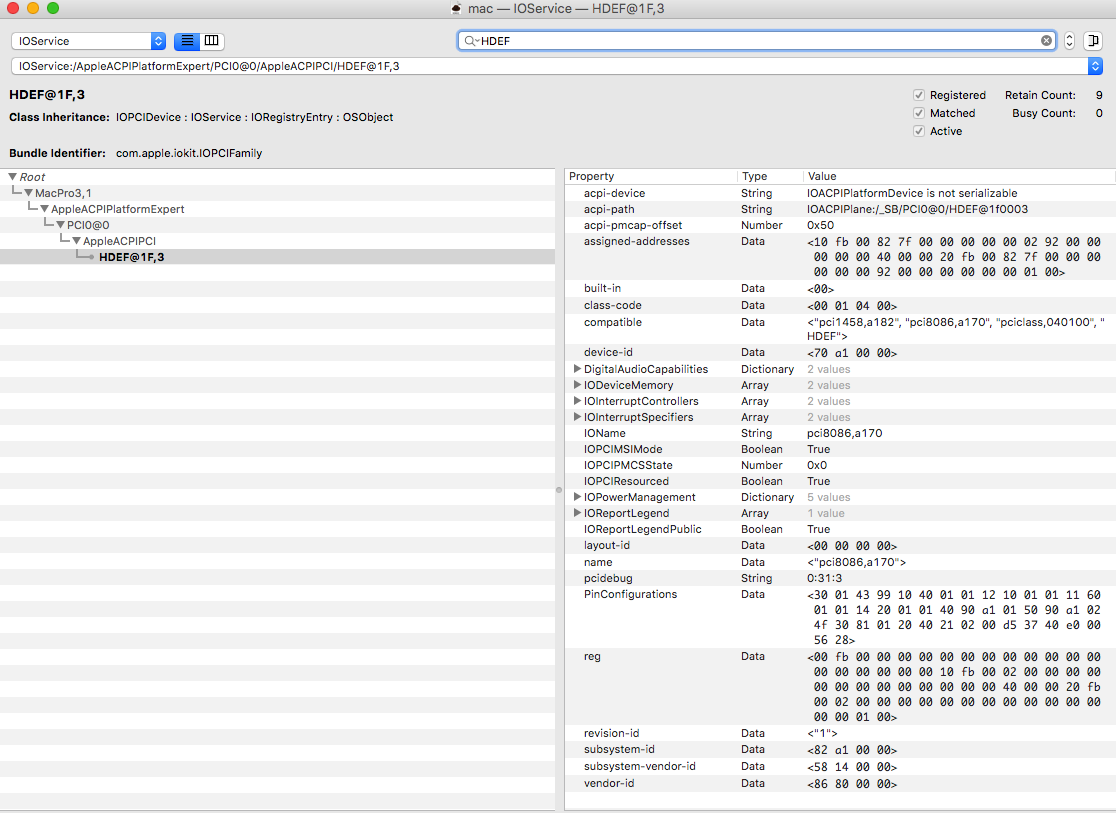

HDEF ioreg screenshot attached (sorry, can't attach the full ioreg).

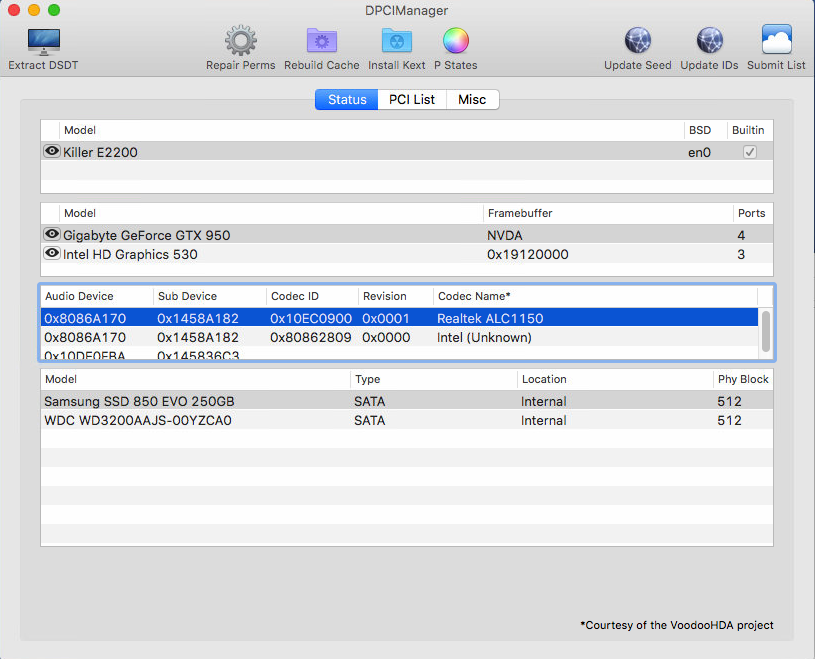

Screenshot from DPCI Manager (looks like the device is properly recognized there)

post-1303722-0-69560800-1466272880_thumb.png post-1303722-0-46348500-1466272422_thumb.png

boot.log.zip

CLOVER.zip

Sherlocks
Sherlocks
Posted
Posted

Looks like this one is using class=040100 as you can see in the log.

0:100  0:000  PCI (00|00:1F.03) : 8086 A170 class=040100

Keep in mind that I didn't have HDEF by default. I had to rename it from HDAS. So maybe that's why Clover can't find what it's looking for.



Clover zip attached

Boot log attached

HDEF ioreg screenshot attached (sorry, can't attach the full ioreg).

Screenshot from DPCI Manager (looks like the device is properly recognized there)

attachicon.gifScreen Shot 2016-06-18 at 9.02.15 PM.png attachicon.gifScreen Shot 2016-06-18 at 1.22.34 PM.png



My Skylake laptop system works clover audio injection.

here

Config DSDT HDAS->HDEF Patch + Clover Audio Injection 28 layout + AppleALC custom builded for ALC255 by me.

i tried to test layout 28 to 1. i dont get sound. 28 is works.

as result, clover surely works audio injection on my laptop.



i like it to use DSDT.aml patch or SSDT-HDEF.aml for Audio.




arsradu
arsradu
Posted
Posted

My Skylake laptop system works clover audio injection.

here

Config DSDT HDAS->HDEF Patch + Clover Audio Injection 28 layout + AppleALC custom builded for ALC255 by me.

i tried to test layout 28 to 1. i dont get sound. 28 is works.

as result, clover surely works audio injection on my laptop.



i like it to use DSDT.aml patch or SSDT-HDEF.aml for Audio.

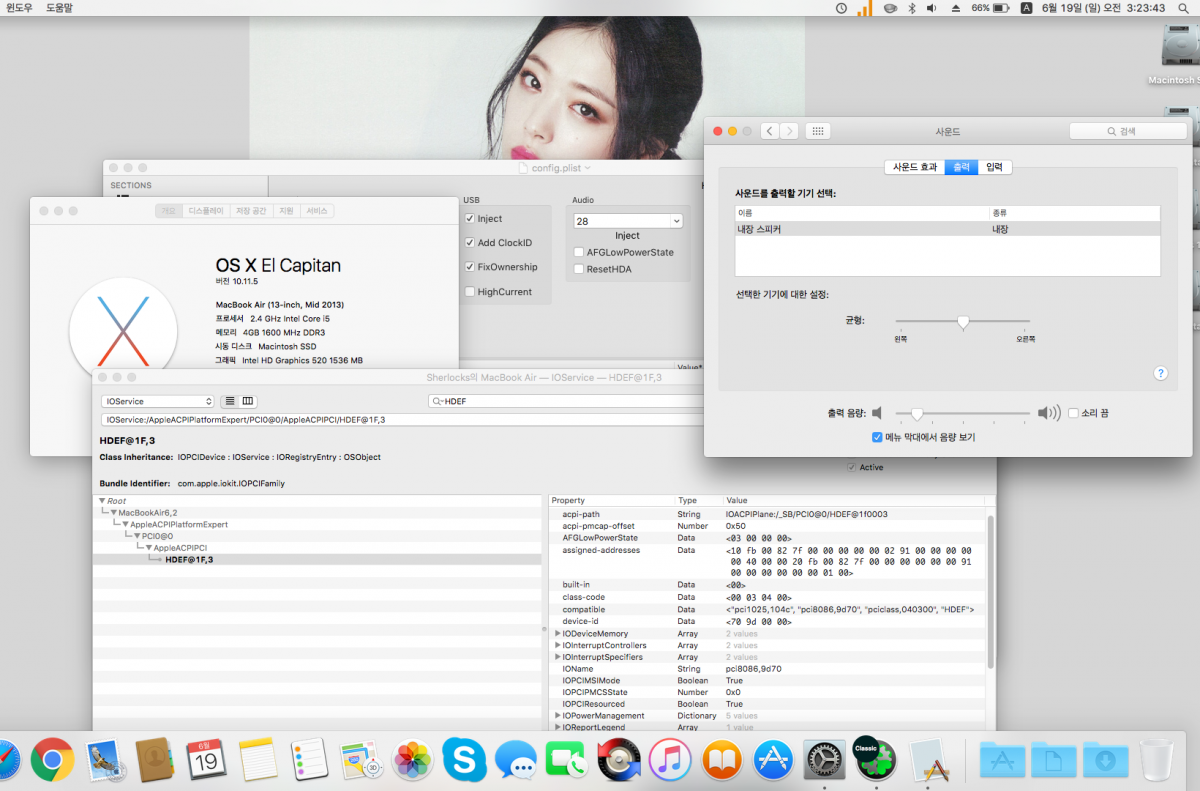

attachicon.gif스크린샷 2016-06-19 오전 3.23.38.png



Laptop and desktop chipsets might be different. :) Also, I can see the gorgeous girl in the background, but I can't see the layout-id in your screenshot. Which one do you think I'm most interested in right now? :))

  • Like 1
RehabMan
RehabMan
Posted
Posted

Looks like this one is using class=040100 as you can see in the log.

0:100  0:000  PCI (00|00:1F.03) : 8086 A170 class=040100
Keep in mind that I didn't have HDEF by default. I had to rename it from HDAS. So maybe that's why Clover can't find what it's looking for.



This is the exact case I was referring to... You cannot use config.plist/Devices/Audio/Inject with the Clover code in its current state.



Someone with checkin privs for Clover can fix it (it is a relatively trivial change).



Or you can use Devices/Arbitrary or ACPI to inject layout-id.

My Skylake laptop system works clover audio injection.

here

Config DSDT HDAS->HDEF Patch + Clover Audio Injection 28 layout + AppleALC custom builded for ALC255 by me.

i tried to test layout 28 to 1. i dont get sound. 28 is works.

as result, clover surely works audio injection on my laptop.



i like it to use DSDT.aml patch or SSDT-HDEF.aml for Audio.



attachicon.gif스크린샷 2016-06-19 오전 3.23.38.png

Note class-code... With ioreg showing <00 03 04 00> Clover injection via config.plist/Devices/Audio/Inject expected to work.



Contrast to the <00 01 04 00> as seen in post #10482.

  • Like 1
Micky1979
Micky1979
Posted
Posted

@asradu can you please run "Jarvis" using AppleHDA Patcher and report back with /Desktop/MironeAudio/Jarvis contents?

(Sorry for the funny name.. but I'm going to automate the process as much as possible due to some adventures with users)

  • Like 1
Sherlocks
Sherlocks
Posted
Posted





This is the exact case I was referring to... You cannot use config.plist/Devices/Audio/Inject with the Clover code in its current state.

Someone with checkin privs for Clover can fix it (it is a relatively trivial change).

Or you can use Devices/Arbitrary or ACPI to inject layout-id.

Note class-code... With ioreg showing <00 03 04 00> Clover injection via config.plist/Devices/Audio/Inject expected to work.

Contrast to the <00 01 04 00> as seen in post #10482.

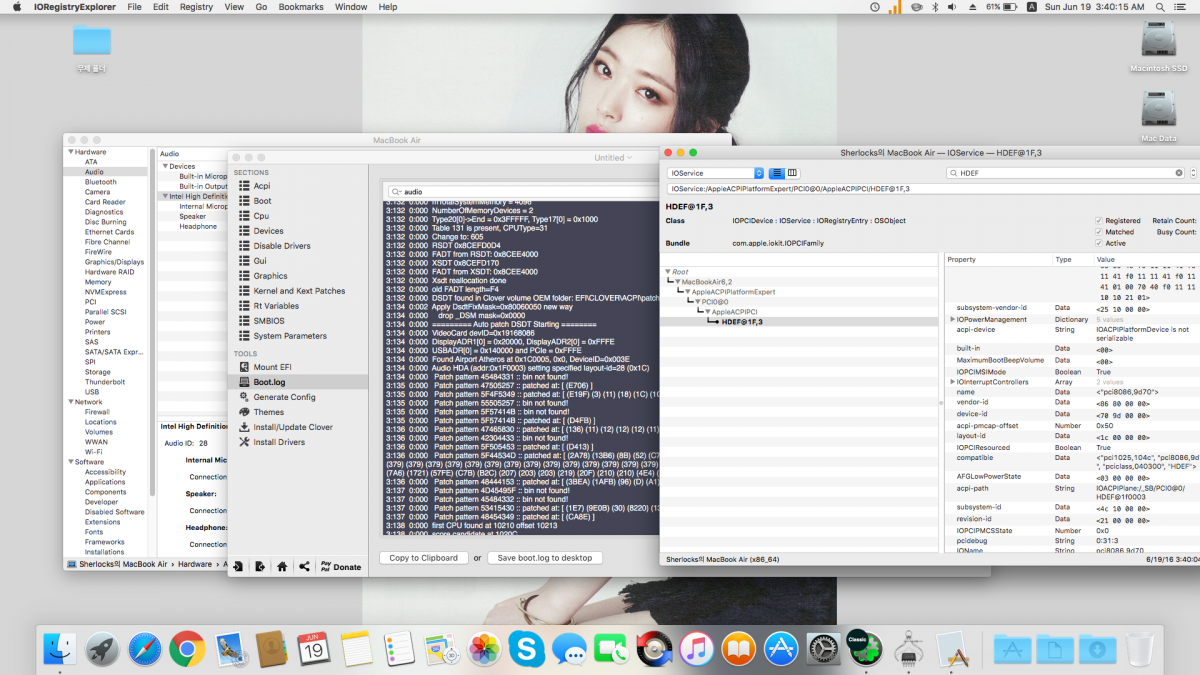

Screenshot


arsradu
arsradu
Posted
Posted

This is the exact case I was referring to... You cannot use config.plist/Devices/Audio/Inject with the Clover code in its current state.



Someone with checkin privs for Clover can fix it (it is a relatively trivial change).



Or you can use Devices/Arbitrary or ACPI to inject layout-id.



Well, maybe @Slice can have a look? :D



I'm sure it's a trivial change. And I'm attempting an Arbitrary kind of fix, as well. Still, I'm not sure I need all that. Maybe someone with more experience can take a look?

<key>Devices</key>
	<dict>
		<key>Arbitrary</key>
		<array>
			<dict>
				<key>PciAddr</key>
				<string>00:1F.03</string>
				<key>Comment</key>
				<string>Realtek ALC1150</string>
				<key>CustomProperties</key>
				<array>
					<dict>
						<key>Key</key>
						<string>model</string>
						<key>Value</key>
						<string>Realtek ALC1150</string>
					</dict>
					<dict>
						<key>Key</key>
						<string>built-in</string>
						<key>Value</key>
						<data>AQAAAA==</data>
					</dict>
					<dict>
						<key>Key</key>
						<string>layout-id</string>
						<key>Value</key>
						<string>1</string>
					</dict>
				</array>
			</dict>
		</array>

Also, I can use device-properties injection, as well, as Riley suggested a few posts ago and see if that helps.



Still, I think the best way and the easiest way and probably the way that most people are gonna use with Clover, is the Devices/Audio/Inject method.



So, if someone with RW access could commit the changes necessary to get this fixed on Clover side, I would really, really appreciate it! That would be really awesome!! I know it's a trivial change. But for a trivial change, you don't have sound... :)) As someone said, sometimes, the smallest things can cause the biggest problems. :)



Hope someone (maybe Slice? :D) can make the changes to get this fixed.



RehabMan, big thanks for all your help so far.

@asradu can you please run "Jarvis" using AppleHDA Patcher and report back with /Desktop/MironeAudio/Jarvis contents?

(Sorry for the funny name.. but I'm going to automate the process as much as possible due to some adventures with users)



Will do. Hoooold on! :D



Update:

Jarvis attached.



jarvis.zip

  • Like 1
RehabMan
RehabMan
Posted
Posted

Well, maybe @Slice can have a look? :D



I'm sure it's a trivial change. And I'm attempting an Arbitrary kind of fix, as well. Still, I'm not sure I need all that. Maybe someone with more experience can take a look?

You can use /Devices/Arbitrary with layout-id injected as a "integer" or "data", but not "string" as you have.

  • Like 1
Sherlocks
Sherlocks
Posted
Posted

LOL. Couldn't you say that like 20 posts ago?? Maybe yesterday too? :))

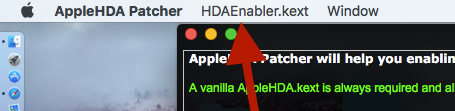

Ok, will give that one a try, as well. So I can use the HDAEnabler from the bucket of goodies that the AppleHDA Patcher created on my Desktop?

Give EFI folders and Alc1150 kext



나의 LG-F410S 의 Tapatalk에서 보냄

arsradu
arsradu
Posted
Posted

You can use /Devices/Arbitrary with layout-id injected as a "integer" or "data", but not "string" as you have.



Yes, for that method, I'll probably go with integer. Thanks for spotting that. :) For data, I need to encode it in Base64 right?



Any idea what is AQAAAA== ? Base64encode.org shows a bunch of question marks when trying to decode that. Also, do I need it for "built-in" property? My ioreg already has a built-in property set to <00>.

Also do I need a "model" property for this case? Is there a model for this audio controller? I couldn't find a model for the HDEF in ioreg. But maybe I'm not looking at the right place.

RehabMan
RehabMan
Posted
Posted

Yes, for that method, I'll probably go with integer. For data, I need to encode it in Base64 right?



Any idea what is AQAAAA== ? Base64encode.org shows a bunch of question marks when trying to decode that. Also, do I need it for "built-in" property?

Also do I need a "model" property for this case? Is there a model for this audio controller? I couldn't find a model for the HDEF in ioreg. But maybe I'm not looking at the right place.

SPEEDY-OSX:probook.git RehabMan$ echo -n AQAAAA==|base64 --decode|xxd
0000000: 0100 0000                                ....
You really should use a plist editor...
Micky1979
Micky1979
Posted
Posted

Put inside your EFI folder as is. At boot  edit config:"config" to be config:"test" in the option of the Clover's menu.


@asradu, the pc will not explode if you try as I said (your original config leaves untouched) ;)

test.plist.zip

  • Like 1
