Slice Posted January 22, 2014 Share Posted January 22, 2014 should i unplug my ssd with windows on it before doing this? For a what reason? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987502 Share on other sites More sharing options...
Wppley2 Posted January 22, 2014 Share Posted January 22, 2014 Hi all. Just want to share an interesting observation I made yesterday (perhaps surpassed it, but anyway ...). I was having a little problem with shutdown working intermittently on my Mavericks, and after much research and reading, I saw that this problem also occurs with the Apple hardware. In one reading I saw that the problem could be caused by the Find my Mac and disable it suffice to correct the problem and really that's what happened here. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987526 Share on other sites More sharing options...

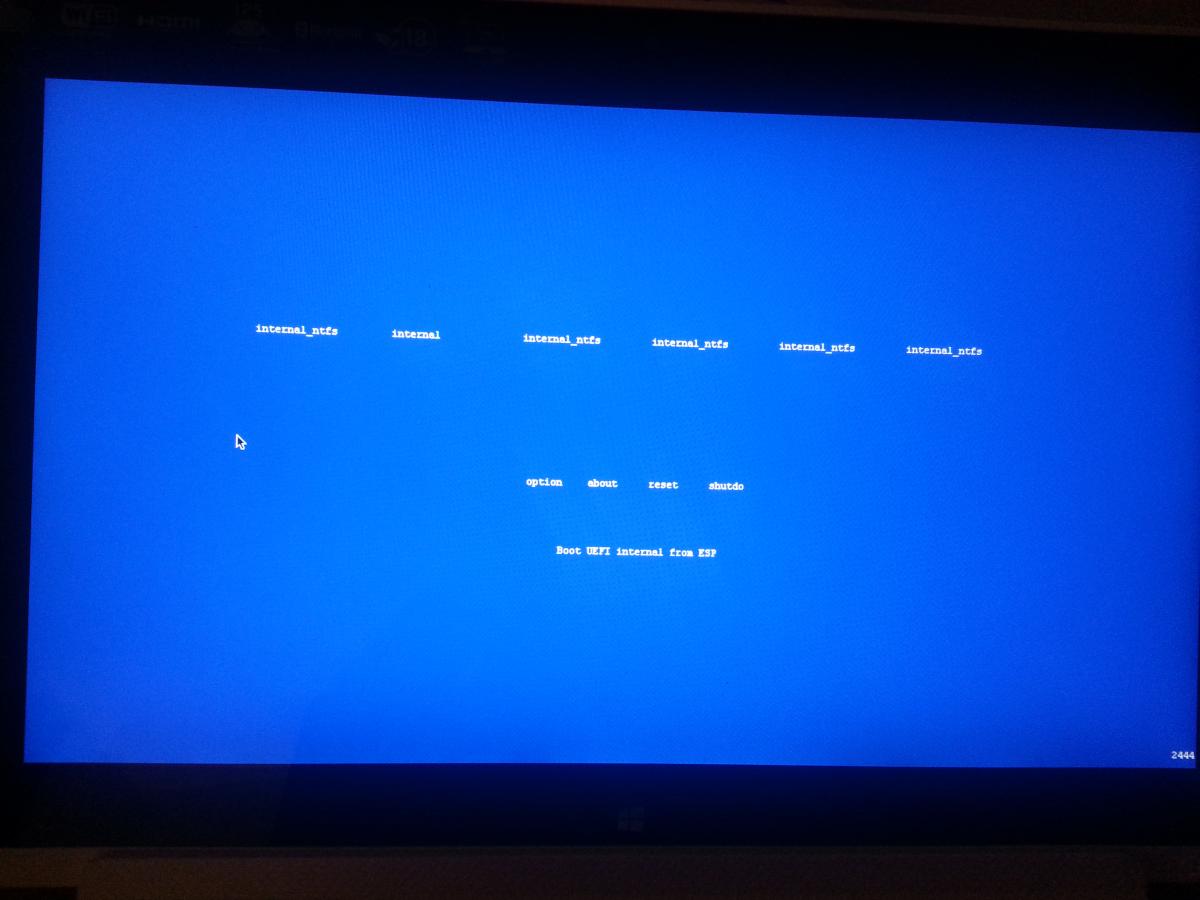

iDrewn Posted January 22, 2014 Share Posted January 22, 2014 Hello! I have installed Clover to my USB. But when i boot up i only get a blue screen with text on. No, not the famous Windows Bluescreen, but almost.. I post a picture for you to see: https://www.dropbox.com/s/060qqeabxjpgq9s/IMG_20140122_233614.jpg Thanks. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987699 Share on other sites More sharing options...
magnifico Posted January 22, 2014 Share Posted January 22, 2014 Hello! I have installed Clover to my USB. But when i boot up i only get a blue screen with text on. No, not the famous Windows Bluescreen, but almost.. I post a picture for you to see: https://www.dropbox.com/s/060qqeabxjpgq9s/IMG_20140122_233614.jpg Thanks. You need a theme in folder Clover Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987701 Share on other sites More sharing options...
iDrewn Posted January 22, 2014 Share Posted January 22, 2014 (edited) You need a theme in folder Clover I have a folder called "themes" in my clover, there are only small .png files. Should there be anything else? Her are som pics of my folders: DropBox - https://www.dropbox.com/sh/ay617i9j1mxud9g/NwMbFgzkso Edited January 22, 2014 by iDrewn Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987704 Share on other sites More sharing options...
H8TR Posted January 23, 2014 Share Posted January 23, 2014 So, I've begun to try out Clover. I can get it to boot no problem on my Z87M-D3H but when I try to boot any OS X volume, all I get is a black screen. No text, no nothing. Got to power down the system. Why is that? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987722 Share on other sites More sharing options...
iDrewn Posted January 23, 2014 Share Posted January 23, 2014 @iDrewn, that is the embedded theme, it's not too fantastic at the moment, you need to install a theme. Easiest way to do that is select one in installer, they are selected by default though so you must have unchecked it. I'm on Windows, don't know hos to get in to the installer. I really needs help with this! Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987809 Share on other sites More sharing options...
magnifico Posted January 23, 2014 Share Posted January 23, 2014 I'm on Windows, don't know hos to get in to the installer. I really needs help with this! Sorry, but what os you've created the pen drive? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987832 Share on other sites More sharing options...
joe75 Posted January 23, 2014 Share Posted January 23, 2014 I'm on Windows, don't know hos to get in to the installer. I really needs help with this! http://clover-wiki.zetam.org/Theme-database download a theme and put it in the "themes" folder manually Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987852 Share on other sites More sharing options...
Eps Posted January 23, 2014 Share Posted January 23, 2014 Hello Slice, It is not booted in 32-bit from rev 2482 to latest release of rev 2512. And 64-bit is booted OK until now. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987866 Share on other sites More sharing options...
H8TR Posted January 23, 2014 Share Posted January 23, 2014 Please press space bar over entry and select verbose boot see if anything more comes up, if not please edit config.plist and set key Boot/Log=true, make sure \EFI\CLOVER\misc exists and debug.log will show up in there, please post it. Thanks for the help, this is what I see on my display Also, this is my log file. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987889 Share on other sites More sharing options...
magnifico Posted January 23, 2014 Share Posted January 23, 2014 You need OsxAptioFix driver. Sure? Or him need to try disabler usb from config plist? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987895 Share on other sites More sharing options...
Maniac10 Posted January 23, 2014 Share Posted January 23, 2014 @iDrew: you actually have 2 themes installed already (BGM and black_green) but you need to set the preference or it won't be used! Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987910 Share on other sites More sharing options...
H8TR Posted January 23, 2014 Share Posted January 23, 2014 You need OsxAptioFix driver. Thanks, I got OS X to boot but right before it gets to the installer or desktop, it reboots. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1987911 Share on other sites More sharing options...
iDrewn Posted January 23, 2014 Share Posted January 23, 2014 @iDrew: you actually have 2 themes installed already (BGM and black_green) but you need to set the preference or it won't be used! Ok, I tthink that I'm starting to unerstand how this works now.. In my "EFI" folder I have the config.plist file, but when I search that .plist there is no Theme section. The only place I can find the Theme section are in refit.plist, and if I understand correct that is for older versions? I have r2444.. And to answer earlier speaker @magnifico, it's made on Windows 7 64-bit using Transmac and Diskutility tool. (has tried booth). Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988001 Share on other sites More sharing options...
fusion71au Posted January 23, 2014 Share Posted January 23, 2014 @iDrewn Open up config.plist with a text editor (eg Wordpad if in Windows) and add these lines to it: <key>Theme</key> <string>BGM</string> then save. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988004 Share on other sites More sharing options...
iDrewn Posted January 23, 2014 Share Posted January 23, 2014 You don't need any of that stuff to make a clover usb stick, you do need it to make an installer but as I recall you can only make a lion or older installer using that method, so you need os x to create a mountain lion or mavericks installer. you can always create the lion installer in windows and just keep upgrading and then create whichever installer you want at that point. Don't know how you came about that he had those themes installed but he does not according to boot log, he has bootcamp, my guess is an old one or something. He needs aptiofix because it's not there and he has AMI firmware 0:100 0:000 Starting Clover rev 2512 on American Megatrends EFI 0:233 0:016 LoadDrivers() start 0:250 0:016 Loading FSInject-64.efi 0:272 0:022 Loading OsxFatBinaryDrv-64.efi 0:295 0:023 Loading VBoxHfs-64.efi 0:319 0:024 - driver needs connecting 0:343 0:023 1 drivers needs connecting ... 0:360 0:016 PlatformDriverOverrideProtocol->GetDriver overriden 0:376 0:016 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 1:063 0:687 LoadDrivers() end Please check out the wiki for how to correctly configure because if you have refit.conf then you are probably using wrong style of old config.plist http://clover-wiki.zetam.org/Contents http://clover-wiki.zetam.org/Configuration#Config.plist-structure Oh forgot just download the newest package from sourceforge http://sourceforge.net/projects/cloverefiboot/ and use 7zip to extract the components in windows, easiest way to create it. Is open .pkg and then grab EFIFolder.pkg/Payload/Payload~/./ and extract that to usb root. pick the drivers you need and navigate same way to get them, then make sure you copy \EFI\CLOVER\CLOVERX64.efi to \EFI\BOOT\BOOTX64.efi. You should have good structure, now just edit config.plist as needed from wiki reference. Drivers go in \EFI\CLOVER\drivers64UEFI and themes go in \EFI\CLOVER\themes. You'll probably need to do some DSDT/SSDT patching. OK! Will try this asap! I really appreciate tthe help! sorry for my bad english, i'm from sweden Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988022 Share on other sites More sharing options...
iDrewn Posted January 23, 2014 Share Posted January 23, 2014 You don't need any of that stuff to make a clover usb stick, you do need it to make an installer but as I recall you can only make a lion or older installer using that method, so you need os x to create a mountain lion or mavericks installer. you can always create the lion installer in windows and just keep upgrading and then create whichever installer you want at that point. Don't know how you came about that he had those themes installed but he does not according to boot log, he has bootcamp, my guess is an old one or something. He needs aptiofix because it's not there and he has AMI firmware 0:100 0:000 Starting Clover rev 2512 on American Megatrends EFI 0:233 0:016 LoadDrivers() start 0:250 0:016 Loading FSInject-64.efi 0:272 0:022 Loading OsxFatBinaryDrv-64.efi 0:295 0:023 Loading VBoxHfs-64.efi 0:319 0:024 - driver needs connecting 0:343 0:023 1 drivers needs connecting ... 0:360 0:016 PlatformDriverOverrideProtocol->GetDriver overriden 0:376 0:016 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok 1:063 0:687 LoadDrivers() end Please check out the wiki for how to correctly configure because if you have refit.conf then you are probably using wrong style of old config.plist http://clover-wiki.zetam.org/Contents http://clover-wiki.zetam.org/Configuration#Config.plist-structure Oh forgot just download the newest package from sourceforge http://sourceforge.net/projects/cloverefiboot/ and use 7zip to extract the components in windows, easiest way to create it. Is open .pkg and then grab EFIFolder.pkg/Payload/Payload~/./ and extract that to usb root. pick the drivers you need and navigate same way to get them, then make sure you copy \EFI\CLOVER\CLOVERX64.efi to \EFI\BOOT\BOOTX64.efi. You should have good structure, now just edit config.plist as needed from wiki reference. Drivers go in \EFI\CLOVER\drivers64UEFI and themes go in \EFI\CLOVER\themes. You'll probably need to do some DSDT/SSDT patching. Now I have prepared everything.. Where do I find DSDT.aml? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988030 Share on other sites More sharing options...
xpamamadeus Posted January 23, 2014 Share Posted January 23, 2014 Now I have prepared everything.. Where do I find DSDT.aml? u need "Belarus Mtz 1025" and go in forest to find one... Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988053 Share on other sites More sharing options...
magnifico Posted January 23, 2014 Share Posted January 23, 2014 u need "Belarus Mtz 1025" and go in forest to find one... Ahahahahahahahah .....crazyyyyyyyyy...iuiuiuiuiuiiiiuuuiiuuiiiuu Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988062 Share on other sites More sharing options...
kyndder Posted January 24, 2014 Share Posted January 24, 2014 Now I have prepared everything.. Where do I find DSDT.aml? u need "Belarus Mtz 1025" and go in forest to find one... Or you can read this > http://clover-wiki.zetam.org/Fixing-DSDT Then try to understand and apply what you just learned using this settings > http://clover-wiki.zetam.org/Configuration/ACPI#DSDT-/-Fixes 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988083 Share on other sites More sharing options...
Slice Posted January 24, 2014 Share Posted January 24, 2014 Hello Slice, It is not booted in 32-bit from rev 2482 to latest release of rev 2512. And 64-bit is booted OK until now. You should give more information to analyze. I tested every version and have never problem with 32bit. My notebooks works always in 32. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988110 Share on other sites More sharing options...
H8TR Posted January 24, 2014 Share Posted January 24, 2014 So earlier today I thought I had figured out Clover. I had it working and everything, did a Mavericks install and it was great until the Gigabyte UEFi hung and caused me to clear CMOS. Now even with OSXAptio driver, I can't get anything to boot with Clover past "root device UUID... Error Exiting Boot Services, Boot failed, Sleeping for 10 seconds etc.". I tried for hours and I'm just going to go back to Chameleon. Here's the Clover log if anyone wants to look at it. If anyone has an idea, please feel free. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988120 Share on other sites More sharing options...
fusion71au Posted January 24, 2014 Share Posted January 24, 2014 @H8TR Clearing your CMOS probably reset BIOS to defaults eg may have changed SATA mode from AHCI to IDE....check your BIOS settings again and adjust if necessary eg refer to xpamamadeus guide. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988124 Share on other sites More sharing options...

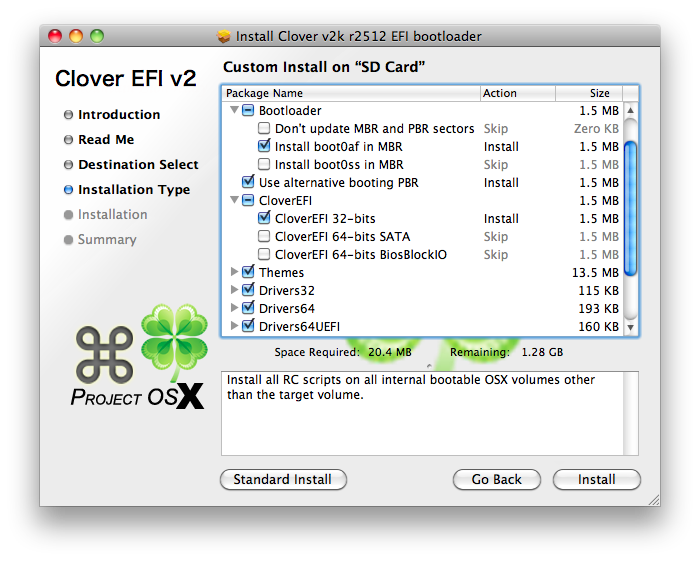

Eps Posted January 24, 2014 Share Posted January 24, 2014 You should give more information to analyze. I tested every version and have never problem with 32bit. My notebooks works always in 32. Sure, I install Clover to SD-Card with options just like the following picture. Tested in my 32bit only netbook and desktop PC with 64bit function. My netbook and desktop PC stuck in only word "3" on monitor. But, when I boot desktop PC in 64bit by pressing 6 and it boot OK. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/148/#findComment-1988127 Share on other sites More sharing options...
