Clover General discussion

[Jief_Machak]

6 hours ago, odemolay said:

I didn't know that you had to rename CLOVERX64 to BOOTX64 to put it in the BOOT folder. I only replaced the one in the Clover folder... shame on me. now with 0xFFF and this commit is working fine. Thanks again.

Well, I suggest not to duplicate the clover efi file and use my BootLoaderChooser as bootx64.efi.

That way, you know exactly which clover efi file will start.

the more obvious, the less mistake…

7 hours ago, arcade33 said:

this one : https://www.ebay.fr/itm/174224694910



Operating Systems:

Hackintosh
Windows 7
Windows 8
Windows 10
Windows 11
OS X Yosemite 10.10.5
OS X EI Capitan 10.11.6
MacOS Sierra 10.12.6
MacOS High Sierra 10.13.6
MacOS Mojave 10.14.6
MacOS Catalina 10.15.7
MacOS Big Sur 11.6.1
MacOS Monterey 12.0.1

Free driver for Mac OS,Hackintosh system(plug and play),If you need the driver for Windows system,please contact our customer service

A driver is needed for macOS for this internal card ?

[Dmitriy85]

41 minutes ago, Jief_Machak said:

Well, I suggest not to duplicate the clover efi file and use my BootLoaderChooser as bootx64.efi.

That way, you know exactly which clover efi file will start.

the more obvious, the less mistake…

A driver is needed for macOS for this internal card ?

BCM943602CS works in all systems. No drivers required. for windows drivers from bootcamp

https://www.ebay.com/itm/275165093782?hash=item40111e1f96:g:cVYAAOSwlCliB9kJ

Edited June 30, 2022 by Dmitriy85

[SavageAUS]

Clover release 5147 boots my laptop into Ventura without issues.

[STLVNUB]

1 hour ago, SavageAUS said:

Clover release 5147 boots my laptop into Ventura without issues.

EFI please

[MifJpnAlphaPlus]

5 hours ago, Dmitriy85 said:

I recorded a video of the whole process, I think it will be clearer this way. I also attached the EFI folder on Google drive

https://drive.google.com/drive/folders/1cwYf5z0Vt74v5JQhgCVwLTizTdzg8X90?usp=sharing

Hello

I haven't touched anyone else's Hackintosh, so I don't know.

I've posted the entire boot video of my environment.

https://drive.google.com/file/d/18xuDAht4hXWTCrGK9MPTUrs4hgbXxRGK/view?usp=sharing,

https://drive.google.com/file/d/1kzjs3nkFdc4mkjziX8y14Z6Wqwyskvj3/view?usp=sharing

https://drive.google.com/file/d/1Abj-IdpeNBiclFhBv2aN7ukZ2W5oN1no/view?usp=sharing,

https://drive.google.com/file/d/1eOzL6DQcIzr6AkK1CLjJYMnl_-xx2wJb/view?usp=sharing

I'd like to ask, could you post videos other than Ventura (Monterey, etc.) on your current Clover?

thank you.



(In my boot environment, it is currently divided into test and stable.)

Edited June 30, 2022 by MifJpnAlphaPlus

[Slice]

12 hours ago, Jief_Machak said:

I need an internal wifi card and a USB to ethernet adapter. Anyone knows what to buy so it'll be compatible with macos (from high sierra) ? Or any forum where I can ask ?

Thanks.

"USB to ethernet adapter"

As I see nobody use it and no hackintosh driver developed. I was using such a device some years ago and it worked as is. Probably I bought a new device with own drivers with description "macOS compatible".

But usually people use USB-WIFI adapters which has MAC drivers (Realtek, Ralink-Mediatech).



[Matgen84]

13 hours ago, Jief_Machak said:

I need an internal wifi card and a USB to ethernet adapter. Anyone knows what to buy so it'll be compatible with macos (from high sierra) ? Or any forum where I can ask ?

Thanks.



Hi @Jief_Machak There is this : USB 3.0 Gigabit Ethernet Adapter RNG-406U

Rosewill Manual fort USB 3.0 adapter for Ethernet

[Dmitriy85]

1 hour ago, MifJpnAlphaPlus said:

Hello

I haven't touched anyone else's Hackintosh, so I don't know.

I've posted the entire boot video of my environment.

https://drive.google.com/file/d/18xuDAht4hXWTCrGK9MPTUrs4hgbXxRGK/view?usp=sharing,

https://drive.google.com/file/d/1kzjs3nkFdc4mkjziX8y14Z6Wqwyskvj3/view?usp=sharing

https://drive.google.com/file/d/1Abj-IdpeNBiclFhBv2aN7ukZ2W5oN1no/view?usp=sharing,

https://drive.google.com/file/d/1eOzL6DQcIzr6AkK1CLjJYMnl_-xx2wJb/view?usp=sharing

I'd like to ask, could you post videos other than Ventura (Monterey, etc.) on your current Clover?

thank you.



(In my boot environment, it is currently divided into test and stable.)

Other OS are loaded quickly

[MifJpnAlphaPlus]

1 hour ago, Dmitriy85 said:

Other OS are loaded quickly

hello.
I trust you



That's why I gave all the information to everyone.



I'm sorry I'm not good at English.



Do you say that the login screen will appear about 14 seconds after you press the boot menu button don't you?



I don't know about that, so when I asked, you sent the video properly.
This method is very easy to understand.
And everyone expects you to be a good way to communicate your symptoms.
Also, for you, the method is just as easy.



I know what you are saying.
Please please really ask you.
Add a faster OS boot video such as Monterey to Google Drive with Clover in the same environment.



thank you.

Edited June 30, 2022 by MifJpnAlphaPlus

[Vinicius P. Miranda]

Ventura is able to run in x79 platform with clover r5147?

I'm trying to install but nothing works. It actually installed all the parts, it seems I'm stuck on the last one, when time's to load the system.

I changed from MacPro 6,1 to iMacPro 1,1 to be able to install, but every time the PC restarts.

I'm not sure if it's because Sandy Bridge-E processors can't install Ventura, or if Clover isn't ready yet to x79, or something else.

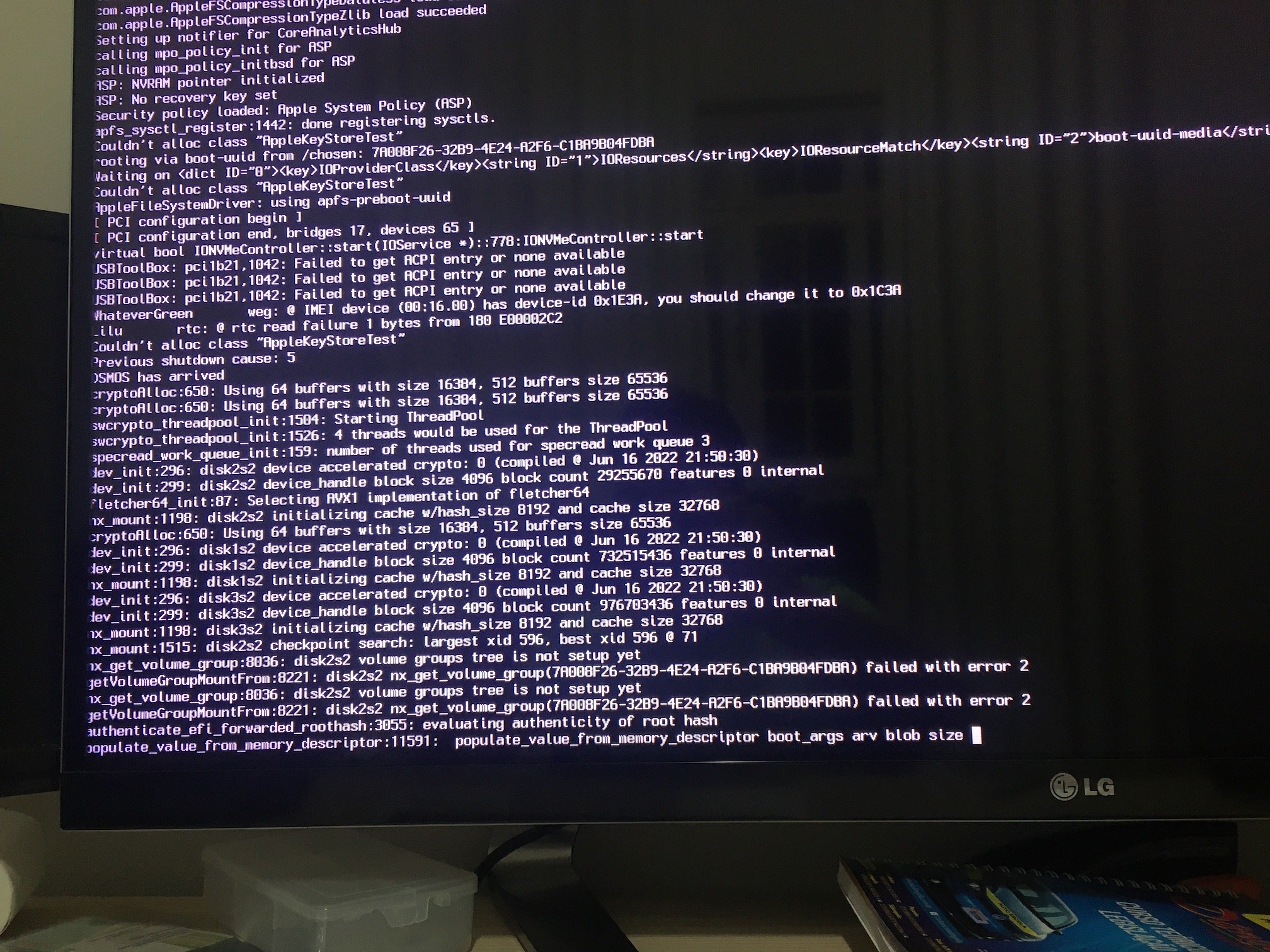

Note: When I use Debug Yes, boot stuck at the beginning, when it shows the characters "######". I can't use debug.

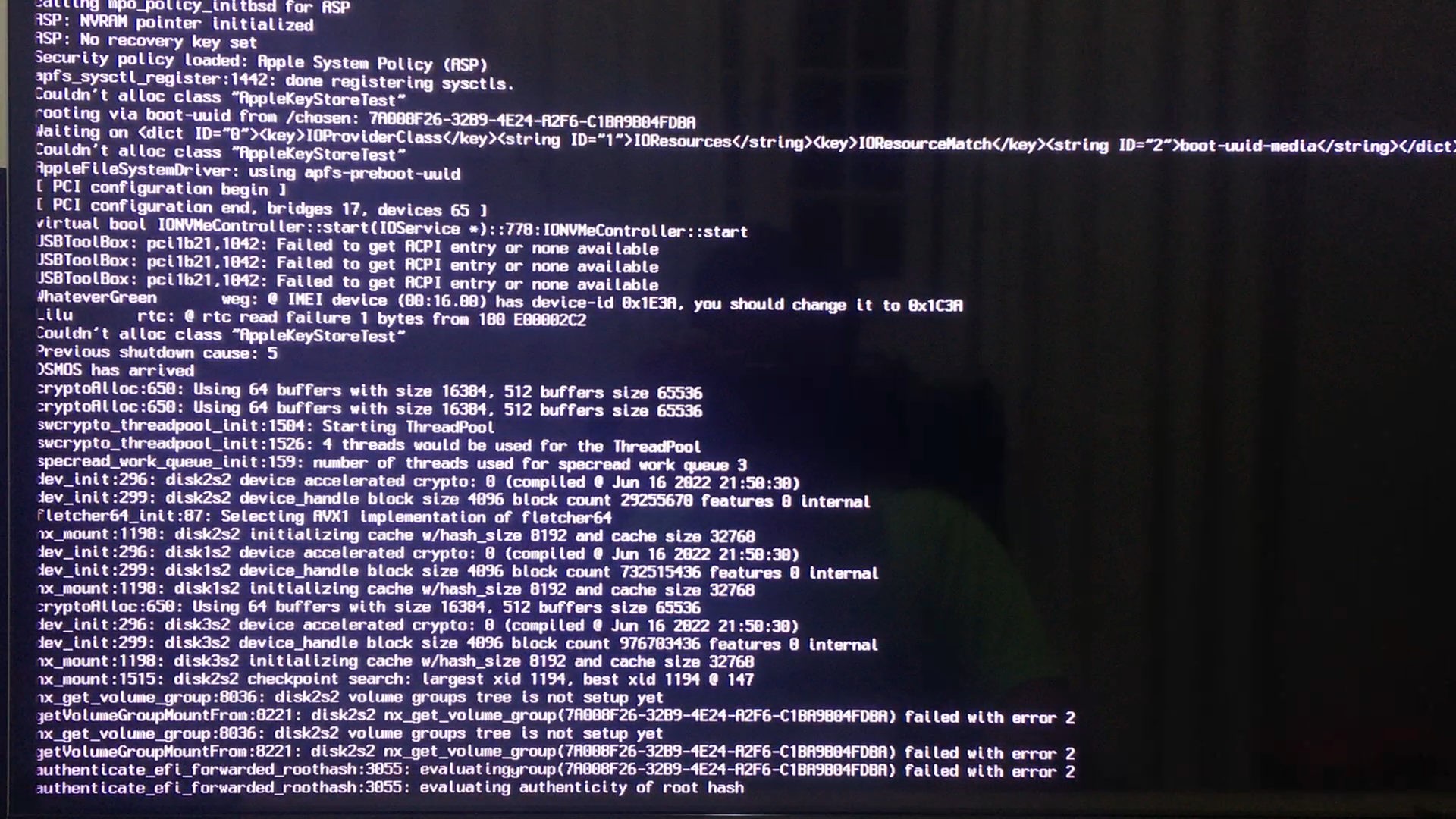

When I don't use "AvoidRuntimeDefrag" restart here:

Note: Sometimes it hangs on: "cryptoAlloc:658: Using 64 buffers with size 16384, 512 buffers size 65536".



When I use "AvoidRuntimeDefrag" restart here:

Just the following extra line: populate _value_from_memory_descrintor:11591: populate_value_from_memory_descriptor boot_args arv blob size

[Dmitriy85]

1 hour ago, MifJpnAlphaPlus said:

hello.
I trust you



That's why I gave all the information to everyone.



I'm sorry I'm not good at English.



Do you say that the login screen will appear about 14 seconds after you press the boot menu button don't you?



I don't know about that, so when I asked, you sent the video properly.
This method is very easy to understand.
And everyone expects you to be a good way to communicate your symptoms.
Also, for you, the method is just as easy.



I know what you are saying.
Please please really ask you.
Add a faster OS boot video such as Monterey to Google Drive with Clover in the same environment.



thank you.

I found an error. It's my own fault, I forgot to turn off the IGPU. Because of this, there was a long download😂

[Matgen84]

45 minutes ago, Vinicius P. Miranda said:

Ventura is able to run in x79 platform with clover r5147?

I'm trying to install but nothing works. It actually installed all the parts, it seems I'm stuck on the last one, when time's to load the system.

I changed from MacPro 6,1 to iMacPro 1,1 to be able to install, but every time the PC restarts.

I'm not sure if it's because Sandy Bridge-E processors can't install Ventura, or if Clover isn't ready yet to x79, or something else.

Note: When I use Debug Yes, boot stuck at the beginning, when it shows the characters "######". I can't use debug.



When I don't use "AvoidRuntimeDefrag" restart here:



Note: Sometimes it hangs on: "cryptoAlloc:658: Using 64 buffers with size 16384, 512 buffers size 65536".



When I use "AvoidRuntimeDefrag" restart here:



Just the following extra line: populate _value_from_memory_descrintor:11591: populate_value_from_memory_descriptor boot_args arv blob size



Unless I'm mistaken, you need the AVX2 instruction set support and at least a Haswell processor to start the Ventura beta.

[Slice]

2 hours ago, Vinicius P. Miranda said:

Ventura is able to run in x79 platform with clover r5147?

I'm trying to install but nothing works. It actually installed all the parts, it seems I'm stuck on the last one, when time's to load the system.

I changed from MacPro 6,1 to iMacPro 1,1 to be able to install, but every time the PC restarts.

I'm not sure if it's because Sandy Bridge-E processors can't install Ventura, or if Clover isn't ready yet to x79, or something else.

Note: When I use Debug Yes, boot stuck at the beginning, when it shows the characters "######". I can't use debug.



When I don't use "AvoidRuntimeDefrag" restart here:

Note: Sometimes it hangs on: "cryptoAlloc:658: Using 64 buffers with size 16384, 512 buffers size 65536".



When I use "AvoidRuntimeDefrag" restart here:

Just the following extra line: populate _value_from_memory_descrintor:11591: populate_value_from_memory_descriptor boot_args arv blob size

Screenshots look like the Clover is 5146, not 5147.

[odemolay]

3 hours ago, Vinicius P. Miranda said:

Ventura is able to run in x79 platform with clover r5147?

I'm trying to install but nothing works. It actually installed all the parts, it seems I'm stuck on the last one, when time's to load the system.

I changed from MacPro 6,1 to iMacPro 1,1 to be able to install, but every time the PC restarts.

I'm not sure if it's because Sandy Bridge-E processors can't install Ventura, or if Clover isn't ready yet to x79, or something else.

Note: When I use Debug Yes, boot stuck at the beginning, when it shows the characters "######". I can't use debug.



When I don't use "AvoidRuntimeDefrag" restart here:

Note: Sometimes it hangs on: "cryptoAlloc:658: Using 64 buffers with size 16384, 512 buffers size 65536".



When I use "AvoidRuntimeDefrag" restart here:

Just the following extra line: populate _value_from_memory_descrintor:11591: populate_value_from_memory_descriptor boot_args arv blob size

what is your CsrActiveConfig setting in your config.plist ?

[MifJpnAlphaPlus]

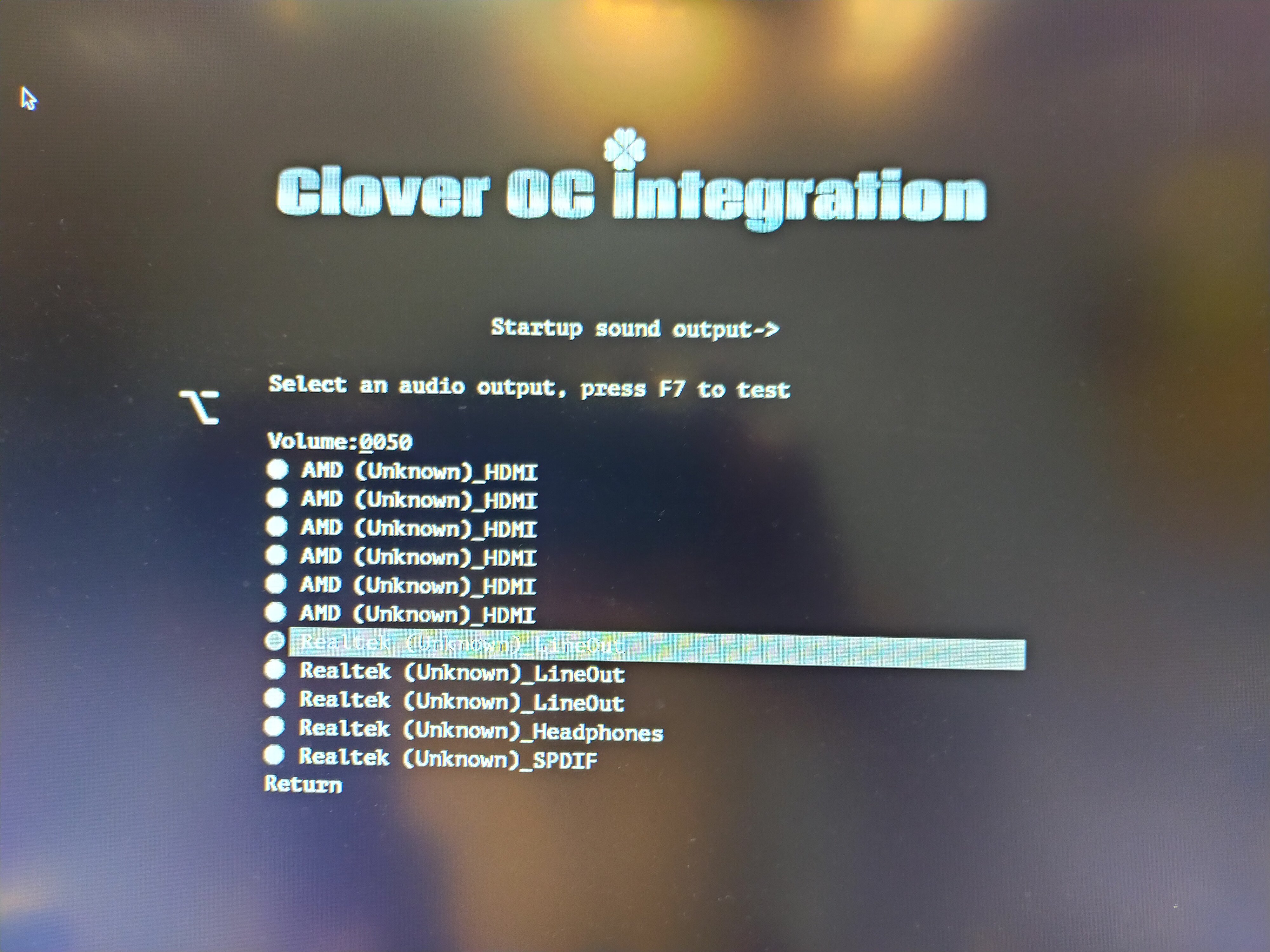

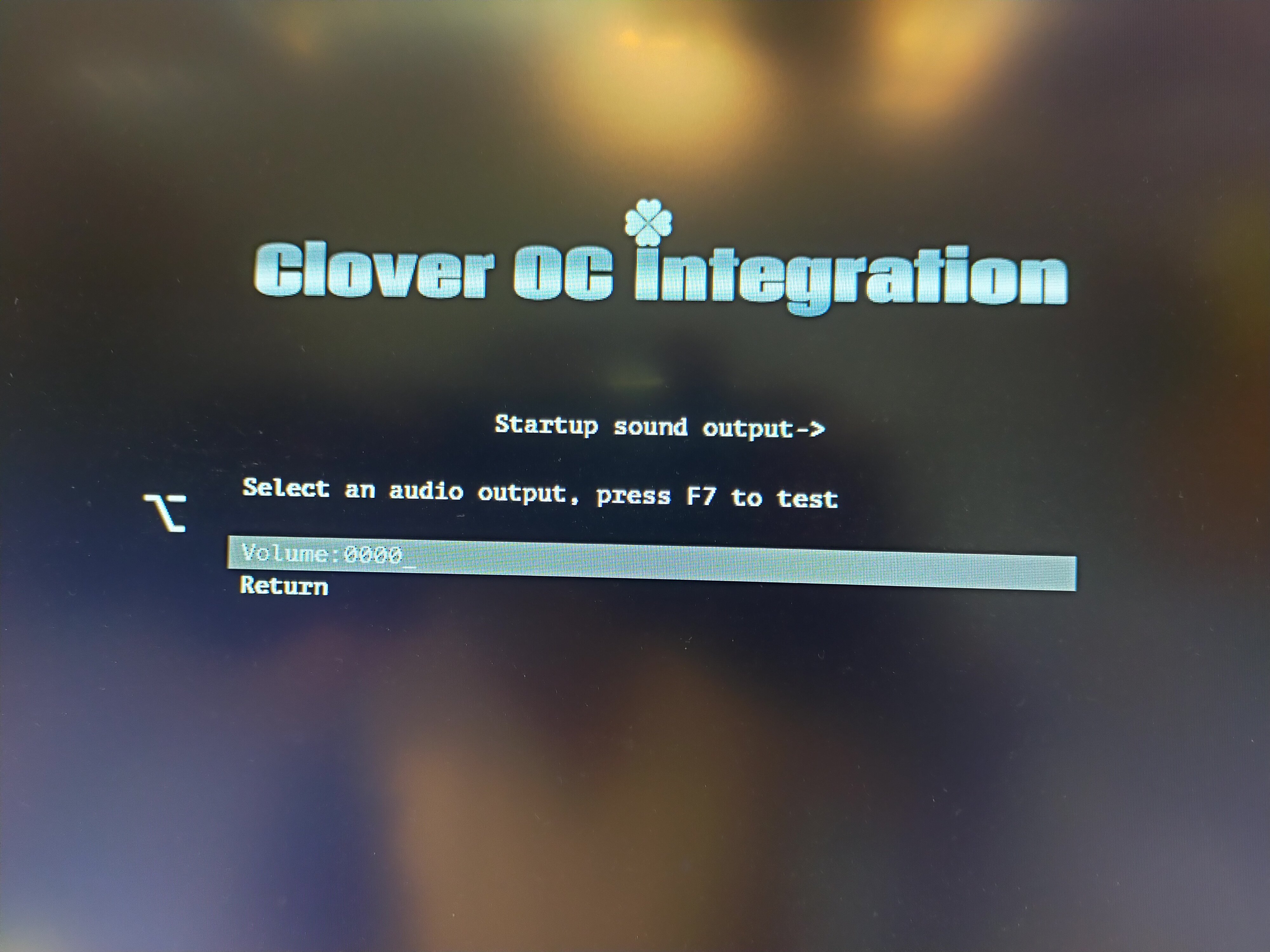

Thank you very much for your development for booting Ventura.

But I'm a little sad.

I'm overwriting clover with a package, but after all the startup sound does not come out. (ALC1200)

It's okay to be late, but I want you to ring it.

I will attach what you need.

5147



2022-06-30_12-08_CLOVERX64.efi.log

EFI.5147.zip



5146

2022-06-30_12-18_CLOVERX64.efi.log

EFI.5146.zip



Thank you.

[MaLd0n]

20 minutes ago, MifJpnAlphaPlus said:

But I'm a little sad

U used Clover for that?

This is a real basic solution. Not good.

[Guest 5T33Z0]

@MifJpnAlphaPlus



You put all your kexts in CLOVER/kexts/12 and expect macOS 13 to boot????

1. Update Kexts: https://dortania.github.io/builds/?viewall=true
2. MOVE THEM TO KEXTS/OTHER
3. Use the corrected config config.plist.zip

Edited June 30, 2022 by 5T33Z0

[MifJpnAlphaPlus]

16 minutes ago, MaLd0n said:

U used Clover for that?

This is a real basic solution. Not good.

Thank you for your quick reply.
I followed Dortania's settings.
If there is a more fundamental method, please guide me.

https://dortania.github.io/OpenCore-Install-Guide/config.plist/comet-lake.html#starting-point
Thank you.

3 minutes ago, 5T33Z0 said:

@MifJpnAlphaPlus I told you already:



Disable: GUI > PlayAsync

sorry. I will try again.

Wait a minute.



Thank you

Edited June 30, 2022 by MifJpnAlphaPlus

[Slice]

49 minutes ago, MifJpnAlphaPlus said:

Thank you very much for your development for booting Ventura.

But I'm a little sad.

I'm overwriting clover with a package, but after all the startup sound does not come out. (ALC1200)

It's okay to be late, but I want you to ring it.

I will attach what you need.

5147



2022-06-30_12-08_CLOVERX64.efi.log 120.91 kB · 0 downloads

EFI.5147.zip



5146

2022-06-30_12-18_CLOVERX64.efi.log 81.43 kB · 0 downloads

EFI.5146.zip



Thank you.

Strange

10:420  0:014  No AudioIoProtocols, status=Not Found

Looks like bad AudioDxe.efi

[MaLd0n]

17 minutes ago, MifJpnAlphaPlus said:

If there is a more fundamental method, please guide me

Old Chameleon boot my hack with just Fakesmc and HPET fix(i remember that) but is just a basic solution. These files from ur EFI folder is just for easy boot, don't use it for one fine tune or ur hack looks like Sylvia Saint after 60 years old, beautiful but ordinary.

[MifJpnAlphaPlus]

5 minutes ago, 5T33Z0 said:



You put all your kexts in CLOVER/kexts/12 and expect macOS 13 to boot????

1. Update Kexts: https://dortania.github.io/builds/?viewall=true
2. MOVE THEM TO KEXTS/OTHER
3. Use the corrected config config.plist.zip



Seems to me you don't understand how these sub-folders work: https://github.com/5T33Z0/Clover-Crate/tree/main/Kext_Management

Sorry for the lack of explanation.

In Ventura boot, Kext under development is used, so it is separated by pre-selector.

This EFI has all Stables installed to prevent problems.

Also, I'm sorry I couldn't answer the point at the beginning.

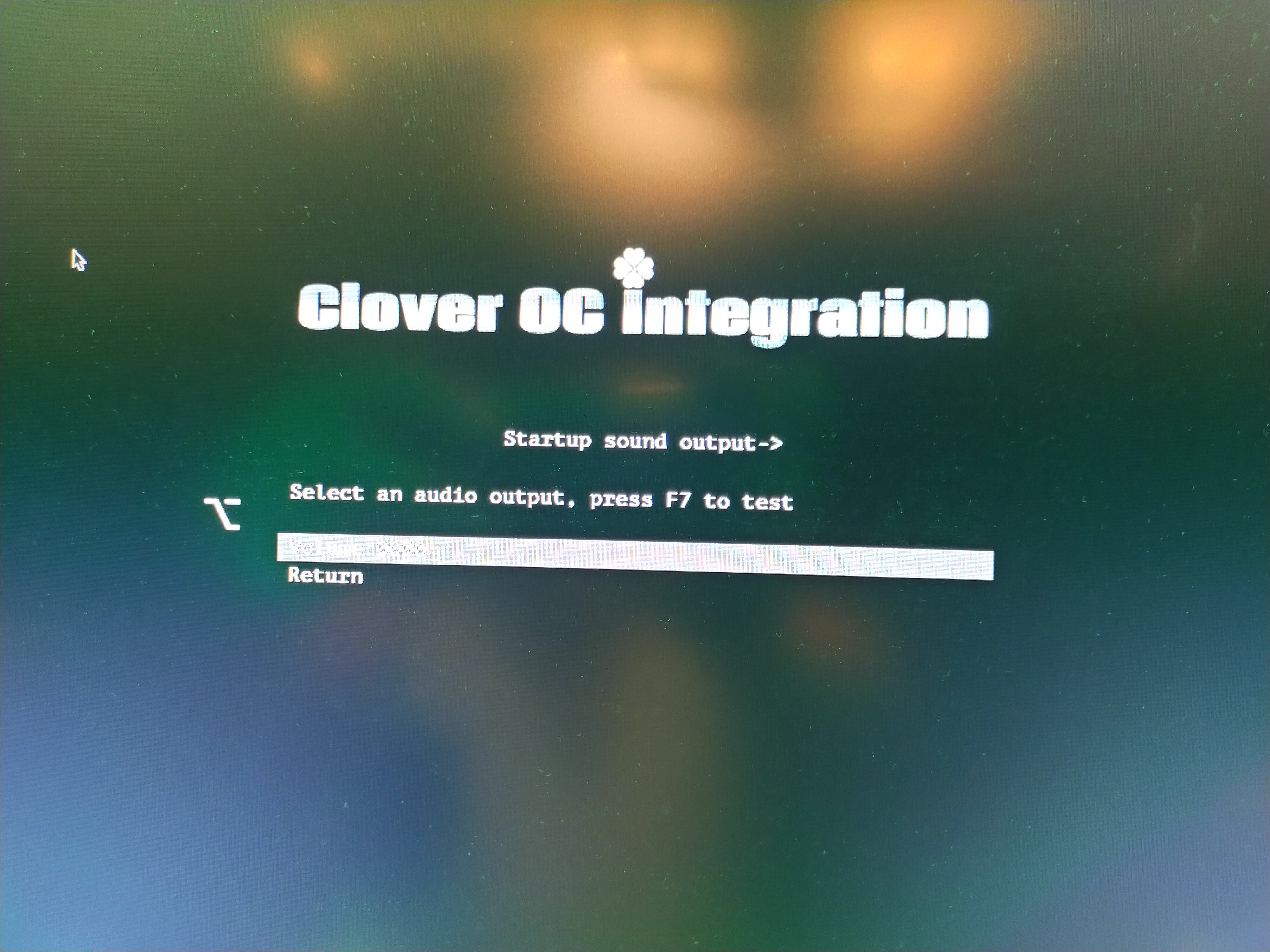

Now, I set playasync to false as follows.

Sadly, there is no sound.



EFI.5147-2.zip



Thnak you so much.



[MifJpnAlphaPlus]

11 minutes ago, MaLd0n said:

Old Chameleon boot my hack with just Fakesmc and HPET fix(i remember that) but is just a basic solution. These files from ur EFI folder is just for easy boot, don't use it for one fine tune or ur hack looks like Sylvia Saint after 60 years old, beautiful but ordinary.

Thank you for your quick response.

Well, quoting your generic config.plist, I moved to H570.



I hope I don't make a mistake in my interpretation.

In order to make fine adjustments correctly, should we consider changing from OC to Clover, for example, using the following method as a guide and omitting unnecessary items that were in ASUS H570?



https://github.com/5T33Z0/Clover-Crate/tree/main/OC2Clover



Or do you need to think about how to adjust SSDT beyond Dortania's guide?
I don't know the guide in that case. very sorry.

Thank you

[Guest 5T33Z0]

@MifJpnAlphaPlus Use the SSDT Samples from the OpenCore package and adjust them accordingly: https://github.com/5T33Z0/OC-Little-Translated/tree/main/01_Adding_missing_Devices_and_enabling_Features

[MaLd0n]

21 minutes ago, MifJpnAlphaPlus said:

Or do you need to think about how to adjust SSDT beyond Dortania's guide?

These solutions is generic. Ctrl C + Ctrl V is never good and full solution but is a easy way if you don't like lose time for one full solution and Clover is very smart. We can use one full solution and hack stay like one real mac, inject devices, remove devices, etc and this bootloader don't inject nothing in others Oses.

One fork from OpenCore people call MOD from BtWise, same aproach is HERE

[MifJpnAlphaPlus]

24 minutes ago, MaLd0n said:

These solutions is generic. Ctrl C + Ctrl V is never good and full solution but is a easy way if you don't like lose time for one full solution and Clover is very smart. We can use one full solution and hack stay like one real mac, inject devices, remove devices, etc and this bootloader don't inject nothing in others Oses.

One fork from OpenCore people call MOD from BtWise, same aproach is HERE

Wow!

No-ACPI!

Thank you for the great information.

I'm using the Stable repository and the Latest repository separately.

I think this branch is very suitable for stable ones.

worth studying very much.

I use a computer, including the development of "Moebuntu".
My computer has 5 operating systems.

I'm glad I still had room in the EFI partition.

Thank you.



46 minutes ago, 5T33Z0 said:

@MifJpnAlphaPlus Use the SSDT Samples from the OpenCore package and adjust them accordingly: https://github.com/5T33Z0/OC-Little-Translated/tree/main/01_Adding_missing_Devices_and_enabling_Features

The great thing about you is that your own manual will come out soon.
I'll get started right away.
Thank you.
