fantomas

Radeon HD 6770 FULL QE/CI ML/Mavericks/Yosemite/ElCapitan/Sierra

116 posts in this topic

Recommended Posts

------------------------

Update - 06.15.2016

------------------------



A minor update of this topic - Clover (r3561) patch on the fly works fine with macOS 10.12 Sierra.









------------------------

Update - 08.18.2015

------------------------



ok

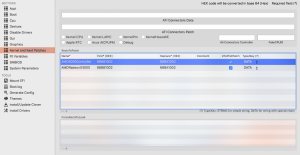

with Download-Fritz help, I’m finally able to patch my kexts with new method.



post-193719-0-96031100-1439918159_thumb.



it works fine with Clover r3259 + DB6



but in my case, I still have to use FakeSMC trick... I tried with ForceKextsToLoad feature but it didn’t work... not yet.




------------------------

Update - 08.17.2015

------------------------



Hi there!   :D



almost a year later, I'm about to update this topic, not because I was too lazy to do it but just because the "patch on the fly" method  has a little bit changed since Clover r3154  and which I was not able to make work.



not really happy with being unable to use this method, I decided to do some tests with older versions of OS X and Clover... Bla bla bla... bla bla Bla...










... as I expected, the old method still work... and it works fine with ElCapitan DB1   :D



Capture d’écran 2015-08-17 à 16.31.24.png







fantomas1s-iMac:~ fantomas1$ kextstat | grep AMD

   54    2 0xffffff7f81f26000 0x125000   0x125000   com.apple.kext.AMDSupport (1.3.6) C96B4426-D45A-3988-8F77-D0599ABD7351
   55    0 0xffffff7f8208e000 0x5f0000   0x5f0000   com.apple.kext.AMD5000Controller (1.3.6) 243E5473-2D4E-364F-9039-1A31DF22125E
   94    0 0xffffff7f8288b000 0x45c000   0x45c000   com.apple.AMDRadeonX3000 (1.3.6) DBC4A87F-55D9-30A0-929F-A3F2D86DC6AD
   97    0 0xffffff7f82059000 0x22000    0x22000    com.apple.kext.AMDFramebuffer (1.3.6) 460D6D27-72F8-3EFE-8879-23EF4CAE4F55
fantomas1s-iMac:~ fantomas1$ ioreg | grep ATY
    | |   |   | +-o ATY,Hoolock@0
    | |   |   | | +-o ATY_Hoolock
    | |   |   | +-o ATY,Hoolock@1
    | |   |   | | +-o ATY_Hoolock
    | |   |   | +-o ATY,Hoolock@2
    | |   |   | | +-o ATY_Hoolock

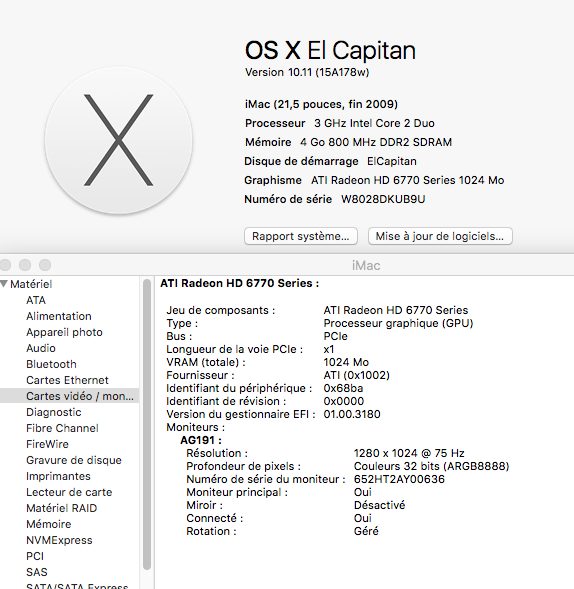

I even was able to install ElCapitan with Clover r2850 and boot well on it   :)

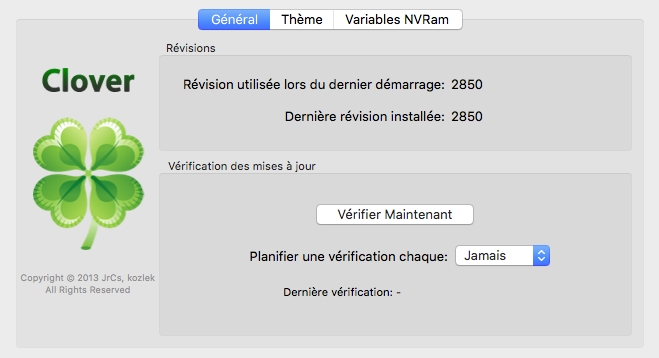

 Capture d’écran 2015-08-17 à 16.36.15.png

but to have success with it, the most effective trick for now is to inject the details of my kexts (AMD5000Controller.kext and AMDRadeonX3000.kext) inside the FakeSMC Info.plist as additional IOKitPersonalities. With this trick, my kexts are always loaded.



bc_url" href="http://www.apple.com/DTDs/PropertyList-1.0.dtd" title="External link">http://www.apple.com...yList-1.0.dtd">
BuildMachineOSBuild
13D65
CFBundleDevelopmentRegion
English
CFBundleExecutable
FakeSMC
CFBundleIdentifier
org.netkas.driver.FakeSMC
CFBundleInfoDictionaryVersion
6.0
CFBundleName
FakeSMC
CFBundlePackageType
KEXT
CFBundleShortVersionString
6.9.1315
CFBundleSignature
????
CFBundleVersion
1315
DTCompiler
com.apple.compilers.llvm.clang.1_0
DTPlatformBuild
5B1008
DTPlatformVersion
GM
DTSDKBuild
12F37
DTSDKName
macosx10.8
DTXcode
0511
DTXcodeBuild
5B1008
IOKitPersonalities
AMDBartsGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDBartsGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x67381002 0x67391002 0x67201002 0x67221002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDCaicosGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDCaicosGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x67681002 0x67701002 0x67791002 0x67601002 0x67611002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDCaymanGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDCaymanGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x67181002 0x67191002 0x67041002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDCedarGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDCedarGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x68E01002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDCypressGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDCypressGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x68981002 0x68991002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDJuniperGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDJuniperGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x68B81002 0x68B01002 0x68B11002 0x68A01002 0x68A11002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDLombokGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDLombokGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x68401002 0x68411002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDRedwoodGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDRedwoodGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x68D81002 0x68C01002 0x68C11002 0x68D91002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
AMDTurksGraphicsAccelerator
ATIEnableWideBlitSupport
ATIUseTearingWideBlit
CFBundleIdentifier
com.apple.AMDRadeonX3000
GpuDebugPolicy
0
IOClass
AMDTurksGraphicsAccelerator
IODVDBundleName
AMDRadeonVADriver
IOKitDebug
0
IOMatchCategory
IOAccelerator
IOPCIMatch
0x67501002 0x67581002 0x67591002 0x67401002 0x67411002 0x67451002
IOProbeScore
200
IOProviderClass
IOPCIDevice
IOSourceVersion
0.0.0.0.0
IOVARendererID
16908288
Controller
ATY,Hoolock
aty_config
CFG_FORCE_ICLK
ATY,Langur
aty_config
CFG_FORCE_ICLK
ATY,Orangutan
aty_config
CFG_GPIO_HIGH
131104
ATY,Zonalis
aty_config
CFG_NO_PP
CFBundleIdentifier
com.apple.kext.AMD5000Controller
IOClass
AMD5000Controller
IOMatchCategory
IOFramebuffer
IOName
AMD5000Controller
IOPCIMatch
0x68981002 0x68991002 0x68E01002 0x68E11002 0x68D81002 0x68C01002 0x68C11002 0x68D91002 0x68B81002 0x68B01002 0x68B11002 0x68A01002 0x68A11002
IOProbeScore
65050
IOProviderClass
IOPCIDevice
aty_config
CFG_NO_PP
aty_properties
PP_ActivitySamplingInterval
1000
PP_DisableMCDownLoadFeature
1
PP_HighSamplingInterval
200000
PP_R600ActivityHysteresis
5
PP_R600LoweringHighPercentage
25
PP_R600LoweringMediumPercentage
10
PP_R600RaisingLowPercentage
10
PP_R600RaisingMediumPercentage
25
PP_UserMaxClockForMultiDisplays
1
                FakeSMC
CFBundleIdentifier
org.netkas.driver.FakeSMC
Configuration
Clover
BEMB
BEMB
flag
EPCI
EPCI
ui32
RBr
RBr
ch8*
REV
REV
{rev
RPlt
RPlt
ch8*
Keys
$Adr
ui32
AAADAA==
$Num
ui8
AQ==
FNum
ui8
AA==
LsNM
ui8
AQ==
LsbV
{rev
AQQKAAY=
MSSD
si8
BQ==
MSSP
si8
BQ==
NATJ
ui8
AA==
OSK0
ch8*
b3VyaGFyZHdvcmtieXRoZXNld29y
ZHNndWFyZGVkcGw=
OSK1
ch8*
ZWFzZWRvbnRzdGVhbChjKUFwcGxl
Q29tcHV0ZXJJbmM=
REV
{rev
ATAPAAAD
RVBF
{rev
ATAPAAAD
RVUF
{rev
ATAPAAAD
Types
BEMB
flag
CLKC
{clc
CLKH
{clh
CLKT
ui32
CLWK
ui32
EPCI
flag
LSSS
{lso
MSDS
ui8
MSDW
flag
MSPS
{msp
RPlt
ch8*
debug
smc-compatible
smc-napa
trace
IOClass
FakeSMC
IOMatchCategory
FakeSMC
IOProviderClass
AppleACPIPlatformExpert
IOResourceMatch
FakeSMCKeyStore
FakeSMCKeyStore
CFBundleIdentifier
org.netkas.driver.FakeSMC
IOClass
FakeSMCKeyStore
IOMatchCategory
FakeSMCKeyStore
IOProviderClass
IOResources
IOResourceMatch
IOKit
IOUserClientClass
FakeSMCKeyStoreUserClient
NSHumanReadableCopyright
Copyright © 2014 netkas. All rights reserved.
OSBundleCompatibleVersion
1212
OSBundleLibraries
com.apple.iokit.IOACPIFamily
1.0.0d1
com.apple.kpi.bsd
10.6
com.apple.kpi.iokit
10.6
com.apple.kpi.libkern
10.6
com.apple.kpi.mach
10.6
com.apple.kpi.unsupported
10.6
OSBundleRequired
Root


with the standard loading method, the patch doesn't work   :(








------------------------

Update - 08.27.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 DP's, PB's and OS X 10.9.x, nothing changed in the patch.



If there's something new, this topic will be updated.




------------------------

Update - 08.21.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 Public Beta 2




------------------------

Update - 08.18.2014

------------------------



Clover's KernelAndKextPatches tweak works fine on OS X 10.10 DP6




------------------------

Update - 08.14.2014

------------------------



Clover's KernelAndKextPatches tweak works fine on OS X 10.9.5 Build 13F14






------------------------

Update - 08.04.2014

------------------------



Clover's KernelAndKextPatches tweak works fine on OS X 10.10 DP5






------------------------

Update - 07.31.2014

------------------------



Clover's KernelAndKextPatches tweak works fine on OS X 10.9.5 Build 13F7






------------------------

Update - 07.24.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 Public Beta








------------------------

Update - 07.21.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 DP4








------------------------

Update - 07.08.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 DP3








------------------------

Update - 06.17.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 DP2






------------------------

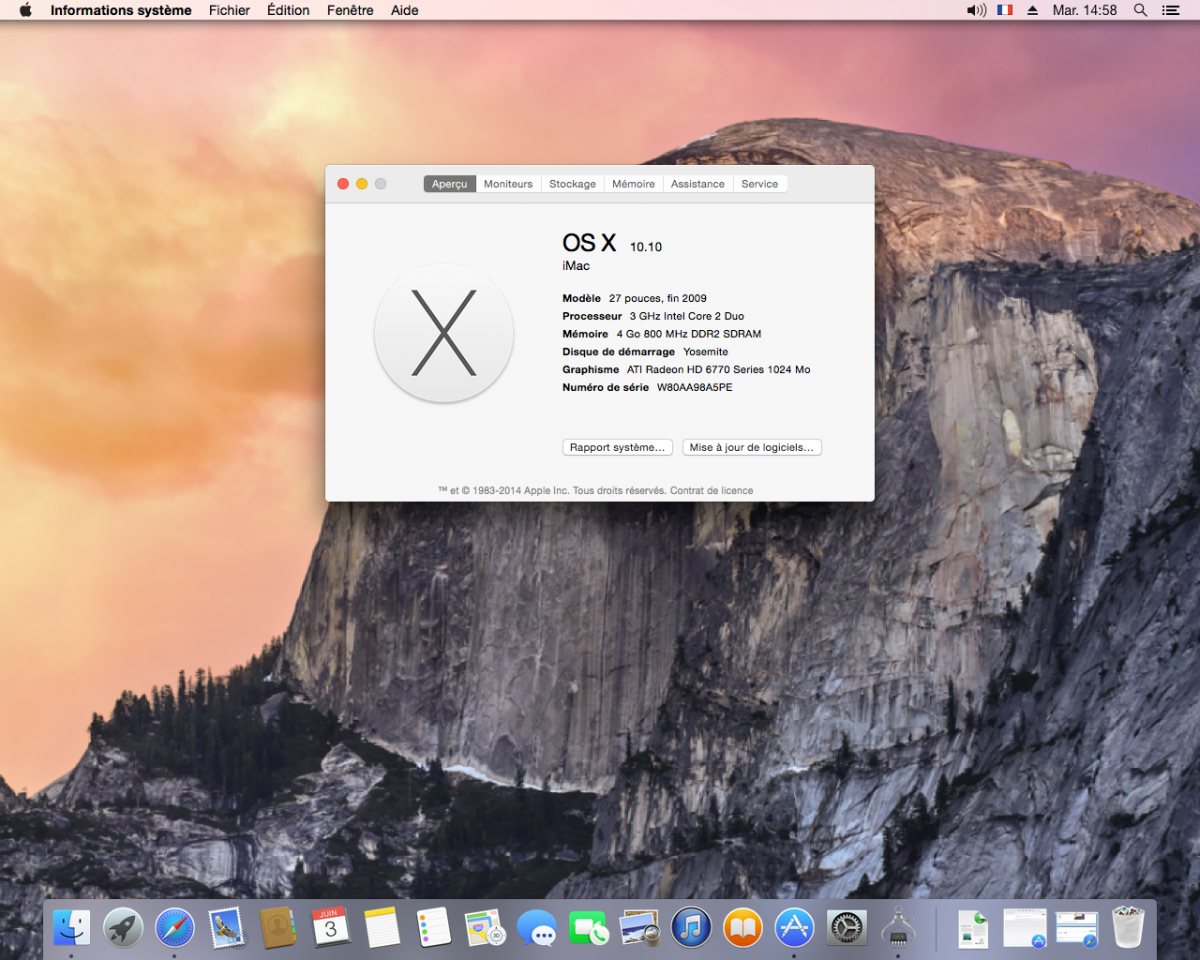

Update - 06.02.2014

------------------------



Clover's KernelAndKextPatches tweak still works fine on OS X 10.10 DP1



the proof:









------------------------

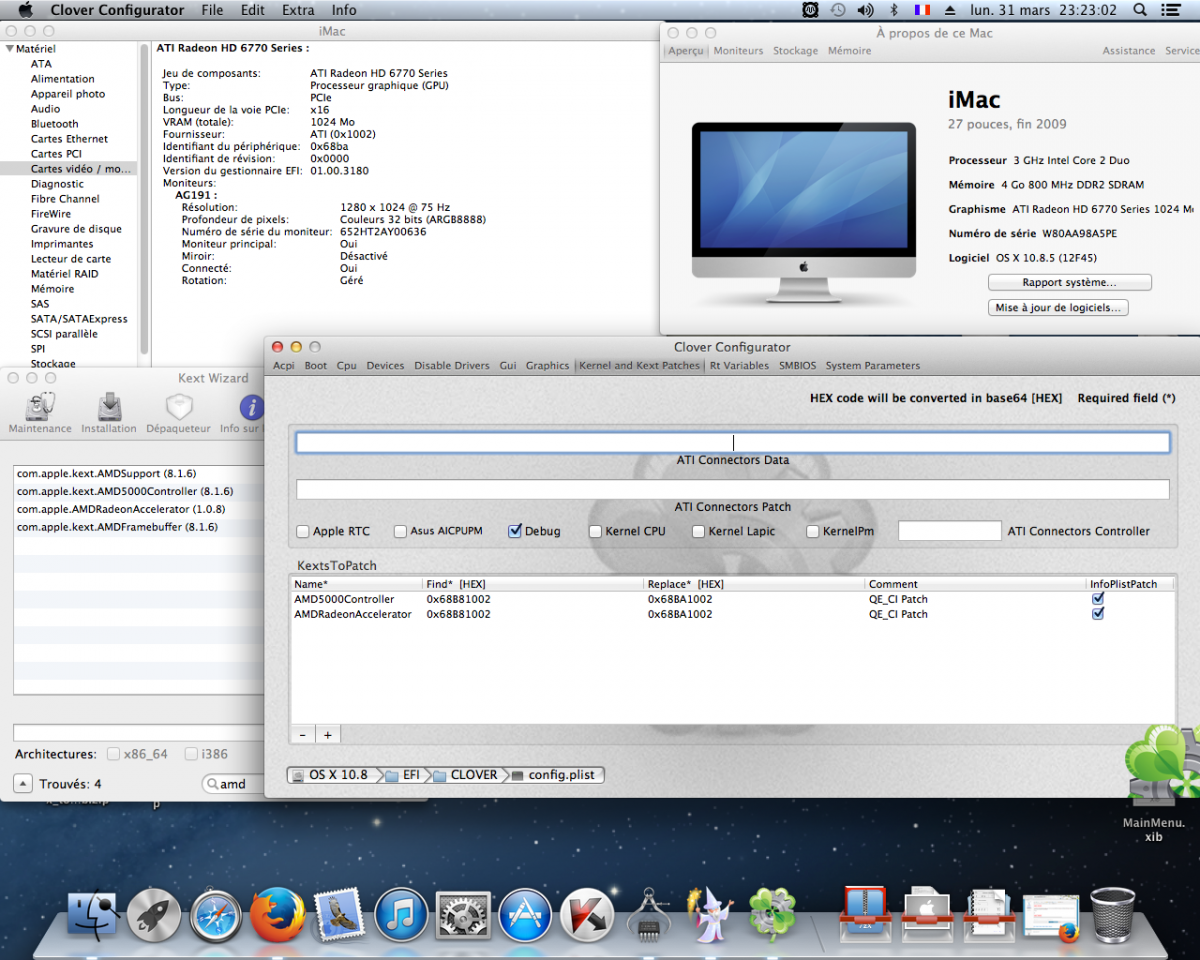

Update - 03.31.2014

------------------------



I can confirm, we never needed those 3 kexts, only 2 of them are enough (ATI5000Controller.kext and AMDRadeonAccelerator.kext for ML) to enable QE_CI for HD 6770 cards on Mountain Lion and Mavericks!!!



the proof:













------------------------

Update - 03.28.2014

------------------------



just to tell that since Mavericks, we need no more those 3 kexts, only 2 of them (AMD5000Controller.kext and AMDRadeonX3000.kext) to enable QE_CI for HD6770 cards



even if you use those 3 kexts, AMD6000Controller.kext will not be loaded






to do this with chameleon, use GraphicsEnabler=Yes and edit 0x68B81002 -> 068BA1002 in both kexts



if you want to do this with clover, use clover configurator and KernelAndKextPatches tweak:






don't forget to put 'Inject Kexts' to 'Yes'






if it does not work, it is because the kexts are not presents in kernel cache.



The most effective trick for now is to inject the details of your kexts inside the FakeSMC Info.plist as additional IOKitPersonalities. With this trick, your kexts will be always loaded.



I did it with QE_CI Exotic patch for HD48xx series cards with my old HD4830 and it works!



see here for more details: http://www.insanelymac.com/forum/topic/296949-tuto-qe-ci-exotic-patch-via-clover/



p.s:



here, more screens






452323HD6770MavericksOpenGL41fullsupport





Method 3: if you're using Clover, you can make this card work with a Fake ID injection

<key>Devices</key>
<dict>
        <key>FakeID</key>
        <dict>
            <key>ATI</key>
            <string>0x68B81002</string>
        </dict>
</dict>




Method 2: since OS X 10.8, you no longer have to edit those kexts, just inject your ID via dsdt: http://www.insanelymac.com/forum/topic/282687-radeon-hd-6770-full-qeci-mountain-lion/?p=1902721 (credits go to RampageDev)



*This method also works very well with OS X Mavericks

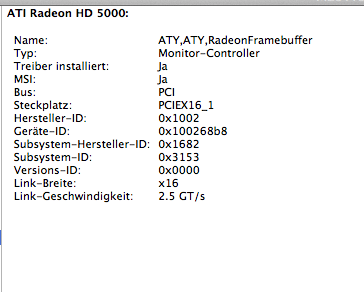

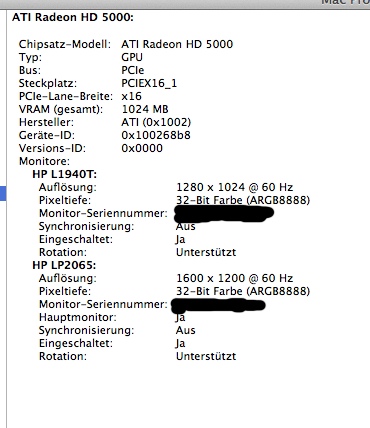

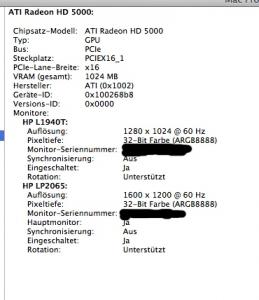

Method 1: i can confirm it, with the last Chameleon-2.1svn-r2054.pkg, it work well on 10.8.2 Build 12C43 !!! :thumbsup_anim:

No more need to flashing HD 6770 into HD 5770 to have QE/CI !!!

So just add your ID (0x68BA1002) into ATI5000Controller.kext and AMDRadeonAccelerator.kext


<key>AMDJuniperGraphicsAccelerator</key>
<dict>
*
*
*
<key>IOPCIMatch</key>
<string>0x68BA1002 0x68B81002 0x68B01002 0x68B11002 0x68A01002 0x68A11002</string>










* the story started with this original topic

Edited by fantomas1
topic updated!

Share this post


Link to post
Share on other sites
Advertisement

unfortunately not !



there's no AMDRadeonAccelerator.kext in OS X Lion



I was tried with ATIConnector patching but it's not the way to have QE/CI enabled. I think it needs to patching the binaries parts, but i haven't be able to do it yet! :(

Share this post


Link to post
Share on other sites

Thought that you could add the DSDT injection code:



Device (PEGP)

{

Name (_ADR, 0x00010000)

Method (_PRW, 0, NotSerialized)

{

Return (GPRW (0x09, 0x04))

}

Device (GFX0)

{

Name (_ADR, Zero)

Method (_DSM, 4, NotSerialized)

{

Store (Package (0x10)

{



"AAPL,slot-name",

Buffer (0x07)

{

"Slot-1"

},

"@0,name",

Buffer (0x0D)

{

"ATY,

Juniper

"

},

"@1,name",

Buffer (0x0D)

{

"ATY,

Juniper

"

},

"@2,name",

Buffer (0x0D)

{

"ATY,

Juniper

"

},

"@3,name",

Buffer (0x0D)

{

"ATY,

Juniper

"

},

"@4,name",

Buffer (0x0D)

{

"ATY,

Juniper

"

},

"model",

Buffer (0x13)

{

"AMD Radeon HD 6770"

},

"hda-gfx",

Buffer (0x0A)

{

"onboard-1"

}

}, Local0)

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))

Return (Local0)

}

}

Device (HDAU)

{

Name (_ADR, One)

Method (_DSM, 4, NotSerialized)

{

Store (Package (0x04)

{



"name",

Buffer (0x0B)

{

"HDMI Audio"

},

"hda-gfx",

Buffer (0x0A)

{

"onboard-1"

}

}, Local0)

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))

Return (Local0)

}

}



}

Share this post


Link to post
Share on other sites

I'm sorry for reviveing this thread,but i want my GPU to be detected as a HD6770 again.

How can i edit the kexts? and add 0x68BA1002 to them?



Bitcore

Share this post


Link to post
Share on other sites

I'm sorry for reviveing this thread,but i want my GPU to be detected as a HD6770 again.

How can i edit the kexts? and add 0x68BA1002 to them?



Bitcore





hey bro you have AMD cpu do you have amd kernel for ML then please give me.................



Hi !



i just saw that : http://www.osx86.net...ntain_lion.html



according to the testimonies, it works well!



I also have a HD6770 I flashed into HD5770, but I didn't have time to try it!



I will do it in a few minutes!



Tell me if it works for you!



Good luck !





EDIT: i can confirm it, with the last Chameleon-2.1svn-r2054.pkg, it work well on 10.8.2 Build 12C43 !!! :thumbsup_anim:



No more need to flashing HD 6770 into HD 5770 to have QE/CI !!!



So just add your ID (0x68BA1002) into ATI5000Controller.kext, ATI6000Controller.kext and AMDRadeonAccelerator.kext





<key>AMDJuniperGraphicsAccelerator</key>

<dict>

<key>ATIEnableWideBlitSupport</key>

<true/>

<key>ATIUseTearingWideBlit</key>

<false/>

<key>CFBundleIdentifier</key>

<string>com.apple.AMDRadeonAccelerator</string>

<key>GpuDebugPolicy</key>

<integer>0</integer>

<key>IOClass</key>

<string>AMDJuniperGraphicsAccelerator</string>

<key>IODVDBundleName</key>

<string>AMDRadeonVADriver</string>

<key>IOKitDebug</key>

<integer>0</integer>

<key>IOMatchCategory</key>

<string>IOAccelerator</string>

<key>IOPCIMatch</key>

<string>0x68BA1002 0x68B81002 0x68B01002 0x68B11002 0x68A01002 0x68A11002</string>












What to for the HD Redeon 6770m 2GB graphics for laptop ?

Share this post


Link to post
Share on other sites

Hi,

with the upcoming 10.8.3 release I would like to ask, if a method exits to inject the device id into the system instead of editing the plists again.



cheers

Share this post


Link to post
Share on other sites

I don't think so



GraphicsEnabler injects the info of your graphics card but for this one, it isn't enough



the DSDT method doesn't works, this is the only way to get this card work (as hd6770) under ML



at the same time, it's not so hard to put your ID into the Info.plist, it takes 2 minutes -_-

Share this post


Link to post
Share on other sites
Thought it might be possible with some sort of legacy kext.



not sure it's possible



HD6770 needs to have its ID into the 3 kexts, not just one :)





only possibility, that Apple put directly ID into these kexts :P



there we would have a graphics card recognized OOB :D

Share this post


Link to post
Share on other sites

Hi,fantomas1 Can you upload on this page all modified file for ati 6770?

thanks



You can just add them to the 2 ATI/AMD kexts. Drivers have changed since this was posted. Or what really should be done is for you to add a different device ID in the DSDT so that you never have to edit any kexts which would be the proper solution.

Share this post


Link to post
Share on other sites

hi the -hackintosh :)



pls see the initial post :)



tell me if there's something that you don't understand





You can just add them to the 2 ATI/AMD kexts. Drivers have changed since this was posted. Or what really should be done is for you to add a different device ID in the DSDT so that you never have to edit any kexts which would be the proper solution.



this method still works good with all 10.8's updates, don't worry, just add your ID to this 3 kexts.



the DSDT method doesn't do all, on this card it's not enough. This is the only way to get this card work (as hd6770) under ML



:)

Share this post


Link to post
Share on other sites

hi the -hackintosh :)



pls see the initial post :)



tell me if there's something that you don't understand









this method still works good with all 10.8's updates, don't worry, just add your ID to this 3 kexts.



the DSDT method doesn't do all, on this card it's not enough. This is the only way to get this card work (as hd6770) under ML



:)



Why does not changing the device ID in the DSDT not work for this card? Thanks.

Share this post


Link to post
Share on other sites

I'm not sure, it's pretty bizarre



HD6770 is an authentically HD5770 card, only ID's differ (0x68BA1002 / 0x68B81002)



if we follow this logic, there's only need to add HD6770 ID to ATI6000Controller.kext or ATI5000Controller.kext + AMDRadeonAccelerator.kext



but strangely, this card has to call these both kexts to work perfectly



So because of this "call" to these both kexts in the same time, the dsdt method has no effect



I know, it can appears as a wacky explanation, but I don't see nothing else



IMHO

Share this post


Link to post
Share on other sites

Got it working using this device id insert in dsdt.

Original kexts from 10.8.3 and GraphicsEnabler=Yes



Device (GFX0)

{

Name (_ADR, Zero)

Name (_SUN, One)

Method (_DSM, 4, NotSerialized)

{

Store (Package (0x02)

{

"device-id",

Buffer (0x04)

{

0xB8, 0x68, 0x00, 0x00

}

}, Local0)

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))

Return (Local0)

}



In my DSDT I had to insert the above at P0P2



Share this post


Link to post
Share on other sites

Hi !



i just saw that : http://www.osx86.net...ntain_lion.html



according to the testimonies, it works well!



I also have a HD6770 I flashed into HD5770, but I didn't have time to try it!



I will do it in a few minutes!



Tell me if it works for you!



Good luck !





EDIT: i can confirm it, with the last Chameleon-2.1svn-r2054.pkg, it work well on 10.8.2 Build 12C43 !!! :thumbsup_anim:



No more need to flashing HD 6770 into HD 5770 to have QE/CI !!!



So just add your ID (0x68BA1002) into ATI5000Controller.kext, ATI6000Controller.kext and AMDRadeonAccelerator.kext





<key>AMDJuniperGraphicsAccelerator</key>

<dict>

<key>ATIEnableWideBlitSupport</key>

<true/>

<key>ATIUseTearingWideBlit</key>

<false/>

<key>CFBundleIdentifier</key>

<string>com.apple.AMDRadeonAccelerator</string>

<key>GpuDebugPolicy</key>

<integer>0</integer>

<key>IOClass</key>

<string>AMDJuniperGraphicsAccelerator</string>

<key>IODVDBundleName</key>

<string>AMDRadeonVADriver</string>

<key>IOKitDebug</key>

<integer>0</integer>

<key>IOMatchCategory</key>

<string>IOAccelerator</string>

<key>IOPCIMatch</key>

<string>0x68BA1002 0x68B81002 0x68B01002 0x68B11002 0x68A01002 0x68A11002</string>










Any thing for AMD 6770M 2GB laptop version Graphics Card ??????

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By MaLd0n
      Now have a Olarila app, just download app and clover folder for your Chipset! https://olarila.com/forum/viewtopic.php?f=81&amp;t=6771   Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell     Skylake, Kabylake and Coffeelake is here http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/   Install MacOS with Olarila Image, Step by Step, Install and Post Install

      https://olarila.com/forum/viewtopic.php?f=50&t=8685
        Mojave Full DSDT patch   http://olarila.com/forum/viewtopic.php?f=59&amp;t=6428   First...   ***Update bios to last available version!***   If you need a full patched DSDT...  -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app   Installation   --Create a bootable copy of macOS Sierra / High Sierra / Mojave   https://github.com/chris1111/Create-Install-Media/releases   --Install Clover in USB stick   https://sourceforge.net/projects/cloverefiboot/files/Installer/   --Replace with my Clover folder https://olarila.com/files/Clover.Folder/CLOVER.SERIES.CHIPSET.zip   --Install Sierra/High Sierra and boot into system!   Post Installation --Install Clover and replace with my folder   https://olarila.com/forum/viewtopic.php?f=28&t=8222   --Reboot and activate video!   Bingo!   Now you need a fine tune! DSDT time!   --DSDT   Patches -FIX ERRORS AND WARNINGS -HPET -SATA -DMAC -SLPB -DARWIN -LPC -XHCI -PLUGIN TYPE -XXXX to HDEF -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -EC -PNLF -HDMI

      --Power Management
      - 1 Generation Intel Processors, use Generate P and C States in config.plist
      - 2 and 3 Generations Intel Processors, Generate SSDT with Piker script and drop CpuPm and Cpu0Ist SSDTs
      ssdtPRGen.command.zip
      Credits-https://github.com/Piker-Alpha/ssdtPRGen.sh
      - 4 Generation+ Intel Processors, use PluginType=1 in DSDT, SSDT or Clover config.plist

      for check Power, Frequency, Temperature and Utilization, use it

      Install Intel Power Gadget.pkg.zip

      --Brightness
      Install .app, select the required permission and reboot. Work in F1 / F2 keys!
      NativeDisplayBrightness.app.zip


      https://github.com/Bensge/NativeDisplayBrightness/releases
      *in some cases .app don't work, check patches in config.plist inside Clover folder Post Install

      --Clover

      https://sourceforge.net/projects/cloverefiboot/files/Installer/

      --AUDIO

      Use DSDT + AppleAlc

      --install Lan driver by Mieze
        -Atheros   http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/   -Intel   http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/   -Realtek   http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/   --Links   -FakeSMC   https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek   -Audio   https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/314406-voodoohda-289/   -USB   https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads   It's time to Rock   -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!   Apple, Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!   We're all here to have fun and learn from each other!
    • By MaLd0n
      Now have a Olarila app, just download app and clover folder for your Chipset! https://olarila.com/forum/viewtopic.php?f=81&amp;t=6771   Install MacOS with Olarila Image, Step by Step, Install and Post Install

      https://olarila.com/forum/viewtopic.php?f=50&t=8685
        First... If you need DSDT edits... -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app   Installation --Create a bootable copy of El Capitan /  Sierra / High Sierra / Mojave   https://github.com/chris1111/Create-Install-Media/releases   --Install Clover in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/   --Replace with my Clover folder   https://olarila.com/files/Clover.Folder/CLOVER.LGA775.zip   --Install EL Capitan / Sierra / High Sierra and boot into system!     Post Installation   --Install Clover and replace with my folder   https://olarila.com/forum/viewtopic.php?f=28&t=8222     --Reboot and activate video!   Bingo! Now you need a fine tune! DSDT Time!   My DSDT GA P35-DS3   DSDT.MaLd0n.zip     Patches -FIX ERRORS AND WARNINGS -HPET -SATA -SLPB -DARWIN -LPC -HDEF -RTC -EHCI -UHCI -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -EC -PNLF --Native Power Management

      Use Clover, check Generate P and C States

      --Brightness
      Install .app, select the required permission and reboot. Work in F1 / F2 keys!
      NativeDisplayBrightness.app.zip


      https://github.com/Bensge/NativeDisplayBrightness/releases
      *in some cases .app don't work, check patches in config.plist inside Clover folder Post Install

      --AUDIO

      Device HDEF + AppleAlc + Lilu

      --install Lan driver by Mieze
        -Atheros   http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/   -Intel   http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/   -Realtek   http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/   --Links   -FakeSMC   https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek   -Audio   https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/293863-applehda-patch-requests/   -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!   Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!   We're all here to have fun and learn from each other!   ENJOY!
    • By ludufre
      Novo guia para o macOS Catalina 10.15 (versões i3 e i5)!
      Obs.: Somente em inglês :/



      Instalando OS X El Capitan 10.11.5 no ASUS VivoBook S400C (também conhecido como S400CA)
      Especificamente no modelo S400CA-CA178H, provavelmente os outros modelos serão compatíveis



      Atualização 26/06/16 #1:
      - Adicionado correção para a logo no segundo estágio de boot em <KextsToPatch> no config.plist do Clover. (não está nos anexos)


      O que funciona e o que não funciona

      - Processador ->  Funciona. i5-3317U @ 1.7Ghz/2.6Ghz.  SpeedStep 8 a 26 estágios. AsusAICPUPM <true/> no Clover config.plist.  - Placa de vídeo ->  Funciona. HD4000. QE/CI completo. - Chipset ->  Funciona. - HDMI ->  Funciona. - VGA ->  Não funciona. - Som ->  Funciona. VoodooHDA 2.8.8 (use o arquivo PKG). - WiFi ->  Funciona. Substituída pela Athero 9285 Wifi/Bluetooth (http://lista.mercadolivre.com.br/atheros-9285#D[A:atheros-9285]). - Rede ->  Funciona. AtherosE2200Ethernet 2.1.0. - Teclado e touchpad ->  Funciona. ELAN, FocalTech and Synaptics (Smart Touchpad) Driver (Mac OS X) (versão 4.6). - Teclas FN do teclado ->  Funciona. Alterado "FN keys layout" na kext ELAN acima. - Controle do brilho ->  Funciona. DSDT patch (abaixo). - Repouso/Sleep ->  Não funciona. A tela desliga mas não entra em standby. - Bateria ->  Funciona. ACPIBatteryManager by RehabMan (versão 2016-0531) e DSDT patch (abaixo). - Leitor de cartão ->  Não funciona. - Câmera integrada ->  Funciona. AnyiSightCam. - Bluetooth ->  Funciona. Bluetooth Firmware Uploader (versão 3.1). - Segundo estágio da logo no boot ->  Funciona. Correção para adicionar em <KextsToPatch> abaixo.
      O que você precisa para instalar

      - Instalação do El Capitan funcionando no VMware -> Baixei a versão 10.11 por torrent (busque torrent por "10.11 vmware"). Você pode usar um Mac real de um amigo. Meu método só funciona no Mavericks (10.9) e acima.
      - Um pendrive de 8GB ou maior.
      - App de instalação do OS X El Capitan -> Baixe na App Store por dentro da máquina virtual. Baixei a versão 10.11.5.
      - CloverEFI -> Também baixe por dentro da máquina virtual. Eu usei a compilação 3577.
      - Habilidade em DSDT patch-> Necessário para a bateria funcionar. [Guia] DSDT/SSDT - Conhecimentos Gerais. Ou você pode baixar o meu DSDT abaixo, mas eu não recomendo.


      Como criar o pendrive

      Criando a instalação:

      Formate o pendrive com partição GUID e nomeie como "Install"

      Abra o terminal e execute o comando:


      Isso vai levar 30 minutos.

      Instalando o bootloader:

      Baixe o CloverEFI (usei 3577) e instale com essas opções em "Install OS X El Capitan":

      Opções:

      - Install for UEFI booting only
      - Install Clover in the ESP
      - Drivers64UEFI - CsmVideoDxe-64
      - Drivers64UEFI - OsxAptioFixDrv-64

      Vai ser criado uma partição com nome EFI. Edite o arquivo /EFI/CLOVER/config.plist e altere os seguintes valores:
        - Graphics - Inject - ATI - <false/> - Graphics - Inject - Intel - <true/> - Graphics - ig-platform-id - 0x01660003 - KernelAndKextPatches - AsusAICPUPM - <true/>   Importante: Renomeie "#Inject" para "Inject" e "#ig-platform-id" para "ig-platform-id".   Obs.: Vou deixar em anexo meu config.plist.   Agora você vai precisar dessas duas Kexts:

      - Baixar a kext Smart Touchpad. Eu usei a versão 4.6.
      - Baixar o dmg do HWSensors e utilizar a FakeSMC.kext de dentro. Eu usei a versão 6.20.1410. Isso é muito importante. Não dá pra dar boot sem ele.
      - Coloque essas Kexts dentro de /EFI/CLOVER/kexts/10.11/
      - Coloque o instalador do Clover dentro do pendrive também.

      Agora você pode iniciar a inalação sem problema (eu acho).


      Configuração do Setup da BIOS e Instalação

      - Desligue o ultrabook e insira o pendrive.
      - Ligue com a tecla F2 apertada para entrar no Setup da BIOS.
      - Vá para "Save & Exit" e selecione "Restore Defaults".
      - Vá para aba "Advanced" e altere esses valores:
      - Intel Virtualization Technology: Disabled
      - VT-d: Disabled
      - USB Configuration - XHCI Pre-Boot Mode: Disabled
      - Vá para "Save & Exit" novamente e selecione "Save Changes".
      - Agora na seção "Boot Override" selecione o pendrive que vai estar com onome começando com UEFI. No meu caso "UEFI: KingstonDataTraveler 2.0PMAP".
      - O menu do Clover vai aparecer. Use as setas do teclado para selecionar o pendrive. Vai até a opção com o nome de "Boot OS X Install from Install OS X El Capitan", então aperter Enter.
      - Se você fez tudo corretamente, sua instalação vai inciar. Lembre-se: Formatar o HDD ou SSD com partição GUID.
      - Isso vai levar cerca de 20 minutos.
      - Depois da instalação da primeira parte o sistema vai reiniciar. Você precisa segurar o botão ESC para entrar no menu de Boot quando aparecer a logo da Asus.
      - Selecione o pendrive novamente.
      - No menu do Clover, aperte Enter em "Boot OS X Install from Install OS X El Capitan" mais uma vez.
      - A segunda parte da instalação vai começar. Isso leva cerca de 16 minutos.

      Pós instalação

      - Quando a segunda parte da instalação acabar, o sistema vai reiniciar novamente.
      - Após realizar a configuração inicial de usuário e ir para a área de trabalho, você precisará instalar o Clover no disco interno.
      - Abra o instalador do Clover dentro do pendrive que você copiou anteriormente.
      - Use as mesmas opções acima mas dessa vez escolha o a partição do sistema.
      - Agora você precisa substituir a pasta EFI de dentro da partição EFI do disco interno com a pasta EFI da partição EFI do pendrive.
      - A partição EFI do pendrive não vai estar montada. Monde com "diskutil mount /dev/rdiskXs1". Para saber qual é o X, use "diskutil list", mas provavelmente será 1.
      - Agora reinicie o sistema. Você vai precisar apertar ESC para entrar no menu de Boot quando aparecer a logo da Asus.
      - Selecione o pendrive novamente.
      - No menu do Clove, use as setas do teclado e vá para a última opção com nome "Clover Boot Options" e aperte Espaço. - Selecione a opção "Add Clover boot options for all entries".
      - Desligue, remova o pendrive e ligue.
      - Se você fez tudo corretamente, o sistema vai iniciar normalmente.

      Outras Kexts:

      Baixe as kexts nos links abaixo. Eu recomendo fortemente sempre usar versões mais novas. Se você estiver com preguiça, eu anexei no final desse post.

      Rede: AtherosE2200Ethernet 2.1.0
      Som: VoodooHDA 2.8.8 (use o arquivo PKG). Você precisa selecionar a saída nas Preferências do Sistemas após reiniciar.
      Bateria: ACPIBatteryManager by RehabMan (versão 2016-0531). Você precisa do path DSDT (abaixo).
      Bluetooth: Bluetooth Firmware Uploader (versão 3.1).
      Câmera integrada: AnyiSightCam

      Todas as kexts devem ser colocadas em /EFI/CLOVER/kexts/10.11/, monde essa partição novamente (diskutil mount /dev/rdiskXs1) pra isso.

      Teclas FN:
      Abra "ApplePS2SmartTouchPad.kext/Contents/Plugins/ApplePS2Keyboard.kext/Contents/Info.plist" e altere:
      <key>Fn keys Layout</key> <string>NONE</string> <key>Fn keys Mode</key> <integer>2</integer> Para:
      <key>Fn keys Layout</key> <string>ASUS</string> <key>Fn keys Mode</key> <integer>3</integer>   Correção do segundo estágio de boot:
      Adicionar em /EFI/CLOVER/config.plist dentro de KextsToPatch
      <dict> <key>Comment</key> <string>HD 4000 Logo Fix</string> <key>Find</key> <data> AQAAdRc= </data> <key>Name</key> <string>IOGraphicsFamily</string> <key>Replace</key> <data> AQAA6xc= </data> </dict> Path DSDT da bateria:
      #Maintained by: RehabMan for: Laptop Patches #battery_ASUS-N55SL.txt # created by RehabMan 8/12/2013 # created originally for jesselid # works for: # ASUS N55SL, BIOS rev. 204 # ASUS VivoBook series # ASUS Zenbook UX31A # ASUS UX301LA # ASUS X553E-SX399V # ASUS F501A # ASUS K55VM # ASUS U46SV, BIOS rev. 2.04 # ASUS N43 # ASUS PU500CA (90NB00F1-M01120) # ASUS N73SV # ASUS X401A-WX108 # ASUS F551CA Bios rev. 207 # ASUS S551LB VivoBook # ASUS ZenBook UX32VD # ASUS F550L-X455H # ASUS X53S # ASUS K550JD-XX003H # ASUS G53SX # ASUS K56CB # ASUS UX305 into method label B1B2 remove_entry; into definitionblock code_regex . insert begin Method (B1B2, 2, NotSerialized) { Return (Or (Arg0, ShiftLeft (Arg1, 8))) }\n end; # not really for battery, but might come in handy to read fan speed(s) into device label EC0 code_regex TAH0,\s+16 replace_matched begin TH00,8,TH01,8 end; into device label EC0 code_regex TAH1,\s+16 replace_matched begin TH10,8,TH11,8 end; into method label TACH code_regex \(TAH0, replace_matched begin (B1B2(TH00,TH01), end; into method label TACH code_regex \(TAH1, replace_matched begin (B1B2(TH10,TH11), end; into method label GFAN code_regex \(\\_SB\.PCI0\.LPCB\.EC0\.TAH0, replace_matched begin (B1B2(\\_SB.PCI0.LPCB.EC0.TH00,\\_SB.PCI0.LPCB.EC0.TH01), end; # battery EC into device label EC0 code_regex B0SN,\s+16 replace_matched begin B0S0,8,B0S1,8 end; into device label EC0 code_regex B1SN,\s+16 replace_matched begin B1S0,8,B1S1,8 end; into method label BIFA code_regex \(B0SN, replace_matched begin (B1B2(B0S0,B0S1), end; into method label BIFA code_regex \(B1SN, replace_matched begin (B1B2(B1S0,B1S1), end; into device label EC0 code_regex DT2B,\s+16 replace_matched begin T2B0,8,T2B1,8 end; into method label SMBR code_regex \(DT2B, replace_matched begin (B1B2(T2B0,T2B1), end; into method label SMBW code_regex Store\s+\(([^,]*),\s+DT2B\) replace_matched begin Store(%1,T2B0) Store(ShiftRight(%1,8),T2B1) end; into device label EC0 insert begin Method (RDBA, 0, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (BA00, Index(TEMP, 0x00))\n Store (BA01, Index(TEMP, 0x01))\n Store (BA02, Index(TEMP, 0x02))\n Store (BA03, Index(TEMP, 0x03))\n Store (BA04, Index(TEMP, 0x04))\n Store (BA05, Index(TEMP, 0x05))\n Store (BA06, Index(TEMP, 0x06))\n Store (BA07, Index(TEMP, 0x07))\n Store (BA08, Index(TEMP, 0x08))\n Store (BA09, Index(TEMP, 0x09))\n Store (BA0A, Index(TEMP, 0x0A))\n Store (BA0B, Index(TEMP, 0x0B))\n Store (BA0C, Index(TEMP, 0x0C))\n Store (BA0D, Index(TEMP, 0x0D))\n Store (BA0E, Index(TEMP, 0x0E))\n Store (BA0F, Index(TEMP, 0x0F))\n Store (BA10, Index(TEMP, 0x10))\n Store (BA11, Index(TEMP, 0x11))\n Store (BA12, Index(TEMP, 0x12))\n Store (BA13, Index(TEMP, 0x13))\n Store (BA14, Index(TEMP, 0x14))\n Store (BA15, Index(TEMP, 0x15))\n Store (BA16, Index(TEMP, 0x16))\n Store (BA17, Index(TEMP, 0x17))\n Store (BA18, Index(TEMP, 0x18))\n Store (BA19, Index(TEMP, 0x19))\n Store (BA1A, Index(TEMP, 0x1A))\n Store (BA1B, Index(TEMP, 0x1B))\n Store (BA1C, Index(TEMP, 0x1C))\n Store (BA1D, Index(TEMP, 0x1D))\n Store (BA1E, Index(TEMP, 0x1E))\n Store (BA1F, Index(TEMP, 0x1F))\n Return (TEMP)\n }\n end; into device label EC0 insert begin Method (WRBA, 1, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (Arg0, TEMP)\n Store (DerefOf(Index(TEMP, 0x00)), BA00)\n Store (DerefOf(Index(TEMP, 0x01)), BA01)\n Store (DerefOf(Index(TEMP, 0x02)), BA02)\n Store (DerefOf(Index(TEMP, 0x03)), BA03)\n Store (DerefOf(Index(TEMP, 0x04)), BA04)\n Store (DerefOf(Index(TEMP, 0x05)), BA05)\n Store (DerefOf(Index(TEMP, 0x06)), BA06)\n Store (DerefOf(Index(TEMP, 0x07)), BA07)\n Store (DerefOf(Index(TEMP, 0x08)), BA08)\n Store (DerefOf(Index(TEMP, 0x09)), BA09)\n Store (DerefOf(Index(TEMP, 0x0A)), BA0A)\n Store (DerefOf(Index(TEMP, 0x0B)), BA0B)\n Store (DerefOf(Index(TEMP, 0x0C)), BA0C)\n Store (DerefOf(Index(TEMP, 0x0D)), BA0D)\n Store (DerefOf(Index(TEMP, 0x0E)), BA0E)\n Store (DerefOf(Index(TEMP, 0x0F)), BA0F)\n Store (DerefOf(Index(TEMP, 0x10)), BA10)\n Store (DerefOf(Index(TEMP, 0x11)), BA11)\n Store (DerefOf(Index(TEMP, 0x12)), BA12)\n Store (DerefOf(Index(TEMP, 0x13)), BA13)\n Store (DerefOf(Index(TEMP, 0x14)), BA14)\n Store (DerefOf(Index(TEMP, 0x15)), BA15)\n Store (DerefOf(Index(TEMP, 0x16)), BA16)\n Store (DerefOf(Index(TEMP, 0x17)), BA17)\n Store (DerefOf(Index(TEMP, 0x18)), BA18)\n Store (DerefOf(Index(TEMP, 0x19)), BA19)\n Store (DerefOf(Index(TEMP, 0x1A)), BA1A)\n Store (DerefOf(Index(TEMP, 0x1B)), BA1B)\n Store (DerefOf(Index(TEMP, 0x1C)), BA1C)\n Store (DerefOf(Index(TEMP, 0x1D)), BA1D)\n Store (DerefOf(Index(TEMP, 0x1E)), BA1E)\n Store (DerefOf(Index(TEMP, 0x1F)), BA1F)\n }\n end; into device label EC0 code_regex BDAT,\s+256 replace_matched begin //BDAT, 256,\n BA00,8,BA01,8,BA02,8,BA03,8,\n BA04,8,BA05,8,BA06,8,BA07,8,\n BA08,8,BA09,8,BA0A,8,BA0B,8,\n BA0C,8,BA0D,8,BA0E,8,BA0F,8,\n BA10,8,BA11,8,BA12,8,BA13,8,\n BA14,8,BA15,8,BA16,8,BA17,8,\n BA18,8,BA19,8,BA1A,8,BA1B,8,\n BA1C,8,BA1D,8,BA1E,8,BA1F,8\n end; into method label SMBR code_regex \(BDAT, replaceall_matched begin (RDBA(), end; into method label SMBR code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label SMBW code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label ECSB code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label ECSB code_regex \(BDAT, replaceall_matched begin (RDBA(), end; into device label EC0 insert begin Method (RDBB, 0, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (BB00, Index(TEMP, 0x00))\n Store (BB01, Index(TEMP, 0x01))\n Store (BB02, Index(TEMP, 0x02))\n Store (BB03, Index(TEMP, 0x03))\n Store (BB04, Index(TEMP, 0x04))\n Store (BB05, Index(TEMP, 0x05))\n Store (BB06, Index(TEMP, 0x06))\n Store (BB07, Index(TEMP, 0x07))\n Store (BB08, Index(TEMP, 0x08))\n Store (BB09, Index(TEMP, 0x09))\n Store (BB0A, Index(TEMP, 0x0A))\n Store (BB0B, Index(TEMP, 0x0B))\n Store (BB0C, Index(TEMP, 0x0C))\n Store (BB0D, Index(TEMP, 0x0D))\n Store (BB0E, Index(TEMP, 0x0E))\n Store (BB0F, Index(TEMP, 0x0F))\n Store (BB10, Index(TEMP, 0x10))\n Store (BB11, Index(TEMP, 0x11))\n Store (BB12, Index(TEMP, 0x12))\n Store (BB13, Index(TEMP, 0x13))\n Store (BB14, Index(TEMP, 0x14))\n Store (BB15, Index(TEMP, 0x15))\n Store (BB16, Index(TEMP, 0x16))\n Store (BB17, Index(TEMP, 0x17))\n Store (BB18, Index(TEMP, 0x18))\n Store (BB19, Index(TEMP, 0x19))\n Store (BB1A, Index(TEMP, 0x1A))\n Store (BB1B, Index(TEMP, 0x1B))\n Store (BB1C, Index(TEMP, 0x1C))\n Store (BB1D, Index(TEMP, 0x1D))\n Store (BB1E, Index(TEMP, 0x1E))\n Store (BB1F, Index(TEMP, 0x1F))\n Return (TEMP)\n }\n end; into device label EC0 insert begin Method (WRBB, 1, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (Arg0, TEMP)\n Store (DerefOf(Index(TEMP, 0x00)), BB00)\n Store (DerefOf(Index(TEMP, 0x01)), BB01)\n Store (DerefOf(Index(TEMP, 0x02)), BB02)\n Store (DerefOf(Index(TEMP, 0x03)), BB03)\n Store (DerefOf(Index(TEMP, 0x04)), BB04)\n Store (DerefOf(Index(TEMP, 0x05)), BB05)\n Store (DerefOf(Index(TEMP, 0x06)), BB06)\n Store (DerefOf(Index(TEMP, 0x07)), BB07)\n Store (DerefOf(Index(TEMP, 0x08)), BB08)\n Store (DerefOf(Index(TEMP, 0x09)), BB09)\n Store (DerefOf(Index(TEMP, 0x0A)), BB0A)\n Store (DerefOf(Index(TEMP, 0x0B)), BB0B)\n Store (DerefOf(Index(TEMP, 0x0C)), BB0C)\n Store (DerefOf(Index(TEMP, 0x0D)), BB0D)\n Store (DerefOf(Index(TEMP, 0x0E)), BB0E)\n Store (DerefOf(Index(TEMP, 0x0F)), BB0F)\n Store (DerefOf(Index(TEMP, 0x10)), BB10)\n Store (DerefOf(Index(TEMP, 0x11)), BB11)\n Store (DerefOf(Index(TEMP, 0x12)), BB12)\n Store (DerefOf(Index(TEMP, 0x13)), BB13)\n Store (DerefOf(Index(TEMP, 0x14)), BB14)\n Store (DerefOf(Index(TEMP, 0x15)), BB15)\n Store (DerefOf(Index(TEMP, 0x16)), BB16)\n Store (DerefOf(Index(TEMP, 0x17)), BB17)\n Store (DerefOf(Index(TEMP, 0x18)), BB18)\n Store (DerefOf(Index(TEMP, 0x19)), BB19)\n Store (DerefOf(Index(TEMP, 0x1A)), BB1A)\n Store (DerefOf(Index(TEMP, 0x1B)), BB1B)\n Store (DerefOf(Index(TEMP, 0x1C)), BB1C)\n Store (DerefOf(Index(TEMP, 0x1D)), BB1D)\n Store (DerefOf(Index(TEMP, 0x1E)), BB1E)\n Store (DerefOf(Index(TEMP, 0x1F)), BB1F)\n }\n end; into device label EC0 code_regex BDA2,\s+256 replace_matched begin //BDA2, 256,\n BB00,8,BB01,8,BB02,8,BB03,8,\n BB04,8,BB05,8,BB06,8,BB07,8,\n BB08,8,BB09,8,BB0A,8,BB0B,8,\n BB0C,8,BB0D,8,BB0E,8,BB0F,8,\n BB10,8,BB11,8,BB12,8,BB13,8,\n BB14,8,BB15,8,BB16,8,BB17,8,\n BB18,8,BB19,8,BB1A,8,BB1B,8,\n BB1C,8,BB1D,8,BB1E,8,BB1F,8\n end; into method label SMBR code_regex \(BDA2, replaceall_matched begin (RDBB(), end; into method label SMBR code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label SMBW code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label ECSB code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label ECSB code_regex \(BDA2, replaceall_matched begin (RDBB(), end; # additional work for _BIX method present in some ASUS laptops into device label EC0 code_regex B0C3,\s+16 replace_matched begin XC30,8,XC31,8 end; into device label EC0 code_regex B1C3,\s+16 replace_matched begin YC30,8,YC31,8 end; into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B0C3, replaceall_matched begin (B1B2(^^LPCB.EC0.XC30,^^LPCB.EC0.XC31), end; into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B1C3, replaceall_matched begin (B1B2(^^LPCB.EC0.YC30,^^LPCB.EC0.YC31), end; # or could remove the _BIX method if it turns out not to work #into_all method label _BIX remove_entry; Path do brilho
      #Maintained by: RehabMan for: Laptop Patches #graphics_PNLF_ivy_sandy.txt # This patch enables the brightness slider in SysPrefs->Displays # and will also enable activation of sleep mode by closing # the laptop lid. # # This particular version is intended to be used with ACPIBacklight.kext # although it can also be used with AppleBacklight.kext, # provided AppleBacklight.kext is patched to recognize your # display or an injector is used to set brightness levels. # # See this thread for more information: # http://www.tonymacx86.com/hp-probook-mavericks/121031-native-brightness-working-without-blinkscreen-using-patched-applebacklight-kext.html # (also read any linked threads) # # # Note: This patch should be applied to the DSDT or SSDT that defines # your integrated graphics device (always at _ADR 0x00020000) # into_all device label PNLF remove_entry; into_all device name_adr 0x00020000 code_regex (OperationRegion\s\(RMPC,\sPCI_Config[^\}]*\}) remove_matched; into device name_adr 0x00020000 insert begin OperationRegion (RMPC, PCI_Config, 0x10, 4)\n Field (RMPC, AnyAcc, NoLock, Preserve)\n {\n BAR1,32,\n }\n Device (PNLF)\n {\n // normal PNLF declares (note some of this probably not necessary)\n Name (_ADR, Zero)\n Name (_HID, EisaId ("APP0002"))\n Name (_CID, "backlight")\n Name (_UID, 10)\n Name (_STA, 0x0B)\n //define hardware register access for brightness\n // lower nibble of BAR1 is status bits and not part of the address\n OperationRegion (BRIT, SystemMemory, And(^BAR1, Not(0xF)), 0xe1184)\n Field (BRIT, AnyAcc, Lock, Preserve)\n {\n Offset(0x48250),\n LEV2, 32,\n LEVL, 32,\n Offset(0x70040),\n P0BL, 32,\n Offset(0xc8250),\n LEVW, 32,\n LEVX, 32,\n Offset(0xe1180),\n PCHL, 32,\n }\n // DEB1 special for setting KLVX at runtime...\n //Method (DEB1, 1, NotSerialized)\n //{\n // Store(Arg0, KLVX)\n //}\n // LMAX: use 0x710 to force OS X value\n // or use any arbitrary value\n // or use 0 to capture BIOS setting\n Name (LMAX, 0x710)\n // KMAX: defines the unscaled range in the _BCL table below\n Name (KMAX, 0x710)\n // KPCH: saved value for PCHL\n Name(KPCH, 0)\n // _INI deals with differences between native setting and desired\n Method (_INI, 0, NotSerialized)\n {\n // save value of PCHL for later\n Store(PCHL, KPCH)\n // determine LMAX to use\n If (LNot(LMAX)) { Store(ShiftRight(LEVX,16), LMAX) }\n If (LNot(LMAX)) { Store(KMAX, LMAX) }\n Store(ShiftLeft(LMAX,16), KLVX)\n If (LNotEqual(LMAX, KMAX))\n {\n // Scale all the values in _BCL to the PWM max in use\n Store(0, Local0)\n While (LLess(Local0, SizeOf(_BCL)))\n {\n Store(DerefOf(Index(_BCL,Local0)), Local1)\n Divide(Multiply(Local1,LMAX), KMAX,, Local1)\n Store(Local1, Index(_BCL,Local0))\n Increment(Local0)\n }\n // Also scale XRGL and XRGH values\n Divide(Multiply(XRGL,LMAX), KMAX,, XRGL)\n Divide(Multiply(XRGH,LMAX), KMAX,, XRGH)\n }\n // adjust values to desired LMAX\n Store(ShiftRight(LEVX,16), Local1)\n If (LNotEqual(Local1, LMAX))\n {\n Store(LEVL, Local0)\n If (LOr(LNot(Local0),LNot(Local1))) { Store(LMAX, Local0) Store(LMAX, Local1) }\n Divide(Multiply(Local0,LMAX), Local1,, Local0)\n //REVIEW: wait for vblank before setting new PWM config\n //Store(P0BL, Local7)\n //While (LEqual (P0BL, Local7)) {}\n If (LGreater(LEVL, LMAX))\n { Store(KLVX, LEVX) Store(Local0, LEVL) }\n Else\n { Store(Local0, LEVL) Store(KLVX, LEVX) }\n }\n }\n // _BCM/_BQC: set/get for brightness level\n Method (_BCM, 1, NotSerialized)\n {\n // initialize for consistent backlight level before/after sleep\n If (LNotEqual(PCHL, KPCH)) { Store(KPCH, PCHL) }\n If (LNotEqual(LEVW, 0x80000000)) { Store (0x80000000, LEVW) }\n If (LNotEqual(LEVX, KLVX)) { Store (KLVX, LEVX) }\n // store new backlight level\n Store(Match(_BCL, MGE, Arg0, MTR, 0, 2), Local0)\n If (LEqual(Local0, Ones)) { Subtract(SizeOf(_BCL), 1, Local0) }\n If (LNotEqual(LEV2, 0x80000000)) { Store(0x80000000, LEV2) }\n Store(DerefOf(Index(_BCL, Local0)), LEVL)\n }\n Method (_BQC, 0, NotSerialized)\n {\n Store(Match(_BCL, MGE, LEVL, MTR, 0, 2), Local0)\n If (LEqual(Local0, Ones)) { Subtract(SizeOf(_BCL), 1, Local0) }\n Return(DerefOf(Index(_BCL, Local0)))\n }\n Method (_DOS, 1, NotSerialized)\n {\n // Note: Some systems have this defined in DSDT, so uncomment\n // the next line if that is the case.\n //External(^^_DOS, MethodObj)\n ^^_DOS(Arg0)\n }\n // extended _BCM/_BQC for setting "in between" levels\n Method (XBCM, 1, NotSerialized)\n {\n // initialize for consistent backlight level before/after sleep\n If (LNotEqual(PCHL, KPCH)) { Store(KPCH, PCHL) }\n If (LNotEqual(LEVW, 0x80000000)) { Store (0x80000000, LEVW) }\n If (LNotEqual(LEVX, KLVX)) { Store (KLVX, LEVX) }\n // store new backlight level\n If (LGreater(Arg0, XRGH)) { Store(XRGH, Arg0) }\n If (LAnd(Arg0, LLess(Arg0, XRGL))) { Store(XRGL, Arg0) }\n If (LNotEqual(LEV2, 0x80000000)) { Store(0x80000000, LEV2) } \n Store(Arg0, LEVL)\n }\n Method (XBQC, 0, NotSerialized)\n {\n Store(LEVL, Local0)\n If (LGreater(Local0, XRGH)) { Store(XRGH, Local0) }\n If (LAnd(Local0, LLess(Local0, XRGL))) { Store(XRGL, Local0) }\n Return(Local0)\n }\n // Use XOPT=1 to disable smooth transitions\n Name (XOPT, Zero)\n // XRGL/XRGH: defines the valid range\n Name (XRGL, 40)\n Name (XRGH, 1808)\n // KLVX is initialization value for LEVX\n Name (KLVX, 0x7100000)\n // _BCL: returns list of valid brightness levels\n // first two entries describe ac/battery power levels\n Name (_BCL, Package()\n {\n 1808,\n 479,\n 0,\n 53, 55, 57, 59,\n 62, 66, 71, 77,\n 83, 91, 99, 108,\n 119, 130, 142, 154,\n 168, 183, 198, 214,\n 232, 250, 269, 289,\n 309, 331, 354, 377,\n 401, 426, 453, 479,\n 507, 536, 566, 596,\n 627, 660, 693, 727,\n 762, 797, 834, 872,\n 910, 949, 990, 1031,\n 1073, 1115, 1159, 1204,\n 1249, 1296, 1343, 1391,\n 1440, 1490, 1541, 1592,\n 1645, 1698, 1753, 1808,\n })\n }\n end; Está pronto!


      Em anexo arquivos utilizados na instalação. Pelo amor de deus, sempre use versões mais novas.


      E por último mas não menos importante

      Eu gostaria de agradecer os seguintes membros da comunidade, por tornar esse sonho possível:
      @crushers, @snatch, @apianti, @blackosx, @blusseau, @dmazar, @slice2009, @autumnrain, @phpdev32, @EMlyDinEsH, @RehabMan, @Scellow, @mitch_de, @Shailua, @Andy Vandijck, @maxfierke, @ArturXXX, @LexHimself, @brumas e todos os outros membros envolvidos direta ou indiretamente.
      EFI antes instalação.zip
      EFI após instalação.zip
    • By ludufre
      New guide available for macOS Catalina 10.15 (i3 and i5 versions)!



      Installing OS X El Capitan 10.11.5 on ASUS VivoBook S400C (also know as S400CA)
      Specifically in S400CA-CA178H model, most likely all other models are compatible




      Updated 22/11/17 #1:

      - High Sierra 10.13.1 on ASUS Vivobook S400C (S400CA-CA178H).


      Updated 27/06/16 #1:

      - Altered Brightness to fix with Clover <KextsToPatch> method.

      - Added Kexts to fix USB port injection (FakePCIID.kext, FakePCIID_XHCIMux.kext and USB.kext).
      - Touch Screen was missing from the list. Added and now works.
      - Sleep now works after DSDT patch
      - Card Reader now works too
      - Created section about DSDT and Todo list
      - Added missing patchs
      - Updated BIOS config list before install.

      Updated 26/06/16 #1:

      - Added patch in <KextsToPatch> in Clover config.plist to fix 2nd Stage Boot logo. (not in attachments)


      What works and what does not work

      - Processor ->  Work. i5-3317U @ 1.7Ghz/2.6Ghz.  SpeedStep 8 to 26 stages. AsusAICPUPM <true/> in Clover config.plist.
      - Video Card ->  Work. HD4000. Full QE/CI.
      - Chipset ->  Work.
      - HDMI ->  Work.
      - VGA ->  Not work.
      - Audio ->  Work. VoodooHDA 2.8.8 (use PKG file).
      - WiFi ->  Work. Replaced by Athero 9285 Wifi/Bluetooth (https://www.amazon.com/s/ref=nb_sb_noss_2?url=search-alias%3Daps&field-keywords=atheros+9285).
      - Ethernet ->  Work. AtherosE2200Ethernet 2.1.0.
      - Keyboard and touchpad ->  Work. ELAN, FocalTech and Synaptics (Smart Touchpad) Driver (Mac OS X) (version 4.6).
      - FN keyboards keys ->  Work. Changed FN keys layout inside ELAN kext above.
      - Brightness control ->  Work. Clover <KextsToPatch> below.
      - Touchscreen ->  Work. USB port inject kext in attachment.
      - Sleep ->  Work. DSDT patch (below) and <HighCurrent> set to <true/> in Clover.
      - Battery ->  Work. ACPIBatteryManager by RehabMan (version 2016-0531) and DSDT patch (below).
      - Card Reader ->  Work. USB port inject kext in attachment.
      - Integrated Camera ->  Work. AnyiSightCam.
      - Bluetooth ->  Work. Bluetooth Firmware Uploader (version 3.1).
      - 2nd stage boot logo ->  Work. Clover <KextsToPatch> below.



      What you need to install



      - Running install of El Capitan on VMware -> Downloaded version 10.11 via torrent (search by "10.11 vmware" torrent). You can use a real Mac of an friend. My method only works on Mavericks (10.9) and above.
      - One USB flash drive of 8GB or bigger.
      - OS X El Capitan install app -> Downloaded via App Store inside the virtual machine. Downloaded version 10.11.5.
      - CloverEFI -> Also download inside the virtual machine. I used build 3577.
      - DSDT patch skills -> Needed to battery works. How to patch DSDT. Or you can download mine DSDT below, but would not recommend.



      How create the flash drive

      Creating the install:

      Format the flash drive with GUID partition mapping and name it "Install"

      Open terminal and run this command:




      This will take about 30 minutes.

      Installing bootloader:

      Download the CloverEFI (used 3577) and install with this options on "Install OS X El Capitan":

      Options:

      - Install for UEFI booting only
      - Install Clover in the ESP
      - Drivers64UEFI - CsmVideoDxe-64
      - Drivers64UEFI - OsxAptioFixDrv-64

      Will be created a partition named EFI. Edit the /EFI/CLOVER/config.plist and change those values:

      - Graphics - Inject - ATI - <false/>
      - Graphics - Inject - Intel - <true/>
      - Graphics - ig-platform-id - 0x01660003
      - KernelAndKextPatches - AsusAICPUPM - <true/>

      Important: Rename "#Inject" to "Inject" and "#ig-platform-id" to "ig-platform-id".

      P.s.: I will provide below my config.plist as attachment.


      Now you will need two Kexts:

      - Download the Smart Touchpad kext from here. I used the version 4.6.
      - Download the HWSensors dmg and use the FakeSMC.kext from inside. I used the version 6.20.1410. This is very important. Can't boot without it.
      - Put these Kexts inside /EFI/CLOVER/kexts/10.11/
      - Put the Clover installer on the flash drive too.


      Now you can start the instalation without problem (I guess).


      BIOS Setup Configuration and Installation

      - Shutdown the ultrabook and insert the flash drive.
      - Power on with F2 pressed to enter BIOS setup.
      - Go to "Save & Exit" and press "Restore Defaults".
      - Go to "Advanced" tab and change these values:

      - VT-d: Disabled
      - Go to "Save & Exit" again and select "Save Changes".
      - Now in "Boot Override" section select the flash drive named with UEFI prefix. In my case "UEFI: KingstonDataTraveler 2.0PMAP".
      - The clover menu will show. Use the arrow keys to mark the flash drive. The option name is "Boot OS X Install from Install OS X El Capitan", then press Enter.
      - If you did everything correctly, you can start the installation. Remember: Format the HDD or SSD with GUID partition mapping.
      - This will take about 20 minutes.
      - After first part install the system will reboot. You need to press ESC to enter Boot menu when Asus logo appear.
      - Select the flash drive again.
      - In Clover main menu, press enter in "Boot OS X Install from Install OS X El Capitan" once again.
      - The second part of the installation will begin. This will take 16 minutes.


      Post installation

      - When the second part of install finish, the system will reboot again.
      - After performing the user initial setup and go to the desktop, you need to install Clover on internal disk.
      - Open the Clover installer inside flash drive that you copied before.
      - Use same options above but choose the system partition this time.
      - Now you need to replace the EFI folder inside your internal disk EFI parittion with EFI folder inside flash card EFI partition.
      - The flash drive EFI partition is unmounted. Mount with "diskutil mount /dev/rdiskXs1". To know what X is, use "diskutil list", most likely is 1.
      - Now restart the system. You need to press ESC to enter Boot menu when Asus logo appear.
      - Select the flash drive again.
      - In Clover menu, use arrows and go to the last option with name "Clover Boot Options" and press Space.
      - Select the option "Add Clover boot options for all entries".
      - Shutdown, remove the flash drive and power on.
      - If you do everything wright, the system will start normally.

      Others Kexts:

      Download the kexts from the links below. I strongly recommend always use newest versions. If you are too lazy, I attach on end of the post.

      Ethernet: AtherosE2200Ethernet 2.1.0
      Sound: VoodooHDA 2.8.8 (use PKG file). You need to select the output there in System Preferences after reboot.
      Battery: ACPIBatteryManager by RehabMan (version 2016-0531). You need to path DSDT (below).
      Bluetooth: Bluetooth Firmware Uploader (version 3.1).
      Integrated Camera: AnyiSightCam
      USB Port Injector: FakePCIID and FakePCIID_XHCIMux (version 2016-0512) and USB.kext attached below.

      All kexts will placed inside /EFI/CLOVER/kexts/10.11/, mount again this partition (diskutil mount /dev/rdiskXs1) for it.


      Fine Adjustiment

      Prevent eject when sleep
      Open "/EFI/CLOVER/config.plist" and change:


      <key>HighCurrent</key> <false/> To:

      <key>HighCurrent</key> <true/>  Enable FN keys
      Open "ApplePS2SmartTouchPad.kext/Contents/Plugins/ApplePS2Keyboard.kext/Contents/Info.plist" and change:

      <key>Fn keys Layout</key> <string>NONE</string> <key>Fn keys Mode</key> <integer>2</integer> To:

      <key>Fn keys Layout</key> <string>ASUS</string> <key>Fn keys Mode</key> <integer>3</integer>  Second stage boot logo fix
      Add in /EFI/CLOVER/config.plist inside KextsToPatch.

      <dict> <key>Comment</key> <string>HD 4000 Logo Fix</string> <key>Find</key> <data> AQAAdRc= </data> <key>Name</key> <string>IOGraphicsFamily</string> <key>Replace</key> <data> AQAA6xc= </data> </dict> Brightness fix
      Add in /EFI/CLOVER/config.plist inside KextsToPatch.

      <dict> <key>Comment</key> <string>HD 4000 brightness fix</string> <key>Find</key> <data> EAcAABAHAAA= </data> <key>Name</key> <string>AppleIntelFramebufferCapri</string> <key>Replace</key> <data> EhMAABITAAA= </data> </dict> DSDT Patchs

      First of all, extract your system DSDT.aml pressioning F4 on Clover boot menu. Will be stored in /EFI/CLOVER/ACPI/origin.
      Copy to /EFI/CLOVER/ACPI/patched and apply following patchs using MaciASL:

      Fix *pnp/pnp lower case Error

      #Maintained by: RehabMan for: Laptop Patches #fix_HID_pnp.txt # To fix Name(_HID, "*pnpXXXX") and Name(_HID, "pnpXXXX") into_all all code_regex (Name\s+\(_HID,\s+\")\*pnp(.*\") replaceall_matched begin %1PNP%2 end; into_all all code_regex (Name\s+\(_HID,\s+\")pnp(.*\") replaceall_matched begin %1PNP%2 end; Rename GFX0 to IGPU

      #Maintained by: RehabMan for: Laptop Patches #graphics_Rename-GFX0.txt # Note: Most DSDT/SSDTs use GFX0 for the integrated graphics device, # but there are few renegades that use VID or AGP1. # If your DSDT uses VID or AGP1 instead of GFX0, see the # alternate patch "Rename VID/AGP1 to IGPU" # sometimes there is already IGPU used for other things into_all all code_regex IGPU, replaceall_matched begin IGFX, end; # rename GFX0 -> IGPU for better power management into_all all code_regex GFX0\. replaceall_matched begin IGPU. end; into_all all code_regex \.GFX0 replaceall_matched begin .IGPU end; into_all all code_regex \sGFX0, replaceall_matched begin IGPU, end; into_all all code_regex \(GFX0 replaceall_matched begin (IGPU end; into_all all label GFX0 set_label begin IGPU end; into_all all label _SB.PCI0.GFX0 set_label begin _SB.PCI0.IGPU end; into_all all label \_SB.PCI0.GFX0 set_label begin \_SB.PCI0.IGPU end; into_all all label _SB.PCI0.GFX0.DD02 set_label begin _SB.PCI0.IGPU.DD02 end; into_all all label \_SB.PCI0.GFX0.DD02 set_label begin \_SB.PCI0.IGPU.DD02 end; into_all all label ^^^GFX0 set_label begin ^^^IGPU end; into_all all label ^^GFX0 set_label begin ^^IGPU end; into_all all label ^GFX0 set_label begin ^IGPU end; Battery (ASUS N55LS/Vivobook)

      #Maintained by: RehabMan for: Laptop Patches #battery_ASUS-N55SL.txt # created by RehabMan 8/12/2013 # created originally for jesselid # works for: # ASUS N55SL, BIOS rev. 204 # ASUS VivoBook series # ASUS Zenbook UX31A # ASUS UX301LA # ASUS X553E-SX399V # ASUS F501A # ASUS K55VM # ASUS U46SV, BIOS rev. 2.04 # ASUS N43 # ASUS PU500CA (90NB00F1-M01120) # ASUS N73SV # ASUS X401A-WX108 # ASUS F551CA Bios rev. 207 # ASUS S551LB VivoBook # ASUS ZenBook UX32VD # ASUS F550L-X455H # ASUS X53S # ASUS K550JD-XX003H # ASUS G53SX # ASUS K56CB # ASUS UX305 into method label B1B2 remove_entry; into definitionblock code_regex . insert begin Method (B1B2, 2, NotSerialized) { Return (Or (Arg0, ShiftLeft (Arg1, 8))) }\n end; # not really for battery, but might come in handy to read fan speed(s) into device label EC0 code_regex TAH0,\s+16 replace_matched begin TH00,8,TH01,8 end; into device label EC0 code_regex TAH1,\s+16 replace_matched begin TH10,8,TH11,8 end; into method label TACH code_regex \(TAH0, replace_matched begin (B1B2(TH00,TH01), end; into method label TACH code_regex \(TAH1, replace_matched begin (B1B2(TH10,TH11), end; into method label GFAN code_regex \(\\_SB\.PCI0\.LPCB\.EC0\.TAH0, replace_matched begin (B1B2(\\_SB.PCI0.LPCB.EC0.TH00,\\_SB.PCI0.LPCB.EC0.TH01), end; # battery EC into device label EC0 code_regex B0SN,\s+16 replace_matched begin B0S0,8,B0S1,8 end; into device label EC0 code_regex B1SN,\s+16 replace_matched begin B1S0,8,B1S1,8 end; into method label BIFA code_regex \(B0SN, replace_matched begin (B1B2(B0S0,B0S1), end; into method label BIFA code_regex \(B1SN, replace_matched begin (B1B2(B1S0,B1S1), end; into device label EC0 code_regex DT2B,\s+16 replace_matched begin T2B0,8,T2B1,8 end; into method label SMBR code_regex \(DT2B, replace_matched begin (B1B2(T2B0,T2B1), end; into method label SMBW code_regex Store\s+\(([^,]*),\s+DT2B\) replace_matched begin Store(%1,T2B0) Store(ShiftRight(%1,8),T2B1) end; into device label EC0 insert begin Method (RDBA, 0, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (BA00, Index(TEMP, 0x00))\n Store (BA01, Index(TEMP, 0x01))\n Store (BA02, Index(TEMP, 0x02))\n Store (BA03, Index(TEMP, 0x03))\n Store (BA04, Index(TEMP, 0x04))\n Store (BA05, Index(TEMP, 0x05))\n Store (BA06, Index(TEMP, 0x06))\n Store (BA07, Index(TEMP, 0x07))\n Store (BA08, Index(TEMP, 0x08))\n Store (BA09, Index(TEMP, 0x09))\n Store (BA0A, Index(TEMP, 0x0A))\n Store (BA0B, Index(TEMP, 0x0B))\n Store (BA0C, Index(TEMP, 0x0C))\n Store (BA0D, Index(TEMP, 0x0D))\n Store (BA0E, Index(TEMP, 0x0E))\n Store (BA0F, Index(TEMP, 0x0F))\n Store (BA10, Index(TEMP, 0x10))\n Store (BA11, Index(TEMP, 0x11))\n Store (BA12, Index(TEMP, 0x12))\n Store (BA13, Index(TEMP, 0x13))\n Store (BA14, Index(TEMP, 0x14))\n Store (BA15, Index(TEMP, 0x15))\n Store (BA16, Index(TEMP, 0x16))\n Store (BA17, Index(TEMP, 0x17))\n Store (BA18, Index(TEMP, 0x18))\n Store (BA19, Index(TEMP, 0x19))\n Store (BA1A, Index(TEMP, 0x1A))\n Store (BA1B, Index(TEMP, 0x1B))\n Store (BA1C, Index(TEMP, 0x1C))\n Store (BA1D, Index(TEMP, 0x1D))\n Store (BA1E, Index(TEMP, 0x1E))\n Store (BA1F, Index(TEMP, 0x1F))\n Return (TEMP)\n }\n end; into device label EC0 insert begin Method (WRBA, 1, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (Arg0, TEMP)\n Store (DerefOf(Index(TEMP, 0x00)), BA00)\n Store (DerefOf(Index(TEMP, 0x01)), BA01)\n Store (DerefOf(Index(TEMP, 0x02)), BA02)\n Store (DerefOf(Index(TEMP, 0x03)), BA03)\n Store (DerefOf(Index(TEMP, 0x04)), BA04)\n Store (DerefOf(Index(TEMP, 0x05)), BA05)\n Store (DerefOf(Index(TEMP, 0x06)), BA06)\n Store (DerefOf(Index(TEMP, 0x07)), BA07)\n Store (DerefOf(Index(TEMP, 0x08)), BA08)\n Store (DerefOf(Index(TEMP, 0x09)), BA09)\n Store (DerefOf(Index(TEMP, 0x0A)), BA0A)\n Store (DerefOf(Index(TEMP, 0x0B)), BA0B)\n Store (DerefOf(Index(TEMP, 0x0C)), BA0C)\n Store (DerefOf(Index(TEMP, 0x0D)), BA0D)\n Store (DerefOf(Index(TEMP, 0x0E)), BA0E)\n Store (DerefOf(Index(TEMP, 0x0F)), BA0F)\n Store (DerefOf(Index(TEMP, 0x10)), BA10)\n Store (DerefOf(Index(TEMP, 0x11)), BA11)\n Store (DerefOf(Index(TEMP, 0x12)), BA12)\n Store (DerefOf(Index(TEMP, 0x13)), BA13)\n Store (DerefOf(Index(TEMP, 0x14)), BA14)\n Store (DerefOf(Index(TEMP, 0x15)), BA15)\n Store (DerefOf(Index(TEMP, 0x16)), BA16)\n Store (DerefOf(Index(TEMP, 0x17)), BA17)\n Store (DerefOf(Index(TEMP, 0x18)), BA18)\n Store (DerefOf(Index(TEMP, 0x19)), BA19)\n Store (DerefOf(Index(TEMP, 0x1A)), BA1A)\n Store (DerefOf(Index(TEMP, 0x1B)), BA1B)\n Store (DerefOf(Index(TEMP, 0x1C)), BA1C)\n Store (DerefOf(Index(TEMP, 0x1D)), BA1D)\n Store (DerefOf(Index(TEMP, 0x1E)), BA1E)\n Store (DerefOf(Index(TEMP, 0x1F)), BA1F)\n }\n end; into device label EC0 code_regex BDAT,\s+256 replace_matched begin //BDAT, 256,\n BA00,8,BA01,8,BA02,8,BA03,8,\n BA04,8,BA05,8,BA06,8,BA07,8,\n BA08,8,BA09,8,BA0A,8,BA0B,8,\n BA0C,8,BA0D,8,BA0E,8,BA0F,8,\n BA10,8,BA11,8,BA12,8,BA13,8,\n BA14,8,BA15,8,BA16,8,BA17,8,\n BA18,8,BA19,8,BA1A,8,BA1B,8,\n BA1C,8,BA1D,8,BA1E,8,BA1F,8\n end; into method label SMBR code_regex \(BDAT, replaceall_matched begin (RDBA(), end; into method label SMBR code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label SMBW code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label ECSB code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label ECSB code_regex \(BDAT, replaceall_matched begin (RDBA(), end; into device label EC0 insert begin Method (RDBB, 0, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (BB00, Index(TEMP, 0x00))\n Store (BB01, Index(TEMP, 0x01))\n Store (BB02, Index(TEMP, 0x02))\n Store (BB03, Index(TEMP, 0x03))\n Store (BB04, Index(TEMP, 0x04))\n Store (BB05, Index(TEMP, 0x05))\n Store (BB06, Index(TEMP, 0x06))\n Store (BB07, Index(TEMP, 0x07))\n Store (BB08, Index(TEMP, 0x08))\n Store (BB09, Index(TEMP, 0x09))\n Store (BB0A, Index(TEMP, 0x0A))\n Store (BB0B, Index(TEMP, 0x0B))\n Store (BB0C, Index(TEMP, 0x0C))\n Store (BB0D, Index(TEMP, 0x0D))\n Store (BB0E, Index(TEMP, 0x0E))\n Store (BB0F, Index(TEMP, 0x0F))\n Store (BB10, Index(TEMP, 0x10))\n Store (BB11, Index(TEMP, 0x11))\n Store (BB12, Index(TEMP, 0x12))\n Store (BB13, Index(TEMP, 0x13))\n Store (BB14, Index(TEMP, 0x14))\n Store (BB15, Index(TEMP, 0x15))\n Store (BB16, Index(TEMP, 0x16))\n Store (BB17, Index(TEMP, 0x17))\n Store (BB18, Index(TEMP, 0x18))\n Store (BB19, Index(TEMP, 0x19))\n Store (BB1A, Index(TEMP, 0x1A))\n Store (BB1B, Index(TEMP, 0x1B))\n Store (BB1C, Index(TEMP, 0x1C))\n Store (BB1D, Index(TEMP, 0x1D))\n Store (BB1E, Index(TEMP, 0x1E))\n Store (BB1F, Index(TEMP, 0x1F))\n Return (TEMP)\n }\n end; into device label EC0 insert begin Method (WRBB, 1, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (Arg0, TEMP)\n Store (DerefOf(Index(TEMP, 0x00)), BB00)\n Store (DerefOf(Index(TEMP, 0x01)), BB01)\n Store (DerefOf(Index(TEMP, 0x02)), BB02)\n Store (DerefOf(Index(TEMP, 0x03)), BB03)\n Store (DerefOf(Index(TEMP, 0x04)), BB04)\n Store (DerefOf(Index(TEMP, 0x05)), BB05)\n Store (DerefOf(Index(TEMP, 0x06)), BB06)\n Store (DerefOf(Index(TEMP, 0x07)), BB07)\n Store (DerefOf(Index(TEMP, 0x08)), BB08)\n Store (DerefOf(Index(TEMP, 0x09)), BB09)\n Store (DerefOf(Index(TEMP, 0x0A)), BB0A)\n Store (DerefOf(Index(TEMP, 0x0B)), BB0B)\n Store (DerefOf(Index(TEMP, 0x0C)), BB0C)\n Store (DerefOf(Index(TEMP, 0x0D)), BB0D)\n Store (DerefOf(Index(TEMP, 0x0E)), BB0E)\n Store (DerefOf(Index(TEMP, 0x0F)), BB0F)\n Store (DerefOf(Index(TEMP, 0x10)), BB10)\n Store (DerefOf(Index(TEMP, 0x11)), BB11)\n Store (DerefOf(Index(TEMP, 0x12)), BB12)\n Store (DerefOf(Index(TEMP, 0x13)), BB13)\n Store (DerefOf(Index(TEMP, 0x14)), BB14)\n Store (DerefOf(Index(TEMP, 0x15)), BB15)\n Store (DerefOf(Index(TEMP, 0x16)), BB16)\n Store (DerefOf(Index(TEMP, 0x17)), BB17)\n Store (DerefOf(Index(TEMP, 0x18)), BB18)\n Store (DerefOf(Index(TEMP, 0x19)), BB19)\n Store (DerefOf(Index(TEMP, 0x1A)), BB1A)\n Store (DerefOf(Index(TEMP, 0x1B)), BB1B)\n Store (DerefOf(Index(TEMP, 0x1C)), BB1C)\n Store (DerefOf(Index(TEMP, 0x1D)), BB1D)\n Store (DerefOf(Index(TEMP, 0x1E)), BB1E)\n Store (DerefOf(Index(TEMP, 0x1F)), BB1F)\n }\n end; into device label EC0 code_regex BDA2,\s+256 replace_matched begin //BDA2, 256,\n BB00,8,BB01,8,BB02,8,BB03,8,\n BB04,8,BB05,8,BB06,8,BB07,8,\n BB08,8,BB09,8,BB0A,8,BB0B,8,\n BB0C,8,BB0D,8,BB0E,8,BB0F,8,\n BB10,8,BB11,8,BB12,8,BB13,8,\n BB14,8,BB15,8,BB16,8,BB17,8,\n BB18,8,BB19,8,BB1A,8,BB1B,8,\n BB1C,8,BB1D,8,BB1E,8,BB1F,8\n end; into method label SMBR code_regex \(BDA2, replaceall_matched begin (RDBB(), end; into method label SMBR code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label SMBW code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label ECSB code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label ECSB code_regex \(BDA2, replaceall_matched begin (RDBB(), end; # additional work for _BIX method present in some ASUS laptops into device label EC0 code_regex B0C3,\s+16 replace_matched begin XC30,8,XC31,8 end; into device label EC0 code_regex B1C3,\s+16 replace_matched begin YC30,8,YC31,8 end; into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B0C3, replaceall_matched begin (B1B2(^^LPCB.EC0.XC30,^^LPCB.EC0.XC31), end; into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B1C3, replaceall_matched begin (B1B2(^^LPCB.EC0.YC30,^^LPCB.EC0.YC31), end; # or could remove the _BIX method if it turns out not to work #into_all method label _BIX remove_entry; Fix Sleep issues caused by USBs

      #Maintained by: RehabMan for: Laptop Patches #Changed by Luan (ludufre) Eduardo #usb_prw_0x0d_xhc.txt # remove _PRW methods to prevent instant wake # delete any existing XHC1 device into device label XHC1 name_adr 0x00140000 remove_entry; # delete any existing USB2 device into device label USB2 name_adr 0x001D0000 remove_entry; # if _PRW objects are methods into method label _PRW parent_adr 0x001D0000 remove_entry; into method label _PRW parent_adr 0x001A0000 remove_entry; into method label _PRW parent_adr 0x00140000 remove_entry; into method label _PRW parent_adr 0x001B0000 remove_entry; # some other LAN cards use 0x00190000 into method label _PRW parent_adr 0x00190000 remove_entry; # if _PRW methods are stuffed into a separate scope into method label _PRW parent_label _SB.PCI0.EHC1 remove_entry; into method label _PRW parent_label _SB.PCI0.EHC2 remove_entry; into method label _PRW parent_label _SB.PCI0.XHC remove_entry; into method label _PRW parent_label \_SB.PCI0.EHC1 remove_entry; into method label _PRW parent_label \_SB.PCI0.EHC2 remove_entry; into method label _PRW parent_label \_SB.PCI0.XHC remove_entry; # if _PRW objects are names into device name_adr 0x001D0000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x001A0000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x00140000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x001B0000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x00190000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\}\) remove_matched; # some _PRW have three entries in the Package into device name_adr 0x001D0000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x001A0000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x00140000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x001B0000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\n.*\}\) remove_matched; into device name_adr 0x00190000 code_regex Name.*_PRW.*\n.*\n.*\n.*\n.*\n.*\}\) remove_matched; # seems to work better if _PRW is present, but returns 0 (original was 3) for sleep state into device name_adr 0x001D0000 insert begin Name(_PRW, Package() { 0x0D, 0 }) end; into device name_adr 0x001A0000 insert begin Name(_PRW, Package() { 0x0D, 0 }) end; into device name_adr 0x00140000 insert begin Name(_PRW, Package() { 0x0D, 0 }) end; into device name_adr 0x001B0000 insert begin Name(_PRW, Package() { 0x0D, 0 }) end; into device name_adr 0x00190000 insert begin Name(_PRW, Package() { 0x0D, 0 }) end; into device label XHC set_label begin XHC1 end; into_all all code_regex XHC(?=\W) replaceall_matched begin XHC1 end; into method label _WAK code_regex \_SB.PCI0.XHC1.XWAK replace_matched begin _SB.PCI0.XHC1._INI end; It's done!



      To do list

      - Replace VoodooHDA by aDummyHDA (AppleHDA Patcher).

      Can't make mic/output jack work. I don't know how fix the layout.

      - Sleep and Hibernate


      Entering to sleep have a delay ~30 seconds, and wake to blackscreen, making necessary to press any key to power on the display.

      Hibernate not work. The system never wake up. (temporarily disabled with "pmset -a hibernatemode 0")

      - Brightness adjustment by FN keys
      Need time to search DSDT patch.






      Attached files used in the installation. For God's sake, always use the newest versions.


      And last but not least

      I would like to thank the following community members, by making these dream possible:
      @crushers, @snatch, @apianti, @blackosx, @blusseau, @dmazar, @slice2009, @autumnrain, @phpdev32, @EMlyDinEsH, @RehabMan, @Scellow, @mitch_de, @Shailua, @Andy Vandijck, @maxfierke, @ArturXXX, @LexHimself, @brumas and all others members involved directly or indirectly.
      EFI before install.zip
      EFI after install v2.zip
      USB.kext.zi
    • By ludufre
      New guide available for macOS Catalina 10.15 (i3 and i5 versions)!


      Installing OS X Yosemite 10.10.3 on ASUS VivoBook S400C (also know as S400CA)
      Specifically in S400CA-CA178H model, most likely all other models are compatible
      Can't boot S400CA-CA206H due HD3000 issues (i3-2375M model)



      Updated 17/06/15 #1:

      - Brightness now work. DSDT patch below.



      - Updated attachment with DSDT.aml and missing VoodooHDA kext.
      - Added TO DO list.

      Updated 17/06/15 #2:

      - WebCam now work. Kext AnyiSightCam.



      - Update attachment with new WebCam kext.

      Updated 19/06/15 #1:

      - Can't boot installation in S400C-CA206H model (i3-2375M/HD3000).



      - VGA tested. Don't work.
      - Boot logo work. Missed CsmVideoDxe-64 on my install.

      Updated 21/06/15 #1:

      - I Forgot of the need of FakeSMC.kext.




      Updated 22/11/17 #1:

      - High Sierra 10.13.1 on ASUS Vivobook S400C (S400CA-CA178H).


      Prequel

      Hi, my name is Luan and today I will show how I installed the OS X Yosemite version 10.10.3 on my ultrabook.
      I know that my procedure maybe can be made in other ways, but this is about how I made it.
      I am part of this world for four years. Since the launch of XCode 7 and no need to sign the Developer Program to test applications on the iPhone, I decided to install OS X.
      God bless WWDC15 (I'm not religious, just a popular saying in my country).


      What works and what does not work

      - Processor ->  Work. i5-3317U @ 1.7Ghz/2.6Ghz.  SpeedStep 8 to 26 stages. AsusAICPUPM <true/> in Clover config.plist.
      - Video Card ->  Work. HD4000. Full QE/CI.
      - Chipset ->  Work.
      - HDMI ->  Work.
      - VGA ->  Not work. I did not have time to fix yet.
      - Audio ->  Work. Kext VoodooHDA + AppleHDADisabler.
      - WiFi ->  Work. Replaced by Athero 9285 Wifi/Bluetooth.
      - Ethernet ->  Work. Kext Experimental Atheros AR81(31/32/51/52/61/62/71/72) Driver for 10.7/10.8.
      - Touchpad and keyboard ->  Work. Kext ELAN, FocalTech and Synaptics (Smart Touchpad) Driver (Mac OS X).
      - FN keyboards keys ->  Not work. I did not have time to fix yet.
      - Brightness control ->  Work. DSDT patch.
      - Sleep ->  Work.
      - Battery ->  Work. Kext ACPIBatteryManager by RehabMan and DSDT patch (below).
      - Card Reader -> Not tested. I have no adapters.
      - Integrated Camera ->  Work. Kext AnyiSightCam.
      - Bluetooth ->  Work. Kext Bluetooth Firmware Uploader and ControllerPowerState change to 1.
      - Boot Logo ->  Work.


      What I needed to install

      - Running install of Yosemite on VMware -> Downloaded version 10.10 via torrent (Google it). You can use a real Mac of an friend. I believe that Snow Leopard (10.6), Lion (10.7), Mountain Lion (10.8), Mavericks (10.9) also work.
      - Two USB flash drives of 8GB -> One for OSX install and another to the bootloader. This second not need to be 8GB, a 256MB is perfect.
      - OS X Yosemite install app -> Downloaded via App Store inside the virtual machine. I used version 10.10.3.
      - CloverEFI -> Also downloaded inside the virtual machine. I used build 3229.
      - DSDT patch skills -> Needed to battery works. How to patch DSDT.

      P.s.: You can use a single flash drive, in my install I used two because I don't wanted lose the os install created on the main flash drive.


      How I created flash cards

      Install flash drive:

      Partially used @snatch guide. More specifically this part:






      In the part above used the first flash drive (8GB).

      Bootloader flash drive:

      Format the second flash drive with GUID partition and Journaled file system type. If you want to use only one flash card, don't format!

      Downloaded the CloverEFI (used 3229) and installed with this options:

      Options:

      - Install for UEFI booting only
      - Install Clover in the ESP
      - Drivers64UEFI - CsmVideoDxe-64
      - Drivers64UEFI - OsxAptioFixDrv-64

      Will be created a partition named EFI. Edit the /EFI/CLOVER/config.plist and change those values:

      - SystemParameters - InjectKexts - <true/>
      - Graphics - Inject - ATI - <false/>
      - Graphics - Inject - Intel - <true/>
      - Graphics - ig-platform-id - 0x01660003
      - KernelAndKextPatches - AsusAICPUPM - <true/>

      P.s.: I will provide below my config.plist as attachment.

      Now you will capable to boot in installation, but your keyboard and mouse will not work. Let's fix that:

      - Download the Smart Touchpad kext from here. I used the version 4.3. This also enable the touchscreen.
      - Download the FakeSMC kext from here. I used the version 6.9.1315. This is very important. Can't boot without it.
      - Put the Kexts inside /EFI/CLOVER/kexts/10.10/

      Now you can start the instalation without problem (I guess).


      BIOS Setup Configuration

      - Intel Virtualization Technology: Disabled
      - VT-d: Disabled
      - USB Configuration - XHCI Pre-Boot Mode: Disabled

      P.s.: BIOS version 210.


      Installing indeed

      - Plug in the two flash drives.
      - When appear the Asus logo, press ESC once to enter Boot Menu.
      - Select the flash drive name with UEFI prefix. In my case "UEFI: KingstonDataTraveler 2.0PMAP".
      - On CloverEFI menu, use arrow to mark the flash drive with de OS X install, press Space on keyboard and select: "Boot Mac OS X in verbose mode".
      - As usual, format your HDD or SSD as GUID and Journaled. Make more partitions if you need. Take a note of the OSX partition name you entered on Disk Utillity.
      - After that, go ahead as always and start the instalation.
      - Go in the kitchen grab some lunch. You deserve it.


      Post installation

      What we have so far? The system installed on your ultrabook. Now you need to get rid of bootable flash drive installing the bootloader on HDD or SSD.

      Installing the bootloader in internal HDD or SSD:

      - Boot again selecting the flash drive on Boot menu. Same you did before.
      - Now select the partition you noted early.
      - If you do everything wright, the system will start normally.
      - Now you will use the CloverEFI install package again (same options from above). This time, the target will be your OS X installed partition.

      Our adorable ultrabook don't boot EFI if partition on the HDD or SSD if isn't MS-DOS. We will need to format and install Clover again.

      - Open the Terminal and enter "sudo -s".
      - Run the command: "diskutil list".
      - Take note of what location is your EFI. Usually it is "rdisk0s1". Make sure it's correct or you loose your data.
      - Now, let's format it, now execute: "newfs_msdos -v EFI -F 32 /dev/rdiskXsX". rdiskXsX is your EFI partition location from line above.

      Now you need to copy all data of your flash card bootloader to the root of your new created EFI partition on internal disk.
      This EFI partition is unmounted. Mount with "diskutil mount /dev/rdiskXsX".

      Just restart without flash drives to test.

      Others Kexts:

      Download the kexts from the links below. I strongly recommend always use newest versions. If you are too lazy, I attach on end of the post.

      Ethernet: ALXEthernet
      Sound: VoodooHDA (You may have to select the output there in System Preferences)
      Battery: ACPIBatteryManager
      Bluetooth: BTFirmwareUploader
      Integrated Camera: AnyiSightCam

      All kexts will be placed inside /EFI/CLOVER/kexts/10.10/, mount again this partition (diskutil mount /dev/rdiskXsX) for it.

      Now we need to add Battery patch to a new DSDT:

      #Maintained by: RehabMan for: Laptop Patches #battery_ASUS-N55SL.txt # created by RehabMan 8/12/2013 # created originally for jesselid # works for: # ASUS N55SL, BIOS rev. 204 # ASUS VivoBook series # ASUS Zenbook UX31A # ASUS UX301LA # ASUS X553E-SX399V # ASUS F501A # ASUS K55VM # ASUS U46SV, BIOS rev. 2.04 # ASUS N43 # ASUS PU500CA (90NB00F1-M01120) # ASUS N73SV # ASUS X401A-WX108 # ASUS F551CA Bios rev. 207 # ASUS S551LB VivoBook # ASUS ZenBook UX32VD # ASUS F550L-X455H # ASUS X53S # ASUS K550JD-XX003H # ASUS G53SX # ASUS K56CB # ASUS UX305 into method label B1B2 remove_entry; into definitionblock code_regex . insert begin Method (B1B2, 2, NotSerialized) { Return (Or (Arg0, ShiftLeft (Arg1, 8))) }\n end; # not really for battery, but might come in handy to read fan speed(s) into device label EC0 code_regex TAH0,\s+16 replace_matched begin TH00,8,TH01,8 end; into device label EC0 code_regex TAH1,\s+16 replace_matched begin TH10,8,TH11,8 end; into method label TACH code_regex \(TAH0, replace_matched begin (B1B2(TH00,TH01), end; into method label TACH code_regex \(TAH1, replace_matched begin (B1B2(TH10,TH11), end; into method label GFAN code_regex \(\\_SB\.PCI0\.LPCB\.EC0\.TAH0, replace_matched begin (B1B2(\\_SB.PCI0.LPCB.EC0.TH00,\\_SB.PCI0.LPCB.EC0.TH01), end; # battery EC into device label EC0 code_regex B0SN,\s+16 replace_matched begin B0S0,8,B0S1,8 end; into device label EC0 code_regex B1SN,\s+16 replace_matched begin B1S0,8,B1S1,8 end; into method label BIFA code_regex \(B0SN, replace_matched begin (B1B2(B0S0,B0S1), end; into method label BIFA code_regex \(B1SN, replace_matched begin (B1B2(B1S0,B1S1), end; into device label EC0 code_regex DT2B,\s+16 replace_matched begin T2B0,8,T2B1,8 end; into method label SMBR code_regex \(DT2B, replace_matched begin (B1B2(T2B0,T2B1), end; into method label SMBW code_regex Store\s+\(([^,]*),\s+DT2B\) replace_matched begin Store(%1,T2B0) Store(ShiftRight(%1,8),T2B1) end; into device label EC0 insert begin Method (RDBA, 0, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (BA00, Index(TEMP, 0x00))\n Store (BA01, Index(TEMP, 0x01))\n Store (BA02, Index(TEMP, 0x02))\n Store (BA03, Index(TEMP, 0x03))\n Store (BA04, Index(TEMP, 0x04))\n Store (BA05, Index(TEMP, 0x05))\n Store (BA06, Index(TEMP, 0x06))\n Store (BA07, Index(TEMP, 0x07))\n Store (BA08, Index(TEMP, 0x08))\n Store (BA09, Index(TEMP, 0x09))\n Store (BA0A, Index(TEMP, 0x0A))\n Store (BA0B, Index(TEMP, 0x0B))\n Store (BA0C, Index(TEMP, 0x0C))\n Store (BA0D, Index(TEMP, 0x0D))\n Store (BA0E, Index(TEMP, 0x0E))\n Store (BA0F, Index(TEMP, 0x0F))\n Store (BA10, Index(TEMP, 0x10))\n Store (BA11, Index(TEMP, 0x11))\n Store (BA12, Index(TEMP, 0x12))\n Store (BA13, Index(TEMP, 0x13))\n Store (BA14, Index(TEMP, 0x14))\n Store (BA15, Index(TEMP, 0x15))\n Store (BA16, Index(TEMP, 0x16))\n Store (BA17, Index(TEMP, 0x17))\n Store (BA18, Index(TEMP, 0x18))\n Store (BA19, Index(TEMP, 0x19))\n Store (BA1A, Index(TEMP, 0x1A))\n Store (BA1B, Index(TEMP, 0x1B))\n Store (BA1C, Index(TEMP, 0x1C))\n Store (BA1D, Index(TEMP, 0x1D))\n Store (BA1E, Index(TEMP, 0x1E))\n Store (BA1F, Index(TEMP, 0x1F))\n Return (TEMP)\n }\n end; into device label EC0 insert begin Method (WRBA, 1, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (Arg0, TEMP)\n Store (DerefOf(Index(TEMP, 0x00)), BA00)\n Store (DerefOf(Index(TEMP, 0x01)), BA01)\n Store (DerefOf(Index(TEMP, 0x02)), BA02)\n Store (DerefOf(Index(TEMP, 0x03)), BA03)\n Store (DerefOf(Index(TEMP, 0x04)), BA04)\n Store (DerefOf(Index(TEMP, 0x05)), BA05)\n Store (DerefOf(Index(TEMP, 0x06)), BA06)\n Store (DerefOf(Index(TEMP, 0x07)), BA07)\n Store (DerefOf(Index(TEMP, 0x08)), BA08)\n Store (DerefOf(Index(TEMP, 0x09)), BA09)\n Store (DerefOf(Index(TEMP, 0x0A)), BA0A)\n Store (DerefOf(Index(TEMP, 0x0B)), BA0B)\n Store (DerefOf(Index(TEMP, 0x0C)), BA0C)\n Store (DerefOf(Index(TEMP, 0x0D)), BA0D)\n Store (DerefOf(Index(TEMP, 0x0E)), BA0E)\n Store (DerefOf(Index(TEMP, 0x0F)), BA0F)\n Store (DerefOf(Index(TEMP, 0x10)), BA10)\n Store (DerefOf(Index(TEMP, 0x11)), BA11)\n Store (DerefOf(Index(TEMP, 0x12)), BA12)\n Store (DerefOf(Index(TEMP, 0x13)), BA13)\n Store (DerefOf(Index(TEMP, 0x14)), BA14)\n Store (DerefOf(Index(TEMP, 0x15)), BA15)\n Store (DerefOf(Index(TEMP, 0x16)), BA16)\n Store (DerefOf(Index(TEMP, 0x17)), BA17)\n Store (DerefOf(Index(TEMP, 0x18)), BA18)\n Store (DerefOf(Index(TEMP, 0x19)), BA19)\n Store (DerefOf(Index(TEMP, 0x1A)), BA1A)\n Store (DerefOf(Index(TEMP, 0x1B)), BA1B)\n Store (DerefOf(Index(TEMP, 0x1C)), BA1C)\n Store (DerefOf(Index(TEMP, 0x1D)), BA1D)\n Store (DerefOf(Index(TEMP, 0x1E)), BA1E)\n Store (DerefOf(Index(TEMP, 0x1F)), BA1F)\n }\n end; into device label EC0 code_regex BDAT,\s+256 replace_matched begin //BDAT, 256,\n BA00,8,BA01,8,BA02,8,BA03,8,\n BA04,8,BA05,8,BA06,8,BA07,8,\n BA08,8,BA09,8,BA0A,8,BA0B,8,\n BA0C,8,BA0D,8,BA0E,8,BA0F,8,\n BA10,8,BA11,8,BA12,8,BA13,8,\n BA14,8,BA15,8,BA16,8,BA17,8,\n BA18,8,BA19,8,BA1A,8,BA1B,8,\n BA1C,8,BA1D,8,BA1E,8,BA1F,8\n end; into method label SMBR code_regex \(BDAT, replaceall_matched begin (RDBA(), end; into method label SMBR code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label SMBW code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label ECSB code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end; into method label ECSB code_regex \(BDAT, replaceall_matched begin (RDBA(), end; into device label EC0 insert begin Method (RDBB, 0, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (BB00, Index(TEMP, 0x00))\n Store (BB01, Index(TEMP, 0x01))\n Store (BB02, Index(TEMP, 0x02))\n Store (BB03, Index(TEMP, 0x03))\n Store (BB04, Index(TEMP, 0x04))\n Store (BB05, Index(TEMP, 0x05))\n Store (BB06, Index(TEMP, 0x06))\n Store (BB07, Index(TEMP, 0x07))\n Store (BB08, Index(TEMP, 0x08))\n Store (BB09, Index(TEMP, 0x09))\n Store (BB0A, Index(TEMP, 0x0A))\n Store (BB0B, Index(TEMP, 0x0B))\n Store (BB0C, Index(TEMP, 0x0C))\n Store (BB0D, Index(TEMP, 0x0D))\n Store (BB0E, Index(TEMP, 0x0E))\n Store (BB0F, Index(TEMP, 0x0F))\n Store (BB10, Index(TEMP, 0x10))\n Store (BB11, Index(TEMP, 0x11))\n Store (BB12, Index(TEMP, 0x12))\n Store (BB13, Index(TEMP, 0x13))\n Store (BB14, Index(TEMP, 0x14))\n Store (BB15, Index(TEMP, 0x15))\n Store (BB16, Index(TEMP, 0x16))\n Store (BB17, Index(TEMP, 0x17))\n Store (BB18, Index(TEMP, 0x18))\n Store (BB19, Index(TEMP, 0x19))\n Store (BB1A, Index(TEMP, 0x1A))\n Store (BB1B, Index(TEMP, 0x1B))\n Store (BB1C, Index(TEMP, 0x1C))\n Store (BB1D, Index(TEMP, 0x1D))\n Store (BB1E, Index(TEMP, 0x1E))\n Store (BB1F, Index(TEMP, 0x1F))\n Return (TEMP)\n }\n end; into device label EC0 insert begin Method (WRBB, 1, Serialized)\n {\n Name (TEMP, Buffer(0x20) { })\n Store (Arg0, TEMP)\n Store (DerefOf(Index(TEMP, 0x00)), BB00)\n Store (DerefOf(Index(TEMP, 0x01)), BB01)\n Store (DerefOf(Index(TEMP, 0x02)), BB02)\n Store (DerefOf(Index(TEMP, 0x03)), BB03)\n Store (DerefOf(Index(TEMP, 0x04)), BB04)\n Store (DerefOf(Index(TEMP, 0x05)), BB05)\n Store (DerefOf(Index(TEMP, 0x06)), BB06)\n Store (DerefOf(Index(TEMP, 0x07)), BB07)\n Store (DerefOf(Index(TEMP, 0x08)), BB08)\n Store (DerefOf(Index(TEMP, 0x09)), BB09)\n Store (DerefOf(Index(TEMP, 0x0A)), BB0A)\n Store (DerefOf(Index(TEMP, 0x0B)), BB0B)\n Store (DerefOf(Index(TEMP, 0x0C)), BB0C)\n Store (DerefOf(Index(TEMP, 0x0D)), BB0D)\n Store (DerefOf(Index(TEMP, 0x0E)), BB0E)\n Store (DerefOf(Index(TEMP, 0x0F)), BB0F)\n Store (DerefOf(Index(TEMP, 0x10)), BB10)\n Store (DerefOf(Index(TEMP, 0x11)), BB11)\n Store (DerefOf(Index(TEMP, 0x12)), BB12)\n Store (DerefOf(Index(TEMP, 0x13)), BB13)\n Store (DerefOf(Index(TEMP, 0x14)), BB14)\n Store (DerefOf(Index(TEMP, 0x15)), BB15)\n Store (DerefOf(Index(TEMP, 0x16)), BB16)\n Store (DerefOf(Index(TEMP, 0x17)), BB17)\n Store (DerefOf(Index(TEMP, 0x18)), BB18)\n Store (DerefOf(Index(TEMP, 0x19)), BB19)\n Store (DerefOf(Index(TEMP, 0x1A)), BB1A)\n Store (DerefOf(Index(TEMP, 0x1B)), BB1B)\n Store (DerefOf(Index(TEMP, 0x1C)), BB1C)\n Store (DerefOf(Index(TEMP, 0x1D)), BB1D)\n Store (DerefOf(Index(TEMP, 0x1E)), BB1E)\n Store (DerefOf(Index(TEMP, 0x1F)), BB1F)\n }\n end; into device label EC0 code_regex BDA2,\s+256 replace_matched begin //BDA2, 256,\n BB00,8,BB01,8,BB02,8,BB03,8,\n BB04,8,BB05,8,BB06,8,BB07,8,\n BB08,8,BB09,8,BB0A,8,BB0B,8,\n BB0C,8,BB0D,8,BB0E,8,BB0F,8,\n BB10,8,BB11,8,BB12,8,BB13,8,\n BB14,8,BB15,8,BB16,8,BB17,8,\n BB18,8,BB19,8,BB1A,8,BB1B,8,\n BB1C,8,BB1D,8,BB1E,8,BB1F,8\n end; into method label SMBR code_regex \(BDA2, replaceall_matched begin (RDBB(), end; into method label SMBR code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label SMBW code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label ECSB code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end; into method label ECSB code_regex \(BDA2, replaceall_matched begin (RDBB(), end; # additional work for _BIX method present in some ASUS laptops into device label EC0 code_regex B0C3,\s+16 replace_matched begin XC30,8,XC31,8 end; into device label EC0 code_regex B1C3,\s+16 replace_matched begin YC30,8,YC31,8 end; into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B0C3, replaceall_matched begin (B1B2(^^LPCB.EC0.XC30,^^LPCB.EC0.XC31), end; into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B1C3, replaceall_matched begin (B1B2(^^LPCB.EC0.YC30,^^LPCB.EC0.YC31), end; # or could remove the _BIX method if it turns out not to work #into_all method label _BIX remove_entry; And the Brightness:





      #Maintained by: RehabMan for: Laptop Patches #graphics_PNLF_ivy_sandy.txt # This patch enables the brightness slider in SysPrefs->Displays # and will also enable activation of sleep mode by closing # the laptop lid. # # This particular version is intended to be used with ACPIBacklight.kext # although it can also be used with AppleBacklight.kext, # provided AppleBacklight.kext is patched to recognize your # display or an injector is used to set brightness levels. # # See this thread for more information: # http://www.tonymacx86.com/hp-probook-mavericks/121031-native-brightness-working-without-blinkscreen-using-patched-applebacklight-kext.html # (also read any linked threads) # # # Note: This patch should be applied to the DSDT or SSDT that defines # your integrated graphics device (always at _ADR 0x00020000) # into_all device label PNLF remove_entry; into_all device name_adr 0x00020000 code_regex (OperationRegion\s\(RMPC,\sPCI_Config[^\}]*\}) remove_matched; into device name_adr 0x00020000 insert begin OperationRegion (RMPC, PCI_Config, 0x10, 4)\n Field (RMPC, AnyAcc, NoLock, Preserve)\n {\n BAR1,32,\n }\n Device (PNLF)\n {\n // normal PNLF declares (note some of this probably not necessary)\n Name (_ADR, Zero)\n Name (_HID, EisaId ("APP0002"))\n Name (_CID, "backlight")\n Name (_UID, 10)\n Name (_STA, 0x0B)\n //define hardware register access for brightness\n // lower nibble of BAR1 is status bits and not part of the address\n OperationRegion (BRIT, SystemMemory, And(^BAR1, Not(0xF)), 0xe1184)\n Field (BRIT, AnyAcc, Lock, Preserve)\n {\n Offset(0x48250),\n LEV2, 32,\n LEVL, 32,\n Offset(0x70040),\n P0BL, 32,\n Offset(0xc8250),\n LEVW, 32,\n LEVX, 32,\n Offset(0xe1180),\n PCHL, 32,\n }\n // DEB1 special for setting KLVX at runtime...\n //Method (DEB1, 1, NotSerialized)\n //{\n // Store(Arg0, KLVX)\n //}\n // LMAX: use 0x710 to force OS X value\n // or use any arbitrary value\n // or use 0 to capture BIOS setting\n Name (LMAX, 0x710)\n // KMAX: defines the unscaled range in the _BCL table below\n Name (KMAX, 0x710)\n // KPCH: saved value for PCHL\n Name(KPCH, 0)\n // _INI deals with differences between native setting and desired\n Method (_INI, 0, NotSerialized)\n {\n // save value of PCHL for later\n Store(PCHL, KPCH)\n // determine LMAX to use\n If (LNot(LMAX)) { Store(ShiftRight(LEVX,16), LMAX) }\n If (LNot(LMAX)) { Store(KMAX, LMAX) }\n Store(ShiftLeft(LMAX,16), KLVX)\n If (LNotEqual(LMAX, KMAX))\n {\n // Scale all the values in _BCL to the PWM max in use\n Store(0, Local0)\n While (LLess(Local0, SizeOf(_BCL)))\n {\n Store(DerefOf(Index(_BCL,Local0)), Local1)\n Divide(Multiply(Local1,LMAX), KMAX,, Local1)\n Store(Local1, Index(_BCL,Local0))\n Increment(Local0)\n }\n // Also scale XRGL and XRGH values\n Divide(Multiply(XRGL,LMAX), KMAX,, XRGL)\n Divide(Multiply(XRGH,LMAX), KMAX,, XRGH)\n }\n // adjust values to desired LMAX\n Store(ShiftRight(LEVX,16), Local1)\n If (LNotEqual(Local1, LMAX))\n {\n Store(LEVL, Local0)\n If (LOr(LNot(Local0),LNot(Local1))) { Store(LMAX, Local0) Store(LMAX, Local1) }\n Divide(Multiply(Local0,LMAX), Local1,, Local0)\n //REVIEW: wait for vblank before setting new PWM config\n //Store(P0BL, Local7)\n //While (LEqual (P0BL, Local7)) {}\n If (LGreater(LEVL, LMAX))\n { Store(KLVX, LEVX) Store(Local0, LEVL) }\n Else\n { Store(Local0, LEVL) Store(KLVX, LEVX) }\n }\n }\n // _BCM/_BQC: set/get for brightness level\n Method (_BCM, 1, NotSerialized)\n {\n // initialize for consistent backlight level before/after sleep\n If (LNotEqual(PCHL, KPCH)) { Store(KPCH, PCHL) }\n If (LNotEqual(LEVW, 0x80000000)) { Store (0x80000000, LEVW) }\n If (LNotEqual(LEVX, KLVX)) { Store (KLVX, LEVX) }\n // store new backlight level\n Store(Match(_BCL, MGE, Arg0, MTR, 0, 2), Local0)\n If (LEqual(Local0, Ones)) { Subtract(SizeOf(_BCL), 1, Local0) }\n If (LNotEqual(LEV2, 0x80000000)) { Store(0x80000000, LEV2) }\n Store(DerefOf(Index(_BCL, Local0)), LEVL)\n }\n Method (_BQC, 0, NotSerialized)\n {\n Store(Match(_BCL, MGE, LEVL, MTR, 0, 2), Local0)\n If (LEqual(Local0, Ones)) { Subtract(SizeOf(_BCL), 1, Local0) }\n Return(DerefOf(Index(_BCL, Local0)))\n }\n Method (_DOS, 1, NotSerialized)\n {\n // Note: Some systems have this defined in DSDT, so uncomment\n // the next line if that is the case.\n //External(^^_DOS, MethodObj)\n ^^_DOS(Arg0)\n }\n // extended _BCM/_BQC for setting "in between" levels\n Method (XBCM, 1, NotSerialized)\n {\n // initialize for consistent backlight level before/after sleep\n If (LNotEqual(PCHL, KPCH)) { Store(KPCH, PCHL) }\n If (LNotEqual(LEVW, 0x80000000)) { Store (0x80000000, LEVW) }\n If (LNotEqual(LEVX, KLVX)) { Store (KLVX, LEVX) }\n // store new backlight level\n If (LGreater(Arg0, XRGH)) { Store(XRGH, Arg0) }\n If (LAnd(Arg0, LLess(Arg0, XRGL))) { Store(XRGL, Arg0) }\n If (LNotEqual(LEV2, 0x80000000)) { Store(0x80000000, LEV2) } \n Store(Arg0, LEVL)\n }\n Method (XBQC, 0, NotSerialized)\n {\n Store(LEVL, Local0)\n If (LGreater(Local0, XRGH)) { Store(XRGH, Local0) }\n If (LAnd(Local0, LLess(Local0, XRGL))) { Store(XRGL, Local0) }\n Return(Local0)\n }\n // Use XOPT=1 to disable smooth transitions\n Name (XOPT, Zero)\n // XRGL/XRGH: defines the valid range\n Name (XRGL, 40)\n Name (XRGH, 1808)\n // KLVX is initialization value for LEVX\n Name (KLVX, 0x7100000)\n // _BCL: returns list of valid brightness levels\n // first two entries describe ac/battery power levels\n Name (_BCL, Package()\n {\n 1808,\n 479,\n 0,\n 53, 55, 57, 59,\n 62, 66, 71, 77,\n 83, 91, 99, 108,\n 119, 130, 142, 154,\n 168, 183, 198, 214,\n 232, 250, 269, 289,\n 309, 331, 354, 377,\n 401, 426, 453, 479,\n 507, 536, 566, 596,\n 627, 660, 693, 727,\n 762, 797, 834, 872,\n 910, 949, 990, 1031,\n 1073, 1115, 1159, 1204,\n 1249, 1296, 1343, 1391,\n 1440, 1490, 1541, 1592,\n 1645, 1698, 1753, 1808,\n })\n }\n end;

      It's done! Now go brush your teeth!


      To do list

      - Turn AppleHDADisabler in CloverEFI path.
      - Fix FN keyboard keys.
      - Turn Battery DSDT patch in CloverEFI path.
      - Test Cardreader.
      - Test USB3 port.


      And last but not least

      I would like to thank the following community members, by making these dream possible:
      @crushers, @snatch, @apianti, @blackosx, @blusseau, @dmazar, @slice2009, @autumnrain, @phpdev32, @EMlyDinEsH, @RehabMan, @Scellow, @mitch_de, @Shailua, @Andy Vandijck, @maxfierke, @ArturXXX and all others members involved directly or indirectly.


      EFI.zip
×
