Wait, so what actually doesn't work? Is notebooks screen black with/without backlight or the card is not recognised? Or the system doesn't even boot up correctly with Truckers files?

zsolt.molnarrr
zsolt.molnarrr
Posted
Posted

It doesn't boot up correctly. It recognizes the card(I can see a few lines about it, at different stages of the boot process) and the screen doesn't go off it just doesn't changes to the GUI from the verbose text.

freeuser16
freeuser16
Posted
Posted

That's very weird. Anyway, post here your videobios and I will have a look. Maybe you have a bit different card than Trucker and need different ATI6000Controller patch.

freeuser16
freeuser16
Posted
Posted

Doesn't that computer need a DSDT?

It depends on videobios, Steve. Chameleons graphics injector doesn't work only if LVDS senseid is 7. Trucker has the same notebook with senseid=03 and he can enable the card without DSDT ;)

freeuser16
freeuser16
Posted
Posted

Well, your card is identical to Truckers one. Thus kexts from the first post should work 100%. Either you installed them wrong / for the wrong version of OS or Trucker did something wrong when patching that kexts.

freeuser16
freeuser16
Posted
Posted

Post here your original ATI6000Controller kext from your system and I will patch it for you with Truckers numbers. Or you can do it on your own, it's pretty straight forward - http://www.insanelymac.com/forum/topic/277042-amd-radeon-hd-6650m-graphics-enabler-dsdt-hdmi-audio-acer-aspire-7750g-2674g50mnkk-gradients-fixed/page-32?do=findComment&comment=1936584. Use all the number from the first post.

zsolt.molnarrr
zsolt.molnarrr
Posted
Posted

Thank you! I`ve attached the original ATI6000Controller, but note, I was trying to use 10.8.4_GE_ATI6000Controller from the 1#Post.



Please tell me what other kexts do I need to have or delete, and what else I need to do from a fresh installation!

I`ve also tried with ATISupport+AMDRadeonAccelerator+ATIFramebuffer kexts, but I still get the original problem.

My SMBIOS is MBP(8,3).

ATI6000Controller.kext.zip

zsolt.molnarrr
zsolt.molnarrr
Posted
Posted

I don't know how it is possible. After I installed the system I moved every graphics kexts into a folder and the one which I uploaded here is from there. How can I get a clean one if not from my system?

freeuser16
freeuser16
Posted
Posted

I don't know how it is possible. After I installed the system I moved every graphics kexts into a folder and the one which I uploaded here is from there. How can I get a clean one if not from my system?

That's right. But your kext has this line: 02 00 00 00 40 00 00 00 09 01 00 00 20 01 00 03. No original Apple framebuffer has this connectors layout. But Truckers modified kext from OP has it, that's why I think this is not original kext.



You can actually try to boot even with original kext with framebuffer which is the closest to your connectors data, maybe it will work. You can try GraphicsEnabler=Yes and ATIConfig=Elodea, for example.

Trucker MK
Trucker MK
Posted
  • Author
Posted

That's right. But your kext has this line: 02 00 00 00 40 00 00 00 09 01 00 00 20 01 00 03. No original Apple framebuffer has this connectors layout. But Truckers modified kext from OP has it, that's why I think this is not original kext.



You can actually try to boot even with original kext with framebuffer which is the closest to your connectors data, maybe it will work. You can try GraphicsEnabler=Yes and ATIConfig=Elodea, for example.

1. Swithchable Graphics?

2. Why don't you try the other option: DSDT + Patched ATI6000Controller.kext with 10/01 Transmitter/Encoder (Look for this line in my OP "1. Downloads ATI 6650M 2GB SubsystemVendorID: 0x1025 SubsystemID: 0x050e (DSDT patch + patched ATI6000Controller.kext)"

BTW, as you may already noticed, i wont be supporting this topic as much as i did before.

freeuser16
freeuser16
Posted
Posted

Nice to see you again, Trucker!

No, he doesn't have switchable graphics. Video bios dump analysis script works without problems. Usually when there is switchable graphics, it doesn't or video bios file size is 130kb instead of 65kb.

Trucker MK
Trucker MK
Posted
  • Author
Posted

Thanks freeuser16, nice to have you here also. Obviously he is doing something wrong, i can't think of any reason why it wouldn't work if he have the same graphic card. I never tried the patched 10.8.4 my self but i can see that it has been downloaded 43/30 (DSDT/GraphicsEnabler) times and none reported as not working, so...

  • 4 weeks later...
grexai926
grexai926
Posted
Posted

If someone needs i patched a mavericks kext ( its from the original release not DP)
Pithecia patched
i think the files is hidden dunno why

AMD6000Controller.kext.zip

grexai926
grexai926
Posted
Posted

hmm i tested  my patched kext but i can't use it my computer restarts before apple logo
edex96 you re right they changed it

any ideas why my patched amd6000 controller doesn't work?

edex96
edex96
Posted
Posted

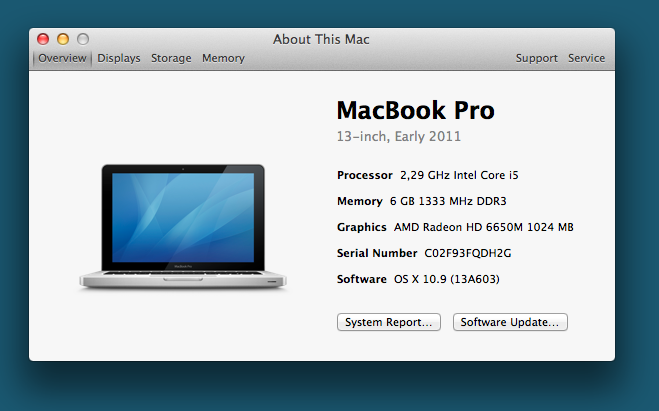

SUCCESS



AMD Radeon HD 6650M:



  Name: ATY,Ipomoea

  Type: Display Controller

  Driver Installed: Yes

  MSI: Yes

  Bus: PCI

  Slot: PCIe Slot-1

  Vendor ID: 0x1002

  Device ID: 0x6741

  Subsystem Vendor ID: 0x1025

  Subsystem ID: 0x0513

  Revision ID: 0x0000

  Link Width: x16

  Link Speed: 2.5 GT/s



it's not really big deal to get working whole system for PACKARDBELL LS44HR Users



[[[[[ I bought a Samsung 840 pro 256gb about 1 month before and it's changed my life that i couldn't imagine ]]]]]]
