blackwalker Posted October 19, 2010 Share Posted October 19, 2010 hi tested and not working... all i got is a black screen! I changed now the graphic mode to: <key>Graphics Mode</key> <string>1920x1200x32</string> using VMWare, directly on the Hardisk where snow is installed, since i cant boot and edit it, its ok or i have to repair/rebuild permissions? I see that i dont have ATI5000Controller.Kext? its normal??? (before i make the test i already installed Graphic updater.... have to install again??) hope in some help. thx again Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566572 Share on other sites More sharing options...
kirasir Posted October 19, 2010 Share Posted October 19, 2010 you're not getting multi outputs whilst using the Vervet FB? you have to keep in mind that as posted by Kabyl in hist first post, certain combinations of ports may not work. This is good, but what led Kabyl true for Windows and totally unsuitable for maс-driver. http://www.apple.com/ru/macpro/features/graphics.html Look here and think about the number, type and location of the output ports. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566575 Share on other sites More sharing options...
blackwalker Posted October 19, 2010 Share Posted October 19, 2010 Update: changed only: <key>Graphics Mode</key> <string>1920x1200x32</string> and now IT WORK! Cant believe! tested on 1 DVI port only, i'll do more test on other ports! i'm really happy, tooooo! need to test hdmi and multiple monitor!! i'll post result later. bye and thx for all! looks like results with cinebench are really low... screens attached first 3 are with I7 920 default settings last 2 are with I7 920 overclocked @3.2 what do you think? I still have to check if there is a bios update for my gigabyte HD 5870 better to check on gigabyte site or on another site? ps: donation'll come later, of course!! Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566583 Share on other sites More sharing options...
kirasir Posted October 19, 2010 Share Posted October 19, 2010 And how much 5870 is more expensive 5770? Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566683 Share on other sites More sharing options...

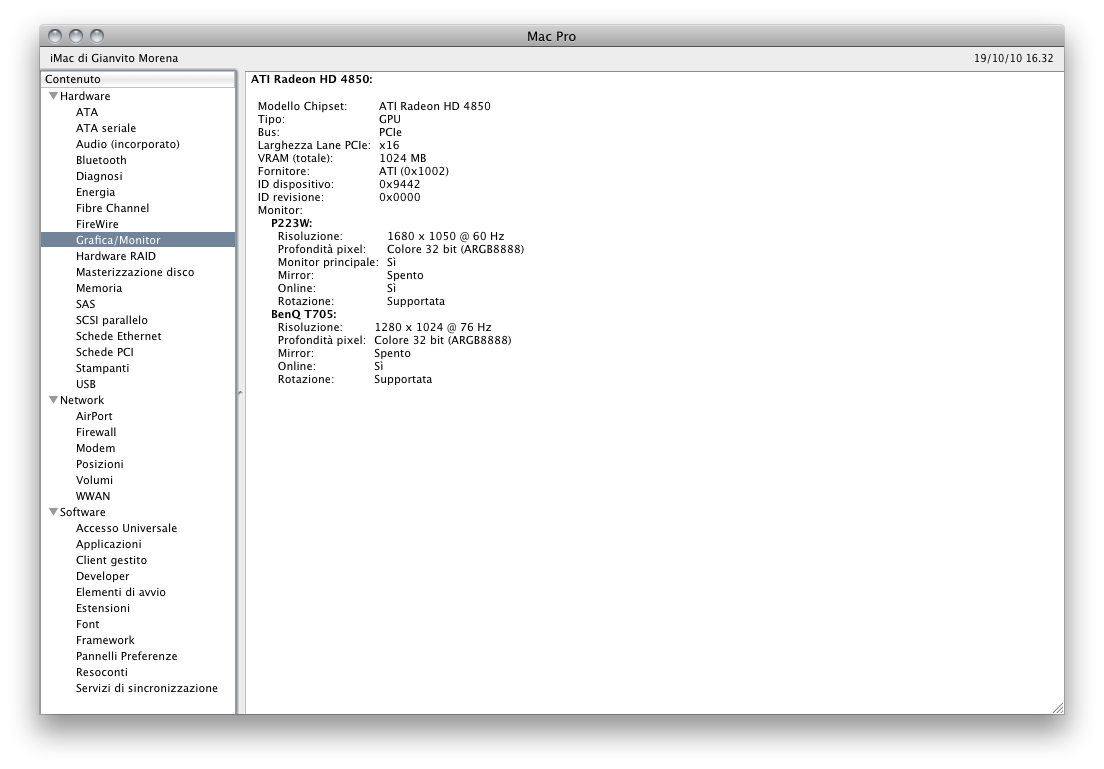

Gianvito M Posted October 19, 2010 Share Posted October 19, 2010 Card: Gainward HD4850 Golden Sample 1GB Framebuffer: Cardinal Working configurations: Dual monitor: DVI-VGA+DVI-VGA Single monitor: DVI-VGA on port 1 (Next to the motherboard) DVI-VGA on port 2 Both my monitors are VGA so I can't test DVI connections. Removing 1 DVI-VGA adapter with only 1 monitor, I've got a black screen. Graphic tab screenshot: IoReg dump: dvi_vga_dvi_vga.zip Thanks for your work Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566719 Share on other sites More sharing options...
ed_co Posted October 19, 2010 Share Posted October 19, 2010 Kabyl, are you there? There are any problems? Need more info? Tell us. Cheers. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566734 Share on other sites More sharing options...
blackwalker Posted October 19, 2010 Share Posted October 19, 2010 And how much 5870 is more expensive 5770? nice result...looks like my 5870 suck My 5870 is a Gigabyte HD 5870 - "GV-R587D5-1GB-B" what about flasing one of these bios: techPowerUp Video Bios ??? the newest bios version is this: http://www.techpowerup.com/vgabios/75059/G...024.100416.html but i see that its for "GV-R587UD-1GD/F6" and i have "GV-R587D5-1GB-B" I think i dont have any problem using this bios, the model is almost the same. the question is i'll get better perfromance? what do you think? Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566824 Share on other sites More sharing options...
kirasir Posted October 19, 2010 Share Posted October 19, 2010 I have found it: ATi Eyefinity Technology - Support up to 3 monitor outputs simultaneously and independently.(one of the outputs must be DisplayPort.) Evrica? "the question is i'll get better perfromance? what do you think?" I think your DSDT is bad. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566884 Share on other sites More sharing options...
blackwalker Posted October 19, 2010 Share Posted October 19, 2010 I have found it: ATi Eyefinity Technology - Support up to 3 monitor outputs simultaneously and independently.(one of the outputs must be DisplayPort.) Evrica? "the question is i'll get better perfromance? what do you think?" I think your DSDT is bad. thx for your answer kirasir. so you think my DSDT is bad. do you suggest me to patch DSDT... i found some info here: http://www.insanelymac.com/forum/index.php?showtopic=133683 http://www.insanelymac.com/forum/index.php?showtopic=132757 and here http://insanelymac.blogspot.com/2008/12/ds...from-pcwiz.html what do you suggest me to do/try? can you help me with it? and what you mean with "Evrica?"?? Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566928 Share on other sites More sharing options...
kirasir Posted October 19, 2010 Share Posted October 19, 2010 thx for your answer kirasir. so you think my DSDT is bad. do you suggest me to patch DSDT... i found some info here: http://www.insanelymac.com/forum/index.php?showtopic=133683 http://www.insanelymac.com/forum/index.php?showtopic=132757 and here http://insanelymac.blogspot.com/2008/12/ds...from-pcwiz.html what do you suggest me to do/try? can you help me with it? and what you mean with "Evrica?"?? I have found correct decisions for DSDT in the my head. About eureka, I to that can therefore at me HDMI don't work. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1566945 Share on other sites More sharing options...

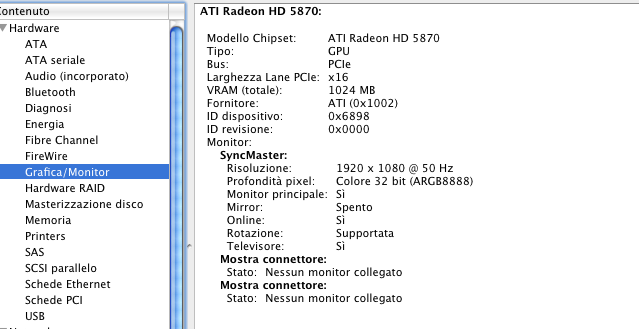

blackwalker Posted October 20, 2010 Share Posted October 20, 2010 here is a report with IORegistryExplorer, Gigabyte HD 5870 , and i see its set to "Uakari", maybe setting with Vervet i'll get better result? have to see how to change it, lol (i'm a noob ) Anyway i'm looking to patch the DSDT. blackwalker___s_Mac_Pro.zip Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567123 Share on other sites More sharing options...
Shaithis Posted October 20, 2010 Share Posted October 20, 2010 nice result...looks like my 5870 suck My 5870 is a Gigabyte HD 5870 - "GV-R587D5-1GB-B" what about flasing one of these bios: I am not sure if a different BIOS would help, but if you do try some there is no need to flash it, you can use the "UseAtiRom = Yes" option in your boot.plist file and place the ROM (with the corrected filename) in the /Extra directory. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567163 Share on other sites More sharing options...
blackwalker Posted October 20, 2010 Share Posted October 20, 2010 I am not sure if a different BIOS would help, but if you do try some there is no need to flash it, you can use the "UseAtiRom = Yes" option in your boot.plist file and place the ROM (with the corrected filename) in the /Extra directory. thx for your answer! here are my hd 5870 info: Model: Gigabyte HD 5870 - GV-R587D5-1GB-B 1002-6898 pci vendor id: 1002 Devide Id: 6898 rlease date: Sep 23 2009 Bios Version: 012.014.000.005.035264 so: - UseAtiRom = Yes in apple....boot.plist - my hd 5870 rom file i exported my bios and i have the file "Cypress.bin", can use it or i have to rename it to "1002_6898.bin"? anyway....i still need the "boot" into the root of the hardisk, correct? thx again! Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567253 Share on other sites More sharing options...
blackwalker Posted October 20, 2010 Share Posted October 20, 2010 I am not sure if a different BIOS would help, but if you do try some there is no need to flash it, you can use the "UseAtiRom = Yes" option in your boot.plist file and place the ROM (with the corrected filename) in the /Extra directory. tested and nothing changed... i check around and using the rom file its different, and its not like you posted... i think i have to try another method to make it work! Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567292 Share on other sites More sharing options...
@ddi Posted October 20, 2010 Share Posted October 20, 2010 tested and nothing changed...i check around and using the rom file its different, and its not like you posted... i think i have to try another method to make it work! I too score about 30 in cinebench with a 5870 and as I said before I think it should score around 50. Anyway until this will be figured out I really happy to be just be able to use it, even if underpowered Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567297 Share on other sites More sharing options...
toleda Posted October 20, 2010 Share Posted October 20, 2010 5870/HDMI Audio/64 Bit After weeks of KPs, black screens and fans at full song over three different HD5XXX cards, the Sapphire Vapor X Overclocked HD 5870 works for me in Snow Leopard thanks to Kabyl's boater. No ROM files, no Framebuffers, No strings, just Graphics Enabler=Yes. The lspci follows and the ioreg file is attached. 01:00.0 VGA compatible controller [0300]: ATI Technologies Inc Unknown device [1002:6898] (prog-if 00 [VGA controller]) Subsystem: PC Partner Limited Unknown device [174b:e140] -- 01:00.1 Audio device [0403]: ATI Technologies Inc Unknown device [1002:aa50] Subsystem: PC Partner Limited Unknown device [174b:aa50] H55N_USB3_5870_HDMI.zip Fresh install of Snow Leopard 10.6.3 on the GA-H55N-USB3 mini ITX motherboard using tonymacx86's [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] ATI 5XXX-3 on the HDMI port. Installed the 10.6.4 and Graphics 1.0 Updates. Rebooted with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] -3, installed the DSDT (with the HDMI edits from tmonkgol GFX0/HDAU), Chameleon RC5 Rev 516 and Kabyl's boot file. Ejected the [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] disc and rebooted with a fully enabled 5870. It boots from any port in either the 32 or 64 bit kernels and supports three displays. One problem, it boots with a display port to HDMI adapter, however, when the system goes to full resolution, the video signal disappears (could be the adapter). Since on board audio (ALC892) isn't supported in Snow Leopard, HDMI audio works perfectly. The Sound PrefPanel shows Built-in HDMI or Built-in DisplayPort audio output. sys_prof_graphics.tiff H55N_USB3_5870_HDMI.zip Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567444 Share on other sites More sharing options...
nazrm Posted October 20, 2010 Share Posted October 20, 2010 @toleda: Try with the Zonalis framebuffer, that's the only one that works for me with full resolution (2560X1440 - 5870 2GB eyefinity) Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567456 Share on other sites More sharing options...
toleda Posted October 21, 2010 Share Posted October 21, 2010 @nazrm: Uakari loads automatically, works great for my system. I use 2560X1440 with DisplayPort to my iMac 27. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567516 Share on other sites More sharing options...
blackwalker Posted October 21, 2010 Share Posted October 21, 2010 i'd like to see your cinebench results!! Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567623 Share on other sites More sharing options...
lmart1n Posted October 21, 2010 Share Posted October 21, 2010 Got somebody a full working 5830? I can't get it to work. injected the device id to drivers. but it does not boot. already tried different framebuffer (uakari, vervet etc..) Somebody any solution? Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1567678 Share on other sites More sharing options...
blackwalker Posted October 22, 2010 Share Posted October 22, 2010 Kabyl do you leave this project? Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1568059 Share on other sites More sharing options...
R3van Posted October 22, 2010 Share Posted October 22, 2010 Maybe you can open an own thread for that and go back ontopic here so Kabyl can go on with his work on this booter? 01:00.0 VGA compatible controller [0300]: ATI Technologies Inc Cypress [Radeon HD 5800 Series] [1002:6899] (prog-if 00 [VGA controller]) Subsystem: Hightech Information System Ltd. Unknown device [1787:2290] -- 01:00.1 Audio device [0403]: ATI Technologies Inc Cypress HDMI Audio [Radeon HD 5800 Series] [1002:aa50] Subsystem: Hightech Information System Ltd. Unknown device [1787:aa50] Club 3D Radeon HD 5850 Overclocked Edition (identical construction to Powercolor Radeon 5850 PCS+) without changing any framebuffer in plist, just set Graphicsenabler to "yes", works with both DVI, can`t test HDMI or Displayport. Thanks Kabyl for this, made my installation quite easier. Almost forgotten, here is my ioreg: iMac.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1568122 Share on other sites More sharing options...
ed_co Posted October 22, 2010 Share Posted October 22, 2010 Kabyl do you leave this project? I don't think so. I hope. At least, put the code in the trunk. Someone could refine it. Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1568483 Share on other sites More sharing options...
IMHERETOSTAY Posted October 23, 2010 Share Posted October 23, 2010 Hi! I'm a cartri's bios user on an EP45-UD3P and I bought an ATI Branded HD5770 tonight... Popped it in my hackintosh and it booted without the need of anything else... BUT, I only get scores of 22 fps in cinebench and about 55seconds in smallluxGPU... Any idea why?? Will using the boot file in the thread solve my problems?? BTW, do I just have to replace my chameleon one and that's it or should modify my com.apple.Boot.plist?? Thanks a lot!! Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1568539 Share on other sites More sharing options...
toleda Posted October 24, 2010 Share Posted October 24, 2010 My HD 5870 is booting successfully with Kaybl's booter; Uakari is loaded automatically. When I enter AtiFb=Uakari at the boot prompt, my system gets to kernel DSMOS has arrived kernel ** Device in slot: SLOT--1 ** and freezes. There is nothing in the system log. The same problem occurs with each FrameBuffer name I've tried. Any suggestions? Link to comment https://www.insanelymac.com/forum/topic/231768-ati-radeon-hd6000-hd5000-and-hd4000-series-support-in-chameleon/page/10/#findComment-1569057 Share on other sites More sharing options...
