Guys, finally we have the NVRAM + kernel and kexts patcher (working on the prelinkedkernel). Moved the old and new code from drivers.c to load.c  in the appropriate DecodeMacho/segments functions  B)

Later I'll give you a boot file to test! :thumbsup_anim:

  • Like 3
Link to comment
Share on other sites

Guys, finally we have the NVRAM + kernel and kexts patcher (working on the prelinkedkernel). Moved the old and new code from drivers.c to load.c  in the appropriate DecodeMacho/segments functions  B)

Later I'll give you a boot file to test! :thumbsup_anim:

Congratulations!!! :D



ErmaC

  • Like 2
Link to comment
Share on other sites

Ok boot file attached.



kexts patcher

As I said the kext patcher can now patch prelinked kexts by adding the kext name you are intrested in to kexts.plist. Since last tests I modified the kexts.plist structure and now you have to put your custom patches under "KextsPatches":

post-674334-0-81822900-1488410467_thumb.pngpost-674334-0-12114800-1488410479_thumb.png



kernel patches

As for kexts you can patch the kernel in kernel.plist under "KernelPatches":




Remind you that MatchOS, MatchBuild and Comment are optional keys.



NVRAM

Embedded in the boot file, there is a modified version of FileNVRAM.kext, no module. To dump the nvram you have to use NVRAM Dumper Pro.app v1.3+ (attached):

post-674334-0-79368300-1488410998_thumb.pngpost-674334-0-53714300-1488411011_thumb.png

(making this app to be used in Clover the idea to add back the nvram support in Enoch  :D )

Embedded kext is 64bit only and I have a fork of meklort's github repository where I'll add changes soon and make a pull request to Him. So please report back.

(I'm testing it also with real nvram in Clover.. and apparently works well, plus the driver add some missing stuff ;),  but for that I've to check more)



Note

Olds FileNVRAM.dylib and KernelPatcher.dylib prevent the internal kernel patcher to do their things but still allow the kexts patcher.

FileNVRAM.dylib if loaded cause the internal nvram stuff in a off state.

Why? Just avoiding conflicts, so you can decide to use one or another, but for this tests mentioned modules shoud be removed.

FileNVRAM.kext if already present in Extra/Extensions, /S/L/E or /L/E should be removed.The one from the bootloader should win against it. Delete it anyway.



Now you can use the NVDIA Web Drivers by adding the relative arg when pressing the relative option in the NVIDIA Web Drivers Manager, or add it manually. Old patch I made is unnecessary and deprecated, deleted!



kernel.plist and kexts.plist attached as example to follow. Other old option are still there.



Please report back!

boot r2851 nvram+kextsPatcher.zip

kexts.plist.zip

kernel.plist.zip

NVRAM Dumper Pro.app_v.1.3.zip

  • Like 8
Link to comment
Share on other sites

:thumbsup_anim: Kexts patching working perfectly on my Ivy Bridge Dell Latitude E6230.



  1. removed my up-version'ed patched AICPUPM kext from /L/E
  2. removed my IDT-patched AppleHDA kext from /S/L/E
  3. re-instated the vanilla AppleHDA kext in /S/L/E
  4. repaired permissions and rebuilt cache
  5. adjusted kexts.plist file to activate AICPUPM patch and inject details of the IDT 92HD93 AppleHDA patch



Rebooted in verbose mode, saw the on-the-fly patches and got to Sierra desktop without AICPUPM-related KP. Audio fully working too.



Thanks Micky and bravo!

  • Like 1
Link to comment
Share on other sites

Replaced the boot file on my EFI and OS X won't boot now. Stuck loading the graphics (IOBluetooth Error). My GT 430 just needs GE=Yes no web drivers needed.



Edit: Fixed by replacing the boot file using Windows with r2848

Link to comment
Share on other sites

Please, I need help with web driver Nvidia: MacOs does not load driver nvidia.

Must I select some setting (nv_disable=1 not work for me)?



in the download page http://www.insanelymac.com/forum/files/file/71-enoch/I read



  • - Ability to load Nvidia Webdriver (Sierra) (by Micky1979)



but how can we load Nvidia Webdriver?

with default installation of Enoch, the webdriver doesn't work.



In Clover to load nvidia driver, I had to change config file in this way:





<key>SystemParameters</key>
<dict>
<key>InjectKexts</key>
<string>YES</string>
<key>InjectSystemID</key>
<true/>
<key>NvidiaWeb</key>
<true/>
</dict>



I prefer use Enoch+Chameleon, but I can't load the graphic driver.



May be a problem of FileNVRAM? http://www.insanelymac.com/forum/topic/231075-chameleon-23svn-official-pkg-installer-binaries/page-194?do=findComment&comment=2283157

or is a problem of version? I have installed the 10.12.1.



Do I need to run something post OS installation (for fakesmc ad example) or Enoch has all we need?

Link to comment
Share on other sites

Replaced the boot file on my EFI and OS X won't boot now. Stuck loading the graphics (IOBluetooth Error). My GT 430 just needs GE=Yes no web drivers needed.



Edit: Fixed by replacing the boot file using Windows with r2848

Sorry but this is not a fix. Try to type NoFileNVRAM at boot. Modded kernels for AMD like your may be incompatible.

Please, I need help with web driver Nvidia: MacOs does not load driver nvidia.

Must I select some setting (nv_disable=1 not work for me)?



in the download page http://www.insanelymac.com/forum/files/file/71-enoch/I read



  • - Ability to load Nvidia Webdriver (Sierra) (by Micky1979)

Enoch 2848 require nvda_drv=1 under Kernel Flags. You can type this at boot time. Off course web drivers must be compatible with your card.





May be a problem of FileNVRAM? http://www.insanelymac.com/forum/topic/231075-chameleon-23svn-official-pkg-installer-binaries/page-194?do=findComment&comment=2283157

or is a problem of version? I have installed the 10.12.1.



Do I need to run something post OS installation (for fakesmc ad example) or Enoch has all we need?



But you did not read at least this page, just five posts above?

Link to comment
Share on other sites

http://www.insanelymac.com/forum/topic/231075-chameleon-23svn-official-pkg-installer-binaries/page-204?p=2376053&do=findComment&comment=2376053



I'm confused and not too good in english







Off course web drivers must be compatible with your card.



If the Nvidia driver works with clover, I think of yes. (I have MSI GTX 980)



I used the same settings of El Capitan (where it works)



<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>EnableHDMIAudio</key>
<string>Yes</string>
<key>Graphics Mode</key>
<string>1920x1080x32</string>
<key>HDAEnabler</key>
<string>Yes</string>
<key>Kernel Flags</key>
<string>kext-dev-mode=1 nvda_drv=1</string>
<key>SMBIOS</key>
<string>/SMBios.plist</string>
<key>Timeout</key>
<string>4</string>
<key>UseKernelCache</key>
<string>Yes</string>
</dict>
</plist>


but don't understand why it does not work (from this morning I don't get anything)

HELP me Please

if I put Graphicsenabler on NO I have:


if I put Grapghicsenabler on YES I have:


but driver not loaded

If I reinstall a clean MacOS system, can you tell me every things I have to install from the beginning (OS X first run) to the web driver?
Link to comment
Share on other sites

Sorry but this is not a fix. Try to type NoFileNVRAM at boot. Modded kernels for AMD like your may be incompatible.



Sorry I meant fix as I got back into the System. I've installed the new boot file on a USB to test and NoFileNVRAM didn't help. Either the bluetooth error or No Signal on the display. My system is using the prelinkedkernel which is working if that helps. I'll get some other AMD users to test and report then I'll let you know.

Link to comment
Share on other sites

Ok boot file attached.



kexts patcher

As I said the kext patcher can now patch prelinked kexts by adding the kext name you are intrested in to kexts.plist. Since last tests I modified the kexts.plist structure and now you have to put your custom patches under "KextsPatches":




kernel patches

As for kexts you can patch the kernel in kernel.plist under "KernelPatches":




Remind you that MatchOS, MatchBuild and Comment are optional keys.



NVRAM

Embedded in the boot file, there is a modified version of FileNVRAM.kext, no module. To dump the nvram you have to use NVRAM Dumper Pro.app v1.3+ (attached):


(making this app to be used in Clover the idea to add back the nvram support in Enoch  :D )

Embedded kext is 64bit only and I have a fork of meklort's github repository where I'll add changes soon and make a pull request to Him. So please report back.

(I'm testing it also with real nvram in Clover.. and apparently works well, plus the driver add some missing stuff ;),  but for that I've to check more)



Note

Olds FileNVRAM.dylib and KernelPatcher.dylib prevent the internal kernel patcher to do their things but still allow the kexts patcher.

FileNVRAM.dylib if loaded cause the internal nvram stuff in a off state.

Why? Just avoiding conflicts, so you can decide to use one or another, but for this tests mentioned modules shoud be removed.

FileNVRAM.kext if already present in Extra/Extensions, /S/L/E or /L/E should be removed.The one from the bootloader should win against it. Delete it anyway.



Now you can use the NVDIA Web Drivers by adding the relative arg when pressing the relative option in the NVIDIA Web Drivers Manager, or add it manually. Old patch I made is unnecessary and deprecated, deleted!



kernel.plist and kexts.plist attached as example to follow. Other old option are still there.



Please report back!

Thanks for this new boot file which worked perfectly for AMD FX-6300 hackintosh at 10.12.3

But for Z87 hackintosh it can not load NvidiaWebDriver at 10.12.x even booted with nvda_drv=1

Previous Enoch r.2848 can load it properly with the same prelinkedkernel.

So besides boot argument "nvda_drv=1" in org.chameleon.Boot.plist in /Extra

is there any other nvram.plist or kext.plist should be in /Extra ?

Link to comment
Share on other sites

Hi gabryele, for me is simple: you prelinkedkernel is not up to date and does not contains the Web drivers.

Read here:            #3981              and do the same steps.



only that?





please use this command line:zip.gif  InsanelyRepairPermission.zip   31.68KB   8 downloads

sudo InsanelyRepairPermission -r /

then run this, and please post the log from the Terminal:

sudo rm -f /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo kextcache -system-prelinked-kernel
Link to comment
Share on other sites

I have this error:





-------------------------------------------------------------------------

Error: -r is not a valid Volume!

Usage:

to verify:

sudo InsanelyRepairPermission -v /Volumes/Your Volume



to repair:

sudo InsanelyRepairPermission -r /Volumes/Your Volume



to repair and touch (will cause the kernelcache/prelinked to be rebuilt):

sudo InsanelyRepairPermission -rt /Volumes/Your Volume

-------------------------------------------------------------------------





where can I put the InsanelyRepairPermission.zip? it's on desktop now.



I try also with sudo /Users/nomeutente/Desktop/InsanelyRepairPermission -r /Volumes/Mac HD

but NOTHING  :(



this is my hd list





/dev/disk0 (internal, physical):

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *500.1 GB   disk0

   1:                        EFI EFI                     209.7 MB   disk0s1

   2:                  Apple_HFS Mac HD                  499.2 GB   disk0s2

   3:                 Apple_Boot Recovery HD             650.0 MB   disk0s3





with this command sudo rm -/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo kextcache -system-prelinked-kernel I have:





kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext RealtekRTL8111.kext

kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC_LPCSensors.kext

kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC_GPUSensors.kext

kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC_CPUSensors.kext

kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC.kext

KernelCache ID: 7472C39709D4C4C6D2588CB645A39310

Link to comment
Share on other sites

The problem is the space in the Volume name! (alwaysw a problem if you type the name in).

/Volumes/Mac HD  ......  means a space!

Hint: dont type the Volume name or any other path/App name with spaces in!

Use  drag & drop  to put the rigth volume name into the terminal.

1. type sudo /Users/nomeutente/Desktop/InsanelyRepairPermission -r

2. drag & drop the volume into the terminal (be sure you have one space  after -r)

3. press enter



PS: you can also drag& drop the app/tool same way,

open terminal.   means a space

sudo Drag&drop_the_app_or_tool -r Drag&drop_the_volume

With this you avoid space problems in any path/name and! also much less typing.



Happy drag&dropping :)

Link to comment
Share on other sites

I don't know HOW, but NOW works...

I change only org.chameleon.Boot.plist





<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Graphics Mode</key>
<string>1920x1080x32</string>
<key>Kernel Flags</key>
<string>kext-dev-mode=1 nvda_drv=1</string>
<key>KeyLayout</key>
<string>mac-it</string>
<key>SMBIOS</key>
<string>/SMBios.plist</string>
<key>Timeout</key>
<string>4</string>
<key>UseIntelHDMI</key>
<string>Yes</string>
<key>UseKernelCache</key>
<string>Yes</string>
</dict>
</plist>



and kernel.plist





<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>KernelBooter_kexts</key>
<string>Yes</string>
</dict>
</plist>




but, there is a BUT

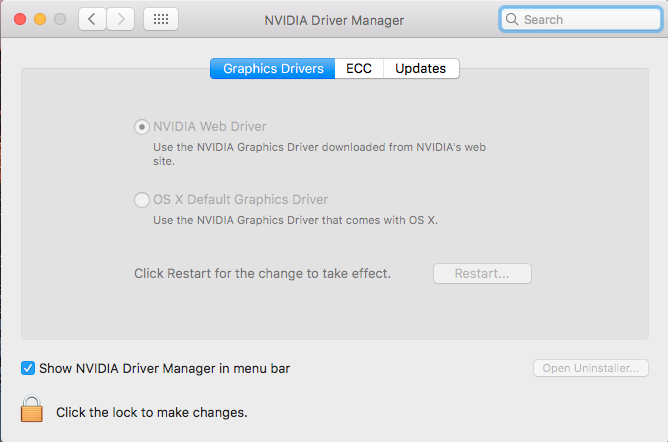

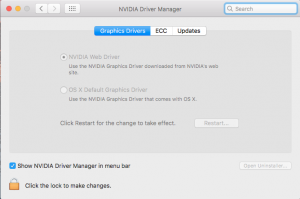

In the Nvidia icon I see select OS X default graphics driver...

why?

is a fake information?







Link to comment
Share on other sites

Yep, the Nvidia Menue Information is wrong - but only an cosmetic problem. I think that checks Nvidia/OS X drivers used by nvram check, which fails using the chameleon patching NV use way.

So, we could disable ".. show in Menue Bar" option of the Nvidia Prefpane because its wrong.



My WebdriverCheck (in download sektionof the forum) tool shows the real life  - if you see com.nivida....Web  then you use the web drivers and not OS X default drivers. :)

  • Like 1
Link to comment
Share on other sites

Ok boot file attached.



kexts patcher

As I said the kext patcher can now patch prelinked kexts by adding the kext name you are intrested in to kexts.plist. Since last tests I modified the kexts.plist structure and now you have to put your custom patches under "KextsPatches":




kernel patches

As for kexts you can patch the kernel in kernel.plist under "KernelPatches":




Remind you that MatchOS, MatchBuild and Comment are optional keys.



NVRAM

Embedded in the boot file, there is a modified version of FileNVRAM.kext, no module. To dump the nvram you have to use NVRAM Dumper Pro.app v1.3+ (attached):


(making this app to be used in Clover the idea to add back the nvram support in Enoch :D )

Embedded kext is 64bit only and I have a fork of meklort's github repository where I'll add changes soon and make a pull request to Him. So please report back.

(I'm testing it also with real nvram in Clover.. and apparently works well, plus the driver add some missing stuff ;), but for that I've to check more)



Note

Olds FileNVRAM.dylib and KernelPatcher.dylib prevent the internal kernel patcher to do their things but still allow the kexts patcher.

FileNVRAM.dylib if loaded cause the internal nvram stuff in a off state.

Why? Just avoiding conflicts, so you can decide to use one or another, but for this tests mentioned modules shoud be removed.

FileNVRAM.kext if already present in Extra/Extensions, /S/L/E or /L/E should be removed.The one from the bootloader should win against it. Delete it anyway.



Now you can use the NVDIA Web Drivers by adding the relative arg when pressing the relative option in the NVIDIA Web Drivers Manager, or add it manually. Old patch I made is unnecessary and deprecated, deleted!



kernel.plist and kexts.plist attached as example to follow. Other old option are still there.



Please report back!

Very good job Micky1979 !!



sent from my iPhone

Link to comment
Share on other sites

Yep, the Nvidia Menue Information is wrong - but only an cosmetic problem. I think that checks Nvidia/OS X drivers used by nvram check, which fails using the chameleon patching NV use way.

So, we could disable ".. show in Menue Bar" option of the Nvidia Prefpane because its wrong.



My WebdriverCheck (in download sektionof the forum) tool shows the real life  - if you see com.nivida....Web  then you use the web drivers and not OS X default drivers. :)

Thanks for your WebdriverCheck app.

However it crashed on open in my Z87 hackintosh.

How to fix it ?

Link to comment
Share on other sites

We can discuss your crash of my WebDriverCheck tool by pm. I send you one. Thanks for report.

EDIT: "The member jsl cannot receive any new messages" Is your message box perhaps full?

  • Like 1
Link to comment
Share on other sites

We can discuss your crash of my WebDriverCheck tool by pm. I send you one. Thanks for report.

EDIT: "The member jsl cannot receive any new messages" Is your message box perhaps full?

I have sent a PM to you and thanks for your kind help.

Also deleted some messages and it's not full now !

The crash_report and screen are attached here:


crash_report.zip



Link to comment
Share on other sites

×
×
  • Create New...
