[GUIDE] How to install Os X 10.6 on Maximus Formula [V4.0 - BOOT-132!]

nonne9

By nonne9,
in OSx86 10.6 (Snow Leopard)

 Share
134 posts in this topic

Recommended Posts

ero
ero
Posted
Posted

There's something wrong with the boot-132 image it seems. I was able to boot from the retail DVD (both disk and from flash drive) using the chameleon install from my old leopard install.



This needs more looking in to, but unfortunately I do not understand the working of boot-132 nearly well enough to explore it. Steal a friend's macbook, perhaps, to get your install going for now..

Link to comment
Share on other sites
afiser
afiser
Posted
Posted
can u give me the detail of how u did this?



make a new hfs+ journaled partition of about 10gb or so. using disk utility, restore the DVD image to that partition. install chameleon RC1 to a newly formatted usb drive (hfs+ also) with the pkg installer. replace the boot file in the root of the usb with the pc_efi 10.1 boot file. and put your kext in extra/extensions. boot up with the usb as the boot device and select the partition you restored the dvd to, boot it, preferably in verbose so you can see if something happens.

Link to comment
Share on other sites
ero
ero
Posted
Posted

Anyone else getting kernel panics randomly?

Mine seem to be related to the presence of other harddrives. I unplugged my external and my other internal, and all seems to work. Now the only kernel panic igot recently was when I installed little snitch and eyetv. Not sure which caused it, because I uninstalled both to be safe.

Link to comment
Share on other sites
KaiNeR
KaiNeR
Posted
Posted
Anyone else getting kernel panics randomly?

Mine seem to be related to the presence of other harddrives. I unplugged my external and my other internal, and all seems to work. Now the only kernel panic igot recently was when I installed little snitch and eyetv. Not sure which caused it, because I uninstalled both to be safe.



I only get kernel panic in 64bit mode after logging in, 32bit seems to be running fine so far.

Link to comment
Share on other sites
Thegn
Thegn
Posted
Posted

The same applies for me. After install, the first boot with Welcome screen and setting a user works in 64bit mode (if it runs in that mode the first boot?). However, after doing the setup and rebooting, it hangs. I tried with/without repairing disks in both 32/64bits mode, no change. Booting in 32bit mode works.



I found this post: http://www.insanelymac.com/forum/index.php...20&start=20 (Check post #32).

"Everything working in 32-bit mode. 64-bit Kernel Panics on boot at IntelPowerManagement.kext, and times out on ethernet if IntelPowerManagement is removed." Might be something to try? But it would perhaps break sleep?



Also I minor is that VoodooHDA does not output through SPDIF for me, only 2 channels. I will try to edit the DSDT and see if I can get it working that way.



Cheers,



I only get kernel panic in 64bit mode after logging in, 32bit seems to be running fine so far.
Link to comment
Share on other sites
KaiNeR
KaiNeR
Posted
Posted
The same applies for me. After install, the first boot with Welcome screen and setting a user works in 64bit mode (if it runs in that mode the first boot?). However, after doing the setup and rebooting, it hangs. I tried with/without repairing disks in both 32/64bits mode, no change. Booting in 32bit mode works.



I found this post: http://www.insanelymac.com/forum/index.php...20&start=20 (Check post #32).

"Everything working in 32-bit mode. 64-bit Kernel Panics on boot at IntelPowerManagement.kext, and times out on ethernet if IntelPowerManagement is removed." Might be something to try? But it would perhaps break sleep?



Also I minor is that VoodooHDA does not output through SPDIF for me, only 2 channels. I will try to edit the DSDT and see if I can get it working that way.



Cheers,





Cool, sounds good. Keep us updated :)

Link to comment
Share on other sites
Krisso
Krisso
Posted
Posted

I solved every KP doing exactly what the guide states, sans the part with permission fixing. so install everything and prepare all stuff, normally boot inside 64bit mode, dont do disk utility permission fixes but download the latest osx 86 tools software (google, its discontinued, but offers a gui for all the stuff you'd otherwise had to do on the terminal)

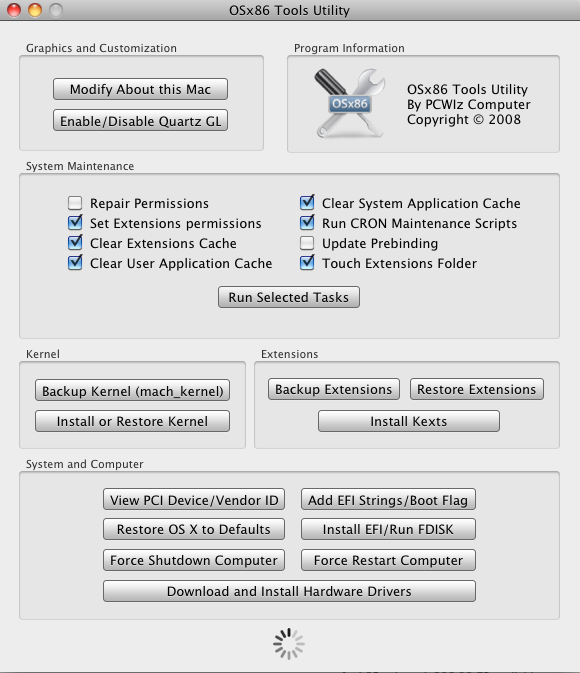

check the settings like that:






hit "Run selected tasks".



Done. No more KPs for me. Hope it helps. This procedure has to be done after every update, new program installation etc.. just to be sure the systems stays fresh ;)



Cheers.





UPDATE: I forgot to mention.. if i disable the onboard lan cards, no KP ever happens. Obviously the IONetworkingFamily.kext corrupts the system in 64 bit mode, and screws 32 bit mode over when you fix its permissions with disk utility. my guess is that its the cause of the problems.

Link to comment
Share on other sites
KaiNeR
KaiNeR
Posted
Posted
I solved every KP doing exactly what the guide states, sans the part with permission fixing. so install everything and prepare all stuff, normally boot inside 64bit mode, dont do disk utility permission fixes but download the latest osx 86 tools software (google, its discontinued, but offers a gui for all the stuff you'd otherwise had to do on the terminal)



check the settings like that:






hit "Run selected tasks".



Done. No more KPs for me. Hope it helps. This procedure has to be done after every update, new program installation etc.. just to be sure the systems stays fresh :D



Cheers.





UPDATE: I forgot to mention.. if i disable the onboard lan cards, no KP ever happens. Obviously the IONetworkingFamily.kext corrupts the system in 64 bit mode, and screws 32 bit mode over when you fix its permissions with disk utility. my guess is that its the cause of the problems.





Thanks dude, that worked a treat. Now running 64bit without kernel panic.

:)

Link to comment
Share on other sites
Don Giovanni
Don Giovanni
Posted
Posted

I have a asus maximus formula with a Q6600 CPU and an EVGA 8800GTS 640MB.



I followed the guide using a brand new Intel iMac to install OSX to a Harddrive and install Chameleon ktexts etc as described.



When I connect the drive to my my Asus board and try to boot with the -x32 -v option I get a kernel panic almost immediately. Any suggestions?



The info shown on the screen up to the crash is shown below:

npvhash=4095
PAE enabled
64 bit mode enabled
Darwin Kernel Version 10.0.0: Fri Jul 31 22:47:34 PDT 2009; root:xnu-1456.1.25~1/RELEASE_I386
vm_page_bootstrap: 512781 free oages and 11507 wired pages
standard timeslicing quantum is 10000 us
mig_table_max_displ = 73
panic(cpu 0 caller 0x2a6ac2): Kernel trap at 0x00508684, type 14=page fault, registers:
CR0: 0x8001003b, CR2: 0x044323c7, CR3: 0x00100000, CR4: 0x000006f0
EAX: 0x00000038, EBX: 0x00e1c000, ECX: 0x00000038, EDX: 0x04432390
CR2: 0x044323c7, EBP: 0x28363e68, ESI: 0x03c8da00, EDI: 0x03c80010
Error code: 0x00000002

Debugger called: <panic>
Backtrace (CPU 0), Frame : Return Address (4 potential args on stack)
0x28363c28 : 0x21acfa (0x5ce650 0x28363c5c 0x223156 0x0)
0x28363c78 : 0x2a6ac2 (0x590a50 0x508684 0xe 0x590c1a)
0x28363d58 : 0x29c968 (0x28363d70 0x24 0x28363e68 0x508684)
0x28363d68 : 0x508684 (0xe 0x48 0x28360000 0x4f0010)
0x28363e68 : 0x502548 (0x3c8da00 0x3b91c80 0x3b91600 0x3b91c60)
0x28363e88 : 0x88b91b (0x3b91c80 0x3b91600 0x4 0x0)
0x28363ee8 : 0x88bfc7 (0x88cb28 0x88c19b 0x88c85c 0x533d75)
0x28363f08 : 0x88bffa (0x88cb28 0x999000 0xee4078 0x3b8bd80)
0x28363f28 : 0x52bc22 (0x3b8bd80 0x0 0x999000 0xee4078)
0x28363f68 : 0x57349c (0xee8000 0x999000 0xee4078 0x0)
0x28363fa8 : 0x22847d (0x0 0x0 0xffffffff 0x84bbbc)
0x28363fc8 : 0x29c68c (0x0 0xffffffff 0xffffffff 0xffffffff)

BSD process name corresponding to current thread: Unknown

Mac OS version:
Not yet set

Kernel version:
Darwin Kernel Version 10.0.0: Fri Jul 31 22:47:34 PDT 2009; root:xnu-1456.1.25~1/RELEASE_I386

System uptime in nanoseconds: 69952067

Link to comment
Share on other sites
KaiNeR
KaiNeR
Posted
Posted
anyone know how to make it boot 32 bit mode by default? 64 bit breaks a few programs for me.



modify the boot.plist in the /Extra folder with the kernel flag -x32





I can confirm updating to 10.6.1 works like a charm. After installing the update i ran OSX86Tools and applied the 'Selected Tasks' as in my previous post.



Don Giovanni - I would try again, i had kp's the first few attempts i had at installing. Just make sure you follow the guide exactly as stated, you may need to re-apply the DSDT again (as i did) and dont fix permission with DiskUtility, use OSX86Tools.

Link to comment
Share on other sites
Don Giovanni
Don Giovanni
Posted
Posted

Switched to Chameleon 2 RC3

switched to Netkas new fakesmc.kext (released Sept 12)

removed dsdt

added NullCPUPowerManagement.kext (was halting at the appleintelcpupowermanagement.kext)

removed VoodooHDA.kext for now (was halting after loading)

removed JMicronATA.kext and AppleIntelPIIXATA (jmicron was already disabled in bios anyways as I don't use it)



Looks like its is working until I get to the Do You already own a Mac screen and choose not to transfer...infinite beachball.



--Update: added the -x option at boot (so i did -x32 -v -x) and i was able to finish setup and get to the Snow Leopard desktop for the first time on my maximus. Now to try and generate DSDT from this machine and see if it works any better and take care of audio as well...hope it works...

Link to comment
Share on other sites
ero
ero
Posted
Posted
Switched to Chameleon 2 RC3

switched to Netkas new fakesmc.kext (released Sept 12)

removed dsdt

added NullCPUPowerManagement.kext (was halting at the appleintelcpupowermanagement.kext)

removed VoodooHDA.kext for now (was halting after loading)

removed JMicronATA.kext and AppleIntelPIIXATA (jmicron was already disabled in bios anyways as I don't use it)



Looks like its is working until I get to the Do You already own a Mac screen and choose not to transfer...infinite beachball.

Had that, I think booting onto 32 bit safe mode fixed that

Link to comment
Share on other sites
ero
ero
Posted
Posted
Indeed you are right. It was your previous post in this thread that helped me fix that so Thank you ero!



glad it helped :(



How's your system's stability? I had kernel panics and ended up doing a few more installs before it worked stable enough.



also i noticed running 64 bit mode is kinda useless, it broke some software and hardware for me,w ith barely any speed gain.

Link to comment
