McSkywalker Posted October 18, 2006 Share Posted October 18, 2006 Thank you Munky, that's the same size as the flash rom chip on my mobo has If it ever gets to work with EFI... Link to comment Share on other sites More sharing options...
mifki Posted October 19, 2006 Share Posted October 19, 2006 mifki, well nothing to do with the kernel or boot.efi yet, mainly its GrpahicsConsole.efi and a couple of other modules which dont seem to be complete Link to comment Share on other sites More sharing options...
Vitaliy Posted October 19, 2006 Share Posted October 19, 2006 can you give more details please? you booting into (emulated) efi and what you're trying to do next and where it fails? Link to comment Share on other sites More sharing options...
bofors Posted October 19, 2006 Author Share Posted October 19, 2006 Well after no news for almost a month i guess its time to explain why this project has been very un-eventful. The maiin reasons we can not advance with EFI are (1) we dont have a complete environement (2) We are unable to get a complete environment (unless we get some more talented people to help us make the Intel EFI boards boot to efi shell before it loads the CSM) So basically we can not move on to loading apple's efi modules properly until we can first get a proper EFi environment to work with and this has nothing to do with apple. It is up to Intel and when it will decide to relase a firmware update which allows us to use the EFI on our boards not justy default us to the CSM We were able to load boot.efi and watch it begin to load the extensions and kernel, but it crashes due to us having a incomplete environment to work on Thanks for the report Kiko. I would like to try to flush out some of the details by asking a few questions: (1) Has anyone been able to make the TianoCore tip that Simon found for accessing the native EFI environment? (2) Was anyone able to determine which modules are responsible for loading the CSM from loading by dissecting the Intel firmware? (3) Has any progress been made in learning how to flash custom EFI firmware? Link to comment Share on other sites More sharing options...
mifki Posted October 20, 2006 Share Posted October 20, 2006 1) No that is were we are stuck , i dont know much ASm enough to help with the possible solution im learning but my cisco is also taking up a lot of time so i dont have much time to learn ASm more, that is why we need people to help we have had one or two people starting but then they have disappeared 2) I think i saw A Legacy BIOS.efi in the list of modules, but the extraction app doesnt extract them all or they are not all included in the intel firmware updates. 3) I think BuildSmart has done this but i have been unable to contact him Link to comment Share on other sites More sharing options...
sn8k Posted October 21, 2006 Share Posted October 21, 2006 I wonder about a little thing ... There's a bios replacement made with linux ... can't remember the website of that stuff but ... isn't it possible to make something that could work like this : POST > Boot To Linux-Bios > Emulating EFi > Boot to OS ??? I think it'll be easier to do instead of remaking the whole part of the EFi ... and it should be more compatible too ... Well ... i'm not a dev , so, maybe someone can tell if that's possible ! edit : http://linuxbios.org/index.php/Main_Page Link to comment Share on other sites More sharing options...
joe75 Posted October 22, 2006 Share Posted October 22, 2006 The Linux emulator is PPC Link to comment Share on other sites More sharing options...
mifki Posted October 22, 2006 Share Posted October 22, 2006 and we have already done that in march lol, Link to comment Share on other sites More sharing options...
adriandkicks Posted October 23, 2006 Share Posted October 23, 2006 Would it be possible to re-program this to dum the EFI firmware data to a file??? Link to comment Share on other sites More sharing options...
mifki Posted October 23, 2006 Share Posted October 23, 2006 Well only if we had the source but we might as well do that with the iflash utility supplied by intel, also if you read the other threads w ealreadyhave been able to extract the firmware form intels bios updates. Link to comment Share on other sites More sharing options...

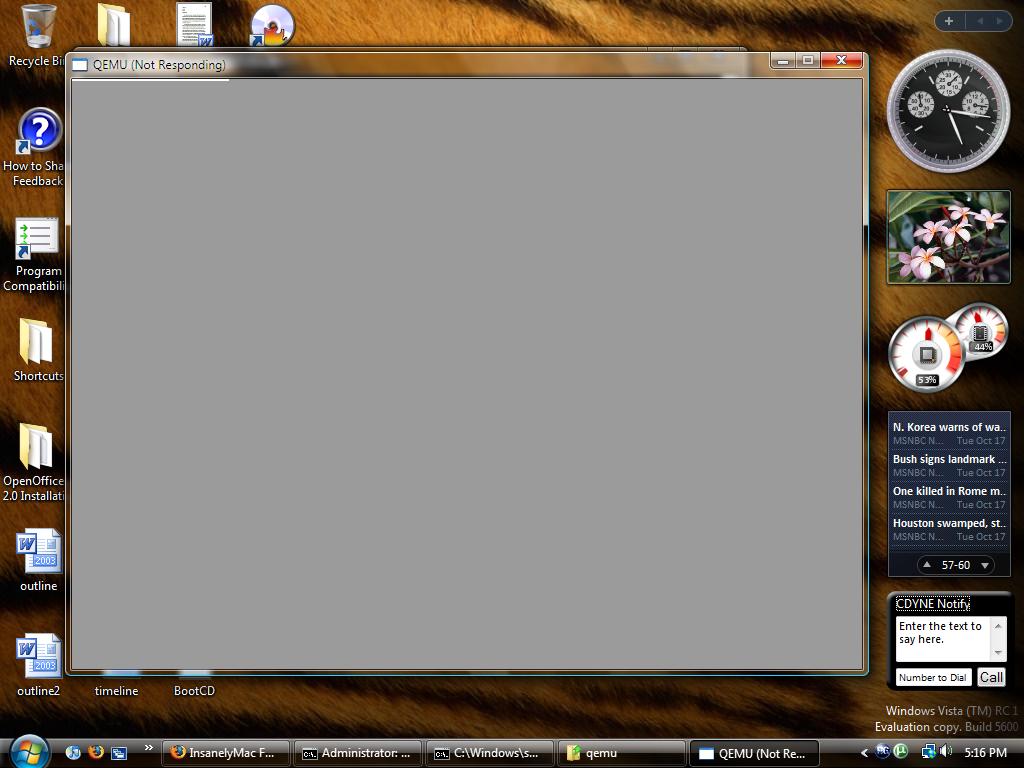

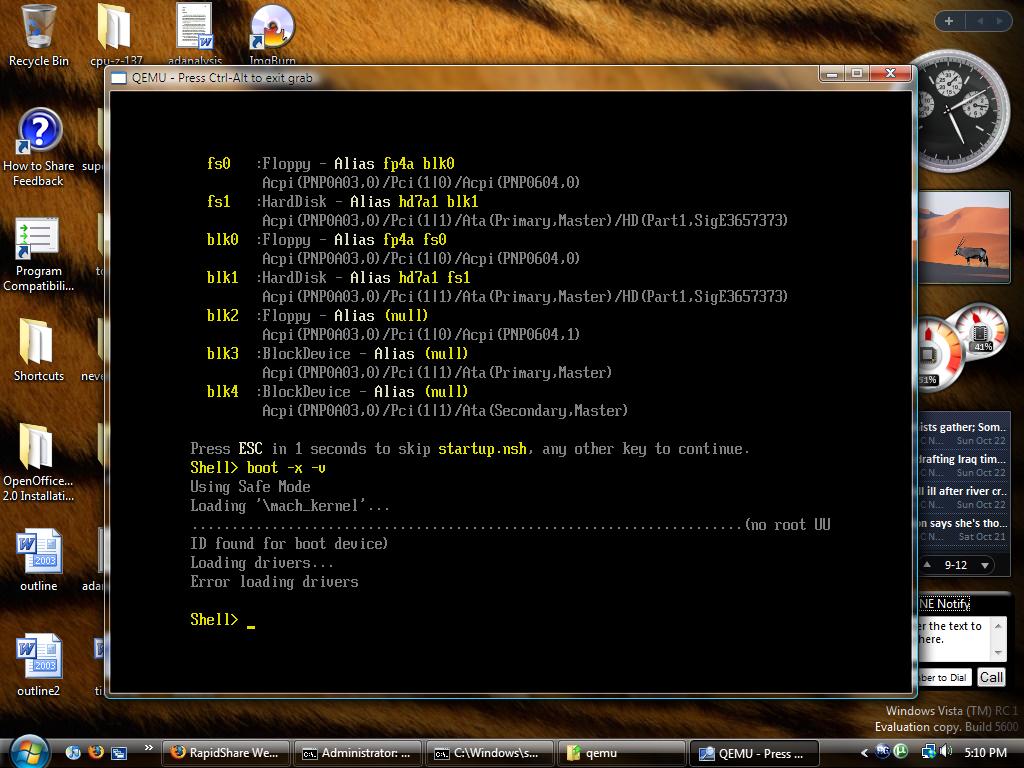

Gio Posted October 23, 2006 Share Posted October 23, 2006 I'm using qemu and I am getting the same thing it goes to load the drives then a black screen with a white box in left corner but if I click on the screen it turns to a gray color like it is about to boot but it is just a plain grey screen and it never changes. EDIT: When booting with verbose and safe mode flags (-v and -x respectively) I get an error that says "error loading drivers." See attached picture for the screenshot. EDIT2: When booting with just verbose (-v) It gets past drivers and goes to an all grey screen instead of one with a white box in the corner. See second screenshot. Whoops meant to put this in the environment release sorry. Link to comment Share on other sites More sharing options...
numberonekiwi Posted October 23, 2006 Share Posted October 23, 2006 I have tried to D/L from rapid share but everytime I enter the 3 character code it comes back wrong code entered is it possible for someone to upload it some where else maybe Link to comment Share on other sites More sharing options...
mifki Posted October 23, 2006 Share Posted October 23, 2006 Yeah for drivers get a extensions.mkext file and place it in the same dir as the boot.efi Link to comment Share on other sites More sharing options...
sbeehre Posted October 29, 2006 Share Posted October 29, 2006 so guys.... since the kernel is now out i think its time we looked at efi again! Link to comment Share on other sites More sharing options...
bofors Posted October 30, 2006 Author Share Posted October 30, 2006 Yes, I think we should be gearing up for another major EFI push after the new kernel "dust" settles. Some new people are showing up in the IRC and expressing interest in joining the team, including TheMaxx32000 who has some ASM and C programming skills. 1) No that is were we are stuck , i dont know much ASm enough to help with the possible solution im learning but my cisco is also taking up a lot of time so i dont have much time to learn ASm more, that is why we need people to help we have had one or two people starting but then they have disappeared So, does it seem like this should be the primary goal? That is, accessing the native EFI environment on the Intel boards. Regarding the TianoCore EFI implementation, is it reasonable to expect that TianoCore will complete it? Is it reasonable to contemplate completing it ourselves? Link to comment Share on other sites More sharing options...
errandwolfe Posted October 30, 2006 Share Posted October 30, 2006 So, does it seem like this should be the primary goal? That is, accessing the native EFI environment on the Intel boards. IMHO, yes the primary goal should be getting EFI working on actual EFI capable hardware. Once you have it working on "standard" efi hardware, then attention should focus on creating a shell for standard BIOS users. Link to comment Share on other sites More sharing options...
mifki Posted October 30, 2006 Share Posted October 30, 2006 yah buildsmart got a 915 board flashed and it sortta worked it could load boot.efi but other things didnt map porperly so it didn create a very "functional" system, but it shows it can be done Link to comment Share on other sites More sharing options...
bofors Posted October 30, 2006 Author Share Posted October 30, 2006 IMHO, yes the primary goal should be getting EFI working on actual EFI capable hardware. Once you have it working on "standard" efi hardware, then attention should focus on creating a shell for standard BIOS users. Right, but even focusing on Intel boards, we still have choices to make. It seems clear that the way to go is accessing the native EFI environment (as opposed to emulating EFI with the TianoCore impementation). Either way, the use of Intel EFI boards is better because their firmware is in fact composed of EFI modules (which happen to emulate BIOS). Let's continue the discussion on the technical details related to accomplishing the goal of accessing the native EFI environment on Intel boards in the appropriate thread: http://forum.insanelymac.com/index.php?showtopic=26126 Link to comment Share on other sites More sharing options...
bofors Posted October 30, 2006 Author Share Posted October 30, 2006 The other thing I wondering about it the status of the MacEFI toolkit. What is the story version 3? Link to comment Share on other sites More sharing options...
bofors Posted October 30, 2006 Author Share Posted October 30, 2006 I think this can't be work. Before CSM is invoking, it would called a boot services ExitBootService(). Everything is over when this routine was called It seems that we have to get to the bottom of this question. Either we can use the "EFI Pointer" (EFI_SYSTEM_TABLE_POINTER) to execute EFI programs (images) on the native EFI implemenation or not. I am looking for the specific reference , but I believe that EFI will not execute PEI and DXE after ExitBootService() has been called. EDIT: This is basically what I was looking for: An operating system loader also uses boot services to determine and access the boot device, allocate memory, and create a functional environment for t e operating system to start loading. At this point, an OS loader could call th ExitBootServices() function, after which boot services will not be available. http://www.kernelthread.com/publications/firmware/ Here is more from the EFI Spec v1.10 link below, page 5-85: The ExitBootServices() function is called by the currently executing EFI OS loader image to terminate all boot services. On success, the loader becomes responsible for the continued operation of the system. An EFI OS loader must ensure that it has the system’s current memory map at the time it calls ExitBootServices(). This is done by passing in the current memory map’s MapKey value as returned by GetMemoryMap(). Care must be taken to ensure that the memory map does not change between these two calls. It is suggested that GetMemoryMap()be called immediately before calling ExitBootServices(). On success, the EFI OS loader owns all available memory in the system. In addition, the loader can treat all memory in the map marked as EfiBootServicesCode and EfiBootServicesData as available free memory. No further calls to boot service functions or EFI device-handle-based protocols may be used, and the boot services watchdog timer is disabled. On success, several fields of the EFI System Table should be set to NULL. These include ConsoleInHandle, ConIn, ConsoleOutHandle, ConOut, StandardErrorHandle, StdErr, and BootServicesTable. In addition, since fields of the EFI System Table are being modified, the 32-bit CRC for the EFI System Table must be recomputed. However, it seems like it must be possible to reset EFI into a pre-boot state somehow. While I doubt there is some way to offical way to reset EFI to the pre-boot state, we should check thoroughly. EDIT: According to the EFI Spec v1.10 (linked below), page 4-2, we should be able to call ResetSystem() to deal with the ExitBootService() problem: If the EFI image is an EFI OS Loader, then the EFI OS Loader executes and either returns, calls the EFI Boot Service Exit(), or calls the EFI Boot Service ExitBootServices(). If the EFI OS Loader returns or calls Exit(), then the load of the OS has failed, and the EFI OS Loader is unloaded from memory and control is returned to the component that attempted to boot the EFI OS Loader. If ExitBootServices() is called, then the OS Loader has taken control of the platform, and EFI will not regain control of the system until the platform is reset. One method of resetting the platform is through the EFI Runtime Service ResetSystem(). Otherwise, I think we should be able to manual reset EFI by perhaps editing memory. I mean, EFI has to know what state it is in by referencing memory, so if we can determine which addresses are used we can bypass the ExitBootService() problem. Link to comment Share on other sites More sharing options...
bofors Posted October 30, 2006 Author Share Posted October 30, 2006 \The problem is that the EFI shell, as every EFI application, expects to be passed a pointer to the EFI System Table and an EFI_HANDLE to its LoadedImage protocol. But using legacy boot through INT19 you won't be able to get those arguments. However, I think there's a way to get things working, but it's complicated. It involves writing a trampoline boot sector that "speaks" INT19 (see the Sample implementation for a sample boot floppy boot sector). This sector will point to a trampoline program. This trampoline program needs to do the following: 1. Switch to 32-bit mode. 2. Locate the EFI Shell on the floppy (or the USB key, but I don't know how to write a boot sector for a USB key). 3. Locate the EFI_SYSTEM_TABLE_POINTER structure in memory (see section 16.4.2 of the EFI spec). 4. Using the EFI_SYSTEM_TABLE_POINTER structure, find a pointer to the EFI System Table. 5. Use this pointer to invoke the LoadImage() and StartImage() boot services manually. Doing this way you will invoke the shell correctly using a legacy boot. You just have to configure your BIOS so it boots from the floppy first. Here is the EFI Spec. referenced: http://rapidshare.com/files/1340152/EFI_1-10.pdf.html Chapter described the EFI "entry point" in detail. This is an update to the EFI Spec.: http://rapidshare.com/files/1341222/EFI_1-10_Update.pdf.html Link to comment Share on other sites More sharing options...
bofors Posted October 30, 2006 Author Share Posted October 30, 2006 EFI Spec v1.10 link below, page 6-21: ResetSystem() Summary Resets the entire platform. Prototype VOID ResetSystem ( IN EFI_RESET_TYPE ResetType, IN EFI_STATUS ResetStatus, IN UINTN DataSize, IN CHAR16 *ResetData OPTIONAL ); Parameters ResetType The type of reset to perform. Type EFI_RESET_TYPE is defined in “Related Definitions” below. ResetStatus The status code for the reset. If the system reset is part of a normal operation, the status code would be EFI_SUCCESS. If the system reset is due to some type of failure the most appropriate EFI Status code would be used. DataSize The size, in bytes, of ResetData. ResetData A data buffer that includes a Null-terminated Unicode string, optionally followed by additional binary data. The string is a description that the caller may use to further indicate the reason for the system reset. ResetData is only valid if ResetStatus is something other then EFI_SUCCESS. This pointer must be a physical address. Related Definitions //******************************************************* // EFI_RESET_TYPE //******************************************************* typedef enum { EfiResetCold, EfiResetWarm, EfiResetShutdown } EFI_RESET_TYPE; So, there are three types of resets: cold, warm and shutdown. I think the question now is, do any of these resets NOT load the firmware. EFI Spec v1.10 link below, page 6-22: Description The ResetSystem()function resets the entire platform, including all processors and devices, and reboots the system. Calling this interface with ResetType of EfiResetCold causes a system-wide reset. This sets all circuitry within the system to its initial state. This type of reset is asynchronous to system operation and operates without regard to cycle boundaries. EfiResetCold is tantamount to a system power cycle. Calling this interface with ResetType of EfiResetWarm causes a system-wide initialization. The processors are set to their initial state, and pending cycles are not corrupted. If the system does not support this reset type, then an EfiResetCold must be performed. Calling this interface with ResetType of EfiResetShutdown causes the system to enter a power state equivalent to the ACPI G2/S5 or G3 states. If the system does not support this reset type, then when the system is rebooted, it should exhibit the EfiResetCold attributes. If the ACPI S5 state is supported on the system, then this reset type should not be used. The platform may optionally log the parameters from any non-normal reset that occurs. The ResetSystem() function does not return. So, EfiResetWarm looks the closest, but "causes a system-wide initialization". Hmm... that sounds like it would reload the firmware (which is not what we want. Trying to manually reseting EFI after ExitBootServices() is called sounds more difficult than editing the firmware not to call it in the first place. Perhaps that should be our approach instead. Link to comment Share on other sites More sharing options...
bofors Posted October 31, 2006 Author Share Posted October 31, 2006 So, to get access to the native EFI environment, it looks like we basically have to do three things: (1) Find the location of ExitBootServices() calls in the Intel EFI firmware image, perhaps using a dissembler like IDA Pro. (2) Edit the firmware at those locations so that ExitBootServices() is not called, flash the modified firmware to board (perhaps after dealing with whatever Intel iFlash security barriers need to be overcome, like re-calculating a checksum for the BIOS image). (3) Locate the EFI Systsem Table as per above. This involves searching memory for the EFI System Table Signature as described in the EFI Spec., page 16-24: 16.4.2 EFI System Table Location The EFI system table can be located by an off-target hardware debugger by searching for the EFI_SYSTEM_TABLE_POINTER structure. The EFI_SYSTEM_TABLE_POINTER structure is located on a 4M boundary as close to the top of physical memory as feasible. It may be found searching for the EFI_SYSTEM_TABLE_SIGNATURE on each 4M boundary starting at the top of memory and scanning down. When the signature is found, the entire structure must verified using the Crc32 field. The 32-bit CRC of the entire structure is calculated assuming the Crc32 field is zero. This value is then written to the Crc32 field. typedef struct _EFI_SYSTEM_TABLE_POINTER { UINT64 Signature; EFI_PHYSICAL_ADDRESS EfiSystemTableBase; UINT32 Crc32; } EFI_SYSTEM_TABLE_POINTER; Signature A constant UINT64 that has the value EFI_SYSTEM_TABLE_SIGNATURE (see the EFI 1.0 specification). EfiSystemTableBase The physical address of the EFI system table. Crc32 A 32-bit CRC value that is used to verify the The EFI System Table Signature is defined in the EFI Spec., sec. 4.3, page 4-4: #define EFI_SYSTEM_TABLE_SIGNATURE 0x5453595320494249 Link to comment Share on other sites More sharing options...
joe75 Posted October 31, 2006 Share Posted October 31, 2006 I don't want to seem like a retard, but do you think it would be possible to look at Vistas EFI boot file and be able to see what its doing to load Link to comment Share on other sites More sharing options...
bofors Posted October 31, 2006 Author Share Posted October 31, 2006 Joe, the issue here is accessing (or creating) an EFI environment that can be used to execute Apple's EFI drivers in the DXE EFI phase (like Radoen.efi) and then call Apple's EFI bootloader (boot.efi) to load OS X properly (which will require an EFI kernel). This has almost nothing to do with the Microsoft Vista EFI bootloader. Link to comment Share on other sites More sharing options...
