DSDT: trick retail drivers by changing "device-id" (e.g USB)

tuxianer · September 2, 2009

Oh sorry I have misunderstood the totorial and inserted my device-ids correctly. But I have to fake them. The problem is that I have 8 devices in ioregestry Explorer.

So I have to change:

1A: 2937 ----> 3A37

1D: 2934 ----> 3A34

1D,1: 2935 --> 3A35

1D,2: 2936 --> 3A36

1A,1: 2938 --> 3A38

1A,2: 2939 --> 3A39

Thes ones are not named in the first post so tried this but they don't work. USB Bus is regcognized correct as integrated. But the USB High Speed Bus is still expansion slot.:

1D,7: 293A --> 3A3A

1A,7: 293C --> 3A3C

And is 10.5.7 really necessary?I have attached my DSDT for USB and the fixed one.

USB.rtf

USB_Patched.rtf

ApexDE · September 2, 2009

@ P35 Mainboard Users

It seems that P35 Users need to patch the USB-Device-IDs too (see first post in this thread). If you have issues with the EHCI Sleep-Fix, check if you patched the USB Device-IDs too. P45 Users just need the EHCI-Fix as they already have the correct USB Device-IDs. Wake with USB Mouse should work for P35 Users too, after applying the USB Device-ID Patches.

Good Luck, and report back here!

EDIT: Combining both Patches (device-id and ehci fix) is a bit tricky, so i post the USBE and USE2 sections here:

USBE:

			Device (USBE)
		{
			Name (_ADR, 0x001D0007)
			Method (_S3D, 0, NotSerialized)
			{
				If (LEqual (OSFL, 0x02))
				{
					Return (0x02)
				}

				Return (0x03)
			}

			Name (_PRW, Package (0x02)
			{
				0x0D,
				One
			})

			Method (_DSM, 4, NotSerialized)
			{
				Store (Package (0x06)
					{
						"device-id",
						Buffer (0x04)
						{
							0x3A, 0x3A, 0x00, 0x00
						},
							 "AAPL,clock-id",
							 Buffer (0x01)
							 {
								 0x01
							 },
							 "device_type",
							 Buffer (0x05)
							 {
								"EHCI"
							 }

					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)
			}

		}

USE2:

			Device (USE2)
		{
			Name (_ADR, 0x001A0007)
			Method (_S3D, 0, NotSerialized)
			{
				If (LEqual (OSFL, 0x02))
				{
					Return (0x02)
				}

				Return (0x03)
			}

			Name (_PRW, Package (0x02)
			{
				0x0D,
				One
			})

			Method (_DSM, 4, NotSerialized)
			{
				Store (Package (0x06)
					{
						"device-id",
						Buffer (0x04)
						{
							0x3C, 0x3A, 0x00, 0x00
						},
							 "AAPL,clock-id",
							 Buffer (0x01)
							 {
								 0x02
							 },
							 "device_type",
							 Buffer (0x05)
							 {
								"EHCI"
							 }

					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)
			}

		}

Untested, as i have no EP35 Board Someone test and report back.

Cathul · September 2, 2009

@ P35 Mainboard Users

It seems that P35 Users need to patch the USB-Device-IDs too (see first post in this thread). If you have issues with the EHCI Sleep-Fix, check if you patched the USB Device-IDs too. P45 Users just need the EHCI-Fix as they already have the correct USB Device-IDs. Wake with USB Mouse should work for P35 Users too, after applying the USB Device-ID Patches.

Good Luck, and report back here!

I have a Gigabyte GA-P35-DS3 Rev. 1.0 with a patched DSDT.aml. All USB ports are reported as internal, but i think i have to switch on the bios flag for wake up by mouse.

Will test it as soon as i'm back home again from work.

edit: nope, didn't work with my USB mouse and keyboard.

tuxianer · September 2, 2009

what is the advantage in patching the sata ports in dsdt?

FKA · September 2, 2009

Hi
i want to add my P-States into my dsdt.dsl , not in an extra ssdt-x. aml.

The changes(adds) in the DSDT cpu part are no problem, but i have a few questions around adding P-State tables in the CPU part of dsdt.dsl.

my extracted ssdt-0 (only one ssdt in my bios!).

Hi mitch_de

Firstly I think you will find 4 other SSDT tables if you extract in Windows using Everest or in linux with acpidump (apologies if you have already done this.)

There are two ways to add the p-states to DSDT. You can add them to PR part of DSDT like so:

/*
* Intel ACPI Component Architecture
* AML Disassembler version 20080926
*
* Disassembly of /Users/Dave/Documents/EP35DS4 OSX Install Files/DSDT Files/DSDT.aml,
*
*
* Original Table Header:
*     Signature        "DSDT"
*     Length           0x00004D8D (19853)
*     Revision         0x01 **** ACPI 1.0, no 64-bit math support
*     Checksum         0x1D
*     OEM ID           "GBT   "
*     OEM Table ID     "GBTUACPI"
*     OEM Revision     0x00001000 (4096)
*     Compiler ID      "INTL"
*     Compiler Version 0x20080926 (537397542)
*/
DefinitionBlock ("/UX Install Files/DSDT Files/DSDT.aml", "DSDT", 1, "GBT   ", "GBTUACPI", 0x00001000)
{
   Scope (_PR)
   {
       Processor (CPU0, 0x00, 0x00000410, 0x06)
       {
           Name (_PPC, Zero)
           Name (_PCT, Package (0x02)
           {
               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x10,               // Bit Width
                       0x00,               // Bit Offset
                       0x0000000000000199, // Address
                       ,)
               },

               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x10,               // Bit Width
                       0x00,               // Bit Offset
                       0x0000000000000198, // Address
                       ,)
               }
           })
           Name (_PSS, Package (0x03)
           {
               Package (0x06)
               {
                   0x0C20,
                   0x000124F8,
                   0x0A,
                   0x0A,
                   0x0820,
                   0x0820
               },

               Package (0x06)
               {
                   0x0A9C,
                   0xFDE8,
                   0x0A,
                   0x0A,
                   0x071C,
                   0x071C
               },

               Package (0x06)
               {
                   0x0918,
                   0xEA60,
                   0x0A,
                   0x0A,
                   0x061A,
                   0x061A
               }
           })
       }

etc........

Or if you find PSS in SSDT tables (the 4 i believe you are missing.) you can add all 5 SSDT tables to the end of DSDT as described here then amend NPSS and SPSS values to suite you.

I went with the second method because I wanted to add CST tables from MP3,1 SSDT and for the life of me I couldn't manage to incorporate the MP3,1 CST and get the DSDT.dsl to compile with my PSS values at the beginning of my DSDT.

I have to addmit I don't know where to see p-state info in ioreg.

Here are two DSDT examples

Just p-state data added to DSDT DSDT_P_state_only.dsl.zip

SSDT appended to end of DSDT DSDT01_09_09.dsl.zip

I hope this helps.

**EDIT**

Here are my SSDT tables:

GA_EP35_DS4_SSDT.zip

D.

kdawg · September 2, 2009

Hi mitch_de

Firstly I think you will find 4 other SSDT tables if you extract in Windows using Everest or in linux with acpidump (apologies if you have already done this.)

There are two ways to add the p-states to DSDT. You can add them to PR part of DSDT like so:

/*
* Intel ACPI Component Architecture
* AML Disassembler version 20080926
*
* Disassembly of /Users/Dave/Documents/EP35DS4 OSX Install Files/DSDT Files/DSDT.aml,
*
*
* Original Table Header:
*     Signature        "DSDT"
*     Length           0x00004D8D (19853)
*     Revision         0x01 **** ACPI 1.0, no 64-bit math support
*     Checksum         0x1D
*     OEM ID           "GBT   "
*     OEM Table ID     "GBTUACPI"
*     OEM Revision     0x00001000 (4096)
*     Compiler ID      "INTL"
*     Compiler Version 0x20080926 (537397542)
*/
DefinitionBlock ("/UX Install Files/DSDT Files/DSDT.aml", "DSDT", 1, "GBT   ", "GBTUACPI", 0x00001000)
{
   Scope (_PR)
   {
       Processor (CPU0, 0x00, 0x00000410, 0x06)
       {
           Name (_PPC, Zero)
           Name (_PCT, Package (0x02)
           {
               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x10,               // Bit Width
                       0x00,               // Bit Offset
                       0x0000000000000199, // Address
                       ,)
               },

               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x10,               // Bit Width
                       0x00,               // Bit Offset
                       0x0000000000000198, // Address
                       ,)
               }
           })
           Name (_PSS, Package (0x03)
           {
               Package (0x06)
               {
                   0x0C20,
                   0x000124F8,
                   0x0A,
                   0x0A,
                   0x0820,
                   0x0820
               },

               Package (0x06)
               {
                   0x0A9C,
                   0xFDE8,
                   0x0A,
                   0x0A,
                   0x071C,
                   0x071C
               },

               Package (0x06)
               {
                   0x0918,
                   0xEA60,
                   0x0A,
                   0x0A,
                   0x061A,
                   0x061A
               }
           })
       }

etc........

Or if you find PSS in SSDT tables (the 4 i believe you are missing.) you can add all 5 SSDT tables to the end of DSDT as described here then amend NPSS and SPSS values to suite you.

I went with the second method because I wanted to add CST tables from MP3,1 SSDT and for the life of me I couldn't manage to incorporate the MP3,1 CST and get the DSDT.dsl to compile with my PSS values at the beginning of my DSDT.

I have to addmit I don't know where to see p-state info in ioreg.

Here are two DSDT examples

Just p-state data added to DSDT DSDT_P_state_only.dsl.zip

SSDT appended to end of DSDT DSDT01_09_09.dsl.zip

I hope this helps.

**EDIT**

Here are my SSDT tables:

GA_EP35_DS4_SSDT.zip

D.

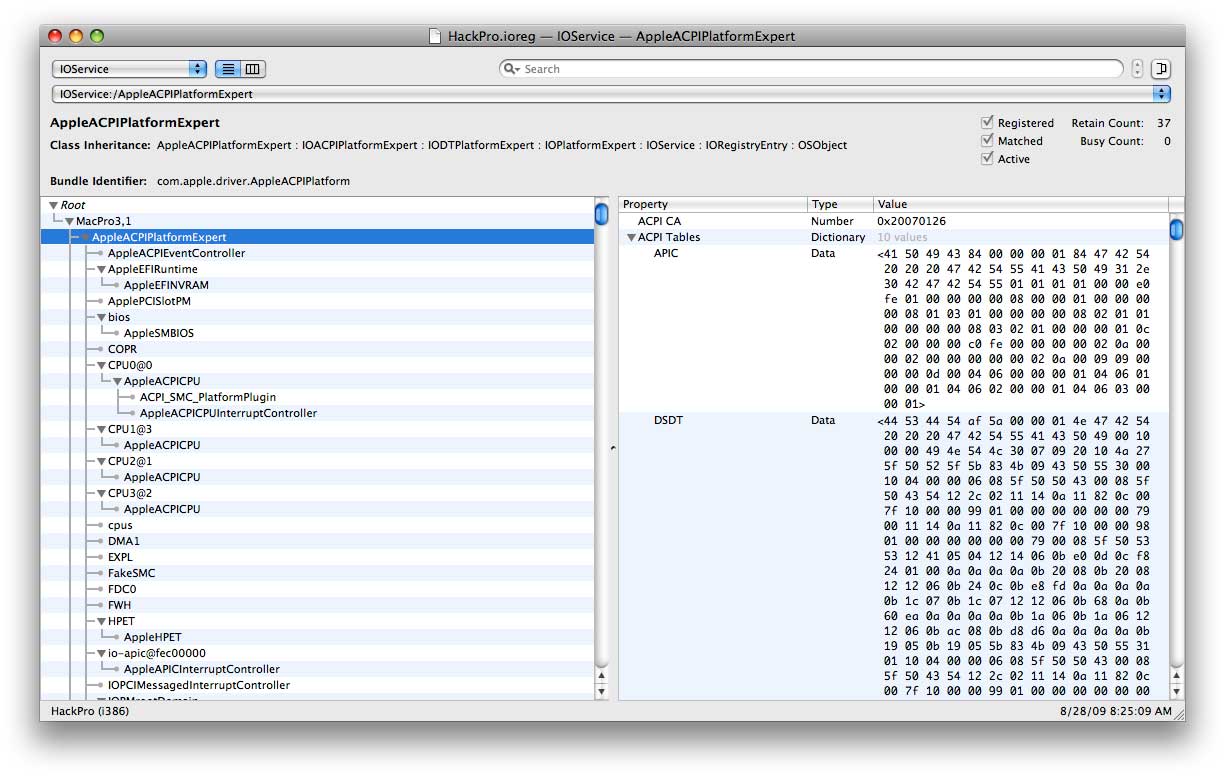

In case anyone was interested where the DSDT SSDT info lives in the ioreg.

tuxianer · September 2, 2009

does anyone has a working wake up by keyboard with a P35 board?

ApexDE · September 2, 2009

OK, the "EHCI-controller-unload" fix does work on P35 Boards, if the device-ids of the UHCI Devices are patched to ICH10, check post #1. Sleep and Wake via Mouse does work (Mouse directly on Mainboard USB Port)

Confirmed and working on a P35 Board :thumbsup_anim:

NOCHMAL:

If you are using a P35 Board: the UHCI Devices MUST be patched using the method described in post #1. Then change the USBE and USE2 like this http://www.insanelymac.com/forum/index.php...t&p=1247462

If you have a P45 Board, you just need the USBE and USE2 Fixes WITHOUT device-id injection.

tuxianer · September 2, 2009

OK, the "EHCI-controller-unload" fix does work on P35 Boards, if the device-ids of the UHCI Devices are patched to ICH10, check post #1. Sleep and Wake via Mouse does work (Mouse directly on Mainboard USB Port)

Confirmed and working on a P35 Board

NOCHMAL:

If you are using a P35 Board: the UHCI Devices MUST be patched using the method described in post #1. Then change the USBE and USE2 like this http://www.insanelymac.com/forum/index.php...t&p=1247462

If you have a P45 Board, you just need the USBE and USE2 Fixes WITHOUT device-id injection.

Wake up via mous or keyboard doesn't work for me. When the pc turns into sleep the mous led switches out and when I click it turns on again. But no wake up.

FKA · September 2, 2009

Wake up via mous or keyboard doesn't work for me. When the pc turns into sleep the mous led switches out and when I click it turns on again. But no wake up.

Hi Apex

Many thanks for this.

It does get rid of the AppleUSBEHCI[0x6838800]::CheckSleepCapability - controller will be unloaded across sleep message

but I still need slice's USB kext for deep sleep.

D

mitch_de · September 3, 2009

Hi,

i now made my PSTATES for GA-EP35-DS3 with C2D 7300/2.66 @ 3 GHZ (333 *9 insted 266*10).

The problem with that GA is, that there are no P-States in the SSDT part of the bios - most other GA boards seems to have them. So you must use the override mode of voodoopower to get that worked.

With that dsdt its possible not use that override mode of voodoopwoer, because now vp get the p_state tables from the dsdt patch.

I used an tool which can compute the right values for each step.

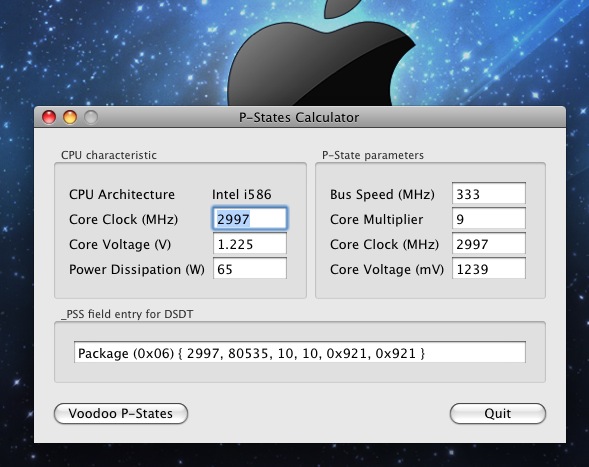

PstatesCalulator (OS X)

Here my starting part of DSDT (dont use that 1:1 / you MUST use your own number of states (very cpu depended).

  Scope (_PR)
   {
       Processor ([b]CPU0[/b], 0x00, 0x00000410, 0x06)
{

       Name (_PPC, 0x00)

       Name (_PCT, Package (0x02)
       {
           ResourceTemplate ()
           {
               Register (FFixedHW, // PERF_CTL
                   0x10,              // Bit Width
                   0x00,               // Bit Offset
                   0x0000000000000199, // Address
                   ,)
           },

           ResourceTemplate ()
           {
               Register (FFixedHW, // PERF_STATUS
                   0x10,               // Bit Width
                   0x00,    // Bit Offset
                   0x0000000000000198, // Address
                   ,)
           }
       })

       Name (_PSS, Package (0x[b]04[/b])   // [b]4[/b] Pstates [b]6-9[/b] fsb muilt * 333 FSB, E7300-2660 GHZ-266*10
       {
                /* multi 10 OFF Package (0x06) { 3330, 93816, 10, 10, 0xA25, 0xA25 }   */
	Package (0x06) { 2997, 80535, 10, 10, 0x921, 0x921 },  // [b]2997 MHZ = 9* 333[/b]
	Package (0x06) { 2664, 68120, 10, 10, 0x81D, 0x81D },
	Package (0x06) { 2331, 56571, 10, 10, 0x71A, 0x71A },
	Package (0x06) { 1998, 45889, 10, 10, 0x616, 0x616 }
       })


} // end CPU0


       Processor (CPU1, 0x0[b]1[/b], 0x00000410, 0x06)
{

       Name (_PPC, 0x00)

       Name (_PCT, Package (0x02)
       {
           ResourceTemplate ()
           {
               Register (FFixedHW, // PERF_CTL
                   0x10,              // Bit Width
                   0x00,               // Bit Offset
                   0x0000000000000199, // Address
                   ,)
           },

           ResourceTemplate ()
           {
               Register (FFixedHW, // PERF_STATUS
                   0x10,               // Bit Width
                   0x00,    // Bit Offset
                   0x0000000000000198, // Address
                   ,)
           }
       })

       Name (_PSS, Package (0x04)   // 4 Pstates 6-9 fsb muilt
       {
                 /* multi 10 OFF Package (0x06) { 3330, 93816, 10, 10, 0xA25, 0xA25 }   */
	Package (0x06) { 2997, 80535, 10, 10, 0x921, 0x921 },  // 2997 MHZ = 9* 333
	Package (0x06) { 2664, 68120, 10, 10, 0x81D, 0x81D },
	Package (0x06) { 2331, 56571, 10, 10, 0x71A, 0x71A },
	Package (0x06) { 1998, 45889, 10, 10, 0x616, 0x616 }
       })


} // end CPU1




       Processor (CPU2, 0x02, 0x00000410, 0x06)
{

  	} // end CPU2


       Processor (CPU3, 0x03, 0x00000410, 0x06)
{


} // end CPU3
   }

i also included SSDT-0 unchanged!! for later editing (i only have one SSDT Table with GA-EP35-DS3) at the end of the dsdt.dsl

I dont know really whats that stuff , but i believe they are the C-States.

.........

       Device (PCI0.EXPL)
       {
           Name (_HID, EisaId ("PNP0C02"))
           Name (_UID, 0x04)
           Method (_CRS, 0, NotSerialized)
           {
               Name (BUF0, ResourceTemplate ()
               {
                   Memory32Fixed (ReadWrite,
                       0xF0000000,         // Address Base
                       0x04000000,         // Address Length
                       )
               })
               Return (BUF0)
           }
       }
   }



[b]// NEW in dsdt[/b]
Scope (\)
   {
       Name (SSDT, Package (0x18)
       {
           "CPU0IST ",
           0xDFEE7F00,
           0x026C,
           "CPU1IST ",
           0xDFEE83C0,
           0x0152,
           "CPU0CST ",
           Zero,
           0xF000E816,
           "CPU1CST ",  	// 10
           Zero,
           0xF000E816,
           "CPU2IST ",
           Zero,
           0xF000E816,
           "CPU3IST ",
           Zero,
           0xF000E816,
           "CPU2CST ",
           Zero,		 // 20
           0xF000E816,
           "CPU3CST ",
           Zero,
           0xF000E816
       })
       Name (CFGD, 0x02030302)
       Name (\PDC0, 0x80000000)
       Name (\PDC1, 0x80000000)
       Name (\PDC2, 0x80000000)
       Name (\PDC3, 0x80000000)
   }

   Scope (\_PR.CPU0)
   {
       Name (HI0, Zero)
       Name (HC0, Zero)
       Name (TLD0, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP0)
           Store (CAP0, PDC0)
           If (LEqual (TLD0, Zero))
           {
               If (LEqual (And (PDC0, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST0, SystemMemory, DerefOf (Index (SSDT, One)), DerefOf (Index (SSDT, 0x02
                           )))
                       Load (IST0, HI0)
                   }

		 If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST0, SystemMemory, DerefOf (Index (SSDT, 0x07)), DerefOf (Index (SSDT, 0x08
                           )))
                       Load (CST0, HC0)
                   }

	Store (One, TLD0)
               }
           }
       }
   }

   Scope (\_PR.CPU1)
   {
       Name (HI1, Zero)
       Name (HC1, Zero)
       Name (TLD1, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP1)
           Store (CAP1, PDC1)
           If (LEqual (TLD1, Zero))
           {
               If (LEqual (And (PDC1, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST1, SystemMemory, DerefOf (Index (SSDT, 0x04)), DerefOf (Index (SSDT, 0x05
                           )))
                       Load (IST1, HI1)
                   }

                   If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST1, SystemMemory, DerefOf (Index (SSDT, 0x0A)), DerefOf (Index (SSDT, 0x0B
                           )))
                       Load (CST1, HC1)
                   }

                   Store (One, TLD1)
               }
           }
       }
   }

   Scope (\_PR.CPU2)
   {
       Name (HI2, Zero)
       Name (HC2, Zero)
       Name (TLD2, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP2)
           Store (CAP2, PDC2)
           If (LEqual (TLD2, Zero))
           {
               If (LEqual (And (PDC2, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST2, SystemMemory, DerefOf (Index (SSDT, 0x0D)), DerefOf (Index (SSDT, 0x0E
                           )))
                       Load (IST2, HI2)
                   }

                   If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST2, SystemMemory, DerefOf (Index (SSDT, 0x13)), DerefOf (Index (SSDT, 0x14
                           )))
                       Load (CST2, HC2)
                   }

                   Store (One, TLD2)
               }
           }
       }
   }

   Scope (\_PR.CPU3)
   {
       Name (HI3, Zero)
       Name (HC3, Zero)
       Name (TLD3, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP3)
           Store (CAP3, PDC3)
           If (LEqual (TLD3, Zero))
           {
               If (LEqual (And (PDC3, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST3, SystemMemory, DerefOf (Index (SSDT, 0x10)), DerefOf (Index (SSDT, 0x11
                           )))
                       Load (IST3, HI3)
                   }

                   If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST3, SystemMemory, DerefOf (Index (SSDT, 0x16)), DerefOf (Index (SSDT, 0x17
                           )))
                       Load (CST3, HC3)
                   }

                   Store (One, TLD3)
               }
           }
       }
   }

} // end of dsl

Last but not least the part of USB looks like for my GA-Ep35-DS3 (F4 Bios)

            Device ([b]USB0[/b])
           {
               Name (_ADR, 0x001D0000)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x34, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x03,
                   0x03
               })
           }

           Device (USB1)
           {
               Name (_ADR, 0x001D0001)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x35, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x04,
                   0x03
               })
           }

           Device (USB2)
           {
               Name (_ADR, 0x001D0002)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x36, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x0C,
                   0x03
               })
           }

           Device (US31)
           {
               Name (_ADR, 0x001D0003)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Name (_PRW, Package (0x02)
               {
                   0x0E,
                   0x03
               })
           }

           Device (USB3)
           {
               Name (_ADR, 0x001A0000)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x37, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x0E,
                   0x03
               })
           }

           Device (USB4)
           {
               Name (_ADR, 0x001A0001)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x38, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x05,
                   0x03
               })
           }

           Device (USB5)
           {
               Name (_ADR, 0x001A0002)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x39, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x20,
                   0x03
               })
           }

           Device ([b]EHC1[/b])
           {
               Name (_ADR, 0x001D0007)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x06)
                       {
                           "AAPL,clock-id",
                           Buffer (One)
                           {
                               0x01
                           },

                           "device_type",
                           Buffer (0x05)
                           {
                               "EHCI"
                           },

                           "device-id",
                           Buffer (0x04)
                           {
                               0x3A, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x0D,
                   0x03
               })
           }

           Device ([b]EHC2[/b])    //name changed is cosmetic like HDEF also changed that notify....
           {
               Name (_ADR, 0x001A0007)
               Method (_S3D, 0, NotSerialized)
               {
                   If (LEqual (OSFL, 0x02))
                   {
                       Return (0x02)
                   }

                   Return (0x03)
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x06)
                       {
                           "AAPL,clock-id",
                           Buffer (One)
                           {
                               0x02
                           },

                           "device_type",
                           Buffer (0x05)
                           {
                               "EHCI"
                           },

                           "device-id",
                           Buffer (0x04)
                           {
                               0x3C, 0x29, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }

               Name (_PRW, Package (0x02)
               {
                   0x0D,
                   0x03
               })
           }

P_States_Calculator.zip

tuxianer · September 3, 2009

@mitch_de does your computer wake up via keyboard or mouse?

FKA · September 3, 2009

Hi,

i now made my PSTATES for GA-EP35-DS3 with C2D 7300/2.66 @ 3 GHZ (333 *9 insted 266*10).

The problem with that GA is, that there are no P-States in the SSDT part of the bios - most other GA boards seems to have them. So you must use the override mode of voodoopower to get that worked.

With that dsdt its possible not use that override mode of voodoopwoer, because now vp get the p_state tables from the dsdt patch.

i also included SSDT-0 unchanged!! for later editing (i only have one SSDT Table with GA-EP35-DS3) at the end of the dsdt.dsl

I dont know really whats that stuff , but i believe they are the C-States.

.........

       Device (PCI0.EXPL)
       {
           Name (_HID, EisaId ("PNP0C02"))
           Name (_UID, 0x04)
           Method (_CRS, 0, NotSerialized)
           {
               Name (BUF0, ResourceTemplate ()
               {
                   Memory32Fixed (ReadWrite,
                       0xF0000000,         // Address Base
                       0x04000000,         // Address Length
                       )
               })
               Return (BUF0)
           }
       }
   }



[b]// NEW in dsdt[/b]
Scope (\)
   {
       Name (SSDT, Package (0x18)
       {
           "CPU0IST ",
           0xDFEE7F00,
           0x026C,
           "CPU1IST ",
           0xDFEE83C0,
           0x0152,
           "CPU0CST ",
           Zero,
           0xF000E816,
           "CPU1CST ",  	// 10
           Zero,
           0xF000E816,
           "CPU2IST ",
           Zero,
           0xF000E816,
           "CPU3IST ",
           Zero,
           0xF000E816,
           "CPU2CST ",
           Zero,		 // 20
           0xF000E816,
           "CPU3CST ",
           Zero,
           0xF000E816
       })
       Name (CFGD, 0x02030302)
       Name (\PDC0, 0x80000000)
       Name (\PDC1, 0x80000000)
       Name (\PDC2, 0x80000000)
       Name (\PDC3, 0x80000000)
   }

   Scope (\_PR.CPU0)
   {
       Name (HI0, Zero)
       Name (HC0, Zero)
       Name (TLD0, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP0)
           Store (CAP0, PDC0)
           If (LEqual (TLD0, Zero))
           {
               If (LEqual (And (PDC0, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST0, SystemMemory, DerefOf (Index (SSDT, One)), DerefOf (Index (SSDT, 0x02
                           )))
                       Load (IST0, HI0)
                   }

		 If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST0, SystemMemory, DerefOf (Index (SSDT, 0x07)), DerefOf (Index (SSDT, 0x08
                           )))
                       Load (CST0, HC0)
                   }

	Store (One, TLD0)
               }
           }
       }
   }

   Scope (\_PR.CPU1)
   {
       Name (HI1, Zero)
       Name (HC1, Zero)
       Name (TLD1, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP1)
           Store (CAP1, PDC1)
           If (LEqual (TLD1, Zero))
           {
               If (LEqual (And (PDC1, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST1, SystemMemory, DerefOf (Index (SSDT, 0x04)), DerefOf (Index (SSDT, 0x05
                           )))
                       Load (IST1, HI1)
                   }

                   If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST1, SystemMemory, DerefOf (Index (SSDT, 0x0A)), DerefOf (Index (SSDT, 0x0B
                           )))
                       Load (CST1, HC1)
                   }

                   Store (One, TLD1)
               }
           }
       }
   }

   Scope (\_PR.CPU2)
   {
       Name (HI2, Zero)
       Name (HC2, Zero)
       Name (TLD2, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP2)
           Store (CAP2, PDC2)
           If (LEqual (TLD2, Zero))
           {
               If (LEqual (And (PDC2, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST2, SystemMemory, DerefOf (Index (SSDT, 0x0D)), DerefOf (Index (SSDT, 0x0E
                           )))
                       Load (IST2, HI2)
                   }

                   If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST2, SystemMemory, DerefOf (Index (SSDT, 0x13)), DerefOf (Index (SSDT, 0x14
                           )))
                       Load (CST2, HC2)
                   }

                   Store (One, TLD2)
               }
           }
       }
   }

   Scope (\_PR.CPU3)
   {
       Name (HI3, Zero)
       Name (HC3, Zero)
       Name (TLD3, Zero)
       Method (_PDC, 1, NotSerialized)
       {
           CreateDWordField (Arg0, 0x08, CAP3)
           Store (CAP3, PDC3)
           If (LEqual (TLD3, Zero))
           {
               If (LEqual (And (PDC3, 0x0A), 0x0A))
               {
                   If (And (CFGD, 0x02))
                   {
                       OperationRegion (IST3, SystemMemory, DerefOf (Index (SSDT, 0x10)), DerefOf (Index (SSDT, 0x11
                           )))
                       Load (IST3, HI3)
                   }

                   If (And (CFGD, 0x10))
                   {
                       OperationRegion (CST3, SystemMemory, DerefOf (Index (SSDT, 0x16)), DerefOf (Index (SSDT, 0x17
                           )))
                       Load (CST3, HC3)
                   }

                   Store (One, TLD3)
               }
           }
       }
   }

} // end of dsl

NIce one mitch - I like the way you've added p-states as roisoft has posted before - it looks a lot tidier !

Any ideas about c-states? - I've kind of given up here!

D.

@mitch_de does your computer wake up via keyboard or mouse?

Are you USB or PS2 keyboard and mouse?

tuxianer · September 3, 2009

I have a Logitech USB mouse for USB1 and the apple alu keyboard which uses USB2.

FKA · September 3, 2009

I have a Logitech USB mouse for USB1 and the apple alu keyboard which uses USB2.

Ok silly question but do you have USB keyboard and Mouse support enabled in BIOS?

I know this shouldn't make any difference (LAN related) but also try enabling PME Event wake up.

EDit - also even using the latest DSDT USB patch, I'm still having to use slice's USBFamily kext to achieve deep sleep - have you tried that yet?

D.

mitch_de · September 3, 2009

@mitch_de does your computer wake up via keyboard or mouse?

No my system cant sleep - fans stay on , all running. Only HDs go to sleep & the monitor.

Sleep had never worked on my GA_EP35-DS3 (without DSDT/with DSDT. OpenHaltRestart / SLeepenabler,...). May be an problem of SATA Pioinieer DVD or something other hardware else. But doenst matter for me.

So i dont use sleep and have also no problem for wakeup

tuxianer · September 3, 2009

Ok silly question but do you have USB keyboard and Mouse support enabled in BIOS?

I know this shouldn't make any difference (LAN related) but also try enabling PME Event wake up.

EDit - also even using the latest DSDT USB patch, I'm still having to use slice's USBFamily kext to achieve deep sleep - have you tried that yet?

D.

All 3 settings are enabled. The USB kext I didn't tried yet. I am running 10.5.6 could this the problem?

FKA · September 3, 2009

All 3 settings are enabled. The USB kext I didn't tried yet. I am running 10.5.6 could this the problem?

Try slice's kext but it looks like mitch_de has problem with the same MB.

I can deep sleep and wake up with USB mouse and keyboard but monitor doesn't power up, although I think this is a problem with my GPU rather than anything else.

10.5.6 shouldn't be a problem as a lot of people who had sleep have lost it since upgrade to 10.5.8

D.

tuxianer · September 3, 2009

Try slice's kext but it looks like mitch_de has problem with the same MB.

I can deep sleep and wake up with USB mouse and keyboard but monitor doesn't power up, although I think this is a problem with my GPU rather than anything else.

10.5.6 shouldn't be a problem as a lot of people who had sleep have lost it since upgrade to 10.5.8

D.

I tried the USB kext without success. But I think sleep with your mainboard should be possible. Which kexts do you have installed?

alborto · September 4, 2009

Hi,

I tried the method on a P5K-se (P35 ICH9) who didn't want to wake after sleep but now with the fix it wakes immediatly after sleep and restart doesn't work anymore.

I tried this metod and work great for me the only problem is the restart that take me on black screen for about one minute.

Anyone have a solution for it?

I use openhaltrestart just right now.

Thanks in advance.

tuxianer · September 4, 2009

Hi,

I have got a working wake up by mouse. The problem is the following:

You have to change this

				Name (_PRW, Package (0x02)
			 {
				 0x0D,
				 One
			 })

to this

				Name (_PRW, Package (0x02)
			{
				0x0D,
				0x03
			})

But this works only with USB1 Devices. I can't wake up with my USB2 Keyboard.

tuxianer · September 4, 2009

And when I inject my SATA IDs is there no IOATAFamily.kext necessary to boot without ahci?

FKA · September 5, 2009

Here's ICH10 SATA part of DSDT, working on my ICH9-R. Should also work ICH9.

Note: my SATA ports where previously listed as IDE in DSDT and IOReg, this was taken from DSE and ICH10 id from this thread thanks to rx782p.

            Device (SATA)
           {
               Name (_ADR, 0x001F0002)
               Name (_SUN, One)
               Device (PRT0)
               {
                   Name (_ADR, Zero)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB0, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xF5
                       })
                       Return (PIB0)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 1"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT1)
               {
                   Name (_ADR, One)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB1, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xF5
                       })
                       Return (PIB1)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 2"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT2)
               {
                   Name (_ADR, 0x02)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB2, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xF5
                       })
                       Return (PIB2)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 3"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT3)
               {
                   Name (_ADR, 0x03)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB3, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xF5
                       })
                       Return (PIB3)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 4"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT4)
               {
                   Name (_ADR, 0x04)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB4, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xF5
                       })
                       Return (PIB4)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 5"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT5)
               {
                   Name (_ADR, 0x05)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB5, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xF5
                       })
                       Return (PIB5)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 6"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x22, 0x3A, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }
           }

No need for AHCIPortinjector.

Is it possible to state HDD's are internal with DSDT?

D.

kdawg · September 5, 2009

Here's ICH10 SATA part of DSDT, working on my ICH9-R. Should also work ICH9.

Note: my SATA ports where previously listed as IDE in DSDT and IOReg, this was taken from DSE and ICH10 id from this thread thanks to rx782p.

            Device (SATA)
           {
               Name (_ADR, 0x001F0002)
               Name (_SUN, One)
               Device (PRT0)
               {
                   Name (_ADR, Zero)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB0, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xF5
                       })
                       Return (PIB0)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 1"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT1)
               {
                   Name (_ADR, One)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB1, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xF5
                       })
                       Return (PIB1)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 2"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT2)
               {
                   Name (_ADR, 0x02)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB2, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xF5
                       })
                       Return (PIB2)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 3"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT3)
               {
                   Name (_ADR, 0x03)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB3, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xF5
                       })
                       Return (PIB3)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 4"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT4)
               {
                   Name (_ADR, 0x04)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB4, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xF5
                       })
                       Return (PIB4)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 5"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (PRT5)
               {
                   Name (_ADR, 0x05)
                   Method (_GTF, 0, NotSerialized)
                   {
                       Name (PIB5, Buffer (0x07)
                       {
                           0x00, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xF5
                       })
                       Return (PIB5)
                   }

                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "io-device-location",
                               Buffer (0x06)
                               {
                                   "Bay 6"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x02)
                       {
                           "device-id",
                           Buffer (0x04)
                           {
                               0x22, 0x3A, 0x00, 0x00
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }
           }

No need for AHCIPortinjector.

Is it possible to state HDD's are internal with DSDT?

D.

I've been trying to do exactly that for days now! You would think IOAHCIBlockStorageInjector.kext would be any easy one to get rid of, but I haven't had any luck. I've download the IOStorageFamily opensource files from Apple and poured through the code. I've found the key (IOPropertyPhysicalInterconnectTypeSerialATA = 0x01) that needs to be tripped but I can't do it through DSDT.

I've even tried to force the Physical Interconnect/Location properties but no luck:

				Device (PRT2)
			{
				Name (_ADR, 0x02)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x08)
						{
					   		"Physical Interconnect",
					   		"SATA",
								"Physical Interconnect Location",
					   		"Internal",
							Buffer (0x01)
							{
								0x00
						   	}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
			}

Anyone else want to chime in on this one? ApexDE?

BTW I chatted with ApexDE and he was able to find the EHCI fix by looking at the opensource code. The developers had commented plain as day what needed to appear for EHCI to display as internal. I was hoping I could do the same with IOStorageFamily. This is a great tip for anyone wanting to learn more about DSDT editing.

http://www.opensource.apple.com/

ApexDE · September 5, 2009

Hi!

								Buffer (0x01)
							{
								0x00
							   }

But i guess this should be 0x01 then, not 0x00? (True/False)

DSDT: trick retail drivers by changing "device-id" (e.g USB)

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
