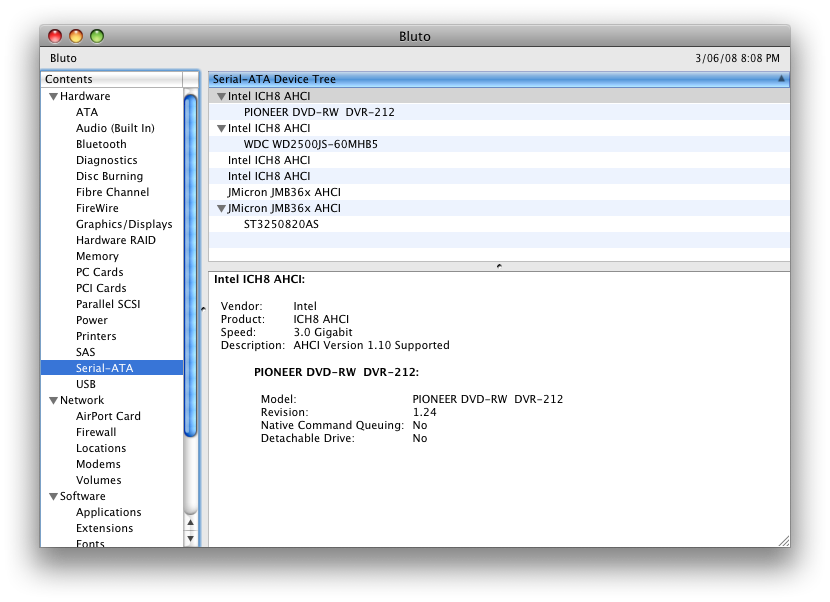

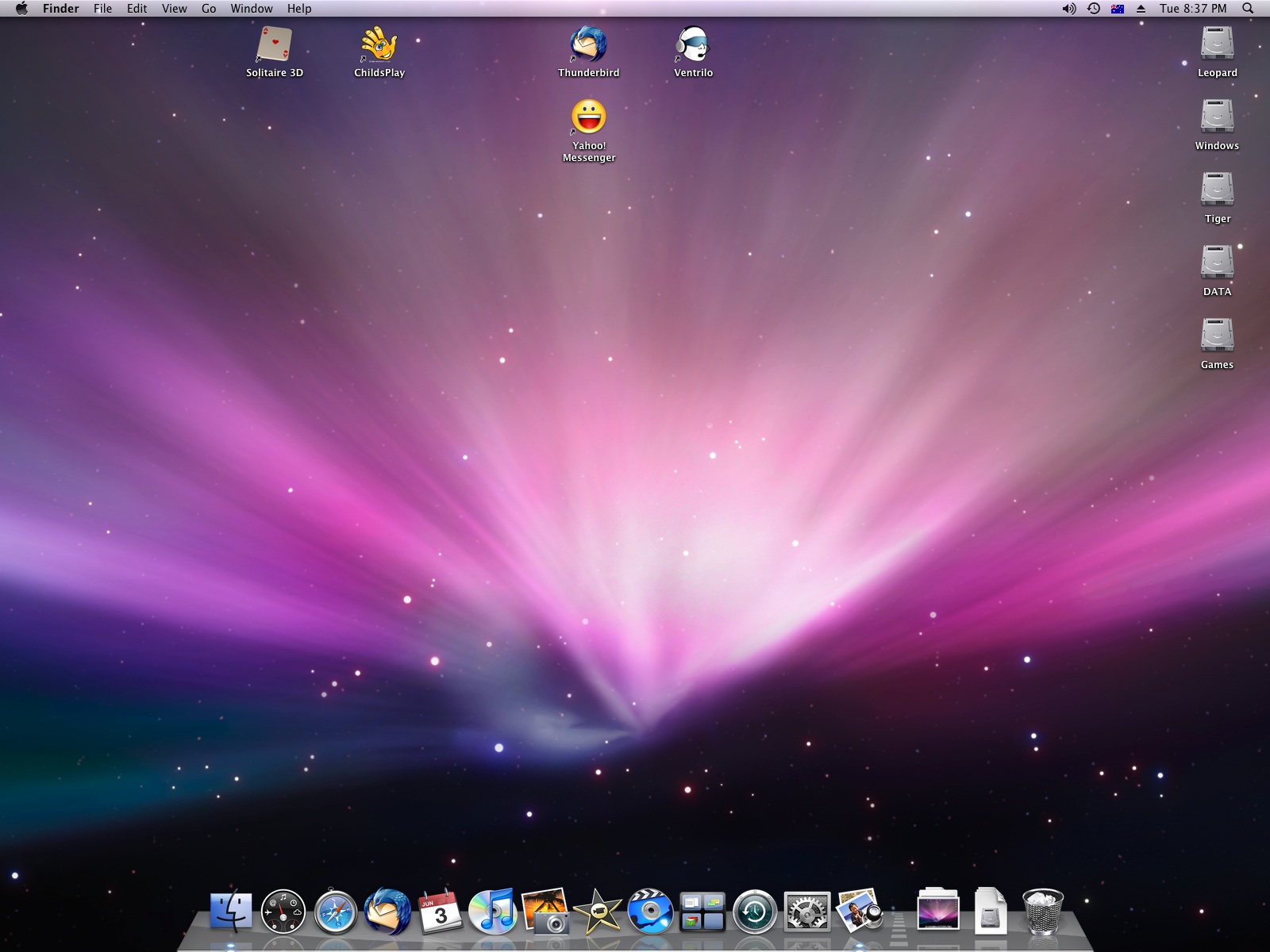

Gujal Posted June 3, 2008 Share Posted June 3, 2008 Edit 15-May-2009: This method is now defunct. Chameleon 2.0 comes bundled with two injector kexts which inject the information contained in this solution. This is also elegant that you can upgrade your install and dont have to edit or replace Info.plist Edit 11-Feb-09: Read this topic by thorazine74 for a newer approach Edit 20-Dec-08: Corrected 10.5.6 kexts uploaded. Screenshots on Page 5 Edit 19-Dec-08: Patched 10.5.6 kexts have wrong version number in Info.plist. needs to be fixed. Work in progress Edit 17-Dec-08: Complete 10.5.6 modified kexts included Dont download this. Get the corrected one. Edit 10-Oct-08: Added ICH10 and ICH10R. Complete 10.5.5 modified Kexts also included Edit 5-Jun-08: Spelling corrected. Thanks to FYR After trolling through various posts and solutions on this topic, I have compiled this solution. It is not my solution but I have compiled it, that is all. Credits go to Original Posters My motherboard (as seen in my sig) is Asus P5B. It has 4 internal SATA ports based on Intel ICH8, 1 internal SATA port based on JMicron 363 and one ESATA port based on JMicron 363. I have run various versions of OSX right from JaS 10.4.8 upto Leo4all V3. In all versions upto Leo4all v3, I had to set my Intel and JMicron controllers as AHCI in BIOS for OSX to see them. In 10.4.x I believe due to JaS's driver, the Harddisk icons were the usual Aluminum coloured ones. However since 10.5, the AHCI harddisks were shown as Orange coloured odd looking icons. Also in System Profiler, it would show up as Unknown AHCI Controller for both Intel and JMicron and on top of it will only sense two Intel SATA ports (instead of 4). In Leo4all v3, it included a modified IOATAFamily which allowed me to use Intel SATA in IDE mode instead of AHCI mode, this fixed the icons but still could only see two SATA Ports. As AHCI mode is supposed to be superior to IDE mode, I decided to settle for AHCI mode. After upgrading to 10.5.3 and modifying two plist files as shown below, I now have all SATA ports recognised, all controllers recognised and the icons for internal harddisks are aluminum instead of orange I am including two Info.plist files. These are not "Drivers", these are merely text files which have the PCI definitions. Hence you do not lose any of the AHCI Hot Swap functionality. The first one defines all Intel ICH7 till 10 controllers and JMicron controllers. This is located in /System/Library/Extensions/AppleAHCIPort.kext/Contents/ By using this file, the Unknown AHCI Controller in System Profiler goes away and now correctly displays your SATA Chipset as shown in the attached screen shots The Second one defines Internal ports so that drives connected to internal ports are shown using Aluminum icons. This is located in /System/Library/Extensions/IOAHCIFamily.kext/Contents/PlugIns/IOAHCIBlockStorage.kext/Contents Copy the two Info.plist files to the correct locations as shown above, fix ownership and permissions, touch /System/Library/Extensions directory and reboot. Once rebooted, you can see the correct icons on the desktop and if you go to System Profiler, you will see that it has sensed JMicron and Intel SATA Controllers. OR If you are running 10.5.5 just use the modified kexts from my attachment below. Assuming you have extracted AHCIFixv2.zip to your desktop, open terminal application and enter the following sudo -s [i]it will prompt for password, put your password here[/i] cd cp Desktop/AHCIFixv2/AppleAHCIPort.kext.dir/Contents/Info.plist /System/Library/Extensions/AppleAHCIPort.kext/Contents cp Desktop/AHCIFixv2/IOAHCIFamily.kext.dir/Contents/PlugIns/IOAHCIBlockStorage.kext.dir/Contents/Info.plist /System/Library/Extensions/IOAHCIFamily.kext/Contents/PlugIns/IOAHCIBlockStorage.kext/Contents chown -R root:wheel /System/Library/Extensions/AppleAHCIPort.kext/ chown -R root:wheel /System/Library/Extensions/IOAHCIFamily.kext/ touch /System/Library/Extensions exit You can now reboot the system. When you reboot, you will get a message that it is building boot cache which is normal. AHCIFixv2_withkexts.zip AHCIFixv2.zip AHCIfixv2_with_10.5.6_kexts__corrected_.zip Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/ Share on other sites More sharing options...
fyr Posted June 3, 2008 Share Posted June 3, 2008 Take care you have 2 <key>CFBundeIdentifier</key> that need a "l" However moded/completed Info.plist is the solution I prefer over backward to 10.5.2 kext . (Which is the right solution if nothing better can be done with 10.5.3, the goal is to run) Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-769481 Share on other sites More sharing options...
SuperNet33 Posted June 3, 2008 Share Posted June 3, 2008 Ok, So I downloaded the files, how do I get them into the kext, just copy and past? when i download it, it shows up is .kext.dir Also if I don't mind the orange , can i just use the one kext ? Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-769667 Share on other sites More sharing options...
fyr Posted June 3, 2008 Share Posted June 3, 2008 No copy/paste, or with extreme care. Just move the Info.plist file in their right respective place. You can use one. (But care about orange. their is rumors that that change some perf) Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-769963 Share on other sites More sharing options...
SuperNet33 Posted June 3, 2008 Share Posted June 3, 2008 Your the MAN, it works!! Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-770010 Share on other sites More sharing options...
SuperNet33 Posted June 4, 2008 Share Posted June 4, 2008 Hrmm Is your Time Machine back up working after this? Mine keeps on saying " prepairing for backup " Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-770081 Share on other sites More sharing options...
fyr Posted June 4, 2008 Share Posted June 4, 2008 Mine is working. Faster than before. Perhaps you have a HUGE backup to do ? Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-770354 Share on other sites More sharing options...
shmk Posted June 4, 2008 Share Posted June 4, 2008 didn't seem to work for me. huh strange Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-770377 Share on other sites More sharing options...
Gujal Posted June 4, 2008 Author Share Posted June 4, 2008 @shmk After copying the Info.plist files, did you fix the permissions and "touch /System/Library/Extensions" before rebooting? Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-771429 Share on other sites More sharing options...
ero Posted June 11, 2008 Share Posted June 11, 2008 @shmkAfter copying the Info.plist files, did you fix the permissions and "touch /System/Library/Extensions" before rebooting? What does that mean?? For us less terminal-savvy people, can you post details on what you actually have to do to perform those two things, especially the latter? Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-779710 Share on other sites More sharing options...
Gujal Posted June 17, 2008 Author Share Posted June 17, 2008 Assuming you have extracted AHCIFix.zip to your desktop, open terminal application and enter the following sudo -s [i]it will prompt for password, put your password here[/i] cd cp Desktop/AHCIFix/AppleAHCIPort.kext.dir/Contents/Info.plist /System/Library/Extensions/AppleAHCIPort.kext/Contents cp Desktop/AHCIFix/IOAHCIFamily.kext.dir/Contents/PlugIns/IOAHCIBlockStorage.kext.dir/Contents/Info.plist /System/Library/Extensions/IOAHCIFamily.kext/Contents/PlugIns/IOAHCIBlockStorage.kext/Contents chown -R root:wheel /System/Library/Extensions/AppleAHCIPort.kext/ chown -R root:wheel /System/Library/Extensions/IOAHCIFamily.kext/ touch /System/Library/Extensions exit You can now reboot the system. When you reboot, you will get a message that it is building boot cache which is normal. Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-786447 Share on other sites More sharing options...
keftes Posted June 18, 2008 Share Posted June 18, 2008 Followed your instructions and does not work for me. Drives are all still orange. I have a P5K Deluxe Wifi with ICH9R Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-787776 Share on other sites More sharing options...
Gujal Posted June 18, 2008 Author Share Posted June 18, 2008 can you try to boot with "-f" option and report back. Also is system profiler reporting "Unknown AHCI" or "Intel ICH9-R AHCI" Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-787895 Share on other sites More sharing options...
keftes Posted June 19, 2008 Share Posted June 19, 2008 can you try to boot with "-f" option and report back.Also is system profiler reporting "Unknown AHCI" or "Intel ICH9-R AHCI" ood. I tried -f .. no good It reports "Unknown" Thanks. Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-789209 Share on other sites More sharing options...
Gujal Posted June 19, 2008 Author Share Posted June 19, 2008 If it says unknown after an -f, then the plist files are not installed correctly. You can look at your current Info.plist files at /System/Library/Extensions/AppleAHCIPort.kext/Contents /System/Library/Extensions/IOAHCIFamily.kext/Contents/PlugIns/IOAHCIBlockStorage.kext/Contents and compare with the ones I posted in the zip file. Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-789228 Share on other sites More sharing options...
keftes Posted June 19, 2008 Share Posted June 19, 2008 Their installed properly. They match yours. I have rebooted with an -f and also used the OSX86tool to flush extensions cache. Unknown AHCI Standard Controller: Vendor: Unknown Product: AHCI Standard Controller Speed: 3.0 Gigabit Description: AHCI Version 1.20 Supported Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-789310 Share on other sites More sharing options...
seanhassars Posted June 19, 2008 Share Posted June 19, 2008 it worked perfectly for me with a ga-p35-ds3l Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-789314 Share on other sites More sharing options...
keftes Posted June 19, 2008 Share Posted June 19, 2008 OK, it worked. Let me explain what happened in case other have a similar situation. I have a 500 gb drive with 2 partitions, "BOOT" and "Software" I also have a 700 gb software raid0 I have a stripped down copy 10.5.3 installed on BOOT. (used only for rd=diskX as a flag) BOOT drive allows me to boot off the software raid. I booted into BOOT and made the modifications to the kext files and flushed the extensions cache with OSX86tool. Now it works when booted back into my full install on the Raid0. Can someone explain.Also, My XBench went up 11 points and is now 267 Also, My XBench went up 11 points and is now 267 Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-789332 Share on other sites More sharing options...
Gujal Posted June 20, 2008 Author Share Posted June 20, 2008 I think the 10.5.3 AHCI drivers are better. Also, if you see the Info.plist, the Generic Unknown AHCI has a IOProbeScore of 800 where as the defined ones have 2000. May be that improves XBench Score Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-790539 Share on other sites More sharing options...
apowerr Posted June 25, 2008 Share Posted June 25, 2008 Worked great for me, ICH-9R displaying right and drives are no longer orange Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-796063 Share on other sites More sharing options...
Flogz Posted June 25, 2008 Share Posted June 25, 2008 Work !! thanks for solv Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-796096 Share on other sites More sharing options...

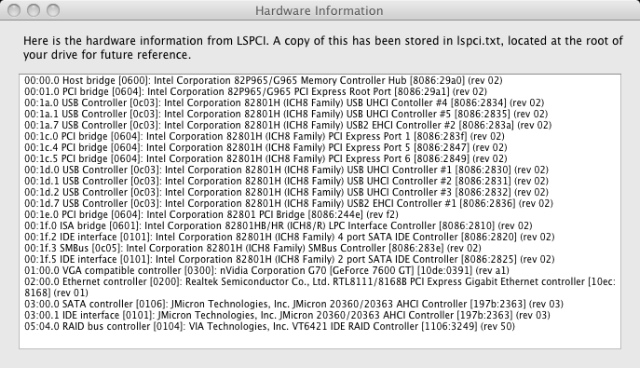

blackite7 Posted July 3, 2008 Share Posted July 3, 2008 Thanks for solution, Gujal! My Leo drive is no longer external, which seems to boost the system. Unfortunately, 2nd part of your solution worked only partially. Jmicron is displayed in system profiler correctly now, but Intel ich8 is not. My mobo is P5b-vm. Having looked into your plist and comparing it to device ID from OSX Tools LSPCI (image attached) I found out that device IDs for ich8 are different. I tried to change them to mine, but all I got is kernel panic. Certainly AppleAHCIPort.kext is not the one to mess with! Any suggestions? Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-805256 Share on other sites More sharing options...
Cebit Posted July 4, 2008 Share Posted July 4, 2008 Thanks ! I just tried a vanilla install (with EFI v8 and retail 10.5.0, updated to 10.5.2), and your tutorial worked I have the internal JMicron disabled so I cannot comment on that part. My motherboard is: Asus P5E Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-806396 Share on other sites More sharing options...
Gujal Posted July 4, 2008 Author Share Posted July 4, 2008 My Leo drive is no longer external, which seems to boost the system. Unfortunately, 2nd part of your solution worked only partially. Jmicron is displayed in system profiler correctly now, but Intel ich8 is not. My mobo is P5b-vm. Having looked into your plist and comparing it to device ID from OSX Tools LSPCI (image attached) I found out that device IDs for ich8 are different. I tried to change them to mine, but all I got is kernel panic. Certainly AppleAHCIPort.kext is not the one to mess with! Any suggestions? I actually picked up the definitions from the latest Intel Matrix Storage Drivers. The definitions in that driver are PCI\VEN_8086&DEV_2681&CC_0106.DeviceDesc = "Intel® ESB2 SATA AHCI Controller" PCI\VEN_8086&DEV_27C1&CC_0106.DeviceDesc = "Intel® ICH7R/DH SATA AHCI Controller" PCI\VEN_8086&DEV_27C5&CC_0106.DeviceDesc = "Intel® ICH7M/MDH SATA AHCI Controller" PCI\VEN_8086&DEV_2821&CC_0106.DeviceDesc = "Intel® ICH8R/DH/DO SATA AHCI Controller" PCI\VEN_8086&DEV_2824&CC_0106.DeviceDesc = "Intel® ICH8 SATA AHCI Controller" PCI\VEN_8086&DEV_2829&CC_0106.DeviceDesc = "Intel® ICH8M-E/M SATA AHCI Controller" PCI\VEN_8086&DEV_2922&CC_0106.DeviceDesc = "Intel® ICH9R/DO/DH SATA AHCI Controller" PCI\VEN_8086&DEV_2929&CC_0106.DeviceDesc = "Intel® ICH9M-E/M SATA AHCI Controller" PCI\VEN_8086&DEV_3A22&CC_0106.DeviceDesc = "Intel® ICH10R SATA AHCI Controller" So your ICH8x 8086:2820 is not defined even by Intel! I will try to find out what this one is. UPDATE: From Intel Chipset inf file PCI\VEN_8086&DEV_2820.DeviceDesc="Intel® ICH8 4 port Serial ATA Storage Controller - 2820" PCI\VEN_8086&DEV_2825.DeviceDesc="Intel® ICH8 2 port Serial ATA Storage Controller - 2825" PCI\VEN_8086&DEV_2828.DeviceDesc="Intel® ICH8M 3 port Serial ATA Storage Controller - 2828" PCI\VEN_8086&DEV_2850.DeviceDesc="Intel® ICH8M Ultra ATA Storage Controllers - 2850" 8086:2820 is SATA IDE Interface from what I can gather. It is not a AHCI Controller. Are you sure your Intel Ports are in AHCI Mode? Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-806460 Share on other sites More sharing options...
blackite7 Posted July 4, 2008 Share Posted July 4, 2008 8086:2820 is SATA IDE Interface from what I can gather. It is not a AHCI Controller. Are you sure your Intel Ports are in AHCI Mode? Not really. Is there a separate setting for ich8 to be set to AHCI mode on my mobo? I'll see when I get home today. Thnx Gujal! Link to comment https://www.insanelymac.com/forum/topic/108479-solution-unknown-ahci-orange-disk-icons-in-1052-to-1056-for-intel-and-jmicron/#findComment-806627 Share on other sites More sharing options...
