#1
LinearBurn

LinearBurn

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Location:Oklahoma USA

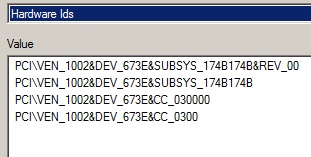

Im looking for dumps of your ATI Bios and the Hardware ID value for your card a example of what i want is mine is a ATI Radion 5750 1.0g dd5 my bios dump is named 1002_68be.bin my Hardware ID is 0x68BE1002


PowerColor Go! Green AX5750 1GBD5-NS3DH Radeon HD 5750 1GB
Please post in you reply the manfacture - model - bios dump - and hex value


Thanks BURN

I plan to make a universel kext set with support for all hd cards and will also post a master list of hardware ids and bioses later

Bios Dumps can be maid using GPUZ in windows

Attached Files



#2
LinearBurn

LinearBurn

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Location:Oklahoma USA
I got these so far no bios's tho

HD2k
1002_94C1 2400PRO ,XT
1002_94C3 2400PRO/2400LE/2350series/3410/
1002_9400 2900 PRO ,XT
1002_9589 2600pro/3610/3600series/
1002_9588 2600xt/
1002_94C7 2350/
1002_958A 2600x2/
1002_9405 2900GT/
1002_9400 2900xt/
1002_94C9 2400M/
1002_94C8 2400mXT/


HD3K

1002_9581 3600/2600M
1002_9501 3690/3800
1002_9505 3690/3850/3800/4730/4750/4730/4750/
1002_9583 3600/2600MXT/
1002_9591 3600/3650M/
1002_9598 3730/3750/VT2600/AIW/3600/4570/4580/4610
1002_95C0 3550/3570/3400/4250
1002_95C5 3450/
1002_9616 3000/
1002_9611 3100/
1002_9610 3200/
1002_9614 3300/
1002_95C5 3400/4230/4250
1002_9507 3830/
1002_9513 3850X2/
1002_950F 3870X2/
1002_95C4 3400M/
1002_95C2 3430M/
1002_9593 3670M/
1002_9504 3850M/
1002_9506 3850X2M/
1002_9508 3870M
1002_9509 3870X2M/
1002_9613 3100M
1002_9612 3200M

HD4K

1002_9552 4300/4500/VT4350
1002_944A 4800/
1002_954F 4550/4570
1002_9555 4550/4300M/4500M
1002_9498 4650/4670/4700/4720
1002_944A 4800/
1002_944C 4830/
1002_9442 4850/
1002_9440 4870/
1002_9441 4870X2/
1002_9443 4850X2/
1002_9540 4590/
1002_9490 4710/
1002_944E 4810/4720
1002_954F 4570/
1002_94B3 4770/
1002_94B5 4770/
1002_9460 4800/
1002_6462 4800/
1002_9712 4200/
1002_9552 4300M/
1002_9553 4500/5100
1002_9480 4650M
1002_9488 4670
1002_94A0 4830m
1002_94A1 4860M
1002_944A 4850M
1002_945A 4870M


HD5K

1002_68E1 5400/5400M/5750
1002_68F9 5490/5530/5470
1002_68DA 5630
1002_68D8 5690/5730
1002_68D9 5630
1002_68B8 5700
1002_6898 5800
1002_6899 5800
1002_689E 5800
1002_689C 5900
1002_68C7 5570M
1002_68A1 5800M


HD6K
1002_68B8
1002 68BE 6750
1002_9802
1002_9803
1002_9804
1002_9805
1002_6738
1002_6739
1002_6719
1002_671D
1002_6720 6900M
1002_68A8 6800M
1002_6740 6700M
1002_6742 6625M
1002_68C0 6570M/5700M
1002_68C1 6500M/5600M/5700M
1002_6761 6430M
1002_6760 6400M
1002_68E4 6300M
1002_68E5 6300M
1002_9803 6300M


AMDFIRE
1002_9519 9170/ 3K
1002_9452 9250/ 4K
1002_688D 9350/ 5K?
1002_688C 9370/ 5K?

#3
LinearBurn

LinearBurn

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Location:Oklahoma USA
Wow not one reply
................................................. HWID.........
To convert this to your card 0x 68BE 1002

0x68BE1002


(model , Generation of chip , Hardware ID)

Product ASIC Table
{“AMD Radeon HD 6700 Series, Evergreen, 68B8 “}
{“ATI All-in-Wonder HD, RV630, 9598 “}
{“ATI Radeon HD 2400 Pro, RV610, 94C1 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 XT, RV610, 94C1 “}
{“ATI Radeon HD 2900 PRO, R600, 9400 “}
{“ATI Radeon HD 2900 XT, R600, 9400 “}
{“ATI Radeon HD 3600 Series, M76, 9581 “}
{“ATI Radeon HD 3690, RV630, 9501 “}
{“ATI Radeon HD 3690 , RV630, 9505 “}
{“ATI Radeon HD 3850, RV630, 9505 “}
{“ATI Radeon HD 3870, RV630, 9501 “}
{“ATI Radeon HD 2350 Series, RV610, 94C3 “}
{“ATI Radeon HD 2400, RV610, 94C3 “}
{“ATI Radeon HD 2400 Pro , RV610, 94C1 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 XT , RV610, 94C1 “}
{“ATI Radeon HD 4570, RV630, 9598 “}
{“ATI Radeon HD 4730, RV630, 9505 “}
{“ATI Radeon HD 4800 Series, M98, 944A “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 XT , RV610, 94C1 “}8
{“ATI Radeon HD 4300/4500 Series, M92, 9552 “}
{“ATI Radeon HD 4300/4500 Series , M92, 9552 “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“ATI Radeon HDG 4670, R710, 9498 “}
{“ATI Radeon HD 2400 , RV610, 94C3 “}
{“ATI Radeon HD 2400 , RV610, 94C3 “}
{“ATI Radeon HD 2400 , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 XT , RV610, 94C1 “}
{“ATI Radeon HD 2400 XT , RV610, 94C1 “}
{“ATI Radeon HD 2400 XT , RV610, 94C1 “}
{“ATI Radeon HD 2400 XT , RV610, 94C1 “}
{“ATI Radeon HD 3610, RV630, 9589 “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“ATI Radeon HD 2350 Series , RV610, 94C3 “}
{“ATI Radeon HD 2400 LE, RV610, 94C3 “}
{“ATI Radeon HD 3450, RV610, 95C5 “}
{“ATI Radeon HD 3550, RV610, 95C0 “}
{“ATI Radeon HD 3550 , RV610, 95C5 “}
{“ATI Radeon HD 3600 Series , M76, 9591 “}
{“ATI Radeon HD 3600 Series , M76, 9581 “}
{“ATI Radeon HD 3600 Series , M76, 9583 “}
{“ATI Radeon HD 3730, RV630, 9598 “}
{“ATI Radeon HD 3850 , RV630, 9505 “}
{“ATI Radeon HD 4230, RV610, 95C5 “}
{“ATI Radeon HD 4230 , RV610, 95C5 “}
{“ATI Radeon HD 4250, RV610, 95C5 “}
{“ATI Radeon HD 4250 , RV610, 95C5 “}
{“ATI Radeon HD 4300/4500 Series , M92, 9552 “}
{“ATI Radeon HD 4570 , RV630, 9598 “}
{“ATI Radeon HD 4580, RV630, 9598 “}
{“ATI Radeon HD 4730 , RV630, 9505 “}
{“ATI Radeon HD 4730 , RV630, 9505 “}
{“ATI Radeon HD 4750, RV630, 9505 “}
{“ATI Radeon HD 4750 , RV630, 9505 “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“AMD Radeon HD 6750, Evergreen, 68BE “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 3610 , RV630, 9589 “}
{“ATI Radeon HD 4550, R710, 954F “}
{“ATI Radeon HD 4550 , R710, 954F “}
{“ATI Radeon HD 4550 , M92, 9555 “}
{“ATI Radeon HD 4650, R710, 9498 “}
{“ATI Radeon HD 4650 , R710, 9498 “}
{“ATI Radeon HD 4650 , R710, 9498 “}
{“ATI Radeon HD 4670, R710, 9498 “}
{“ATI Radeon HD 4670 , R710, 9498 “}
{“ATI Radeon HD 4770, R740, 94B3 “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“ATI Radeon HD 4830, R770, 944C “}
{“ATI Radeon HD 4830 , R770, 944C “}
{“ATI Radeon HD 4850, R770, 9442 “}
{“ATI Radeon HD 4850 , R770, 9442 “}
{“ATI Radeon HD 4870, R770, 9440 “}
{“ATI Radeon HD 4870 , R770, 9440 “}
{“ATI Radeon HD 4870 , R770, 9440 “}
{“ATI Radeon HD 4870 , R770, 9440 “}
{“ATI Radeon HD 4870 X2, R700, 9441 “}
{“ATI Radeon HD4300/HD4500 series, M92, 9555 “}
{“AMD Radeon HD 6750 , Evergreen, 68BE “}
{“ATI Radeon HD 2350 Series , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 2400 PRO , RV610, 94C3 “}
{“ATI Radeon HD 3570, RV610, 95C0 “}
{“ATI Radeon HD 3600 Series , RV630, 9589 “}
{“ATI Radeon HD 4250 , RV610, 95C5 “}
{“ATI Radeon HD 4250 , RV610, 95C0 “}
{“ATI Radeon HD 4250 , RV610, 95C5 “}
{“ATI Radeon HD 4300/4500 Series , M92, 9552 “}
{“ATI Radeon HD 4300/4500 Series , M92, 9553 “}
{“ATI Radeon HD 4450, R710, 954F “}
{“ATI Radeon HD 4520, R710, 954F “}
{“ATI Radeon HD 4570 , RV630, 9598 “}
{“ATI Radeon HD 4580 , RV630, 9598 “}
{“ATI Radeon HD 4590, R710, 9540 “}
{“ATI Radeon HD 4610, RV630, 9598 “}
{“ATI Radeon HD 4710, R710, 9490 “}
{“ATI Radeon HD 4730 , RV630, 9505 “}
{“ATI Radeon HD 4750 , RV630, 9505 “}
{“ATI Radeon HD 4750 , RV630, 9501 “}
{“ATI Radeon HD 4750 , RV630, 9505 “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“ATI Radeon HD 4810 Series, R740, 944E “}
{“ATI Radeon HD 4810 series , R740, 944E “}
{“ATI Radeon HD 5470, Evergreen, 68F9 “}
{“ATI Radeon HD 5490, Evergreen, 68F9 “}
{“ATI Radeon HD 5530, Evergreen, 68F9 “}
{“ATI Radeon HD 5630, Evergreen, 68DA “}
{“ATI Radeon HD 5690, Evergreen, 68D8 “}
{“ATI Radeon HD 5730, Evergreen, 68D8 “}
{“ATI Radeon HD4300/HD4500 series , M92, 9555 “}
{“ATI Radeon HD 2350 Series , RV610, 94C3 “}
{“ATI Radeon HD 2400 LE , RV610, 94C3 “}
{“ATI Radeon HD 3600 Series , RV630, 9589 “}
{“ATI Radeon HD 3690 , RV630, 9501 “}
{“ATI Radeon HD 3690 , RV630, 9505 “}
{“ATI Radeon HD 4250 , RV610, 95C5 “}
{“ATI Radeon HD 4300/4500 Series , M92, 9552 “}
{“ATI Radeon HD 4450 , R710, 954F “}
{“ATI Radeon HD 4520 , R710, 954F “}
{“ATI Radeon HD 4590 , R710, 9540 “}
{“ATI Radeon HD 4610 , RV630, 9598 “}
{“ATI Radeon HD 4700, R710, 9498 “}
{“ATI Radeon HD 4710 , R730, 9490 “}
{“ATI Radeon HD 4720, R730, 9498 “}
{“ATI Radeon HD 4730 Series, R740, 944E “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“ATI Radeon HD 4810 Series , R740, 944E “}
{“ATI Radeon HD 4820, R740, 944E “}
{“ATI Radeon HD 5470 , Evergreen, 68F9 “}
{“ATI Radeon HD 5490 , Evergreen, 68F9 “}
{“ATI Radeon HD 5530 , Evergreen, 68F9 “}
{“ATI Radeon HD 5630 , Evergreen, 68DA “}
{“ATI Radeon HD 5730 , Evergreen, 68D8 “}
{“ATI Radeon HD 2400 , RV610, 94C3 “}
{“ATI Radeon HD 4230 , RV610, 95C5 “}
{“ATI Radeon HD 4300/4500 Series , M92, 9552 “}
{“ATI Radeon HD 4450 , R710, 954F “}
{“ATI Radeon HD 4570 , RV630, 9598 “}
{“ATI Radeon HD 4580 , RV630, 9598 “}
{“ATI Radeon HD 4710 , R710, 9490 “}
{“ATI Radeon HD 4750 , RV630, 9505 “}
{“ATI Radeon HD 4800 Series , M98, 944A “}
{“ATI Radeon HD 5470 , Evergreen, 68F9 “}
{“ATI Radeon HD 5470 , Evergreen, 68F9 “}
{“ATI Radeon HD 5490 , Evergreen, 68F9 “}
{“ATI Radeon HD 5630 , Evergreen, 68DA “}
{“ATI Radeon HD 5630 , Evergreen, 68D9 “}
{“ATI Radeon HD 5690 , Evergreen, 68D8 “}
{“ATI Radeon HD 5730 , Evergreen, 68D8 “}
{“ATI Radeon HD3750, RV630, 9598 “}
{“AMD FireStream 9170, RV630, 9519“}
{“AMD FireStream 9250, R770, 9452“}
{“AMD FireStream 9270, R770, 9450“}
{“AMD FireStream 9350, Evergreen, 688D“}
{“AMD Radeon HD 6250 Graphics, Wrestler, 9804“}
{“AMD Radeon HD 6250 Graphics , Wrestler, 9805“}
{“AMD Radeon HD 6310 Graphics, Wrestler, 9802“}
{“AMD Radeon HD 6310 Graphics , Wrestler, 9803“}
{“AMD Radeon HD 6800 Series, NI, 6738“}
{“AMD Radeon HD 6800 Series , NI, 6739“}
{“AMD Radeon HD 6900 Series, NICayman, 6718“}
{“AMD Radeon HD 6900 Series , NICayman, 6719“}
{“ATI Radeon 3000 Graphics, RS780, 9616“}
{“ATI Radeon 3100 Graphics, RS780, 9611“}
{“ATI Radeon HD 2350, RV610, 94C7“}
{“ATI Radeon HD 2400 Series, RV610, 94C3“}
{“ATI Radeon HD 2400 Series , RV610, 94C1“}
{“ATI Radeon HD 2400 Series , RV610, 94CC“}
{“ATI Radeon HD 2600 PRO, RV630, 9589“}
{“ATI Radeon HD 2600 X2 Series, RV630, 958A“}
{“ATI Radeon HD 2600 XT, RV630, 9588“}
{“ATI Radeon HD 2900 GT, R600, 9405“}
{“ATI Radeon HD 2900 XT , R600, 9400“}
{“ATI Radeon HD 3200 Graphics, RS780, 9610“}
{“ATI Radeon HD 3300 Graphics, RS780, 9614“}
{“ATI Radeon HD 3400 Series, RV610, 95C0“}
{“ATI Radeon HD 3400 Series , RV610, 95C5“}
{“ATI Radeon HD 3600 Series , RV630, 9598“}
{“ATI Radeon HD 3800 Series, RV630, 9501“}
{“ATI Radeon HD 3800 Series , RV630, 9505“}
{“ATI Radeon HD 3830, RV630, 9507“}
{“ATI Radeon HD 3850 X2, RV630, 9513“}
{“ATI Radeon HD 3870 X2, RV630, 950F“}
{“ATI Radeon HD 4200, RS880, 9710“}
{“ATI Radeon HD 4250 , RS880, 9715“}
{“ATI Radeon HD 4290, RS880, 9714“}
{“ATI Radeon HD 4300/4500 Series , R710, 954F“}
{“ATI Radeon HD 4550 , R710, 9540“}
{“ATI Radeon HD 4600 Series, R710, 9490“}
{“ATI Radeon HD 4600 Series , R710, 9498“}
{“ATI Radeon HD 4700 Series, R740, 944E“}
{“ATI Radeon HD 4700 Series , R740, 944E“}
{“ATI Radeon HD 4700 Series , R730, 94B4“}
{“ATI Radeon HD 4770 , R740, 94B3“}
{“ATI Radeon HD 4770 , R740, 94B5“}
{“ATI Radeon HD 4800 Series , R770, 9440“}
{“ATI Radeon HD 4800 Series , R770, 9442“}
{“ATI Radeon HD 4800 Series , R770, 944C“}
{“ATI Radeon HD 4800 Series , R770, 9460“}
{“ATI Radeon HD 4800 Series , R770, 9462“}
{“ATI Radeon HD 4850 X2, R700, 9443“}
{“ATI Radeon HD 4870 X2 , R700, 9441“}
{“ATI Radeon HD 5450, Evergreen, 68F9“}
{“ATI Radeon HD 5500 Series, Evergreen, 68DA“}
{“ATI Radeon HD 5570, Evergreen, 68D9“}
{“ATI Radeon HD 5600/5700, Evergreen, 68B9“}
{“ATI Radeon HD 5670, Evergreen, 68D8“}
{“ATI Radeon HD 5700 Series, Evergreen, 68B8“}
{“ATI Radeon HD 5700 Series , Evergreen, 68BE“}
{“ATI Radeon HD 5800 Series, Evergreen, 6898“}
{“ATI Radeon HD 5800 Series , Evergreen, 6899“}
{“ATI Radeon HD 5800 Series , Evergreen, 689E“}
{“ATI Radeon HD 5900 Series, EvergreenH, 689C“}

#4
rafirafi

rafirafi

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
Perhaps I didn't understand but why don't you use this site ?

http://www.techpowerup.com/vgabios/

#5
LinearBurn

LinearBurn

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Location:Oklahoma USA

Perhaps I didn't understand but why don't you use this site ?

http://www.techpowerup.com/vgabios/


Because im collecting a master list im planing on making a app to configure the cards and a universal kext for all ATI/AMD HD cards

Thanks for the reply tho

Because im collecting a master list im planing on making a app to configure the cards and a universal kext for all ATI/AMD HD cards

Thanks for the reply tho



Currently the kext supports a handfull of ATI HD cards that are apple aproved and if you want to add your own card you need to insert you hdw Id in to the kext im hopeing to make a one master kext that has all the ati hardware id in it so its asy as updateing a kext

#6
rafirafi

rafirafi

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
"One big legacy text to rule them all, one big legacy text to find them,
One big legacy text to bring them all and in the darkness bind them."


So this this the plan?

#7
LinearBurn

LinearBurn

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Location:Oklahoma USA

"One big legacy text to rule them all, one big legacy text to find them,
One big legacy text to bring them all and in the darkness bind them."


So this this the plan?



Yepers


well not one there is a total of 6 kexts that will need to be updated with id's got a master then the individual family of card controler kext this will add native mobile support for the cards also. If you havent noticed looking at the cards generation just because you card is labled hd 4ksomthing it may actualy be a 2k somthing thats rebranded so injecting the ID's in the wrong place can have glitichy problems hence monitors not waking up or just {censored} performance

#8
LinearBurn

LinearBurn

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Location:Oklahoma USA
When done right you end up with working graphics and Opengl

Renderer: ATI Radeon Juniper LE Prototype OpenGL Engine
Vendor: ATI Technologies Inc.
Memory: 1024 MB
Version: 2.1 ATI-1.6.26
Shading language version: 1.20


Max texture size: 16384 x 16384
Max texture coordinates: 8
Max vertex texture image units: 16
Max texture image units: 16
Max geometry texture units: 16
Max anisotropic filtering value: 16
Max number of light sources: 8
Max viewport size: 16384 x 16384
Max uniform vertex components: 4096
Max uniform fragment components: 4096
Max geometry uniform components: 4096
Max varying floats: 64
Max samples: 0
Max draw buffers: 8


Extensions: 120

GL_APPLE_aux_depth_stencil


#9
ralph9994

ralph9994

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
Well i have my 6950/6970 bios here. but its not supported yet.

#10
gaboalpha

gaboalpha

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts

Im looking for dumps of your ATI Bios and the Hardware ID value for your card a example of what i want is mine is a ATI Radion 5750 1.0g dd5 my bios dump is named 1002_68be.bin my Hardware ID is 0x68BE1002


PowerColor Go! Green AX5750 1GBD5-NS3DH Radeon HD 5750 1GB
Please post in you reply the manfacture - model - bios dump - and hex value


Thanks BURN

I plan to make a universel kext set with support for all hd cards and will also post a master list of hardware ids and bioses later

Bios Dumps can be maid using GPUZ in windows


Hi LinearBurn

I'm the owner of a Compaq Presario CQ62-225nr, with and AMD Athlon II P320 Processor 2.1Ghz.
As a ATI Radeon HD owner, I have been suffering a long time hoping for a kext for my card to work, and it's nice to see such a good initiative from some coder that really wants to help.

Chipset: AMD RS880 (also known as M880g) with ATI Mobility Raden HD 4250
Model: Integrated ATI Radeon HD 4250
Bios dump: Tried extracting the bios using GPU-Z both under Windows 7, and Windows XP, and got the message Bios reading not supported on this device. (Perhaps due to being an integrated graphis card?)
Hex Value: 0x9712

If there is a way to dump my bios or get any other kind of useful information about my card I am willing to cooperate on every aspect :D .

Thanks for giving us a hope!

Gabo.

#11
Cloudane

Cloudane

    InsanelyMac Protégé

  • Members
  • Pip
  • 41 posts
Given the context of the site, a way to look this stuff up on OS X might help.

Step by step instructions wouldn't hurt either.. I'm sure most here could figure out what you're asking and how to do it, but making it easier for people and with the benefits of helping out in plain English might garner a few more respnoses :(

#12
gombi

gombi

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

Because im collecting a master list im planing on making a app to configure the cards and a universal kext for all ATI/AMD HD cards

Thanks for the reply tho




Currently the kext supports a handfull of ATI HD cards that are apple aproved and if you want to add your own card you need to insert you hdw Id in to the kext im hopeing to make a one master kext that has all the ati hardware id in it so its asy as updateing a kext



After your answer I assume you even did not bother to visit http://www.techpowerup.com/vgabios/
On this site you can get all original BIOS dumps for probably all Radeon HD cards from different vendors. Every bios dump has a detail information visible on site. For example for ASUS EAH6850 DIRECT CU 2DIS V2 you can see the folowing details:
GPU Device Id: 0x1002 0x6739 113-AC92700-110 6739.13.9.0.3.AS01 © 1988-2010, AMD Technologies Inc. ATOMBIOSBK-ATI VER013.009.000.003.000000 AC92700.004 ****************************************************************************
and more information regarding voltage and core speed for different profiles
It means you can collect all possible information just from this site. You have bios files with card ID and manufacturer description. Of course having only BIOS file you can get its Hardware ID just reading that bios with RBE tool ( under windows). Posted Image

#13
bbeepp

bbeepp

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 156 posts
  • Gender:Male
  • Location:Poland
Great idea LinearBurn :( Are you modyfing apple's kext's or write own ones?

#14
SoundBlaster

SoundBlaster

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
I have intergrity HD 4270 (RS880; Vendor 0x1002, Device ID 0x9712) - how can I help?

#15
biciolino

biciolino

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male
  • Location:Italy
Sapphire ATi Radeon HD4870/512

Here's my BIOS dump: http://www.mediafire...dwwkuh2kd1aet4h

I use no injection whatsoever, with latest 10.6.7 1.6.34.13 Drivers. I am aware that some applications such as DVD Player or Geekbench crash at launch, whith no active injection but, when I want even those 3 or 4 applications to work, I simply enable Chameleon RC5 embedded injection by adding GraphicsEnabler=y to my c.A.b.p. In this specific case, when i copied and pasted "About this Mac" output, it was enabled.


ATI Radeon HD 4800 Series:

			Modello Chipset:	ATI Radeon HD 4800 Series
			Tipo:	GPU
			Bus:	PCIe
			Larghezza Lane PCIe:	x16
			VRAM (totale):	512 MB
			Fornitore:	ATI (0x1002)
			ID dispositivo:	0x9440
			ID revisione:	0x0000
			Monitor:
		  HP w2207:
			Risoluzione:	1680 x 1050 @ 60 Hz
			Profondità pixel:	Colore 32 bit (ARGB8888)
			Monitor principale:	Sì
			Mirror:	Spento
			Online:	Sì
			Rotazione:	Supportata
		  Mostra connettore:
			Stato:	Nessun monitor collegato

Keep up the good work.

Biciolino



#16
rudbull

rudbull

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts
i have Ati Mobility HD3650

Device ID 9591
Vendor 1002

Subsystem ID 1633
Subsystem Vendor ID 1043

BIOS Version 010.085.000.001
BIOS Part Number BK-ATI VER010.085.000.001.000000
BIOS Date 2008/02/27

#17
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 181 posts
  • Gender:Male
  • Location:Bangladesh
Good Idea !
I have tried all of your beta released kexts for my graphics card, but always got black screen. I hope finally you will made it for me.

My card - ATI Mobility Radeon HD 550v
VRAM - 1024MB
Device&vendor ID. - 1002_9480
Subsystem ID. - 0447
Subsystem vendor ID. - 1028

I have attached my Bios Dumps for detailed information.
Thanks...

Attached Files



#18
X!N

X!N

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts
Add to the list...

XFX HD 4890 ZSFC (DUAL DVI) 1024MB VRAM DDR5

Heres the BIOS: (LINK)...

Attached File  GPUZ_xfx_hd4890.PNG   44.46KB   62 downloads

ATI Radeon HD 4800 Series:

   Chipset Model:	ATI Radeon HD 4800 Series
   Type:	GPU
   Bus:	PCIe
   PCIe Lane Width:	x16
   VRAM (Total):	1024 MB
   Vendor:	ATI (0x1002)
   Device ID:	0x9460
   Revision ID:	0x0000


#19
algarues

algarues

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
Thanks for your effort

I uploaded my dumps on your previous thread on ati native drivers

this is the link to my post with the files

http://www.insanelym...p;#entry1693088

#20
AlexandreMac

AlexandreMac

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
Hi LinearBurn...

Can help-me with my card ATI Mobility Radeon HD 5650

I m noob in the mac's...
I follow this topic...but only black screen.
http://www.insanelym...howtopic=250905

I use the mammuth kernel

thanks..

Sorry my english





0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

© 2014 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   PHP hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
