Intel HD 530 Monterey

[Alan Sojan]

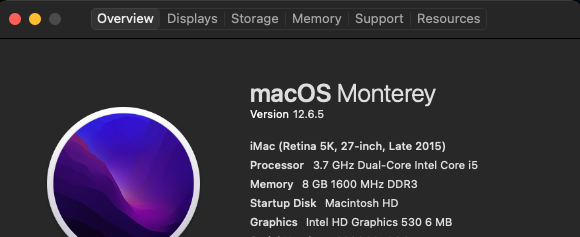

Hi, I successfully installed MacOS Monterey on my desktop but graphics acceleration isn't working. Could anyone help?



Specs: Dell Inspiron 3650

Intel Core i3-6100

8 GB RAM



EFI.zip

Edited April 12, 2023 by Alan Sojan

[Rocky12]

https://github.com/fuwaa/inspiron-3650-opencore

Try this

config.plist

Edited April 11, 2023 by Rocky12

[Rocky12]

https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md

[miliuco]

@Alan Sojan

Please put your specs in a signature in your user profile.

[Alan Sojan]

14 hours ago, Rocky12 said:

https://github.com/fuwaa/inspiron-3650-opencore

Try this

config.plist 39.3 kB · 4 downloads

Hi, thank you for the help but when I tried this my screen went into weird colours.

opencore-2023-04-12-000031.txt

[miliuco]

@Alan Sojan

There are errors related to config.plist. Maybe not related to your graphic issue. Upload here the config.plist file saying the version of the bootloader (opencore or clover) you are using.

[Alan Sojan]

56 minutes ago, miliuco said:

@Alan Sojan

There are errors related to config.plist. Maybe not related to your graphic issue. Upload here the config.plist file saying the version of the bootloader (opencore or clover) you are using.

Hi, I'm using opencore 0.8.4config.plist

[Alan Sojan]

1 minute ago, eSaF said:

Your Opencore is very much outdated I am afraid and I suspect your kexts also. In saying all that, that's possibly the cause of some of your problems.

To fully aid you, you should zip your EFI Folder and upload it here so it can be looked at and correct any errors within.

Hey, thank you for the reply. Is there any way to update the bootloader or would I have to start over again fresh?

EFI.zipThis is my EFI folder.

[Alan Sojan]

Thank you so much! I will try it now.

[miliuco]

@Alan Sojan

Get the EFI uploaded by @eSaF but I see that you don't have anything for the Intel HD 530 in config.plist >> DeviceProperties. Your iGPU needs code here to be well detected and installed.

Change @eSaF config.plist adding this in DeviceProperties:



	<key>DeviceProperties</key>
	<dict>
		<key>Add</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>AAPL,ig-platform-id</key>
				<data>AAASGQ==</data>
				<key>device-id</key>
				<data>GxkAAA==</data>
				<key>device_type</key>
				<string>VGA compatible controller</string>
				<key>enable-hdmi20</key>
				<data>AQAAAA==</data>
				<key>force-online</key>
				<data>AQAAAA==</data>
				<key>framebuffer-fbmem</key>
				<data>AACQAA==</data>
				<key>framebuffer-patch-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-stolenmem</key>
				<data>AAAwAQ==</data>
				<key>framebuffer-unifiedmem</key>
				<data>AAAAgA==</data>
				<key>hda-gfx</key>
				<string>onboard-1</string>
				<key>model</key>
				<string>Intel HD Graphics 530</string>
				<key>rps-control</key>
				<data>AQAAAA==</data>
			</dict>
		</dict>

It looks like this in the plist editor:





Try and comment.

[Alan Sojan]

Hi, I tried this but I'm stuck on this.

[Alan Sojan]



2 hours ago, miliuco said:

@Alan Sojan

Get the EFI uploaded by @eSaF but I see that you don't have anything for the Intel HD 530 in config.plist >> DeviceProperties. Your iGPU needs code here to be well detected and installed.

Change @eSaF config.plist adding this in DeviceProperties:



	<key>DeviceProperties</key>
	<dict>
		<key>Add</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>AAPL,ig-platform-id</key>
				<data>AAASGQ==</data>
				<key>device-id</key>
				<data>GxkAAA==</data>
				<key>device_type</key>
				<string>VGA compatible controller</string>
				<key>enable-hdmi20</key>
				<data>AQAAAA==</data>
				<key>force-online</key>
				<data>AQAAAA==</data>
				<key>framebuffer-fbmem</key>
				<data>AACQAA==</data>
				<key>framebuffer-patch-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-stolenmem</key>
				<data>AAAwAQ==</data>
				<key>framebuffer-unifiedmem</key>
				<data>AAAAgA==</data>
				<key>hda-gfx</key>
				<string>onboard-1</string>
				<key>model</key>
				<string>Intel HD Graphics 530</string>
				<key>rps-control</key>
				<data>AQAAAA==</data>
			</dict>
		</dict>

It looks like this in the plist editor:





Try and comment.







[miliuco]

@Alan Sojan



You can go step by step.

First, get your current EFI (it boots but iGPU is not properly installed) and add into config.plist the code for the iGPU, as I see in the pic you have uploaded in your last post. Your EFI + iGPU DeviceProperties. Nothing more.

Does the system boot?

Do you have graphic acceleration?

[Alan Sojan]

13 hours ago, eSaF said:

@Alan Sojan Ok, try this revised EFI and see.

PS - You'll have to put your ethernet kext in the kext folder and make an entry in the config.plist.

EFI.zip 4.09 MB · 1 download

Hey, I tried this but I'm stuck on the apple loading screen with no activity happening on the hard disk

13 hours ago, miliuco said:

@Alan Sojan



You can go step by step.

First, get your current EFI (it boots but iGPU is not properly installed) and add into config.plist the code for the iGPU, as I see in the pic you have uploaded in your last post. Your EFI + iGPU DeviceProperties. Nothing more.

Does the system boot?

Do you have graphic acceleration?

I forgot to mention that when I tried the EFI it was working fine but when I added the code for the iGPU it stays on this screen.



[Alan Sojan]

51 minutes ago, eSaF said:

OK - I have made a few more adjustments to the EFI Folder, DO NOT ADD ANYTHING TO IT, try it as it is, hopefully this will get you going in the right direction. Good luck.

EFI.zip 6.85 MB · 0 downloads

Okay, will try it now.

1 hour ago, eSaF said:

Are you clearing the NvRAM between each trial? That is very important.

I don't see any option to clear the NvRAM on this as usual. Is there another way to clear it?

[Alan Sojan]

I'm having this screen again.

[Alan Sojan]

Just now, eSaF said:

Ok - tell me this, in your very fist post with your original EFI attached, were you able to reach the desktop albeit with crappy graphics? I f that is the case, I can modify it to give you better results.

Yes I was, the only problem was the no graphics acceleration.

[Slice]

But why you recommended frame 19120000? This is desktop frame without LVDS connector!

Choose one of

0x191E0000 (mobile, 3 connectors, 56 MB)
0x19160000 (mobile, 3 connectors, 56 MB)
0x19260000 (mobile, 3 connectors, 56 MB)
0x19270000 (mobile, 3 connectors, 56 MB)
0x191B0000 (mobile, 3 connectors, 56 MB)
0x193B0000 (mobile, 3 connectors, 56 MB)

I had a success with 193B0000 having LVDS+HDMI+DP

[miliuco]

@Slice

But the Inspiron 3650 is a desktop. So I choose desktop framebuffer.

[aben]

If this is an AiO setup, then @Slice recommendation is correct, LVDS (and eDp) connectors are usually used to drive panels of laptops and AiO devices. OP should be using mobile connectors too, I think.

[Alan Sojan]

Hey, I tried it but there's still no graphics acceleration

[Alan Sojan]

1 hour ago, eSaF said:

I forgot to add your Graphics Properties in Device Properties to your Original EFI Folder so if that last one I sent you don't work, try this.

EFI.zip 4.87 MB · 2 downloads

[Alan Sojan]

3 minutes ago, eSaF said:

What is this in your last post above, did you get anything to work?

Yes it's booting, but there is still no graphics acceleration working

[Alan Sojan]

2 minutes ago, eSaF said:

Sorry man I am fresh out of ideas, hopefully someone else can offer a solution to fix the graphics problem.

Okay, however thank you so much for your help. Very grateful!

[miliuco]

@Alan Sojan



Working over the last EFI uploaded by @eSaF, replacing only config.plist, here you have 2 files, config1.plist and config2.plist.

Try first config1.plist, replacing the current config.plist (don't forget to rename config1.plist >> config.plist). Comment if it's working well.

If config1.plist fails, try config2.plist in the same way (replacing current config.plist and renaming config1.plist to config.plist).

• config1.plist has framebuffer for mobile Intel 530.
• config2.plist has framebuffer for NUC Intel 530.



Uploaded files deleted.

Edited April 14, 2023 by miliuco
