miliuco Posted April 19, 2023 Share Posted April 19, 2023 @deeveedee @Alan Sojan Maybe setting PlatformInfo >> Generic >> ProcessorType to 0 instead of 1541 so the processor is automatically detected by OpenCore? 2 Quote Link to comment Share on other sites More sharing options...
deeveedee Posted April 19, 2023 Share Posted April 19, 2023 @miliuco Good catch! 2 Quote Link to comment Share on other sites More sharing options...
eSaF Posted April 19, 2023 Share Posted April 19, 2023 1 hour ago, Alan Sojan said: Hi, the reason for this is because I installed macOS on an external SSD Ok understood, if or when you decide to connect it internally, it should automatically display as an internal drive. 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 18, 2023 Share Posted May 18, 2023 Hello, I used the EFI uploaded by the thread founder, everything seems to work for me except for one thing and that is the sound, the system does not even detect the sound card, I have a dell optiplex 7050 i5 6500 Intel HD 530, do you have any advice on how to make the sound work? Thank you Quote Link to comment Share on other sites More sharing options...
Rocky12 Posted May 18, 2023 Share Posted May 18, 2023 (edited) @Peckamal From my OptiHack 7050 Fully Working Audio +HD530 GPU DP1 DP2 HDMI macOS Ventura Version 13.4 Beta OpenCore-0.9.2 Edited May 18, 2023 by Rocky12 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 (edited) 6 hours ago, Rocky12 said: @Peckamal From my OptiHack 7050 Fully Working Audio +HD530 GPU DP1 DP2 HDMI macOS Ventura Version 13.4 Beta OpenCore-0.9.2 Hi, thanks for the quick reply, could you share your EFI? I'm new to this, the type of sound card is not shown either Thank you very much for your help Edited May 19, 2023 by Peckamal 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 This is the current situation of the sound card, maybe someone will figure out why it is not displayed, thank you very much 1 Quote Link to comment Share on other sites More sharing options...
Slice Posted May 19, 2023 Share Posted May 19, 2023 I afraid ALC3234 has non-standard interface. Hackintool can't show you device until it will work. Moreover it can't show audio device when it works with VoodooHDA. Try to get more information in Windows with AIDA64 program. 3 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 I also had such a sound card with my old laptop, I think there will be more such dell PCs, I will have to wait, someone with experience will contact me, and I think it belongs to the alc255 group 1 Quote Link to comment Share on other sites More sharing options...
RickiThaDragon Posted May 19, 2023 Share Posted May 19, 2023 The reason it is not displayed is that you need to put in the config plist the following info. The device-id (from what i see on your screenshot i assume that to be 54010000 (it looks like your using a DELL PC btw. So just add that along with your layout-id and you can also add the aapl slot-name, and other things if you like but the device-id will get it to show up and the layout id i have used 0x0B, 0x00, 0x00, 0x00 for 300 Series and 0x0D,0x00, 0x00, 0x00 for 100 series. To find your available CODECS FOR THE ALC3234 you can check here and there should be a list of usable Layout IDs, you have to try them one at a time until one works. I normally start at the beginning and work my way up till one works. https://github.com/acidanthera/AppleALC/wiki/Supported-codecs You may also require to have the HPET configured correctly as well, hope this helps 1 Quote Link to comment Share on other sites More sharing options...
RickiThaDragon Posted May 19, 2023 Share Posted May 19, 2023 36 minutes ago, Peckamal said: I also had such a sound card with my old laptop, I think there will be more such dell PCs, I will have to wait, someone with experience will contact me, and I think it belongs to the alc255 group Try layout id "11" or 0x0b,0x00,0x00,0x00 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 Thanks, I'll try and let you know 1 Quote Link to comment Share on other sites More sharing options...
eSaF Posted May 19, 2023 Share Posted May 19, 2023 21 minutes ago, Peckamal said: Thanks, I'll try and let you know I know this is quite obvious but have you checked that the Audio driver is in the Drivers folder, also in the config.plist and enabled? Can be easily overlooked and worth checking. 1 Quote Link to comment Share on other sites More sharing options...
miliuco Posted May 19, 2023 Share Posted May 19, 2023 @eSaF AudioDxe is for chime or any sound before macOS, @Peckamal issue seems to be related to the audio chipset on the motherboard, to work with AppleALC or VoodooHDA. 1 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 6 minutes ago, miliuco said: @eSaF AudioDxe je pro zvonění nebo jakýkoli zvuk před macOS,@Peckamal Zdá se, že problém souvisí s audio čipovou sadou na základní desce, aby fungoval s AppleALC nebo VoodooHDA. What is your recommendation, Thank you 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 50 minutes ago, miliuco said: @eSaF AudioDxe je pro zvonění nebo jakýkoli zvuk před macOS,@Peckamal Zdá se, že problém souvisí s audio čipovou sadou na základní desce, aby fungoval s AppleALC nebo VoodooHDA. I am sharing my EFI, maybe someone will figure it out, Thank you https://drive.google.com/file/d/1fYWYkwVfU7_CW6FoWNkh-XuBbzxK7HLV/view?usp=sharing 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 19, 2023 Share Posted May 19, 2023 1 hour ago, eSaF said: I know this is quite obvious but have you checked that the Audio driver is in the Drivers folder, also in the config.plist and enabled? Can be easily overlooked and worth checking. Yes it is there and I checked everything, I shared my EFI maybe someone will come up with it 1 Quote Link to comment Share on other sites More sharing options...
Rocky12 Posted May 19, 2023 Share Posted May 19, 2023 @Peckamal OptiHack7050 MT-OC 0.9.2 1960389703_OptiHack7050MT-OC0.9.2EFI.zip Quote Link to comment Share on other sites More sharing options...

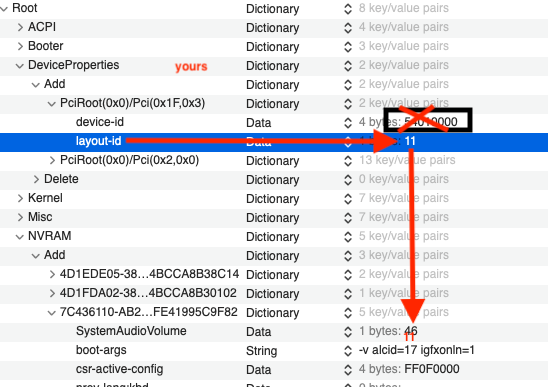

ichelash Posted May 19, 2023 Share Posted May 19, 2023 1 hour ago, Peckamal said: Yes it is there and I checked everything, I shared my EFI maybe someone will come up with it You have in Device Properties...layout_id=11 for audio, and in Boot-args you have alcid=17, choose one. 11 or 17. 2 Quote Link to comment Share on other sites More sharing options...
Rocky12 Posted May 19, 2023 Share Posted May 19, 2023 (edited) Edited May 19, 2023 by Rocky12 1 Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 20, 2023 Share Posted May 20, 2023 5 hours ago, Rocky12 said: Hello, Thank you, when I used your EFI, the pc did not start, I don't know what to do, with my EFI, the pc starts but there is no sound, I really don't know how to proceed, Thank you for any help Quote Link to comment Share on other sites More sharing options...
Peckamal Posted May 20, 2023 Share Posted May 20, 2023 6 hours ago, Rocky12 said: Hello, Thank you, when I used your EFI, the pc did not start, I don't know what to do, with my EFI, the pc starts but there is no sound, I really don't know how to proceed, For example, I don't have the DSDT.aml in EFI and I don't even know what to edit it in, Thank you for your help, I appreciate it you for any help Quote Link to comment Share on other sites More sharing options...

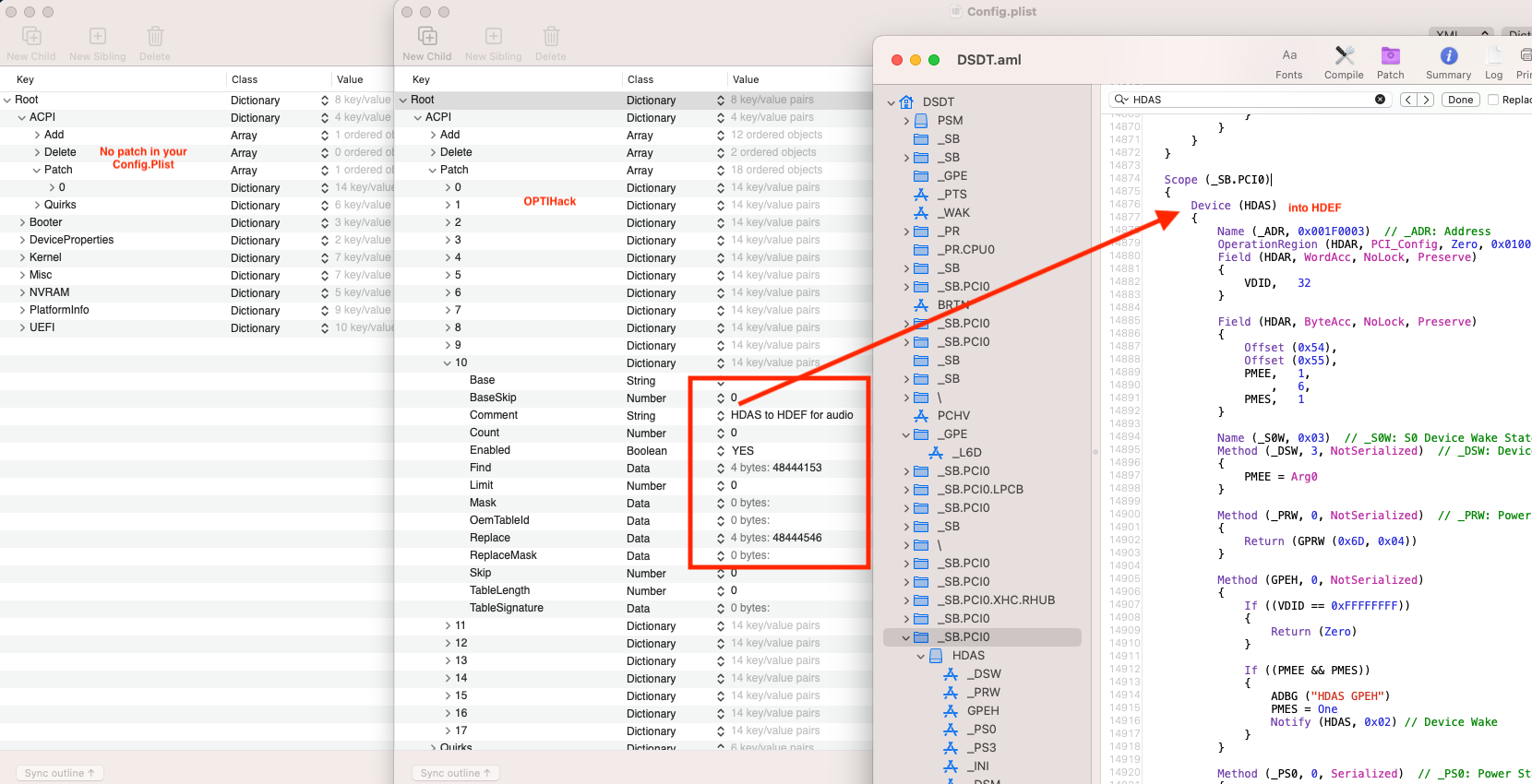

ichelash Posted May 20, 2023 Share Posted May 20, 2023 2 hours ago, Peckamal said: Hello, Thank you, when I used your EFI, the pc did not start, I don't know what to do, with my EFI, the pc starts but there is no sound, I really don't know how to proceed, For example, I don't have the DSDT.aml in EFI and I don't even know what to edit it in, Thank you for your help, I appreciate it you for any help In simple term what @Rocky12 is saying..is open config.plist of your EFI using Opencore configurator "i know you got one"..then on your ACPI-->Patch--> list patches Then on the drop down of the list of patches choose Rename HDAS TO HDEF as show in the image below 👇 1 Quote Link to comment Share on other sites More sharing options...

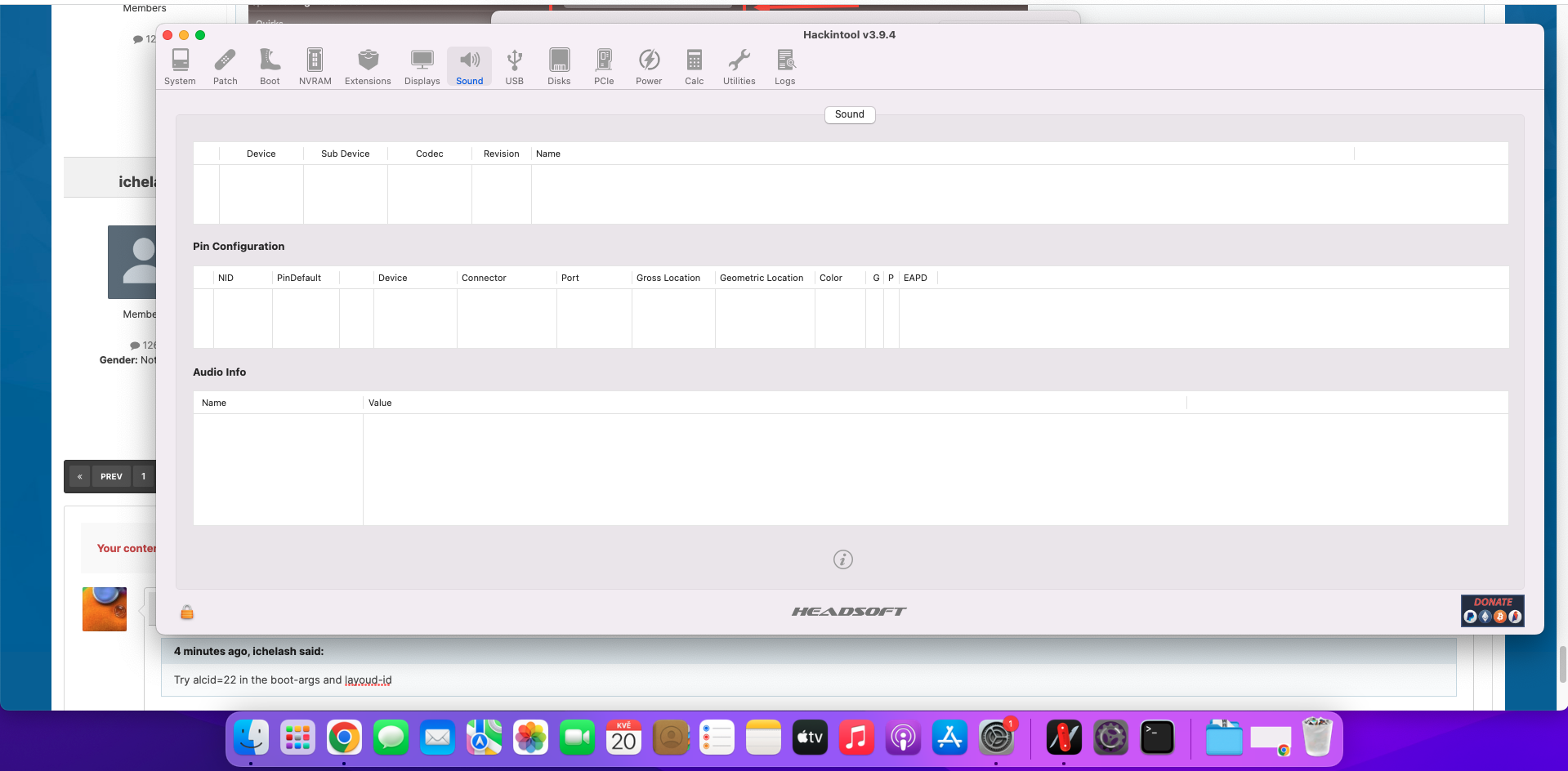

Peckamal Posted May 20, 2023 Share Posted May 20, 2023 5 hours ago, ichelash said: In simple term what @Rocky12 is saying..is open config.plist of your EFI using Opencore configurator "i know you got one"..then on your ACPI-->Patch--> list patches Then on the drop down of the list of patches choose Rename HDAS TO HDEF as show in the image below 👇 Hi, I followed the instructions but the audio is still nowhere 😞 Quote Link to comment Share on other sites More sharing options...
ichelash Posted May 20, 2023 Share Posted May 20, 2023 1 hour ago, Peckamal said: Hi, I followed the instructions but the audio is still nowhere 😞 Try alcid=22 in the boot-args and layoud-id Quote Link to comment Share on other sites More sharing options...
