Ellybz Posted October 21, 2019 Share Posted October 21, 2019 1 hour ago, nickdb93 said: Sorry for getting back to you so late after your reply. Unfortunately, FwRuntimeServices.efi and Emulated NVRAM just flat out doesn't seem to work on my board. I've poured over the PDF documentation, my BIOS options, posted EFI folders, and every Forum and Reddit post that I can find. It seems I'm stuck with Clover until there's better OpenCore support for my new MoBo (Gigabyte Designare Z390). I have no idea what you are talking about. GA Z390 is and should be very easy to implement with OC. This is your third post in this forum. How can you blame lack of support without posting your EFI, PCIe configuration or boot Logs. Maybe you are expecting someone to give you a magical answer? Stay positive my friend... Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694428 Share on other sites More sharing options...
justin Posted October 21, 2019 Share Posted October 21, 2019 5 hours ago, moozuki said: Just spent most of the day trying to solve this. Still get "unable to load kernel cache (0x0E) ". If I don't get help I will have to go back to Clover since OC will not boot the new OS. 1. Remove EFICheckDisabler.kext and it's item in config.plist, why the heck did you use that kext. 2. set DisableVariableWrite=YES, if your motherboard does not have a HARDWARE NVRAM. you need to check that by your self. 3. notes for SSDT-PLUG.aml, is your CPU at _PR_.CPU0 or _SB_.PR00, check that with your DSDT. 4. if you can turn off CFG LOCK in your BIOS, then set AppleCpuPmCfgLock=NO, AppleXcpmCfgLock=NO 5. you set ScanPolicy=1117955, that's mess, it will not scan your NVME drive if you have one, set it to 0 for god sake. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694432 Share on other sites More sharing options...
justin Posted October 21, 2019 Share Posted October 21, 2019 3 hours ago, SionicIon said: Hmm, I could try again, but it seemed to happen at least 5 times and that's when I thought it was in a loop. the first time boot from USB, choose Install macOS xxxx, after that, it will reboot, you will see a new item in boot menu named macOS Installer, choose that for the rest of reboots, until it disappear, then you can boot into your newly installed by selecting the volume name, is this clear to you? 2 hours ago, nickdb93 said: Sorry for getting back to you so late after your reply. Unfortunately, FwRuntimeServices.efi and Emulated NVRAM just flat out doesn't seem to work on my board. I've poured over the PDF documentation, my BIOS options, posted EFI folders, and every Forum and Reddit post that I can find. It seems I'm stuck with Clover until there's better OpenCore support for my new MoBo (Gigabyte Designare Z390). First of all, Z390 does not have a Working NVRAM, you need to set DisableVariableWrite=YES to make it work. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694434 Share on other sites More sharing options...

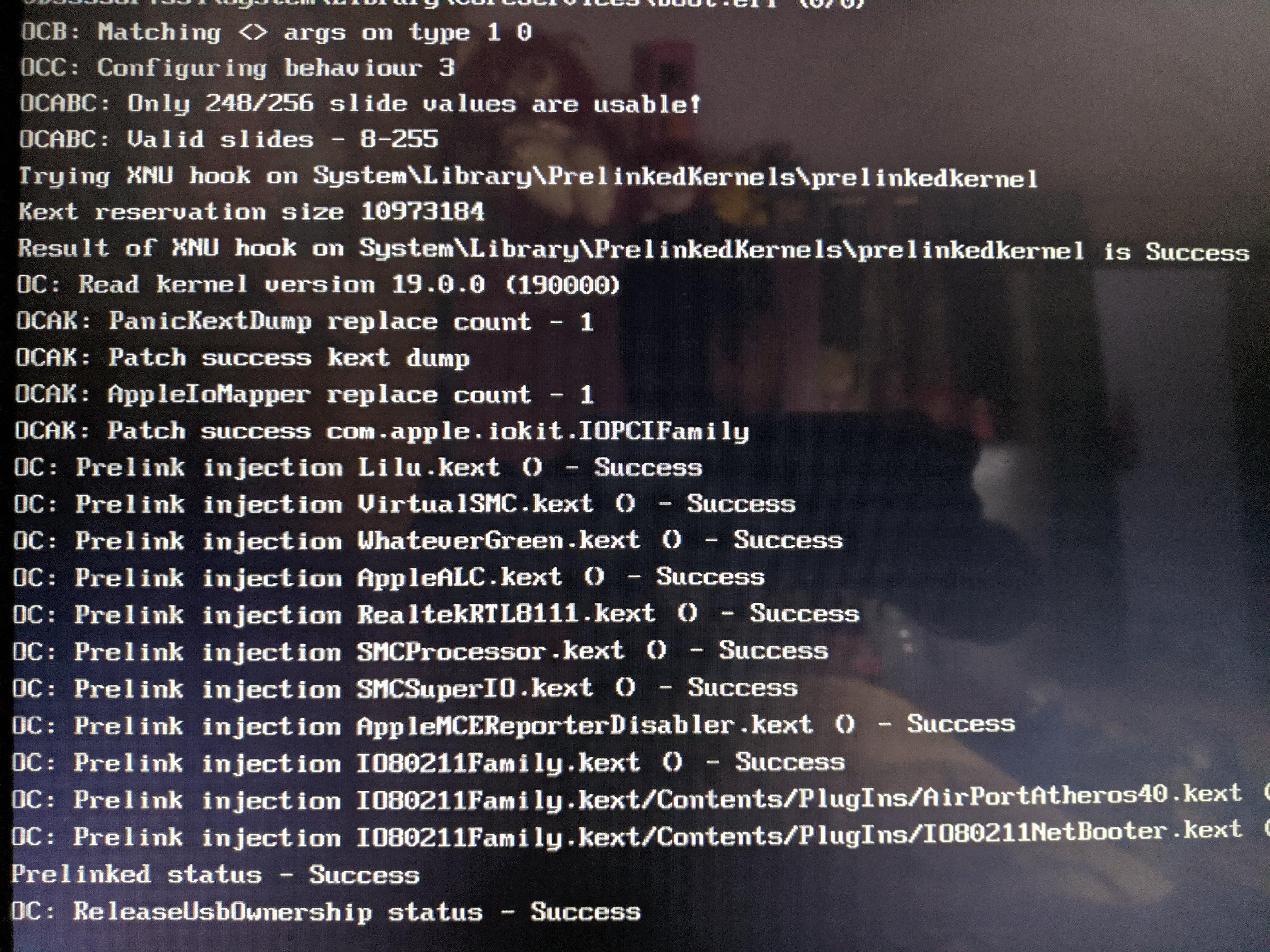

navmessier63 Posted October 21, 2019 Share Posted October 21, 2019 Hi, trying to move my old build from clover to opencore. But opencore just freeze "Prelinked status - Success" nothing happened after that, the Same machine is booting Catalina just fine with clover. Attached screenshot of last error, my config.plist, last opencore boot log and EFI directory. Need help in diagnosing what I am doing wrong. config.plist EFI.zip opencore-2019-10-21-074411.txt Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694442 Share on other sites More sharing options...
mhaeuser Posted October 21, 2019 Share Posted October 21, 2019 @Mihoko Okayami Timeout is disabled, so what do you expect to happen? 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694453 Share on other sites More sharing options...
NorthAmTrans Posted October 21, 2019 Share Posted October 21, 2019 40 minutes ago, Mihoko Okayami said: @Download-Fritz Ah, I probably misunderstood the documentation then: x I want to start automatically on the disk configured in the MacOS control panel, without having to choose at OpenCore startup. So if I understand correctly, there is still need of a timeout of 1s ? Sorry for my very low English level I use timeout 1 myself. Gets the job done. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694460 Share on other sites More sharing options...
Andrey1970 Posted October 21, 2019 Share Posted October 21, 2019 49 minutes ago, Mihoko Okayami said: @Download-Fritz Ah, I probably misunderstood the documentation then: x I want to start automatically on the disk configured in the MacOS control panel, without having to choose at OpenCore startup. So if I understand correctly, there is still need of a timeout of 1s ? Sorry for my very low English level Set any value, but only not zero. It can do to you it is useful therefore set 5-10 Use ShowPicker=No that loading was without waiting. 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694462 Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 OpenCore 0.5.2 is booting normally into macOS Catalina and Windows 10 in HP Elitebook 820 G3 5 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694465 Share on other sites More sharing options...
navmessier63 Posted October 21, 2019 Share Posted October 21, 2019 2 4 hours ago, NavHac said: Hi, trying to move my old build from clover to opencore. But opencore just freeze "Prelinked status - Success" nothing happened after that, the Same machine is booting Catalina just fine with clover. ................................... ................................... Anyone Please. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694475 Share on other sites More sharing options...
mhaeuser Posted October 21, 2019 Share Posted October 21, 2019 @NavHac Enable AppleXcpmCfgLock Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694476 Share on other sites More sharing options...
navmessier63 Posted October 21, 2019 Share Posted October 21, 2019 20 minutes ago, Download-Fritz said: @NavHac Enable AppleXcpmCfgLock Thanks! Tried that but got the same result. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694480 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 3 hours ago, Andres ZeroCross said: OpenCore 0.5.2 is booting normally into macOS Catalina and Windows 10 in HP Elitebook 820 G3 Please share your EFI/OC folder I have a issue to booting windows Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694487 Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 1 minute ago, anmool said: Please share your EFI/OC folder I have a issue to booting windows Then it mean you have wrong ACPI/DSDT patched. OpenCore bootloader will force Windows to use your patched ACPI / DSDT in Patched folder Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694488 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 6 minutes ago, Andres ZeroCross said: Then it mean you have wrong ACPI/DSDT patched. OpenCore bootloader will force Windows to use your patched ACPI / DSDT in Patched folder first of all I didn't use DSDT patch I have SSDTs when I put Microsoft folder on /EFI/OC then windows boot automatically No selection show me I have already entry /EFI/OC/Microsoft/bootmgfw.efi into Misc/BlessOverride second I have no boot entry option on my bois sorry for my poor English my native language is arabic Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694491 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 27 minutes ago, Andres ZeroCross said: Then it mean you have wrong ACPI/DSDT patched. OpenCore bootloader will force Windows to use your patched ACPI / DSDT in Patched folder I have no issue dual booting with clover bootloader order to work just I rename CLOVERX64.efi to bootmgfw.efi and windows bootmgfw.efi to bootmgfw-orig.efi working perfectly I hope that you got understand Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694492 Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 16 minutes ago, anmool said: I have no issue dual booting with clover bootloader order to work just I rename CLOVERX64.efi to bootmgfw.efi and windows bootmgfw.efi to bootmgfw-orig.efi working perfectly I hope that you got understand This is OPENCORE BOOTLOADER not CLOVER. You got it???? CLOVER won't use your patched DSDT / ACPI table to Windows or linux if you boot with it (CLOVER), but with Open Core Bootloader if you have PATCHED ACPI TABLE / DSDT then OPEN CORE BOOTLOADER will FORCE to use it to Windows and LINUX. You got now buddy??? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694495 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 5 minutes ago, Andres ZeroCross said: This is OPENCORE BOOTLOADER not CLOVER. You got it???? CLOVER won't use your patched DSDT / ACPI table to Windows or linux if you boot with it (CLOVER), but with Open Core Bootloader if you have PATCHED ACPI TABLE / DSDT then OPEN CORE BOOTLOADER will FORCE to use it to Windows and LINUX. You got now buddy??? when I put Microsoft folder on /EFI/OC then windows boot automatically I can't see partition selection during boot I have already entry /EFI/OC/Microsoft/bootmgfw.efi into Misc/BlessOverride I didn't say issue with windows I tested but I never see gui during boot directly boot windows Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694500 Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 3 minutes ago, anmool said: when I put Microsoft folder on /EFI/OC then windows boot automatically I can't see partition selection during boot I have already entry /EFI/OC/Microsoft/bootmgfw.efi into Misc/BlessOverride I didn't say issue with windows I tested but I never see gui during boot directly boot windows Did macOS and Windows use separate EFI folder??? Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694503 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 9 minutes ago, Andres ZeroCross said: Did macOS and Windows use separate EFI folder??? No same hard drive and same EFI folder Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694506 Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 (edited) 36 minutes ago, anmool said: No same hard drive and same EFI folder Honestly i don't know exactly how bless overide work but maybe this can help you https://www.insanelymac.com/forum/topic/338516-opencore-discussion/?do=findComment&comment=2687140 But i am still use my old ways (my previous video uses old way) with Single EFI Partition for 2 Operating System, this my old way Edited October 21, 2019 by Andres ZeroCross Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694507 Share on other sites More sharing options...
Andrey1970 Posted October 21, 2019 Share Posted October 21, 2019 22 minutes ago, anmool said: No same hard drive and same EFI folder HideSelf=Nо ScanPolicy resolve EFI or set 0 Check a way to the file bootmgfw.efi in BlessOverride. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694509 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 24 minutes ago, Andres ZeroCross said: Honestly i don't know exactly how bless overide work but maybe this can help you https://www.insanelymac.com/forum/topic/338516-opencore-discussion/?do=findComment&comment=2687140 But i am still use my old ways (may video before use old way) with Single EFI Partition for 2 Operating System, this my old way I readed your old dual boot solution I have no option boot entry in my bois I m not familiar bcfg boot add 05 "path file" "entry name" please tell me about custom boot entry in Misc → Boot → CustomPaths how to do Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694512 Share on other sites More sharing options...
obus Posted October 21, 2019 Share Posted October 21, 2019 56 minutes ago, anmool said: I readed your old dual boot solution I have no option boot entry in my bois I m not familiar bcfg boot add 05 "path file" "entry name" please tell me about custom boot entry in Misc → Boot → CustomPaths how to do Try this: Misc -> Boot > HideSelf = NO Misc -> Security -> ScanPolicy = 722 179 This combination reads as: OC_SCAN_FILE_SYSTEM_LOCK OC_SCAN_DEVICE_LOCK OC_SCAN_ALLOW_FS_APFS OC_SCAN_ALLOW_DEVICE_SATA OC_SCAN_ALLOW_DEVICE_SASEX OC_SCAN_ALLOW_FS_ESP OC_SCAN_ALLOW_DEVICE_NVME Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694522 Share on other sites More sharing options...
ameenjuz Posted October 21, 2019 Share Posted October 21, 2019 17 minutes ago, obus said: Try this: Misc -> Boot > HideSelf = NO Misc -> Security -> ScanPolicy = 722 179 This combination reads as: OC_SCAN_FILE_SYSTEM_LOCK OC_SCAN_DEVICE_LOCK OC_SCAN_ALLOW_FS_APFS OC_SCAN_ALLOW_DEVICE_SATA OC_SCAN_ALLOW_DEVICE_SASEX OC_SCAN_ALLOW_FS_ESP OC_SCAN_ALLOW_DEVICE_NVME hay great job thanks obus you are solved my problem to provide me this ScanPolicy = 722179 I put \EFI\Microsoft\Boot\bootmgfw-orig.efi on Misc -> BlessOverride then I booted windows 10 successfully but I couldn't see my hidden EFI partition on boot picker Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694524 Share on other sites More sharing options...

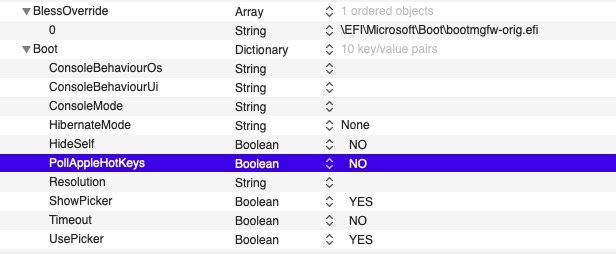

obus Posted October 21, 2019 Share Posted October 21, 2019 3 minutes ago, anmool said: hay great job thanks obus you are solved my problem to provide me this ScanPolicy = 722179 I put \EFI\Microsoft\Boot\bootmgfw-orig.efi on Misc -> BlessOverride then I booted windows 10 successfully but I couldn't see my hidden EFI partition on boot picker If you want the EFI-folder in BootMenu try set set HideSelf = YES Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/86/#findComment-2694526 Share on other sites More sharing options...
