obus Posted October 16, 2019 Share Posted October 16, 2019 (edited) Sorry Iv'e already tested that but the ASSERT stop is still coming up. I will compile a new master Debug version and test. Cheers anyway Edited October 16, 2019 by obus Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693814 Share on other sites More sharing options...
UefiBooter Posted October 16, 2019 Share Posted October 16, 2019 its a different problem if you have added dummy value. but yeah better to wait for a 1.x.x release in your circumstance. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693815 Share on other sites More sharing options...
obus Posted October 16, 2019 Share Posted October 16, 2019 (edited) 16 minutes ago, UefiBooter said: its a different problem if you have added dummy value. but yeah better to wait for a 1.x.x release in your circumstance. Ok here is the log from a new compiled 0.5.2 OC version. It is telling me exactly the same as the old one or? opencore-2019-10-16-101413.txt Edited October 16, 2019 by obus Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693816 Share on other sites More sharing options...
jsl2000 Posted October 16, 2019 Share Posted October 16, 2019 (edited) On 10/12/2019 at 10:32 AM, jsl2000 said: Big thanks to Shaneee & darc without their help I can not get OC 0.5.0 working. Booting with OC 0.5.0 in Ryzen 1700X hackintosh got instant reboot at 10.15 (19A583), but working well at 10.13.6, 10.14.5, & 10.14.6. My config.plist & OC.zip were attached How to fix it ? [Solved] There's no error in my OC folder. It got reboot because it tried to update from 19A583 to 19A602 by itself. Allowed completing update by Clover, it can work by OC again ! config.plist OC.zip Edited October 16, 2019 by jsl2000 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693817 Share on other sites More sharing options...
mhaeuser Posted October 16, 2019 Share Posted October 16, 2019 1 hour ago, obus said: Ok here is the log from a new compiled 0.5.2 OC version. It is telling me exactly the same as the old one or? opencore-2019-10-16-101413.txt OC finds only the ESP it itself is installed on, tries to boot itself, detects nested boot and aborts, that's it. Make sure ConnectDrivers is on and HFSPlus/ApfsDriverLoader are current and working Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693820 Share on other sites More sharing options...
obus Posted October 16, 2019 Share Posted October 16, 2019 (edited) 2 hours ago, Download-Fritz said: OC finds only the ESP it itself is installed on, tries to boot itself, detects nested boot and aborts, that's it. Make sure ConnectDrivers is on and HFSPlus/ApfsDriverLoader are current and working All my drivers and kext are up to date, downloaded today from official site. I swapped the HFSPlus.efi to VBoxHfs.efi and tested again with the same result. My latest HP firmware works perfect with "native" NVRAM in Clover so problems with HP firmware shouldn't be the culprit. So I put the question again. Is it something wrong with my config.plist or is it something with OpenCore? Can I do some further reserch myself or is the problem unresolvable with OpenCore and My laptop? Edited October 16, 2019 by obus Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693827 Share on other sites More sharing options...
mhaeuser Posted October 16, 2019 Share Posted October 16, 2019 (edited) Infact, it is a "problem" with the HP firmware. If it's not a literal bug, it's an unexpected state, because the only other person to ever report similar behaviour experienced it on a HP laptop as well. It's not impossible it's a problem with OC, if you want to test further, load the drivers from Shell and run "reconnect -r" before launching OC... it might work if you exit Shell again from within OC too, but not sure Edited October 16, 2019 by Download-Fritz 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693828 Share on other sites More sharing options...
obus Posted October 16, 2019 Share Posted October 16, 2019 9 minutes ago, Download-Fritz said: Infact, it is a "problem" with the HP firmware. If it's not a literal bug, it's an unexpected state, because the only other person to ever report similar behaviour experienced it on a HP laptop as well. It's not impossible it's a problem with OC, if you want to test further, load the drivers from Shell and run "reconnect -r" before launching OC... it might work if you exit Shell again too, but not sure Tested without success. Giving up for the moment. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693830 Share on other sites More sharing options...
NorthAmTrans Posted October 16, 2019 Share Posted October 16, 2019 Hey friends, I've been up and running for a few months now. Im loving the simplicity of this since getting my head around most of it. Im about to enter a busy season of work and wanted to do a little check up to see if there's anything I should be doing differently. Does anyone care to look these over and see if "I done good" for me? No sweat if not. I feel like I've checked all the boxes. Archive 2.zip Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693833 Share on other sites More sharing options...
Andres ZeroCross Posted October 16, 2019 Share Posted October 16, 2019 8 hours ago, obus said: Ok here is the log from a new compiled 0.5.2 OC version. It is telling me exactly the same as the old one or? opencore-2019-10-16-101413.txt You should upload EFI folder (Include BOOT and OC Folder). Not only config.plist Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693851 Share on other sites More sharing options...
obus Posted October 16, 2019 Share Posted October 16, 2019 49 minutes ago, Andres ZeroCross said: You should upload EFI folder (Include BOOT and OC Folder). Not only config.plist Thank's for showing interest. Can you help me solving this problem you will be my hero of the year Here is my complete EFI-folder. EFI_OC_0.5.2_Debug.zip Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693857 Share on other sites More sharing options...
Andres ZeroCross Posted October 16, 2019 Share Posted October 16, 2019 (edited) On 10/17/2019 at 2:17 AM, obus said: Thank's for showing interest. Can you help me solving this problem you will be my hero of the year Here is my complete EFI-folder. EFI_OC_0.5.2_Debug.zip Try this.. replace OC and BOOT folder with this Edited November 17, 2019 by Andres ZeroCross 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693861 Share on other sites More sharing options...

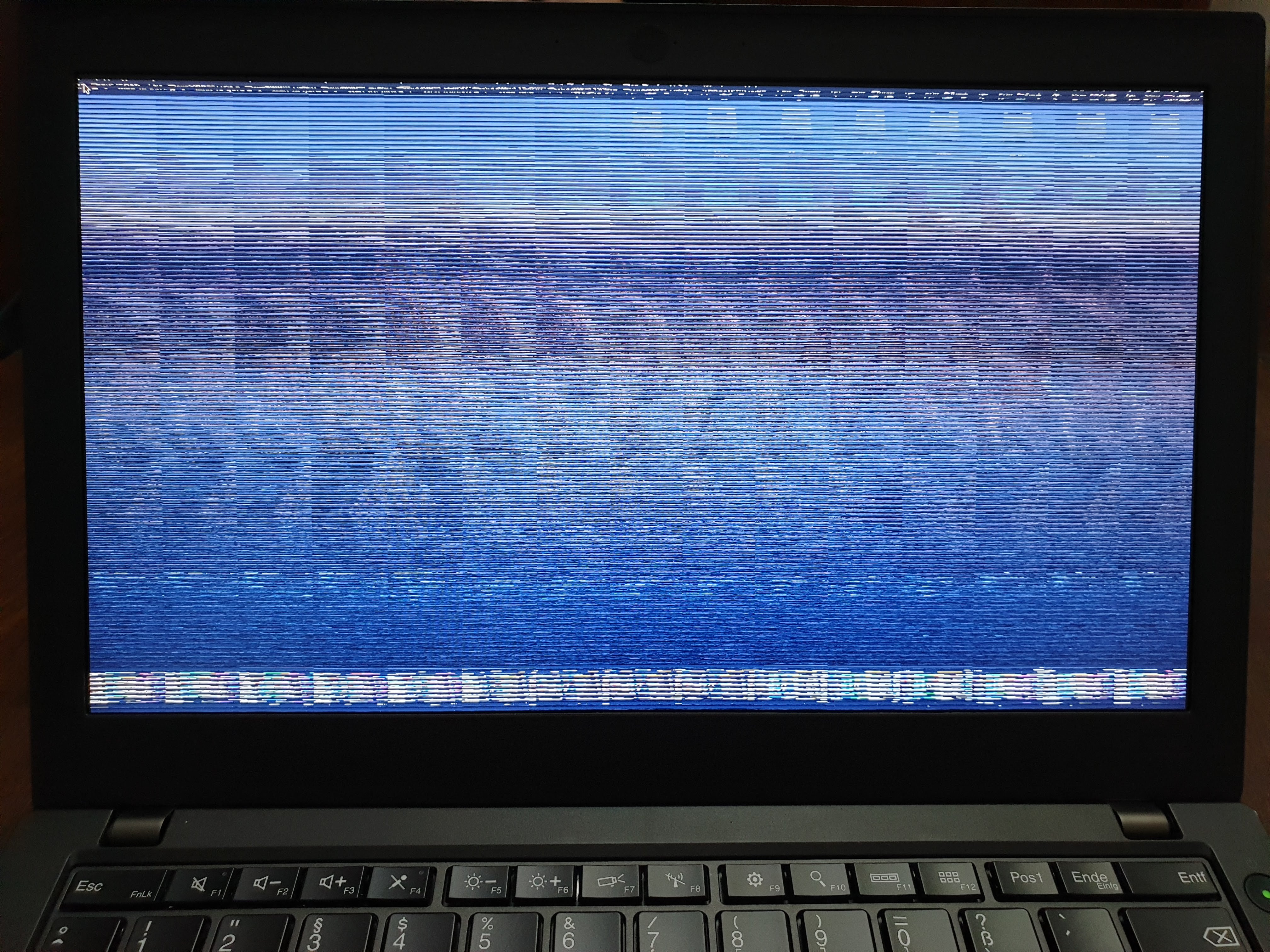

Sniki Posted October 16, 2019 Share Posted October 16, 2019 Hi everyone, What are the necessary Quirks to fix Big Apple boot logo, in short words here is my explained problem: Disabling CSM does show correct size of Apple Boot Logo and OC display scaling correctly but as soon as Apple Logo reaches 60% when it blinks, screen get's garbled like this: However if i close and open the lid (without waiting for sleep, the screen comes back to normal The second option is leaving CSM enabled shows Massive Apple Logo progress bar like this: And when it reaches 60% of the apple boot logo bar (when screen blinks), it goes back to normal and glitches don't occur: So with CSM disabled i get glitchy screen, how to fix that (closing and opening lid is a workaround but it's pain in the a..) CSM enabled Huge OC text (small resolution) and huge apple logo but no glitch (possibly a fix for this if none for glitchy screen with csm disabled) Here is my EFI.zip Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693866 Share on other sites More sharing options...
Andrey1970 Posted October 16, 2019 Share Posted October 16, 2019 13 minutes ago, Sniki said: Hi everyone, What are the necessary Quirks to fix Big Apple boot logo, in short words here is my explained problem: Disabling CSM does show correct size of Apple Boot Logo and OC display scaling correctly but as soon as Apple Logo reaches 60% when it blinks, screen get's garbled like this: However if i close and open the lid (without waiting for sleep, the screen comes back to normal The second option is leaving CSM enabled shows Massive Apple Logo progress bar like this: And when it reaches 60% of the apple boot logo bar (when screen blinks), it goes back to normal and glitches don't occur: So with CSM disabled i get glitchy screen, how to fix that (closing and opening lid is a workaround but it's pain in the a..) CSM enabled Huge OC text (small resolution) and huge apple logo but no glitch (possibly a fix for this if none for glitchy screen with csm disabled) Here is my EFI.zip Try ProvideConsoleGop=Yes Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693868 Share on other sites More sharing options...
obus Posted October 16, 2019 Share Posted October 16, 2019 (edited) 1 hour ago, Andres ZeroCross said: Try this.. replace OC and BOOT folder with this EFI.zip Sorry but that EFI dosen't work. Stuck at boot menu. Stuck at:StartImage failed- Not Found. It was no debug version so I can't provide any logs. Any other suggestions? Edited October 16, 2019 by obus still stuck at:StartImage failed- Not Found Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693874 Share on other sites More sharing options...

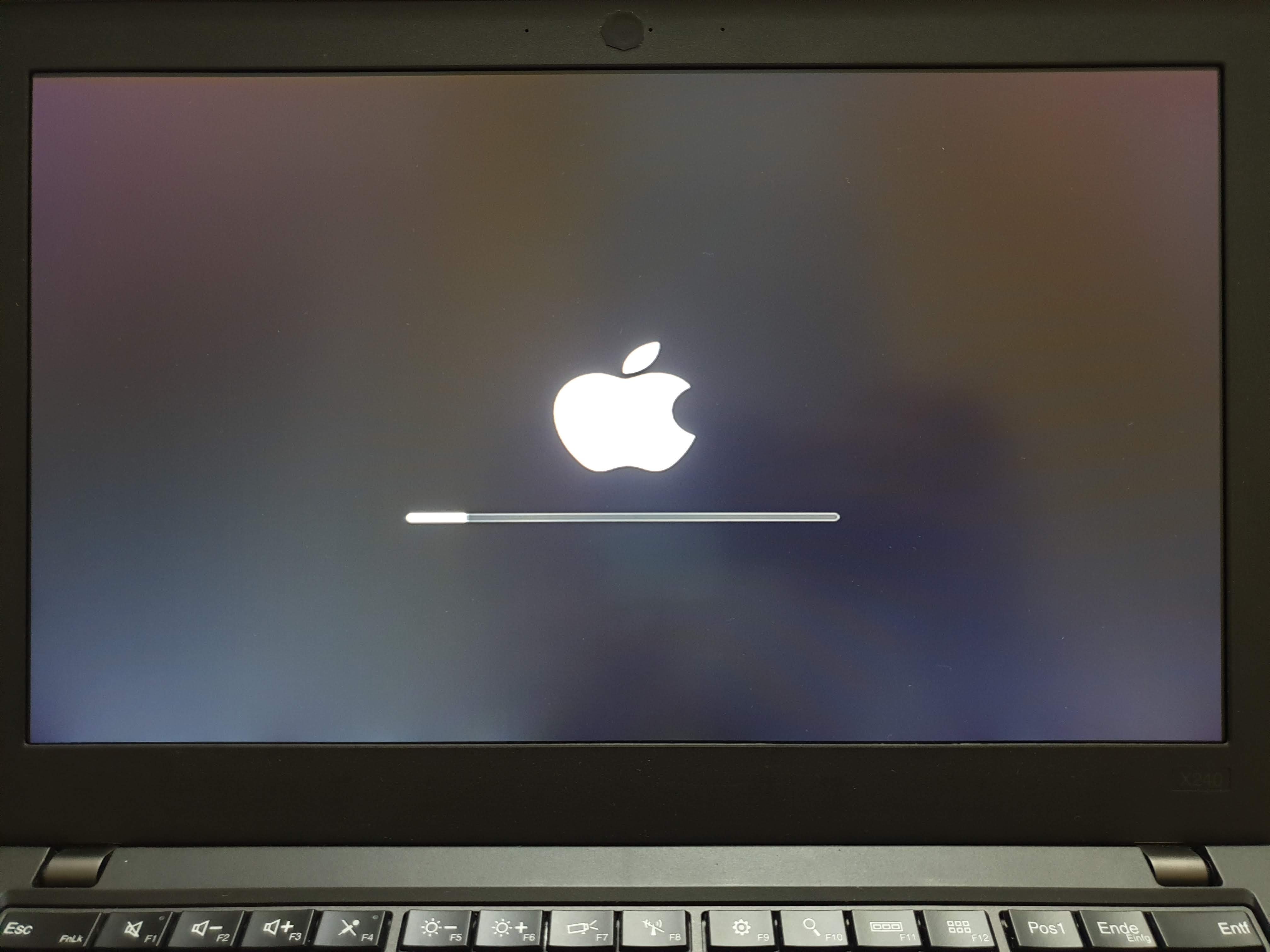

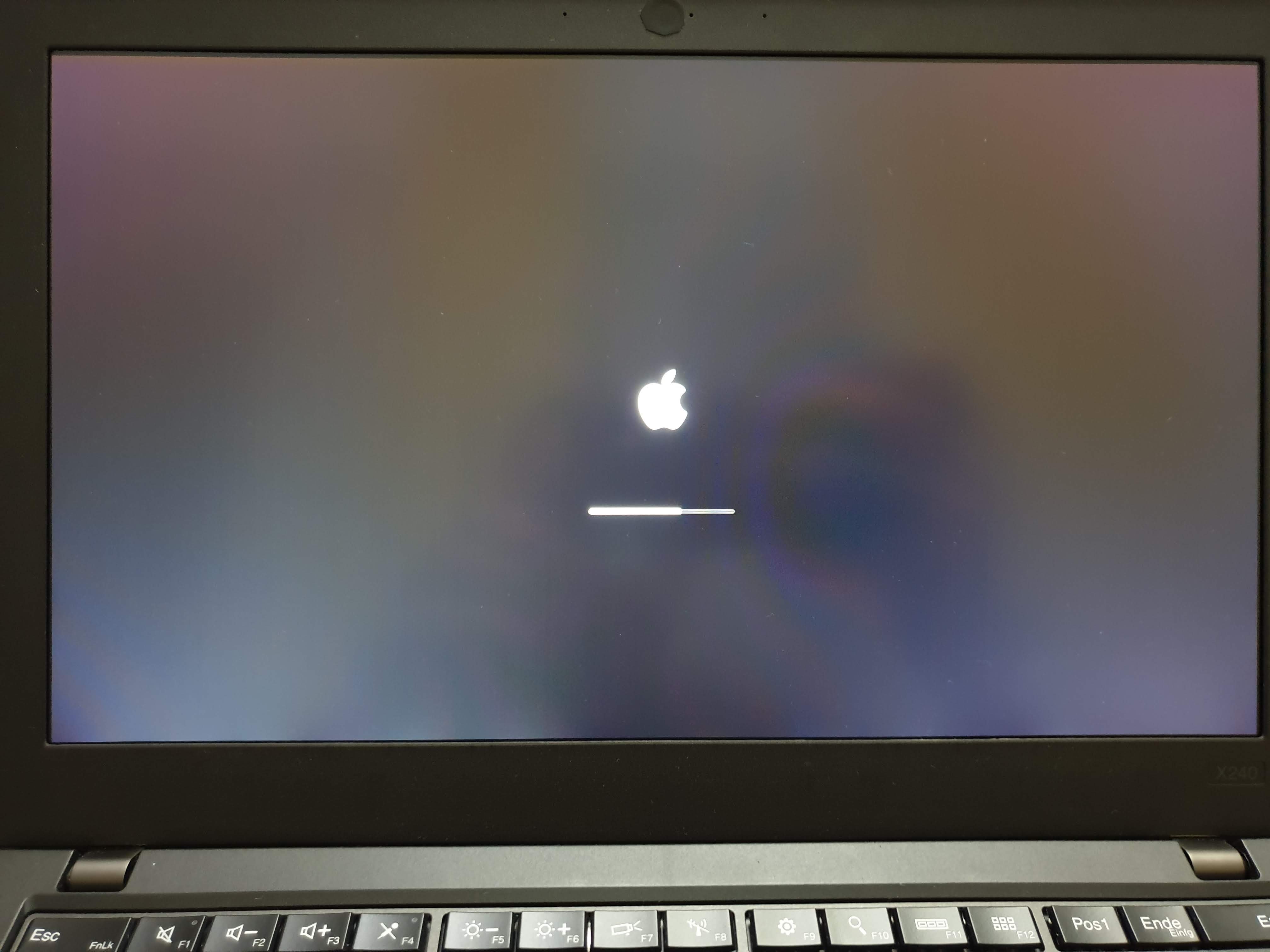

Sniki Posted October 16, 2019 Share Posted October 16, 2019 43 minutes ago, Andrey1970 said: Try ProvideConsoleGop=Yes Thanks @Andrey1970 With CSM disabled that didn't fix the glitch, so it's a firmware issue, However i managed to fix with CSM enabled, i set ConsoleMode and Resolution to Max, that fixed the big Apple logo and with CSM enabled the glitch doesn't occur so problem is solved. Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693876 Share on other sites More sharing options...
Mangetsu Posted October 17, 2019 Share Posted October 17, 2019 Hello. ASUS K501UQ laptop, trying to run it with OpenCore 0.5.1. Getting ... 55:905 00:054 OCABC: MMIO devirt end 65:961 10:056 OC: Boot failed - Aborted 66:201 00:240 OCC: Configuring behaviour 0 66:256 00:054 OCB: StartImage failed - Aborted OC folder and log are attached. Also a couple things that I'm not sure about. I'm using patched DSDT due to extensive battery and eGPU patches. I'm not sure in what order OC goes about patching/inserting/dropping tables. Specifically, I see in log Patching DSDT of 156035 bytes with 0000000000000000 ID replaced 1 of 0 and then Replaced DSDT of 157634 bytes into ACPI Does that mean that if I provide custom DSDT, I must apply all patches manually? OC.zip opencore-2019-10-17-110303.txt Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693927 Share on other sites More sharing options...

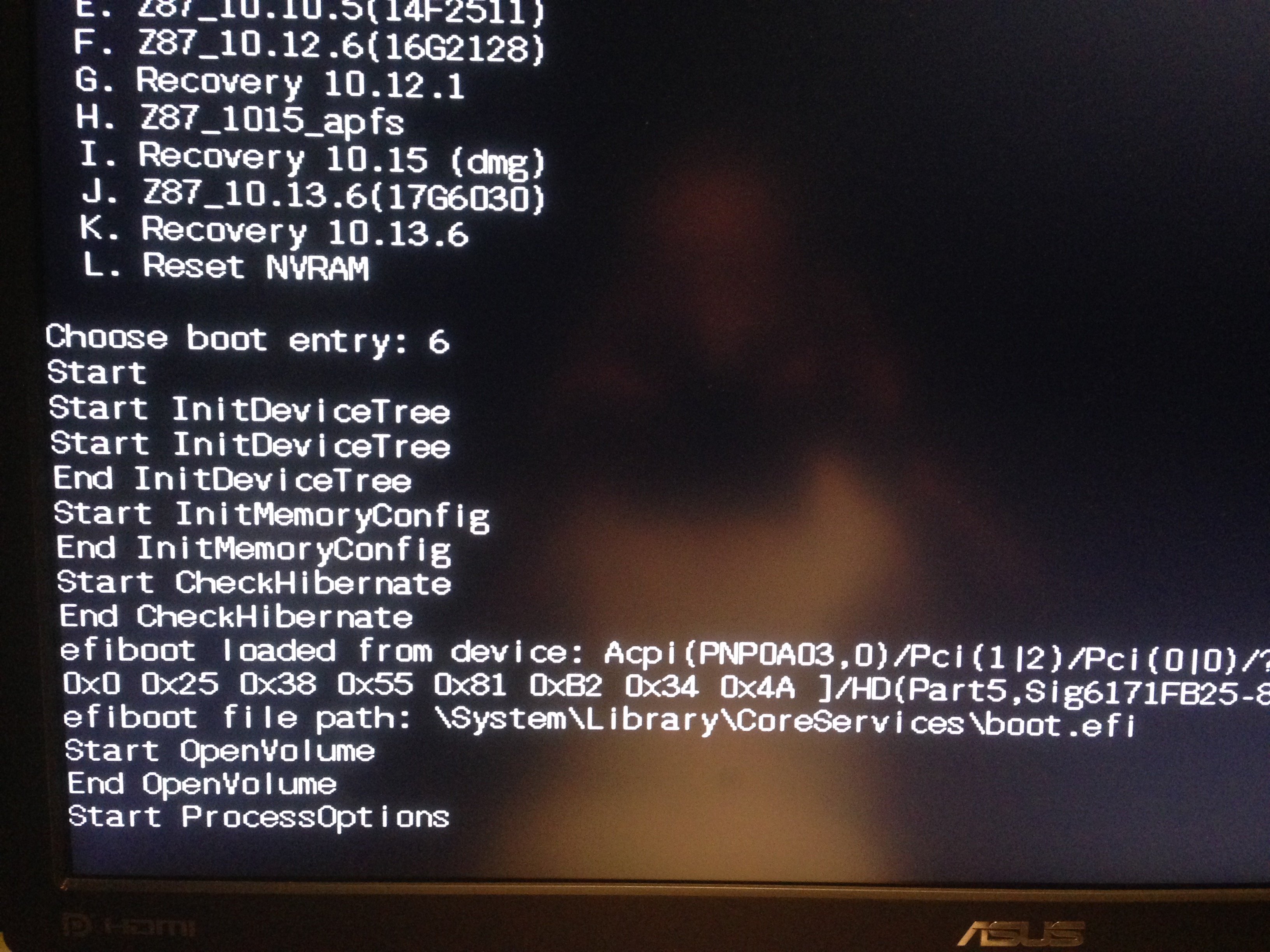

jsl2000 Posted October 17, 2019 Share Posted October 17, 2019 (edited) On 10/13/2019 at 11:37 AM, jsl2000 said: In Z87 hackintosh booting OpenCore 0.5.1 got a different frozen as shown here How to fix it with my OpenCore folder attached here too: Only removal of AMD R9 290X GPU can work on Intel HD 4600 alone now ! [Solved] Need disable Thunderbolt, Fast Boot, & CSM in BIOS. OC.zip Edited October 18, 2019 by jsl2000 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693941 Share on other sites More sharing options...

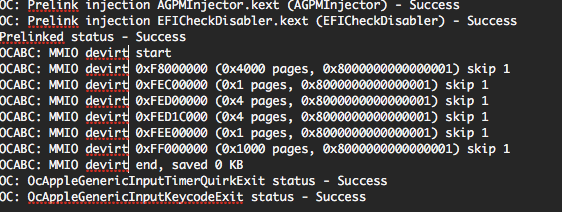

hardcorehenry Posted October 17, 2019 Share Posted October 17, 2019 (edited) I gave a try to new feature in OpenCore MmioWhitelist and I’m a bit confused, because in doc one can read that this feature can reduce stolen memory from 64 to 256 megabytes, in my log it states 0KB saved. Is it how it suppose to look like? Edited October 17, 2019 by hardcorehenry Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693962 Share on other sites More sharing options...
Hackintosh Tech Posted October 17, 2019 Share Posted October 17, 2019 Whatevergreen.kext is broken for Catalina 10.15.1 Beta 2 no Vega or RX cards working, Getting Black Screen, Removed whatevergreen and use HDMI port, and graphics will work. 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693994 Share on other sites More sharing options...
vandroiy2012 Posted October 17, 2019 Share Posted October 17, 2019 34 minutes ago, MacProDude said: Whatevergreen.kext is broken for Catalina 10.15.1 Beta 2 no Vega or RX cards working, Getting Black Screen, Removed whatevergreen and use HDMI port, and graphics will work. Try agdpmod=pikera bootarg. 3 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2693998 Share on other sites More sharing options...
jsl2000 Posted October 18, 2019 Share Posted October 18, 2019 (edited) 3 hours ago, vandroiy2012 said: Try agdpmod=pikera bootarg. In my Ryzen 1700X hackintosh it works for AMD 7950 GPU, but -wegoff or removal of WhateverGreen.kext did not work ! Edited October 18, 2019 by jsl2000 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2694020 Share on other sites More sharing options...
ken394 Posted October 18, 2019 Share Posted October 18, 2019 (edited) 5 hours ago, vandroiy2012 said: Try agdpmod=pikera bootarg. Worked for me, Sapphire RX 580 on GiGabyte z390 pro wifi Edited October 18, 2019 by ken394 Missed info Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2694031 Share on other sites More sharing options...
mhaeuser Posted October 18, 2019 Share Posted October 18, 2019 @hardcorehenry The whitelist declares what is *not* devirtualised 1 Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2694039 Share on other sites More sharing options...
duck-duck-go Posted October 18, 2019 Share Posted October 18, 2019 is there any chance to move to OpenCore from Clover? Motherboard: Asus H97M-E CPU: Intel Core i3 4160 GPU: Intel HD Graphics 4400 EFI.zip Link to comment https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/83/#findComment-2694122 Share on other sites More sharing options...
