kiko89 Posted April 3, 2020 Share Posted April 3, 2020 2 hours ago, Cass67 said: What did you change ? That panic looks related to the NVME driver... Maybe try booting with -x and rebuilding the kernel caches or if your have an NVME kext in the EFI remove it.. Not sure what your setup is if your using NVME or not.. I haven't changed anything. It is the second time in a few months that he gives me this error. In the following restarts everything ok. I don't have any kext for NVME. 970 PRO 512 GB Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715311 Share on other sites More sharing options...
AudioGod Posted April 3, 2020 Author Share Posted April 3, 2020 26 minutes ago, kiko89 said: I haven't changed anything. It is the second time in a few months that he gives me this error. In the following restarts everything ok. I don't have any kext for NVME. 970 PRO 512 GB Have you updated the 970 Pro firmware to the latest one? if not then do so Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715313 Share on other sites More sharing options...
texem Posted April 3, 2020 Share Posted April 3, 2020 1 hour ago, dsynos80 said: Ahhh texem there you are. Where are the files and the process for flashing the Titan Ridge? I saw you mentioned that some time ago but couldnt find the info. That could also be added on the main page! Ahh i see, you mean the DSM2 mod for the old mac pro's? I saw that you need an eeprom flasher for that. Too risky for the average user i believe unless i missed something. yes, unfortunately you need a flash tool or someone in your area who can help you with flashing the DSM firmware. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715316 Share on other sites More sharing options...

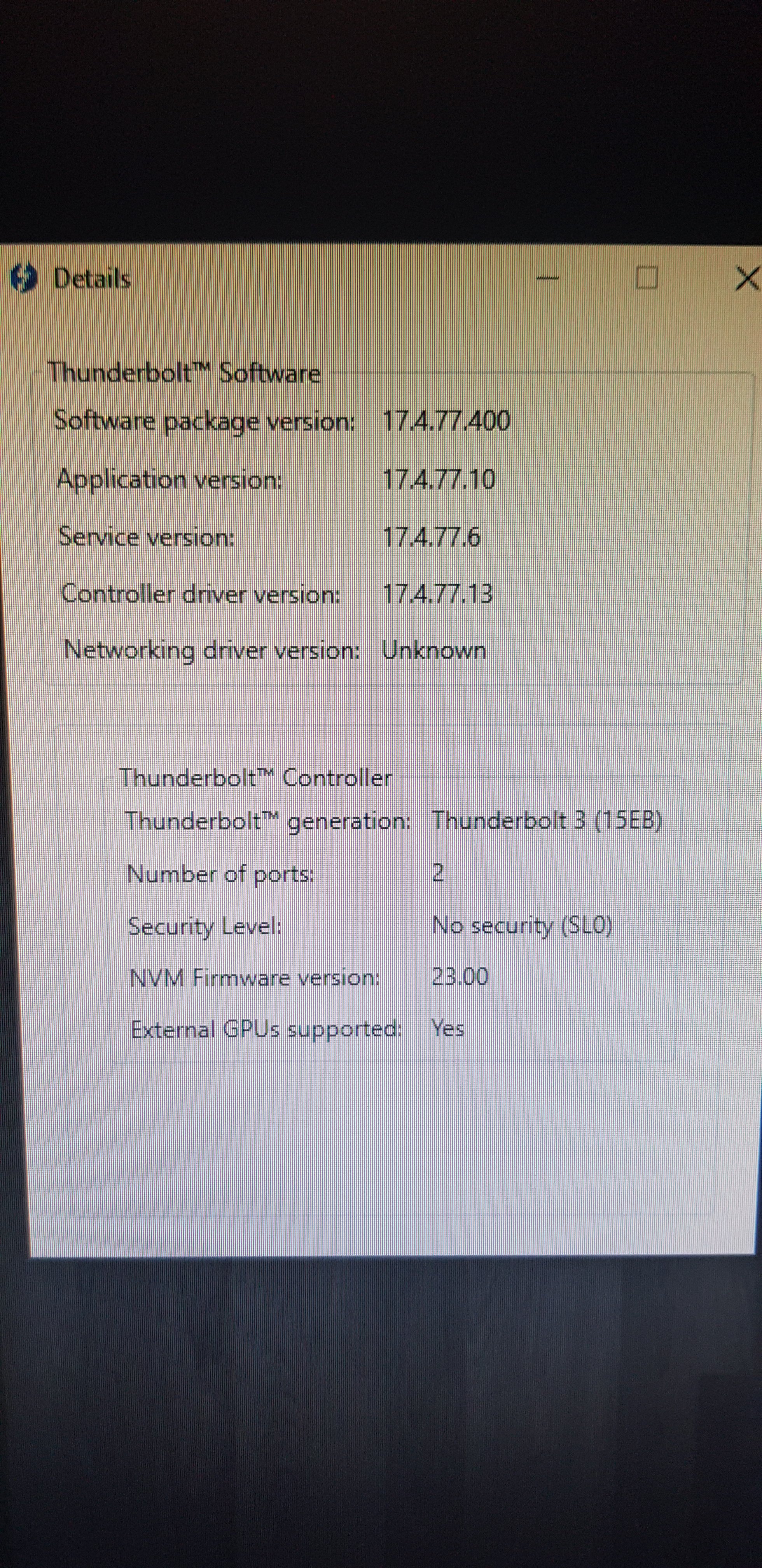

dsynos80 Posted April 3, 2020 Share Posted April 3, 2020 22 minutes ago, texem said: yes, unfortunately you need a flash tool or someone in your area who can help you with flashing the DSM firmware. I thought so mate, i also read that people having firmware above 23 have connecting problems on real macs. I dont know if this applies tour boards but luckily i am on 23 and will stay there as long as it works. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715322 Share on other sites More sharing options...
Project 2501 Posted April 3, 2020 Share Posted April 3, 2020 8 hours ago, dsynos80 said: I think anyone that has different devices with thunderbolt connection should report before we writh guide. I only have my fw400 card connected via Tb3 to tb2 adapter, then tb to fw800 adapter, then fw800 to fw400 cable. Before i use the ssdt and do the correct bios settings AFTER i have installed the driver in windows, i had signal loss of the audio card. Now works great. I dont have any TB camera or disk to test. Not sure I understand. You have a FW400 [sound] card in an external enclosure connected to your Titan Ridge card using series of adapters: Sound Card (external) -> FW400 -> FW800 -> TB2 -> TB3 -> Titan Ridge Card. I think I'll try to connect the MBP target disc on the Windows side just to see if it works at all. I'll have to reinstall the driver, because I had to reinstall Windows to get the boot manager on the same disk as the OS. If it works, it will at least tell me the disk is not readable by Windows. I'll double check my BIOS settings as well. In meantime, I'll have see if I have a USB cable on hand for my scanner if I need it later. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715331 Share on other sites More sharing options...
dsynos80 Posted April 3, 2020 Share Posted April 3, 2020 2 minutes ago, Project 2501 said: Not sure I understand. You have a FW400 [sound] card in an external enclosure connected to your Titan Ridge card using series of adapters: Sound Card (external) -> FW400 -> FW800 -> TB2 -> TB3 -> Titan Ridge Card. I think I'll try to connect the MBP target disc on the Windows side just to see if it works at all. I'll have to reinstall the driver, because I had to reinstall Windows to get the boot manager on the same disk as the OS. If it works, it will at least tell me the disk is not readable by Windows. I'll double check my BIOS settings as well. In meantime, I'll have see if I have a USB cable on hand for my scanner if I need it later. Yes thats what i did and no problems!! I was surprised though with so much protocol conversion that it worked! Check your firmware version on windows if it is the same as mine Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715332 Share on other sites More sharing options...
Project 2501 Posted April 3, 2020 Share Posted April 3, 2020 4 hours ago, texem said: did you flash your Titan Ridge with the modified binary or is it stock fw ? Stock. I remember discussing this with you earlier; I confessed to being too chicken to do it (still am), but if I'll do it as a last resort. dsynos80 was able to get it to work without it, so I'm following his lead. Unfortunately, I didn't download the firmware and forgot to bookmark the site. I quick lookup pointed me to create.pro that has firmware the will allow Titan Ridge to work with a Mac Pro 5,1? Which flash utility did you use? Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715333 Share on other sites More sharing options...
Olas Posted April 3, 2020 Share Posted April 3, 2020 (edited) Hello pls I want EFI folder with SSDT Thunderbolt 3 : GC-Titan Ridge for My PC :MB : Gigabyte Aorus Z390 Pro WiFi (F12c) | CPU : i9-9900K (@3.60 GHz) | GPU : Sapphire RX 580 8GB | RAM : Kingston HyperX RGB (64 GB) | SSD : Samsung SSD 970 Pro (1TB) Bluetooth & Wifi : ABWB 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E) BCM94360CS2 Combo Card | Thunderbolt 3 : GC-Titan Ridge | OS : OSX 10.15.4 Thank you very much for help usAll the best Edited April 3, 2020 by Olas Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715334 Share on other sites More sharing options...
Project 2501 Posted April 3, 2020 Share Posted April 3, 2020 7 minutes ago, Olas said: Hello pls I want EFI folder with SSDT Thunderbolt 3 : GC-Titan Ridge for My PC :MB : Gigabyte Aorus Z390 Pro WiFi (F12c) | CPU : i9-9900K (@3.60 GHz) | GPU : Sapphire RX 580 8GB | RAM : Kingston HyperX RGB (64 GB) | SSD : Samsung SSD 970 Pro (1TB) Bluetooth & Wifi : ABWB 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E) BCM94360CS2 Combo Card | Thunderbolt 3 : GC-Titan Ridge | OS : OSX 10.15.4 Thank you very much for help usAll the best Here goes. Let me know if the Titan Ridge card works for you, and what device you are testing it with. If it does, it might be a problem with TB Target Disc Mode and not the card itself. I just don't have a good positive control to evaluate my results. EFI_PR2501-2020-04-03.zip Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715337 Share on other sites More sharing options...
texem Posted April 3, 2020 Share Posted April 3, 2020 17 minutes ago, Project 2501 said: Unfortunately, I didn't download the firmware and forgot to bookmark the site. I quick lookup pointed me to create.pro that has firmware the will allow Titan Ridge to work with a Mac Pro 5,1? Which flash utility did you use? "KeeYees SOP8 SOIC8 Test Clip for EEPROM 25CXX / 24CXX with CH341A 24 25 Series EEPROM Flash Bios USB Programmer" f.i. but it needs a modification for 3,3 volts. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715338 Share on other sites More sharing options...
kiko89 Posted April 4, 2020 Share Posted April 4, 2020 13 hours ago, AudioGod said: Have you updated the 970 Pro firmware to the latest one? if not then do so Today as yesterday it gave the error again ... I have this 1B2QEXP7 firmware and I don't think there are new ones... I can try to reset the nvram by removing the battery. I have not made any changes except to update clover 5108 and OcQuirks-Revision 20.1 ... I am desperate... Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715372 Share on other sites More sharing options...
AudioGod Posted April 4, 2020 Author Share Posted April 4, 2020 1 hour ago, kiko89 said: Today as yesterday it gave the error again ... I have this 1B2QEXP7 firmware and I don't think there are new ones... I can try to reset the nvram by removing the battery. I have not made any changes except to update clover 5108 and OcQuirks-Revision 20.1 ... I am desperate... Be careful as there is a bug in OCQuirks 20.1 so stick to 20 flat for now please. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715382 Share on other sites More sharing options...

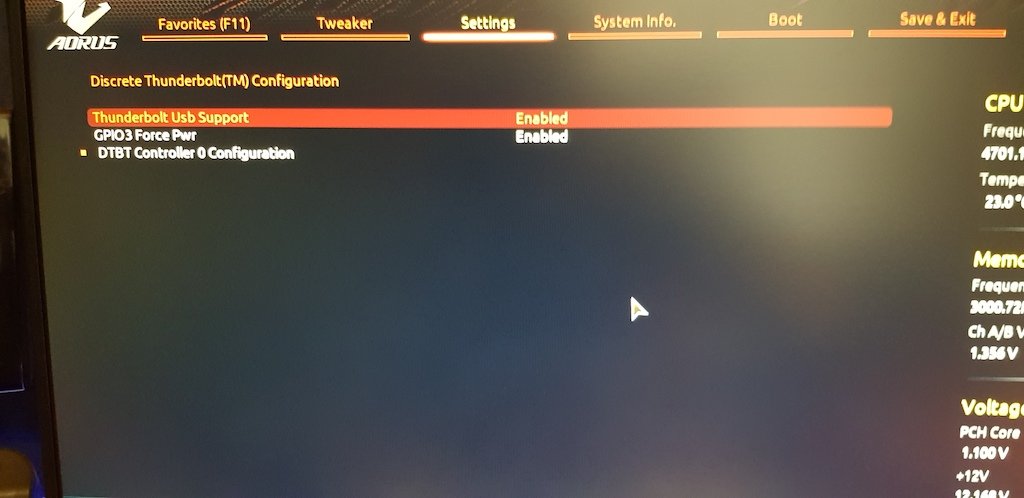

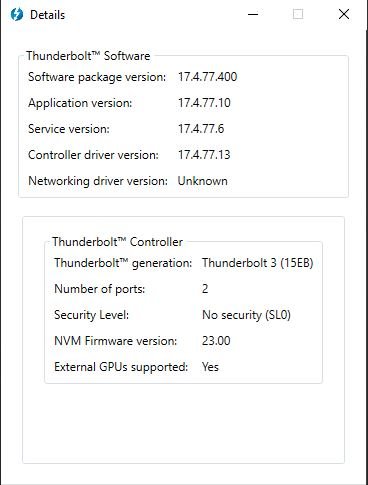

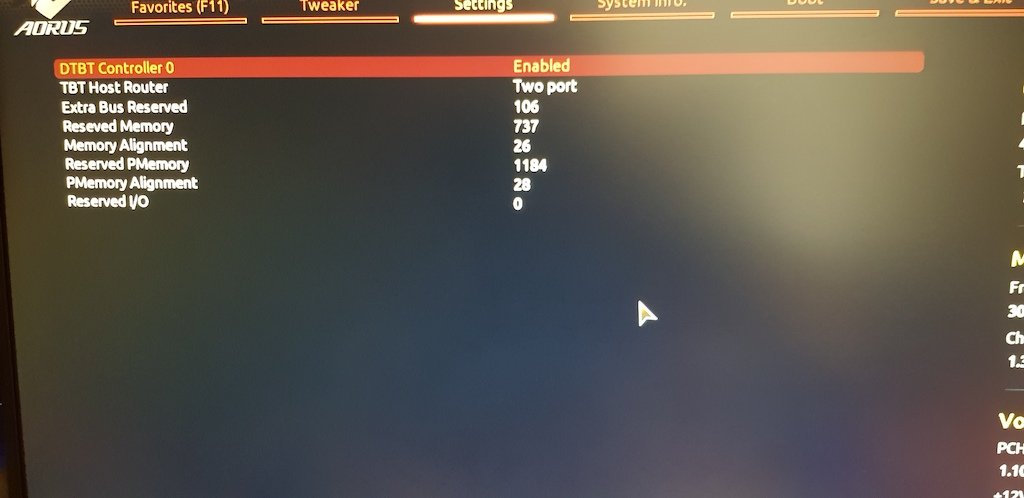

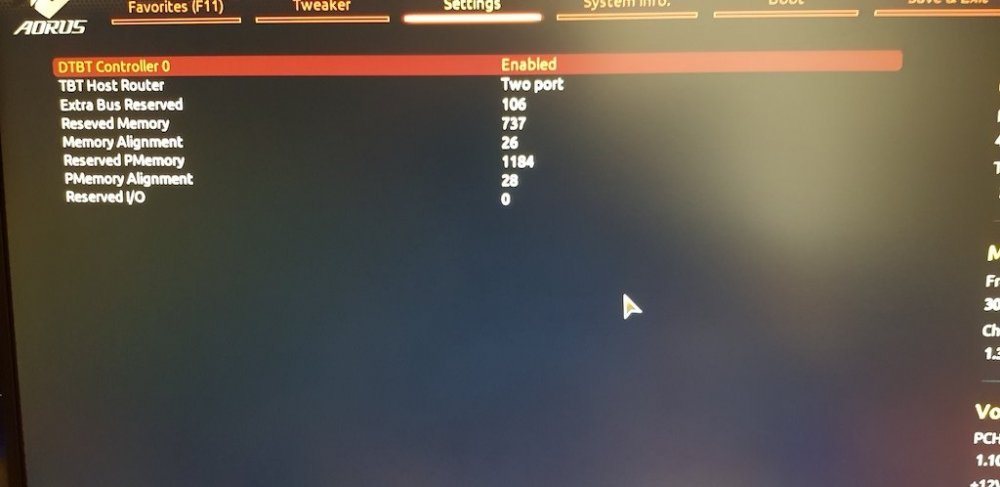

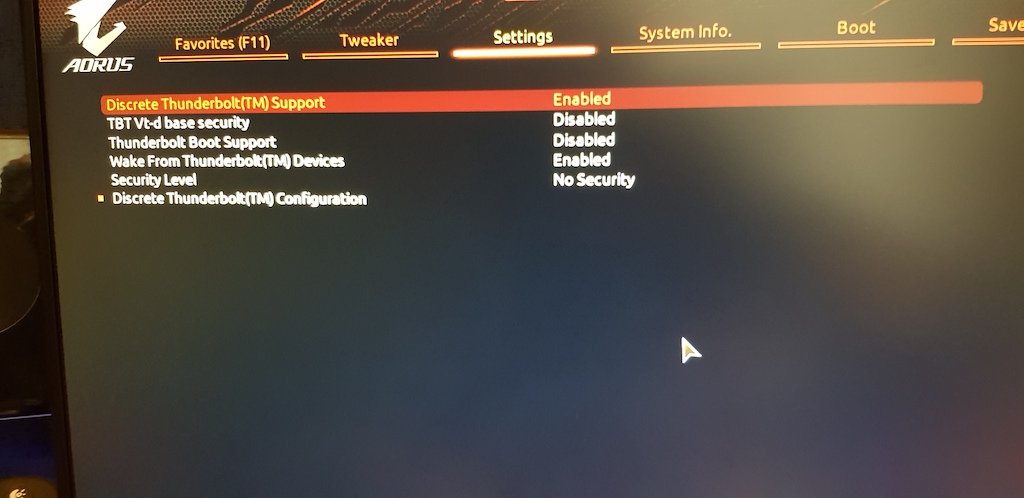

dsynos80 Posted April 4, 2020 Share Posted April 4, 2020 Audiogod, I cannot Pm with Files attached so i am posting the guide here and you can delete the post afterwards modify it as you see fit! 1: Install Gc_Titan Ridge Card in the BOTTOM slot. 2: Boot to Windows 3: Download and install the driver from Gigabyte. Correct version is 17.4.77.400 4: Reboot to Windows, then reboot to BIOS. 5: In IO Ports Menu you should now have the Thunderbolt Configuration Options 6: Enter the Correct Settings as seen in the images. 7: Reboot to Windows and go on the taskbar at the About entry of the Thunderbolt driver, it should be seen as the image provided. 8: Boot to Osx 9: Place the SSDT on Clover/ACPI/patched 10: Reboot to Osx 11: All Done!! SSDT-Z390-RP21-SLOT4-TB3HP.aml 1 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715384 Share on other sites More sharing options...
Olas Posted April 4, 2020 Share Posted April 4, 2020 1 hour ago, dsynos80 said: Audiogod, I cannot Pm with Files attached so i am posting the guide here and you can delete the post afterwards modify it as you see fit! 1: Install Gc_Titan Ridge Card in the BOTTOM slot. 2: Boot to Windows 3: Download and install the driver from Gigabyte. Correct version is 17.4.77.400 4: Reboot to Windows, then reboot to BIOS. 5: In IO Ports Menu you should now have the Thunderbolt Configuration Options 6: Enter the Correct Settings as seen in the images. 7: Reboot to Windows and go on the taskbar at the About entry of the Thunderbolt driver, it should be seen as the image provided. 8: Boot to Osx 9: Place the SSDT on Clover/ACPI/patched 10: Reboot to Osx 11: All Done!! SSDT-Z390-RP21-SLOT4-TB3HP.aml SSDT-Z390-RP21-SLOT4-TB3HP.aml this SSDT it work GC-Titan Ridge on MB Gigabyte Aorus Z390 Pro WiFi (F12c) Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715392 Share on other sites More sharing options...
dsynos80 Posted April 4, 2020 Share Posted April 4, 2020 51 minutes ago, Olas said: SSDT-Z390-RP21-SLOT4-TB3HP.aml this SSDT it work GC-Titan Ridge on MB Gigabyte Aorus Z390 Pro WiFi (F12c) Yes mate, i have the same motherboard as you and the same bios version. End of story. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715398 Share on other sites More sharing options...
Olas Posted April 4, 2020 Share Posted April 4, 2020 9 minutes ago, dsynos80 said: Yes mate, i have the same motherboard as you and the same bios version. End of story. could you pls send to me your EFI folder for me MB : Gigabyte Aorus Z390 Pro WiFi (F12c) | CPU : i9-9900K (@3.60 GHz) | GPU : Sapphire RX 580 8GB | RAM : Kingston HyperX RGB (64 GB) | SSD : Samsung SSD 970 Pro (1TB) Bluetooth & Wifi : ABWB 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E) BCM94360CS2 Combo Card | Thunderbolt 3 : GC-Titan Ridge | OS : OSX 10.15.4 Thank you very much Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715400 Share on other sites More sharing options...
dsynos80 Posted April 4, 2020 Share Posted April 4, 2020 8 minutes ago, Olas said: could you pls send to me your EFI folder for me MB : Gigabyte Aorus Z390 Pro WiFi (F12c) | CPU : i9-9900K (@3.60 GHz) | GPU : Sapphire RX 580 8GB | RAM : Kingston HyperX RGB (64 GB) | SSD : Samsung SSD 970 Pro (1TB) Bluetooth & Wifi : ABWB 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E) BCM94360CS2 Combo Card | Thunderbolt 3 : GC-Titan Ridge | OS : OSX 10.15.4 Thank you very much project2501 posted the correct EFI folder for you 5 posts back. It is the same. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715401 Share on other sites More sharing options...
Olas Posted April 4, 2020 Share Posted April 4, 2020 16 hours ago, Project 2501 said: Here goes. Let me know if the Titan Ridge card works for you, and what device you are testing it with. If it does, it might be a problem with TB Target Disc Mode and not the card itself. I just don't have a good positive control to evaluate my results. EFI_PR2501-2020-04-03.zip Thank you very Much for Help 3 minutes ago, dsynos80 said: project2501 posted the correct EFI folder for you 5 posts back. It is the same. Thank you very Much for Help 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715403 Share on other sites More sharing options...

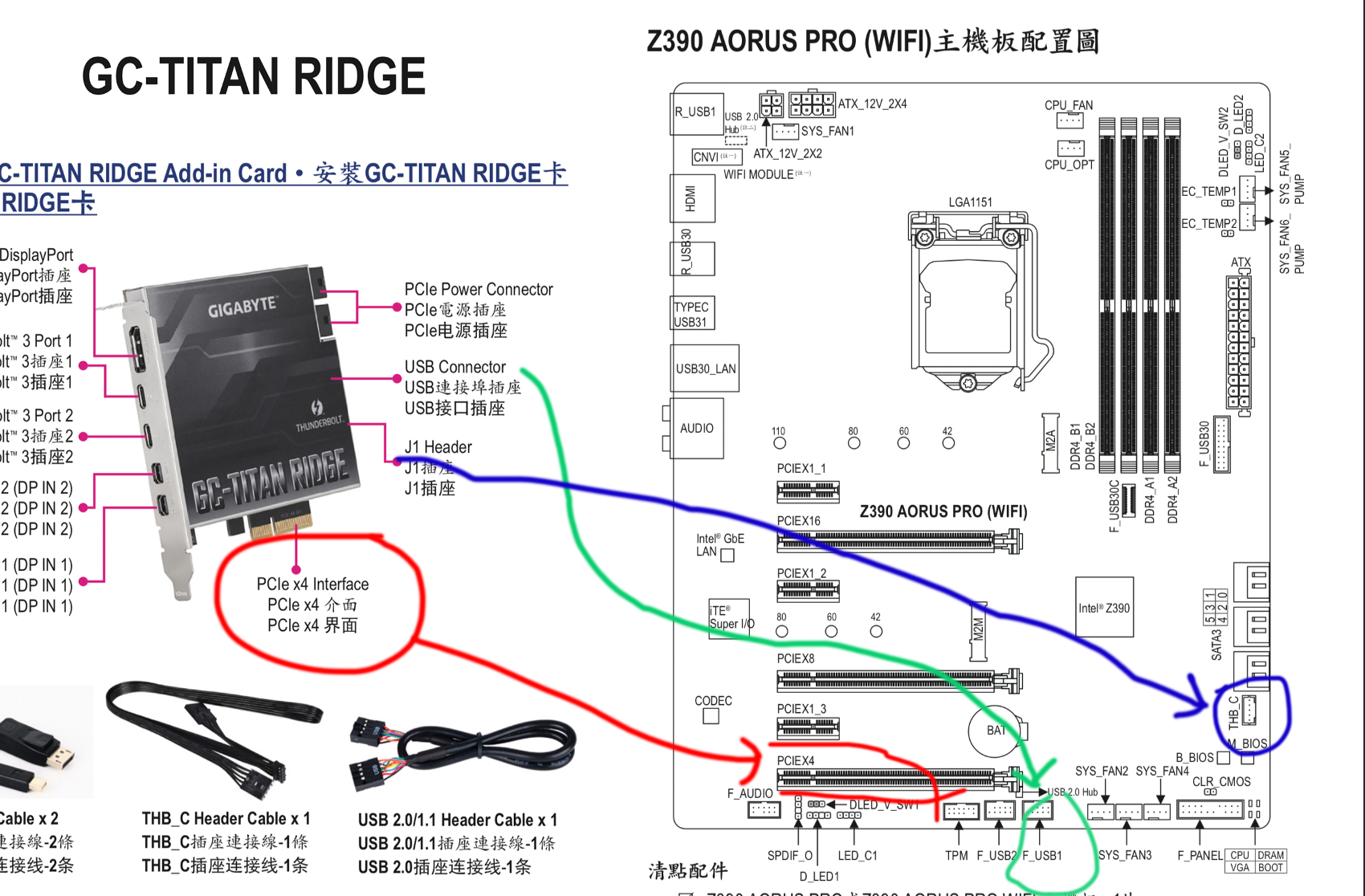

Olas Posted April 4, 2020 Share Posted April 4, 2020 (edited) 7 hours ago, Olas said: SSDT-Z390-RP21-SLOT4-TB3HP.aml this SSDT it work GC-Titan Ridge on MB Gigabyte Aorus Z390 Pro WiFi (F12c) Mr.dsynos80, Is this correct in the cable connection? Edited April 4, 2020 by Olas Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715425 Share on other sites More sharing options...
dsynos80 Posted April 4, 2020 Share Posted April 4, 2020 Yes this is the correct setup. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715429 Share on other sites More sharing options...
Olas Posted April 4, 2020 Share Posted April 4, 2020 12 minutes ago, dsynos80 said: Yes this is the correct setup. Thank you very much Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715430 Share on other sites More sharing options...
pkdesign Posted April 4, 2020 Share Posted April 4, 2020 The magic and mystery of hackintoshing. I have never been able to get sleep to work properly. I updated to Clover 5018 last week--nothing else, no kexts or config changes or alterations--and voila, sleep now works properly. No issue whatsoever. Disks eject (with the help of Jettison) and remount with no complaints. Ah the life of a hackintosher! Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715439 Share on other sites More sharing options...
tazevedo317 Posted April 5, 2020 Share Posted April 5, 2020 how would I go about dual booting win 10? have a spare ssd to install onto, don'twant to mess up my Catalina install as its working 100% currently. just wanna play some games. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715457 Share on other sites More sharing options...
GIOMGIO Posted April 5, 2020 Share Posted April 5, 2020 14 hours ago, tazevedo317 said: how would I go about dual booting win 10? have a spare ssd to install onto, don'twant to mess up my Catalina install as its working 100% currently. just wanna play some games. I did a clean install of Windows 10 on a different SSD. You can install this just like the standard procedure of installing W10, but make sure only this SSD (during installation) is connected to the motherboard! You can disable other HDD's or SSD's in the BIOS. When install is finished just connect the Hackintosch SSD/NVME SSD again and boot, you can choose Windows or macOS. I have a question about this Windows installation: I can disable other SATA ports in the BIOS, but I cannot disable the NVME/M.2 SSD on the motherboard? I tried to install Windows multiple times but I couldn't get it to work, the problem was that the NVME/M.2 SSD was still connected. Is there another way to disable the NVME/M.2 SSD besides removing it physically from the motherboard? Thanks in advance! Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715571 Share on other sites More sharing options...
BSouza Posted April 5, 2020 Share Posted April 5, 2020 Hey guys, I already installed catalina on my setup: z390 aorus pro i7 9700k gigabyte rx580 32gb ram nzxt kraken x42 and i have some troubles: - After putting him to sleep, he wakes up instantly... I already started the procedure at the beginning of the topic, but I was unsuccessful. - My disk with windows, it's gone. I can´t see on BIOS to boot my hackintosh is almost 100%. Someone help-me? sorry my bad english Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/94/#findComment-2715599 Share on other sites More sharing options...
