macOS Unlocker V3.0 for VMware ESXi


89 posts in this topic

Recommended Posts

I was able to install macOS Catalina on ESXi 6.7 by following the instructions on this site https://www.jomebrew.com/2019/10/macos-catalina-beta-on-vmwwre-esxi-67-u2.html and installing esxi-unlocker30. However, I am unable to install VMware tools as it gives this error: "The VMware Tools upgrade operation was canceled. Vix error code = 21004". Does anyone know how to solve?

Link to comment
Share on other sites

  • 2 weeks later...
On 11/1/2019 at 12:58 PM, edem2302 said:

ok thanks, so for me the last version is 3.0.0?

i don't know where is my problem...



somebody have mojave on esxi 6.7 U3 works ?



I was able to start up and run my Mojave VM under ESXi 6.7 U3 - no issues. I did need to reinstall the Unlocker 3.0 after the ESXi upgrade (from 6.7 U2). Unlocker 3.0 seemed to work fine before for me so I stayed with 3.0...never used 3.01 or 3.02. When installing macOS, make sure you erase the hard drive partition (using Apple's Disk Utility) and set the new partition to be of type APFS. I believe, I used to be able to use HFS+ in High Sierra, but for Mojave it is absolutely necessary to use APFS as the file system.





Edited by Cybernut
  • Like 1
Link to comment
Share on other sites

On 11/15/2019 at 9:07 AM, Cybernut said:



I was able to start up and run my Mojave VM under ESXi 6.7 U3 - no issues. I did need to reinstall the Unlocker 3.0 after the ESXi upgrade (from 6.7 U2). Unlocker 3.0 seemed to work fine before for me so I stayed with 3.0...never used 3.01 or 3.02. When installing macOS, make sure you erase the hard drive partition (using Apple's Disk Utility) and set the new partition to be of type APFS. I believe, I used to be able to use HFS+ in High Sierra, but for Mojave it is absolutely necessary to use APFS as the file system.





Ok thanks for the reply !



i can't use apple disk utility because i can't go after the apple logo...



i have try different iso (make with my macbook) the iso seems good but can't boot...



i have a boot loop.

Link to comment
Share on other sites

7 hours ago, edem2302 said:

Ok thanks for the reply !



i can't use apple disk utility because i can't go after the apple logo...



i have try different iso (make with my macbook) the iso seems good but can't boot...



i have a boot loop.

I recommend uninstalling and re-installing Unlocker 3.0 for ESXi. If you still get boot loop after that, then that means the problem is with your Mojave iso.

Link to comment
Share on other sites

On 11/20/2019 at 6:27 AM, Cybernut said:

I recommend uninstalling and re-installing Unlocker 3.0 for ESXi. If you still get boot loop after that, then that means the problem is with your Mojave iso.

yes, i have try uninstall and re-installing 4 or 5 times, same result.



maybe it's my mojave you're right...



i'll try...but i don't see where i made a mistake...



thanks for your help

Link to comment
Share on other sites

I have run into a problem using Unlocker and Catalina (10.15.1 19B88). I have tried this from a generated iso, using various tools in the macAdmin community (namely vfuse, AutoDMG, and installinstallmacos.py).



I am using an Intel Nuc (NUC Kit NUC6i7KYK) with the following details below:




As my main goal here is to test our DEP & MDM workflows on a non apple based esxi machine, I need to use a keyboard input. However, this appears to generate a problem. When setting the device to Apple macOS 10.14 as the VMs guest, the machine boots successfully, but keyboard input does not work correctly.



For instance, here:




I am presented with an authentication window, but, every key I press automatically initiates the cancel button, in the example above, I am hitting command which somehow sets "cancel".



The only thing I can think of here is unlocker and changes in 10.15.. As the behavior doesn't happen with Mojave and below, and didn't happen with Catalina betas either.



Alternatively, is anyone else having isues with running Catalina 10.15 (non-beta software) on ESXi 6.7u3 with Unlocker and having issues with keyboard inputs?

Link to comment
Share on other sites

Dear Donk,



Thank you so much for the Unlocker releases. They're always of major help. The issue I see right now is the following:



All recent unlockers modified to work with VMware Workstation 15.5.x:

https://github.com/DrDonk/unlocker

https://github.com/paolo-projects/unlocker

https://github.com/BDisp/unlocker



have the following issue:



You cannot install any macOS in new machines.



The Installation ISO works fine in VMware Workstation 15.10, but it doesn't work in VMWare Workstation 15.5.x



Upon installation of macOS 10.11x, 10.12.x, 10.13.x, 10.14.x the error displayed at the state of starting the installation upon formatting the hardddrive with DiskUtilities is: "CORRUPTED INSTALLATION DISK"



macOS Catalina 10.15.x ISOs will install only by turning board-id.reflectHost = "TRUE". If board-id.reflectHost = "FALSE" then the installation will not proceed. it will be just stuck at continue with no error message.



As I mentioned the installation media I used works fine in 15.10 and preinstalled machines with whichever version of macOS will run just fine, however it is impossible to install new ones.



I believe Unlocked is missing something. Can you please check this out?



Thank you so much!







Link to comment
Share on other sites

On 12/1/2019 at 2:46 AM, BWEL said:

Dear Donk,



Thank you so much for the Unlocker releases. They're always of major help. The issue I see right now is the following:



All recent unlockers modified to work with VMware Workstation 15.5.x:

https://github.com/DrDonk/unlocker

https://github.com/paolo-projects/unlocker

https://github.com/BDisp/unlocker



have the following issue:



You cannot install any macOS in new machines.



The Installation ISO works fine in VMware Workstation 15.10, but it doesn't work in VMWare Workstation 15.5.x



Upon installation of macOS 10.11x, 10.12.x, 10.13.x, 10.14.x the error displayed at the state of starting the installation upon formatting the hardddrive with DiskUtilities is: "CORRUPTED INSTALLATION DISK"



macOS Catalina 10.15.x ISOs will install only by turning board-id.reflectHost = "TRUE". If board-id.reflectHost = "FALSE" then the installation will not proceed. it will be just stuck at continue with no error message.



As I mentioned the installation media I used works fine in 15.10 and preinstalled machines with whichever version of macOS will run just fine, however it is impossible to install new ones.



I believe Unlocked is missing something. Can you please check this out?



Thank you so much!









Can you please post off-topic items in other threads (or create new threads if needed)? This thread is for Unlocker for ESXi, not Workstation. I do not care about issues with Workstation. And looks like you did post in other relevant threads (https://www.insanelymac.com/forum/topic/340416-unlocker-vmware-workstation-155/?do=findComment&comment=2699256) so please don't spam.



Edited by Cybernut
Link to comment
Share on other sites

  • 2 weeks later...
1 hour ago, Cristina89 said:

on startup




I could be wrong but looks like your unlocker was not installed properly.

Did you follow the instruction to verify that the install of unlocker was successful?

If not, uninstall and reinstall unlocker and then verify it was successful.

Edited by Cybernut
Link to comment
Share on other sites

11 hours ago, Cristina89 said:

no error






Yes, no error - but to be sure there is a test (to check if install was successful).

Look in the readme.txt file - in section 4, on how to run the test.

If your test results match with readme's results, then I am sorry, I don't know what the problem is - but the error looks more unlocker-related than macOS-related.

Link to comment
Share on other sites

23 hours ago, Cristina89 said:

Test OK




Then I suspect something is wrong with your macOS installer.

I hope you build your installer iso. I never download installer iso from Internet - always a good chance of malware, etc. hidden.

I had no problems installing High Sierra (10.13.6), Mojave (1014.6) and the latest Catalina (10.15.2) using Unlocker 3.0

Link to comment
Share on other sites

Just an fyi. It is possible to install and run the latest Catalina (10.15.2) released on December 10, 2019, on ESXi 7.6 U3 using Unlocker 3.0.

I had some trouble installing the previous version of Catalina (10.15.1) and had given up.

But with the new Catalina I tried again and though I got the same error again (basically I was stopped during the installer loading - it never finishes loading), I tried one more time, but during VM configuration this time instead of changing my CDROM device to an IDE, I left it as a SATA device and installer loaded without problems. I proceeded with the rest of the installation, and everything worked as expected. I have not had the chance to experiment with that setting using the previous Catalina (10.15.1) once more...hopefully that will work with 10.15.1 too.



When creating the VM, I chose VM type of ESXi 7.6 U2 (since U3 type is not available). And chose macOS 10.14 (since 10.15 is not available).

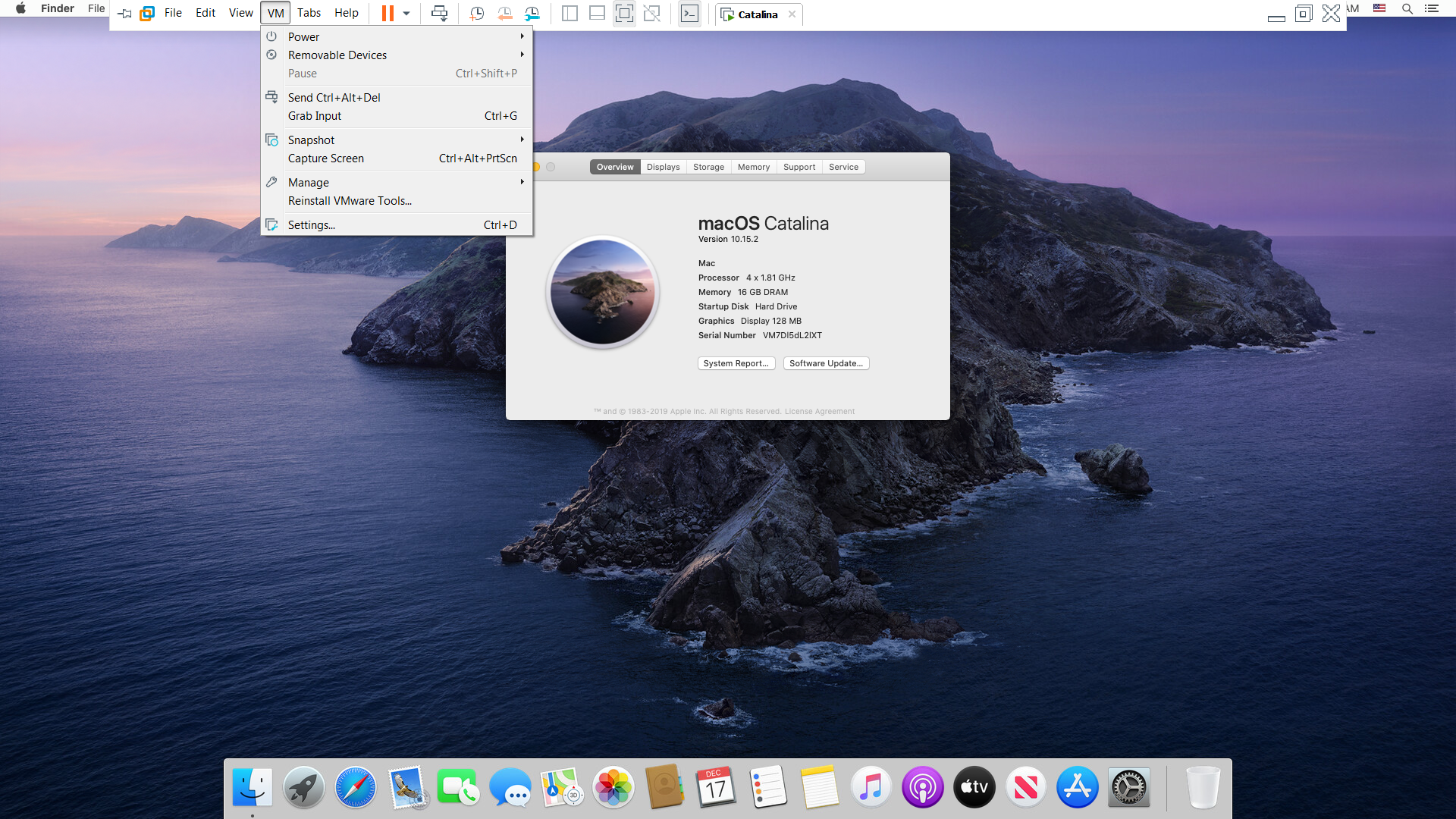

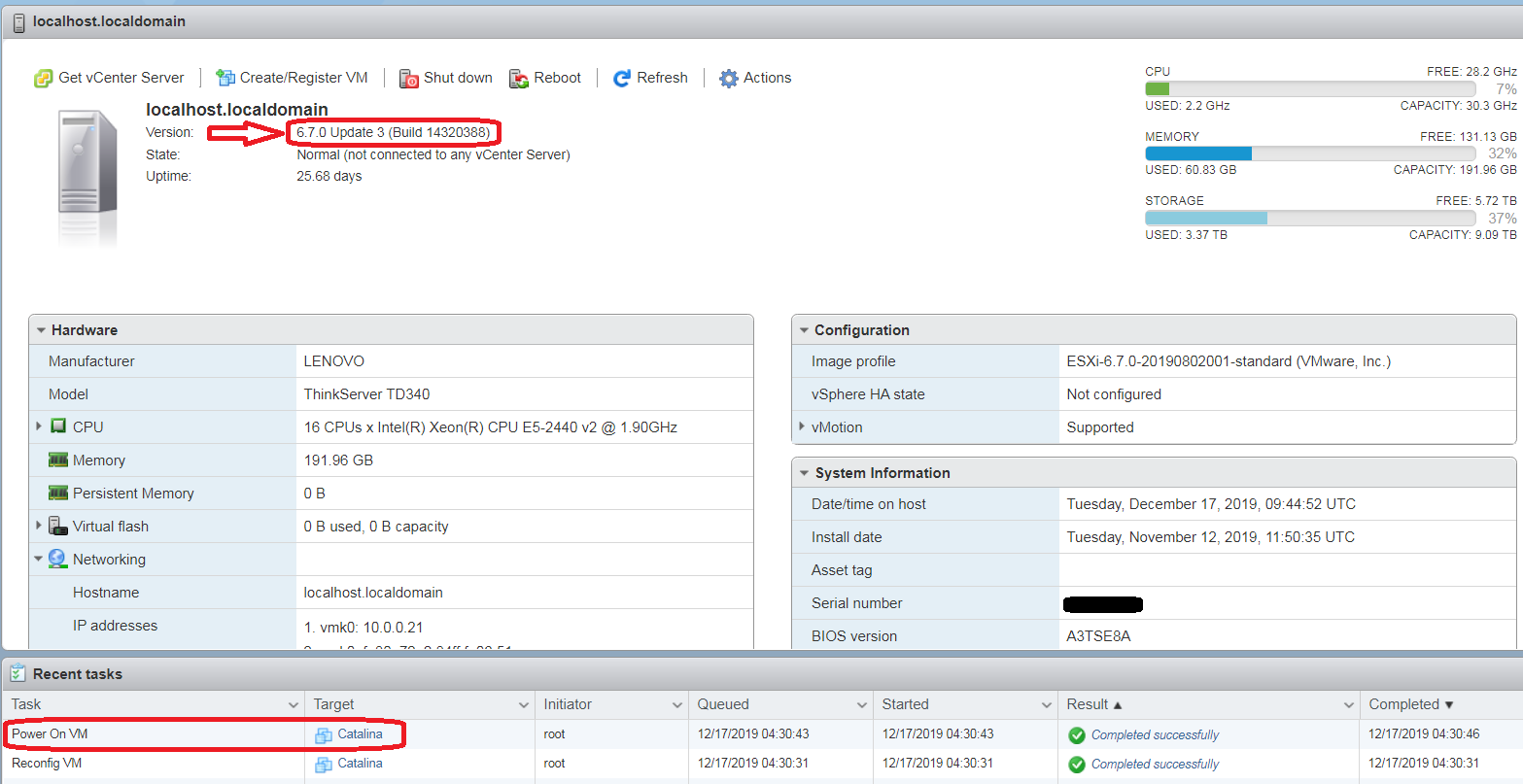

Anyway, here's the screenshots:







Edited by Cybernut
Link to comment
Share on other sites

  • 4 weeks later...

We're a small org. We were on 6.0 and I used Unlocker 2.x to install Mojave. It was successful.

A colleague of mine upgraded to 6.5.

Now Mojave guest throws an error saying the host is not suitable or compatible when I try to power it on.



I ended up here and I wanted to try Unlocker 3.0.

I know the instructions say that I need to uninstall any existing scripts but in the process of upgrade we lost the version of script and we downloaded before. So I used 2.08, ran uninstall rebooted.



Then I downloaded 3.0 and installed it.

Script executes just fine and says it's successful prompting me to reboot.

However when I try the script to check it returns with smcpresent = false.



We thought we had secure boot enabled but when we ran the python script from VMware, it says that Secure boot is not enabled on the host.

I'm not sure what's causing this issue while it's working for many people.



Any insights greatly appreciated.



Thanks.

Link to comment
Share on other sites

  • 2 weeks later...
  • 2 months later...

I am trying to install the unlocker 3.0. I downloaded it from: https://github.com/benevo/esxi-unlocker. The installation script referes to an unlocker.tgz which is not present in the release file.



When I rename esxi-unlocker-3.0.0.tar.gz unlocker.tgz and try to use it with the esxi-install.sh script it does seem to go through and I see the unlocker.tgz being copied to /bootbank/ and see the entry being added to /bootbank/boot.cfg but when I reboot nothing happens. If I manually execute the script etc/rc.local.d/unlocker.py then the path is indeed apply and I can run MacOS VM but if I reboot my host machine, the changes are lost and I need to re-execute the unlocker.py script again.



What am I missing, where should I download the unlocker.tgz from?



Thank you!

Link to comment
Share on other sites

  • 2 weeks later...

Long shot I’ve got a pci to pci-e converter attached to a usb controller that passes through to windows fine but when passing to the macOS Vm I don’t get any console. Any ideas what the issue is related to?

Link to comment
Share on other sites

Anyone else tried ESXi 7.  I did and the patch ran but the system (host) booted but I could not log into it (couldn't find some file)



I wish to use my existing 6.5 VMs of Mojave and Catalina, which are working find but on a clean USB install of ESXi 7 the machines won't power on without something.



I don't need to  create them, I just want/need to start them on ESXi 7



Anybody can think of a short term fix?







Link to comment
Share on other sites

Is an 'upgrade' from ESXi 6.7 (unlocker 3.0 installed) to ESXi 7.0 likely to keep currently working Mojave and Catalina VMs functioning?



Since the machines are already created the question would really be if they will continue to Power On?





I tried a fresh v7 install that did not go too well. So, now I'm exploring an in place upgrade



Any thoughts?
