HP 840 G3 EliteBook ** WiFI and Bluetooth resolved** Monterey / Big Sur

[Donw35]

@Jake Lo Mad props to ya sir, I was going to build a boot loader for my G3 (haven't had time to get to it) and saw your EFI, excellent job man. worked. I may do a little tweaking but I don't think I need to do much...



I am going to add this to the 1st post and give you the credit



Edited August 22, 2020 by Donw35
Jake Lo Rocks

[Jake Lo]

@Donw35

Thanks. Actually it can be updated a bit. We no longer need VoodooI2C.kext to enable the internal drive, just add ctlnaAHCIPort.kext instead. Multitouch gesture can be added to the 840 G2 as well with the same 2 kexts (VoodooSMBus + VoodooRMI). You just need to add the device id to VoodooSMBus. For the 840 G2, it's 0x9ca28086

I had posted the edited files here



Edited August 22, 2020 by Jake Lo

[Donw35]

@Jake Lo

Good work, I updated OC to .6.1.0 and the latest Lilu.kexts and WhatEverGreen.kexts as well. I did some other changes in the config plist and remove the OPenCore boot picker to builtin so the Reset NVRAM is easy to get too.



[Jake Lo]

You could also access it by pressing the spacebar at the Picker or change HideAuxiliary to NO so it'll always display

[Benjamin Franklin]

@Jake Lo Can you please share the sources (.dsl) of your SSD-840G3.aml?

I have a 850G3 and although on paper it's the same machine (except for the screen), but I found out that sometimes components do differ.



[Jake Lo]

@Benjamin Franklin

Same Skylake model with HD520?

https://github.com/RehabMan/HP-ProBook-4x30s-DSDT-Patch

[Benjamin Franklin]

1 hour ago, Jake Lo said:

@Benjamin Franklin

Same Skylake model with HD520?

https://github.com/RehabMan/HP-ProBook-4x30s-DSDT-Patch

Yep, same model.



Thanks



Currently the laptop is configured with Rehabman's Hotpatch-Clover method. So if I ONLY use what's used now, would that be enough?

Edited September 3, 2020 by Benjamin Franklin

[Jake Lo]

If you're using SSDT-8x0G3b.aml, then most likely my OC files will work for you too, otherwise you just need to replace the SSDT's name

[Benjamin Franklin]

Thanks Jake

[Vinnmen]

hello.



my efi if interested.

audio use voodoohda

mute button - work

auto detect headphones  - work

HDMI(display port- not tested) - manual change









hpeb840g3.zip

Edited September 13, 2020 by Vinnmen

[gianni.dmg]

On 7/27/2020 at 7:09 AM, cuti_it said:



EFI-Hp840G2-macOS11.zip

i have problems with your efi. when the pc goes to sleep it freezes and restarts, and many times it slows down

[Donw35]

check your BIOS settings, do you have anything pluged into the USB port ?

[foobaa000]

On 8/22/2018 at 2:54 PM, Donw35 said:

Credits go to Jake Lo for creating this EFI file. I did make some changes to his, this one is Open Core 6.1.0 and latest Lilu.kext and WhatEverGreen.kext

HP_840_G3_BSB5.zip



I checked the upladed EFI with my HP 820 G3, and Big Sur Beta 8 works perfectly.

Thank you very much.



[Benjamin Franklin]

On 8/22/2020 at 9:01 AM, Jake Lo said:

@Donw35

Thanks. Actually it can be updated a bit. We no longer need VoodooI2C.kext to enable the internal drive, just add ctlnaAHCIPort.kext instead. Multitouch gesture can be added to the 840 G2 as well with the same 2 kexts (VoodooSMBus + VoodooRMI). You just need to add the device id to VoodooSMBus. For the 840 G2, it's 0x9ca28086

I had posted the edited files here



Multitouch gesture on the 850 G3 works with: VoodooPS2Controller (by Acidanthera) + VoodooSMBus + VoodooRMI

For OpenCore disable the VoodooPS2Controller plugins: VoodooPS2Trackpad VoodooPS2Mouse and VoodooInput (just the one in VoodooPS2Controller)

Put VoodooPS2Controller (and keyboard plugins) before VoodooSMBus and put VoodooSMBus before VoodooRMI

For OpenCore disable the VoodooRMI plugin: RMII2C



Question: has anyone been able to get the little stick on the keyboard ("The {censored}") and the buttons directly under the keyboard (and thus above the trackpad) working?



Edit: for the censored word one can also read “gnome nose” ;-)

Edited October 7, 2020 by Benjamin Franklin
Censored?

[maxb2000]

On 10/7/2020 at 3:24 PM, Benjamin Franklin said:

Multitouch gesture on the 850 G3 works with: VoodooPS2Controller (by Acidanthera) + VoodooSMBus + VoodooRMI

For OpenCore disable the VoodooPS2Controller plugins: VoodooPS2Trackpad VoodooPS2Mouse and VoodooInput (just the one in VoodooPS2Controller)

Put VoodooPS2Controller (and keyboard plugins) before VoodooSMBus and put VoodooSMBus before VoodooRMI

For OpenCore disable the VoodooRMI plugin: RMII2C



Question: has anyone been able to get the little stick on the keyboard ("The {censored}") and the buttons directly under the keyboard (and thus above the trackpad) working?



Edit: for the censored word one can also read “gnome nose” ;-)



Thank you, this works perfectly on EliteBook 840 G2 ! I successfully updated to the latest kexts.

[Donw35]

Here is my recent EFI folder with OC .0.6.3 and latest kexts...

HP_840_G3_OC63_BS.zip

[Benjamin Franklin]

Any changes in your config for the latest (the non beta) release?

[maxb2000]

Anyone has DW1820A ? I don't have 5 GHz band at all and 2.4 GHz only runs on 20 MHz.

[devillived666]

Ive got an hp haswell model running catalina. Which smbios should I use because I cant get the big sur update from system>updates. it says this update cant be located and I think its related to my current smbios

[Jake Lo]



SMBIOS still supported in macOS Big Sur:

• iMac14,4 and newer
• MacPro6,1 and newer
• iMacPro1,1 and newer
• MacMini7,1 and newer
• MacBook8,1 and newer
• MacBookAir6,x and newer
• MacBookPro11,x and newer

[Donw35]

for those that are playing along, here is my latest EFI folder, remember you will need serial numbers. let me know your experience



HP_840_G3_OC65.zip

[Baio77]

On 1/23/2021 at 12:13 AM, Donw35 said:

per quelli che stanno giocando, ecco la mia ultima cartella EFI, ricorda che avrai bisogno dei numeri di serie. fammi sapere la tua esperienza



HP_840_G3_OC65.zip 9,94 MB · 2 download

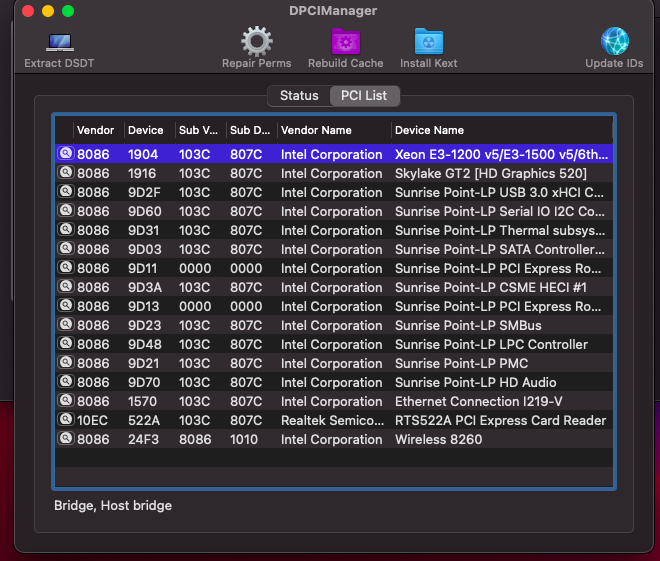

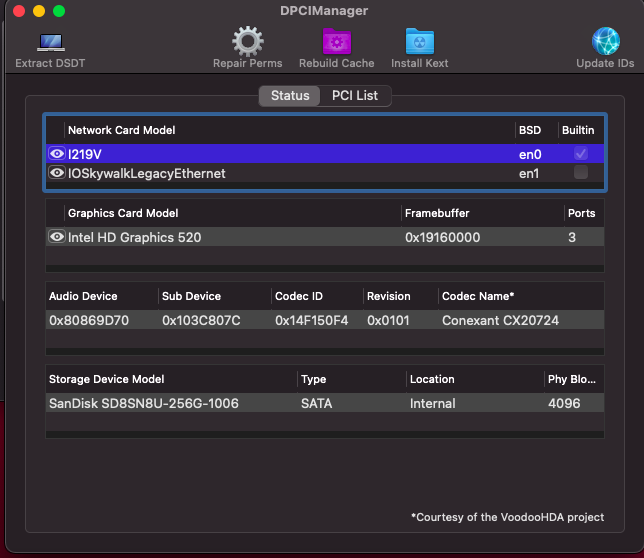

Pass ioreg please ?
Do you have dual boot with Win?
Do you boot from OC?

Edited January 24, 2021 by Baio77

[Donw35]

I do not dual boot into Windows 10

of course I boot from OC, its in the file I uploaded

[Jake Lo]

@Baio77

I just updated to OC 0.6.6. Dual booting with Windows from OC picker is now working.

You can try my files here

[Baio77]

EFI OC 0.6.8 + Kext 7\3\2021 HP ELiteBook 820G3 + HD520

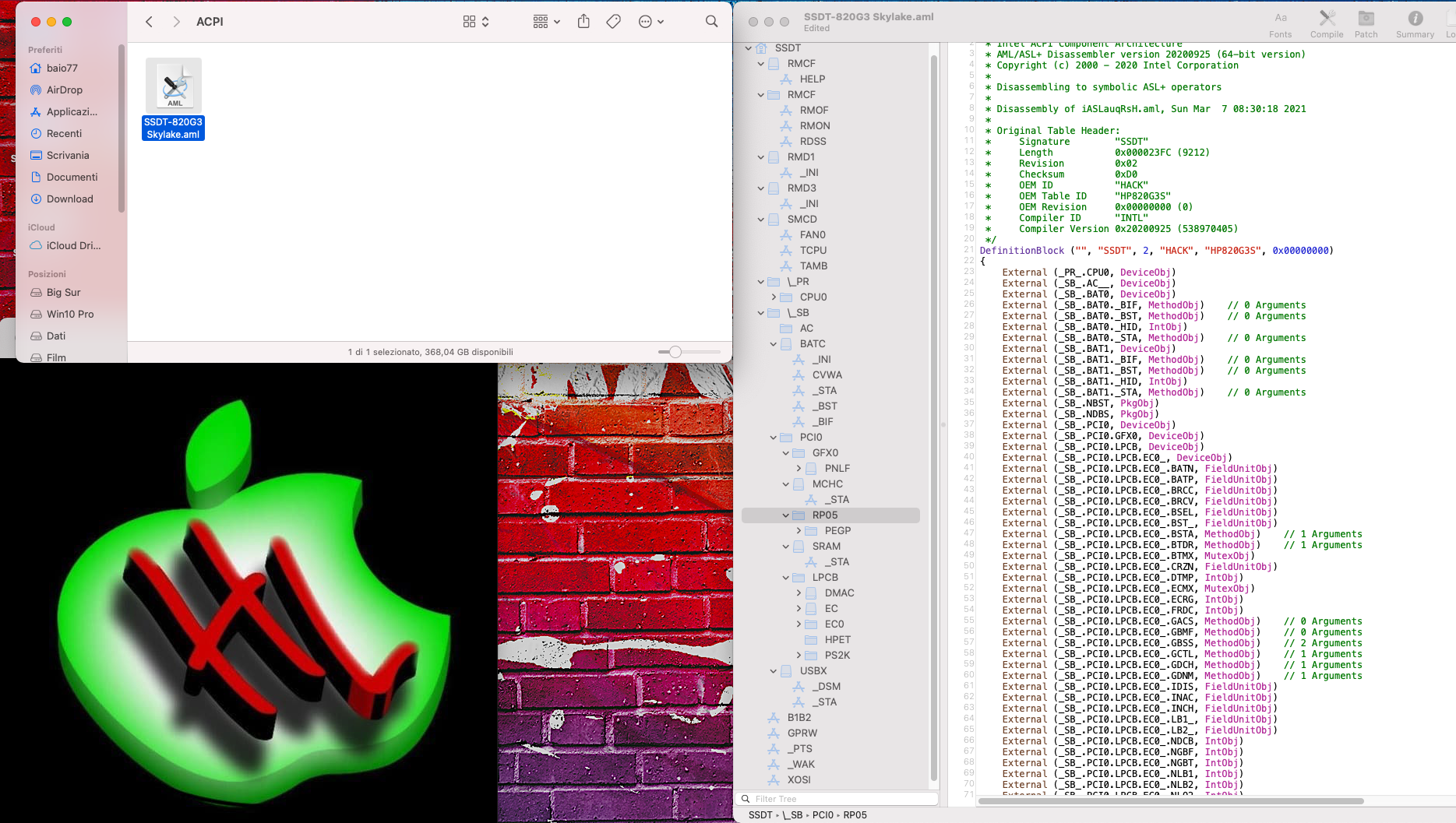

New SSDT ALL Fix

EFI.zip EliteBook Pro di Roger.ioreg.zip
