JennyDavid

Enabing Keyboard's Backlight in macOS

12 posts in this topic

Recommended Posts

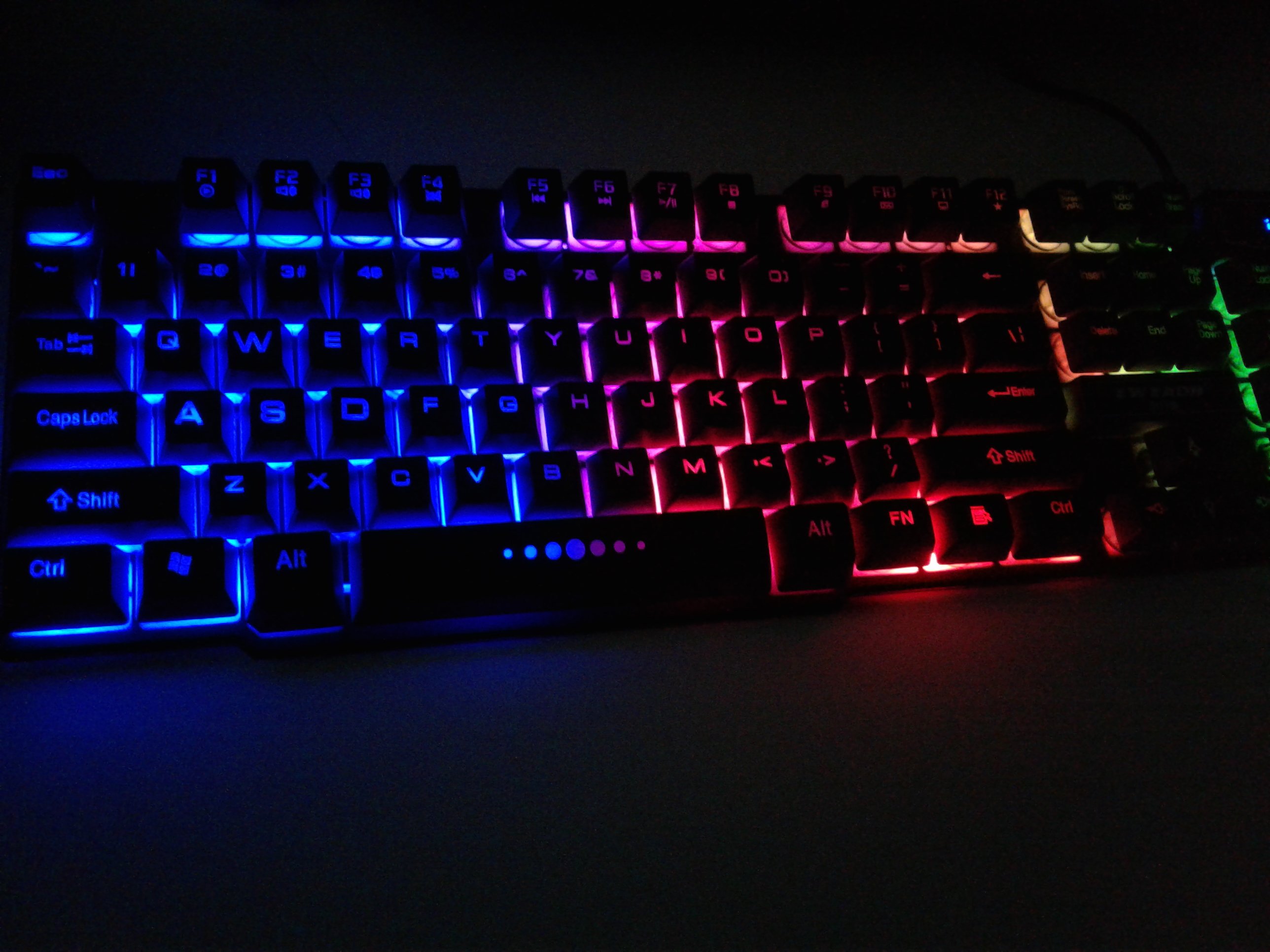

How to enable your Keyboard's Backlight in macOS

36634285-24d754e2-19dd-11e8-80a4-7e36f26dff63.thumb.jpg.f0a1dedca66a2eac1dc0c279f0115e43.jpg

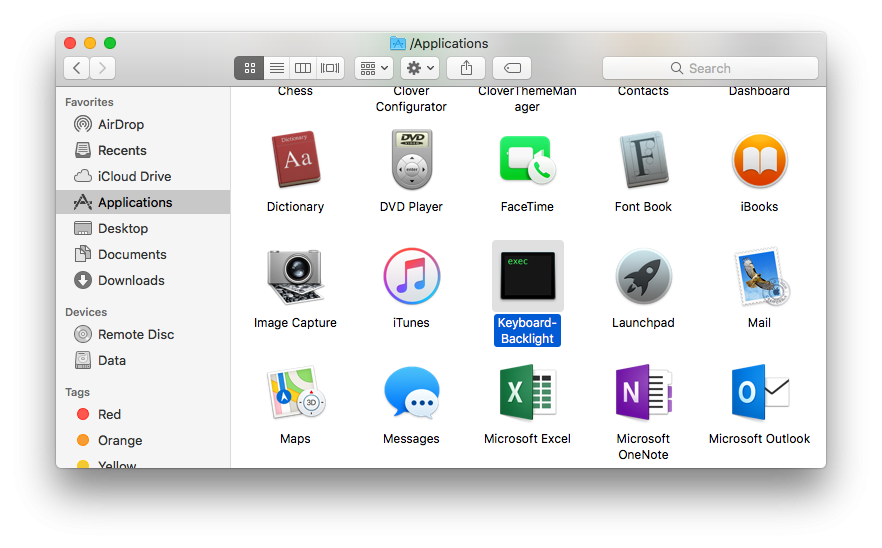

1. Extract and place the attached binary file [Keyboard-Backlight.zip] in your /Application folder as shown below.



36633865-40275ff4-19d7-11e8-8185-687a76b9caef.png.2478bbaa98ce03b98ec4970f940efb03.png

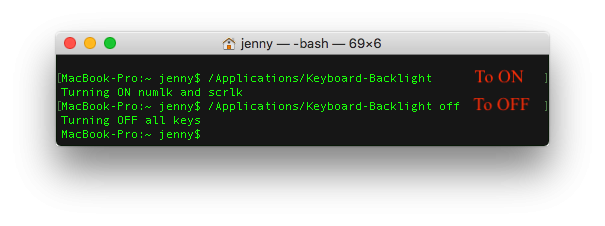

2. Open Terminal window and type the following:



/Applications/Keyboard-Backlight  (To switch ON)  :thumbsup_anim:

/Applications/Keyboard-Backlight off  (To switch OFF)  :thumbsup_anim:



36633945-57a47ad0-19d8-11e8-9f68-31e30ecf0cdf.png.e25ebee7f752551c08d94aebb9db668c.png



OR



Just install these two files by double clicking them [Keyboard BackLight.zip:D



36634147-1fd3f394-19db-11e8-9de9-cf95f4e5843a.png.e1ef7c285c0fc4570a2c1aaed74e46ad.png

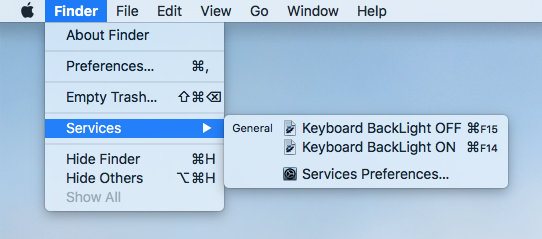

3. Once they are installed, you may go to Finder >> Services to toggle between ON & OFF.



36634238-79e5b6dc-19dc-11e8-919b-9703653861f6.png.adbf83675058552d6936e1398edac5d4.png



4. That's it! You're done. Enjoy your hack with backlights. :drool: :thumbsup_anim: :thumbsup_anim:





To uninstall

1. Delete the binary file from /Application

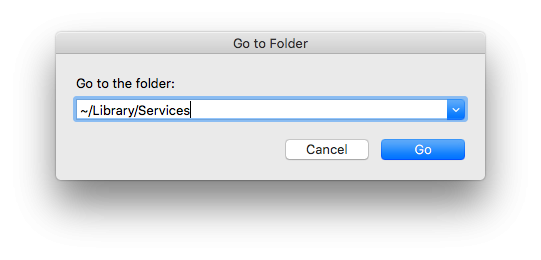

2. Navigate to ~/Library/Services and delete both the Keyboard BackLight ON/OFF files.



36856046-0747590a-1db0-11e8-8266-d218317cb439.png.61176a7006da499e60d6f7d0088b07be.png

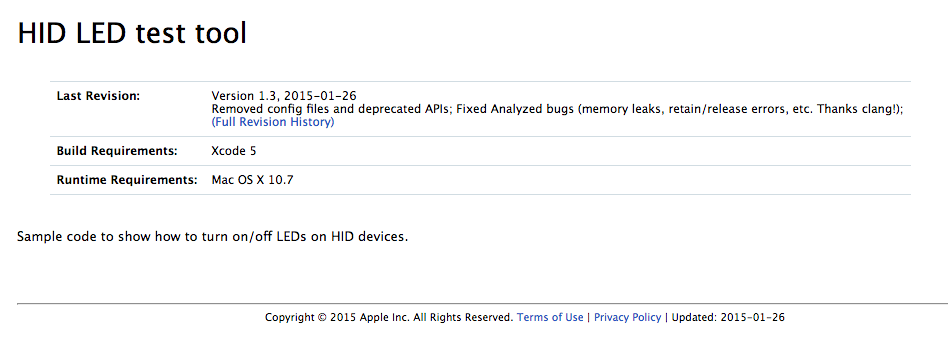

Special credits to Apple Inc. for the HID LED Test Tool :yes:

36634026-6c2e1dca-19d9-11e8-8b40-abbe6a553d14.png.3f3d4a61a18ea671130ef71bdb8769d3.png





P/S: Works on most keyboards, but not all. :no:

Edited by JennyDavid

Share this post


Link to post
Share on other sites
Advertisement
25 minutes ago, Allan said:

Nice job @JennyDavid, congrats! :D

This tool works with Laptops?



Thanks



I'm afraid it is limited to desktop for now. Probably, I will look into laptop's compatibility in the future. Anyway, forgot to mention, as long as you are using an external keyboard (even with laptops), this tool should work fine. :D

Edited by JennyDavid
Just tested with external keyboard in a laptop.

Share this post


Link to post
Share on other sites
14 minutes ago, PippoX0 said:

Very good! I will try it ...


Sent from my iPad with Tapatalk



Thanks @PippoX0 :blush: :wub:



Keep me posted with the outcome. Good luck :)

Share this post


Link to post
Share on other sites

I have a backlit Bluestork keyboard and I can not turn it off from os x, since when the driver loads it lights up and the function keys (Fn) do not go, try your trick and it does not turn it off either. Do you know any way ?, sorry for my English

Share this post


Link to post
Share on other sites
13 hours ago, surfcaster said:

I have a backlit Bluestork keyboard and I can not turn it off from os x, since when the driver loads it lights up and the function keys (Fn) do not go, try your trick and it does not turn it off either. Do you know any way ?, sorry for my English



You can try re-mapping your key to "Scoll Lock" but can't promise that it will work. Most likely your keyboard's backlight is controlled by a custom key stroke that has been pre-determined by the manufacturer.

Share this post


Link to post
Share on other sites

Ok, it works, I must press the Fn key while I execute its trick, there are only two leds (numeric and one that I do not know what it is) that there is no way but that is unimportant, thank you very much

Share this post


Link to post
Share on other sites
10 minutes ago, surfcaster said:

Ok, it works, I must press the Fn key while I execute its trick, there are only two leds (numeric and one that I do not know what it is) that there is no way but that is unimportant, thank you very much



Glad that it works for you :D



Enjoyyy :thumbsup_anim:

Share this post


Link to post
Share on other sites

Sorry for bringing back this topic, but, i need some help.

I tried everything on the internet, only this one worked, but worked only one time, now when i type in terminal, don't work anymore, either the service wont work.

Any ideas ?

Share this post


Link to post
Share on other sites
