6 hours ago, Slice said:

This commit is right. I got good image using radialGradients, but yes, something is wrong. If you compile Clover with debug enabled in nanosvg and nanosvgrast then we can see what is the issue.

line 73

#define DEBUG_SVG 0

change to 1

I'll try to test this weekend.



6 hours ago, Slice said:

Out af that. Did you propose Clover Theme Manager can show SVG themes set as one file?

Not sure yet.

That CloverThemeTemplateAI.svg is good for a preview of a theme. But if it's to hold ALL icons then there could be maybe 50 icons in there if all linux flavours are present. Do you envisage these icons to be hidden so they don't appear in the preview?

[Slice]

I think they may be hidden and not appear in the preview. visibility="none". Clover will show them when necessary.

In this template they are absent as well as many other elements. I am not decided yet what to do in this case.

[blackosx]

Slice



I've tested Clover debug but only saw the following which doesn't help trying to identify the gradient changes.

5:450  0:454  GUI ready
7:565  2:115  image real bounds:  29.500000  29.600006  254.000000  254.000000
7:578  0:013  scaled width= 224.500000 height= 224.399993
7:580  0:002  Image width=224 heigth=224
7:584  0:003  timing rasterize start tx= 0.000000 ty= 0.000000
7:586  0:002   image will be shifted by [ -52.561248, -52.739433]
7:683  0:096  timing rasterize end
7:695  0:012  create textbuffer
7:698  0:002  font loaded status=Not Found
9:975  2:276  ConnectAll after refresh menu



I see I would need to enable deeper debugging statements to understand what's going on but I'm not sure what I'd be looking for and TBH don't have the time.



You say commit 4699 was to give you good radialGradients. Can you post your code used for radialGradients?



I've tested radialGradient code from here:
https://developer.mozilla.org/en-US/docs/Web/SVG/Element/radialGradient



Both Clover 4674 and 4706 show it incorrectly, but I feel 4674 shows it better.

But I see Adobe Illustrator shows it differently to how it's shown on Mozilla's page.



Argh.. I understand this is just not simple...

[Slice]

Yes, there are mistakes in svg rasterizing. The project is very complex and uses not my logic.

The svg file for testing



Radial.svg.zip

[blackosx]

Thanks for your SVG file.

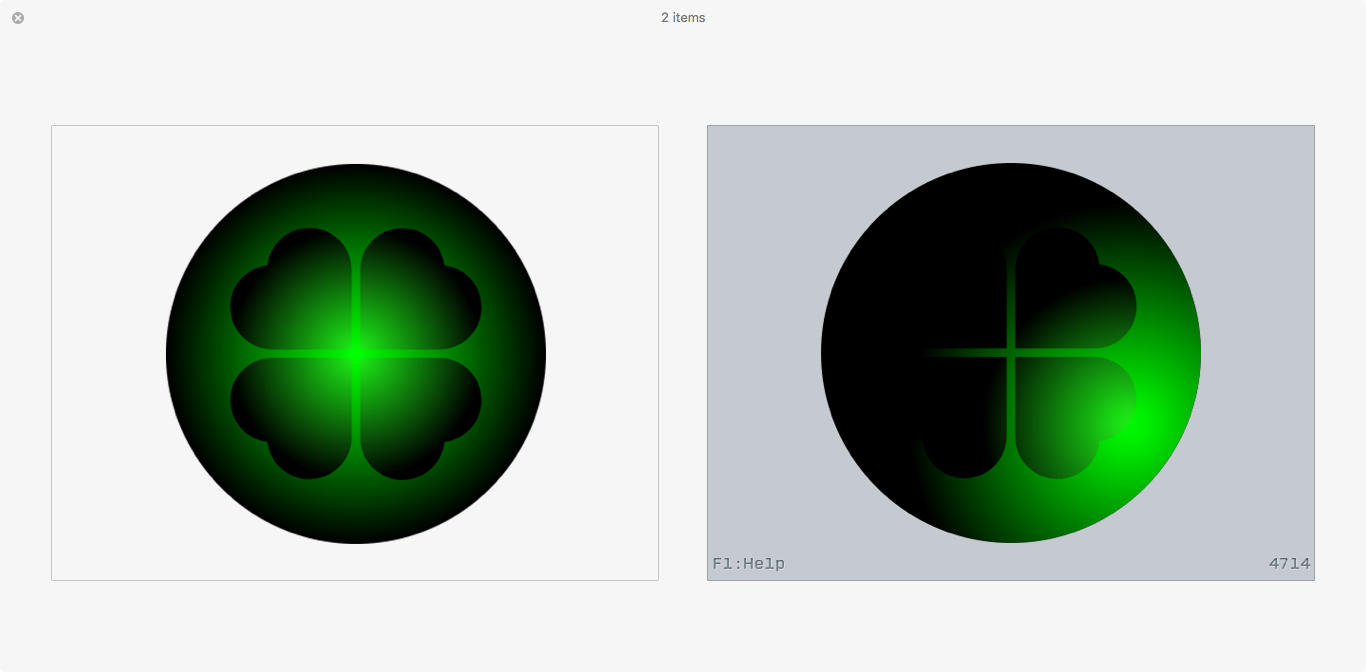

However, I'm not seeing the same results as you. This is what I see here.

[Slice]

Issues I notice

1. Opacity. May be there is not need in nsvg__unpremultiplyAlpha(dst, w, h, stride); at the end of nanosvgrast.c?

2. Gradients. Not sure if it related to 1.

3. Scale. When I raster a theme then I see large elements.

4. DrowSVGtext shows nothing.

I continue working on these issues.

[Badruzeus]

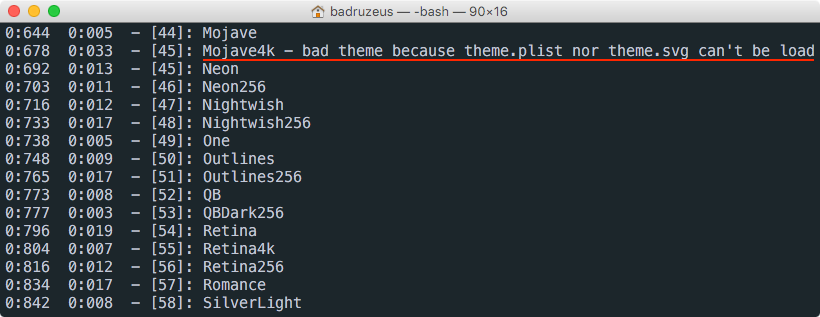

Sorry, does it mean *.plist file will be replaced by "theme.svg" on Vector theme?

Thanks (ah, ignore the screenshot, it was bad *.plist file from my prev. commit).



[Slice]

Yes, theme.plist for PNG themes and theme.svg for SVG themes.



The work in progress but vector theme is not currently shown correctly. Wait me or help me.

[Badruzeus]

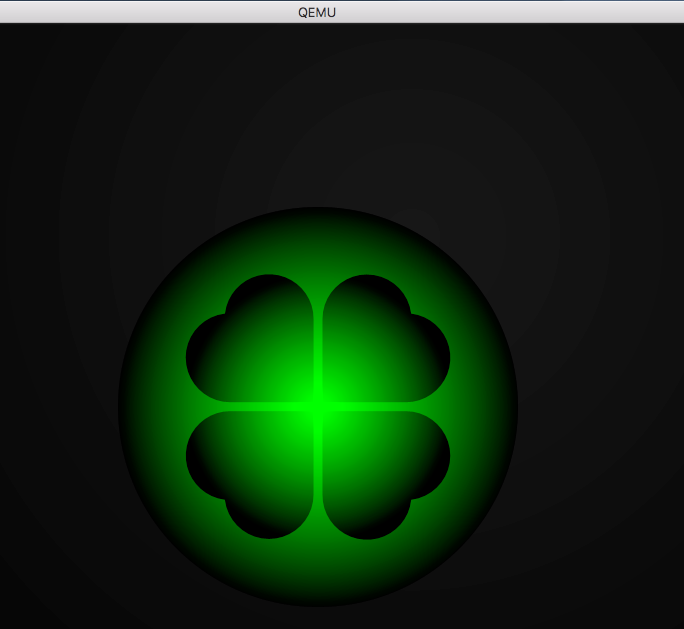

Looks good here with "radialGradient", Sample.svg exported using Gravit Designer.

Export options: Retain attributes and add IDs [via Clover r4714]

Sample_Gravit.zip



Edited October 19, 2018 by Badruzeus

[Badruzeus]

Oops, I just got what @blackosx meant with "..not simple."

Two objects or more with layer's arrangement breaking "Gradient".

[Slice]

Show, please, the SVG file.

[Badruzeus]

17 minutes ago, Slice said:

Show, please, the SVG file.

Here is..

Sample_more.zip

[Slice]

On 10/19/2018 at 5:08 PM, Badruzeus said:

Here is..

Sample_more.zip

I fix this but Clover is not ready yet

[Badruzeus]

On 10/22/2018 at 11:47 AM, Slice said:

I fix this but Clover is not ready yet

OK, thanks @Slice for r4720, above "radialGradient" looks as it is. I just tried with more complex gradients (linear, radial) at a same time but it seems not ready yet, or it' s just my bad svg design.

Sample_multiGrads.svg

Edited October 23, 2018 by Badruzeus

[Slice]

Not ready yet. I still can't catch good gradient transform when shapes transformed too.

[Slice]

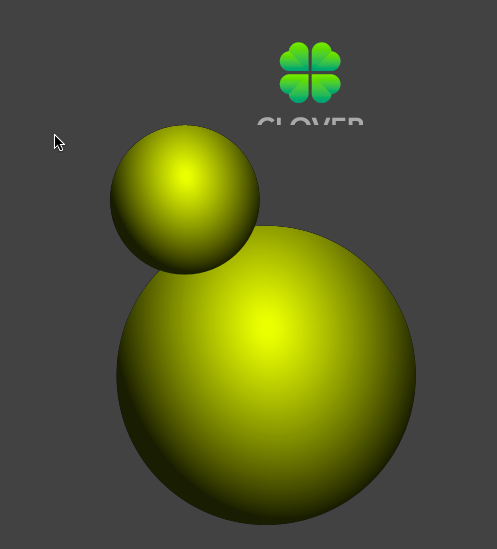

rev 4723. I think gradients repaired finally.

Radial

Linear



I make it very different from initial nanosvg and my method is times faster.



There is one feature lack: focus of Radial Gradient is not implemented initially.

Comments by Mikko

		// TODO: spread modes.
		// TODO: plenty of opportunities to optimize.
		// TODO: focus (fx,fy)

Hope later I will make this but there is complex mathematics.



Other remaining problem is a distance between the spheres. It is not as designed.

And a feature for future (  ). I can implement gradient dithering. Later.



Otherwise we can account SVG rasterization as complete. So begin to parse a theme.svg.

[blackosx]

Thanks for your continued work here slice.

A quick test shows better results with your latest commit.



I'll continue my work with the SVG icons.

Edited October 26, 2018 by blackosx

[Slice]

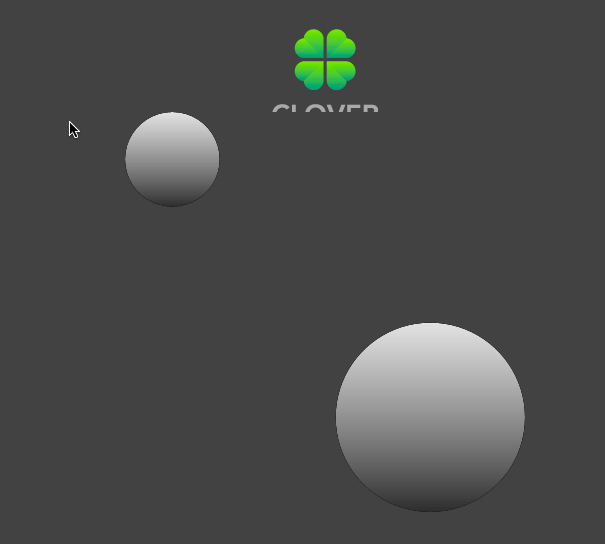

Images are too light? Strange.

Simple test

TwoRect.svg

[blackosx]

Looks pretty good to me slice.



I've conducted a proper colour test and almost 100% perfect.

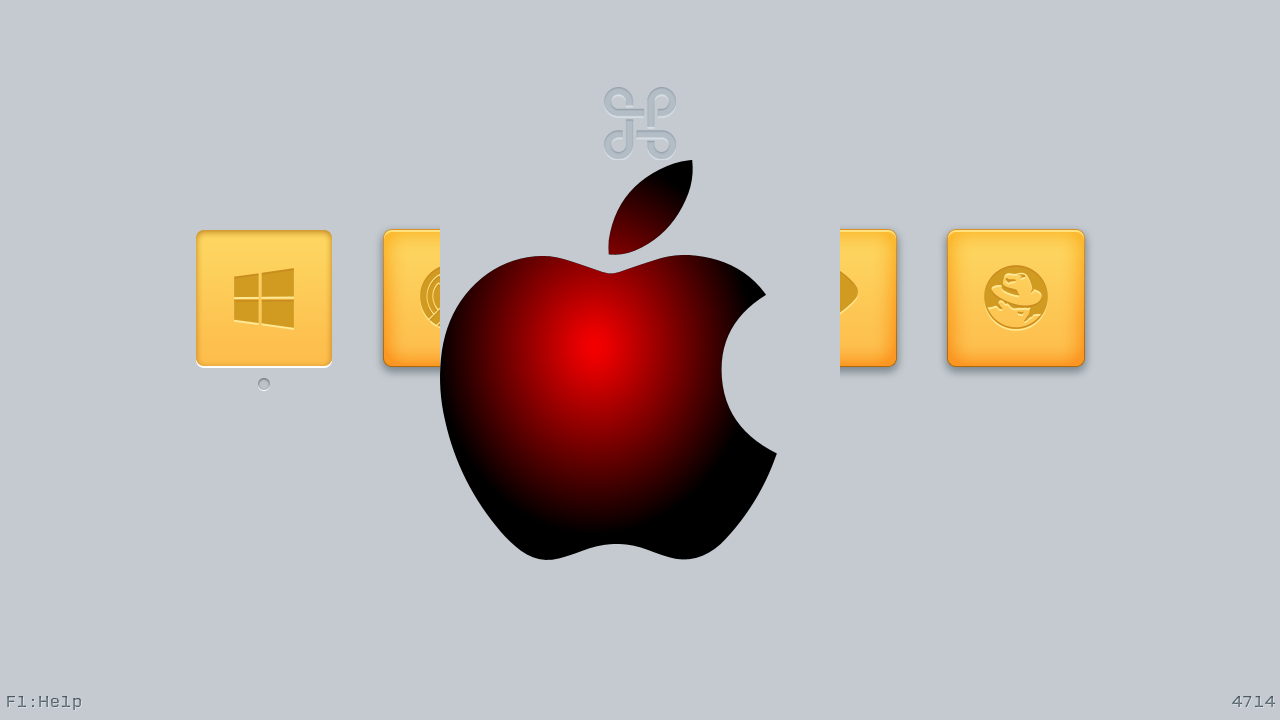

Sample.svg

[Slice]

Thanks! The difference occured 127-128, no more.



[Slice]

9 hours ago, blackosx said:

Looks pretty good to me slice.



No crest square must be darker. Colors should be subtructed, not added.





Sample.svg



[Slice]

Rev 4725. Vector theme can be used.

The problem is to draw it so that Clover can render 1:1 as designed.

I have not good result.



Instructions are not ready, briefly:

1. Create a folder with new name

/EFI/CLOVER/themes/MyNewTheme

2. Place "Theme.svg" inside. The name is exact this.

3. It should be looked by Safari as theme preview.

4. Use as simple SVG language as possible. Avoid multilevel styles and transformations.

5. Write into config.plist

GUI->theme=MyNewTheme

6. Test.



[Slice]

13 hours ago, Slice said:

No crest square must be darker. Colors should be subtructed, not added.

[blackosx]

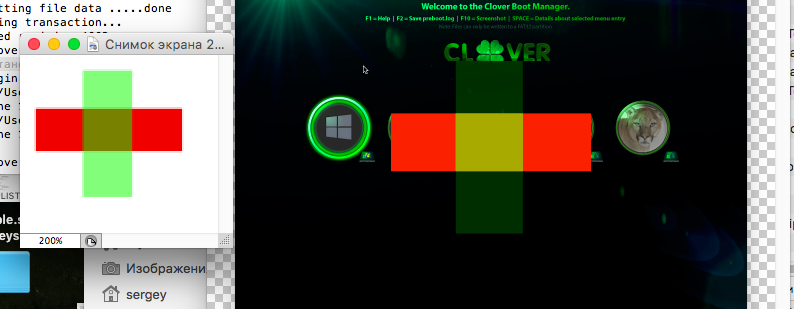

This is what I see in Photoshop when viewing the SVG on dark background and white background.

Left side is original SVG, right side is screenshot from clover gui.





Centre square when the 50% green is overlaid on the red is good and any visual differences is due to optical illusion.



50% green is different in Clover due to the way it's being blended with the background.



[blackosx]

12 hours ago, Slice said:

Rev 4725. Vector theme can be used.

The problem is to draw it so that Clover can render 1:1 as designed.

I have not good result.



Instructions are not ready, briefly:

1. Create a folder with new name

/EFI/CLOVER/themes/MyNewTheme

2. Place "Theme.svg" inside. The name is exact this.

3. It should be looked by Safari as theme preview.

4. Use as simple SVG language as possible. Avoid multilevel styles and transformations.

5. Write into config.plist

GUI->theme=MyNewTheme

6. Test.



What structure does the Theme.svg need to have?



I'm testing with simple attached .svg file but clover debug shows it's not finding any icons inside the file?
