[WIP][Success] Z97X-UD5H i7-4770k running Mojave Beta 1


moman2000
 Share

15 posts in this topic

Recommended Posts

Hi,



I thought it would be nice that I would be the first here to give my experience with getting Mojave running and mostly working on my system.



My specifications are as follows:



iMac 14,2



GIGABYTE GA-Z97X-UD5H / Intel Core i7-4770k @ 4.4GHz / 16GB Corsair Vengeance DDR3 @ 1600MHz

MSI AMD Radeon HD 7870 2GB OC

250GB SanDisk Ultra 3D NAND SSD / 120GB OCZ Agility 3 SSD

1TB 5.4K HDD



I used the config that @MaLd0n helped me with. Seriously, he is a legend. HERE is my Clover Config including everything I use for 10.13 High Sierra and 10.14 Mojave.



Installation Procedure:





Create bootable USB media with createinstallmedia - sudo /Applications/Install\ macOS\ 10.14\ Beta.app/Contents/Resources/createinstallmedia --volume /Volumes/"Insert Volume Name here"  ***** Remove quotation marks!!!



**"--Applicationpath" is now depreciated and should not be used when making a 10.14 Mojave USB. I do not know if this will change in upcoming releases.



** ConvertToAPFS is now depreciated and no longer works when installing 10.14 Mojave beta 1. Using the command "--converttoapfs NO" will not work if you use it with "createinstallmedia".



Editing "minstallconfig.xml" within the "macOS Install Data" folder on the target partition chosen during installation to change "ConvertToAPFS" from "TRUE" to "FALSE" would also not disable APFS conversion.



Installation ran through well, but it did restart just after installation began which seemed to have been caused by a crash, but it seemed like it was normal as this happened twice as I tried installing Mojave earlier and the same thing happened. Rebooting again into the installation on the target drive that was selected before described as "macOS Install"  and named "macOS 10.14" resumed installation.



Everything from then on was easy and smooth. I set-up my iCloud and things as such and was brought to the desktop of macOS 10.14 Mojave!





What does work:



Graphics (Acceleration/Metal) // 4K video dropped 0 frames // Picture-in-Picture

Mouse and Keyboard

USB 3.0 -  Full 5 GBP/s - Only ports above HDMI Port and front I/O

USB 3.0 under both Intel and Killer Ethernet ports function with USB 2.0 devices.

Ethernet (only Intel NIC so far) Both NIC's work, Intel I217-V and Killer E2200

iMessage

Sleep and Wake

Shutdown

Restart



Update #1:



Temporary Fix: ***I have gotten audio to work after browsing Reddit, I stumbled across this post: https://www.reddit.com/r/hackintosh/comments/8orn7w/mojave_files_needed/e05kkj9/



Update #2:



I have just found a kext for the on-board Killer E2200 NIC after searching with device and vendor ID's on this forum.

https://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/



Update #3:



Audio is now fully operational with new version 1.2.8 of AppleALC, from here:



What does NOT work:



USB 3 under Intel I217-V NIC and Killer E2200 NIC Ethernet Ports // Only function with USB 2.0 devices.

Audio Temporary fix in Update #1 above   Fixed in Update #3

Killer E2200 NIC Fixed in Update #2 above







This is the information I have been able to gather thus far whilst using Mojave.



I hope this helps someone in getting Mojave running on their system.



Regards,

Mohamed





CLOVER_moman2000 No SN.zip

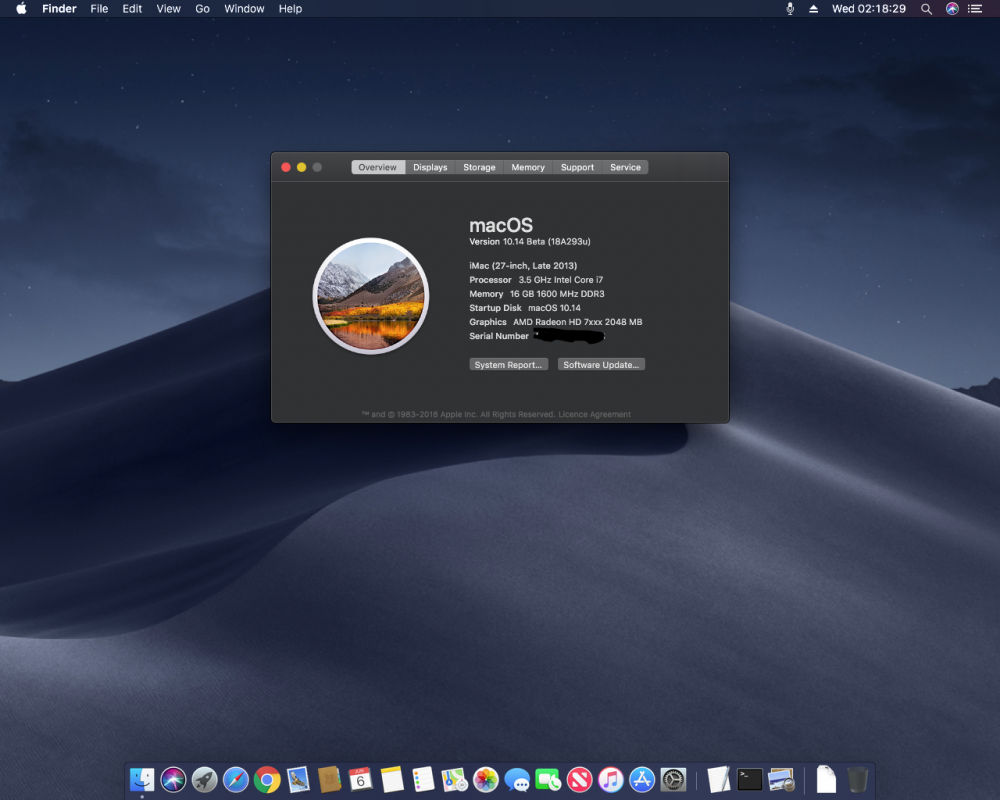

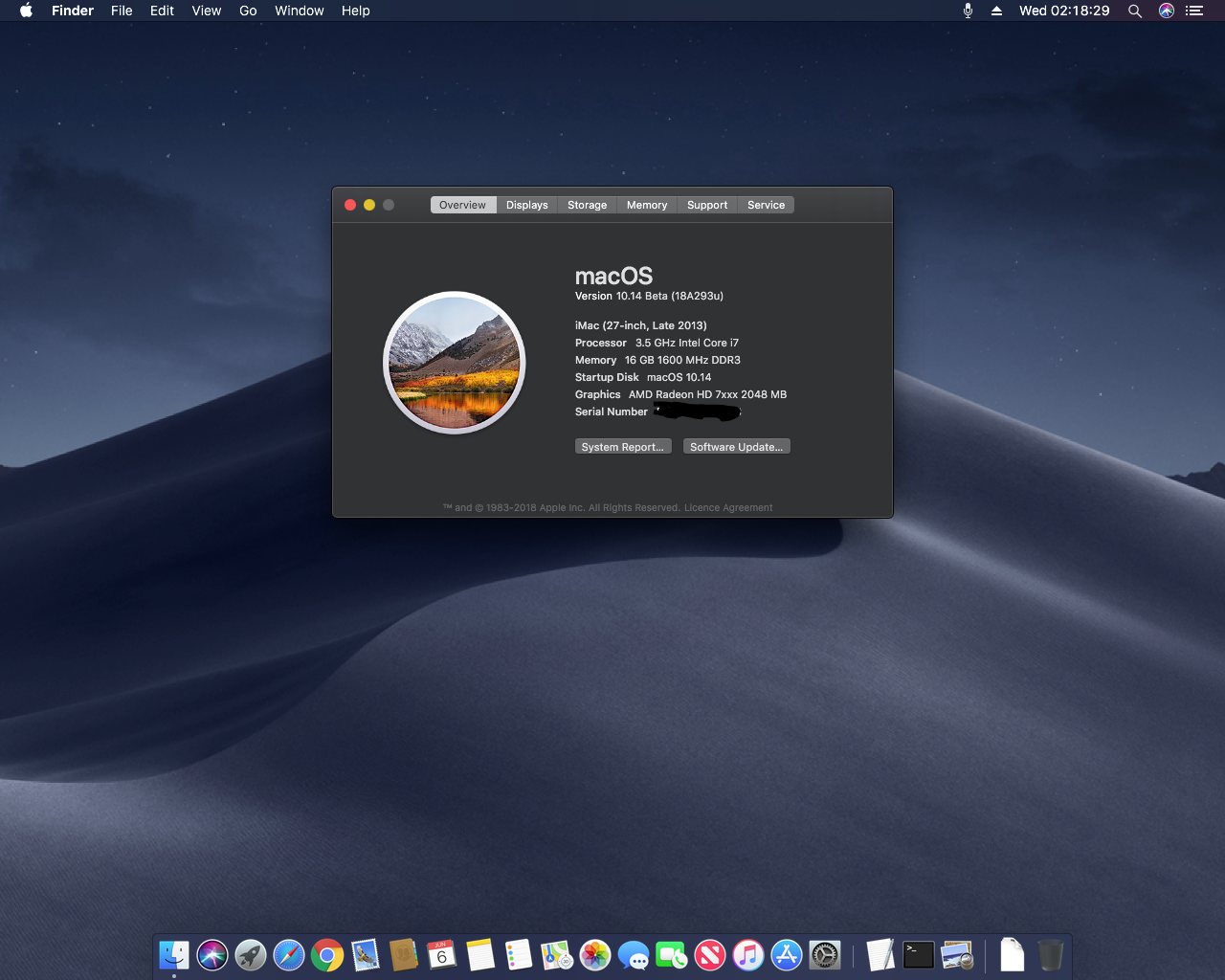

About This Mac.png




App Store.png

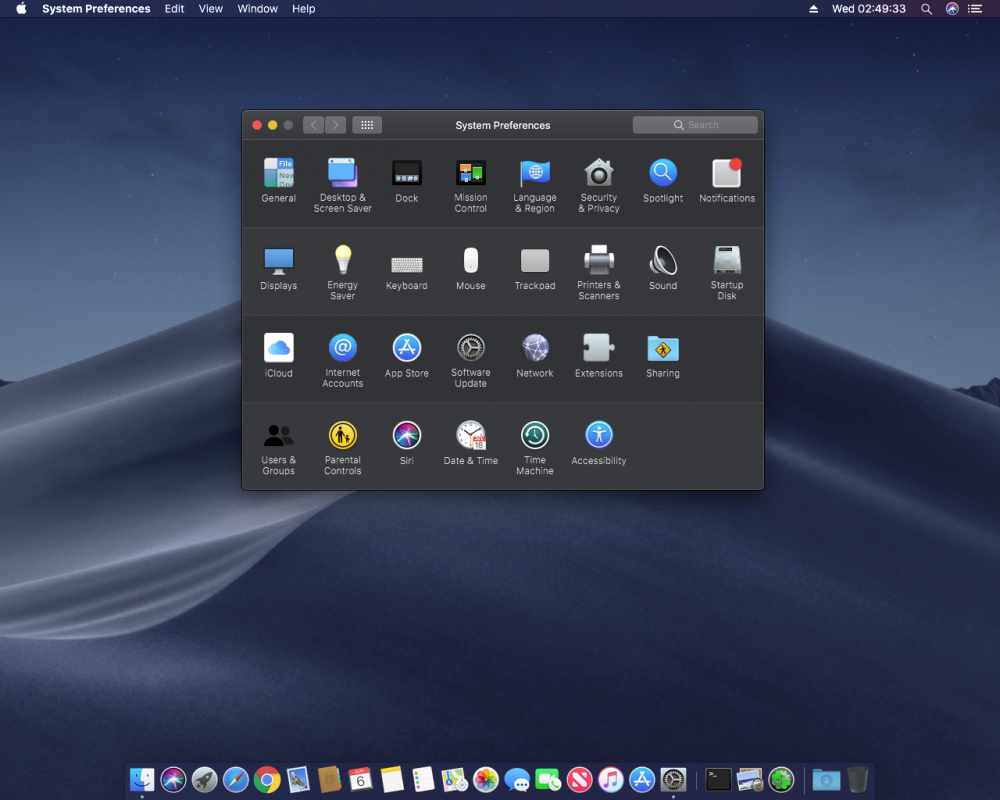

System Preferences.png

Edited by moman2000
Addition of Screenshots and text changes
Link to comment
Share on other sites

Very nice, I have a similar system GA Z97 i7 4790k works great I used voodooHDAkext no problem works good, and I have a R7 265 (R9 270x -a few circuits).  HD 4600 also works. Everything works well E2200 kext from Mieze works great.    WiFi BCM 4360 ac.

Link to comment
Share on other sites

use new patch usb for Mojave, by PMHeart



com.apple.driver.usb.AppleUSBXHCI

83FB0F0F 83090500 00

83FB0F90 90909090 90

Change 15 port limit

10.14.x

  • Like 1
Link to comment
Share on other sites

3 hours ago, Gigamaxx said:

Very nice, I have a similar system GA Z97 i7 4790k works great I used voodooHDAkext no problem works good, and I have a R7 265 (R9 270x -a few circuits).  HD 4600 also works. Everything works well E2200 kext from Mieze works great.    WiFi BCM 4360 ac.



Thank you. I wasn't at all surprised to see Mojave be so easy to install as its so similar to High Sierra. Congrats on your system. For audio have a look at my config.plist for the patches and also the kexts in the kexts folders. It should get you up and running without VooDooHDA.



P.S.

Did you get Mojave installed on HFS+ or APFS? I have managed to get it to install and not convert to APFS.



Regards

2 hours ago, MaLd0n said:

use new patch usb for Mojave, by PMHeart



com.apple.driver.usb.AppleUSBXHCI

83FB0F0F 83090500 00

83FB0F90 90909090 90

Change 15 port limit

10.14.x



Thanks for the Update, will this fix USB 3 issues? I guess I'll find out and let you know :P



Regards,

Mohamed

Link to comment
Share on other sites

2 hours ago, MaLd0n said:

use new patch usb for Mojave, by PMHeart



com.apple.driver.usb.AppleUSBXHCI

83FB0F0F 83090500 00

83FB0F90 90909090 90

Change 15 port limit

10.14.x

Not all ports running at 5gbp/s in 10.14

All ports work fine in 10.13 though.

Rear ports still only work with USB 2.0 devices in 10.14



Attached config.plist

Port 1 front:

USB 3.0 Bus:

  Host Controller Driver:	AppleUSBXHCILPTHB
  PCI Device ID:	0x8cb1
  PCI Revision ID:	0x0000
  PCI Vendor ID:	0x8086

HP USB CCID Smartcard Keyboard:

  Product ID:	0x0036
  Vendor ID:	0x03f0  (Hewlett Packard)
  Version:	1.24
  Serial Number:	11110780001571
  Speed:	Up to 12Mb/sec
  Manufacturer:	Hewlett-Packard Company
  Location ID:	0x14600000 / 3
  Current Available (mA):	500
  Current Required (mA):	100
  Extra Operating Current (mA):	0

Hub:

  Product ID:	0x0209
  Vendor ID:	0x045b  (Renesas Electronics Corp.)
  Version:	1.00
  Speed:	Up to 480Mb/sec
  Location ID:	0x14300000 / 2
  Current Available (mA):	500
  Current Required (mA):	0
  Extra Operating Current (mA):	0

USB OPTICAL MOUSE :

  Product ID:	0x0f97
  Vendor ID:	0x18f8
  Version:	1.00
  Speed:	Up to 1.5Mb/sec
  Location ID:	0x14330000 / 4
  Current Available (mA):	500
  Current Required (mA):	100
  Extra Operating Current (mA):	0

USB DISK:

  Product ID:	0x0917
  Vendor ID:	0x1f75  (Innostor Co., Ltd.)
  Version:	0.01
  Serial Number:	15092612001034
  Speed:	Up to 480Mb/sec
  Manufacturer:
  Location ID:	0x14200000 / 5
  Current Available (mA):	500
  Current Required (mA):	200
  Extra Operating Current (mA):	0
  Media:
  Capacity:	31.46 GB (31,457,280,000 bytes)
  Removable Media:	Yes
  BSD Name:	disk3
  Logical Unit:	0
  Partition Map Type:	MBR (Master Boot Record)
  USB Interface:	0
  Volumes:
PM_2018_04_:
  Capacity:	31.46 GB (31,456,231,424 bytes)
  Available:	30.78 GB (30,781,014,016 bytes)
  Writable:	Yes
  File System:	MS-DOS FAT32
  BSD Name:	disk3s1
  Mount Point:	/Volumes/PM_2018_04_
  Content:	Windows_FAT_32
  Volume UUID:	35BAC801-FA16-3DE0-904D-57FF536434C3



port 2 front:

USB 3.0 Bus:

  Host Controller Driver:	AppleUSBXHCILPTHB
  PCI Device ID:	0x8cb1
  PCI Revision ID:	0x0000
  PCI Vendor ID:	0x8086

USB DISK:

  Product ID:	0x0917
  Vendor ID:	0x1f75  (Innostor Co., Ltd.)
  Version:	0.01
  Serial Number:	15092612001034
  Speed:	Up to 5Gb/sec
  Manufacturer:
  Location ID:	0x14f00000 / 8
  Current Available (mA):	900
  Current Required (mA):	304
  Extra Operating Current (mA):	0
  Media:
  Capacity:	31.46 GB (31,457,280,000 bytes)
  Removable Media:	Yes
  BSD Name:	disk3
  Logical Unit:	0
  Partition Map Type:	MBR (Master Boot Record)
  USB Interface:	0
  Volumes:
PM_2018_04_:
  Capacity:	31.46 GB (31,456,231,424 bytes)
  Available:	30.78 GB (30,780,211,200 bytes)
  Writable:	Yes
  File System:	MS-DOS FAT32
  BSD Name:	disk3s1
  Mount Point:	/Volumes/PM_2018_04_
  Content:	Windows_FAT_32
  Volume UUID:	35BAC801-FA16-3DE0-904D-57FF536434C3

HP USB CCID Smartcard Keyboard:

  Product ID:	0x0036
  Vendor ID:	0x03f0  (Hewlett Packard)
  Version:	1.24
  Serial Number:	11110780001571
  Speed:	Up to 12Mb/sec
  Manufacturer:	Hewlett-Packard Company
  Location ID:	0x14600000 / 3
  Current Available (mA):	500
  Current Required (mA):	100
  Extra Operating Current (mA):	0

Hub:

  Product ID:	0x0209
  Vendor ID:	0x045b  (Renesas Electronics Corp.)
  Version:	1.00
  Speed:	Up to 480Mb/sec
  Location ID:	0x14300000 / 2
  Current Available (mA):	500
  Current Required (mA):	0
  Extra Operating Current (mA):	0

USB OPTICAL MOUSE :

  Product ID:	0x0f97
  Vendor ID:	0x18f8
  Version:	1.00
  Speed:	Up to 1.5Mb/sec
  Location ID:	0x14330000 / 4
  Current Available (mA):	500
  Current Required (mA):	100
  Extra Operating Current (mA):	0



config.plist

Edited by moman2000
Link to comment
Share on other sites

On 6/14/2018 at 2:49 PM, moman2000 said:

Did you get Mojave installed on HFS+ or APFS? I have managed to get it to install and not convert to APFS.



You want to install Mojave on HFS+ partition?

The default Mojave installer will always convert to APFS with both hdd and ssd.

The only way to install Mojave on HFS+ directly is Mojave MBR HFS patch method (will never convert HFS+ to APFS).

Link to comment
Share on other sites

23 minutes ago, crazybirdy said:



You want to install Mojave on HFS+ partition?

The default Mojave installer will always convert to APFS with both hdd and ssd.

The only way to install Mojave on HFS+ directly is Mojave MBR HFS patch method (will never convert HFS+ to APFS).

Hi,



I have already heard of and used that patch to make it possible to install to HFS+. Thanks for the info.

  • Like 1
Link to comment
Share on other sites

Successful update to beta 2, ironically my Pentium g3258 with RX 480 went smoother than the i7 4790k R9 270x.    I had a hiccup on the I7 “macOS could not be installed on this computer” but I rebooted in -v -x and overcame it. The Pentium plowed right through the update no issues.
