d5aqoep Posted April 29, 2018 Share Posted April 29, 2018 I don't know whether MSR 0xE2 register is locked is locked or not. But native Power Management is working correctly on my CPU with all speedsteps working. I don't know whether MSR 0xE2 register is locked is locked or not. But native Power Management is working correctly on my CPU with all speedsteps working. Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 using new GPU (1070TI) I get black screen, I am using iMac pro SMBIOS with/without Kext patch (Lilu and Nv) still black screen...do I need to patch anything? If so what I need to patch and how..? thanks Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 Did you perform a clean install or just swapped the GPUs? iMacPro SMBIOS doesn't require any patches, the only thing that needs to be installed is the web driver. Use nv_disable=1 flag too boot into macOS remove the web drivers and reinstall the latest version. What is the state of SIP? is it enabled or disabled? 31 minutes ago, ergot said: using new GPU (1070TI) I get black screen, I am using iMac pro SMBIOS with/without Kext patch (Lilu and Nv) still black screen...do I need to patch anything? If so what I need to patch and how..? thanks Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 SIP disabled Just swapped GPU, WEBDRIVERS were not installed when swapping GPU, boot with nv_disable and installing latest webdrivers still black screen, do I need to flag inject Nvidia ? Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 1 minute ago, ergot said: SIP disabled Just swapped GPU, WEBDRIVERS were not installed when swapping GPU, boot with nv_disable and installing latest webdrivers still black screen, do I need to flag inject Nvidia ? No you don't need to inject nVidia. Do a kext cache nvram clean up and see if that helps. If that didn't help use NvidiaWeb and see if that works. Most likely you might need to do a clean install but if that's too much just use this patch just to see whether it works or not: Name: com.apple.driver.AppleGraphicsDevicePolicy Find: BA050000 00 Replace: BA000000 00 Which Revision of clover you are using and which AptioMemoryFix revision? or do you use OsxAptioFixDrv family and if so which version? Link to comment Share on other sites More sharing options...

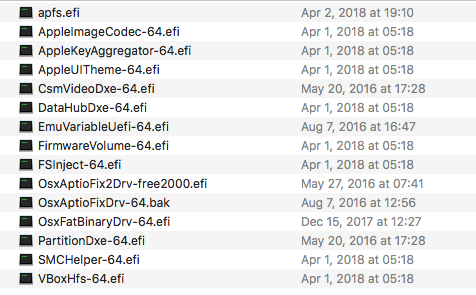

ergot Posted April 30, 2018 Share Posted April 30, 2018 (edited) 6 minutes ago, Cyberdevs said: No you don't need to inject nVidia. Do a kext cache nvram clean up and see if that helps. If that didn't help use NvidiaWeb and see if that works. Most likely you might need to do a clean install but if that's too much just use this patch just to see whether it works or not: Name: com.apple.driver.AppleGraphicsDevicePolicy Find: BA050000 00 Replace: BA000000 00 Which Revision of clover you are using and which AptioMemoryFix revision? or do you use OsxAptioFixDrv family and if so which version? Clover version: 4421 Using :OsxAptioFix2Drv-free2000, don't know the version... do I need to update/replace something? thanks!!! Edited April 30, 2018 by ergot Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 (edited) I suggest to use the latest revision on Clover and remove the OsxAptioFix2Drv-free2000 and use the AptioMemoryFix r16 and see if that works. If I remember correctly by using the OsxAptioFix2Drv-free2000 you might also need to add the EmuVaraiableUEFI.efi for the web drivers, I'm not sure about that. Try the kext cache clean up and if that didn't work try the patch I gave you. Edited April 30, 2018 by Cyberdevs Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 37 minutes ago, Cyberdevs said: I suggest to use the latest revision on Clover and remove the OsxAptioFix2Drv-free2000 and use the AptioMemoryFix r16 and see if that works. If I remember correctly by using the OsxAptioFix2Drv-free2000 you might also need to add the EmuVaraiableUEFI.efi for the web drivers, I'm not sure about that. Try the kext cache clean up and if that didn't work try the patch I gave you. Thank you for your help! I tried everything but it did not helped... Even the patch... I will try new install now... Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 does it boot with nv_disable=1? Which macOS do you use? Sierra or High Sierra? Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 1 minute ago, Cyberdevs said: does it boot with nv_disable=1? Which macOS do you use? Sierra or High Sierra? yes it boot with nv_disable using HS 10.13.4 Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 Do you use any patches for the graphics or do you have a patched DSDT? Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 1 minute ago, Cyberdevs said: Do you use any patches for the graphics or do you have a patched DSDT? no patches for graphics except the one you gave me, yes I use patched DSDT Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 (edited) 3 minutes ago, ergot said: no patches for graphics except the one you gave me, yes I use patched DSDT Give Lilu and the latest nVidiaGraphicsFixup a try and if you still have the black screen then do a clean install. But I think the issue might be related to your EFI folder and the Config.plist. Remove the DSDT and see if that makes a difference. I remember when I tried the iMacPro SMBIOS by doing a clean install not just changing the SMBIOS with the old setup it was working without any issues and I didn't use any patches or extra kexts. I recently switched to AMD so I don't use the 1070 on my main rig. Edited April 30, 2018 by Cyberdevs Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 5 minutes ago, Cyberdevs said: 1 minute ago, Cyberdevs said: Give Lilu and the latest nVidiaGraphicsFixup a try and if you still have the black screen then do a clean install. But I think the issue might be related to your EFI folder and the Config.plist. Remove the DSDT and see if that makes a difference. I remember when I tried the iMacPro SMBIOS by doing a clean install not just changing the SMBIOS with the old setup it was working without any issues and I didn't use any patches or extra kexts. yes I tried to remove DSDT when you mentioned it, and its working now...should I remove Lilu and nVidiaGraphicsFixup and the patch you gave me? now my NVME drivers are orange again I will try some tests with previous DSDT... Thanks!!!!!!!! 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 1 minute ago, ergot said: That's great! Now you can remove all those kexts and patches and see if it's still working, just remember to do a kext cache nvram clean up after you removed the kexts and just before rebooting your hack. Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 thank you so much for your help Cyberdevs! I removed everything and it is working fine, need to test sleep and other things and fix orange icons 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 (edited) 2 minutes ago, ergot said: thank you so much for your help Cyberdevs! I removed everything and it is working fine, need to test sleep and other things and fix orange icons You're welcome Your NVMe drive should have the regular icon instead of the orange one, but if you couldn't find a fix for it you can give this patch a try: Name: AppleAHCIPort Find: 45787465 726E616C Replace: 496E7465 726E616C Edited April 30, 2018 by Cyberdevs Link to comment Share on other sites More sharing options...

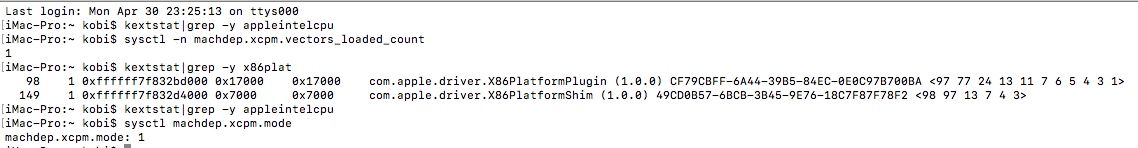

ergot Posted April 30, 2018 Share Posted April 30, 2018 Thanks, but this not fixed the colour of the icon...I disabled all CPU patches (Kernel to patch) and it looks like I have XCPM and power management working just fine without any patch or DSDT..you can see the image below, is that correct? . Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 2 minutes ago, ergot said: Thanks, but this not fixed the colour of the icon...I disabled all CPU patches (Kernel to patch) and it looks like I have XCPM and power management working just fine without any patch or DSDT..you can see the image below, is that correct? The xclm is enabled and that's good. About the patch is hot swap enabled in BIOS? Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 hot swap? which one do you mean? Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 in BIOS/UEFI under the SATA configuration there must be a feature to enable/disable hot swap for the disks. is that enabled? Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 9 minutes ago, Cyberdevs said: in BIOS/UEFI under the SATA configuration there must be a feature to enable/disable hot swap for the disks. is that enabled? Checked that I have "hot plug" and all of them are disabled for SATA drives Link to comment Share on other sites More sharing options...
Cyberdevs Posted April 30, 2018 Author Share Posted April 30, 2018 2 minutes ago, ergot said: Checked that I have "hot plug" and all of them are disabled for SATA drives Try this patch, just rename the first part of the patch from AppleAHCIPort to com.apple.driver.AppleAHCIPort Name: com.apple.driver.AppleAHCIPort Find: 45787465 726E616C Replace: 496E7465 726E616C Link to comment Share on other sites More sharing options...
ergot Posted April 30, 2018 Share Posted April 30, 2018 (edited) Thanks! I will try this ASAP unfortunately it did not helped... thanks for your time and help I really appreciate it! Edited April 30, 2018 by ergot Link to comment Share on other sites More sharing options...
