Menno Posted August 15, 2017 Share Posted August 15, 2017 Ok make sure your fake SMC kext doesn't have any plugins. It's the clean one. If it had any plugins it would KP much later. Besides it's the same EFI folder I've been using for the Gaming 9. So it's really a Asus UEFI thing. Link to comment Share on other sites More sharing options...

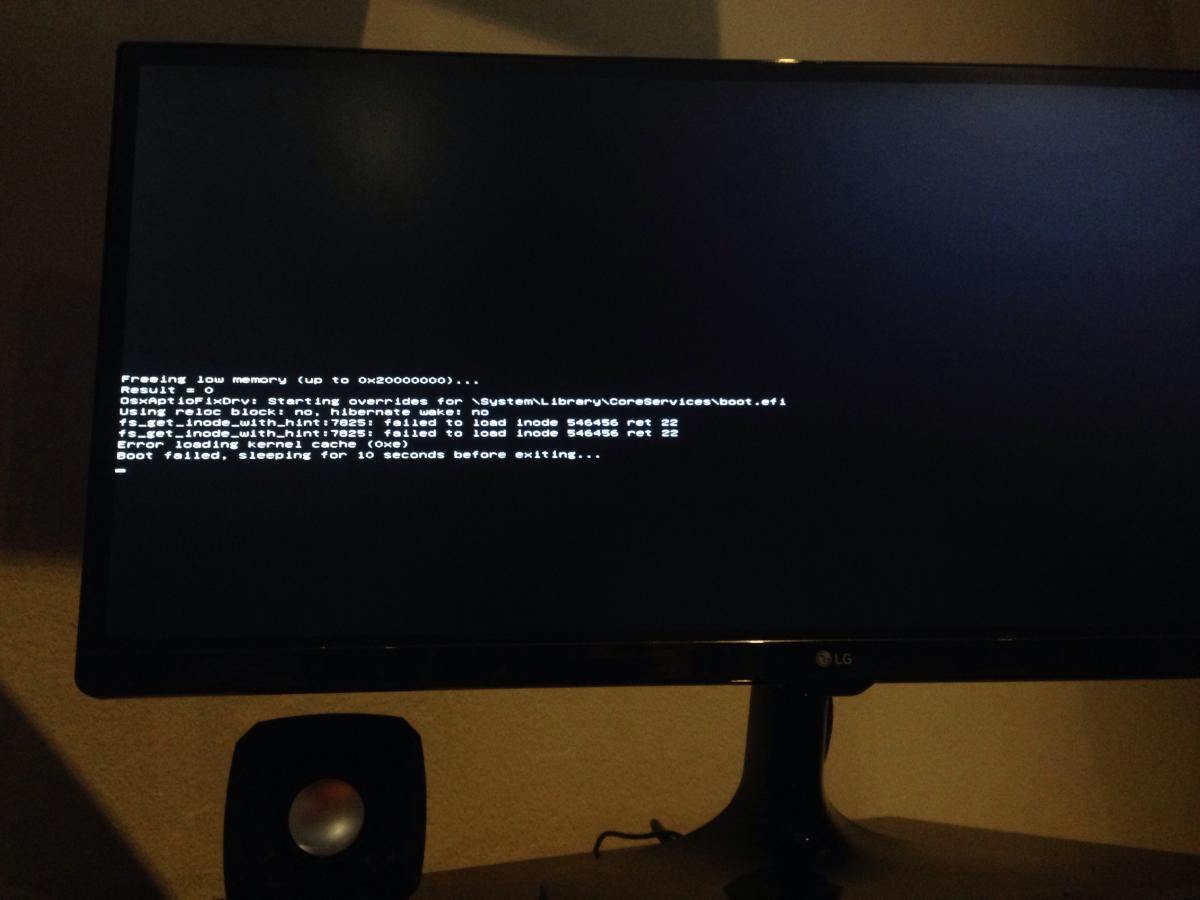

petrikleynhans Posted August 15, 2017 Share Posted August 15, 2017 Hey everyone. For ease of reference, this is my system: MSI X299 SLI Plus i7 7800X 6-core 4.0Ghz MSI Getorce 1050Ti 4Gb 32Gb Corsair DDR4 2400(2x16) Memory Broadcom BCM4360 Desktop PCIe wifi wireless WLAN Bluetooth BT 4.0 Card to Apple I'm trying to install High Sierra. I've managed to go through the entire installation process. Upon reboot, I go into the Clover menu and select to boot from the newly installed OSx drive when I get this message. I'm officially stuck. There's absolutely nothing on the net regarding this error. I've experimented with 4 different config.plist. They all give me the exact same screen, which tells me the error is caused before it even gets to the plist file. I'm also trying to get Sierra installed onto another partition in the same system, but it feels like I'm struggling even more on that side, and with High Sierra I'm so close. I will however keep trying to get Sierra up and running and then update to High Sierra if this keeps failing. I'm attaching my EFI folder if someone would please have a look. Thanks everyone. v2 - HS Install success.zip Link to comment Share on other sites More sharing options...
Quadro78 Posted August 15, 2017 Share Posted August 15, 2017 @petrikleynhans I see that you have the same motherboard. Try my settings, though, they do not work perfectly for me, but maybe you will succeed. EFI.zip Link to comment Share on other sites More sharing options...
petrikleynhans Posted August 15, 2017 Share Posted August 15, 2017 @petrikleynhans I see that you have the same motherboard. Try my settings, though, they do not work perfectly for me, but maybe you will succeed. EFI.zip Thanks Quadro, I've given it a run, without changing anything. Good news, I didn't get the kernel error, or the inode thing. Bad news - now I'm getting the plus sign freeze, followed by a system reboot. I'm positive it's a step in the right direction, will try to work the new error out and then take it from there. PS: could you please just let me know what the rest of your setup is, so I know what differences to look out for. I'm entirely illiterate when it comes to Hackintosh, so I'm very much blind when it comes to the subtleties. One last thing. I noticed your CsrActiveConfig is set to 0x34 or something. Can you please explain that, it might be the solution? THanks. Link to comment Share on other sites More sharing options...
Quadro78 Posted August 17, 2017 Share Posted August 17, 2017 Thanks Quadro, I've given it a run, without changing anything. Good news, I didn't get the kernel error, or the inode thing. Bad news - now I'm getting the plus sign freeze, followed by a system reboot. I'm positive it's a step in the right direction, will try to work the new error out and then take it from there. PS: could you please just let me know what the rest of your setup is, so I know what differences to look out for. I'm entirely illiterate when it comes to Hackintosh, so I'm very much blind when it comes to the subtleties. One last thing. I noticed your CsrActiveConfig is set to 0x34 or something. Can you please explain that, it might be the solution? THanks. hi petrikleynhans, im not sure this is good parameter, but i have still reboots. I change it to 0x3, 0x14 with the same result. Link to comment Share on other sites More sharing options...

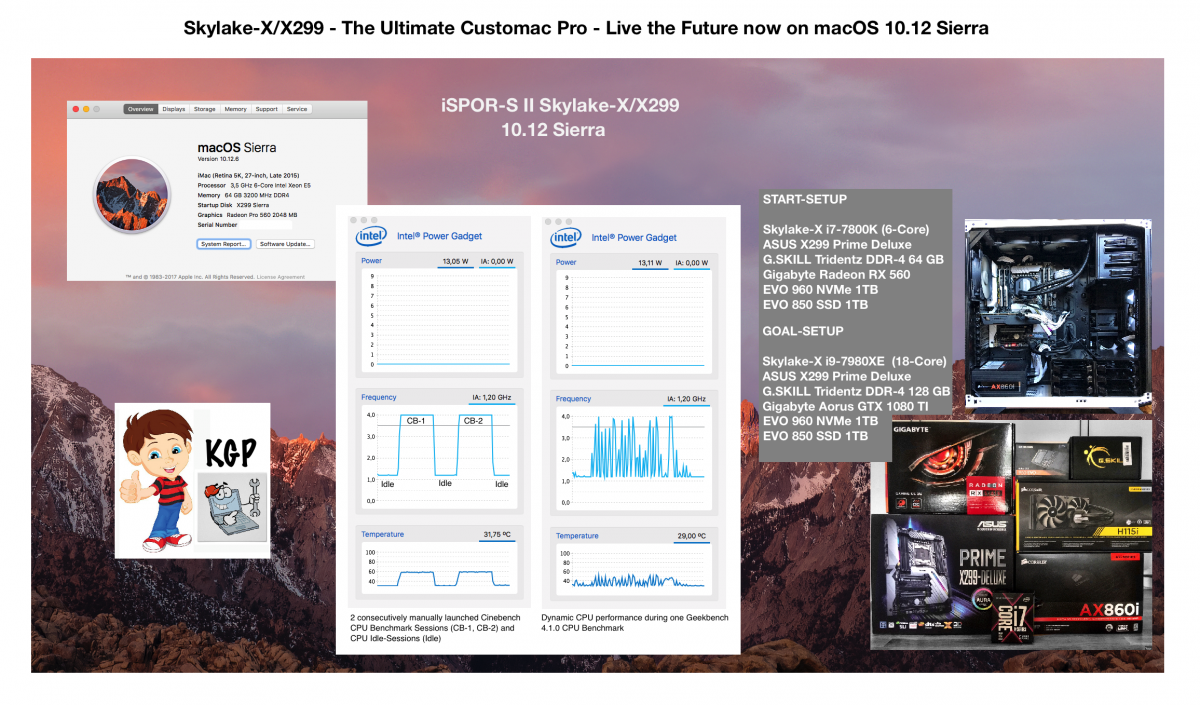

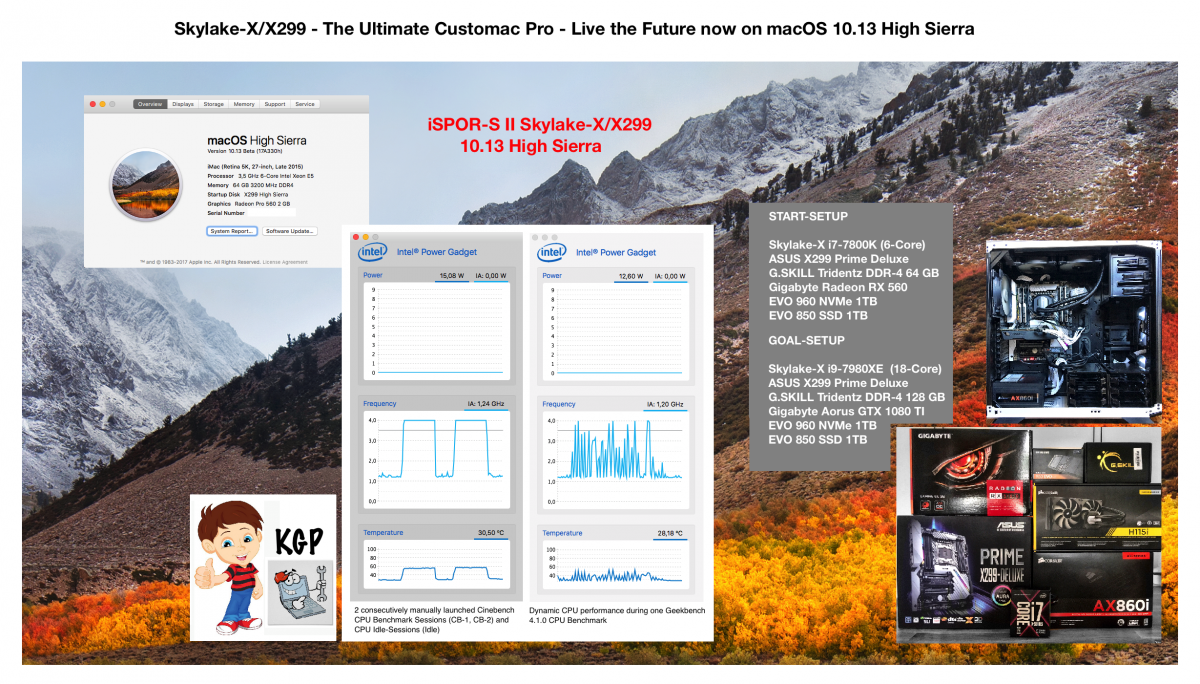

KGP-iMacPro Posted August 18, 2017 Share Posted August 18, 2017 First version of my Skylake-X/X299 macOS Sierra 10.12 and macOS High Sierra 10.13 Desktop Guides released in the forum I am not allowed to mention Many thanks to @DSM2 and @PMHeart for their estimated contributions! 2 Link to comment Share on other sites More sharing options...
MAGSP27 Posted August 19, 2017 Share Posted August 19, 2017 HI, this is my system:Msi x299 tomahawk arthici7 7800X16gb dd4 3000 gtx650X(I plain update)this is my efi folder,ITS WORKING. Hey everyone. For ease of reference, this is my system:MSI X299 SLI Plusi7 7800X 6-core 4.0GhzMSI Getorce 1050Ti 4Gb32Gb Corsair DDR4 2400(2x16) MemoryBroadcom BCM4360 Desktop PCIe wifi wireless WLAN Bluetooth BT 4.0 Card to Apple I'm trying to install High Sierra. I've managed to go through the entire installation process. Upon reboot, I go into the Clover menu and select to boot from the newly installed OSx drive when I get this message. I'm officially stuck.For Fix This You must del from Drivers64Efi all modules ..only leave OsxAptioFix-64.efi,,test2.efi,,VboxHFS-64.efi..thas work for me,,use the refi than I post.. EFI 2.zip Link to comment Share on other sites More sharing options...
Quadro78 Posted August 19, 2017 Share Posted August 19, 2017 Excellentl! I used Yours EFI. The installation has not been successful yet, but there is hope. I need to work on BIOS settings. Can you tell what are yours? Maybe some screenshots? Link to comment Share on other sites More sharing options...
MAGSP27 Posted August 20, 2017 Share Posted August 20, 2017 hi Quadro78,where are you stuck?I have problems with acpi and the alc1220 sound, no working, the rest normal working.. Link to comment Share on other sites More sharing options...

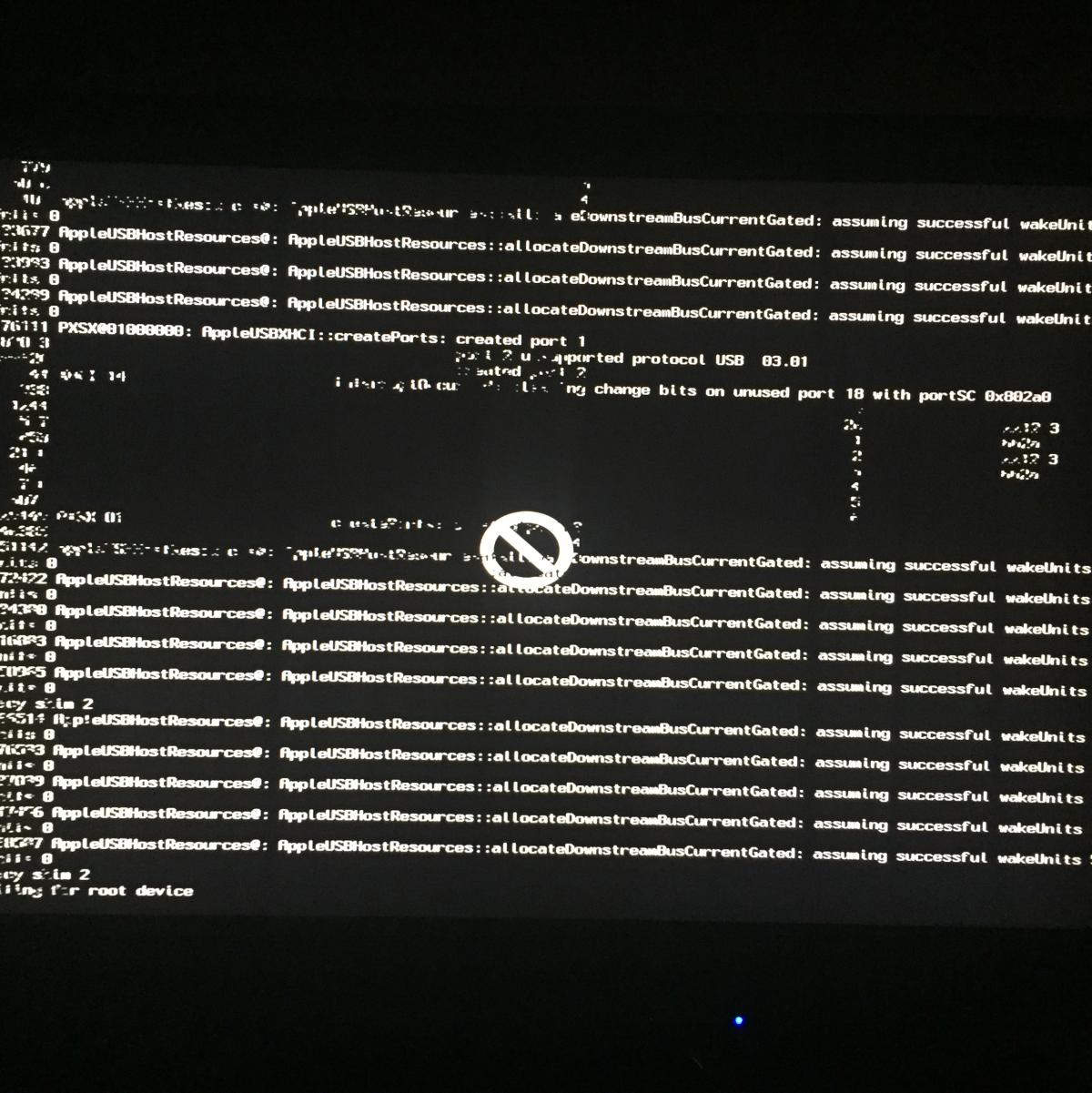

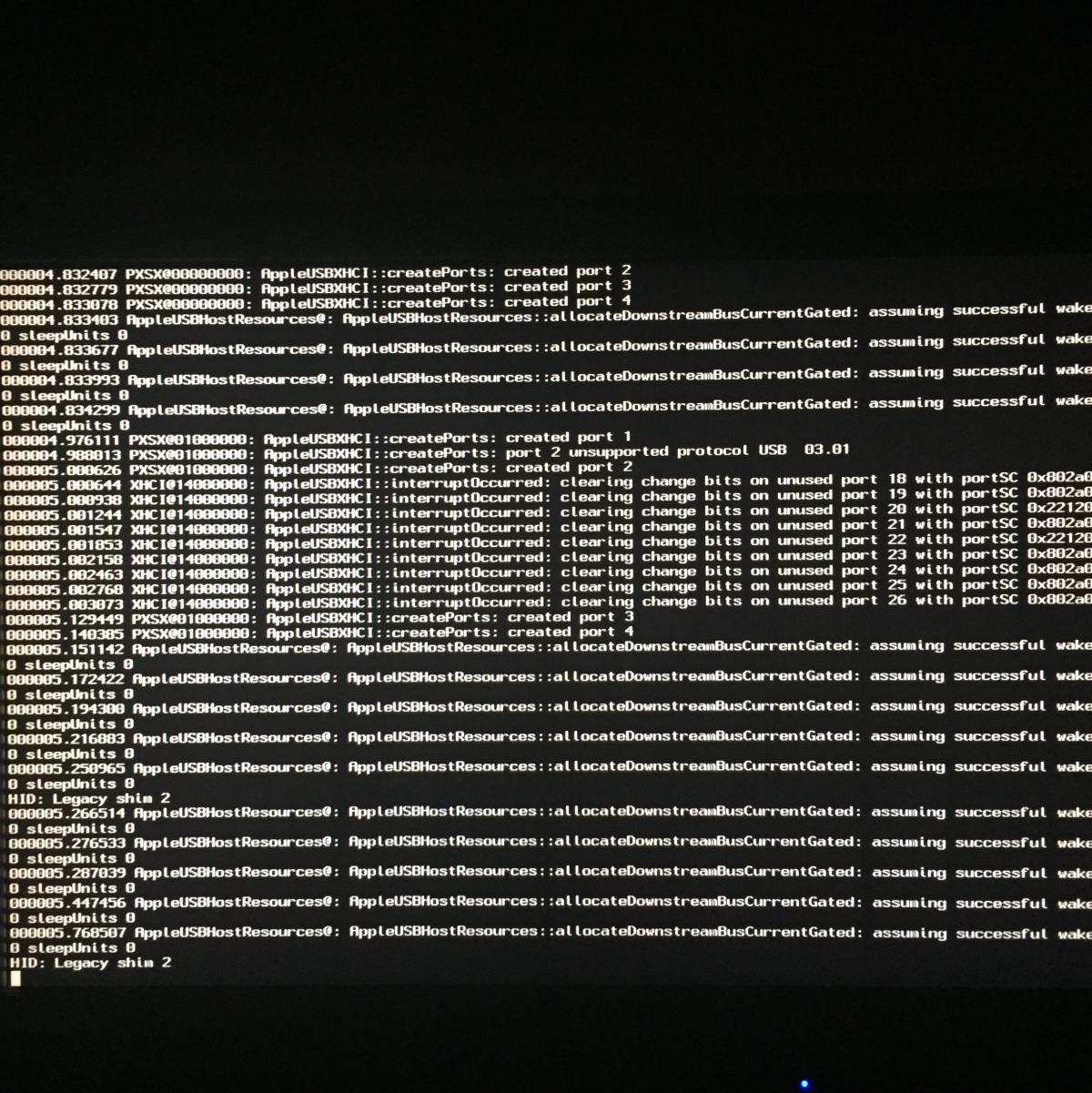

Quadro78 Posted August 20, 2017 Share Posted August 20, 2017 hi Quadro78,where are you stuck?I have problems with acpi and the alc1220 sound, no working, the rest normal working.. Its to hard lavel for me. Please find my screenshots Link to comment Share on other sites More sharing options...
MAGSP27 Posted August 20, 2017 Share Posted August 20, 2017 hi quadro78,i have the same issue, I resolve it by installing from hard disk...it,s a usb installer? Link to comment Share on other sites More sharing options...
Ritz Carltn Posted August 20, 2017 Share Posted August 20, 2017 It seems to be USB issue. You should be change USB port. Its to hard lavel for me. Please find my screenshots IMG_5414.JPG IMG_5413.JPG 2 Link to comment Share on other sites More sharing options...

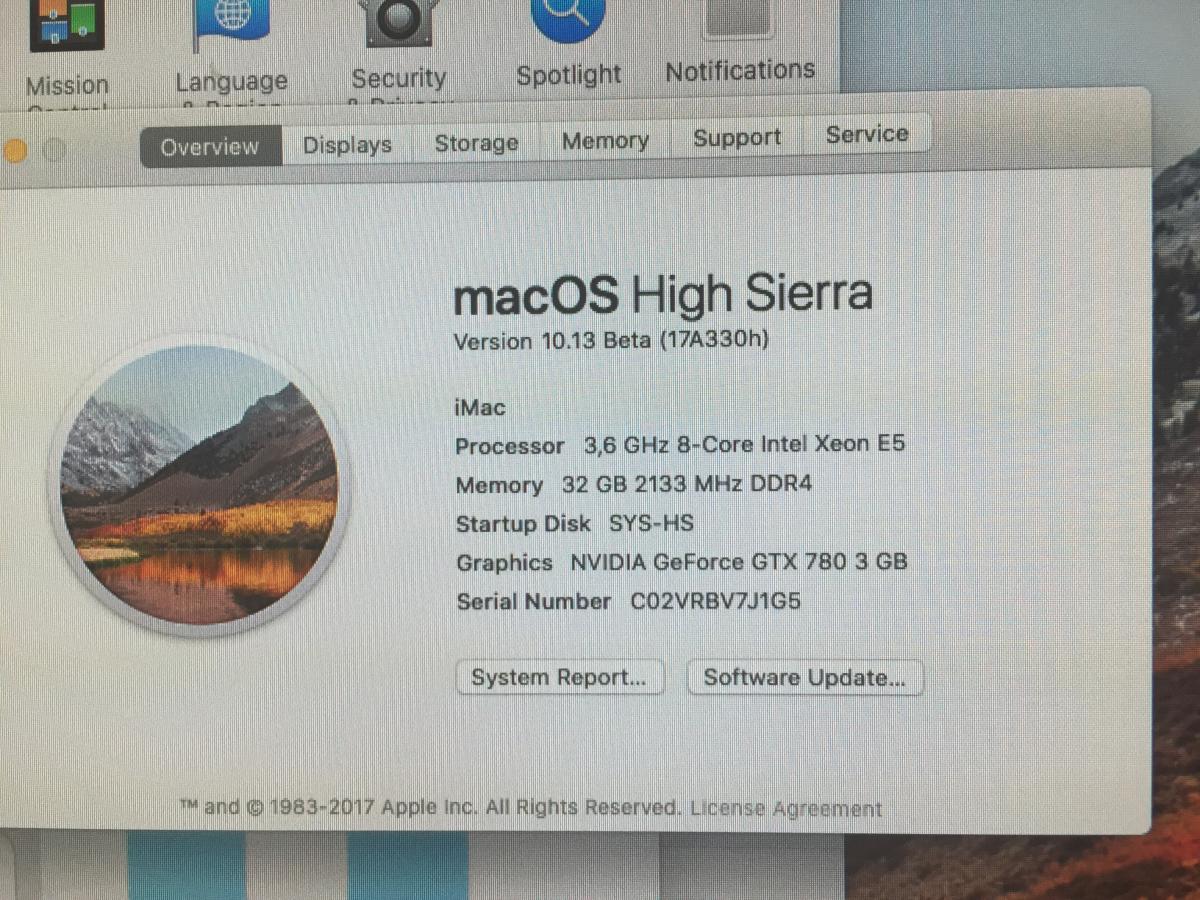

Quadro78 Posted August 20, 2017 Share Posted August 20, 2017 Great!!!!It's working with back USB connectors.Thx guys a lot!But...1. System recognizes 3,6 E-5 xeon not 7820x2. Incompatible nvidia web drivers.3. Audio drivers not work (realtekALC.kext) Can you guys install nvidia and Realtek ALC1220 correctly? 1 Link to comment Share on other sites More sharing options...
MAGSP27 Posted August 21, 2017 Share Posted August 21, 2017 hi quadro78: 1-there no support for 7820x on hakintosh,for this uses fakecpuid and recognises as...2-you must wait to Nvidia web drivers3-for sound you must use vodoohda latest version 2.9about sound I think its a dsdt problem..I probe all solutions, no lucky. 1 Link to comment Share on other sites More sharing options...
petrikleynhans Posted August 22, 2017 Share Posted August 22, 2017 Hey guys, My graphics card is picking up correctly (Geforce GTX 1050Ti 4GB), but it's not USING it. When I run Cinebench, the GFX module shows Apple Software Renderer. I'm also getting heavy lag in general operation and video playback. Any ideas? Link to comment Share on other sites More sharing options...
MAGSP27 Posted August 22, 2017 Share Posted August 22, 2017 ,hi try to force installation with pacifist, and use clover to active,very likely don't work.but try it. Link to comment Share on other sites More sharing options...
petrikleynhans Posted August 22, 2017 Share Posted August 22, 2017 Hey Magsp27, I think you misunderstand. It's installed. MacOS is recognizing the card in both overview and System Report. It has adjusted the resolution setting, and Cuda is also picking up the card. But when I run a bench test, it says that it's still using the software accelerator. And watching movies, you can clearly see the lag (looks like poor refresh rates) so the system is not USING the card, even though it is recognizing it. Hope that makes more sense. Link to comment Share on other sites More sharing options...

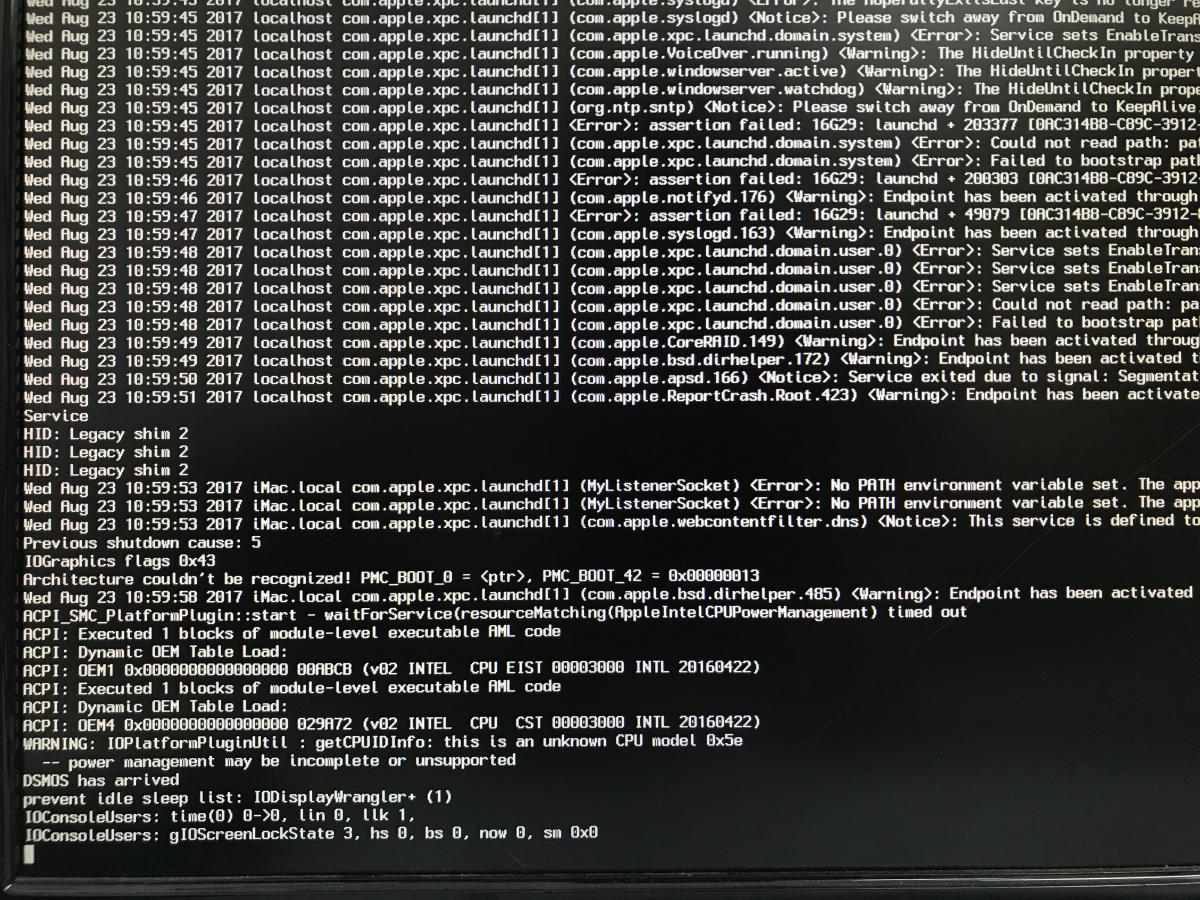

Philterino Posted August 23, 2017 Share Posted August 23, 2017 Hi Folks, Ive been following along with is for a while and ended up getting a x299 system to have a bash. Im trying to Boot Sierra as i have a gtx 1080 System: x299 UD4 (Bios F4g) i9-7900x Gtx1080 Ive tried one of the clovers Surfchinas posted as a base as his seemed to be the closest but im now stuck. (see attached image). Any ideas would be very greatly recieved! Link to comment Share on other sites More sharing options...
Quadro78 Posted August 23, 2017 Share Posted August 23, 2017 Hi Folks, Ive been following along with is for a while and ended up getting a x299 system to have a bash. Im trying to Boot Sierra as i have a gtx 1080 System: x299 UD4 (Bios F4g) i9-7900x Gtx1080 Ive tried one of the clovers Surfchinas posted as a base as his seemed to be the closest but im now stuck. (see attached image). Any ideas would be very greatly recieved! surfinchina have Radeon graphic card. Please use MAGSP27's EFI Link to comment Share on other sites More sharing options...
MAGSP27 Posted August 23, 2017 Share Posted August 23, 2017 .hi i have a gtx650,but may works,try Gdp patch its for black screen o ioscreenlockstate. 1 Link to comment Share on other sites More sharing options...
Philterino Posted August 23, 2017 Share Posted August 23, 2017 surfinchina have Radeon graphic card. Please use MAGSP27's EFI I changed his graphics settings in clover configurator and have nv_disable=1 Ill give Mags a try.... has he already posted somewhere? i had a quucik look and didnt see it. also is it Sierra not High Sierra? Link to comment Share on other sites More sharing options...
Quadro78 Posted August 24, 2017 Share Posted August 24, 2017 I have AUDIO Realtek ALC1220 voodoohda 2.9 works!!! VoodooHDA.kext.zip VoodooHDA.prefPane-289.zip Link to comment Share on other sites More sharing options...
KGP-iMacPro Posted August 24, 2017 Share Posted August 24, 2017 I have AUDIO Realtek ALC1220 voodoohda 2.9 works!!! VoodooHDA.kext.zip VoodooHDA.prefPane-289.zip Screen Shot 2017-08-24 at 07.42.26.png Screen Shot 2017-08-24 at 07.46.01.png works oob? No additional actions required? VoodooHDA.prefPane goes to ~/Library/PreferencePanes ? No Rename CAVS to HDEF DSDT Patch? Link to comment Share on other sites More sharing options...
Quadro78 Posted August 24, 2017 Share Posted August 24, 2017 Nope buddy, Only put the kext file to clover/kexts and double click on prefs ( this is automatically install) That's all;) Cheers Link to comment Share on other sites More sharing options...
KGP-iMacPro Posted August 24, 2017 Share Posted August 24, 2017 Nope buddy, Only put the kext file to clover/kexts and double click on prefs ( this is automatically install) That's all;) Cheers analogue audio working! Confirmed But digital Audio via HDMI/DP? Damn the 10.12.6 web Driver workaround is suddenly not working anymore under 10.13 DP7 Could the missing Nvidia webdriver be the source that I have no audio via HDMI/DP? Link to comment Share on other sites More sharing options...
