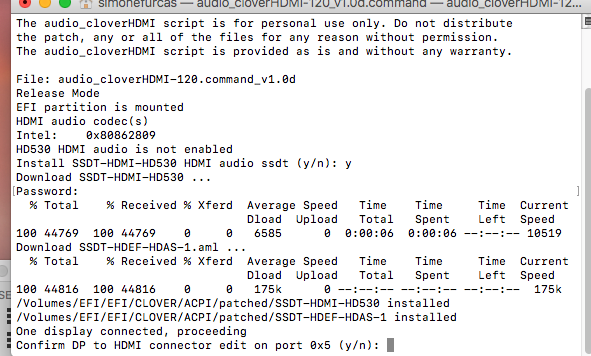

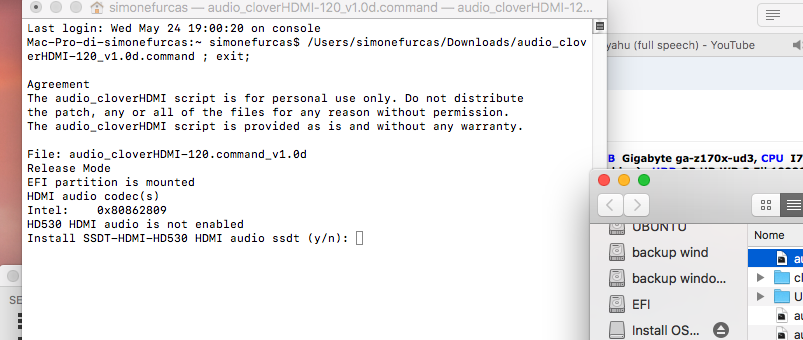

Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 I tested the theme on my computer as well it seems to be broken, no matter what I do it doesn't load correctly. Maybe it's working on El capitan because of the version of your clover. About the HDMI audio you need to run this command: audio_cloverHDMI-120.command.zip It's the same as the other command MOUNT EFI and run the command. What am I doing wrong? Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430281 Share on other sites More sharing options...

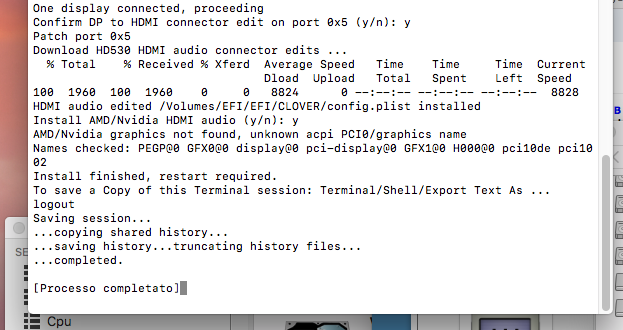

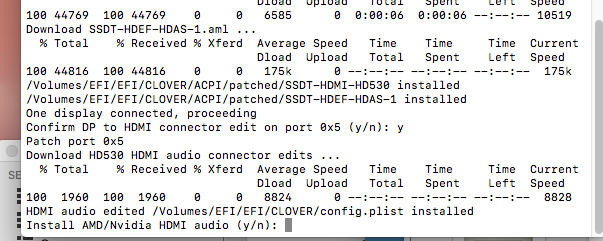

Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 You won't need both IntelHD53 Audio and nVidia HDMI Audio, In 7th picture you've been asked to Install AMD/Nvidia HDMI Audio you should answer no and you answered yes. From /EFI/Clover/kext/other or 10.12 remove AppleALC.kext and in your config.plist under "Kernel and Kext Patches" remove any AppleHDA entry, there must be 3, and start over with this file: audio_realtekALC-120.command update: audio_cloverHDMI-...command Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430302 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 You won't need both IntelHD53 Audio and nVidia HDMI Audio, In 7th picture you've been asked to Install AMD/Nvidia HDMI Audio you should answer no and you answered yes. From /EFI/Clover/kext/other or 10.12 remove AppleALC.kext and in your config.plist under "Kernel and Kext Patches" remove any AppleHDA entry, there must be 3, and start over with this file: audio_realtekALC-120.command update: audio_cloverHDMI-...command I think I did all... I avoid the first and used the second, rid off those 3 applehda... This is my clover... One thing is stranger... in the terminal it's saying it's a Mac Pro in the information that it is an iMac 2015... Could be a downgrade of clover be a solution? CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430353 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 The SMBIOS in the config.plist is iMac17,1 which is right. But I see the Mac-Pro-di-simonefurcas you are referring to. you can change it simply by opening System Preferences/sharing/ then click edit and you can change it to whatever you like. This happened because you use might have used a MacPro SMBIOS the first time you tried to install macOS. I think I saw a MacPro SMBIOS in one of your files you posted earlier. Anyway, does the sound work ok? I still don't see the AppleHDA entries in the config.plist Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430356 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 Sound hdmi is not working... Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430357 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 what kind of speakers do you use? does your monitor have speakers? Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430359 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 Yes, the monitor has speakers. They are working in windows and they used to work in El Capitan and Mac OS 10.12.0. Monitor ASUS VX239 https://www.asus.com/Monitors/VX239H/ . Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430365 Share on other sites More sharing options...

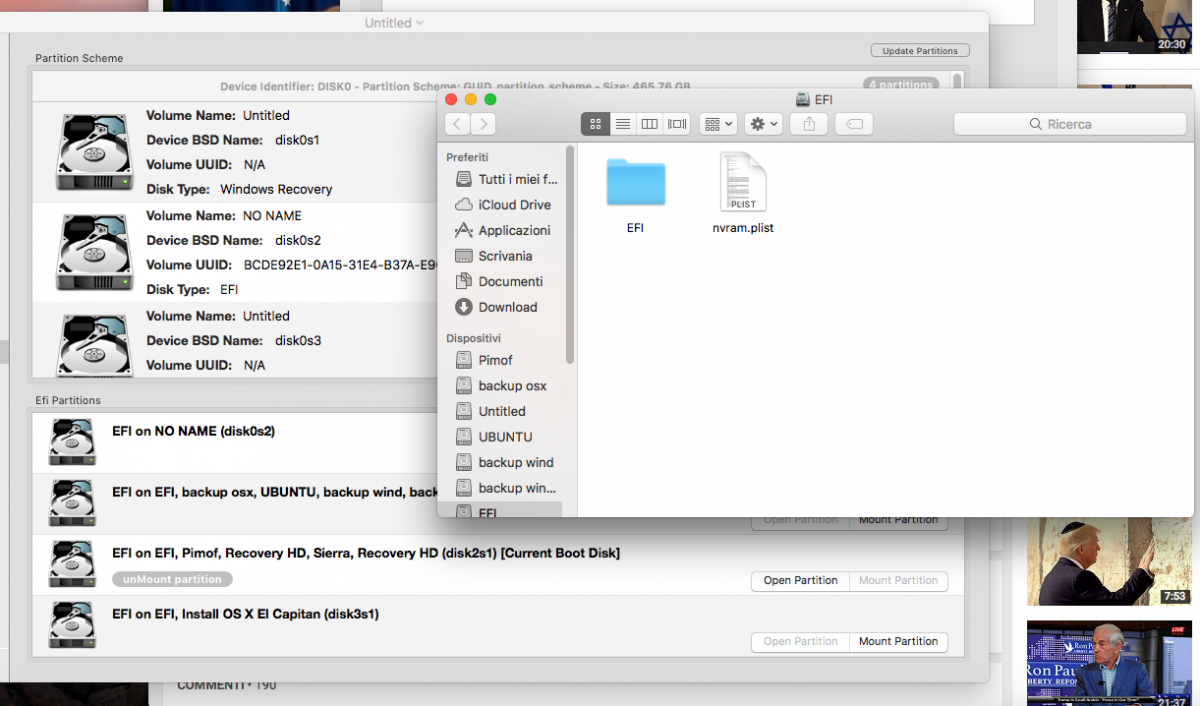

Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 I believe you have mixed EFI partitions and that's the cause. Mount the EFI partitions of all your hard drives and double check if you're installing the HDMI Audio in the right partition. Replace the config.plist and copy SSDT-HDMI-HD530.aml to /EFI/Clover/ACPI/patched HDMI Audio.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430371 Share on other sites More sharing options...

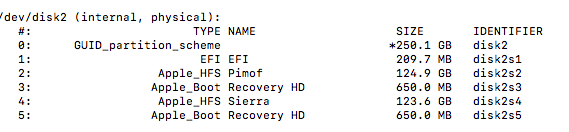

Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 I think that El Capitan and Sierra are using the same refi. is it a problem? Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430377 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 Not necessarily, make sure there is no clover bootloader installed in you other hard drives. 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430378 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 Not necessarily, make sure there is no clover bootloader installed in you other hard drives. nothing. Maybe I should use the folders 10.11 and 10.12 instead other for both. I formatted the other disk to be sure and checking there is no other refi folder like this one. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430381 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 nothing. Maybe I should use the folders 10.11 and 10.12 instead other for both. I formatted the other disk to be sure and checking there is no other refi folder like this one. Well it doesn't really matter because the kext files are identical for 10.11 and 10.12 but it wouldn't hurt to try. Do you use a standard HDMI cable for your display? or you use any adapters? 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430383 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 hdmi cable standard. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430384 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 Give this on a try, I added some DSDT patches. If the config.plist didn't work you can use this kext. as the last resort, copy it in the kext folder and reboot. config.plist.zip HDMIAudio.kext.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430387 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 Nothing, it's unbelievable... Why 12.5 blocked 11.6 even in hdmi? I'm even not able to download 12.4... Maybe it's easier buy a gpu or downgrade to the only 11.6... Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430396 Share on other sites More sharing options...

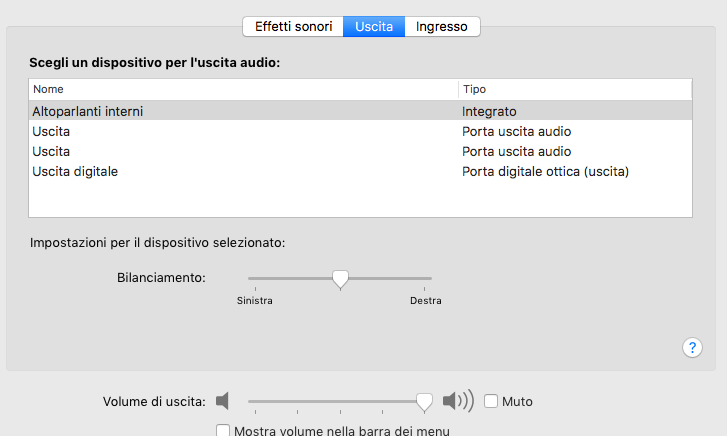

Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 You can't download 10.12.4 because you are already running 10.12.5 and the 10.12.4 is not available for download anymore. Apple always let's you download the latest version. It shouldn't be that difficult to activate the HDMI audio. There must be some other misconfiguration of sorts in the way! Send me IOReg and a picture of the sound preferences. 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430398 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 here we are. IORegistryExplorer.zip Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430407 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 I don't need the IOregisteryexplorer.app, I need you to run the application and save the ioregistery of your computer and send that file. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430408 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 how should I run? never done. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430410 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 Open the IORegisteryExplorer.app and from the File menu select Save, Save the file on desktop, compress it and the post it here. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430411 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 I hope is that. IMac di Pimof.zip Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430414 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 Yes that's it, I'll look into it and get back to you, In the meanwhile post the EFI folder you are currently using. Post the whole folder. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430420 Share on other sites More sharing options...
Pimof Posted May 24, 2017 Author Share Posted May 24, 2017 the apple folder is more than 10mb compressed I don't know if I spliced well in two part the apple folder... new and new.01 should be the apple folder. BOOT.zip Clover_Install_Log.txt.zip CLOVER.zip nvram.plist.zip new.zip new.z01.zip Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430422 Share on other sites More sharing options...
Cyberdevs Posted May 25, 2017 Share Posted May 25, 2017 Open terminal and launch the following commands one by one, after the last one reboot and see if the HDMI Audio is working. 1. sudo nvram -c 2. sudo purge3. sudo rm -f /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo touch /System/Library/Extensions && sudo kextcache -u / sudo update_dyld_shared_cache -force Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430620 Share on other sites More sharing options...
Pimof Posted May 25, 2017 Author Share Posted May 25, 2017 I don't know what to tell you. Is not working... The three audio jack are working. Hdmi is not working... It seems insane. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/5/#findComment-2430632 Share on other sites More sharing options...
