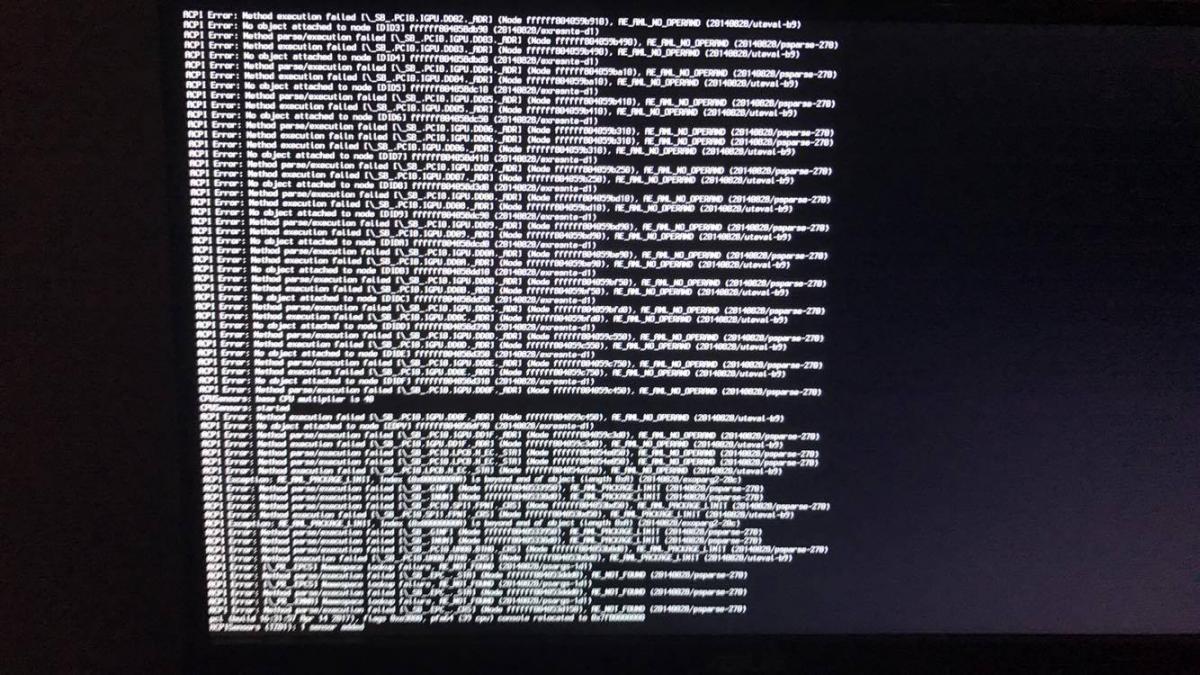

Pimof Posted May 22, 2017 Author Share Posted May 22, 2017 It's taking a while this time, i'm still in the verbose code... looking if is it ok or it's stopped. MAybe the problem is that i updated the clover boot in one disk or it's not important because i'm booting from the pendrive? Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429525 Share on other sites More sharing options...
MaLd0n Posted May 22, 2017 Share Posted May 22, 2017 test here now with intel hd, 10.12.4 need only "Inject Intel", nothing more and if i inject _dsm into device, dont boot, strange things, 10.12.5 fail ill back later Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429558 Share on other sites More sharing options...
Pimof Posted May 22, 2017 Author Share Posted May 22, 2017 I tried to format by windows that disk but it's not possible to rid off of the efi partition of the previous mac os sierra... I have the doubt that could be that the reason... update, i used a bootable pendrive of win 10 that i did before so there is nothing in the hdd... but the ssd with el capitan doesn't boot evenif it shouldn't have nothing different from before. The el capitan pen drive try to boot but stop as well, and it worked before for sure...Is the one I used to create the first hackintosh. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429574 Share on other sites More sharing options...

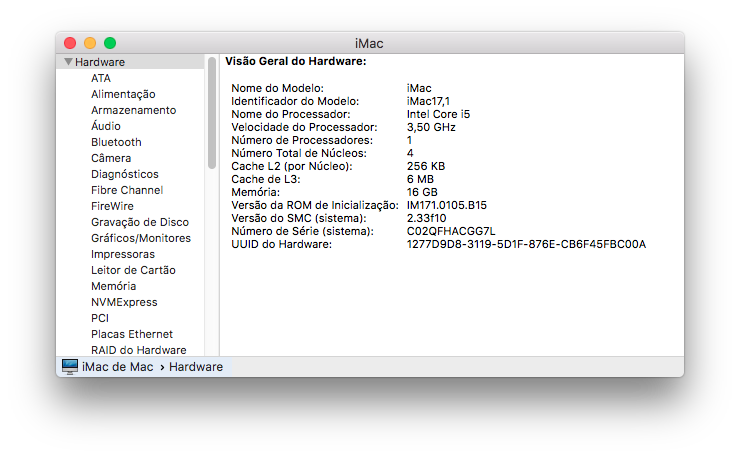

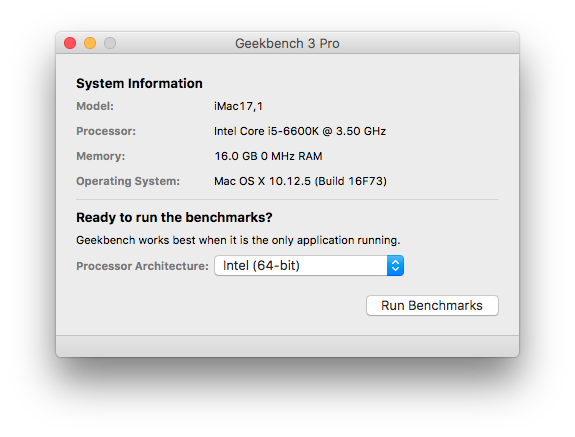

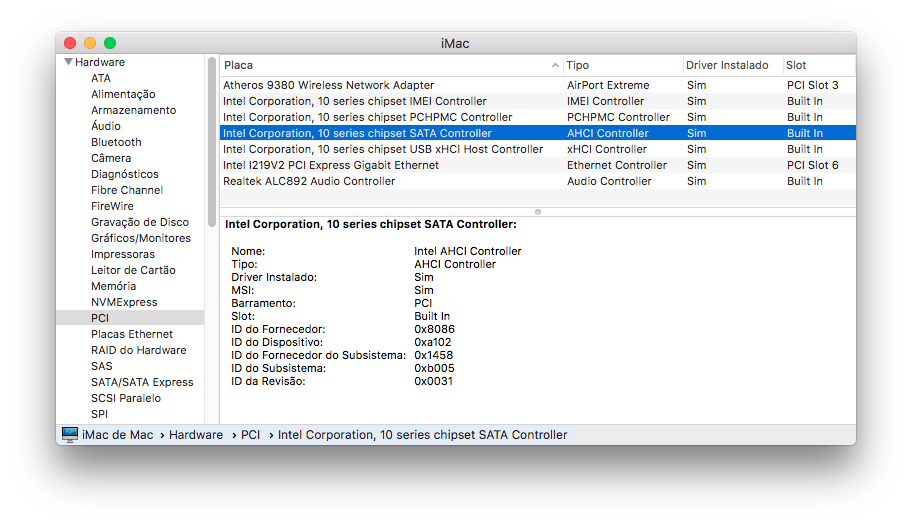

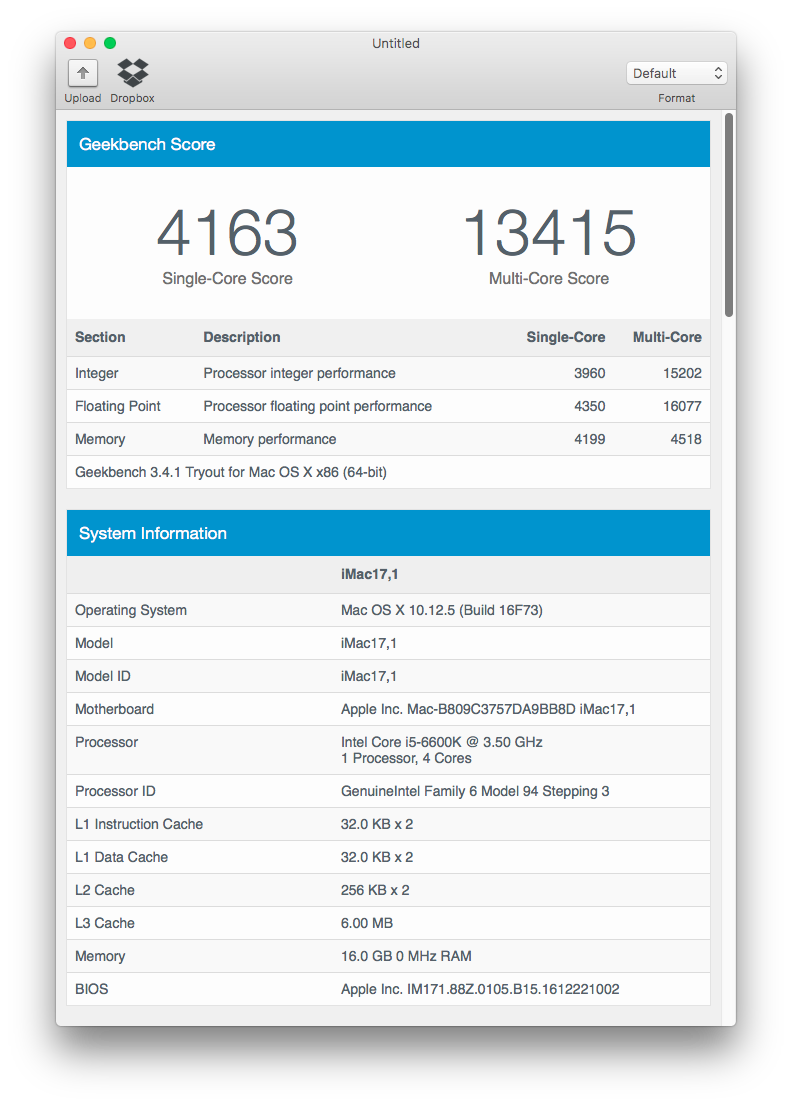

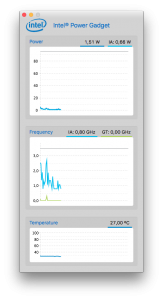

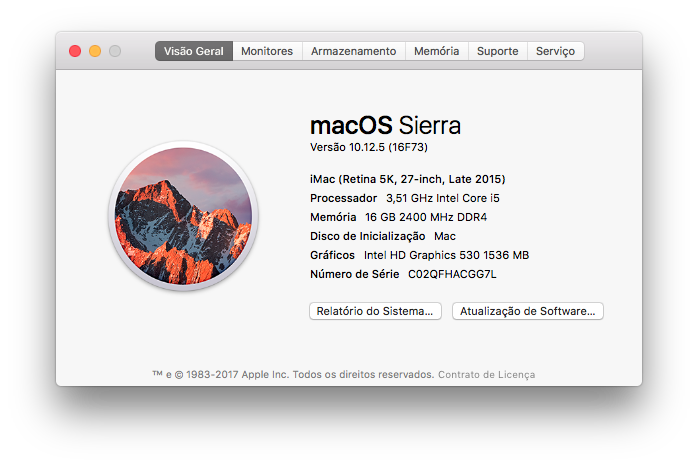

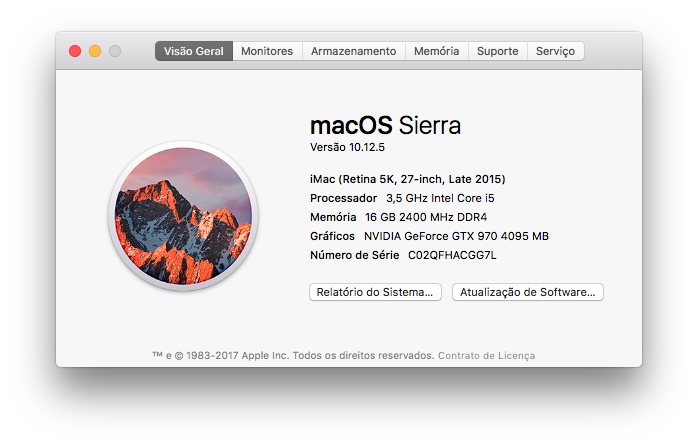

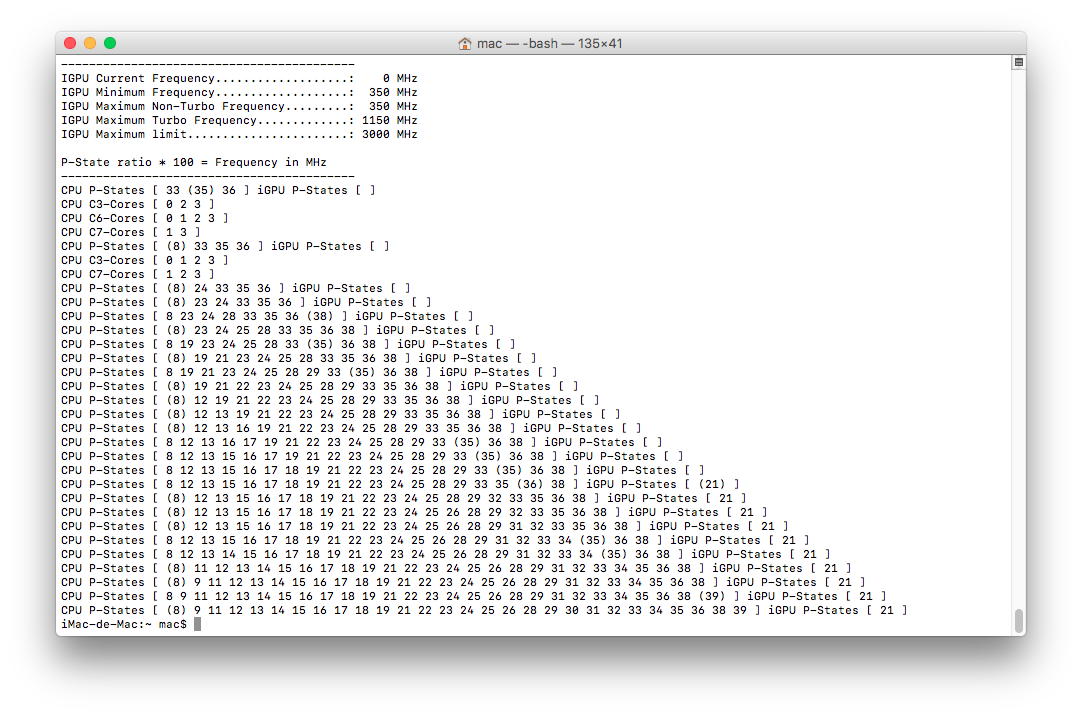

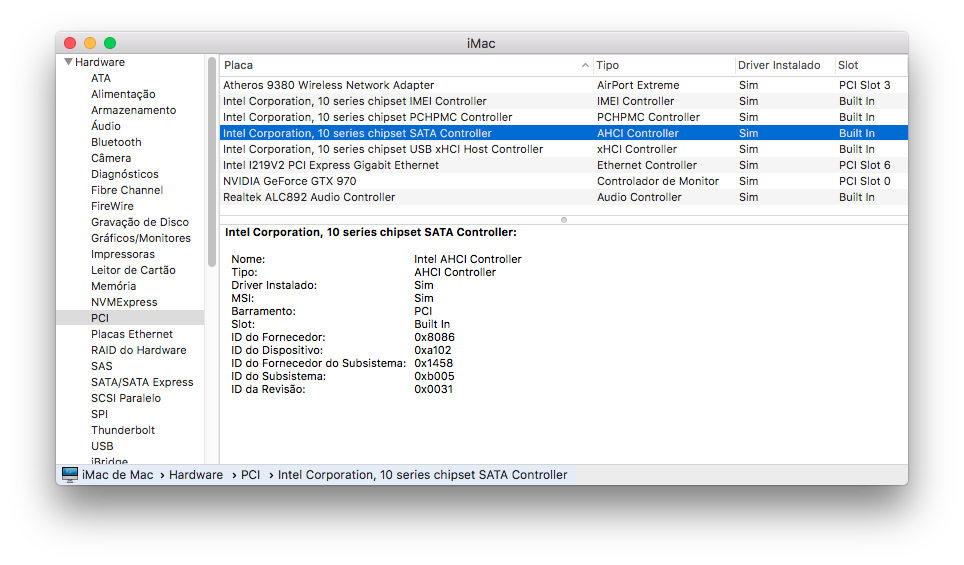

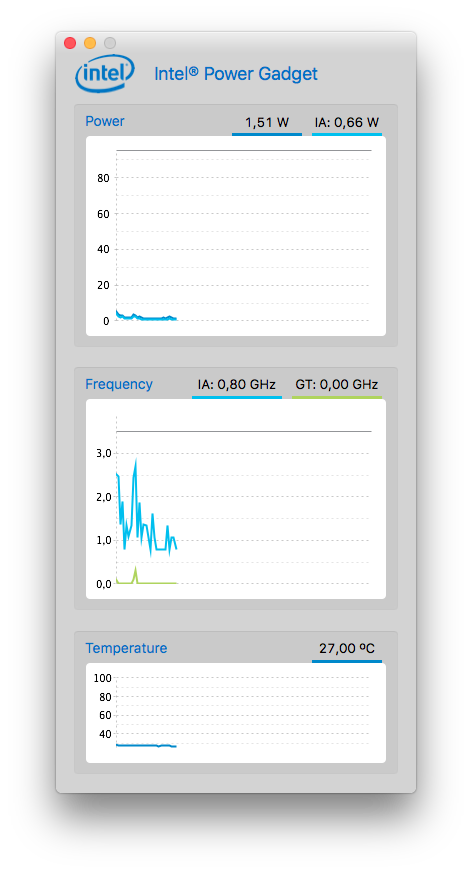

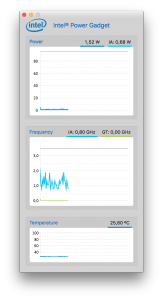

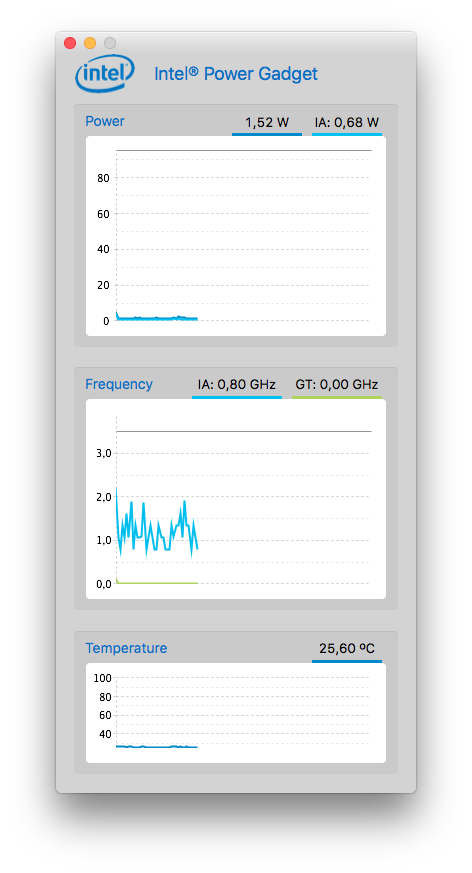

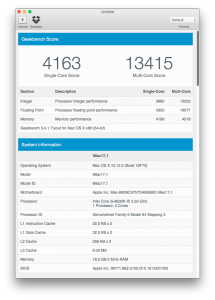

MaLd0n Posted May 23, 2017 Share Posted May 23, 2017 tests done Check Last bios in defaults, dont need change nothing, Mobo GA-Z170M-D3H with Core i5 6600k -Clover Intel HD CLOVER INTEL HD.zip -Clover Nvidia CLOVER NVIDIA.zip PM HWP Full DSDT patch -FIX ERRORS AND WARNINGS -HPET -SATA -DMAC -SLPB -DARWIN -LPC -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -EC -PNLF -HDMI if i inject simple _dsm into device GFX0/IGPU, boot fails if i inject id into device IMEI with IntelHD, boot fails intelHD in 10.12.5 work with InjectIntel + Lilu.kext + IntelGraphicsFixup.kext 1.1.2 3 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429621 Share on other sites More sharing options...

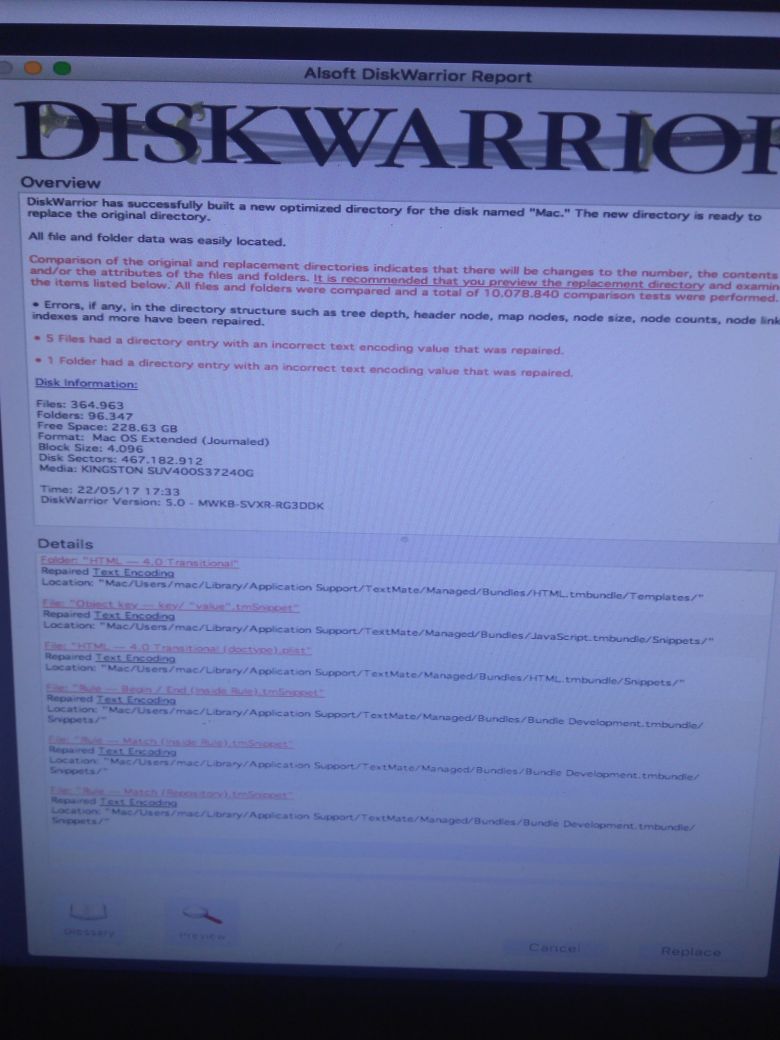

MaLd0n Posted May 23, 2017 Share Posted May 23, 2017 After install and config, i ever use a Hybrid DiskWarrior Mac/Hack for check and solve errors Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429624 Share on other sites More sharing options...
Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 It's taking a while this time, i'm still in the verbose code... looking if is it ok or it's stopped. MAybe the problem is that i updated the clover boot in one disk or it's not important because i'm booting from the pendrive? The only difference with the folder I attached in post #63 and the post #73 is that I copied the DSDT.aml file from MaLd0n's fodder to mine. test here now with intel hd, 10.12.4 need only "Inject Intel", nothing more and if i inject _dsm into device, dont boot, strange things, 10.12.5 fail ill back later @MaLd0n The folder I attached in post #63 was the only way to get my system to boot up to macOS Sierra 10.12.5. I disabled the discreet nVidia card in BIOS and with only Inject Intel=True system wouldn't boot. When I added the fake ID for ig-platform-id, system could boot to macOS sierra 10.12.5 I tried so many combinations and all of them failed. I didn't even use the DSDT.aml to SSDTs for the test. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429645 Share on other sites More sharing options...
Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 After university I'll do all. Thank you so much! Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429672 Share on other sites More sharing options...
Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 I put in the same sad El Capitan and Sierra. Full DSDT patch -FIX ERRORS AND WARNINGS -HPET -SATA -DMAC -SLPB -DARWIN -LPC -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -EC -PNLF -HDMI Should I put this dsdt? My audio is not working and the clover interface as some problem Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429952 Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Share Posted May 23, 2017 post ur full clover folder in use Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429955 Share on other sites More sharing options...
Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 I put in the same sad El Capitan and Sierra. Should I put this dsdt? My audio is not working and the clover interface as some problem The embedded theme you are using can be fixed by replacing the theme folder inside the /EFI/Clover/them with the file I posted, and yes you can use the DSDT file. I believe MaLd0n patched the DSDT for your system and posted with the clover folder he attached and I just copied it inside the latest folder I gave you. For activating Audio you need to mount the EFI partition and the run the following command I'll attached and answer yes to the question. themes.zip audio_cloverALC-120.command.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429958 Share on other sites More sharing options...
Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 here we are. CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429972 Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Share Posted May 23, 2017 Use iMac17,1 Replace folder CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429985 Share on other sites More sharing options...
Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 Use iMac17,1 Replace folder CLOVER.zip Man you're FAAAAST!!!! 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429988 Share on other sites More sharing options...
Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 The embedded theme you are using can be fixed by replacing the theme folder inside the /EFI/Clover/them with the file I posted, and yes you can use the DSDT file. I believe MaLd0n patched the DSDT for your system and posted with the clover folder he attached and I just copied it inside the latest folder I gave you. For activating Audio you need to mount the EFI partition and the run the following command I'll attached and answer yes to the question. it's not working as well. Could it be the problem that I installed El Capitan and Sierra in the same ssd? 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429991 Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Share Posted May 23, 2017 No DSDT Inject via Clover Man you're FAAAAST!!!! 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429993 Share on other sites More sharing options...
Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 it's not working as well. Could it be the problem that I installed El Capitan and Sierra in the same ssd? What's not working, the Theme or the Audio? 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429994 Share on other sites More sharing options...
Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 What's not working, the Theme or the Audio? Both No DSDT Inject via Clover So I should open clover reinstall and injecting? Stupid me, clover configurator... Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429997 Share on other sites More sharing options...
MaLd0n Posted May 23, 2017 Share Posted May 23, 2017 no, just replace clover and test 1 Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2429999 Share on other sites More sharing options...
Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 all you need to do is to mount the EFI folder with clover configurator and replace the theme folder. In order to get the Audio to work while the fi partition is mounted run the command I posted and a terminal window will open and it will ask you about the audio codec and you need to confirm it and the once it's done after reboot you'll have audio Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430000 Share on other sites More sharing options...
Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 I did and it doesn't work. Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430009 Share on other sites More sharing options...

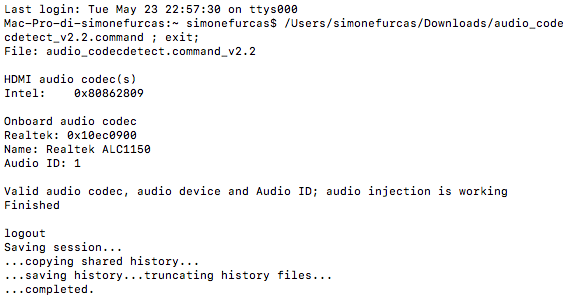

Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 run it and take a snapshot and post it here audio_codecdetect.command.zip Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430011 Share on other sites More sharing options...

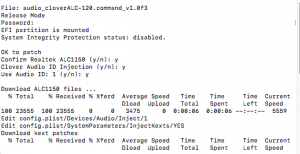

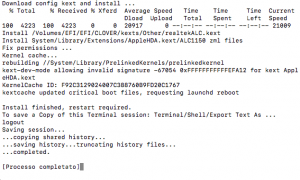

Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 run it and take a snapshot and post it here Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430014 Share on other sites More sharing options...

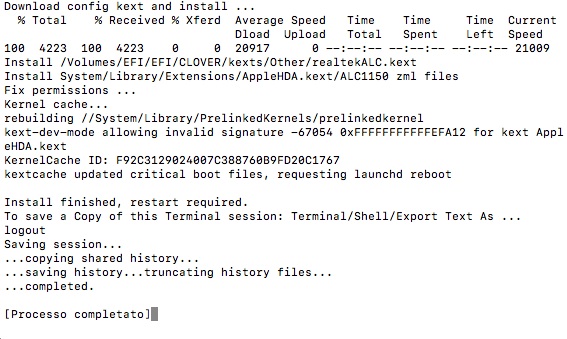

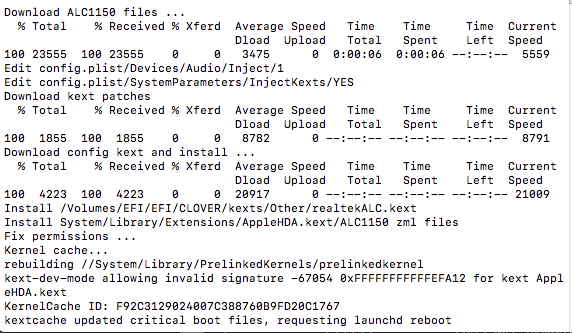

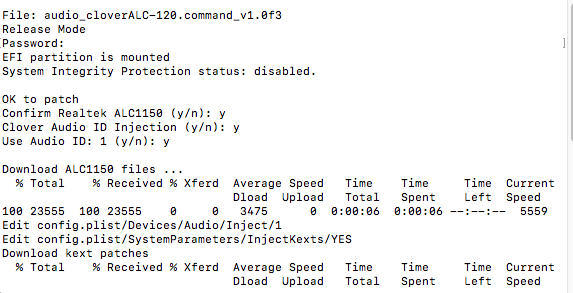

Cyberdevs Posted May 23, 2017 Share Posted May 23, 2017 Ok good, now all you need to do is to run the previous command"audio_cloverALC-120.command.zip" and choose answer the questions it asks, post a picture if you want so I can help you better. just make sure the EFI portion on the bootable drive you used to boot you macSO is mounted Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430021 Share on other sites More sharing options...

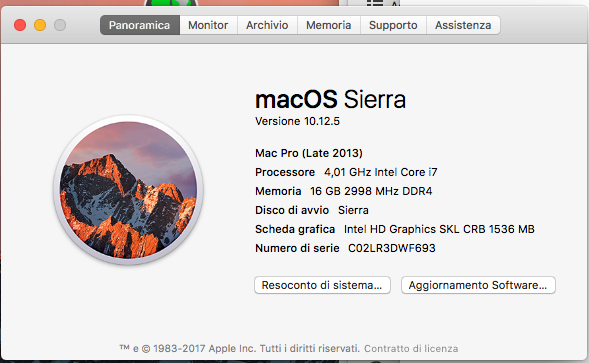

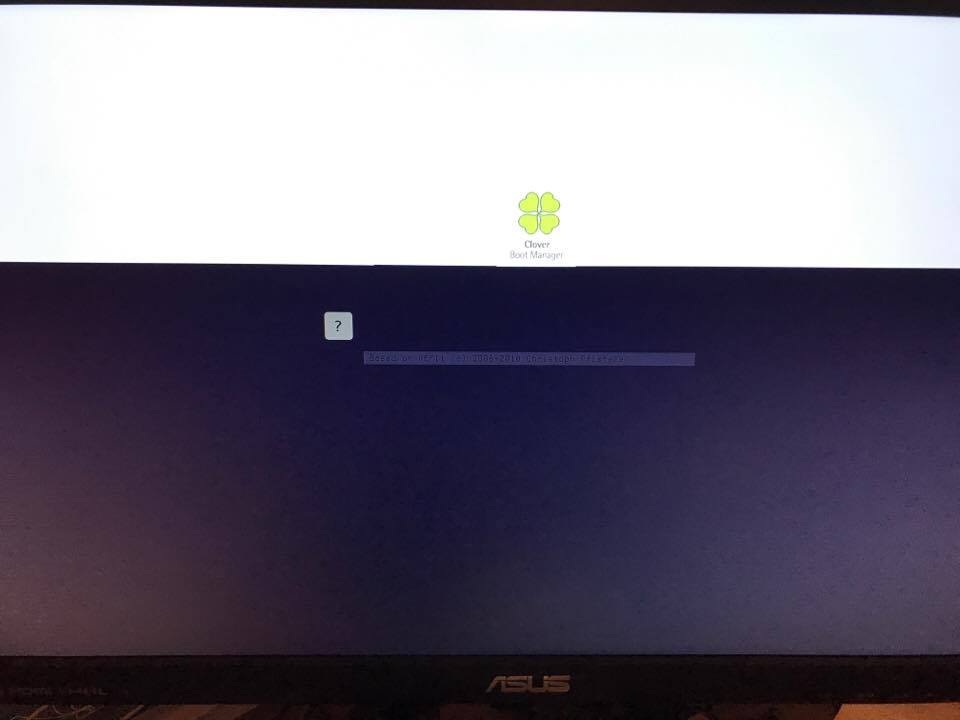

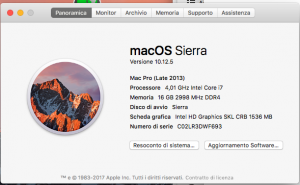

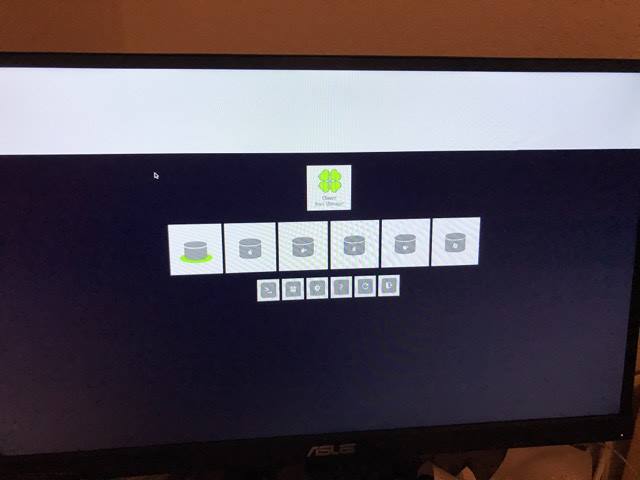

Pimof Posted May 23, 2017 Author Share Posted May 23, 2017 I did this and it's not working. I added the themes in the folder but it's the same as before. Update, the sounds work with an head set, but not with cdmi, but the cdmi was working in 11.6 and is still working if i connect the macbook to the monito by hdmi. Clover theme the same, is not working... Could be the problem the fact that el capitan and sierra have the same efi folder? update 2, if i boot from the el capitan pendrive the theme of clover is ok. Why?! Maybe is it a problem with the last release of clover? Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430029 Share on other sites More sharing options...
Cyberdevs Posted May 24, 2017 Share Posted May 24, 2017 I tested the theme on my computer as well it seems to be broken, no matter what I do it doesn't load correctly. Maybe it's working on El capitan because of the version of your clover. About the HDMI audio you need to run this command: audio_cloverHDMI-120.command.zip It's the same as the other command MOUNT EFI and run the command. audio_cloverHDMI-120.command.zip Link to comment https://www.insanelymac.com/forum/topic/323805-problems-with-z170x-ud3-i7-6700k-updating-from-1012-to-10125/page/4/#findComment-2430063 Share on other sites More sharing options...
