Post installazione Asus k550vx


axel9546
 Share

426 posts in this topic

Recommended Posts

non dico di farle funzionare insieme ma di scegliere per esempoi la nvidia

Neanche quello sarebbe possibile a quanto so io, perché di default parte la 530 che è integrata nella CPU e non si può cambiare se non tramite la Windows. Non so se Mac osx ha implementato questa featires nel frattempo. Secondo te come mai nn mi legge hdd? Mannaggia pure questa ci si mette ????????
Link to comment
Share on other sites

in che senso,non parte piu?



Risolto?

Okay risolto :)!!

Per quanto riguarda il problema di fcp vorrei tralasciato un momento e metterlo da parte

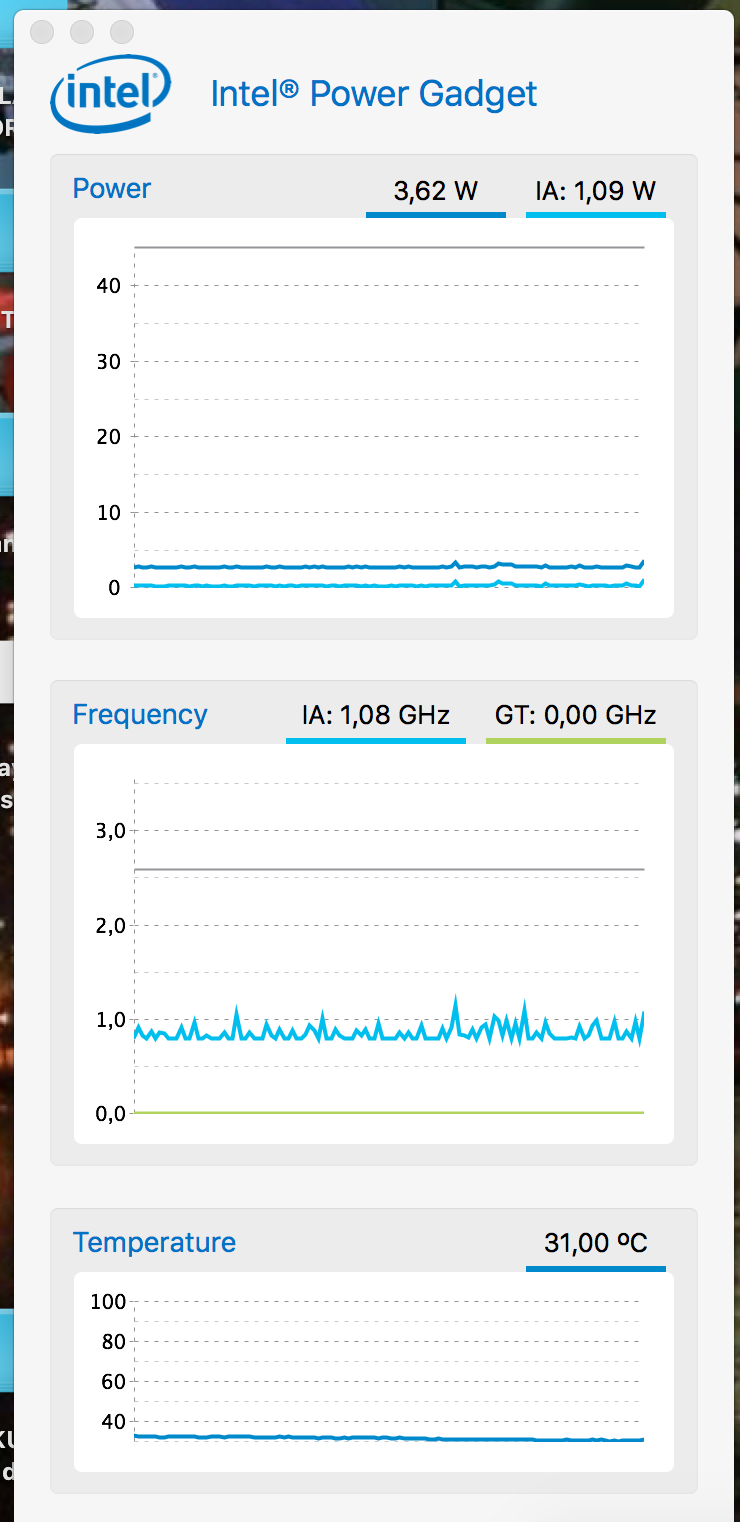

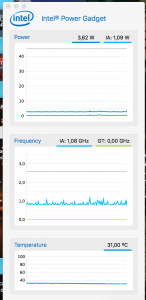

Vorrei fare questo Power management .

Cosa posso fare ragazzi? Sono sempre con la conf di Maldom e sembra andare (1.3 CPU riposo e non va in turbo)

Link to comment
Share on other sites

in genere la procedura è liscia non ci sono tutti questi problemi

è anche vero che tu hai usato la versione beta.

Ora riprovando a mettere ssdt in patchedfunziona!

Nel config how HWPENABLED e Generate Per States.

Cosa verifico?

Link to comment
Share on other sites

Potresti provare su una usb usandola per il boot...

Metti il solo ssdt, senza nient'altro per il pm

Cambia il smbios in MacBookPro 13.1 o 13.2, e vedi se riesci a fare il boot, oppure come ieri rimani bloccato

Link to comment
Share on other sites

Potresti provare su una usb usandola per il boot...

Metti il solo ssdt, senza nient'altro per il pm

Cambia il smbios in MacBookPro 13.1 o 13.2, e vedi se riesci a fare il boot, oppure come ieri rimani bloccato

Allora questo è il log di apple intel info. (Usando la configurazione di Maldon)

AppleIntelInfo.kext v2.5 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.



Settings:

------------------------------------------

logMSRs..................................: 1

logIGPU..................................: 1

logCStates...............................: 1

logIPGStyle..............................: 1

InitialTSC...............................: 0x1bdefedae14 (73 MHz)

MWAIT C-States...........................: 286531872



Processor Brandstring....................: Intel® Core i7-6700HQ CPU @ 2.60GHz



Processor Signature..................... : 0x506E3

------------------------------------------

 - Family............................... : 6

 - Stepping............................. : 3

 - Model................................ : 0x5E (94)



Model Specific Registers (MSRs)

------------------------------------------



MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF802DCFDB00

------------------------------------------

 - Core Count........................... : 4

 - Thread Count......................... : 8



MSR_PLATFORM_INFO................(0xCE)  : 0x8083BF1011A00

------------------------------------------

 - Maximum Non-Turbo Ratio.............. : 0x1A (2600 MHz)

 - Ratio Limit for Turbo Mode........... : 1 (programmable)

 - TDP Limit for Turbo Mode............. : 1 (programmable)

 - Low Power Mode Support............... : 1 (LPM supported)

 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)

 - Maximum Efficiency Ratio............. : 8

 - Minimum Operating Ratio.............. : 8



MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x1E008005

------------------------------------------

 - I/O MWAIT Redirection Enable......... : 0 (not enabled)

 - CFG Lock............................. : 1 (MSR locked until next reset)

 - C3 State Auto Demotion............... : 1 (enabled)

 - C1 State Auto Demotion............... : 1 (enabled)

 - C3 State Undemotion.................. : 1 (enabled)

 - C1 State Undemotion.................. : 1 (enabled)

 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)

 - Package C-State Undemotion........... : 0 (disabled/unsupported)



MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x51814

------------------------------------------

 - LVL_2 Base Address................... : 0x1814

 - C-state Range........................ : 5 (C-States not included, I/O MWAIT redirection not enabled)



IA32_MPERF.......................(0xE7)  : 0x45CDEC922D

IA32_APERF.......................(0xE8)  : 0x43593B121E



MSR_FLEX_RATIO...................(0x194) : 0x0

------------------------------------------



MSR_IA32_PERF_STATUS.............(0x198) : 0x228F00001E00

------------------------------------------

 - Current Performance State Value...... : 0x1E00 (3000 MHz)



MSR_IA32_PERF_CONTROL............(0x199) : 0xA00

------------------------------------------

 - Target performance State Value....... : 0xA00 (1000 MHz)

 - Intel Dynamic Acceleration........... : 0 (IDA engaged)



IA32_CLOCK_MODULATION............(0x19A) : 0x0



IA32_THERM_INTERRUPT.............(0x19B) : 0x10

------------------------------------------

 - High-Temperature Interrupt Enable.... : 0 (disabled)

 - Low-Temperature Interrupt Enable..... : 0 (disabled)

 - PROCHOT# Interrupt Enable............ : 0 (disabled)

 - FORCEPR# Interrupt Enable............ : 0 (disabled)

 - Critical Temperature Interrupt Enable : 1 (enabled)

 - Threshold #1 Value................... : 0

 - Threshold #1 Interrupt Enable........ : 0 (disabled)

 - Threshold #2 Value................... : 0

 - Threshold #2 Interrupt Enable........ : 0 (disabled)

 - Power Limit Notification Enable...... : 0 (disabled)



IA32_THERM_STATUS................(0x19C) : 0x883E0008

------------------------------------------

 - Thermal Status....................... : 0

 - Thermal Log.......................... : 0

 - PROCHOT # or FORCEPR# event.......... : 0

 - PROCHOT # or FORCEPR# log............ : 1

 - Critical Temperature Status.......... : 0

 - Critical Temperature log............. : 0

 - Thermal Threshold #1 Status.......... : 0

 - Thermal Threshold #1 log............. : 0

 - Thermal Threshold #2 Status.......... : 0

 - Thermal Threshold #2 log............. : 0

 - Power Limitation Status.............. : 0

 - Power Limitation log................. : 0

 - Current Limit Status................. : 0

 - Current Limit log.................... : 0

 - Cross Domain Limit Status............ : 0

 - Cross Domain Limit log............... : 0

 - Digital Readout...................... : 62

 - Resolution in Degrees Celsius........ : 1

 - Reading Valid........................ : 1 (valid)



MSR_THERM2_CTL...................(0x19D) : 0x0



IA32_MISC_ENABLES................(0x1A0) : 0x850089

------------------------------------------

 - Fast-Strings......................... : 1 (enabled)

 - FOPCODE compatibility mode Enable.... : 0

 - Automatic Thermal Control Circuit.... : 1 (enabled)

 - Split-lock Disable................... : 0

 - Performance Monitoring............... : 1 (available)

 - Bus Lock On Cache Line Splits Disable : 0

 - Hardware prefetch Disable............ : 0

 - Processor Event Based Sampling....... : 0 (PEBS supported)

 - GV1/2 legacy Enable.................. : 0

 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)

 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)

 - Adjacent sector prefetch Disable..... : 0

 - CFG Lock............................. : 0 (MSR not locked)

 - xTPR Message Disable................. : 1 (disabled)



MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x2640000

------------------------------------------

 - Turbo Attenuation Units.............. : 0

 - Temperature Target................... : 100

 - TCC Activation Offset................ : 2



MSR_MISC_PWR_MGMT................(0x1AA) : 0x401CC1

------------------------------------------

 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)

 - Energy/Performance Bias support...... : 1

 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)

 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)



MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x1F202123

------------------------------------------

 - Maximum Ratio Limit for C01.......... : 23 (3500 MHz)

 - Maximum Ratio Limit for C02.......... : 21 (3300 MHz)

 - Maximum Ratio Limit for C03.......... : 20 (3200 MHz)

 - Maximum Ratio Limit for C04.......... : 1F (3100 MHz)



IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5

------------------------------------------

 - Power Policy Preference...............: 5 (balanced performance and energy saving)



MSR_POWER_CTL....................(0x1FC) : 0x24005F

------------------------------------------

 - Bi-Directional Processor Hot..........: 1 (enabled)

 - C1E Enable............................: 1 (enabled)



MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03

------------------------------------------

 - Power Units.......................... : 3 (1/8 Watt)

 - Energy Status Units.................. : 14 (61 micro-Joules)

 - Time Units .......................... : 10 (976.6 micro-Seconds)



MSR_PKG_POWER_LIMIT..............(0x610) : 0x4281C200DD8168

------------------------------------------

 - Package Power Limit #1............... : 45 Watt

 - Enable Power Limit #1................ : 1 (enabled)

 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)

 - Time Window for Power Limit #1....... : 110 (163840 milli-Seconds)

 - Package Power Limit #2............... : 56 Watt

 - Enable Power Limit #2................ : 1 (enabled)

 - Package Clamping Limitation #2....... : 0 (disabled)

 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)

 - Lock................................. : 0 (MSR not locked)



MSR_PKG_ENERGY_STATUS............(0x611) : 0x4A725E2

------------------------------------------

 - Total Energy Consumed................ : 4764 Joules (Watt = Joules / seconds)



MSR_PP1_POWER_LIMIT..............(0x640) : 0x0



MSR_PP1_ENERGY_STATUS............(0x641) : 0x10B07D

------------------------------------------

 - Total Energy Consumed................ : 66 Joules (Watt = Joules / seconds)



MSR_PP1_POLICY...................(0x642) : 0x18

------------------------------------------

 - Priority Level....................... : 24



MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1A

MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x150118

MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0

MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0

MSR_PKGC3_IRTL...................(0x60a) : 0x884E

MSR_PKGC6_IRTL...................(0x60b) : 0x8876

MSR_PKGC7_IRTL...................(0x60c) : 0x8894

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0xE746F5C65C

MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0xE746F5C65C

MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PKG_C8_RESIDENCY............(0x630) : 0x0

MSR_PKG_C9_RESIDENCY............(0x631) : 0x0

MSR_PKG_C10_RESIDENCY...........(0x632) : 0x0

MSR_PKG_C8_LATENCY..............(0x633) : 0x0

MSR_PKG_C9_LATENCY..............(0x634) : 0x0

MSR_PKG_C10_LATENCY.............(0x635) : 0x0



MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x1CEFF9F

------------------------------------------



MSR_PPERF........................(0x64E) : 0x4FD614E4FF

------------------------------------------

 - Hardware workload scalability........ : 342894109951



MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x30010000

------------------------------------------

 - PROCHOT Status....................... : 0

 - Thermal Status....................... : 0

 - Residency State Regulation Status.... : 0

 - Running Average Thermal Limit Status. : 0

 - VR Therm Alert Status................ : 0

 - VR Therm Design Current Status....... : 0

 - Other Status......................... : 0

 - Package/Platform-Level #1 Power Limit : 0

 - Package/Platform-Level #2 Power Limit : 0

 - Max Turbo Limit Status............... : 0

 - Turbo Transition Attenuation Status.. : 0

 - PROCHOT Log.......................... : 1 (status bit has asserted)

 - Thermal Log.......................... : 0

 - Residency State Regulation Log....... : 0

 - Running Average Thermal Limit Log.... : 0

 - VR Therm Alert Log................... : 0

 - VR Thermal Design Current Log........ : 0

 - Other Status Log..................... : 0

 - Package/Platform-Level #1 Power Limit : 0

 - Package/Platform-Level #2 Power Limit : 0

 - Max Turbo Limit Log.................. : 1 (status bit has asserted)

 - Turbo Transition Attenuation Log..... : 1 (status bit has asserted)

HDC Supported



IA32_PKG_HDC_CTL.................(0xDB0) : 0x0



IA32_PM_CTL1.....................(0xDB1) : 0x1

------------------------------------------

HDC Allow Block..................(0xDB1) : 1 (HDC blocked)



IA32_THREAD_STALL................(0xDB2) : 0x0



MSR_PKG_HDC_CONFIG...............(0x652) : 0x2

------------------------------------------

Pkg Cx Monitor ..................(0x652) : 2 (count package C3 and deeper)

MSR_CORE_HDC_RESIDENCY...........(0x653) : 0x0



MSR_PKG_HDC_SHALLOW_RESIDENCY....(0x655) : 0x0



MSR_PKG_HDC_DEEP_RESIDENCY.......(0x656) : 0x0



IA32_TSC_DEADLINE................(0x6E0) : 0x1BDF7AE8BE2

MSR_PPERF........................(0x63E) : 0x1 (22)



IA32_PM_ENABLE...................(0x770) : 0x1 (HWP Supported and Enabled)



IA32_HWP_CAPABILITIES............(0x771) : 0x1081A23

-----------------------------------------

 - Highest Performance.................. : 35

 - Guaranteed Performance............... : 26

 - Most Efficient Performance........... : 8

 - Lowest Performance................... : 1



IA32_HWP_INTERRUPT...............(0x773) : 0x1

------------------------------------------

 - Guaranteed Performance Change........ : 1 (Interrupt generated on change of)

 - Excursion Minimum.................... : 0 (Interrupt generation disabled)



IA32_HWP_REQUEST................(0x774) : 0x20112308

-----------------------------------------

 - Minimum Performance................. : 8

 - Maximum Performance................. : 35

 - Desired Performance................. : 17

 - Energy Efficient Performance........ : 32

 - Activity Window..................... : 0, 0

 - Package Control..................... : 0



IA32_HWP_STATUS..................(0x777) : 0x0

-----------------------------------------

 - Guaranteed Performance Change....... : 0 (has not occured)

 - Excursion To Minimum................ : 0 (has not occured)



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)

Maximum non-Turbo Ratio/Frequency........: 26 (2600 MHz)

Maximum Turbo Ratio/Frequency............: 35 (3500 MHz)



IGPU Info:

------------------------------------------

IGPU Current Frequency...................:    0 MHz

IGPU Minimum Frequency...................:  350 MHz

IGPU Maximum Non-Turbo Frequency.........:  350 MHz

IGPU Maximum Turbo Frequency.............: 1050 MHz

IGPU Maximum limit.......................: No Limit



P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ (13) 25 29 ] iGPU P-States [ ]

CPU C3-Cores [ 0 1 7 ]

CPU C7-Cores [ 1 3 4 5 7 ]

CPU P-States [ 13 (17) 24 25 29 ] iGPU P-States [ ]

CPU C3-Cores [ 0 1 2 5 7 ]

CPU C7-Cores [ 0 1 2 3 4 5 7 ]

CPU P-States [ (13) 17 24 25 29 ] iGPU P-States [ ]

CPU C3-Cores [ 0 1 2 3 5 7 ]

CPU C7-Cores [ 0 1 2 3 4 5 6 7 ]

CPU P-States [ 13 17 (22) 24 25 29 ] iGPU P-States [ ]

CPU C3-Cores [ 0 1 2 3 5 6 7 ]

CPU C3-Cores [ 0 1 2 3 4 5 6 7 ]

Ora provo con la usb e ti faccio sapere

Link to comment
Share on other sites

Stesso discorso per il smbios, ma varia il metodo del pm, quindi niente ssdt di piker, ma usa HWP.... controlla il tutto

Ulteriore prova, ne HWP, ne ssdt ma usa solamente Genereate C & P states



Dovresti fare queste prove con attenzione, e descrivere i vari risultati

Link to comment
Share on other sites

Stesso discorso per il smbios, ma varia il metodo del pm, quindi niente ssdt di piker, ma usa HWP.... controlla il tutto

Ulteriore prova, ne HWP, ne ssdt ma usa solamente Genereate C & P states



Dovresti fare queste prove con attenzione, e descrivere i vari risultati

Stress test USB con solo sdst MacBook 13.1

(Frequenze da Intel Power gadget)

IA 3,23 GHZ

GT 1Ghz

Temp 47

Riposo

IA 1,30 GHZ

GT 0GHZ

TEMP 36

- STRESS TEST USB SOLO GENERATE C&PSTATES

IA 3.20

GT 1GHZ

TEMP 46

Riposo

IA 1.3

GT 0 GHZ

TEMP 36



In pratica cosa manca? Scusate ma nn capisco molto di questi valori :)

Link to comment
Share on other sites

tutti hanno all'incirca il solito massimo

Per abbassare la frequenza a riposo, potrei farti un injector, nel caso...



Ma oltre a questo, il problema con il programma rimane...


il discorso potrebbe essere legato a più fattori, tra cui la grafica integrata un po' limitata per tale programma, problema di risoluzione ecc

  • Like 1
Link to comment
Share on other sites

tutti hanno all'incirca il solito massimo

Per abbassare la frequenza a riposo, potrei farti un injector, nel caso...



Ma oltre a questo, il problema con il programma rimane...

Come detto prima ora lo mettiamo da parte...

Pensiamo un attimo a sistemare il pm poi quello cerco di risolverlo da solo

Tu dici che il processore non arriva a piu di 3,2?

Queste sono le specs del processore LINK

Link to comment
Share on other sites

avevo visto le specifiche, per quello ieri ti avevo detto che il turbo veniva dato a 3,5


Detto sinceramente non saprei visto le prove come aumentare ed arrivare al turbo corretto

per il minimo, ripeto, posso farti un injector, che può anche aiutarti aumentando poi la durata della batteria durante l'uso mediamente basso del portatile

  • Like 1
Link to comment
Share on other sites

avevo visto le specifiche, per quello ieri ti avevo detto che il turbo veniva dato a 3,5

Detto sinceramente non saprei visto le prove come aumentare ed arrivare al turbo corretto

per il minimo, ripeto, posso farti un injector, che può anche aiutarti aumentando poi la durata della batteria durante l'uso mediamente basso del portatile

Allora ho trovato questo che puo essere d'aiuto su un forum

"6700HQ turbo steps:



4 cores: max. 3.1 GHz, 2 cores: max. 3.3 GHz, 1 core: max. 3.5 GHz



You will never get 3.5 on all 4 cores, this is just how Intel made it work."



Quindi il 3.5 si ha solo quando utilizza un solo core.

Come faccio a stressare il solo core xD???

Si va bene proviamo l'injector poi se non va lo editiamo :)



Link to comment
Share on other sites

vedo adesso che usando MBP 13.1 il turbo max  nei veri mac, è impostato a 3,4...

se mi dai un attimo... provo a farti un injector..

Però per ovvi motivi potrà lavorare solo in S/L/E o L/E

Quindi dopo averlo installato se da problemi devo rifare installazione pulita ??

Per la freq max quindi non dovrebbero esserci problemi.

Il problema quindi sarebbe che la cpu non riesce ad andare a riposo??

Non so a che serve ma prima ti ho postato il AppleIntelInfo dal terminal se ti puo servire :D

Link to comment
Share on other sites

copia l'injector in Library/Extensions

Scarica Kext Utility, lancialo e lascialo finire...



Smbios= MBP 13.1

niente ssdt di Piker

sul config lascia solo selezionato HWP



Riavvia, lascia il portatile a riposo e controlla la frequenza minima, dopo stressa la cpu e ricontrolla

FrequenciesInjector-MPB13.1-I7_6700HQ.kext.zip

Link to comment
Share on other sites

copia l'injector in Library/Extensions

Scarica Kext Utility, lancialo e lascialo finire...



Smbios= MBP 13.1

niente ssdt di Piker

sul config lascia solo selezionato HWP



Riavvia, lascia il portatile a riposo e controlla la frequenza minima, dopo stressa la cpu e ricontrolla

Ottimo!! Un grande :Di

Riesce a scendere la IA a 0.80 GHz e utilizzare frq minori a 1.3

Scesa anche la temp a 33.30

È anche il consumo mi pare... Cosa hai fatto in pratica?

Link to comment
Share on other sites

abbassato la frequenza minima e aumentato quella max in base alle specifiche della tua CPU

Se lo lasci proprio a riposo è possibile che possa scendere  ulteriormente sotto di 0,8


Ovviamente ho modificato le impostazioni di default relative al vero MBP 13.1

Infatti usando quel smbios, il tutto viene gestito da questo

Link to comment
Share on other sites

abbassato la frequenza minima e aumentato quella max in base alle specifiche della tua CPU

Se lo lasci proprio a riposo è possibile che possa scendere  ulteriormente sotto di 0,8

Lasciato a riposo per 3 minuti con lo schermo chiuso... post-1991057-0-63545100-1492939480_thumb.png

Non fare caso allo screen.. Era a 0.8 xD :D..

Bhe io non saprei se puo scendere ancora.. Cosa comporterebbe? Io quando chiudo lo schermo è per andare a mangiare e lascio o a caricare il video di youtube o lascio fcp x col progetto aperto o ps :)

Non so se scendendo ancora sotto 0.8 possa dare problemi ?? :)

Link to comment
Share on other sites

 Share

×
×
  • Create New...
