[GUIDE] HWP(Intel Speed Shift) enable with full power management


172 posts in this topic

Recommended Posts

I did, but still don't see X86PlatformPlugin in my ioreg. I attached ioreg, config and SSDTs could you please check it and tell me what is wrong?

Obviously you are missing a proper SSDT for 'plugin-type'. Absolutely. Like @tluck said.

Yup. Try to add that and check again.

With Clover-4016 you can set HWPEnable=true and Generate P-States=true and Clover will generate SSDT table with only plugin-type=1 without actual p-states.

  • Like 9

@telepati

- did you try the bundle i posted?

- i don't see your SSDT for CPU - small one or one via Pike's ssdtPRgen ?





Obviously you are missing a proper SSDT for 'plugin-type'. Absolutely. Like @tluck said.

Yup. Try to add that and check again.



Ok, guys I did what you said and it works X86PlatformPlugin came back. But I wonder why we need the SSDT for CPU? as I know (Probably I don't know :) ) if we set HWP value we don't need SSDT for CPU, is that right or wrong?

as we just heard from Slice, if using Clover 4016 with HWPEnable and PStates true - then an extra SSDT for P states is not needed.

but before 4016, seems a proper SSDT for P states (or mini-SSDT ) is needed.



the HWP value will set the parameters.

AsmWriteMsr64 (MSR_IA32_HWP_REQUEST, gSettings.HWPValue);



i have not used this method - as I am using the X86Platform injector.

  • Like 2

Ok, guys I did what you said and it works X86PlatformPlugin came back. But I wonder why we need the SSDT for CPU? as I know (Probably I don't know :) ) if we set HWP value we don't need SSDT for CPU, is that right or wrong?

Absolutely wrong. HWP value is a part of FrequencyVectors, and note that you must load x86* first of all. (FrequencyVectors is also a part of X86*) So we need plugin-type = 1 to load x86* on our hacks, which is that tiny SSDT does.

as we just heard from Slice, if using Clover 4016 with HWPEnable and PStates true - then an extra SSDT for P states is not needed.

but before 4016, seems a proper SSDT for P states (or mini-SSDT ) is needed.



the HWP value will set the parameters.





AsmWriteMsr64 (MSR_IA32_HWP_REQUEST, gSettings.HWPValue);

i have not used this method - as I am using the X86Platform injector.
I think so. Clover should only help us inject plugin type = 1 in this case cuz we have been almost done except plugin type to load x86...





Sent from my iPhone 7 using Tapatalk

  • Like 1

as we just heard from Slice, if using Clover 4016 with HWPEnable and PStates true - then an extra SSDT for P states is not needed.

but before 4016, seems a proper SSDT for P states (or mini-SSDT ) is needed.



the HWP value will set the parameters.

AsmWriteMsr64 (MSR_IA32_HWP_REQUEST, gSettings.HWPValue);



i have not used this method - as I am using the X86Platform injector.





Absolutely wrong. HWP value is a part of FrequencyVectors, and note that you must load x86* first of all. (FrequencyVectors is also a part of X86*) So we need plugin-type = 1 to load x86* on our hacks, which is that tiny SSDT does.

I think so. Clover should only help us inject plugin type = 1 in this case cuz we have been almost done except plugin type to load x86...





Sent from my iPhone 7 using Tapatalk



Thank you guys, I learned many things about HWP on this threat. :thumbsup_anim:

  • Like 1

Guys with new v2.4 AppleIntelInfo.kext does not show HWP anymore? and I am getting 1 error about hw.busfrequency? How should I fix this error?



This is the result from new v2.4 AppleIntelInfo.kext;

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x102eec98d1c0 (444 MHz)
MWAIT C-States...........................: 1319200

Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz

Processor Signature..................... : 0x506E3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x5E (94)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF80B8AB7200
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 8

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x0
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x75333441AB
IA32_APERF.......................(0xE8)  : 0x7DF3F85088

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x2AB800002C00
------------------------------------------
 - Current Performance State Value...... : 0x2C00 (4400 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2C00
------------------------------------------
 - Target performance State Value....... : 0x2C00 (4400 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x10
------------------------------------------
 - High-Temperature Interrupt Enable.... : 0 (disabled)
 - Low-Temperature Interrupt Enable..... : 0 (disabled)
 - PROCHOT# Interrupt Enable............ : 0 (disabled)
 - FORCEPR# Interrupt Enable............ : 0 (disabled)
 - Critical Temperature Interrupt Enable : 1 (enabled)
 - Threshold #1 Value................... : 0
 - Threshold #1 Interrupt Enable........ : 0 (disabled)
 - Threshold #2 Value................... : 0
 - Threshold #2 Interrupt Enable........ : 0 (disabled)
 - Power Limit Notification Enable...... : 0 (disabled)

IA32_THERM_STATUS................(0x19C) : 0x88450000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 69
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x64140D
------------------------------------------
 - Turbo Attenuation Units.............. : 13 (122.1 micro-Seconds)
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x401CC1
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2C2C2C2C
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2C (4400 MHz)
 - Maximum Ratio Limit for C02.......... : 2C (4400 MHz)
 - Maximum Ratio Limit for C03.......... : 2C (4400 MHz)
 - Maximum Ratio Limit for C04.......... : 2C (4400 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2C005F
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFFF001BFFFF
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x3A68E76A
------------------------------------------
 - Total Energy Consumed................ : 59811 Joules (Watt = Joules / seconds)

MSR_PP1_POWER_LIMIT..............(0x640) : 0x0

MSR_PP1_ENERGY_STATUS............(0x641) : 0x14D346
------------------------------------------
 - Total Energy Consumed................ : 83 Joules (Watt = Joules / seconds)

MSR_PP1_POLICY...................(0x642) : 0x18
------------------------------------------
 - Priority Level....................... : 24

MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKGC7_IRTL...................(0x60c) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)

MSR_PPERF........................(0x64E) : 0x73C6E79A2B
------------------------------------------
 - Hardware workload scalability........ : 497258306091

MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x102EFAA4EEB9

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)
Maximum Turbo Ratio/Frequency............: 44 (4400 MHz)

IGPU Info:
------------------------------------------
IGPU Current Frequency...................:    0 MHz
IGPU Minimum Frequency...................:  350 MHz
IGPU Maximum Non-Turbo Frequency.........:  350 MHz
IGPU Maximum Turbo Frequency.............: 1150 MHz
IGPU Maximum limit.......................: 1150 MHz

P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 43 (44) ] iGPU P-States [ ]
CPU C6-Cores [ 0 1 3 4 5 6 ]
CPU P-States [ 43 (44) ] iGPU P-States [ ]
CPU C6-Cores [ 0 1 3 4 5 6 7 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]
bash-3.2#

Guys with new v2.4 AppleIntelInfo.kext does not show HWP anymore? and I am getting 1 error about hw.busfrequency? How should I fix this error?



This is the result from new v2.4 AppleIntelInfo.kext;

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x102eec98d1c0 (444 MHz)
MWAIT C-States...........................: 1319200

Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz

Processor Signature..................... : 0x506E3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x5E (94)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF80B8AB7200
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 8

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x0
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x75333441AB
IA32_APERF.......................(0xE8)  : 0x7DF3F85088

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x2AB800002C00
------------------------------------------
 - Current Performance State Value...... : 0x2C00 (4400 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2C00
------------------------------------------
 - Target performance State Value....... : 0x2C00 (4400 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x10
------------------------------------------
 - High-Temperature Interrupt Enable.... : 0 (disabled)
 - Low-Temperature Interrupt Enable..... : 0 (disabled)
 - PROCHOT# Interrupt Enable............ : 0 (disabled)
 - FORCEPR# Interrupt Enable............ : 0 (disabled)
 - Critical Temperature Interrupt Enable : 1 (enabled)
 - Threshold #1 Value................... : 0
 - Threshold #1 Interrupt Enable........ : 0 (disabled)
 - Threshold #2 Value................... : 0
 - Threshold #2 Interrupt Enable........ : 0 (disabled)
 - Power Limit Notification Enable...... : 0 (disabled)

IA32_THERM_STATUS................(0x19C) : 0x88450000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 69
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x64140D
------------------------------------------
 - Turbo Attenuation Units.............. : 13 (122.1 micro-Seconds)
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x401CC1
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2C2C2C2C
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2C (4400 MHz)
 - Maximum Ratio Limit for C02.......... : 2C (4400 MHz)
 - Maximum Ratio Limit for C03.......... : 2C (4400 MHz)
 - Maximum Ratio Limit for C04.......... : 2C (4400 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2C005F
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFFF001BFFFF
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x3A68E76A
------------------------------------------
 - Total Energy Consumed................ : 59811 Joules (Watt = Joules / seconds)

MSR_PP1_POWER_LIMIT..............(0x640) : 0x0

MSR_PP1_ENERGY_STATUS............(0x641) : 0x14D346
------------------------------------------
 - Total Energy Consumed................ : 83 Joules (Watt = Joules / seconds)

MSR_PP1_POLICY...................(0x642) : 0x18
------------------------------------------
 - Priority Level....................... : 24

MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKGC7_IRTL...................(0x60c) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)

MSR_PPERF........................(0x64E) : 0x73C6E79A2B
------------------------------------------
 - Hardware workload scalability........ : 497258306091

MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x102EFAA4EEB9

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)
Maximum Turbo Ratio/Frequency............: 44 (4400 MHz)

IGPU Info:
------------------------------------------
IGPU Current Frequency...................:    0 MHz
IGPU Minimum Frequency...................:  350 MHz
IGPU Maximum Non-Turbo Frequency.........:  350 MHz
IGPU Maximum Turbo Frequency.............: 1150 MHz
IGPU Maximum limit.......................: 1150 MHz

P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 43 (44) ] iGPU P-States [ ]
CPU C6-Cores [ 0 1 3 4 5 6 ]
CPU P-States [ 43 (44) ] iGPU P-States [ ]
CPU C6-Cores [ 0 1 3 4 5 6 7 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]
bash-3.2#
Sorry I don't check what Pike changed for his AppleIntelInfo and thus I don't what goes wrong. And in China now it's a little late. About to sleep :)

But for hw bus frequency, try to set config.plist -> CPU -> QPI to 100





Sent from my iPhone 7 using Tapatalk

  • Like 1

Sorry I don't check what Pike changed for his AppleIntelInfo and thus I don't what goes wrong. And in China now it's a little late. About to sleep :)

But for hw bus frequency, try to set config.plist -> CPU -> QPI to 100





Sent from my iPhone 7 using Tapatalk



I asked him and he says, forgot to add



#define REPORT_HWP 1

#define REPORT_HDC 1



But he fixed it. I can see the all HWP now.



CPU -> QPI to 100 worked. I don't see any error. Thank you. :thumbsup_anim:

  • Like 1

I asked him and he says, forgot to add



#define REPORT_HWP 1

#define REPORT_HDC 1



But he fixed it. I can see the all HWP now.



CPU -> QPI to 100 worked. I don't see any error. Thank you. :thumbsup_anim:

Congratulations!





Sent from my iPhone 7 using Tapatalk

  • Like 1

Congratulations!





Sent from my iPhone 7 using Tapatalk

my cpu is i7-6567u, base 3.3ghz,max 3.6ghz.....now lowest is 1.3ghz.....I want to change 1.3 to 800mhz but I don't know how to edit the Mac-66E35819EE2D0D05.plist :hysterical: it is there any tutorial and detailed instruction :hysterical:

my cpu is i7-6567u, base 3.3ghz,max 3.6ghz.....now lowest is 1.3ghz.....I want to change 1.3 to 800mhz but I don't know how to edit the Mac-66E35819EE2D0D05.plist :hysterical: it is there any tutorial and detailed instruction :hysterical:

Check 'FrequencyVectors' array in your desired plist. Then locate to bit[4], it looks like this:

02000000 0D000000 01000000 00000000
         ^^

The 0x0D means 13 in decimal. Which is your LFM (Lowest Frequency Mode), change this to 0x08, then you will get 800 MHz frequency.

  • 2 weeks later...

well it is not obvious to me that there is HWP support in the iMac17,1 profile  (vs 13,1 that certainly does):



Examining data of: Mac-B809C3757DA9BB8D.plist (iMac17,1) ...
-----------------------------------------------------------------
Converted to: /tmp/Mac-B809C3757DA9BB8D.bin (7668 bytes)
Settings: BACKGROUND, KGROUND, REALTIME_SHORT
   hard-rt-ns (4000000), ubpc (1), off (0), on (0), perf-bias (1), utility-tlvl (79), non-focal-tlvl (250)



VERSUS:



Examining data of: Mac-473D31EABEB93F9B.plist (MacBookPro13,1) ...

-----------------------------------------------------------------
Max Turbo Boost: 3100 MHz (FrequencyVectors @ 0) Converted to: /tmp/Mac-473D31EABEB93F9B-0.bin (7668 bytes)
Settings: Low Frequency Mode: 1300 MHz
   BACKGROUND, KGROUND, REALTIME_SHORT, KERNEL, THRU_TIER2, THRU_TIER3, THRU_TIER4, THRU_TIER5
   ubpc (1), off (0), on (0), hwp (1), epp (128), perf-bias (5), utility-tlvl (62), non-focal-tlvl (250)
   ratioratelimit (3000000), epp_override (120), ring_mbd_ns (10000), ring_ratio (29)

well it is not obvious to me that there is HWP support in the iMac17,1 profile  (vs 13,1 that certainly does):

Sure. I just mean - does the SMBIOS just impact the CPU or does it also change things with the motherboard etc? It feels weird to change to a laptop profile for my desktop.

Hi, i think my HWP configuration is not working well.

I have a Core i7-6700k (Skylake) processor. I have drop all the CPU ssdt tables. Only add SSDT-pr.aml (plugin) and remove the ssdt tables previously generated by ssdtPRGen.sh.

I have a HWPValue of 0x20002A01, check HWPEnable and UseARTFrequency in Clover config.plist

I set mac model to iMac17,1 and a board-id of Mac-65CE76090165799A.

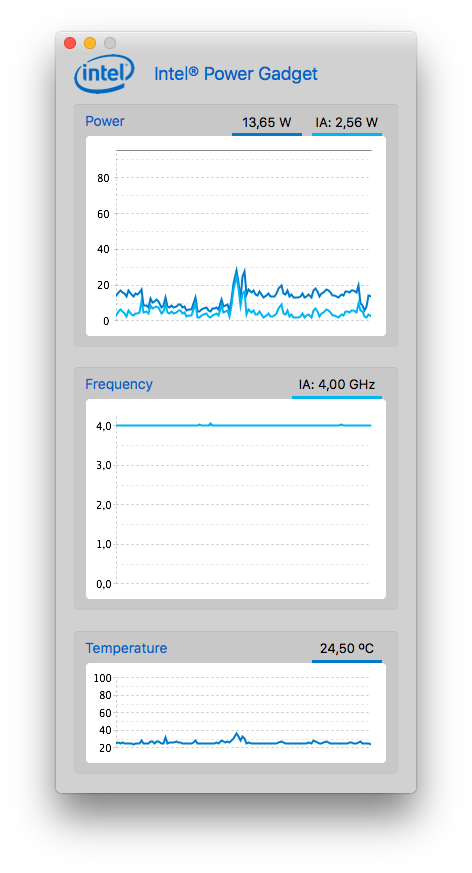

The power in Intel Power Gadget change but the Frequency stay at the top: 4,00Ghz



This is my AppleIntelInfo.kext informations:

AppleIntelInfo.kext v2.4 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x3718d9ef9998 (1514 MHz)
MWAIT C-States...........................: 1319200

Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz

Processor Signature..................... : 0x506E3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x5E (94)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF803D08B000
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 8

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8000
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x6A5A36D405
IA32_APERF.......................(0xE8)  : 0x6AD18B9DC5

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x293500002800
------------------------------------------
 - Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2A00
------------------------------------------
 - Target performance State Value....... : 0x2A00 (4200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88460000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 70
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x641400
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x1CC1
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2828282A
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2A (4200 MHz)
 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2C005F
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFD0001AEA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xDD68760
------------------------------------------
 - Total Energy Consumed................ : 14170 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x28
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x0
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x80000000
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKGC7_IRTL...................(0x60c) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)

MSR_PPERF........................(0x64E) : 0x63A385477B
------------------------------------------
 - Hardware workload scalability........ : 427945183099

MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x30001000
------------------------------------------
 - PROCHOT Status....................... : 0
 - Thermal Status....................... : 0
 - Residency State Regulation Status.... : 0
 - Running Average Thermal Limit Status. : 0
 - VR Therm Alert Status................ : 0
 - VR Therm Design Current Status....... : 0
 - Other Status......................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Status............... : 1 (frequency reduced below OS request due to multi-core turbo limits)
 - Turbo Transition Attenuation Status.. : 0
 - PROCHOT Log.......................... : 0
 - Thermal Log.......................... : 0
 - Residency State Regulation Log....... : 0
 - Running Average Thermal Limit Log.... : 0
 - VR Therm Alert Log................... : 0
 - VR Thermal Design Current Log........ : 0
 - Other Status Log..................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Log.................. : 1 (status bit has asserted)
 - Turbo Transition Attenuation Log..... : 1 (status bit has asserted)
HDC Supported

IA32_PKG_HDC_CTL.................(0xDB0) : 0x0

IA32_PM_CTL1.....................(0xDB1) : 0x1
------------------------------------------
HDC Allow Block..................(0xDB1) : 1 (HDC blocked)

IA32_THREAD_STALL................(0xDB2) : 0x0

MSR_PKG_HDC_CONFIG...............(0x652) : 0x2
------------------------------------------
Pkg Cx Monitor ..................(0x652) : 2 (count package C3 and deeper)
MSR_CORE_HDC_RESIDENCY...........(0x653) : 0x0

MSR_PKG_HDC_SHALLOW_RESIDENCY....(0x655) : 0x0

MSR_PKG_HDC_DEEP_RESIDENCY.......(0x656) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x3718EBD55749
MSR_PPERF........................(0x63E) : 0x1 (37)

IA32_PM_ENABLE...................(0x770) : 0x1 (HWP Supported and Enabled)

IA32_HWP_CAPABILITIES............(0x771) : 0x110282A
-----------------------------------------
 - Highest Performance.................. : 42
 - Guaranteed Performance............... : 40
 - Most Efficient Performance........... : 16
 - Lowest Performance................... : 1

IA32_HWP_INTERRUPT...............(0x773) : 0x0
------------------------------------------
 - Guaranteed Performance Change........ : 0 (Interrupt generation disabled)
 - Excursion Minimum.................... : 0 (Interrupt generation disabled)

IA32_HWP_REQUEST................(0x774) : 0x20002A01
-----------------------------------------
 - Minimum Performance................. : 1
 - Maximum Performance................. : 42
 - Desired Performance................. : 0
 - Energy Efficient Performance........ : 32
 - Activity Window..................... : 0, 0
 - Package Control..................... : 0

IA32_HWP_STATUS..................(0x777) : 0x0
-----------------------------------------
 - Guaranteed Performance Change....... : 0 (has not occured)
 - Excursion To Minimum................ : 0 (has not occured)

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)
Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 ]
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 6 7 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]
<~~~ yves sur mac-de-yves.private -( 16:39:05 )- #1587: /Volumes/developpement/ssdtPRGen.sh ~~~>
/Volumes/developpement/ssdtPRGen.sh (Beta u=) $ sudo cat /tmp/AppleIntelInfo.dat
AppleIntelInfo.kext v2.4 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x3718d9ef9998 (1514 MHz)
MWAIT C-States...........................: 1319200

Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz

Processor Signature..................... : 0x506E3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x5E (94)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF803D08B000
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 8

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8000
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x6A5A36D405
IA32_APERF.......................(0xE8)  : 0x6AD18B9DC5

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x293500002800
------------------------------------------
 - Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2A00
------------------------------------------
 - Target performance State Value....... : 0x2A00 (4200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88460000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 70
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x641400
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x1CC1
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2828282A
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2A (4200 MHz)
 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2C005F
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFD0001AEA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xDD68760
------------------------------------------
 - Total Energy Consumed................ : 14170 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x28
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x0
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x80000000
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKGC7_IRTL...................(0x60c) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)

MSR_PPERF........................(0x64E) : 0x63A385477B
------------------------------------------
 - Hardware workload scalability........ : 427945183099

MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x30001000
------------------------------------------
 - PROCHOT Status....................... : 0
 - Thermal Status....................... : 0
 - Residency State Regulation Status.... : 0
 - Running Average Thermal Limit Status. : 0
 - VR Therm Alert Status................ : 0
 - VR Therm Design Current Status....... : 0
 - Other Status......................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Status............... : 1 (frequency reduced below OS request due to multi-core turbo limits)
 - Turbo Transition Attenuation Status.. : 0
 - PROCHOT Log.......................... : 0
 - Thermal Log.......................... : 0
 - Residency State Regulation Log....... : 0
 - Running Average Thermal Limit Log.... : 0
 - VR Therm Alert Log................... : 0
 - VR Thermal Design Current Log........ : 0
 - Other Status Log..................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Log.................. : 1 (status bit has asserted)
 - Turbo Transition Attenuation Log..... : 1 (status bit has asserted)
HDC Supported

IA32_PKG_HDC_CTL.................(0xDB0) : 0x0

IA32_PM_CTL1.....................(0xDB1) : 0x1
------------------------------------------
HDC Allow Block..................(0xDB1) : 1 (HDC blocked)

IA32_THREAD_STALL................(0xDB2) : 0x0

MSR_PKG_HDC_CONFIG...............(0x652) : 0x2
------------------------------------------
Pkg Cx Monitor ..................(0x652) : 2 (count package C3 and deeper)
MSR_CORE_HDC_RESIDENCY...........(0x653) : 0x0

MSR_PKG_HDC_SHALLOW_RESIDENCY....(0x655) : 0x0

MSR_PKG_HDC_DEEP_RESIDENCY.......(0x656) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x3718EBD55749
MSR_PPERF........................(0x63E) : 0x1 (37)

IA32_PM_ENABLE...................(0x770) : 0x1 (HWP Supported and Enabled)

IA32_HWP_CAPABILITIES............(0x771) : 0x110282A
-----------------------------------------
 - Highest Performance.................. : 42
 - Guaranteed Performance............... : 40
 - Most Efficient Performance........... : 16
 - Lowest Performance................... : 1

IA32_HWP_INTERRUPT...............(0x773) : 0x0
------------------------------------------
 - Guaranteed Performance Change........ : 0 (Interrupt generation disabled)
 - Excursion Minimum.................... : 0 (Interrupt generation disabled)

IA32_HWP_REQUEST................(0x774) : 0x20002A01
-----------------------------------------
 - Minimum Performance................. : 1
 - Maximum Performance................. : 42
 - Desired Performance................. : 0
 - Energy Efficient Performance........ : 32
 - Activity Window..................... : 0, 0
 - Package Control..................... : 0

IA32_HWP_STATUS..................(0x777) : 0x0
-----------------------------------------
 - Guaranteed Performance Change....... : 0 (has not occured)
 - Excursion To Minimum................ : 0 (has not occured)

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)
Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 ]
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 6 7 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]

What can i check/test to have a full working HWP ?



EDIT: as i reread the thread, i can't use Mac17,1 if i want to enable HWP ? If yes what is the "best" model for my Gigabyte GA-Z170-HD3 with a Core i7 6700k ?


@JrCs



for iMac17,1 perhaps its a matter of blending the MBP13,3 (for skylake)  or MPB14,x (kabylake) profiles to create an appropriate resource file for your system(s).

i would test with a "laptop" model, then configure the resource profile to see how it behaves.





# 15-inch with Touch Bar / Touch ID
# Intel Core i7-6700HQ 2.6 GHz (max Turbo Boost 3.5 GHz)
# Intel Core i7-6820HQ 2.7 GHz (max Turbo Boost 3.6 GHz)
# Intel Core i7-6920HQ 2.9 GHz (max Turbo Boost 3.8 GHz)
Mac-A5C67F76ED83108C:MacBookPro13,3

Hi, i think my HWP configuration is not working well.

I have a Core i7-6700k (Skylake) processor. I have drop all the CPU ssdt tables. Only add SSDT-pr.aml (plugin) and remove the ssdt tables previously generated by ssdtPRGen.sh.

I have a HWPValue of 0x20002A01, check HWPEnable and UseARTFrequency in Clover config.plist

I set mac model to iMac17,1 and a board-id of Mac-65CE76090165799A.



The power in Intel Power Gadget change but the Frequency stay at the top: 4,00Ghz



This is my AppleIntelInfo.kext informations:

AppleIntelInfo.kext v2.4 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x3718d9ef9998 (1514 MHz)
MWAIT C-States...........................: 1319200

Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz

Processor Signature..................... : 0x506E3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x5E (94)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF803D08B000
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 8

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8000
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x6A5A36D405
IA32_APERF.......................(0xE8)  : 0x6AD18B9DC5

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x293500002800
------------------------------------------
 - Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2A00
------------------------------------------
 - Target performance State Value....... : 0x2A00 (4200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88460000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 70
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x641400
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x1CC1
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2828282A
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2A (4200 MHz)
 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2C005F
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFD0001AEA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xDD68760
------------------------------------------
 - Total Energy Consumed................ : 14170 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x28
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x0
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x80000000
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKGC7_IRTL...................(0x60c) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)

MSR_PPERF........................(0x64E) : 0x63A385477B
------------------------------------------
 - Hardware workload scalability........ : 427945183099

MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x30001000
------------------------------------------
 - PROCHOT Status....................... : 0
 - Thermal Status....................... : 0
 - Residency State Regulation Status.... : 0
 - Running Average Thermal Limit Status. : 0
 - VR Therm Alert Status................ : 0
 - VR Therm Design Current Status....... : 0
 - Other Status......................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Status............... : 1 (frequency reduced below OS request due to multi-core turbo limits)
 - Turbo Transition Attenuation Status.. : 0
 - PROCHOT Log.......................... : 0
 - Thermal Log.......................... : 0
 - Residency State Regulation Log....... : 0
 - Running Average Thermal Limit Log.... : 0
 - VR Therm Alert Log................... : 0
 - VR Thermal Design Current Log........ : 0
 - Other Status Log..................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Log.................. : 1 (status bit has asserted)
 - Turbo Transition Attenuation Log..... : 1 (status bit has asserted)
HDC Supported

IA32_PKG_HDC_CTL.................(0xDB0) : 0x0

IA32_PM_CTL1.....................(0xDB1) : 0x1
------------------------------------------
HDC Allow Block..................(0xDB1) : 1 (HDC blocked)

IA32_THREAD_STALL................(0xDB2) : 0x0

MSR_PKG_HDC_CONFIG...............(0x652) : 0x2
------------------------------------------
Pkg Cx Monitor ..................(0x652) : 2 (count package C3 and deeper)
MSR_CORE_HDC_RESIDENCY...........(0x653) : 0x0

MSR_PKG_HDC_SHALLOW_RESIDENCY....(0x655) : 0x0

MSR_PKG_HDC_DEEP_RESIDENCY.......(0x656) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x3718EBD55749
MSR_PPERF........................(0x63E) : 0x1 (37)

IA32_PM_ENABLE...................(0x770) : 0x1 (HWP Supported and Enabled)

IA32_HWP_CAPABILITIES............(0x771) : 0x110282A
-----------------------------------------
 - Highest Performance.................. : 42
 - Guaranteed Performance............... : 40
 - Most Efficient Performance........... : 16
 - Lowest Performance................... : 1

IA32_HWP_INTERRUPT...............(0x773) : 0x0
------------------------------------------
 - Guaranteed Performance Change........ : 0 (Interrupt generation disabled)
 - Excursion Minimum.................... : 0 (Interrupt generation disabled)

IA32_HWP_REQUEST................(0x774) : 0x20002A01
-----------------------------------------
 - Minimum Performance................. : 1
 - Maximum Performance................. : 42
 - Desired Performance................. : 0
 - Energy Efficient Performance........ : 32
 - Activity Window..................... : 0, 0
 - Package Control..................... : 0

IA32_HWP_STATUS..................(0x777) : 0x0
-----------------------------------------
 - Guaranteed Performance Change....... : 0 (has not occured)
 - Excursion To Minimum................ : 0 (has not occured)

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)
Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 ]
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 6 7 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]
<~~~ yves sur mac-de-yves.private -( 16:39:05 )- #1587: /Volumes/developpement/ssdtPRGen.sh ~~~>
/Volumes/developpement/ssdtPRGen.sh (Beta u=) $ sudo cat /tmp/AppleIntelInfo.dat
AppleIntelInfo.kext v2.4 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1

Warning: Clover hw.busfrequency error detected : 17d78400
InitialTSC...............................: 0x3718d9ef9998 (1514 MHz)
MWAIT C-States...........................: 1319200

Processor Brandstring....................: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz

Processor Signature..................... : 0x506E3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x5E (94)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF803D08B000
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 8

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F1012800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x28 (4000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8000
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 0 (not enabled)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x0
 - C-state Range........................ : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7)  : 0x6A5A36D405
IA32_APERF.......................(0xE8)  : 0x6AD18B9DC5

MSR_FLEX_RATIO...................(0x194) : 0xE0000

MSR_IA32_PERF_STATUS.............(0x198) : 0x293500002800
------------------------------------------
 - Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2A00
------------------------------------------
 - Target performance State Value....... : 0x2A00 (4200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88460000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 70
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x641400
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x1CC1
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2828282A
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2A (4200 MHz)
 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2C005F
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x42FFD0001AEA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xDD68760
------------------------------------------
 - Total Energy Consumed................ : 14170 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x28
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x0
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x80000000
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKGC7_IRTL...................(0x60c) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

MSR_PLATFORM_ENERGY_COUNTER......(0x64D) : 0x0 (not supported by hardware/BIOS)

MSR_PPERF........................(0x64E) : 0x63A385477B
------------------------------------------
 - Hardware workload scalability........ : 427945183099

MSR_CORE_PERF_LIMIT_REASONS......(0x64F) : 0x30001000
------------------------------------------
 - PROCHOT Status....................... : 0
 - Thermal Status....................... : 0
 - Residency State Regulation Status.... : 0
 - Running Average Thermal Limit Status. : 0
 - VR Therm Alert Status................ : 0
 - VR Therm Design Current Status....... : 0
 - Other Status......................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Status............... : 1 (frequency reduced below OS request due to multi-core turbo limits)
 - Turbo Transition Attenuation Status.. : 0
 - PROCHOT Log.......................... : 0
 - Thermal Log.......................... : 0
 - Residency State Regulation Log....... : 0
 - Running Average Thermal Limit Log.... : 0
 - VR Therm Alert Log................... : 0
 - VR Thermal Design Current Log........ : 0
 - Other Status Log..................... : 0
 - Package/Platform-Level #1 Power Limit : 0
 - Package/Platform-Level #2 Power Limit : 0
 - Max Turbo Limit Log.................. : 1 (status bit has asserted)
 - Turbo Transition Attenuation Log..... : 1 (status bit has asserted)
HDC Supported

IA32_PKG_HDC_CTL.................(0xDB0) : 0x0

IA32_PM_CTL1.....................(0xDB1) : 0x1
------------------------------------------
HDC Allow Block..................(0xDB1) : 1 (HDC blocked)

IA32_THREAD_STALL................(0xDB2) : 0x0

MSR_PKG_HDC_CONFIG...............(0x652) : 0x2
------------------------------------------
Pkg Cx Monitor ..................(0x652) : 2 (count package C3 and deeper)
MSR_CORE_HDC_RESIDENCY...........(0x653) : 0x0

MSR_PKG_HDC_SHALLOW_RESIDENCY....(0x655) : 0x0

MSR_PKG_HDC_DEEP_RESIDENCY.......(0x656) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x3718EBD55749
MSR_PPERF........................(0x63E) : 0x1 (37)

IA32_PM_ENABLE...................(0x770) : 0x1 (HWP Supported and Enabled)

IA32_HWP_CAPABILITIES............(0x771) : 0x110282A
-----------------------------------------
 - Highest Performance.................. : 42
 - Guaranteed Performance............... : 40
 - Most Efficient Performance........... : 16
 - Lowest Performance................... : 1

IA32_HWP_INTERRUPT...............(0x773) : 0x0
------------------------------------------
 - Guaranteed Performance Change........ : 0 (Interrupt generation disabled)
 - Excursion Minimum.................... : 0 (Interrupt generation disabled)

IA32_HWP_REQUEST................(0x774) : 0x20002A01
-----------------------------------------
 - Minimum Performance................. : 1
 - Maximum Performance................. : 42
 - Desired Performance................. : 0
 - Energy Efficient Performance........ : 32
 - Activity Window..................... : 0, 0
 - Package Control..................... : 0

IA32_HWP_STATUS..................(0x777) : 0x0
-----------------------------------------
 - Guaranteed Performance Change....... : 0 (has not occured)
 - Excursion To Minimum................ : 0 (has not occured)

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 40 (4000 MHz)
Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 ]
CPU P-States [ 40 (42) ]
CPU C6-Cores [ 0 1 3 4 5 6 7 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 ]

What can i check/test to have a full working HWP ?



EDIT: as i reread the thread, i can't use Mac17,1 if i want to enable HWP ? If yes what is the "best" model for my Gigabyte GA-Z170-HD3 with a Core i7 6700k ?

@JrCs



Please try this one I made for your 6700K on iMac17,1

X86PlatformPluginInjector.kext.zip



This will give you HWP support on iMac17,1.



syscl



  • Like 1

Hi @JrCs



You may please try this one? I think the FrequencyVectors on different iMac17,1 board-ids may be the same. So just simply rename the file name to yours.



EDIT: Yes! I tried diff, no changes between Mac-DB15BD556843C820 and Mac-65CE76090165799A, and just rename the attachment!

Last login: Thu Mar  9 20:40:08 on ttys000
Welcome Vanilla!
Vanillas-MacBook:~ vanilla$ cp -a /System/Library/Extensions/IOPlatformPluginFamily.kext/Contents/PlugIns/X86PlatformPlugin.kext/Contents/Resources Desktop/
Vanillas-MacBook:~ vanilla$ cd Desktop/Resources
Vanillas-MacBook:Resources vanilla$ diff -uw Mac-DB15BD556843C820.plist Mac-65CE76090165799A.plist
Vanillas-MacBook:Resources vanilla$

@Slice had confirmed that it worked.  :)

  • Like 1



hanks @syscl for the kext.



The problem is that kernel panic at boot with your kext install in /S/L/E



Hi @JrCs, do you use _xcpm_idle patch for kernel as well?

<key>KernelToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>MSR 0xE2 _xcpm_idle instant reboot(c) Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ILniAAAADzA=
				</data>
				<key>MatchOS</key>
				<string>10.12</string>
				<key>Replace</key>
				<data>
				ILniAAAAkJA=
				</data>
			</dict>
		</array>

We need this patch to stop kernel panic.



syscl

  • Like 1

Thanks @PMHeart and @syscl, it's working now.

For my information where do you get the VectorFrequency for the plist and what do you change in it for the 6700k ?

Also in Slice test:




i see a green graph: GT. What is that graph ?

  • Like 1
×
×
  • Create New...
