Hi, @kylon,@cecekpawon

In https://sourceforge.net/p/cloverefiboot/code/HEAD/tree/CloverPackage/utils/clover-genconfig/clover-genconfig.c  there are both values.



CFMutableDictionaryRef fixDict = addDict(dsdtDict, CFSTR("Fixes"));
addBoolean(fixDict, CFSTR("AddDTGP_0001"), !!(s->FixDsdt & FIX_DTGP));
addBoolean(fixDict, CFSTR("FixDarwin_0002"), !!(s->FixDsdt & FIX_WARNING));
addBoolean(fixDict, CFSTR("FixShutdown_0004"), !!(s->FixDsdt & FIX_SHUTDOWN));
addBoolean(fixDict, CFSTR("AddMCHC_0008"), !!(s->FixDsdt & FIX_MCHC));
addBoolean(fixDict, CFSTR("FixHPET_0010"), !!(s->FixDsdt & FIX_HPET));
addBoolean(fixDict, CFSTR("FakeLPC_0020"), !!(s->FixDsdt & FIX_LPC));
addBoolean(fixDict, CFSTR("FixIPIC_0040"), !!(s->FixDsdt & FIX_IPIC));
addBoolean(fixDict, CFSTR("FixSBUS_0080"), !!(s->FixDsdt & FIX_SBUS));
addBoolean(fixDict, CFSTR("FixDisplay_0100"), !!(s->FixDsdt & FIX_DISPLAY));
addBoolean(fixDict, CFSTR("FixIDE_0200"), !!(s->FixDsdt & FIX_IDE));
addBoolean(fixDict, CFSTR("FixSATA_0400"), !!(s->FixDsdt & FIX_SATA));
addBoolean(fixDict, CFSTR("FixFirewire_0800"), !!(s->FixDsdt & FIX_FIREWIRE));
addBoolean(fixDict, CFSTR("FixUSB_1000"), !!(s->FixDsdt & FIX_USB));
addBoolean(fixDict, CFSTR("FixLAN_2000"), !!(s->FixDsdt & FIX_LAN));
addBoolean(fixDict, CFSTR("FixAirport_4000"), !!(s->FixDsdt & FIX_WIFI));
addBoolean(fixDict, CFSTR("FixHDA_8000"), !!(s->FixDsdt & FIX_HDA));
// addBoolean(fixDict, CFSTR("FIX_DARWIN_10000"), !!(s->FixDsdt & FIX_DARWIN)); //deprecated
addBoolean(fixDict, CFSTR("FIX_RTC_20000"), !!(s->FixDsdt & FIX_RTC));
addBoolean(fixDict, CFSTR("FIX_TMR_40000"), !!(s->FixDsdt & FIX_TMR));
addBoolean(fixDict, CFSTR("AddIMEI_80000"), !!(s->FixDsdt & FIX_IMEI));
addBoolean(fixDict, CFSTR("FIX_INTELGFX_100000"), !!(s->FixDsdt & FIX_INTELGFX));
addBoolean(fixDict, CFSTR("FIX_WAK_200000"), !!(s->FixDsdt & FIX_WAK));
addBoolean(fixDict, CFSTR("DeleteUnused_400000"), !!(s->FixDsdt & FIX_UNUSED));
addBoolean(fixDict, CFSTR("FIX_ADP1_800000"), !!(s->FixDsdt & FIX_ADP1));
addBoolean(fixDict, CFSTR("AddPNLF_1000000"), !!(s->FixDsdt & FIX_PNLF));
addBoolean(fixDict, CFSTR("FIX_S3D_2000000"), !!(s->FixDsdt & FIX_S3D));
addBoolean(fixDict, CFSTR("FIX_ACST_4000000"), !!(s->FixDsdt & FIX_ACST));
addBoolean(fixDict, CFSTR("AddHDMI_8000000"), !!(s->FixDsdt & FIX_HDMI));
addBoolean(fixDict, CFSTR("FixRegions_10000000"),!!(s->FixDsdt & FIX_REGIONS));
// addBoolean(fixDict, CFSTR("NewWay_80000000"), !!(s->FixDsdt & FIX_NEW_WAY));

@cecekpawon Tell me how the developer clover, key FIX_DARWIN_10000 is used?
  • Like 1
  • Sad 1
  • 7 months later...

Hi, @kylon

Correct stylistics, please.

https://sourceforge.net/p/cloverefiboot/code/HEAD/tree/rEFIt_UEFI/Platform/Settings.c#l154

Spoiler

<key>DSDT</key>
        <dict>
            <key>Fixes</key>
                <key>DeleteUnused</key>
                <true/>
                <key>FIX_ACST</key>
                <true/>
                <key>FIX_ADP1</key>
                <true/>
                <key>FIX_DARWIN</key>
                <true/>
                <key>FIX_INTELGFX</key>
                <true/>
                <key>FIX_RTC</key>
                <true/>
                <key>FIX_S3D</key>
                <true/>
                <key>FIX_TMR</key>
                <true/>
                <key>FIX_WAK</key>
                <true/>
                <key>FakeLPC</key>
                <true/>
            </dict>



  • Like 1
22 minutes ago, kylon said:

Sourceforge is not working
Are these names changed?

Thanks

No, the names do not change, it is necessary to bring everything to the same style, or some new ones are old.

Spoiler



static struct FIX_CONFIG { const CHAR8* oldName; const CHAR8* newName; UINT32 bitData; } FixesConfig[] =
{
{ "AddDTGP_0001", "AddDTGP", FIX_DTGP },
{ "FixDarwin_0002", "FixDarwin", FIX_WARNING },
{ "FixShutdown_0004", "FixShutdown", FIX_SHUTDOWN },
{ "AddMCHC_0008", "AddMCHC", FIX_MCHC },
{ "FixHPET_0010", "FixHPET", FIX_HPET },
{ "FakeLPC_0020", "FakeLPC", FIX_LPC },
{ "FixIPIC_0040", "FixIPIC", FIX_IPIC },
{ "FixSBUS_0080", "FixSBUS", FIX_SBUS },
{ "FixDisplay_0100", "FixDisplay", FIX_DISPLAY },
{ "FixIDE_0200", "FixIDE", FIX_IDE },
{ "FixSATA_0400", "FixSATA", FIX_SATA },
{ "FixFirewire_0800", "FixFirewire", FIX_FIREWIRE },
{ "FixUSB_1000", "FixUSB", FIX_USB },
{ "FixLAN_2000", "FixLAN", FIX_LAN },
{ "FixAirport_4000", "FixAirport", FIX_WIFI },
{ "FixHDA_8000", "FixHDA", FIX_HDA },
{ "FixDarwin7_10000", "FixDarwin7", FIX_DARWIN },
{ "FIX_RTC_20000", "FixRTC", FIX_RTC },
{ "FIX_TMR_40000", "FixTMR", FIX_TMR },
{ "AddIMEI_80000", "AddIMEI", FIX_IMEI },
{ "FIX_INTELGFX_100000", "FixIntelGfx", FIX_INTELGFX },
{ "FIX_WAK_200000", "FixWAK", FIX_WAK },
{ "DeleteUnused_400000", "DeleteUnused", FIX_UNUSED },
{ "FIX_ADP1_800000", "FixADP1", FIX_ADP1 },
{ "AddPNLF_1000000", "AddPNLF", FIX_PNLF },
{ "FIX_S3D_2000000", "FixS3D", FIX_S3D },
{ "FIX_ACST_4000000", "FixACST", FIX_ACST },
{ "AddHDMI_8000000", "AddHDMI", FIX_HDMI },
{ "FixRegions_10000000", "FixRegions", FIX_REGIONS },
{ "FixHeaders_20000000", "FixHeaders", FIX_HEADERS },
{ NULL, "FixMutex", FIX_MUTEX }
};

p.s i have SF working

  • Thanks 1

ok, i missed them, but what s wrong with FakeLPC and DeleteUnused?

yeah, i was not at home, it seems that sf does not load on android (endless loading), they probably broke something or their scripts are too heavy

  • Thanks 1
34 minutes ago, kylon said:

ok, i missed them, but what s wrong with FakeLPC and DeleteUnused?

yeah, i was not at home, it seems that sf does not load on android (endless loading), they probably broke something or their scripts are too heavy

With the names of FakeLPC,  DeleteUnused, everything is fine, they are like an example :D

  • Thanks 1
  • 5 months later...

@ctich
Thank you

That was the last thing to refactor, it was broken since the last changes.

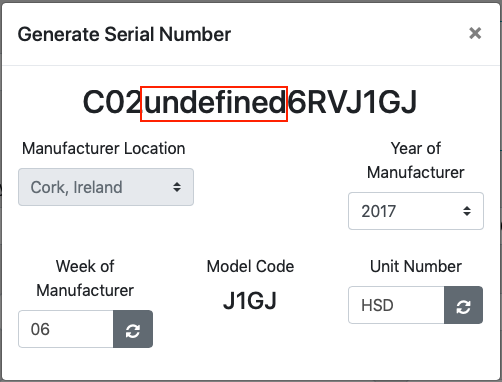

CCE is now using macserial to generate serial numbers
I m sure it is way better than my old and buggy code xD

  • Like 1
  • 1 month later...

Hi guys,



I noticed some changes in data when I upload and then download my config back with no changes applied in CCE.

Some of the fields types are converted and have strange values, like

<string></string>

Also some IDEs complain that some information is lost due to encoding errors when you open downloaded file for editing.

I have checked encoding of both files with Unix file utility and I can see discrepancies there.

D:\tools\Git\usr\bin>file D:\OneDrive\hackintosh\config.original.plist
D:\OneDrive\hackintosh\config.original.plist: XML 1.0 document, ASCII text

D:\tools\Git\usr\bin>file D:\OneDrive\hackintosh\test.cce.plist
D:\OneDrive\hackintosh\test.cce.plist: data

You can clearly see the difference if you diff attached files.

config.original.plist was uploaded and then downloaded back as test.cce.plist.



I am using Windows 10 Pro x64, Google Chrome 69.0.3497.100 (64-bit), Notepad2 or Atom editors.

I have got original config after building bootable USB using BootDisk Utility v2.1.2018.023b.

Is this something I should worry about?

config.original.plist

test.cce.plist

Edited by VasjaPupkin0909
Added platform and utility details.
  • Like 1
  • Thanks 1

About that, i found that some other values are not properly encoded.

I m working on a fix but i have 2 exams next month so i ll do this slowly.

Sorry :(

I ll reply here as soon as the update is online

  • Like 2
  • Sad 1
  • 3 weeks later...

Many changes in latest update.



Most important: CCE has tri-state checkboxes now (added to OP), so that it can distinguish from false and unset values. (This should have been a feature from the beginning, sorry)



and many fixes.

  • Like 1
  • Thanks 1
7 minutes ago, kylon said:

Many changes in latest update.



Most important: CCE has tri-state checkboxes now (added to OP), so that it can distinguish from false and unset values. (This should have been a feature from the beginning, sorry)



and many fixes.

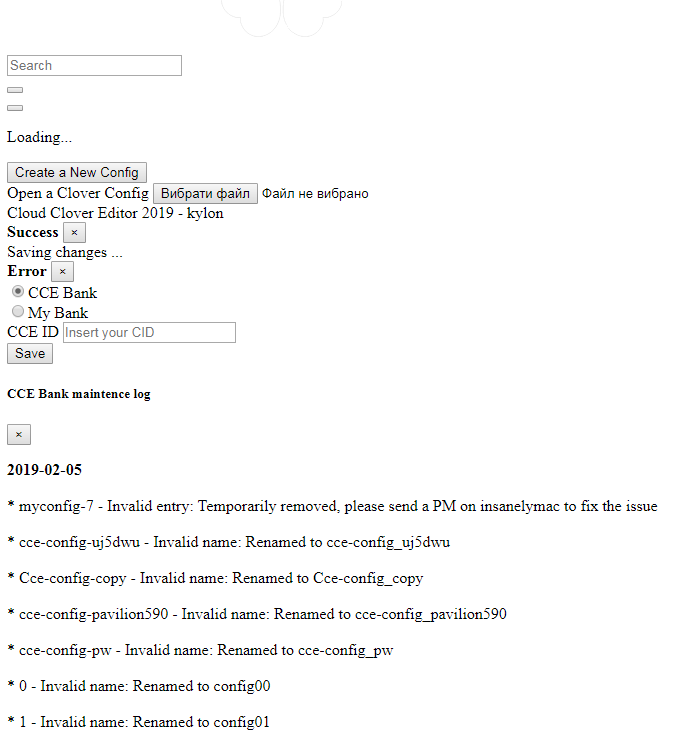

hi, a bug on the main page




update:

Uh!...CCE is down for Maintence.

realigning the galaxies...
Edited by ctich
  • Like 1
  • Haha 1

Update



Main changes:

  • New UI
  • Added a Text Editor Mode (for those who don't like the GUI but still want to take advantage of CCE)
  • Added some cecekpawon Ozmosis drivers support (AcpiPatcher, KernextPatcher, BeepBeep)
  • Added Chameleon support
  • Added Initial OpenCore support (Text Mode only and CCE Bank)
  • Added a Wiki (See OP)
  • Now using HTTPS
  • Many fixes and performance improvements



A browser with WebWorkers support is now required.



See sources for a full changelog.

See Wiki for more details about the UI.

  • Like 4
  • Thanks 1
  • Sad 1
  • 4 months later...

I found an issue with the wiki and it was not publicly available.

I didn't notice that, sorry, the wiki is now open and working.



Happy holidays!

  • Like 2
  • Sad 1
  • kylon changed the title to CCE - Web bootloaders manager [Clover, Ozmosis, Chameleon, OpenCore]

Major update, clear your cache



Added Misc and Kernel in OpenCore

OpenCore is now default

now using OpenCore SMBIOS data

new logo

multiple fixes and performance improvements

Edited by kylon
  • Like 3
  • Sad 1
  • 1 month later...

Updated



you may need to clear your browser cache



OpenCore support is now complete!

i forgot to mention that the config upgrader supports OpenCore

Added CCE Tools in CCE Menu

Wiki has been updated accordingly

code clean up and improvements



if you find any bug or regression, please open a new issue in CCE repo

  • Like 3
  • Sad 1
  • kylon changed the title to CCE - Web bootloaders manager [OpenCore, CloverEFI, Ozmosis, Chameleon]
  • 1 month later...

Second major update of the year.

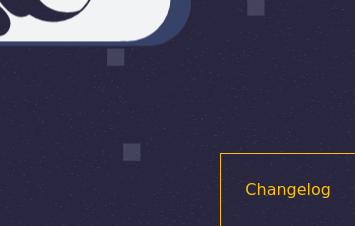

Changelogs are back on site








copy-paste of the changelog

  • All: Implement proper error handling - CCE should not hang anymore!
  • All: A lot more accurate value types handling
  • All: Fix CCE initialization
  • All: Update useful links in CCE info modal (Add OpenCore docs, remove dead CloverEFI wiki)
  • OpenCore: Always load a full sample plist instead of empty (OC doesn't support partial configs - do not use that to boot MacOS, it is just a sample)
  • OpenCore: Restrict tristate checkboxes to two states (true/false) on value set
  • OpenCore: Booter: Add missing Patch element
  • OpenCore: PlatformInfo: Hide advanced fields when Automatic is set (Thanks vit9696)
  • All: [Temp] Workaround wasm error on latest Chrome/Chromium and similar (macserial works again)
  • All: Remove any Apple Inc. vendor string from SMBIOS to prevent issues on Hackintosh (Thanks vit9696)
  • CloverEFI: Update to latest
  • Code clean up and optimization



CCE should be fully working again on latest Chrome/Chromium etc.., it recently broke due to new restrictions



as always, you may need to clear your cache

if you have any issue: issue tracker

  • Like 1
×
×
