Testing the waters on my new Z170 build based off the entry level board and the Intel 6th gen i7-6700K. I was intending to complete the build, have it up & running smoothly before beginning this post. But I've run into problems where no amount of reading into Pike R. Alpha's post nor Google is helping. So here I am.

Reading around I got to downloading the 10.11.4 from Apple cause the Skylake build it appears needed that. Made the bootable with Clover-on-it-USB.

Clover strangely would not install. Showed complete progress but at the end I had no EFI partition mounted on my desktop which meant it was not okay. Naturally I was doing a UEFI only install. Learnt of needing to run "nvram -c" command in the terminal without quotes and the command to format the EFI partition as FAT32 & repeated the process & it succeeded.

Now I had the Monitor (LP2065) connected via DVI to the onboard video. I got the display on BIOS and the first thing I did was to flash latest F7 BIOS. Rebooted and set the values I thought were okay.

Among the new ones was the APIC numbered setting that I disabled. But as I later found enabling did not change anything. I already had few edits in the config.plist. (a.) The patch for USB port limit (b.) Skylake graphics patch (c.) IOGraphicsFamly patch (for taking care of the second stage glitch).

In verbose mode the USB Stick booted right up. It was throwing a few unfamiliar messages but the installer booted okay. Without much fuss I had the Samsung 850EVO connected and so installed on it. Went through quite fast compared to my older install on Z97-4790K system.

Rebooted SSD and installed clover on it & it worked right away.

Time to look into the Power Management side of things.

the ssdtprgen Beta script downloads and works and also makes a SSDT.aml file. But the thing appears to do nothing. I placed it in ACPI patched and rebooted. Checked with the Intel Power Gadget idles at about 1.6 Ghz (1.51 Ghz to be lowest) at 25º C. Loading the CPU with the dummy yes command in terminal (single instance) takes CPU to 4.0 Ghz with temps at 40º and 6 more instances make the CPU reach 55º. Subsequently killing all yes instances bring CPU idle back to 1.57 Ghz.

So I tired to install plugins to FaleSMC (HWSensors) and used Istatmenus. It showed identical values. I believe HWmonitor would too since I have seen it behave similarly in the past.

Next option left to check was the AppleIntelInfo kext from Pike R. Alpha. Here is where I get lost The thing does not output anything in the terminal or the console. I swear in the early days of building the 4790K system I had the results in terminal. Now nothing. No error messages nothing.

So as things stand - power management is incomplete. System idles at 1.5 Ghz instead of 800 Mhz and turbo boosts to 4.0Ghz. at least what IntelPowerGadget V 3.0.3 tells me. The presence of SSDT does not change anything. But speed stepping is working regardless of its state in the BIOS, enabled or disabled..

So friends any ideas?



EDIT:1 - Just checked - sleep not working yet

Share this post


Link to post
Share on other sites
Advertisement

This Power Management thing definitely is Voodoo / Rocket Science.

Loading piker's kext AppleIntelInfo and then at

cat /var/log/system.log | grep "AICPUPMI:"

gives me

MyMac : TTY=ttys000 ; PWD=/Users/MyMac/Downloads ; USER=root ; COMMAND=/usr/bin/grep AICPUPMI: in the terminal.

Both my 4790K and 6700K systems exhibit same thing.

What am I doing wrong here? SIP settings both systems 0X67.

I swear it used to work okay last time I checked in Yosemite.

10.11.4 seems to have changed something.

Guys?

Share this post


Link to post
Share on other sites

Using Intel Power Gadget 3.0.3 from both my systems:

on the Haswell 4790K it exhibits correct graphs. Idling at 0.8 Ghz and when loading with a dummy yes command from terminal like so

yes > /dev/null &

a single instance takes CPU to 4.4 Ghz dropping down to 4.2 Ghz when several more instances of the yes command is repeated. This is the way it should be. Right guys?

Subsequently

killalll yes

immediately terminates all instances of yes and brings the CPU back down to 0.8 ghz instantly.

Man this has got some really naughty connotations. So many Yeses and hot temperatures and all. What the deuce man it's Monday morning. Sorry! Back to the problems at hand.

On the new Skylake 6700K system I put together it settles down to 1.6 Ghz and hits a ceiling of 4.0 Ghz.

Bios setings for the Turbo is at 42 with 1 core and 40 with others.

Thing is even if I disable Turbo Boost and EIST and all C states except C1 in BIOS it still is the same. I suspect since -xcpm engages requisite PM drivers those are not ready yet, or I am missing something.

BTW using iMac 17,1  SMBIOS in clover

Thank you.

Share this post


Link to post
Share on other sites

When you run a program like yes > /dev/null, it is normal that your CPU is running on its highest freq.



It is normal, because we always want that our programs run fast. Right?



Check your cpu's freq. with HWMonitor, when you do not run any program what creates heavy load.

Share this post


Link to post
Share on other sites

Friend, if you read my first post here, I know it's a long one, you'll see I tried both hwmonitor and istat which both get data from the plugins in fakesmc. The project goes by the name Hwsensors. This shows only 1.6 ghz or 4.0. Strangely on my Haswell it shows stepping through different ones from 0.8 to 4.36 ghz. So I use Intel power gadget which also shows graph from 1.6 to 4.0. I use the yes command to check the max and min. and throttling response.

This was one of the chief reasons I wanted AppleIntelInfo to work. But it is behaving stangely

Share this post


Link to post
Share on other sites

Reporting Comparative results of the Intel Power Gadget on same hardware between Windows 10 X64 and 10.11.4. -

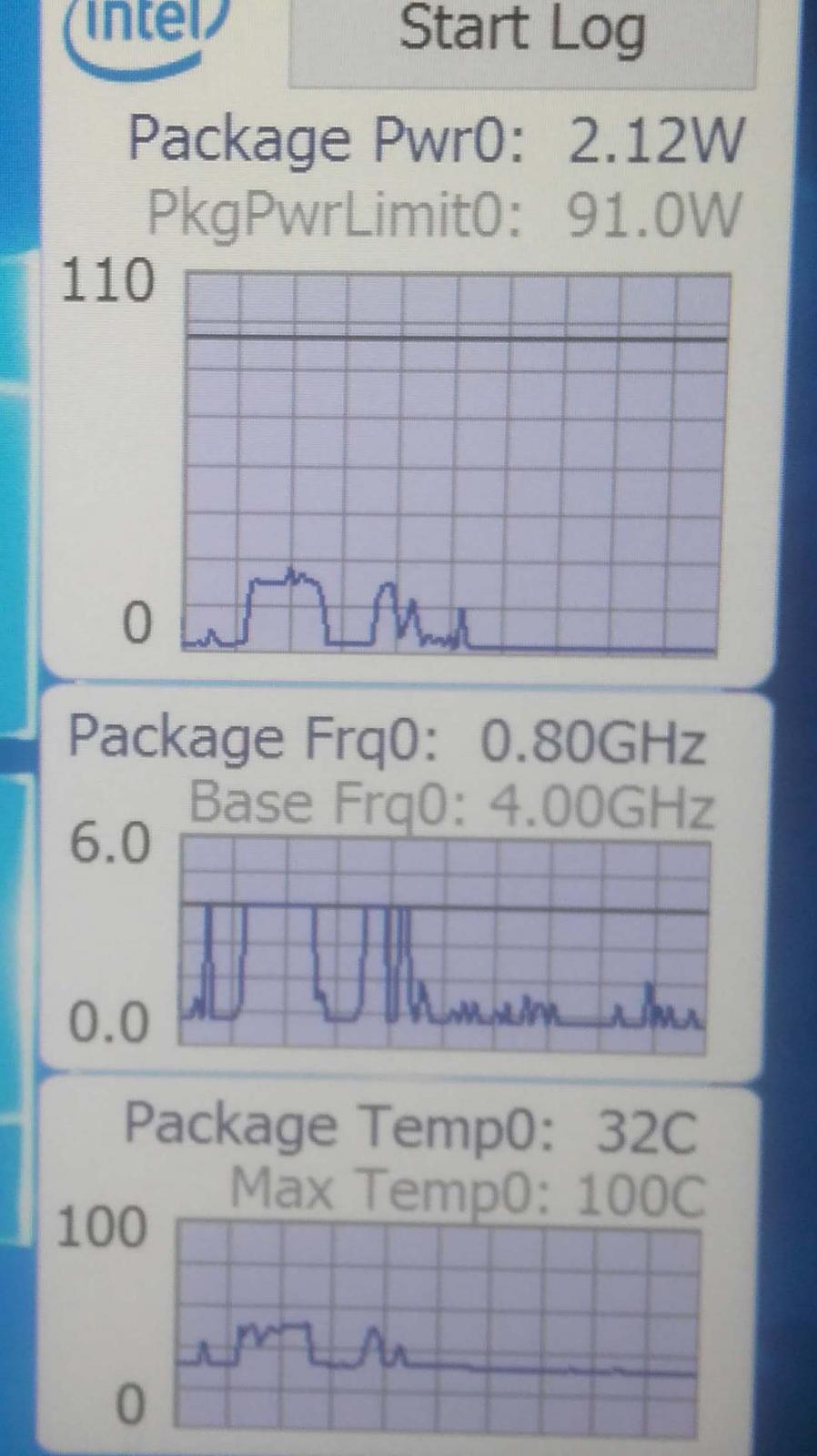

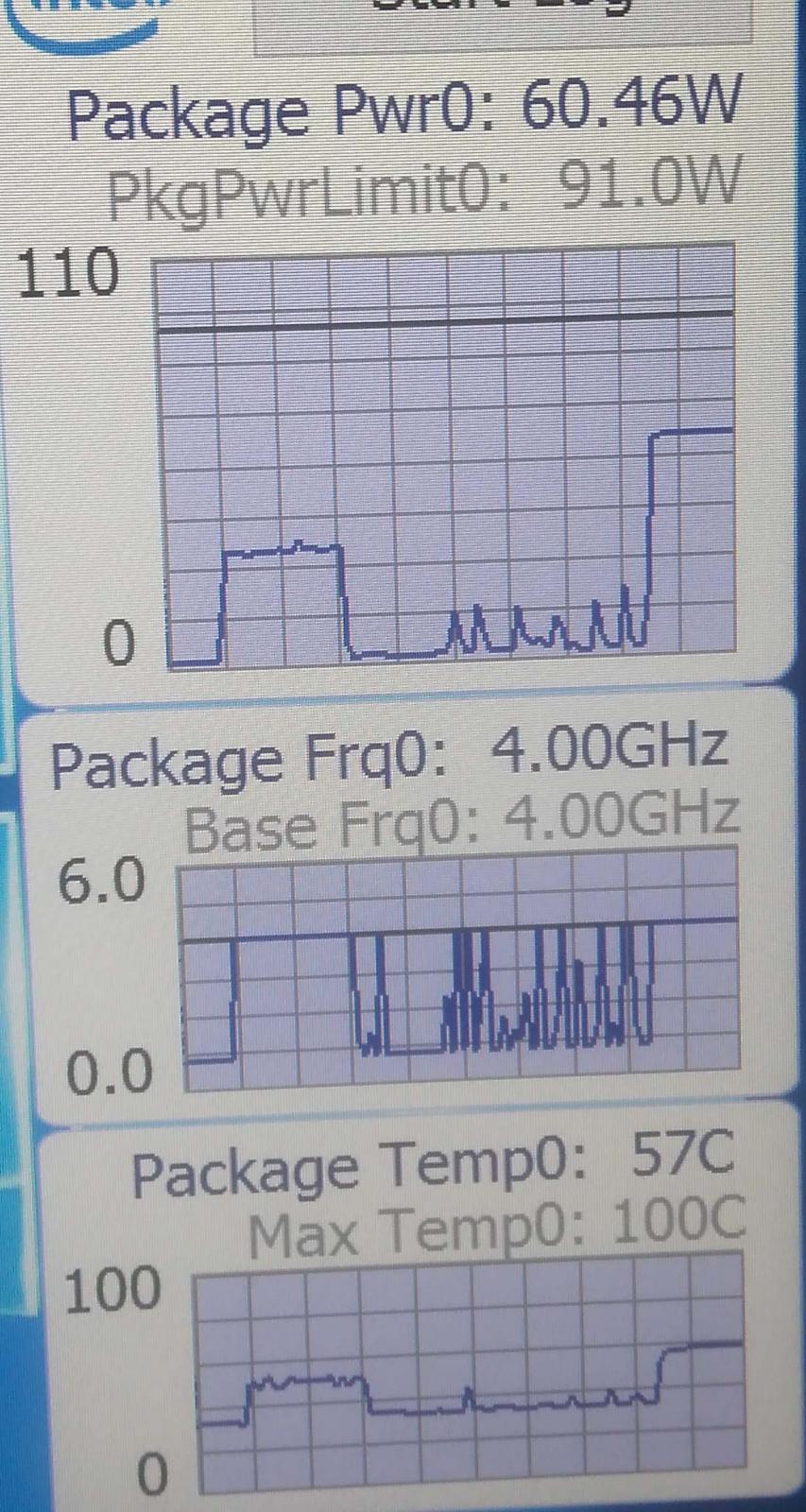

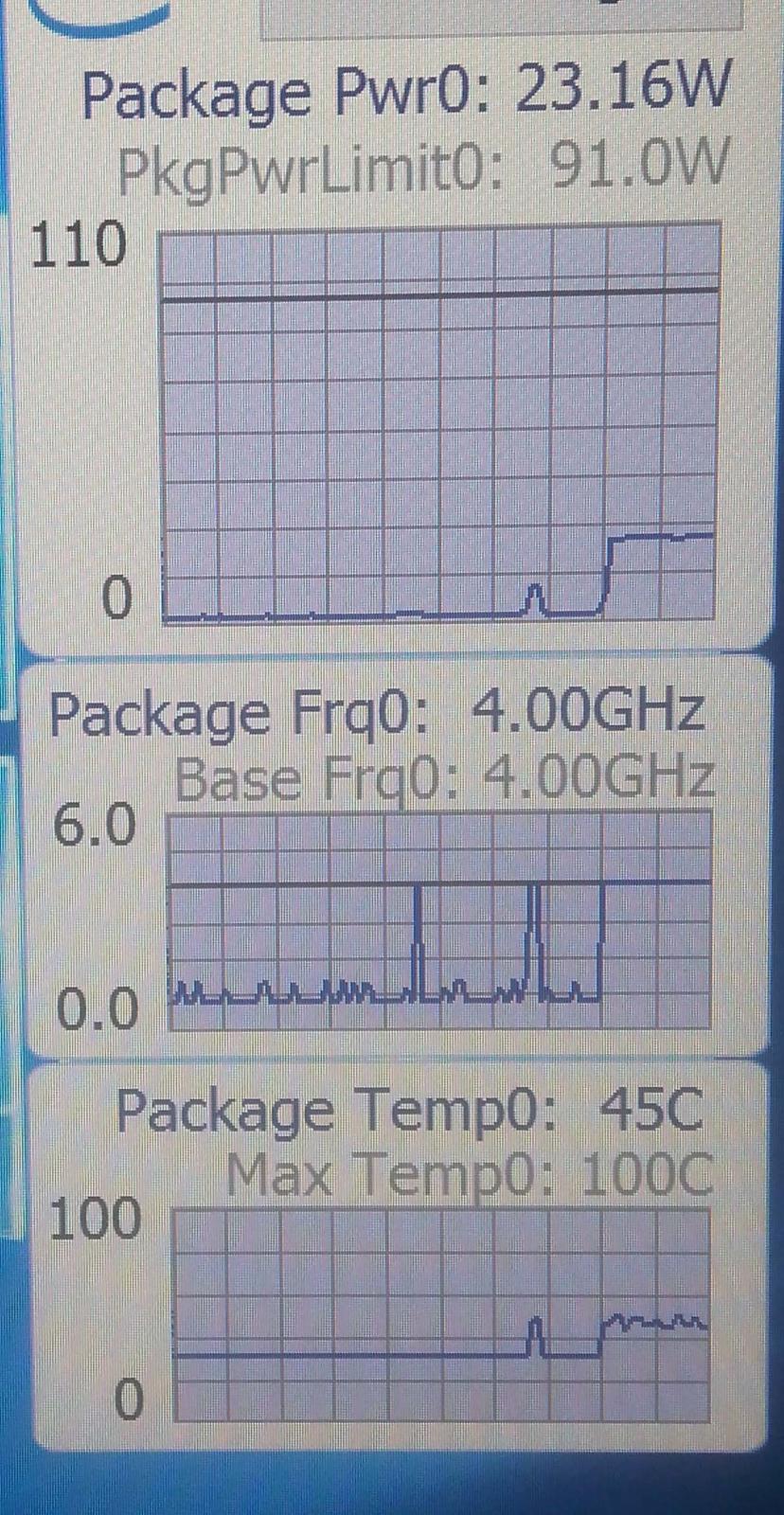

Windows 10 X64 Booted with all CPU Settings on auto (6700K on Z170M-D3H)

Windows 10 X64 and Used a freeware to load CPU cores selectively.

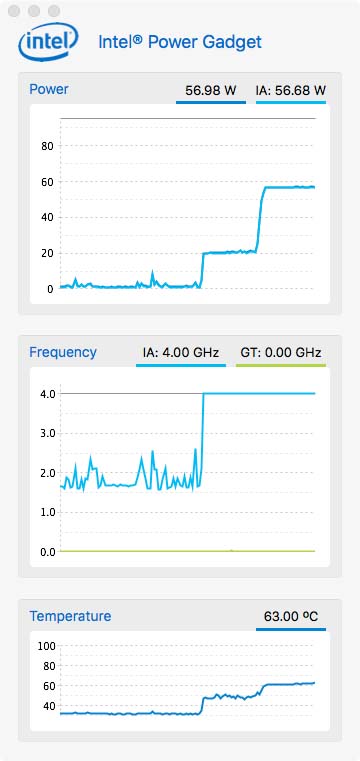

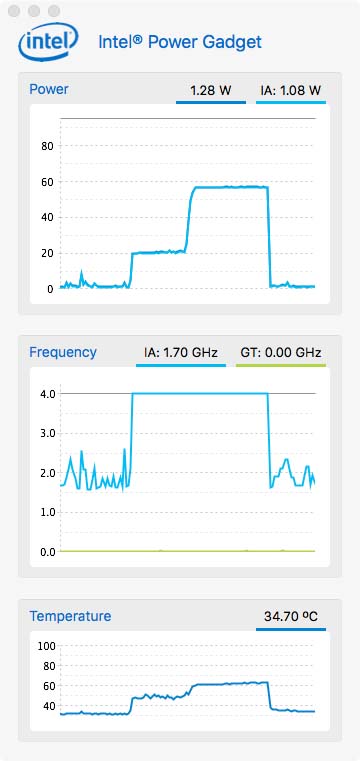

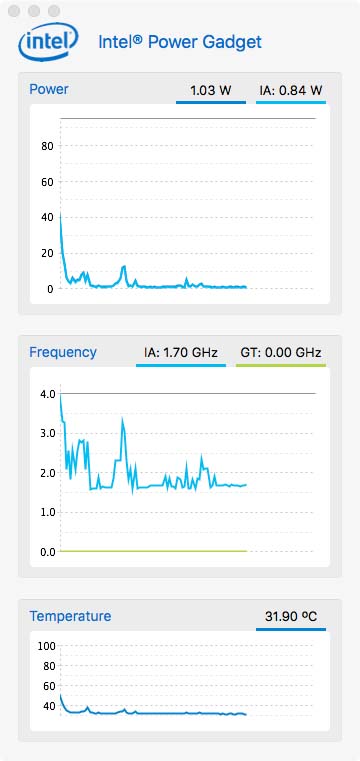

This is what Intel Power Gadget reports when idle / When loaded one core / When loaded all cores

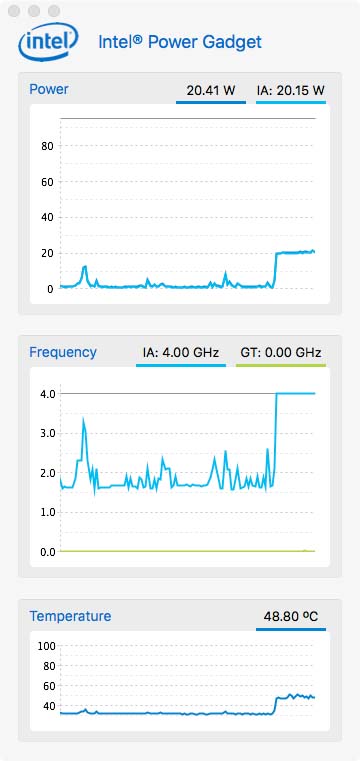

Followed by 10.11.4 different stages of loading.

Most baffling is why do both versions max out at 4.0 ghz whereas turbo is 4.2 ghz. Never even once for a fraction of a second does it show 4.2.

The only way I got it upto 4.2 is by manually changing turbo boost in BIOS all 4 values to 42, which I believe is incorrect?



Can anyone with a 6700K please verify.

Thanks








Share this post


Link to post
Share on other sites

This one I forgot to put in since I was busy.

Geekbench scores on the 4790K - Z97 is 17,100++ whereas the 6700K on Z170 is 16,700++

Am I flogging a dead horse here? Thinking of throwing in the towel. 200 plus views and no one's interested in touching the PM topic with even a 32 yard pole.

Probably have to shelve this build.

Share this post


Link to post
Share on other sites

Thanks Allan. Here are the files. I keep changing the plist as I keep trying things & I have a million questions for you. But first be so kind as to see these files. (ssdt.aml, ssdt.dsl and config.plist) with the ssdts being generated from ssdtprgen script from piker alpha. Thanks



Archive.zip

Share this post


Link to post
Share on other sites

No I do not use a DSDT and I do not use modified kexts. Only Clover on-the-fly kext patching. The only kext I use is in Clover>Kexts>10.11 and they are FakeSMC and IntelE1000.

Today I was trying to get audio to work using piker's alc command script for the ALC892 on board & at first it aborted stating HDEF not found. So I F4ed Clover & got the DSDT which I checked with Maciasl and true to the script's displeasure there was no HDEF but HDAS. This needed renaming and that is what you see in the plist. And now I can type while listening to Tchaikovsky or Bach.

Basically what I can see is that this motherboard needs nothing to work except for the usual kexts and LAN/Audio & its good to go.

What really surprised me is that xcpm is loaded & registered even if it is not selected on the clover plist boot flags. System runs stable, shuts down and restarts stable & repeatably.

Special note for owners of this board - IMPORTANT - Setting ERP Enable in the BIOS is what changes shutdown behaviour which is not OS related. Otherwise after powering down system, pressing spacebar switches back it on. With ERP enabled it stays off no matter what unspeakable things you do to the spacebar.

Unfortunately like all others on the forum with HD530 NO Sleep. Hoping someone will solve this before Apple does.

Most Baffling is why Intel Power Gadget does not go beyond 4.0 ghz both in windows and Mac.

Share this post


Link to post
Share on other sites

Thank you very much. From what I can see you've removed the Drop Tables part which had only one entry for CpuPm and you've enabled the APIC patch just below. You've also enable dart=0 and under devices in USB inject is now ticked as is Fix Ownership.

Have I missed anything?

So I used this plist & booted up. Everything's working the way it was, including Tchaikovsky. I do not perceive any difference. Intel Power Gadget is also between 1.52 Ghz and 4.0 Ghz

Anything else you would want me to report?

Thanks

Share this post


Link to post
Share on other sites

I cannot help  you much but I have banged my head around on this speedstep thing for a long time (ever since elcapitan started supporting Skylake). Just to save you the frustation that I dealt with, I am going to tell you that I have been unsucccessful so far. The low CPU idle is around 1.6 Ghz, like your build. It seems to be more motherboard related to me. Reading other forum posts it seems asus boards idle down to 800 Mhz, even if they have my same CPU But then some gigabyte boards idle down to 800 Mhz as as well. I asked pike about the high idle frequency but I could not get a fix. I have tried changing multiple options on the bios power management, changing frequency vectors to a haswell mac smbios, tweaking config.plist, multiple fresh installs of OSX, updating to new clover builds as they become available but to no avail.

Regarding sleep, It does work but I have to use NVIDIA card. Even on 10.11.4 with the Intel HD graphics, sleep does not work for me. But I have not been following the forums lately, so some one might have come up with a fix.

If you have any questions let me know, but I probably can't help fix this problem. May be working together we can find a solution.

Share this post


Link to post
Share on other sites

@Allan

Geek bench score is 16900. It is what I was expecting as I have 2400 mhz memory which when run at 2133 gives a score of 16700. So nothing has changed as I was expecting.

Also the patching of APIC seems redundant as I see enabling or disabling APIC entires in BIOS also does not do anything.

I am attaching all dumps from Darwin Dumper which should give one the clearest picture of the system layout. I hope that will suffice?

Thank you

@hashis.k

First advice - please stick around so all Gigabyte Z170 issues can be consolidated making it easier for our other friends.

I too went through Pike's Universum and chanced upon his brush with an incorrect version of Intel Power Gadget. It appears Patrick Konsor still missed something. You will see in my screen gabs that same hardware running windows 10 X64 shows in Intel Power Gadget as system idling at 800 mhz. Which leads me to conclude that there is nothing wrong with the motherboard. If you would try something similar this theory would become more solid. Boot a native windows install and check IPG results. Which brings us to the next problem. Either IPG is still broken or Apple still has a lot of work to finish in managing PM on this platform (more likely). I used HWSensors with HWMonitor and iStat Menus both reporting the same thing. Could you please check? Also can you check your Geekbench score too?

From Pike's blog all I can gather is this is a very much work in progress, or like in good old days with Master Chief on P55 we have to get our hands dirty manually editing SSDT and get it t work. I've forgotten everything now.

Whew! Oh God, there's more?

How did you get the GTX950 to work? Clover patching of AppleGraphicsDevicePolicy does not seem to help. more on this here

http://www.insanelymac.com/forum/topic/308449-how-to-fix-second-stage-boot-logo-and-loading-bar-for-some-dedicated-desktop-video-cards/page-15

See my post #289 Also i am content in sacrificing sleep as long as the HD530 works as it now does fully because shutdown and start are so fast that I really don't need sleep. Besides Apple made sleep terrible after ML, it takes so long to sleep. But HD530 should improve with 10.11.5 & later.

There's even more my friend..

You will see that I started a post separately for USB 3.0, will appreciate if you share something there for our friends. Yeah?

Cheerio!

DarwinDumper_2.9.9.2_AMI_X64_3438_Cap_MyMac.zip

Share this post


Link to post
Share on other sites

@Allan

Geek bench score is 16900. It is what I was expecting as I have 2400 mhz memory which when run at 2133 gives a score of 16700. So nothing has changed as I was expecting.

Also the patching of APIC seems redundant as I see enabling or disabling APIC entires in BIOS also does not do anything.

I am attaching all dumps from Darwin Dumper which should give one the clearest picture of the system layout. I hope that will suffice?

Thank you

@hashis.k

First advice - please stick around so all Gigabyte Z170 issues can be consolidated making it easier for our other friends.

I too went through Pike's Universum and chanced upon his brush with an incorrect version of Intel Power Gadget. It appears Patrick Konsor still missed something. You will see in my screen gabs that same hardware running windows 10 X64 shows in Intel Power Gadget as system idling at 800 mhz. Which leads me to conclude that there is nothing wrong with the motherboard. If you would try something similar this theory would become more solid. Boot a native windows install and check IPG results. Which brings us to the next problem. Either IPG is still broken or Apple still has a lot of work to finish in managing PM on this platform (more likely). I used HWSensors with HWMonitor and iStat Menus both reporting the same thing. Could you please check? Also can you check your Geekbench score too?

From Pike's blog all I can gather is this is a very much work in progress, or like in good old days with Master Chief on P55 we have to get our hands dirty manually editing SSDT and get it t work. I've forgotten everything now.

Whew! Oh God, there's more?

How did you get the GTX950 to work? Clover patching of AppleGraphicsDevicePolicy does not seem to help. more on this here

http://www.insanelymac.com/forum/topic/308449-how-to-fix-second-stage-boot-logo-and-loading-bar-for-some-dedicated-desktop-video-cards/page-15

See my post #289 Also i am content in sacrificing sleep as long as the HD530 works as it now does fully because shutdown and start are so fast that I really don't need sleep. Besides Apple made sleep terrible after ML, it takes so long to sleep. But HD530 should improve with 10.11.5 & later.

There's even more my friend..

You will see that I started a post separately for USB 3.0, will appreciate if you share something there for our friends. Yeah?

Cheerio!

The GTX950 did not work with iMac 17,1 Smbios with clover on the fly patching for me. So I modified the kext itself. I found a program on the other popular website which can modify the kext. here is the link

http://www.tonymacx86.com/threads/black-screen-with-macpro-6-1-or-imac-15-or-imac-17-system-definition.183113/. with this the sleep works perfectly and no black screen



I have windows dual boot and with windows it idles down to 800 Mhz. somehow the idling does not work properly on our boards on mac.

I am not sure how to check geekbench and have been using windows for now due to the powermanagement. I will give it a shot when time permits.

Share this post


Link to post
Share on other sites

Came across Pike R Alpha's post that PM is indeed Intel Voodoo and this time around it is so bad that we need a new tool to tell us exact frequencies and now all PM is the domain of CPU Firmware.

While we wait, I have gone ahead and moved the new system from the Bench to the Case and begun using it around 12 hours a day from Sunday 1st May (Labour-day)

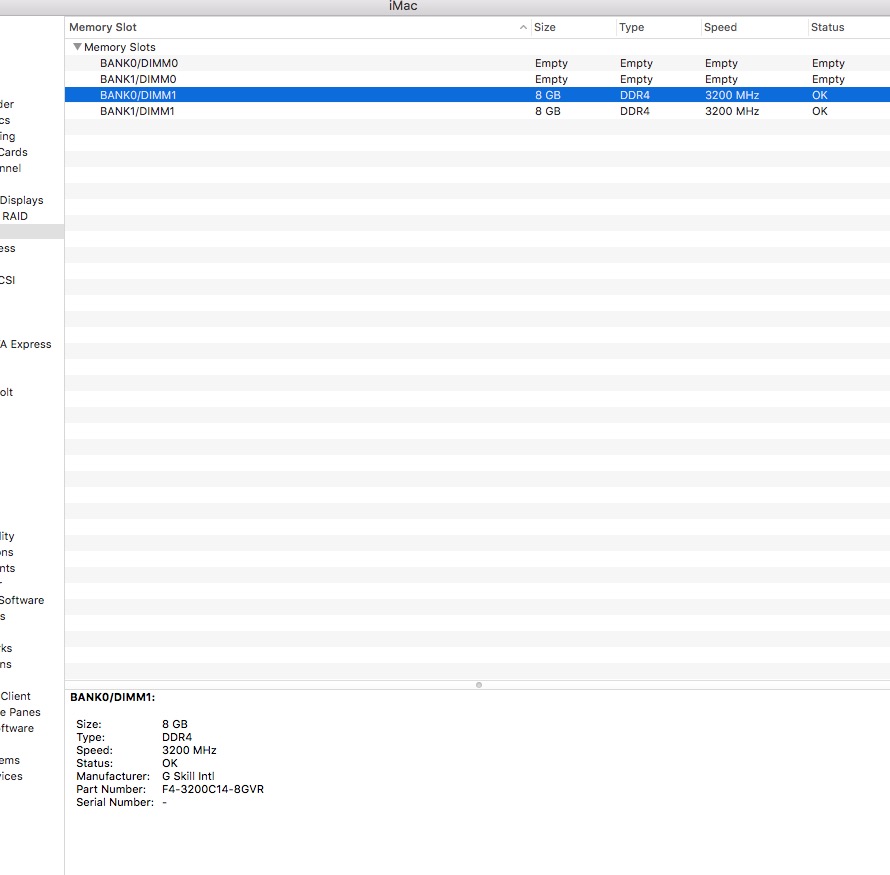

I had a pair of 8 GB G-Skill 3200Mhz CL14 RAM (16 GB Total) come in and now have a Geekbench score of 18,328 with Intel HD530 working.

Sleep still eludes but works when I am using GTX950. But the GTX 950 does nothing to the score except add just 45 points (18,373) Nice to be able to check same system for both HD530 vs NVIDIA scores on Geekbench running on 10.11.4. System runs super stable & not a single KP or app misbehaviour so far. Frankly I am surprised because my Z97- 4790K system plays the occasional truant even now.

I have a Dell U2515H running on HDMI at 2560X1440 @60Hz. This puts to rest the doubts I had with HDMI 1.4a support on this monitor. I had run the Mac Pixel Clock Patch before even connecting the monitor. I was using an old HP LP2065.

Will report more features & faults as I come across.

Oh! USB Drives all show as internal. Will deal with the issue in due course.

Cheers!

Share this post


Link to post
Share on other sites

Hey bro test this: attachicon.gifconfig.plist.zip



And, what you have in drivers64UEFI folder?



@Allan - Thx a ton for this. Used to end up with the prohibited sign with Clover(v2.3k_r3504)



This helped me get to the install screen -

El Capitan 10.11.4 is up and running.



Really appreciate it  :w00t:



@William Parker - Thx much for starting this thread.



Had removed the graphics card and unhooked the secondary drive for installation.





Current setup:

  • Gigabyte Z170M-D3H (F7 Bios)
  • Intel core i5-6400k
  • Vengeance LPX DDR4 2400Mhz 8Gbx2
  • Sapphire Radeon R7 260X 2Gb
  • Samsung SSD 750 evo 250Gbx2



Left with the usual post installation minor woes.



Following kexts were used for installation:

  • FakeSMC - placed in Other folder
  • USBInjectAll - placed in 10.10 & 10.11 folders
  • IntelMausiEthernet - placed in Other folder



Currently:

  1. Sleep not working
  2. Shut down leads to a restart
  3. R7 260X shows only 7Mb
  4. RAM listed as 2133Mhz

Still to fix audio

Share this post


Link to post
Share on other sites

@ Graphire78

You are most welcome.

Are you using the plist Allan gave here? You will see that it contains the edit in "kernel and Kext patches" section for AppleUSBXHCIPCI to remove port USB limits. I am running without the USBinject all kext. I will come to the USB later on as I find time & I have another post for this USB part.

For you issues if I may ...

1. Sleep is dependent on a lot of things like power management and display, e.g. my system sleeps with an NVIDA card but not with the built in HD530. So once you've got all things going okay, sleep should fall in place.

2. Shutdown leads to reboot, this is for 2 reasons. First there is a setting in BIOS called "ErP" this needs to be enabled and secondly enable Clover ACPI Fixes "FixShutdown" and also "SlpSmiAtWake" (I hope you're using Clover Configurator)

3. This is one you got to figure out on different threads here 'cause I did not use one ever so haven't the faintest on it.

4. RAM listed a 2133, Where exactly? In the System profiler? Mine shows correctly as installed. Have you enabled XMP in BIOS? If not it will show correctly as 2133. So please use XMP Profile1 and that should make RAM works at 2400 Mhz as intended. Also while you'e at it please install the latest clover revision 3504.



Also if you have a USB 3.0 external Hard Disk Like WD Passport etc., could you connect it & report what it shows as, internal or external.



Thank you.



P.S. While fixing Audio make use of Toledo's ALC Script from his GitHub repo. Works Like a charm. Ensure that my REN AUDIO patch is there in Clover ACPI patches to rename the HDAS to HDEF otherwise the script fails.


Share this post


Link to post
Share on other sites
  • USB 3.0 external Toshiba HD shows up as internal.
  • Sleep is working with the graphics card.
  • Enabled ErP in Bios. Shut down works now.
  • Enabled XMP in Bios. RAM shows correctly as 2400 Mhz.
  • No longer using USBInjectAll.kext as I'm using Allan's config.plist





Thx much  :star_sunglasses:  :star_sunglasses:

Share this post


Link to post
Share on other sites

  • Recently Browsing   0 members

    No registered users viewing this page.

Announcements

  • Similar Content

    • By MaLd0n
      -OpenCore Vanilla TUTORIAL-


      -USB Port Mapping TUTORIAL-

        1 -Create a USB bootable

      Create your usb installer, use this tool and download Catalina or Big Sur from Apple servers

      Catalina
      installScript_allfullapp.zip

      Big Sur
      installScript_1016fullapp.zip

      Credits: crazybirdy

      Copy Catalina / Big Sur installer to Applications folder, open terminal and run

      Catalina


      Big Sur


      If you want check one step by step, check here

      -Opencore Vanilla Tutorial
      https://tinyurl.com/ycvcnp8h

      2- EFI folder USB installation

      -EFI OpenCore Folder Desktop 10th Intel Processors
      Paste this EFI folder in EFI partition in your USB STICK
      https://tinyurl.com/ybwr9kq3

      -EFI Clover Folder Desktop 10th Intel Processors
      Paste this EFI folder in EFI partition in your USB STICK
      https://tinyurl.com/yxsw7d3t

      3- EFI folder SSD

      -EFI OpenCore Folder Desktop 10th Intel Processors
      Paste this EFI folder in EFI partition SSD
      https://tinyurl.com/ybwr9kq3

      -EFI Clover Folder Desktop 10th Intel Processors
      Paste this EFI folder in EFI partition SSD
      https://tinyurl.com/yxsw7d3t

      4- Start Fine Tune

      Run this app and post full dump here for full ACPI solution

      RunMe.app
      https://tinyurl.com/y9562hz7


      If you like a SSDT way, here we go
      SSDT-OLARILA.aml.zip

      5- USB Solution

      Use these kexts, enable XHCI port limit patch

      USB INTEL SERIE 400.zip

      and follow this tutorial for remap USB ports


      --DSDT PATCHES--

      -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE ID -DMAC -REMOVE LINES, PROBLEMATIC and UNUSED -FIX K.P in REBOOT -NVRAM -REAL TIME CLOCK -SLPB -DARWIN / WINDOWS -XHCI -PLUGIN TYPE -HDEF -ARTC -IPIC -TIMR -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -PMCR -PPMC -XSPI -kUSBCompanionIndex -io-device-location -IMEI -EC -PNLF -ARPT -GFX0 -NVME -ACPI-WAKE-GPE -DTGP -HDMI / HDAU
      --SCREENSHOTS--































      -If you want to buy me a beer - Donations with PayPal
      https://tinyurl.com/r2bvzm7

      Big Thanks to XLR and your Badass Motherboard, Ultrafast CPU, Coolest Heatsink, Huge Graphics Card, Tonnes of RAM,
      Gigantic Hard Drive, Lightspeed Disk Burner, Professional Sound Card, Massive LCD Display.


      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!

      We're all here to have fun and learn from each other!
    • By Nomade
      Hello All,

      It's been a while that I am trying to update my system to 10.15.16.
      The install seem to start, then at reboot time I only see the Normal boot and the Recovery option from the Clover boot menu.
      None of those 2 allow to complete the update.

      Is there any ways to force it to install and/or show the "Update" option on the Clover boot screen?

      PS: I'm using Z97-Gaming-3
    • By Damx
      The specs CPU: Intel® Core™ i3 Processor 8130U, 2.20 GHz (Kaby Lake Refresh) Chipset: Intel® 300 Series Graphics: Intel® UHD Graphics 620 Display: 21.5'' 1920x1200 RAM: DDR4 PC2400 4GB SSD1: M.2 PLEXTOR (with original Windows 10) SSD2: SATA SAMSUNG 850 EVO (for macOS) Sound: Realtek ALC269 WiFi / BT: Intel 3168 NGW Realtek Card-reader

      Not working
      WiFi: Intel 3168 NGW Realtek Card-reader

      Pre-Installation

      I will not go through the basics since it is explained in details here on this site. Briefly, the process is to:
      Get Clover Get Catalina macOS installer Create USB with 2 MBR partitions (FAT32 for Clover and HFS+J for the installer)

      Required kexts
      AppleALC.kext Lilu.kext RealtekRTL8111.kext VirtualSMC.kext WhateverGreen.kext

      Config.plist
      I used the one provided by RehabMan called config_HD615_620_630_640_650.plist. Download it from GitHub. It has almost everything you will need with only few edits for audio.
      Edits:
      [CPU] Make sure there is lilcpu=9 setting in boot arguments needed for Kaby Lake R CPU to be recognised correctly. [GPU] Make sure there is a patch GFX0 to IGPU under ACPI->DSDT [GPU] Under Devices->Properties->PciRoot(0)/Pci(0x02,0) make sure that the AAPL,ig-platform-id value is 00001B59, and the device-id value is 16590000 [AUDIO] Under Devices->Properties->PciRoot(0)/Pci(0x1f,3) set the layout-id to 40 and the device-id to 70A10000 [SMBIOS] Set Mac model ID is iMac19,2




      Notes
      For some reason with latest version of Clover the install partition was not visible. If you run into the same issue you can downgrade Clover to r5103, which worked perfectly. WiFi / BT Intel 3168 NGW needs to be replaced if one needs WiFi. Someone mentioned that to get HDMI work properly you may need to change AAPL,ig-platform-id value to 00001659 for PciRoot(0)/Pci(0x02,0) - not my case but may be considered if you get this issue. Don't forget to generate your serial and other SMBUS values before signing in with iCloud services.

    • By MaLd0n
      A very custom DSDT for best experience under macOS. Removed all unused devices, injected all Apple devices, essentials, cosmetics, real improvements.

      -OpenCore Vanilla TUTORIAL-


      -USB Port Mapping TUTORIAL-

          -Original DSDT have 167,880 lines and 762kb

      DSDT ORIGINAL.aml.zip138.01 kB · 8 downloads

      -Patched DSDT have 30,912 lines and 111kb

      DSDT PATCHED.aml.zip27.01 kB · 17 downloads

      --Hardware--
      Asus ROG RAMPAGE VI EXTREME OMEGA

      Processor  Intel i9-10980XE

      GPU Radeon RX 5700 XT

      --DSDT Patches--
      -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE ID -DMAC -REMOVE LINES, PROBLEMATIC and UNUSED -REAL TIME CLOCK -SLPB -DARWIN / WINDOWS -XHCI -PLUGIN TYPE -HDEF -ARTC -IPIC -TIMR -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -XSPI -EC -PNLF -ARPT -GFX0 -NVME
      --Screenshots-




















      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!

      We're all here to have fun and learn from each other!
    • By MaLd0n
      -OpenCore Vanilla TUTORIAL-


      -USB Port Mapping TUTORIAL-

          -Wifi card has been replaced with Dell DW1560!
      -I'm using a S145 Model with Intel Core i5-1035G1 IceLake / Intel HD Graphics ICL
      -Update bios/uefi to last version

      *For now we have 2 problems. Wake from sleep and some bugs in trackpad*

      --Bios/UEFI config--
      Go to Security tab and disable Secure boot

      -IceLake Premade installation Folder (easy way installation)
      https://tinyurl.com/y3tl6xlx

      --Clover and OpenCore Folders--
      Just paste EFI folder inside EFI partition
      -OpenCore
      https://tinyurl.com/y3c4rjkr
      -Clover
      https://tinyurl.com/y4496nq8

      --Enable Trackpad Dragging Option--
      Go to System Preferences/Accessibility/PointerControl/Trackpad Options and "Enable dragging"

      -Bluetooth Broadcom

      BrcmBluetoothInjector.zip2.46 MB · 4 downloads

      -OcQuirks.efi for Clover (Just replace Drivers folder)

      drivers.zip74.57 kB · 4 downloads

      --DSDT Patches--

      -Patches
      -FIX ERRORS AND WARNINGS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 12 ID -DMAC -REMOVE LINES, PROBLEMATIC and UNUSED -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PRWs -_DSMs -PNLF -BRIGHTNESS KEYS -I2C -NATIVE USB -ARPT -GFX0 -DTGP -ACQUIRE MUT0 0XFFFF -OPERATION REGION GPIO -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -FULL RENAMED DEVICES   --IGPU Patch-- (All credits to Austere.J) Discussion about that HERE

      <key>PciRoot(0x0)/Pci(0x2,0x0)</key>             <dict>                 <key>AAPL,ig-platform-id</key>                 <data>AABSig==</data>                 <key>device-id</key>                 <data>UooAAA==</data>                 <key>framebuffer-fbmem</key>                 <data>AACQAA==</data>                 <key>framebuffer-patch-enable</key>                 <data>AQAAAA==</data>                 <key>framebuffer-stolenmem</key>                 <data>AAAwAQ==</data>                 <key>framebuffer-unifiedmem</key>                 <data>AAAAgA==</data>                 <key>hda-gfx</key>                 <string>onboard-1</string>                 <key>igfxfw</key>                 <data>AgAAAA==</data>             </dict>
      --USB Fix-- https://tinyurl.com/y4mqfahz

      -ScreenShots




























      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!   Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Acidanthera Team, Olarila Facebook Community, Hackintosh Facebook Community and many others!     We're all here to have fun and learn from each other!
×
