vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 Intel NUC Sent from my ONEPLUS A5000 using Tapatalk Replace Clover folder with mine. Use config2.plist. CLOVER.zip Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 What is the changes I need to check for? cause I don't want to use iMac14,3 SMBIOS also I don't use analog audio so is injecting layout-id 3 necessary? Thanks edit:Injecting layout 3 gave me analog audio but still no HDMI audio Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 What is the changes I need to check for? cause I don't want to use iMac14,3 SMBIOS also I don't use analog audio so is injecting layout-id 3 necessary? Thanks I thought that you have laptop graphics so i made patch only for laptops. Now i changed it to desktop and put new AppleALC in Kexts/Other. Layout id is mandatory for Analog and HDMI audio. So here is new config also config2.plist.zip Change it in my Clover folder and use it to boot. Provide IOReg and AppleALC log Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 See attached Archive.zip Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 See attached Does it work with patch in config.plist you provide earlier? If Yes can you boot with it and provide IOReg? Also put DEBUG Lilu.kext in Kexts/Other. Reboot with bootargs -liludbg -alcdbg and provide full log with this command log show --predicate 'process == "kernel" AND (eventMessage CONTAINS "AppleALC" OR eventMessage CONTAINS "Lilu")' --style syslog --source Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 Here is ioreg with the patch enabled I hope you noticed that the patch is on AppleIntelBDWGraphicsFramebuffer iMac with HDMI audio.zip Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 I need log from previous post!!! Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 Sorry, see attached log.zip Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 Sorry, see attached Try it AppleALC.kext.zip Don't forget to delete patch from config.plist!!! Provide FULL Lilu & AppleALC log Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 Now it`s working with my original config with\without layout-id Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 Now it`s working with my original config with\without layout-id Try also this one AppleALC.kext.zip Provide FULL Lilu & AppleALC log Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 This one also works log.zip Link to comment Share on other sites More sharing options...
vandroiy2012 Posted August 30, 2017 Share Posted August 30, 2017 This one also works OK. Thank you. Changes uploaded to GitHub. Link to comment Share on other sites More sharing options...
WinstonAce Posted August 30, 2017 Share Posted August 30, 2017 Thank you (and toleda (I think) for the original patch) Link to comment Share on other sites More sharing options...
maxb2000 Posted September 5, 2017 Share Posted September 5, 2017 @vandroiy2012 Hi, I have a little problem with my Hackintosh: Audio is working perfect but if I change the audio output to internal and I reboot it changes back to headphones, why is that ? Thanks ! Link to comment Share on other sites More sharing options...

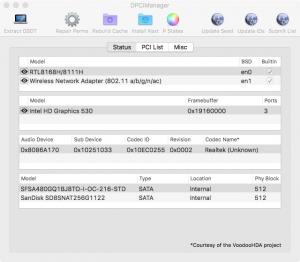

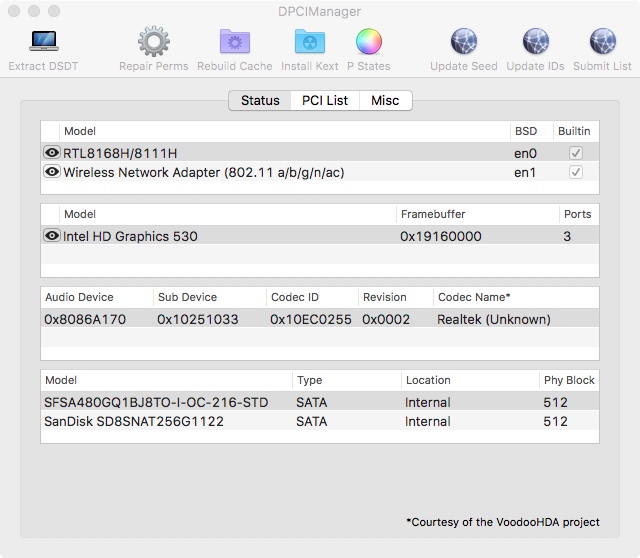

xerano Posted September 6, 2017 Share Posted September 6, 2017 I have no HDMI Audio please Help me :-/ only Hotpatched DSDT over Clover (See config.plist) everything is working great except HDMI-Audio See my files thank you CLOVER.zip Andys MacBook Pro.zip Link to comment Share on other sites More sharing options...

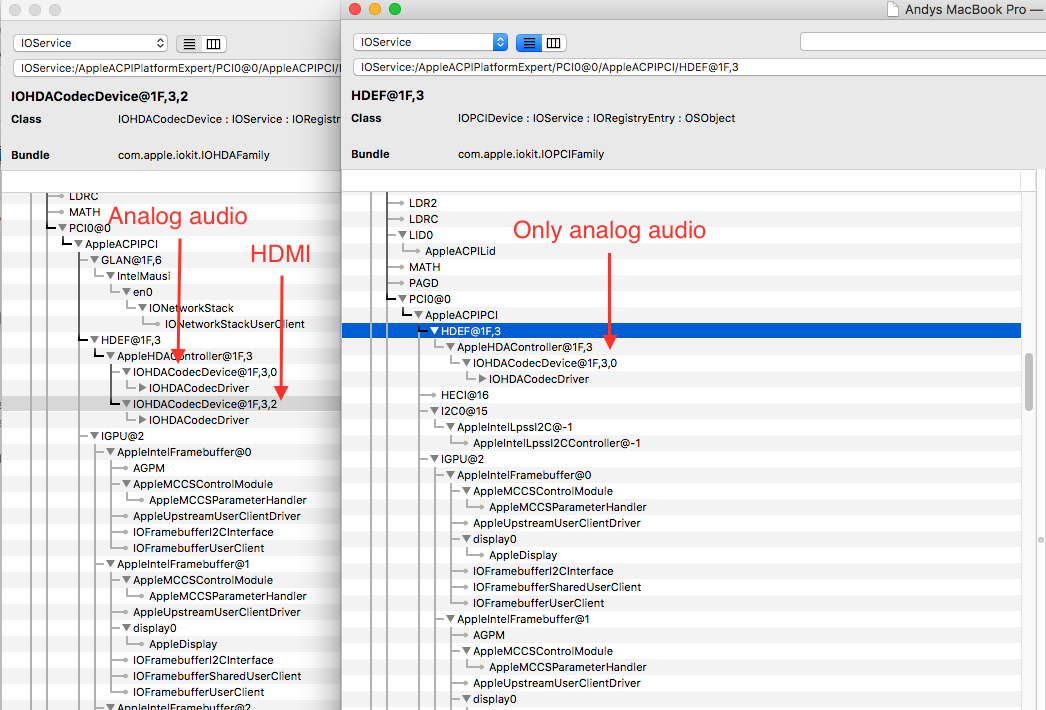

vandroiy2012 Posted September 6, 2017 Share Posted September 6, 2017 I have no HDMI Audio please Help me :-/ only Hotpatched DSDT over Clover (See config.plist) everything is working great except HDMI-Audio See my files thank you You don't even have HDMI device. Left - mine devices, right - yours... Probably your HDMI audio connected to discrette graphics card. In that case you can't make it work... Link to comment Share on other sites More sharing options...
xerano Posted September 6, 2017 Share Posted September 6, 2017 You don't even have HDMI device. Left - mine devices, right - yours... Снимок экрана 2017-09-06 в 12.32.49.png Probable your HDMI audio connected to discrette graphics card. In that case you can't make it work... DAMN :-/ sorry for doublepost but my HDMI-Video works great too why dosnt Audio do it? Link to comment Share on other sites More sharing options...
al6042 Posted September 6, 2017 Share Posted September 6, 2017 Because either your DSDT or the config.plist is missing the necessary Inject to provide the HDMI-Info to OSX. Link to comment Share on other sites More sharing options...
vandroiy2012 Posted September 6, 2017 Share Posted September 6, 2017 DAMN :-/ sorry for doublepost but my HDMI-Video works great too why dosnt Audio do it? Sorry but i don't know. I have same issue on Acer Swift 3 with single Intel HD620 and without discrette graphics at all. Because either your DSDT or the config.plist is missing the necessary Inject to provide the HDMI-Info to OSX. Even without necessary inject it should be in ioreg as secondary device in HDEF!!! But in this case it is absent. There is no dedicated HDAU device on Skylake/Kaby Lake. Link to comment Share on other sites More sharing options...

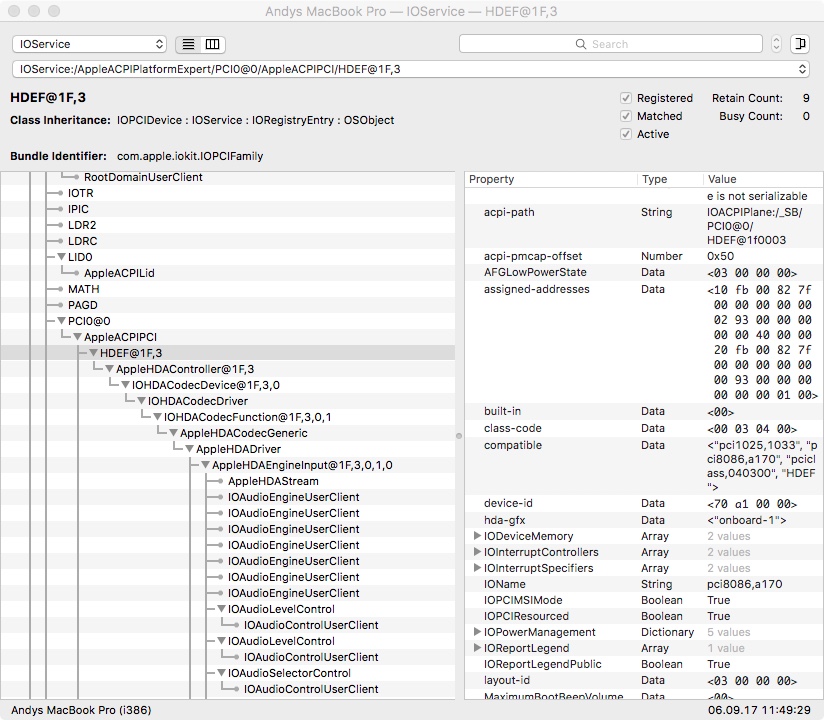

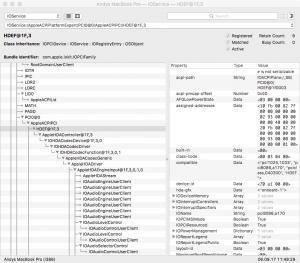

xerano Posted September 6, 2017 Share Posted September 6, 2017 i added addHDMI80000 in Clover now my IOreg shows this Link to comment Share on other sites More sharing options...
vandroiy2012 Posted September 6, 2017 Share Posted September 6, 2017 i added addHDMI80000 in Clover now my IOreg shows this ioreg.jpeg Useless fix for IGPU HDMI audio. As i told earlier there is no dedicated HDAU device on Skylake/Kaby Lake boards. Intel HDMI audio works through HDEF. Analog audio adress - 1F,3 and HDMI audio adress - 1F,3,2. Both on HDEF. You don't have 1F,3,2 though your HDMI audio didn't work. Link to comment Share on other sites More sharing options...
JorgeMax Posted September 6, 2017 Share Posted September 6, 2017 Hi everyone, I tried to enable the audio in this Note Dell N4050 with layout-id 3 and 12, but without result I am sending these files: Jorge.zip I thank you for helping me. Link to comment Share on other sites More sharing options...
derek.zhu Posted September 7, 2017 Share Posted September 7, 2017 Plz help! I've spent weeks on this but I still can't get applealc working what I have done: 1. Inject layout-id and hda-gfx into ssdt. can be verified by checking "system information" -> "Audio" and IOReg tool (see attached), or system extracted ACPI Table 2. it's a clean install so there's no residue from previous modification left (and i checked applehda signing made sure it was untouched) 3. both lilu and applealc are the latest debug release, and located within Clover/Kext/Other folder 4. made sure in my dsdt file, the audio device is named HDEF. 5. I didn't rename HDMI audio to HDAU in my dsdt, thought it would be easier to deal with one first. 6. I extracted my audio card codec and added support for it my self, and compiled against the latest code, same result. kextstat |egrep '(ALC|Lilu|HDA)' 25 6 0xffffff7f8273a000 0x61000 0x61000 as.vit9696.Lilu (1.1.7) EEDE488C-8AF6-3654-AD54-9B718FB61DAA <7 5 4 3 2 1> 28 0 0xffffff7f827a4000 0xae000 0xae000 as.vit9696.AppleALC (1.1.4) 9FAACF48-233A-3128-A075-95527FAB70B5 <25 7 5 4 3 2 1> 108 1 0xffffff7f825e0000 0xc000 0xc000 com.apple.iokit.IOHDAFamily (279.48) E332A19C-33F1-3F25-B9FC-982F769BF17A <5 4 3 1> 109 0 0xffffff7f825ef000 0x1d000 0x1d000 com.apple.driver.AppleHDAController (279.48) ED51F180-19C8-3DE1-AF81-0E389D98ADDE <108 107 45 12 7 6 5 4 3 1> the problem: no codec is recognized, and AppleHDA is not loading. (DPCIManager codec id is blank) what's attached: 1. my logs 2. ioreg 3. clover config 4. codec dump 5. my own config/pathmap Archive.zip Link to comment Share on other sites More sharing options...
vandroiy2012 Posted September 7, 2017 Share Posted September 7, 2017 This is the most weird Clover folder i've ever seen You use every kext, every ACPI patch, every kernel patch, every kext patch and every SSDT file you found on internet???? Sorry man but this won't work... Suggest you to make clean Clover install without this SSDT/Patch/kext trash you have. 23 SSDT's 26 ACPI patches 18 kext patches It seems you've spent months collecting garbage over the hackintosh forums from all over the world. 4 Link to comment Share on other sites More sharing options...
