About BCM943142 in OSX

arsradu

By arsradu,
in LAN and Wireless

 Share
24 posts in this topic

Recommended Posts

Slice
Slice
Posted
Posted

It won't work, replace with BCM43225 or BCM4352

4315/4312 was working with kext from 10.6 by replacing DeviceID and put a scotch on Pin20 (I am not sure, google about it). I am sure about 4315, it is my working WiFi in Dell Inspiron.

  • Like 1
  • 2 weeks later...
arsradu
arsradu
Posted
  • Author
Posted

4315/4312 was working with kext from 10.6 by replacing DeviceID and put a scotch on Pin20 (I am not sure, google about it). I am sure about 4315, it is my working WiFi in Dell Inspiron.



Hey Slice :)



I'm going to try this, but before that, I want to ask you this: if you do this, will you still be able to use your WiFi in Windows? Any idea?

Andres ZeroCross
Andres ZeroCross
Posted
Posted

Hey Slice :)



I'm going to try this, but before that, I want to ask you this: if you do this, will you still be able to use your WiFi in Windows? Any idea?

2 weeks ago, i have a friend with AR9285 as Wifi Card, he got the wifi card from HP Mini Notebook. He needs to put a scotch at pin 20. It will work at Windows and OS X. :)

  • Like 2
arsradu
arsradu
Posted
  • Author
Posted

Those computer had no WIndows to check if the WiFi works in it.



Understood. Thank you! :)



2 weeks ago, i have a friend with AR9285 as Wifi Card, he got the wifi card from HP Mini Notebook. He needs to put a scotch at pin 20. It will work at Windows and OS X. :)



Cool! I'm gonna try it tomorrow.



Thank you both very much for your fast reply! :)

arsradu
arsradu
Posted
  • Author
Posted

2 weeks ago, i have a friend with AR9285 as Wifi Card, he got the wifi card from HP Mini Notebook. He needs to put a scotch at pin 20. It will work at Windows and OS X. :)



Hey guys,

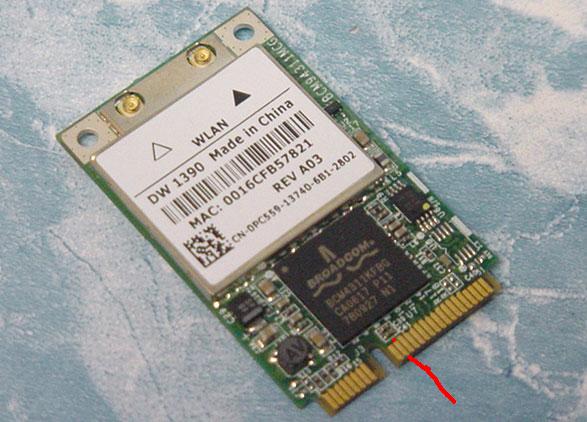

I'm a bit confused. Which one is Pin 20 on this card? Where do you start counting? Or you're not supposed to count them...?



Micky1979
Micky1979
Posted
Posted

2 weeks ago, i have a friend with AR9285 as Wifi Card, he got the wifi card from HP Mini Notebook. He needs to put a scotch at pin 20. It will work at Windows and OS X. :)

I have that card, on lappy and on my desktop too, no need to sotch nothing, only that:             #9342             in EFI/CLOVER/kexts/Other

always work, always

polyzargone
polyzargone
Posted
Posted

hello



this tip is only for cards show in system .. loading the kext .. but can't connect



but u can try no harm .. only a few work to test



good hack



Didn't worked for me :(.



The kext seems loaded :

MacBook-Optimus:~ polyzargone$ kextstat | grep Atheros

   52    0 0xffffff7f81959000 0x14d000   0x14d000   com.apple.driver.AirPort.Atheros40 (700.74.5) ABBC5EFD-7F18-30BE-A526-273DE99C1614 <51 50 12 7 5 4 3 1>

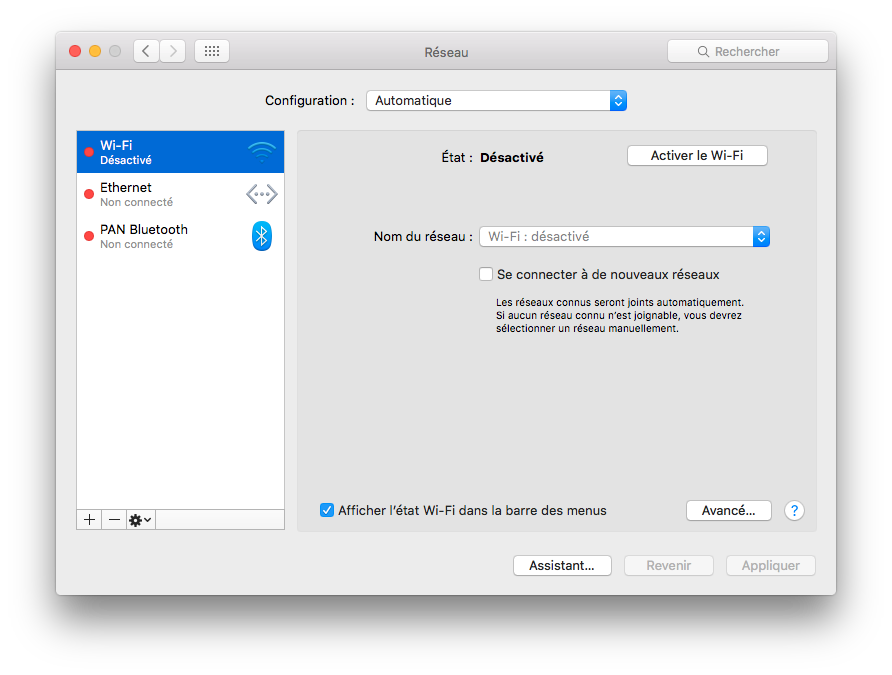

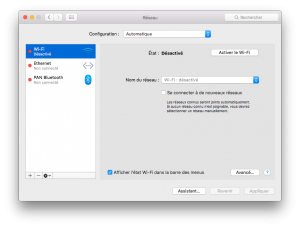

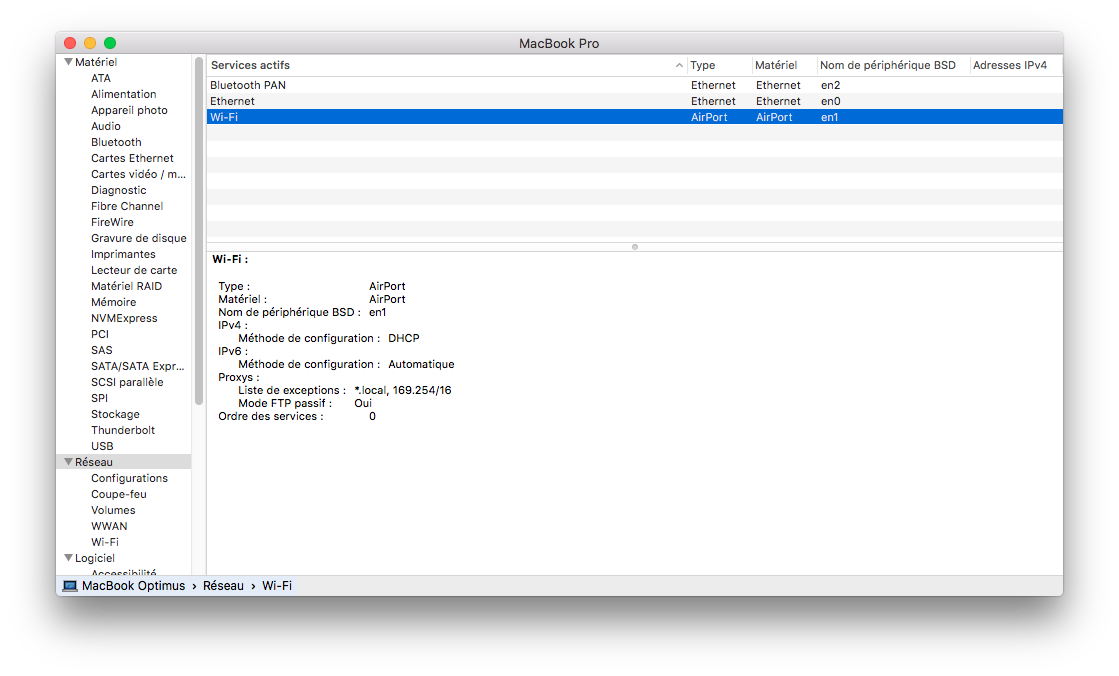

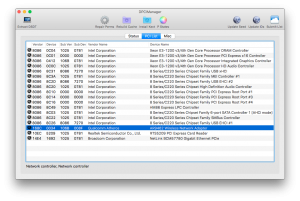

But as you can see in screenshots, no WIFI hardware detected by OS X (though it is by DPCIManager) but shows up in Sys Info. However, I'm pretty sure it's because of the DSDT Atheros patch.







Device (PXSX)
            {
                Name (_ADR, Zero)  // _ADR: Address
                Method (_PRW, 0, NotSerialized)  // _PRW: Power Resources for Wake
                {
                    Return (GPRW (0x09, 0x04))
                }
                Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
                {
                    If (LEqual (Arg2, Zero))
                    {
                        Return (Buffer (One)
                        {
                             0x03
                        })
                    }
                    Return (Package (0x0E)
                    {
                        "device-id",
                        Unicode ("0"),
                        "name",
                        "pci168c,30",
                        "AAPL,slot-name",
                        Buffer (0x08)
                        {
                            "AirPort"
                        },
                        "device_type",
                        Buffer (0x08)
                        {
                            "AirPort"
                        },
                        "model",
                        Buffer (0x33)
                        {
                            "Atheros 9285 802.11 b/g/n Wireless Network Adapter"
                        },
                        "subsystem-id",
                        Buffer (0x04)
                        {
                             0x8F, 0x00, 0x00, 0x00
                        },
                        "subsystem-vendor-id",
                        Buffer (0x04)
                        {
                             0x6B, 0x10, 0x00, 0x00
                        }
                    })
                }
            }







Anyway, thanks !





arsradu
arsradu
Posted
  • Author
Posted

..inject metioned ids (a lot of broadcom and Atheros)

Hey, Micky



I "patched" the card with tape, it is visible and working properly on Windows, there is something in System Report in OS X...but I'm not sure that information is ok or if it means that the card is somehow detected... The kext is loaded though...



Any idea?


Micky1979
Micky1979
Posted
Posted

@asradu, than you have to remove your DSDT edits if are you using my injector or use the config.plist to inject that device, at least you'll be on topic, otherwise consider to open a new one for that  :wink_anim:
FakeID is what you are looking for I guess:


<key>FakeID</key>
<dict>
    <key>WIFI</key>
    <string>0x168C3040</string>
</dict>

:P

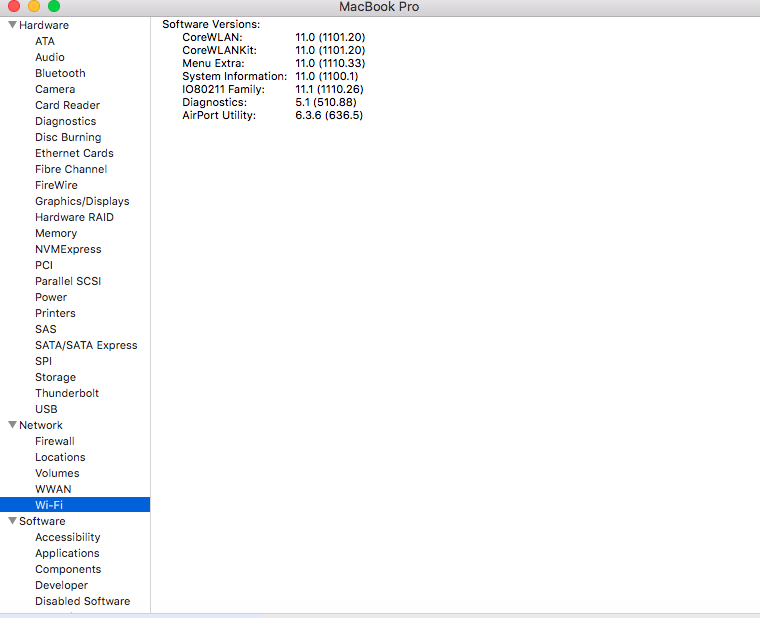

and that is my s. profile:

  Software Versions:
  CoreWLAN:	11.0 (1101.20)
  CoreWLANKit:	11.0 (1101.20)
  Menu Extra:	11.0 (1110.33)
  System Information:	11.0 (1100.1)
  IO80211 Family:	11.1 (1110.26)
  Diagnostics:	5.1 (510.88)
  AirPort Utility:	6.3.6 (636.5)
  Interfaces:
en1:
  Card Type:	AirPort Extreme  (0x168C, 0x3040)
  Firmware Version:	Atheros 9285: 4.0.74.0-P2P
  MAC Address:	**PRIVATE**
  Locale:	0
  Country Code:	TW
  Supported PHY Modes:	802.11 a/b/g/n
  Supported Channels:	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
  Wake On Wireless:	Supported
  AirDrop:	Supported
  Status:	Connected
  Current Network Information:
**PRIVATE**:
  PHY Mode:	802.11n
  BSSID:	**PRIVATE**
  Channel:	6
  Country Code:	TW
  Network Type:	Infrastructure
  Security:	WPA2 Personal
  Signal / Noise:	-97 dBm / -96 dBm
  Transmit Rate:	65
  MCS Index:	7

..


BTW is that card working in Windows?

  • Like 1
arsradu
arsradu
Posted
  • Author
Posted



@asradu, than you have to remove your DSDT edits if are you using my injector or use the config.plist to inject that device, at least you'll be on topic, otherwise consider to open a new one for that  :wink_anim:

FakeID is what you are looking for I guess:



<key>FakeID</key>

<dict>

    <key>WIFI</key>

    <string>0x168C3040</string>

</dict>



:P



and that is my s. profile:

  Software Versions:
  CoreWLAN:	11.0 (1101.20)
  CoreWLANKit:	11.0 (1101.20)
  Menu Extra:	11.0 (1110.33)
  System Information:	11.0 (1100.1)
  IO80211 Family:	11.1 (1110.26)
  Diagnostics:	5.1 (510.88)
  AirPort Utility:	6.3.6 (636.5)
  Interfaces:
en1:
  Card Type:	AirPort Extreme  (0x168C, 0x3040)
  Firmware Version:	Atheros 9285: 4.0.74.0-P2P
  MAC Address:	**PRIVATE**
  Locale:	0
  Country Code:	TW
  Supported PHY Modes:	802.11 a/b/g/n
  Supported Channels:	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
  Wake On Wireless:	Supported
  AirDrop:	Supported
  Status:	Connected
  Current Network Information:
**PRIVATE**:
  PHY Mode:	802.11n
  BSSID:	**PRIVATE**
  Channel:	6
  Country Code:	TW
  Network Type:	Infrastructure
  Security:	WPA2 Personal
  Signal / Noise:	-97 dBm / -96 dBm
  Transmit Rate:	65
  MCS Index:	7



Thanks, Micky! Will do. :)



Thanks a lot for your help and for the patience. :D

  • Like 1
arsradu
arsradu
Posted
  • Author
Posted

About BCM943142 in OSX, please post here suggestion about this card. Actually seem not supported by default



Thank Micky for moving these posts. However, Slice mentioned something about replacing the Device ID, a few posts back. I'm just not sure what should I replace it with. Any idea? I would try manually adding the Device ID if I knew which ID is that...
