Hi folks,

I see it as appropriate, when we talk here about the USB problems that arise when installing El Capitan on intel/AMD Hackintosh, or my approach to use Yosemite kext drivers to fix the USB problems.



the first attempt V1, was for me the proof that it is the right way, the packet V2 has ultimately convinced me that it works. I do not need to patch any DSDT and all USB drives/ Ports operate as they have previously worked with Yosemite.




Share this post


Link to post
Share on other sites
Advertisement

The main problem I was having is it kept refusing to replace certain kexts saying resource is busy. I was using Lion though. I can use my old intel hackintosh but it's a pain because I only have one case lol (until I get my tax refund). I'll let you know if it works on my amd 6300.

Share this post


Link to post
Share on other sites

The main problem I was having is it kept refusing to replace certain kexts saying resource is busy. I was using Lion though. I can use my old intel hackintosh but it's a pain because I only have one case lol (until I get my tax refund). I'll let you know if it works on my amd 6300.





FYI, duh, it was fixed when I restarted Lion and used MyHack (not sure if I can mention that here). It's an older version though.



Also figured out the quote issue (obviously been awhile since I posted on a forum).

Share this post


Link to post
Share on other sites

Dear Spakk,



thank you very much for your work.

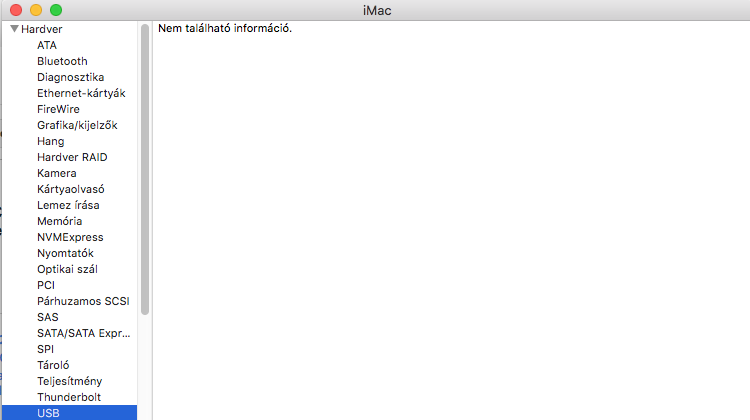

I've broken my system so many times trying to fix the usb ports, that I would like to be sure I'm doing it this time right.



My specs: Asus Sabertooth Z97, i7 4690K , 32 GB Ram, El Captain 10.11.3



Is this correct?



Step 1. Delete



IOUSBFamily.kext,

IOUSBMAssStorageDriver.kext,

IOUSBMassStorageClass.kext

or rename all drivers in to *bak.



from /System/Library/Extensions/

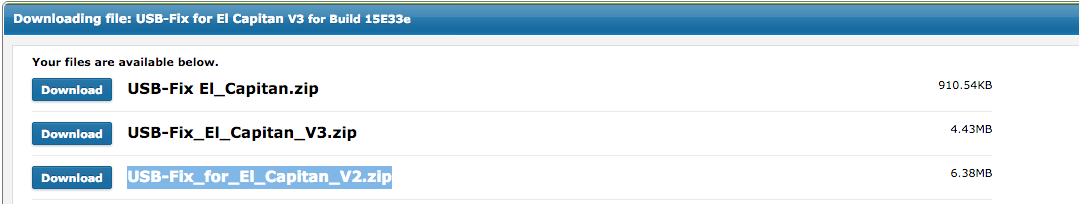

Step 2. Install drivers ( kexts ) from the package.





All of them from package v2 ? There are pretty many in it.





Does it mean I just have to copy them over to /System/Library/Extensions/ or use app like KextWizard?



Step 3. Fix permissions and renew kernel.



Just type below into terminal?



sudo chown root: admin /

sudo kextcache system-prelinked kernel

sudo kextcache system caches

Share this post


Link to post
Share on other sites

There's been quite a few topics and discussions on the matter. Rehabman has a substantial and most excellent guide for USB ports fixing under ElCapitan.



I, for one, stick to the USBinjector kext that I adjust according to my IOReg/DSDT. It's extremely simple and brings all USB ports to life within a matter of minutes:

1) Checkup DSDT code for devices EHC1, EHC2, XHCx

2) Rename USB2.0 controllers from EHC1/EHC2 to EH01/EH02 in the DSDT

3) Make a good/thorough note of all ports as listed under EH01/EH02, knowing that multiple ports may all be listed under a hub called PR01 or similar

4) Tune your USBInjector kexts so that:

  • it shows the correct port-count under each controller
  • each port or hub is set with its correct number
  • each port or hub is set to UsbConnector type 0 or 3 (0 is for USB2.0 type, 3 is for USB3.0 type)

5) Place USBInjector kext in /E/E, repair permissions and rebuild cache

6) Reboot and all USB ports should be functional



It makes for a much better solution than rolling back kexts from an earlier OS X version.



Example with Dell Latitude E6440:

  • Original unpatched DSDT shows 2 x USB2.0 controllers: EHC1 and EHC2
  • ECH1 controller has hub PR01, under which 8 ports are listed: PR11 to PR18
  • ECH2 controller has hub PR01, under which 6 ports are listed: PR11 to PR16
  • Devices ECH1 and EHC2 get renamed respectively to EH01 and EH02 in the DSDT
  • SMBIOS MacBookPro11,1 being used, Info.plist file of USBInjector kext is configured with:
  1. USB2.0 controllers MacBookPro11,1-EH01 and MacBookPro11,1-EH02

  2. Under MacBookPro11,1-EH01, port-count set to 1 and port (i.e. hub) PR01 is set to USBConnector = 3 and port = 1

  3. Under MacBookPro11,1-EH02, port-count set to 1 and port (i.e. hub) PR01 is set to USBConnector = 3 and port = 1



Share this post


Link to post
Share on other sites

There's been quite a few topics and discussions on the matter. Rehabman has a substantial guide for USB ports fixing under ElCapitan.



I, for one, stick to the USBinjector kext that I adjust according to my IOReg/DSDT. It's extremely simple and brings all USB ports to life within a matter of minutes:

1) Checkup DSDT code for devices EHC1, EHC2, XHCx

2) Rename USB2.0 controllers from EHC1/EHC2 to EH01/EH02

3) Make a good/thorough note of all ports as listed under EH01/EH02, knowing that multiple ports may all be listed under a hub called PR01 or similar

4) Tune your USBInjector kexts so that:

  • it shows the correct port-count under each controller
  • each port is set with its correct number
  • each port is set to USBconnector type 2 or 3 (2 is for USB2.0 type, 3 is for USB3.0 type)

5) Place USBInjector kext in /E/E, repair permissions and rebuild cache

6) Reboot and all USB ports should be functional



Sounds fun, but after step 2:



I could never boot again to my system and had to reinstall the system and all programs, what is a problem, as I use the hack as my main work machine:(



Not to mention that steps like "checking dsdt code" sound like magic for me. I will learn more, but doubt if I will gain enough knowledge to follow this procedure.

Share this post


Link to post
Share on other sites

Post your IOREg and DSDT, I'll look into it.



It's easy enough to save the revised DSDT under a name such as "DSDT_new.aml" and manually call that revised DSDT at boot time. If it kills the installation, you just reboot without any option and revert to the previous working DSDT. Then Bob's your uncle... It really is how anyone should test DSDT in a safe manner.

Share this post


Link to post
Share on other sites

Post your IOREg and DSDT, I'll look into it.



It's easy enough to save the revised DSDT under a name such as "DSDT_new.aml" and manually call that revised DSDT at boot time. If it kills the installation, you just reboot without any option and revert to the previous working DSDT. Then Bob's your uncle... It really is how anyone should test DSDT in a safe manner.



Thank you. How do I make a copy of my DSDT? I've tried using dsdt editor, but when I choose "extract dsdt" nothing shows up:(

( I'm using clover to boot if it matters and I boot from my harddrive, not usb flashdrive  )

Share this post


Link to post
Share on other sites

You may have a patched DSDT in CLOVER/ACPI/patched folder of your EFI partition. Not a good sign if DSDTEditor cannot extract the DSDT (or show the loaded patched one) but you may try with Chameleon Wizard. You can extract the DSDT through the DSDT tab. Failing that, you can also try MacIASL. Clover also normally has the facility to extract all raw tables by pressing F4 at startup.



If none of those work, then there is an underlying issue. If you still have Windows, you can use Aida64 (can't remember the exact edition) to extract all your BIOS tables, including the DSDT.

Share this post


Link to post
Share on other sites

So, your your default USB2.0 (built-in) ports arrangements are as follows:




In the DSDT this is reflected by:

  • EHC1 controller @001D0000, 1 x hub PR01, 8 x ports numbered PR11 to PR18
  • EHC2 controller @001A0000, 1 x hub PR01, 6 x ports numbered PR11 to PR16



So those 2 x devices must be renamed to EH01 and EH02 in the DSDT. Then, you create your USBInjector kext where the plist contains:

1) an entry for controller MacPro3,1-EH01 with:

  • port-count = 1
  • port PR01 with UsbConnector = 0 and port (number) = 1

2) an entry for controller MacPro3,1-EH02 with:

  • port-count = 1
  • port PR01 with UsbConnector = 0 and port (number) = 1



You can grab my posted kext and edit the Info.plist file with a downloaded copy of PlistEditPro if you want (a TextEditor won't easily do due to XML format).

Share this post


Link to post
Share on other sites

So, your your default USB2.0 (built-in) ports arrangements are as follows:




In the DSDT this is reflected by:

  • EHC1 controller @001D0000, 1 x hub PR01, 8 x ports numbered PR11 to PR18  -- > EDIT - This would be USB 2.0 ports ?
  • EHC2 controller @001A0000, 1 x hub PR01, 6 x ports numbered PR11 to PR16 -- > EDIT  - This would be USB 3.0 ports ?



Please let me take is step by step to understand well.



This 14 ports of USB2.0 type, which you have found are: ( I marked red from my specs for my motherboard )



Intel® Z97 chipset :

6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)



ASMedia® USB 3.0 controller :

2 x USB 3.0/2.0 port(s) (2 at back panel, blue)



Intel® Z97 chipset :

8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)



If that is correct, I should change:



So those 2 x devices must be renamed to EH01 and EH02 in the DSDT.



Can I change it via MaciASL ?

Share this post


Link to post
Share on other sites

Hi arstherapia, have you tries the haswell.dmg from rampagedev? Rampagedev has created a matching SSDT.aml for your motherboard, moreover, still a SSDT-1.aml with USB Patch for 10.11 for Clover bootloader. click here



or download the attachment

Haswell.dmg.zip

Share this post


Link to post
Share on other sites

Please let me take is step by step to understand well.



This 14 ports of USB2.0 type, which you have found are: ( I marked red from my specs for my motherboard )



Intel® Z97 chipset :

6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)



ASMedia® USB 3.0 controller :

2 x USB 3.0/2.0 port(s) (2 at back panel, blue)



Intel® Z97 chipset :

8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)



If that is correct, I should change:





Can I change it via MaciASL ?

Your ASMedia add-on card is a totally separate thing; I presume it's a PCIe card and, as such, I expect it to operate through its own driver. So let's forget about it here.



The changes I've mentioned apply ONLY to the on-board ports. that's why I wrote "USB2.0 (built-in) ports"... I have not looked at USB3.0 ports. Let's look at USB2.0 ports 1st.  In terms of controllers fitted to your motherboard:

  1. EHC1 is USB2.0 EHCI controller #1
  2. EHC2 is USB2.0 EHCI controller #2



For your info, USB controllers can be of the following types/standards:

  • EHCI for USB2.0 controllers,
  • XHCI for USB3.0 controllers
  • UHCI for USB1.x controllers
  • OHCI for USB1.1 controllers

Hence the name of associated devices in computers' DSDT and of Apple USB drivers in El Capitan (AppleUSBUHCIxxx / AppleUSBOHCIxxx / AppelUSBEHCIxxx / AppleUSBXHCIxxx as PlugIns of /S/L/E/IOUSBHostFamily kext).



With your additional info, we now know that you have 6 x combo USB3.0/USB2.0 capable ports and 8 x combo USB2.0/USB1.1 capable ports. Nevertheless, it's the UHCI controller(s) that'll manage USB1.0/1.1 devices, the ECHI controller(s) that'll manage USB2.0 devices and XCHI controller(s) that'll manage USB3.0 devices.



You'll find more info on the matter at the following links:

https://en.wikipedia.org/wiki/Host_controller_interface_(USB,_Firewire)

http://forum.osxlatitude.com/index.php?/topic/8730-asuspro-b53a-el-capitan-10113/&do=findComment&comment=56896



Yes, modify your DSDT with MacIASL (make sure to keep a backup of course!).

Share this post


Link to post
Share on other sites

Hi arstherapia, have you tries the haswell.dmg from rampagedev? Rampagedev has created a matching SSDT.aml for your motherboard, moreover, still a SSDT-1.aml with USB Patch for 10.11 for Clover bootloader. click here



or download the attachment

{censored}. I've done this and cannot access my computer now. It hangs on ... please press del or f2 to enter bios setting... but even that is not responding... {censored} {censored} {censored}.

Share this post


Link to post
Share on other sites

I managed to get to clover boot via pendrive and when booting from my hdd in safe mode, it hangs on:



usb sound assertion in buildroot/Library/Caches/com.apple/xbs/...


After unplugging the usb soundcard, it hangs on iobluetooth. From what I've read, this has smth to do with graphics, so I tried to:



a) inject nvidia drivers via clover boot options - no luck

B) start in safe mode - no luck either.



wtf?


I think I've tried pretty everything. Booting in verbose mode, in safe mode, injecting nvidia, changing smbios options to MacPro 3,1... still it's a no go.

Share this post


Link to post
Share on other sites

Hold on, I'll have a go at patching your DSDT and preparing your USBInjector kext.



I take it you did not save your patched DSDT under a different name that you called from the Clover config menu, right? Try and do that. If you had no DSDT before, make no reference to DSDT in the Clover menu entry.

Share this post


Link to post
Share on other sites

Thank you, Herve, my last hope is in you:)

That's strange, even if I delete the reference to DSDT in clover menu, set smbios to the one I used to succeed in booting - MacPro 3,1 and inject the nvidia drivers, I still cannot boot to my os - apple logo, bar progressing to the end and no-go further...



It happened many times before after installing clover bootloader via clover configurator or clover install. I always had to reinstall the system and all of programs, that is really a lot. I hope this time I will be more successfull with your help...



Thanks once again.



EDIT: I've tried to boot with -x -v -f GraphicsEnabler=NO nv_disable=1 , but still no success. Hangs on IOBluetoothHostController...

Share this post


Link to post
Share on other sites

Thank you so much!

Just tell me please, how can I place this if I cannot boot into desktop...


I've managed to copy the files, however, it's still won't boot. Must have something wrong with clover bootoader, maybe the config.plist is wrong? I've also change it to different right before the crash...

Share this post


Link to post
Share on other sites

Avoid changing too many things, that's the best way to reach chaos. I don't really use Clover but, in case it uses "DSDT.aml" by default if such a file exists, you may try to force Clover to use a non-existing file, i.e. bypass the patched DSDT. You can try to refer to something like DSDT=None or DSDT=JoeBloggs to that effect.



Anyway, we're getting far too off-topic. Get your system back on line, then try the files I posted.

Share this post


Link to post
Share on other sites

Enoch r2795. Works great for El Capitan. That's the only bootloader I use these days.

  • Needs DSDT + boot plist + SMBIOS plist in /Extra
  • Kexts for injection (no caching) go to /Extra/Extensions from where they're loaded at boot time if option KernelBooter_kexts is set to Yes
  • Kexts for caching go to /Library/Extensions (or /S/L/E)

Which Haswell CPU you have? i7-4690K does not exist. i5 does though... You'll probably also need option KernelPm set to Yes too.

Share this post


Link to post
Share on other sites

Haswell, yes. i7 4790K . I already have dsdt thanks to you, would need this smbios plist I guess. How can I get this? Would be grateful if you could help me with Enoch...

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

Announcements

  • Similar Content

    • By Funky frank
      Hi,

      I am planning to make my hack ready for post High Sierra macos, finally xD  So I was looking for a proper AMD GPU, but it is not that easy to find a proper, recent guide for that. So compared a bunch of AMD GPUs, and this one seems to suit my needs the most: XFX RX 5500 XT Thicc II Pro 8GB

      Will this graphics card work properly in macos? And what macos version is the minimum here? I read so many contradictory statements, some older said that the RX5xxx support in macos still sucks and is much slower than in Windows. Is this still true? I currently have a nvidia GT1050, I guess it still will beat that nvidia card?

      Would this work with old but gold clover (recent version) + lilu and whatevergreen, or should I switch to OpenCore then?

      Thanks for info!

    • By sapnupuas69
      hello everyone, so my Intel HD 530 is not getting recognised by macOS. In the about my mac section, it shows as 'Display 7mb'
      Im using HDMI connected to motherboard. I can only boot into os with 0x12345678 or 0x193b0005 as Fake Id and 0x19120000 as platform id with Mac17,1 as smbios. I do have the latest version of Lilu and WhateverGreen installed in boot loader and in L/E too.
      I have looked through many forum posts, and have not found a solution yet.


      edit: i forgot to change the smbios in the picture, I tried changing to 17,1 and restart, still no luck
      EFI.zip
    • By MaLd0n
      First...
      If you need DSDT edits... -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app   Installation --Create a bootable copy of El Capitan /  Sierra / High Sierra / Mojave https://github.com/chris1111/Create-Install-Media/releases   --Install Clover in USB stick https://github.com/CloverHackyColor/CloverBootloader/releases   --Replace with my Clover folder https://www.olarila.com/topic/5676-clover-folder-for-all-chipsets/   --Install EL Capitan / Sierra / High Sierra and boot into system!     Post Installation   --Install Clover and replace with my folder   https://www.olarila.com/topic/5676-clover-folder-for-all-chipsets/     --Reboot and activate video!   Bingo! Now you need a fine tune! DSDT Time!   My DSDT GA P35-DS3   DSDT.MaLd0n.zip     Patches -FIX ERRORS AND WARNINGS -HPET -SATA -SLPB -DARWIN -LPC -HDEF -RTC -EHCI -UHCI -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -EC -PNLF --Native Power Management

      Use Clover, check Generate P and C States

      --Brightness
      Install .app, select the required permission and reboot. Work in F1 / F2 keys!
      NativeDisplayBrightness.app.zip


      https://github.com/Bensge/NativeDisplayBrightness/releases
      *in some cases .app don't work, check patches in config.plist inside Clover folder Post Install

      --AUDIO

      Device HDEF + AppleAlc + Lilu

      --install Lan driver by Mieze
        -Atheros   http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/   -Intel   http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/   -Realtek   http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/   --Links   -FakeSMC   https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek   -Audio   https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/293863-applehda-patch-requests/   -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!   Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!   We're all here to have fun and learn from each other!   ENJOY!
    • By poisson-myfish
      So I have some less powerful hardware, that's why I'm installing High Sierra in 2020. Anyway, I'm trying to boot from the USB and I get the following errors:
      00:000 00:000 OCB: Missing DMG signature, aborting 00:585 00:585 OCB: LoadImage failed - Unsupported That's it. The logs begin and end there. The rest of the file is zeroes.

      Bootloader: OpenCore 0.5.9 Release
      Drivers:
      HfsPlus.efi
      OpenRuntime.efi

      Kexts:
      AppleALC.kext
      Lilu.kext
      RealtekRTL8111.kext
      SMCBatteryManager.kext
      SMCLightSensor.kext
      SMCProcessor.kext
      SMCSuperIO.kext
      VirtualSMC.kext
      WhateverGreen.kext

      ACPI:
      SSDT-EC.aml
      SSDT-HPET.aml
      SSDT-PLUG.aml
      Note: I used SSDTTime to make the DSDT dumps for this exact computer

      Hardware:
      Intel Core i3 (Haswell)
      An Intel VGA-Compatible Haswell iGPU
      An nVidia Geforce 920m GPU (part of the reason for installing High Sierra)
      USB: Intel 8 Series USB xHCI HC
      SATA: Intel 8 series SATA Controller

      If you need more details, here's my laptop https://www.asus.com/Laptops/X540LJ/ . I have the 512GB version with 4GB of RAM

      I found a lot of forum posts about people having the same error, except nothing solved mine. Also, I haven't found anything online about the error with the Missing DMG Signature.

      EDIT: If anybody needs my config.plist, feel free to ask for it and I'll happily post it
    • By ThomasMattOnline
      Hello Everyone,

      Trying to get Hardware Acceleration working on my Hackintosh (HEVC Support) however I am such a noob, OpenCore is very new to me and would love some support.
      I have included screenshots and the EFI that is currently working on my System, I have USB 2 & 3.0 all working, however, the only thing I can fault is my GPU not being hardware acceleration enabled.

      Final Cut Pro X - Recognises GPU
      VideoProc - Doesn't recognise anything.

      (I am running the latest version of OpenCore 0.5.9)

      Things I've tried: I tried following the post https://www.tonymacx86.com/threads/catalina-10-15-2-update-lost-hevc-h265-acceleration.288563/ - No Luck
      I have also tried: https://forums.macrumors.com/threads/activate-amd-hardware-acceleration.2180095/page-53?post=28255048#post-28255048 - No luck either!

      My friend online tells me I shouldn't need such Kext as he has the same build as me but when I load his EFI on my system it boots with no USB 2 or 3.0 (I'm keeping his EFI off here as I've uploaded mine.)

      Please note: I appreciate all (any) pieces of advice and please do bear in mind that I am a noob and may need whatever you say simplifying as I can get easily confused.


      config.plist

×
