Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Ho trovato questa guida di mat7733 che in svariati casi ha fatto si che si risolvessero i problemi relativi alla gestione delle USB in El Capitan. Se qualcuno mi aiuta a metterla in pratica faccio volentieri da cavia. Required files. RehabMan's version of MaciASL - https://bitbucket.org/RehabMan/os-x-...atic/downloadsFakePCIID.kext and FakePCIID_XHCIMux.kext - https://bitbucket.org/RehabMan/os-x-...i-id/downloadsKext Wizard - http://www.insanelymac.com/forum/top...ller-and-more/First of make sure that XHCI is set to smart auto EHCI Handoff and XHCI Handoff are set to enabled in the BIOS. mines F8.Then you need the patch for _OSI -> XOSI from the BRIX config.plist:https://github.com/RehabMan/Gigabyte-BRIX-s-DSDT-Patch (config.plist/ACPI/DSDT/Patches, first entry).Basically in Clover Configurator you need to open your config.plist and under the ACPI section you need to add a DSDT Patch.1. click the little + icon on the right2. for comment put change _OSI to XOSI3. for find* [HEX] put 5F4F53494. for Replace* [HEX] put 584F5349Whilst in Clover onfigurator turn of clover auto fixes for USBacpi - FixUSB (untick them)devices - USB (untick them)and rt Variables - booterconfig 0x28 and CsrActiveConfig 0x67Save your config.plist and reboot your hack.Than open RehabMan's version of MaciASL and change the compiler options to ACPI 5.0 and then select file - new. You should have a blank window.Paste the code below into it, Save As SSDT-XOSI.aml, format: "ACPI Machine Language Binary", place in ACPI/patched in the clover folder on your EFI partition. Code:DefinitionBlock ("SSDT-XOSI.aml", "SSDT", 1, "hack", "hack", 0x00003000){// All _OSI calls in DSDT are routed to XOSI...// XOSI simulates "Windows 2012" (which is Windows 8)// Note: According to ACPI spec, _OSI("Windows") must also return true// Also, it should return true for all previous versions of Windows.Method(XOSI, 1){// simulation targets// source: (google 'Microsoft Windows _OSI')// http://download.microsoft.com/download/7/E/7/7E7662CF-CBEA-470B-A97E-CE7CE0D98DC2/WinACPI_OSI.docxName(WINV, Package(){"Windows", // generic Windows query"Windows 2001", // Windows XP"Windows 2001 SP2", // Windows XP SP2"Windows 2006", // Windows Vista"Windows 2006 SP1", // Windows Vista SP1"Windows 2009", // Windows 7/Windows Server 2008 R2"Windows 2012", // Windows 8})Return (LNotEqual(Match(WINV, MEQ, Arg0, MTR, 0, 0), Ones))}}//EOF Then using Kext wizard install FakePCIID.kext and FakePCIID_XHCIMux.kext and reboot your hack, on one attempt here my keyboard and mouse stopped working straight away so i just reset using the reset button on the case.Hopefully you will now have USB working correctly. Check by inserting a USB3 drive and open system report and see if it shows up under the USB3 bus, also check a USB2 device in the USB3 ports.Like I said before this works for me, it may or may not work for you. I'm by no means a expert but I feel I have learned a fair bit from RehabMan in the last week, so I'll try and help if I can.PS, I found it useful to enable screen sharing, so, if your keyboard and or mouse stops working from messing around with the USB ports, you could still control your hack from another mac. Link to comment Share on other sites More sharing options...
Jolly Posted October 7, 2015 Share Posted October 7, 2015 Ho trovato questa guida di mat7733 che in svariati casi ha fatto si che si risolvessero i problemi relativi alla gestione delle USB in El Capitan. Se qualcuno mi aiuta a metterla in pratica faccio volentieri da cavia. Extreme devi passare il tuo config per configurarlo. Ti passo quello che ho fatto fino adesso Guida mat7733.zip 1 Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Grazie Jolly, prima di passare a testare quello che gentilmente mi hai preparato, ti devo dire che ho provato a mettere in pratica da me quella guida - ma non essendo del mestiere avrò senz'altro sbagliato qualcosa - e c'è una novita importante. Adesso infatti mi vengono viste le usb 2 e anche il mio toshiba disco esterno viene visto: ecco uno screen. Comunque non mi fido di ciò che ho fatto io e adesso utilizzo i tuoi file. Attendo il tuo config plist così provo tutto insieme. Ok? Grazie! Nel frattempo ti allego il mio config plist. config.plist.zip Link to comment Share on other sites More sharing options...
Jolly Posted October 7, 2015 Share Posted October 7, 2015 Eccolo qua, nel tuo avevi lasciato USB inject e non avevi settato le RT-Variables. Rifai la procedura per installare i due kext, ma usa questo programma. Guarda il video per sicurezza ma è semplice ed efficace. http://www.insanelymac.com/forum/files/file/397-easykext-utility-for-el-capitan-kext-installer/ config.plist 2.zip 1 Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Mi dovresti allegare il config.plist Jolly.... Link to comment Share on other sites More sharing options...
Jolly Posted October 7, 2015 Share Posted October 7, 2015 Ma è allegato 1 Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Si si ok. Caricato tutto: sia il tuo configplist che il tuo SSDT che i kext: installati con l'utility che mi hai passato. Possiamo fare una prova del 9 per verificare che adesso sia tutto apposto? Link to comment Share on other sites More sharing options...
Jolly Posted October 7, 2015 Share Posted October 7, 2015 Sei tu che devi dire se funzionano le usb Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 A me sembra di si: guarda questo screen: Link to comment Share on other sites More sharing options...
Jolly Posted October 7, 2015 Share Posted October 7, 2015 A me sembra a posto. Però penso che per vedere se lo è veramente si possa fare solo guardando uno ioreg. Io non ci capisco molto veramente ma se qualcuno potesse darci una occhiata. 1 Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Ok subito lo faccio. Nel frattempo, non rimane che sistemare lo sleep. Apro un nuovo topic ad hoc o proseguiamo qui? Se hai pazienza e mi fai vedere come diavolo si mette answered al topic perchè io ancora non ci riesco... Ovviamente, ti ringrazio tantissimo per il fondamentale supporto! Link to comment Share on other sites More sharing options...

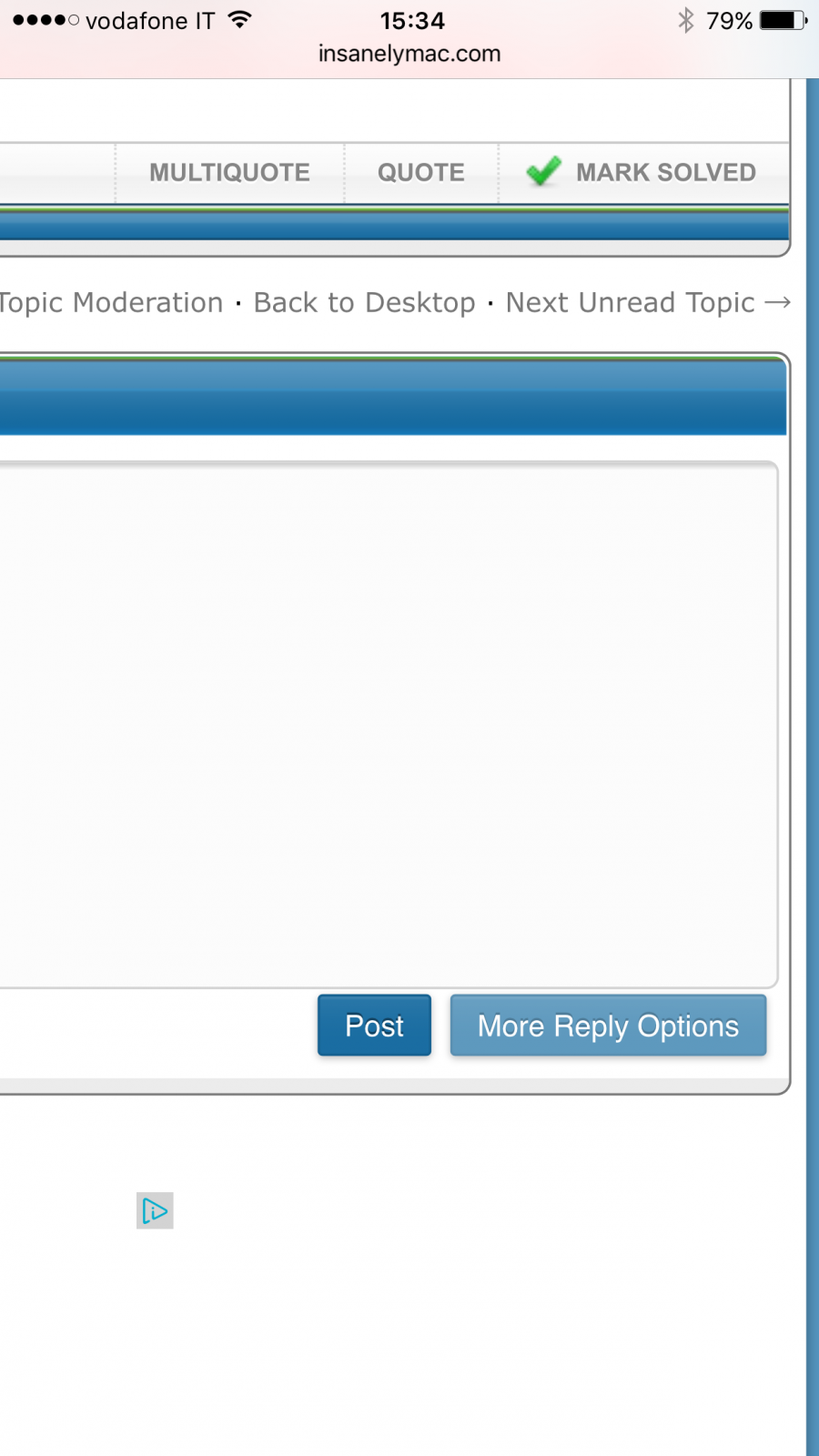

Jolly Posted October 7, 2015 Share Posted October 7, 2015 Edit: scusa ma il resto, audio, trim, sleep funzionano? Cerca il pulsante "mark solved " Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Trim è d averificare...come lo verifico? Audio Ok Sleep non funziona Link to comment Share on other sites More sharing options...
Jolly Posted October 7, 2015 Share Posted October 7, 2015 Hai fatto la procedura che ti avevo consigliato per il trim? Per vedere se funziona basta che vai in informazioni di sistema / Sata clicchi sulla ssd e nelle varie scritte cerca il trim 1 Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Controllato. Come vedi da screen, trim è OK: Jolly ho un problemino: modificando il config plist di clover con l'aggiunta delle 2 stringhe in rtvariables adesso el capitan mi si avvia col SIP attivo e alcuni programmi non funzionano. Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Jolly ho un problemino: modificando il config plist di clover con l'aggiunta delle 2 stringhe in rtvariables adesso el capitan mi si avvia col SIP attivo e alcuni programmi non funzionano. Risolto: ho tolto dal config plist le due stringhe sopra ovvero "booterConfig" e "CsrActiveConfig"e riavviato. Le usb continuano a funzionare perfettamente e il SIP è tornato DISATTIVO. Confermo comunque che le USB funzionano a dovere. Sia le 3.0 che le 2.0. Non capisco quindi l'utilità, ai fini del funzionamento delle porte USB, dei due settaggi aggiuntivi - come da guida - in rtvariables. Se adesso riusciamo a fixare lo sleep siamo apposto! Link to comment Share on other sites More sharing options...
magnifico Posted October 7, 2015 Share Posted October 7, 2015 Risolto: ho tolto dal config plist le due stringhe sopra ovvero "booterConfig" e "CsrActiveConfig"e riavviato. Le usb continuano a funzionare perfettamente e il SIP è tornato DISATTIVO. Confermo comunque che le USB funzionano a dovere. Sia le 3.0 che le 2.0. Non capisco quindi l'utilità, ai fini del funzionamento delle porte USB, dei due settaggi aggiuntivi - come da guida - in rtvariables. Se adesso riusciamo a fixare lo sleep siamo apposto! Perchè hai tolto quelle stringhe? Rimettile con questi valori 0x28 0x67 o 0x77 ( sip Disattivato ) 0x00 Sip Abilitato 1 Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Perchè hai tolto quelle stringhe? Rimettile con questi valori 0x28 0x67 o 0x77 ( sip Disattivato ) 0x00 Sip Abilitato Si confermo: le ho rimesse con 0x28 e 0x67 e il SIP risulta disattivo. Grazie! 1 Link to comment Share on other sites More sharing options...
magnifico Posted October 7, 2015 Share Posted October 7, 2015 Per lo sleep cerca in console wake reason e posta il risultato Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 Per lo sleep cerca in console Reason Darkwake e posta il risultato Non mi da nessun risultato. Link to comment Share on other sites More sharing options...
magnifico Posted October 7, 2015 Share Posted October 7, 2015 Non mi da nessun risultato. scusa reason Wake oppure copia ed incolla nel terminale syslog |grep -i "Wake reason" Link to comment Share on other sites More sharing options...
Extreme™ Posted October 7, 2015 Author Share Posted October 7, 2015 scusa reason Wake oppure copia ed incolla nel terminale syslog |grep -i "Wake reason" reason Wake non produce ugualmente alcun risultato. Quel comando a terminale è innocuo? Perchè quando non sò di cosa si tratta esattamente ho remore a eseguire comandi da terminale. Link to comment Share on other sites More sharing options...
Ciro82 Posted October 7, 2015 Share Posted October 7, 2015 Risolto: ho tolto dal config plist le due stringhe sopra ovvero "booterConfig" e "CsrActiveConfig"e riavviato. Le usb continuano a funzionare perfettamente e il SIP è tornato DISATTIVO. Confermo comunque che le USB funzionano a dovere. Sia le 3.0 che le 2.0. Non capisco quindi l'utilità, ai fini del funzionamento delle porte USB, dei due settaggi aggiuntivi - come da guida - in rtvariables. Se adesso riusciamo a fixare lo sleep siamo apposto! Hai testato la velocità delle usb 3.0? Fai un test con una chiavetta USB 3.0 oppure un HDD USB 3.0 con blackmagic disk speed o altro benchmark, e guarda se superi almeno i 100-150 Mb/s... 1 Link to comment Share on other sites More sharing options...
magnifico Posted October 7, 2015 Share Posted October 7, 2015 reason Wake non produce ugualmente alcun risultato. Quel comando a terminale è innocuo? Perchè quando non sò di cosa si tratta esattamente ho remore a eseguire comandi da terminale. Certo che è innocuo. ..non mi permetterei. ..sono comandi da terminale APPLE Hai testato la velocità delle usb 3.0? Fai un test con una chiavetta USB 3.0 oppure un HDD USB 3.0 con blackmagic disk speed o altro benchmark, e guarda se superi almeno i 100-150 Mb/s... Ciro scusa io ho pendrive 3.0 ma non arriva a quella banda Link to comment Share on other sites More sharing options...
gengik84 Posted October 7, 2015 Share Posted October 7, 2015 Ciro scusa io ho pendrive 3.0 ma non arriva a quella banda La porta usb 3.0 lavora come una 2.0 Link to comment Share on other sites More sharing options...
