Power management for Sandy/Ivy Bridge/Haswell CPUs

carbo178 · November 2, 2015

You can't get 3.90 GHz?

Send me your IOReg.

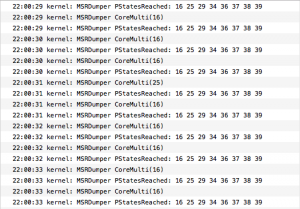

I always see the step 39, I don't see the intermediate steps although the graph of Intel Power Gadgets marks several steps that are not recorded in the report; you can see the results in the link of the previous post

Allan · November 2, 2015

Yeah you have good results:

So, what is the next step?

Because in my point of view for Ivy CPU, all the things that you show me is ok: X86PlatformPlugin loaded, min and max states, config.plist ok

carbo178 · November 2, 2015

Yes, but this result is obtained forcing -xcpm.

I think the pm works well also without -xcpm, but in this case i don't see the intermediate steps with AppleIntelInfo, nor with msrdumper, only with Intel Power Gadget.

For me the question is solved

Franckhoeger · November 29, 2015

Hi folks,

Is there any chance to see an update of the first post on El Capitan ?

Thanks,

Allan · November 29, 2015

You have troubles to use this steps on El Capitan?

Franckhoeger · November 30, 2015

Hi Allan,

I tried to fixe the waking up issue : sometime it works, sometime not while Apple USB Keyboard and Mouse are supplied.

It looks like that hibernate doesn't work.

DSDT and SSDT are in their right folder.

When I tried to patch AppleIntelCPUPowerManagement, I got :

arch: x86_64

wrmsr found: 0

wrmsr ignored: 0

Sorry for my bad english,

Allan · November 30, 2015

Hmmm, ok.

Post all your hardware specs please.

Franckhoeger · November 30, 2015

There are details :

- Gigabyte B85M-D3H

- i5-4690K

- Intel HD Graphics 4600 in HDMI (I don't need Audio via HDMI because my monitor doesn't have speakers)

- Realtek ALC892 codec (I got system reboot or KP while playing audio files via Airplay)

- Realtek GbE LAN chip (10/100/1000 Mbit)

- TRENDnet Wireless N 150 Mbps Micro USB 2.0 Adapter, TEW-648UBM

DSDT file is from artur-pt of ovarial.com

SSDT is made with ssdtPRGen.sh (-TURBO 3900)

Both aml files are in /EFI/CLOVER/ACPI/patched

I tried to wake up my unit from Apple Keyboard and Mouse on USB2 then on USB3 ports : same issue

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<true/>
			<key>Fixes</key>
			<dict>
				<key>FIX_INTELGFX_100000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>EnableC2</key>
			<true/>
			<key>EnableC4</key>
			<true/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC7</key>
			<true/>
			<key>Generate</key>
			<true/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>arch=x86_64 dart=0 -xcpm kext-dev-mode=1 UseKernelCache=Yes</string>
		<key>CustomLogo</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>DefaultLoader</key>
		<string>BOOTX64.efi</string>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>Detect</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>fr:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>clover-minimal</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/03/2013</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM143.88Z.0118.B00.1309031249</string>
		<key>Board-ID</key>
		<string>Mac-77EB7D7DAF985301</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>3SB2JASA2J0RI1Q0Z</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>iMac14,3</string>
		<key>SerialNumber</key>
		<string>C02L6BTKF8J8</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
	</dict>
</dict>
</plist>

Allan · November 30, 2015

Ok, search for Wake Reason in Terminal, and put the results here:

syslog |grep -i "Wake reason"

Franckhoeger · November 30, 2015

At 21:35 I put my unit in sleep mode but it cannot wake up. I had to restart

syslog |grep -i "Wake reason"

I didn't got anything.

syslog |grep -i "sleep"

Nov 30 20:20:30

iMeow WindowServer[161] <Warning>: handle_will_sleep_auth_and_shield_windows: Deferring.
Nov 30 20:50:51 localhost kernel[0] <Notice>: ACPI: sleep states S3 S4 S5
Nov 30 21:15:07 localhost kernel[0] <Notice>: ACPI: sleep states S3 S4 S5
Nov 30 21:35:02 iMeow AirPlayUIAgent[328] <Notice>: 2015-11-30 09:35:02.377051 PM [AirPlayUIAgent] BecomingInactive: NSWorkspaceWillSleepNotification
Nov 30 21:35:02 iMeow WindowServer[156] <Error>: no sleep images for WillPowerOffWithImages
Nov 30 21:35:20 iMeow kernel[0] <Notice>: Opened file /var/log/SleepWakeStacks.bin, size 172032, extents 1, maxio 2000000 ssd 1
Nov 30 21:38:29 localhost kernel[0] <Notice>: ACPI: sleep states S3 S4 S5
Nov 30 21:38:29 localhost kernel[0] <Notice>: Sleep failure code 0x00000002 0x14006700

AppleLPC.kext is not loaded

According to this post : http://www.hackintoshosx.com/forums/topic/22874-power-management-for-your-hackintosh/

I need to "patch" my DSDT file, I got the device ID "8C50" but I don't know to patch.

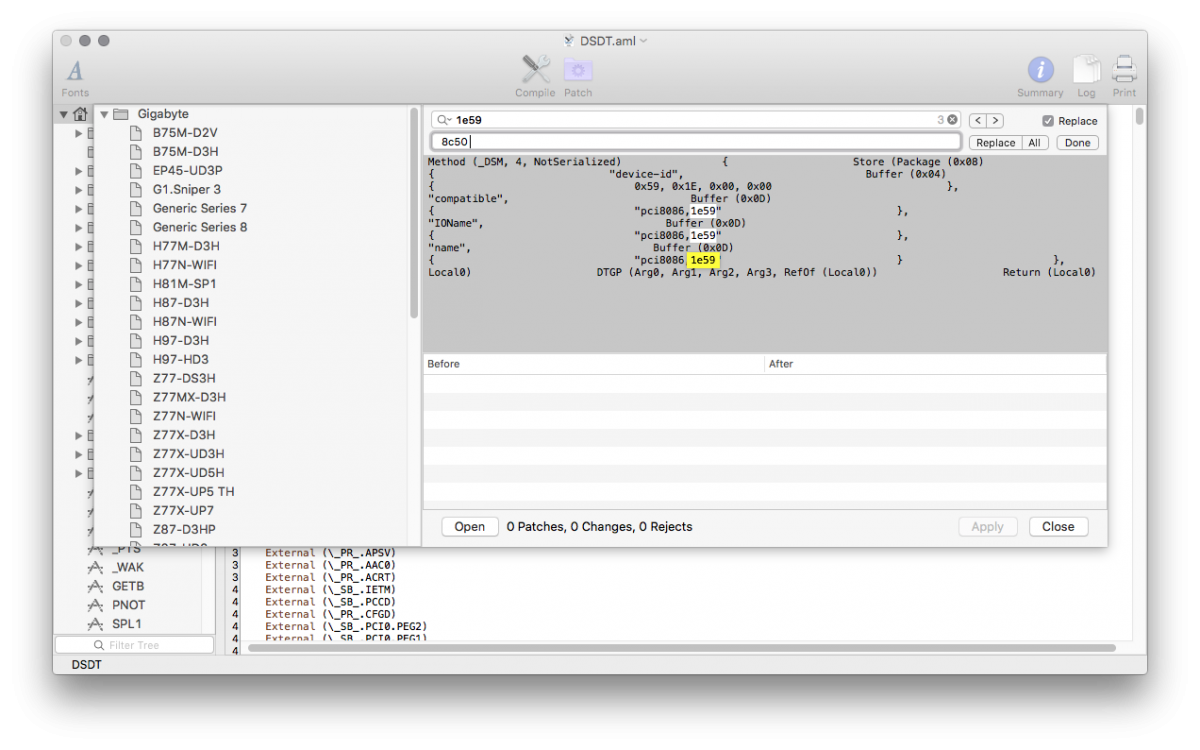

I opened /EFI/CLOVER/ACPI/patched/DSDT.aml file with MaciASL app and attempt to patch.

Allan · November 30, 2015

Put your Hack to sleep, and after that, run this command.

Franckhoeger · November 30, 2015

After a hard reboot.

iMeow:~ book$ syslog |grep -i "Wake reason"

iMeow:~ book$

Allan · November 30, 2015

Strange...

Franckhoeger · November 30, 2015

I used ./iasl -da DSDT.aml in order to get DSDT.dsl file

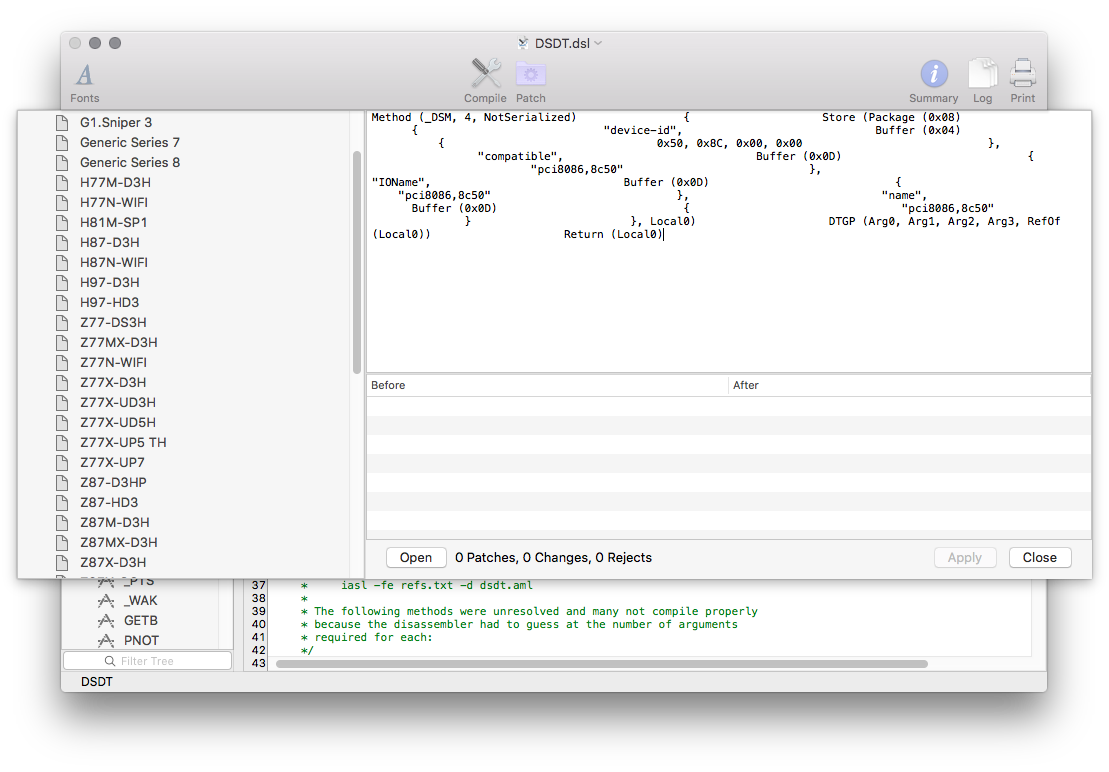

I opened it with MaciASL but I cannot do anything.

Allan · December 1, 2015

Try this: config.plist.zip

And for USB 3, use FakePCIID + FakePCIID_XHCIMux in Clover's folder.

But delete any modified kexts for USB 3, just use what i said above.

Franckhoeger · December 1, 2015

Hello Allan,

I quickly tested your solution this morning, it failed to wake up at the second sleep, I had to hard reboot.

Syslog |grep -i "Wake reason" didn't give any information.

I download the latest FakePCIID + FakePCIID_XHCIMux kexts from there : https://bitbucket.org/RehabMan/os-x-fake-pci-id/downloads

I put them in Clover's folder : /Volumes/EFI/EFI/CLOVER/kexts/10.11, there are FakePCIID + FakePCIID_XHCIMux + NullCPUPowerManagement + FakeSMC

I used your config.plist for Clover,

At the first sleep, I can wake up the unit but at the second test, I cannot.

bootlog.log.txt

Allan · December 1, 2015

Why you use NullCPUPowerManagement? You don't need this.

Clover bootloader and some modified SSDTs it's responsible to take care of your power management.

artur_pt · December 1, 2015

hello

and with nullcpu no proper power management .. and no sleep..

good hack

Franckhoeger · December 1, 2015

Hello, I followed numerous guide that speaks about FakeSMC and NullCPUPowerManagement kexts Clover's folder... I wonder why...

So, by removing NullCPUPowerManagement, I cannot get my unit wake up after more than some minutes of sleep.

@Allan, I follow your guide : http://www.hackintoshosx.com/forums/topic/22874-power-management-for-your-hackintosh/?do=findComment&comment=118500

Should I patch my DSDT with my device-id '8C50' ?

Allan · December 2, 2015

Do you try Clover's injection?

<key>FakeLPC_0020</key>
<true/>

NullCPU is for initial setup, after that you can remove them.

You use Haswell CPU, and using KernelPM in config.plist you don't need anything.

Franckhoeger · December 2, 2015

Yes I did.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<dict>
				<key>ATI</key>
				<false/>
				<key>Firewire</key>
				<false/>
				<key>HDA</key>
				<false/>
				<key>HDMI</key>
				<false/>
				<key>IDE</key>
				<false/>
				<key>IntelGFX</key>
				<false/>
				<key>LAN</key>
				<false/>
				<key>LPC</key>
				<true/>
				<key>NVidia</key>
				<false/>
				<key>SATA</key>
				<false/>
				<key>SmBUS</key>
				<false/>
				<key>USB</key>
				<false/>
				<key>WIFI</key>
				<false/>
			</dict>
			<key>Fixes</key>
			<dict>
				<key>FakeLPC_0020</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>dart=0 kext-dev-mode=1</string>
		<key>CustomLogo</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>DefaultVolume</key>
		<string>MacHDD</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>-1</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>fr:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>clover-minimal</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
		<key>ig-platform-id</key>
		<string>0x0D220003</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/03/2013</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM143.88Z.0118.B00.1309031249</string>
		<key>Board-ID</key>
		<string>Mac-77EB7D7DAF985301</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>3SB2JASA2J0RI1Q0Z</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>iMac14,3</string>
		<key>SerialNumber</key>
		<string>C02L6BTKF8J8</string>
		<key>Trust</key>
		<true/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
	</dict>
</dict>
</plist>

Allan · December 2, 2015

You enable LPC twice, use just one patch!

<key>DropOEM_DSM</key>
<dict>
      <key>LPC</key>
      <true/>

<key>Fixes</key>
<dict>
<key>FakeLPC_0020</key>
<true/>

And moreover, download DPCIManager go to PCIList section and take a screenshot and put here.

Extract your DSDT (without patches) and upload here too.

Franckhoeger · December 2, 2015

Hi Allan,

There is an archive of my 3 files as requested, config.plist, PCIList and DSDT.aml (origin).

I hope it will help,

Franck

Archive.zip

Allan · December 2, 2015

Test this: Archive.zip

Franckhoeger · December 3, 2015

I put your config.plist in /EFI/CLOVER

and the DSDT.aml in /EFI/CLOVER/ACPI/patched (I deleted the old one)

I used " ./ssdtPRGen.sh -TURBO 3900 " to generate a new SSDT.aml file

When I put unit in sleep, USB devices like Apple Keyboard or Mouse are no longer supplied - maybe - that's why I cannot wake up the unit.

Actually, I got the unit reboot in Clover boot loader.

Power management for Sandy/Ivy Bridge/Haswell CPUs

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
