Hi toleda,



Can you please have a look at my problem?

I've got a Fenvi FV-T919(BCM94360CD) installed on my desktop. BCM94360CD can support native handoff, airdrop. But there is an issue-If wake up from sleep, the Wi-Fi can connect to router(sometimes with a exclamation mark), but actually it can not access the Internet, can't open any websites. I don't know why this happens. Is that because of the country code? I live in New Zealand. I have read through your topic, still have no ideas to locate. Here attached my ioreg file.

Chenglong’s iMac-After graphic driver.zip

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

Anyone who recommend AR9285(+bt) combocard for snow leopard?

See Post #1/Atheros Device_IDs

WiFi supported with injection.

BT not supported, mixed results with 3rd party Atheros/BT solutions

Suggestion: WiFi/AR9285 and BT/Broadcom USB (GYLME)

  • Like 1
Link to comment
Share on other sites
  • 2 weeks later...
maleorderbride
maleorderbride
Posted
Posted

Hi toleda,



Can you please have a look at my problem?

I've got a Fenvi FV-T919(BCM94360CD) installed on my desktop. BCM94360CD can support native handoff, airdrop. But there is an issue-If wake up from sleep, the Wi-Fi can connect to router(sometimes with a exclamation mark), but actually it can not access the Internet, can't open any websites. I don't know why this happens. Is that because of the country code? I live in New Zealand. I have read through your topic, still have no ideas to locate. Here attached my ioreg file.



I am having this same problem with a BCM94360CD as well. edit: I guess it is a BCM943602CS actually. Still a native chip used in the MBP 12,1.



It shows as US/FCC as it should since I live in the US. I have no kexts, ACPI changes, Clover patches, or anything else that should be affecting WiFi.



I am on the latest version of 10.12.6 with Clover, on an ASRock X99 Pro4 (latest BIOS), and a Xeon 4-core CPU, and a GT 740.



Any ideas?

Link to comment
Share on other sites
maleorderbride
maleorderbride
Posted
Posted

With info provided, no.  Attach requested files, Post #1/Problem Reporting.

Hm, I guess I hit attach on the files but not also "Submit."



Anyway, I made a new keychain and ran first aid. The problems appears to be resolved. I do not think it was WiFi related per se.



Thank you for your time.

Link to comment
Share on other sites
  • 2 weeks later...
lilins
lilins
Posted
Posted

Hi, I recently bought a DW1830, to change my actual DW1560, wifi work oob, bt appear if i put these 2 kext: BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext

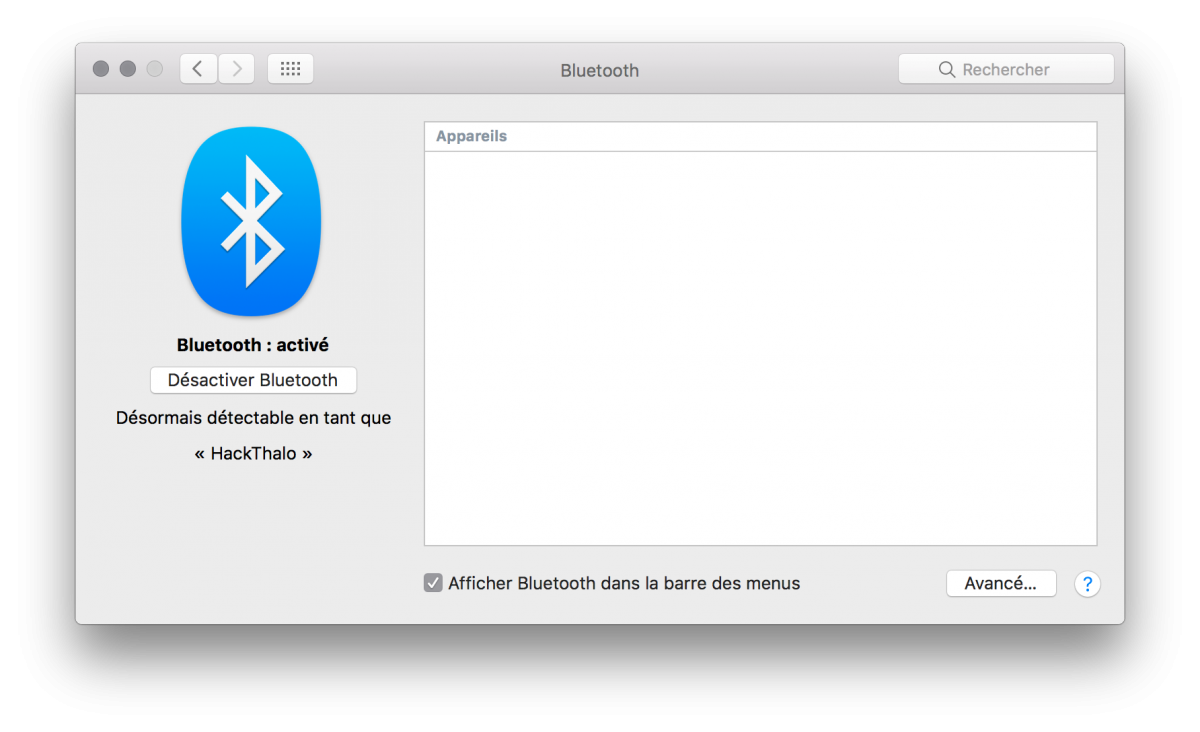

BT is on, i see it on system profiler in the menu bar and in system prefs BUT:



it is not seen by other devices



it is not scanning.



has anyone seen something like this? what could i have missed?

Link to comment
Share on other sites
StevenHe
StevenHe
Posted
Posted
I have a BCM94532Z. I'm running into the issue that my wifi is visible, but I can't enable it (nothing happens when clicking turn on) and Bluetooth is just missing altogether.

I tried pretty much every method and patch I could find, but my current setup is:
  • Kext: FakePCIID_Broadcom_WiFi.kext, FakePCIID.kext, BrcmPatchRAM2.kext, BrcmFirmwareRepo.kext in /L/E (also tried /S/L/E and EFI other)
  • fcvo patch in config.plist (see attachment)

I'm pretty much out of things to try, and hope somebody can help. I attached all files requested in post #1, except for Airport console logs as there were none.



files.zip

Link to comment
Share on other sites
lilins
lilins
Posted
Posted

Problem Reporting (post to this thread with attachments)
1) Description of WiFi problem



Bluetooth issue - BT is on, i see it on system profiler in the menu bar and in system prefs BUT: it is not seen by other devices AND it is not scanning.

2)OS X version/motherboard model/BIOS version/processor/graphics



sierra 10.12.6

ZOTAC EN1070K (cpu kaby lake i5 7500T, chipset Intel 100 Series, NVIDIA, Nvidia, bios latest version)

3)Procedure/Guide Used



BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext i followed procedure for bluetooth Broadcom 20703 0A5C:6410



all files in zip (clover version)

zotacEN1070K.zip

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

running into the issue that my wifi is visible, but I can't enable it (nothing happens when clicking turn on) and Bluetooth is just missing altogether.

Motherboard? Looks like your re using an adapter, specifics?

Link to comment
Share on other sites
lilins
lilins
Posted
Posted

it's all in one PC box, motherboard is specific i assume. here are official specs: i don't know more than that:



https://www.zotac.com/us/product/mini_pcs/magnus-en1070k



on motherboard there are 1sata, 1 m.2 and 1 ngff with original intel wifi/bt card but wifi is not recognized, so i bought dw1830 reported to work almost oob. wifi is oob, but not bt.





Computing System

Processor Intel Core i5-7500T (quad-core, 2.7 GHz, up to 3.3 GHz)

Chipset Intel 100 Series, NVIDIA

System Memory 2 x DDR4-2400/2133 SODIMM Slots (up to 32GB)

Graphics

Graphics Engine GeForce® GTX 1070 8GB GDDR5 256-bit

Video Output 2 x HDMI 2.0

2 x DisplayPort 1.3

Storage

Hard Drive 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay

Mass Storage N/A

Optical Drive N/A

mSATA None

M.2 1 x M.2 PCIEx4 / SATA SSD slot (22/42,22/60,22/80)

Card Reader 3-in-1 (SD/SDHC/SDXC)

I/O Ports

Audio Microphone, Headphone

USB Port 2 x USB 3.0

1 x USB 3.1 Type-C

1 x USB 3.1

2x USB 2.0

LAN Dual Gigabit LAN

Antenna 1 x WiFI SMA connetor

Wifi 802.11ac/b/g/n

Bluetooth Bluetooth 4.2

Legacy I/O None

CIR Infrared Port Yes

Thunderbolt None

USB

IDE

VGA

sorry wasn't for me but i thought i didn't gave you all the specs

Link to comment
Share on other sites
lilins
lilins
Posted
Posted

antenna is present for bt. no issue on there.



IOReg does not show bcrm kexts, where are the kexts installed? Antennas?


BT is not present, hardware problem.

BT should be present oob on this card?

Link to comment
Share on other sites
toleda
toleda
Posted
  • Author
Posted

my wifi is visible, but I can't enable it

Antennas?

How did you name ARP0?

IOReg/USB is not working or not configured

BT should be present oob on this card?

My mistake, BT shows as BCM2045, should be BCM2070

2045 is not BT4

Link to comment
Share on other sites
lilins
lilins
Posted
Posted

so that means DW1830 has 2 versions, 1 with BT4 and other with an older generation of BT?



or does that mean, the system doesn't recognize the bt chipset as it should be?



http://wikidevi.com/wiki/Dell_Wireless_1830_(DW1830)



"Dell Wireless 1830 (DW1830) - Broadcom BCM43602
BT: Broadcom BCM20703A1 (DW1830 Bluetooth 4.1 LE)
Foxconn U40H039.00 OUI:60:6D:C7 (image) (vs)"



i checked on rehabman depository for the cards firmware list and 1830 is listed as:

[0a5c:6410] 20703A1 RAM download - DW1830 43602 (Dell Wireless 1830 Bluetooth 4.1 LE)
BCM20703A1_001.001.005.0214.0422 (v4518)



http://github.com/RehabMan/OS-X-BrcmPatchRAM/blob/master/firmwares/firmwares.md

Link to comment
Share on other sites
lilins
lilins
Posted
Posted

Hi Hervé! That's what i don't understand, the device id seems good, the DW1830 was bought on ebay as an AC WIFI + 4.1LE BT. for me it seems the good one. and yes i've see that wikidev report also BCM2045A0.

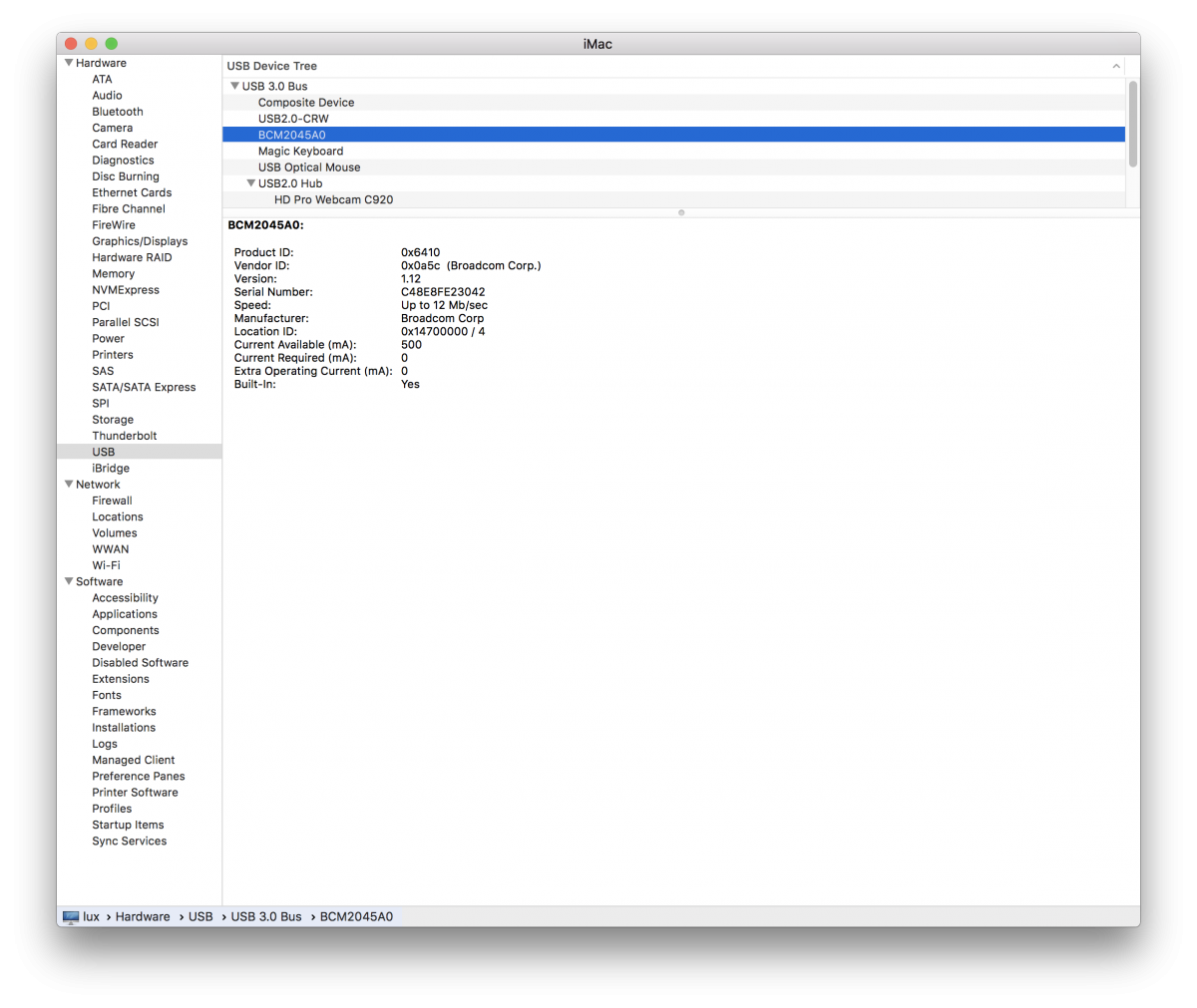

and the issue is: in system profiler, under USB, i have the BT device listed as BCM2045A0

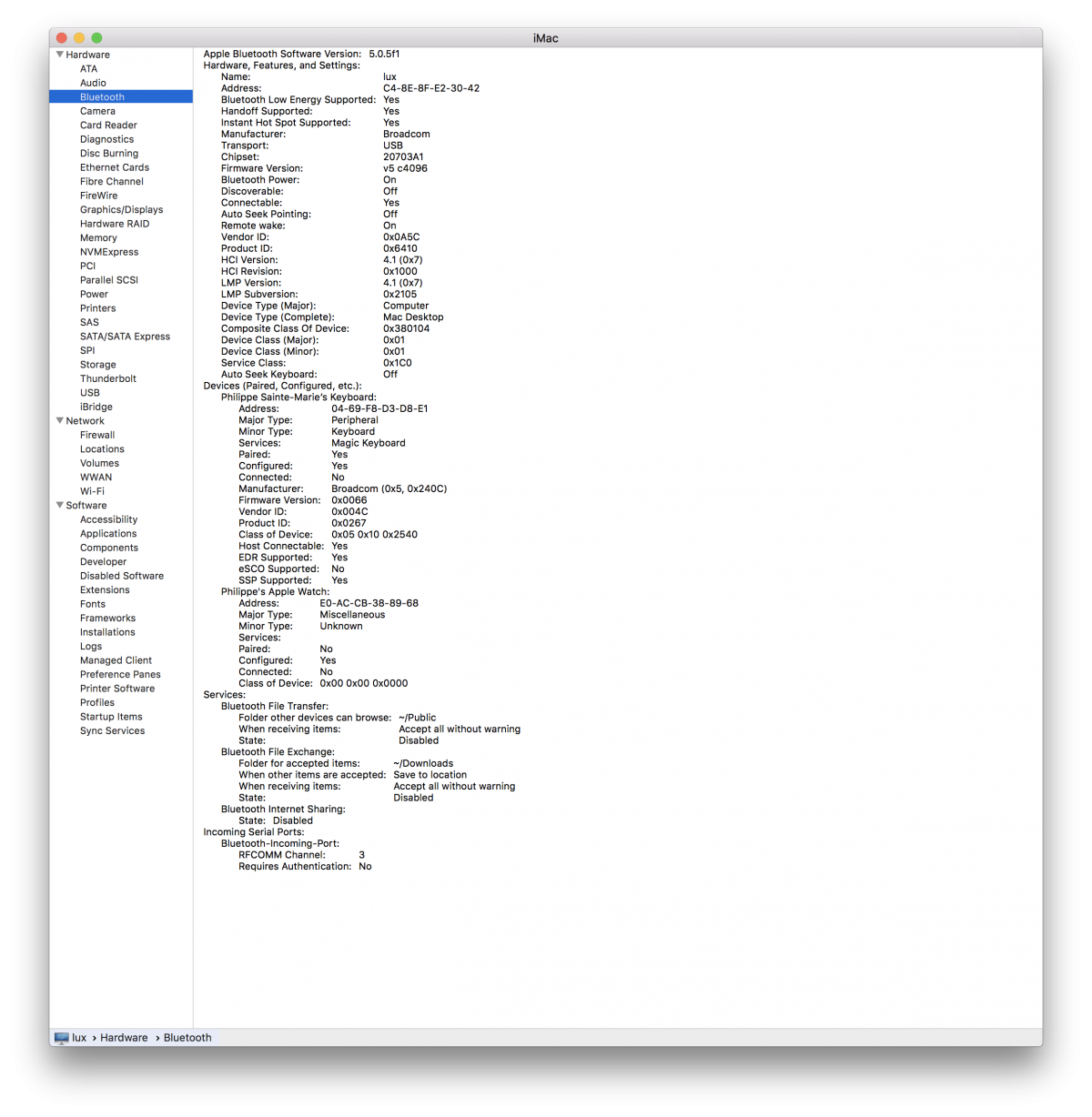

but under BT i have the 20703A1 for chipset.






so. how can i get this one to work? first try the latest FakePCIID kext + the two bcrmpatch?





Link to comment
Share on other sites
lilins
lilins
Posted
Posted

Hi Hervé.



So without the kexts, i see BT device under USB in sysprofiler as BCM2045A0 but no BLUETOOTH available for the system (nothing under bluetooth section of sysprofiler)



here attached are the files you asked for i think



tried your 2 firmware patching method with same issue. with kext bt available but not scanning/pairing



with no kext BT still not visible in sysprofiler except in USB devices as ◊

zotac-bt.zip

Link to comment
Share on other sites
lilins
lilins
Posted
Posted

some news. i tested in another similar unit (ZOTAC EN 1060) the same card. on this one i have windows.

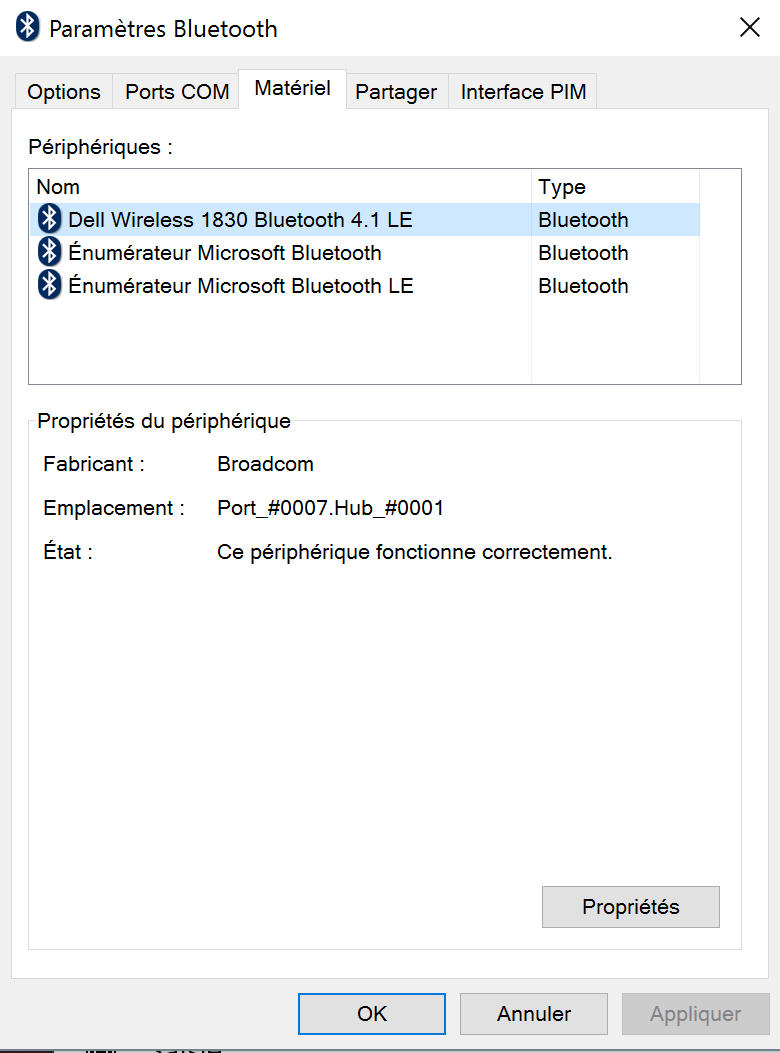

i could check the reading of bt card in the properties and it is the good bt device.






i then searched work from https://github.com/syscl/XPS9350-macOSand got the clover patch and the 2 brcm kext without full success.

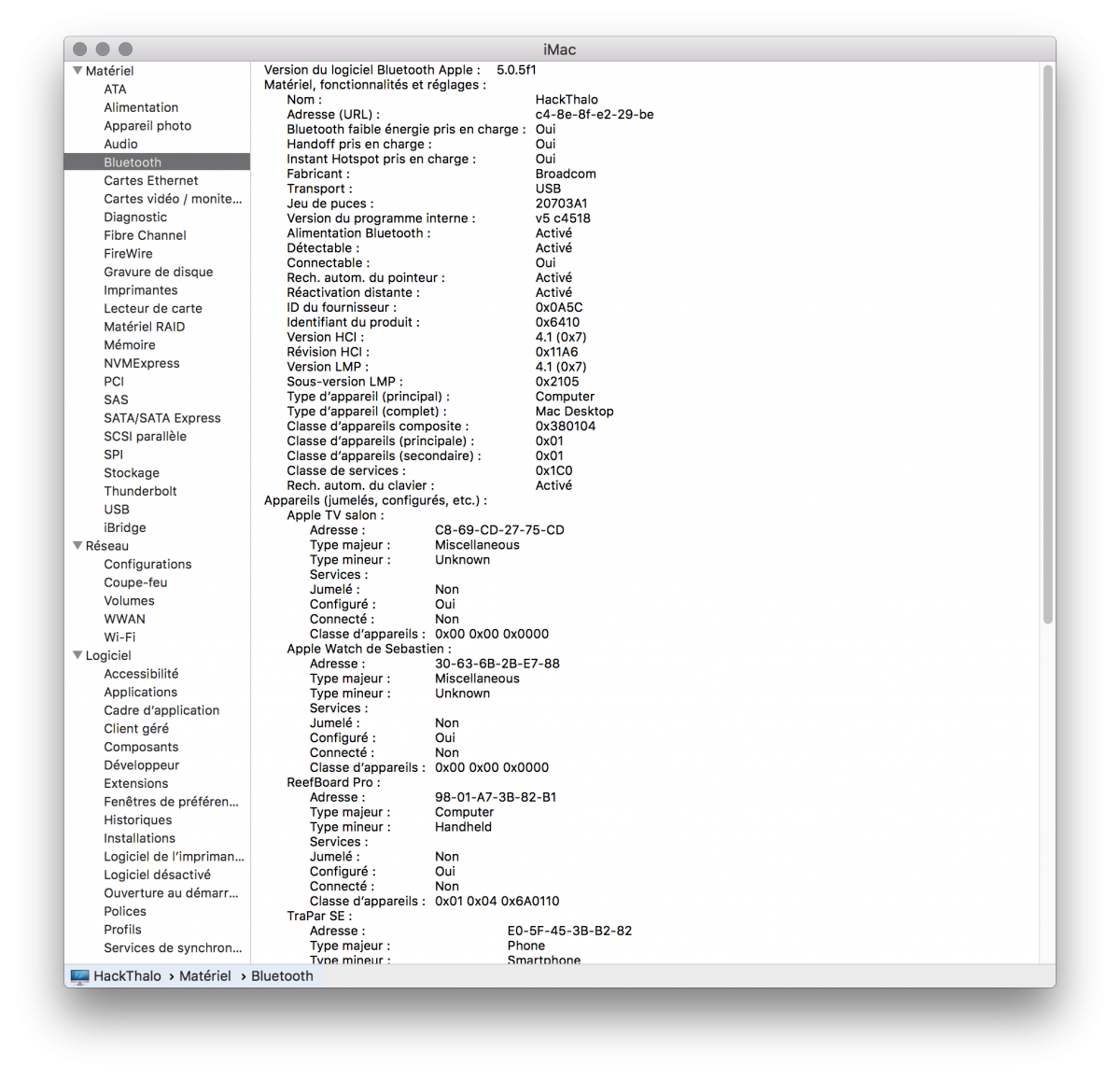

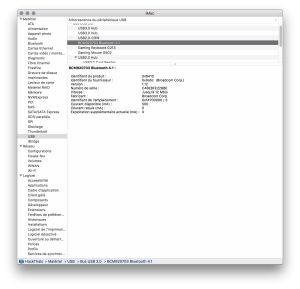

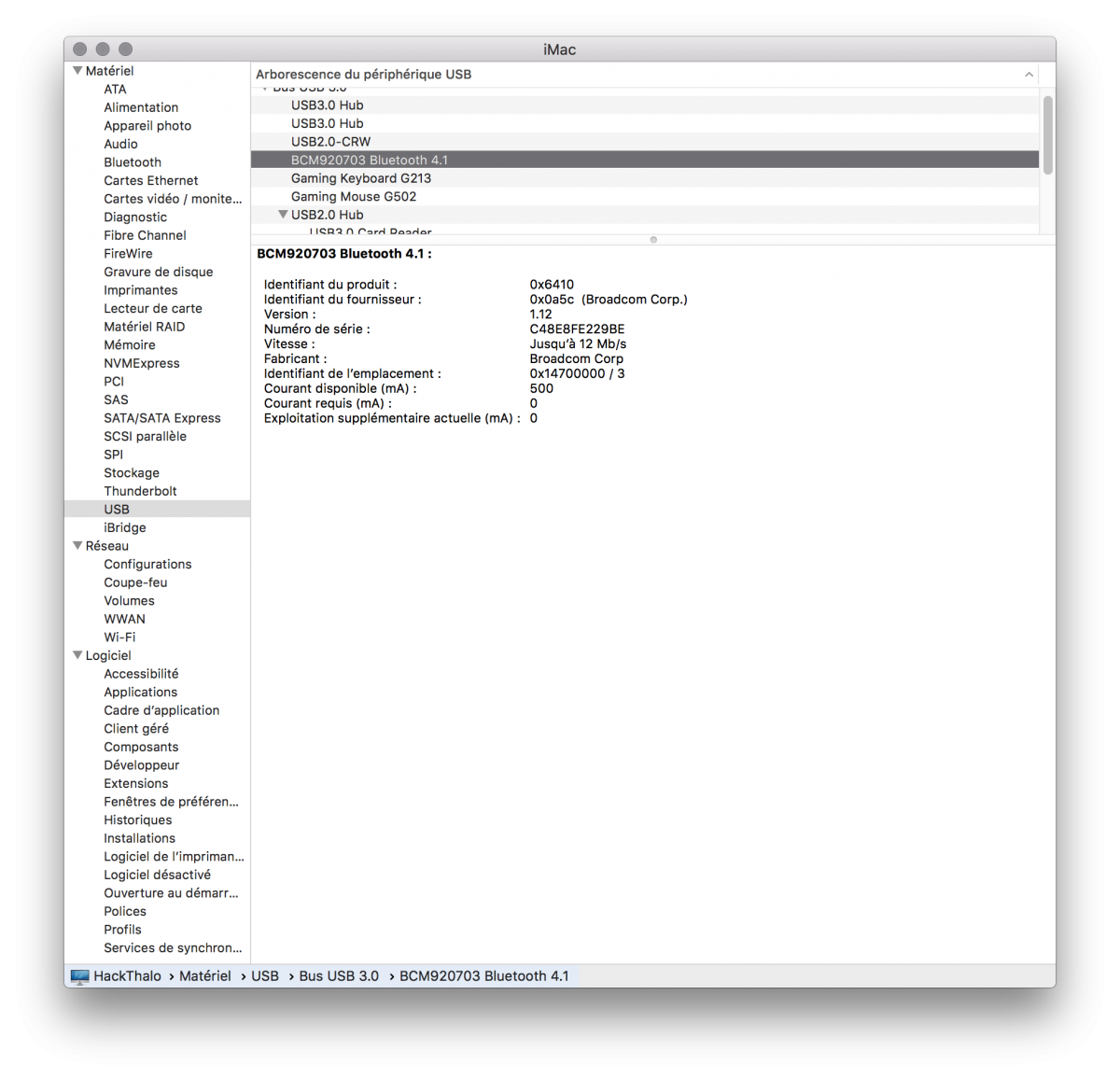

now bt is recognized a 20703 in both bluetooth and usb sections of sysprofiler.









still not scanning though.






i’m going to try mess with the antenna as this card has 3 connecors vs 2 antennas in my Central unit.



Success, the antena order was different than what i read somewhere, bt is J1 not j2



Now i have to try replicate this on the EN1070



Link to comment
