bezna
bezna
Posted
Posted (edited)

@IronManJFF



no filevault enabled



i just checked ssd in my external bay and its all fine.



Bios just dont see hdd. Ive connected dvd with osx instal and it did see that. Thou i coundt boot it as there wose some kind of problem. Maybe i should downgrade bios and see what happends?



and i think i did it right as i did it before when couple of months u helped me set up high sierra.





I manage to go from Clover manager with dvd instaler to the language screen option then all stop and cant do anyting keyboard is non responsive

Edited by bezna
Link to comment
Share on other sites
IronManJFF
IronManJFF
Posted
Posted (edited)

The firmware (whatever version) will not list a APFS partition as boot unless you add it with bcfg.

Can you verify that you have Defaults.plist in fs0:\Efi\Oz\Defaults.plist
Plz provide a directory listing (ls) of all partition... if Clover sees it then it can be found by Ozmosis.


Edited by IronManJFF
Link to comment
Share on other sites
bezna
bezna
Posted
Posted (edited)
14 minutes ago, IronManJFF said:

The firmware (whatever version) will not list a APFS partition as boot unless you add it with bcfg.

Can you verify that you have Defaults.plist in fs0:\Efi\Oz\Defaults.plist
Plz provide a directory listing (ls) of all partition... if Clover sees it then it can be found by Ozmosis.







to be clear.



I had 100% operational high sierra

my computer got water spillage

i got mobo battery out

now cant bot to osx

re-upload bios put everything on default settings in bios.



i would assume i have all nessesery data on my ssd as i didint do anything  to my system data.



i checked

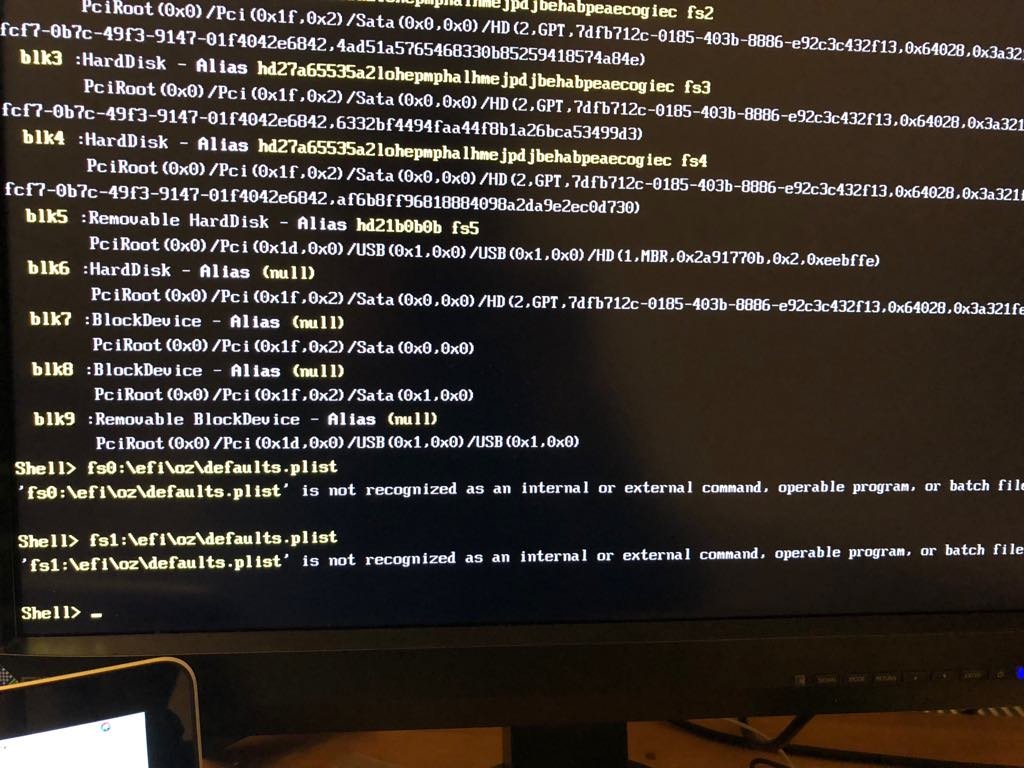

fs0:\Efi\Oz\Defaults.plist

fs1:\Efi\Oz\Defaults.plist



44950845_326214461499440_1336097667893166080_n.thumb.jpg.3414ab88fc32a68e69dffb4d52df5650.jpg

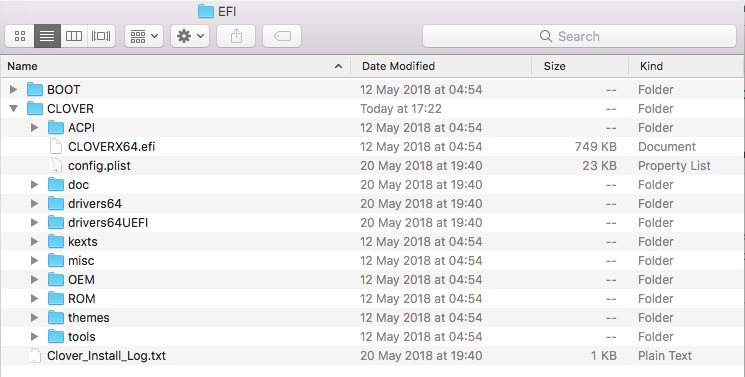

ive checked folders with my ssd on my other laptop and i cant find default.plist












Edited by bezna
Link to comment
Share on other sites
IronManJFF
IronManJFF
Posted
Posted (edited)
51 minutes ago, bezna said:


to be clear.



I had 100% operational high sierra

my computer got water spillage

i got mobo battery out

now cant bot to osx

re-upload bios put everything on default settings in bios.

I can read...



51 minutes ago, bezna said:
    i would assume i have all nessesery data on my ssd as i didint do anything  to my system data.

So would I, if you have installed it exactly the way I had told you



51 minutes ago, bezna said:
i checked

fs0:\Efi\Oz\Defaults.plist

fs1:\Efi\Oz\Defaults.plist

You entered it as a command, it is not a command but a path ..and it should be on FS0:



ive checked folders with my ssd on my other laptop and i cant find default.plist







51 minutes ago, bezna said:

WTF ?? Clover should not even be there... Defaults.plist should be there in the Oz folder



Do this from EFI shell and provide output



fs0:
ls
cd Efi
ls
cd Oz
ls




Edited by IronManJFF
Link to comment
Share on other sites
bezna
bezna
Posted
Posted (edited)

@IronManJFF



here u go

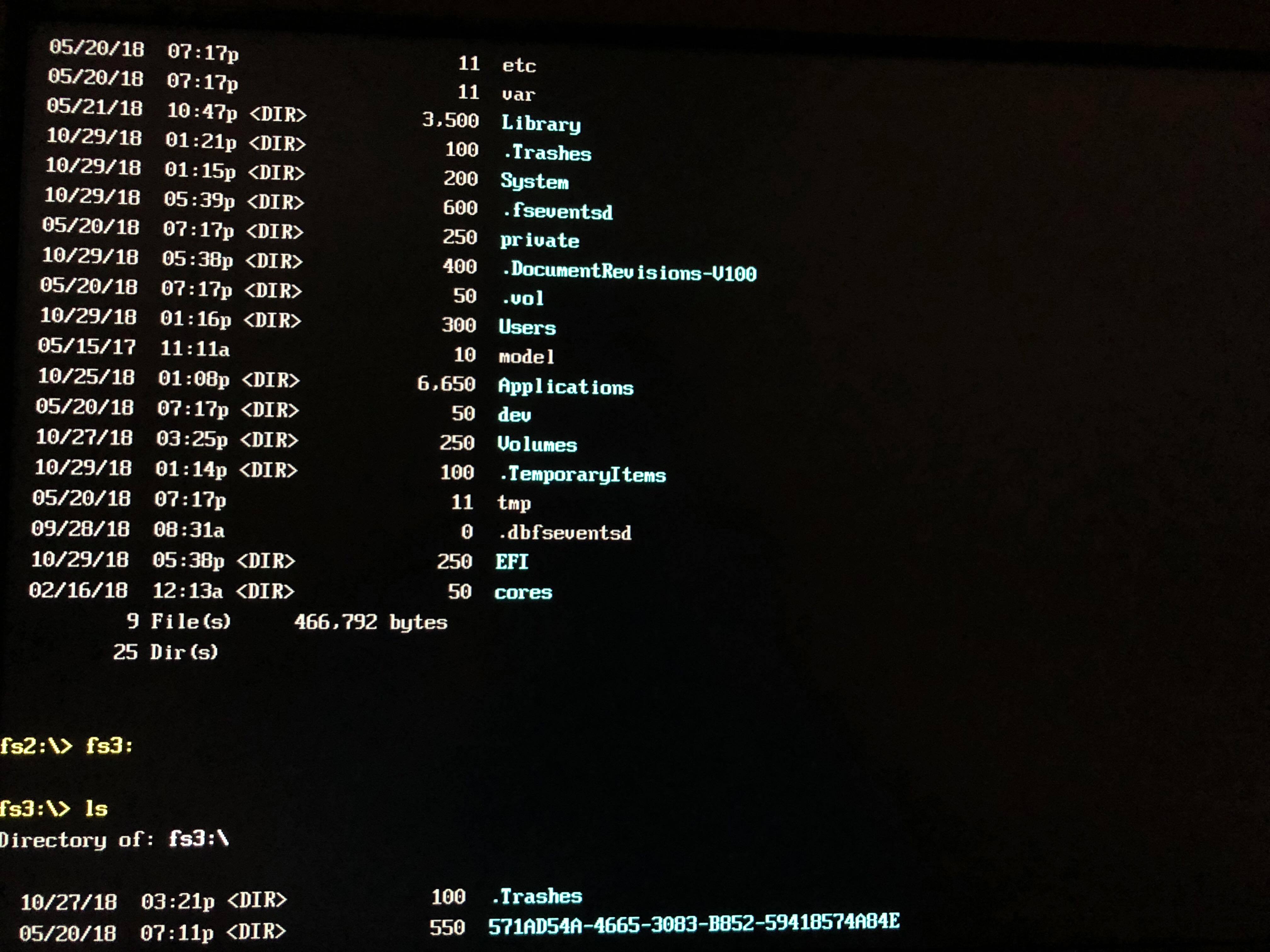

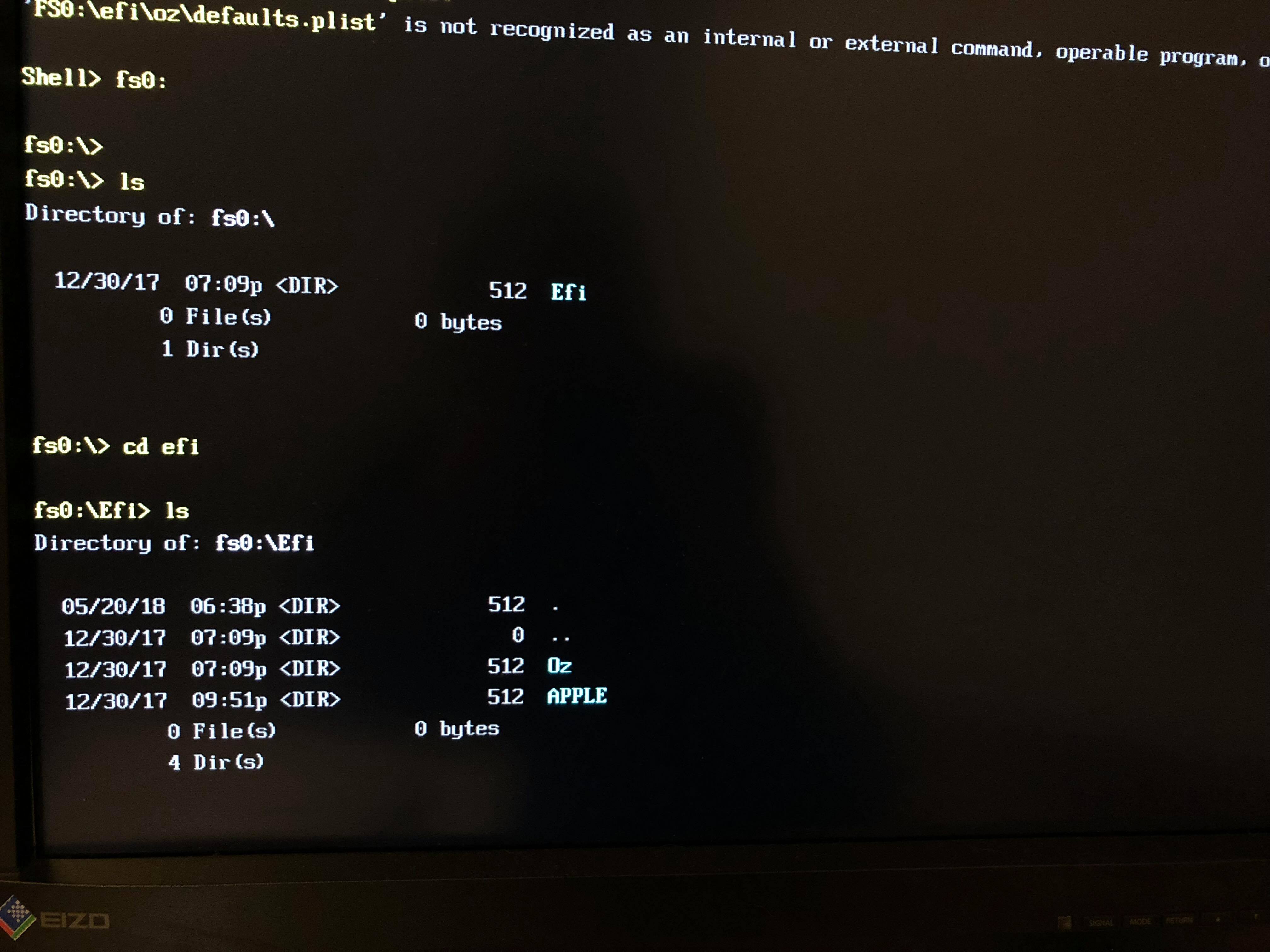

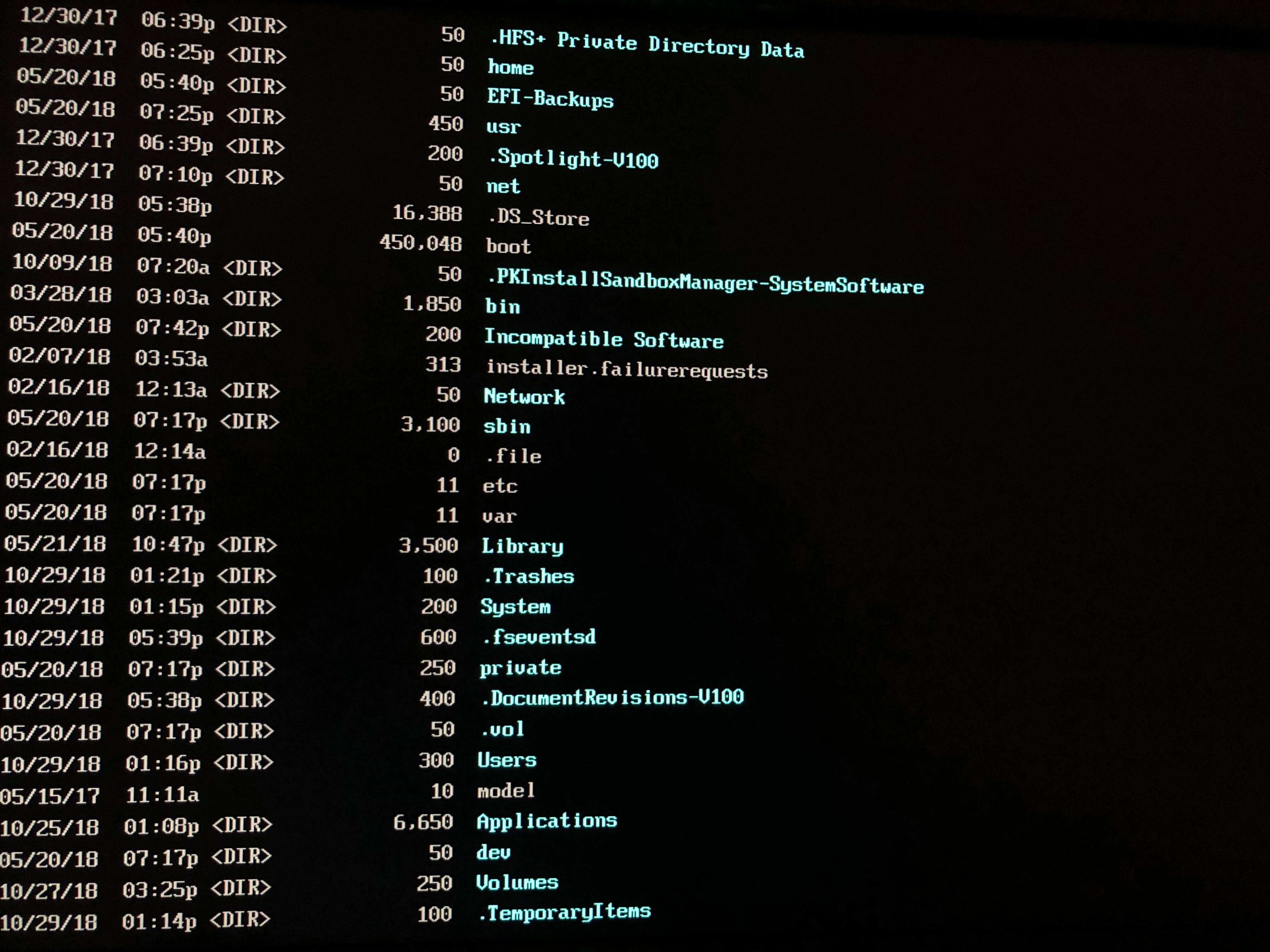

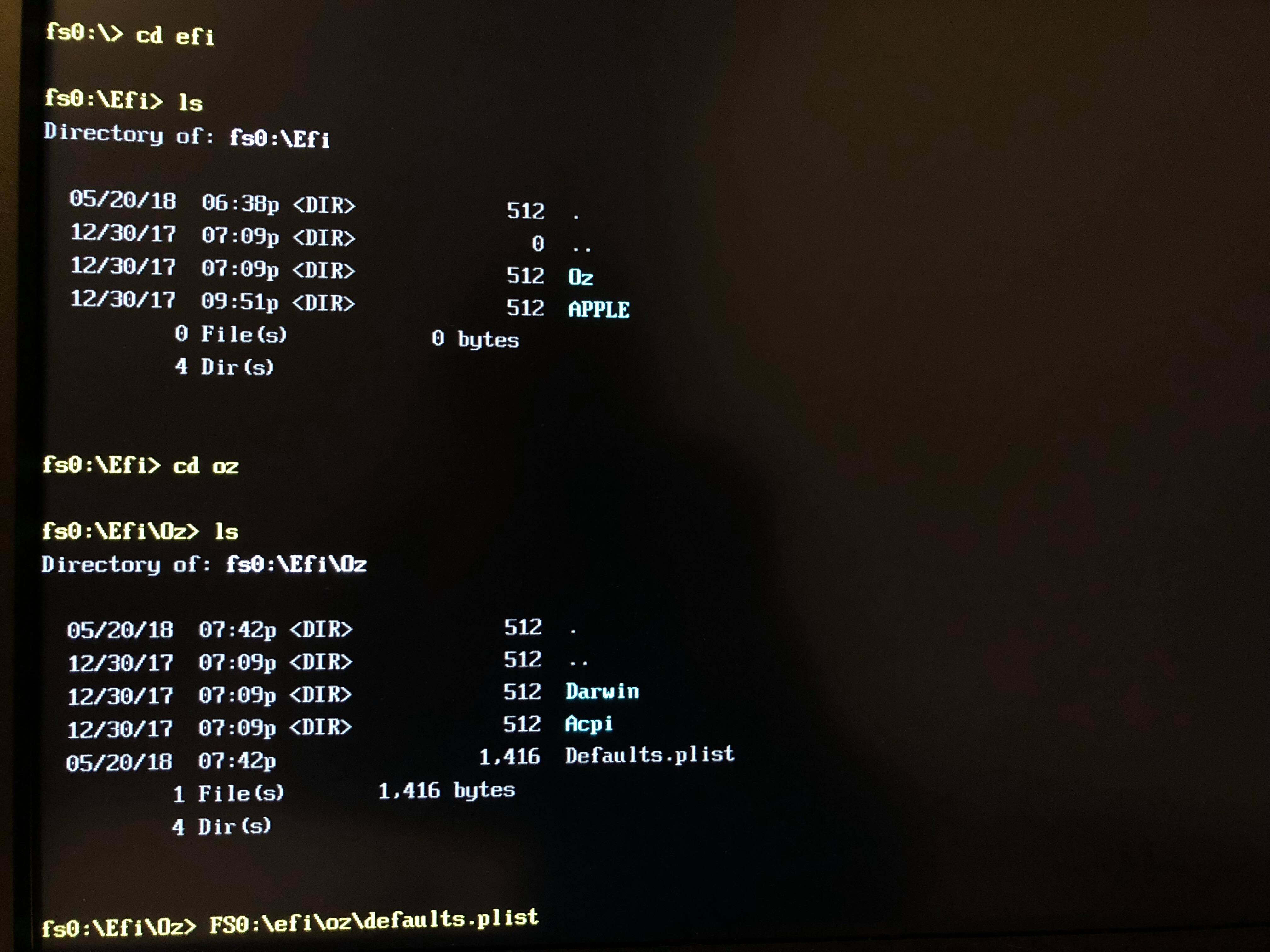

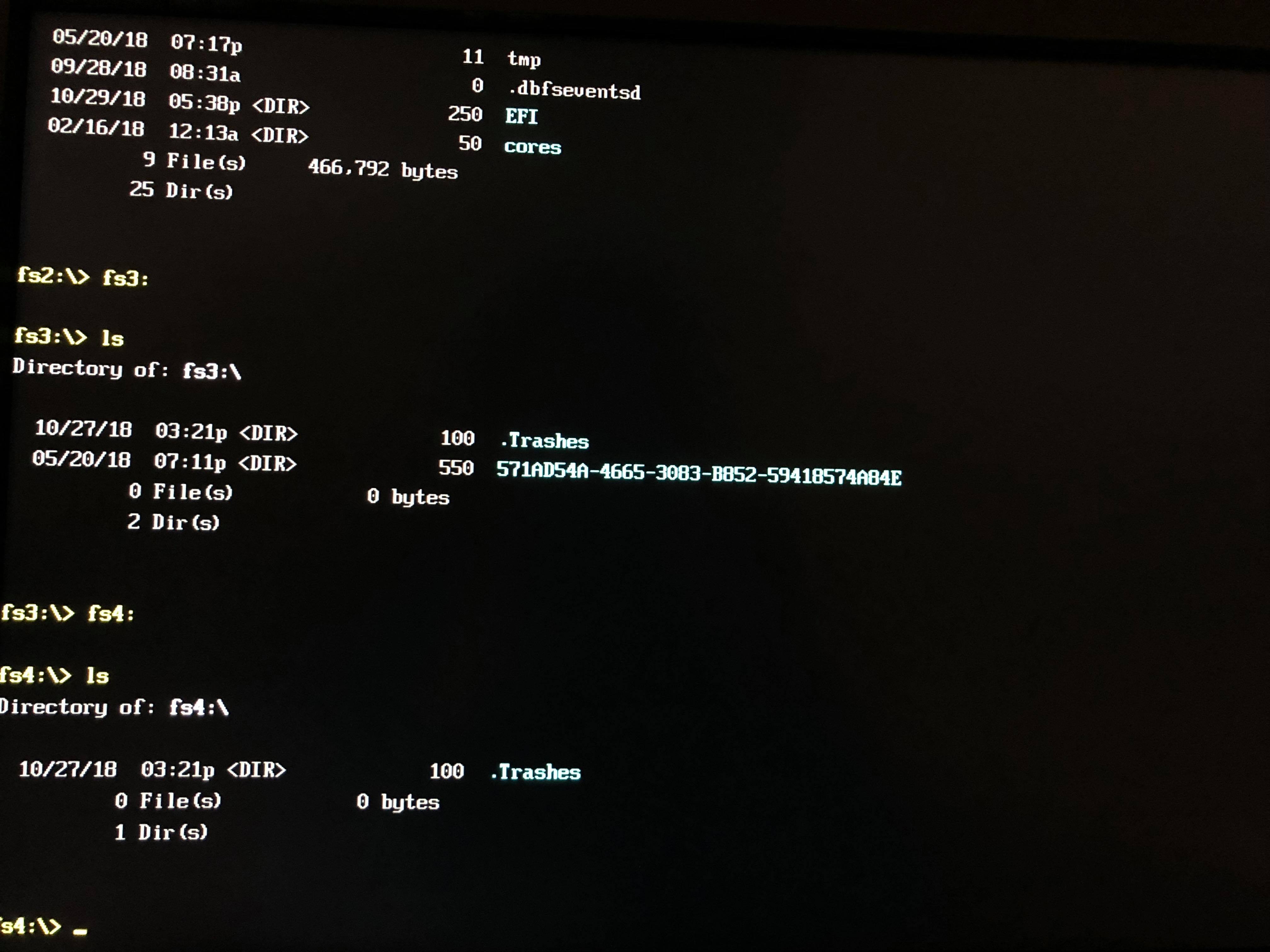

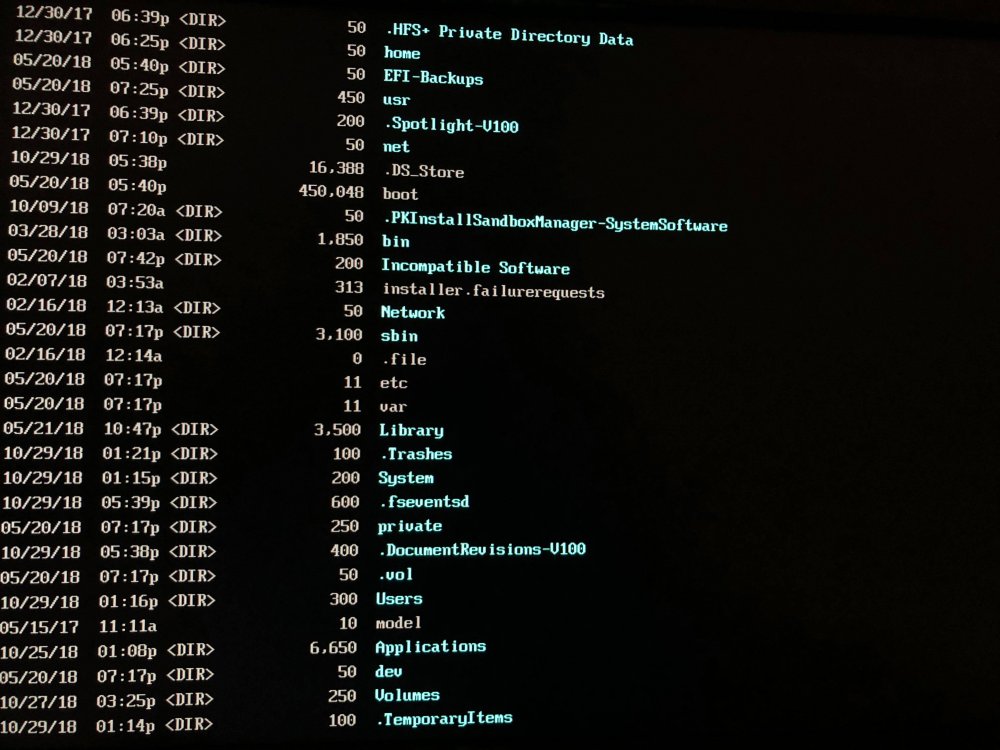

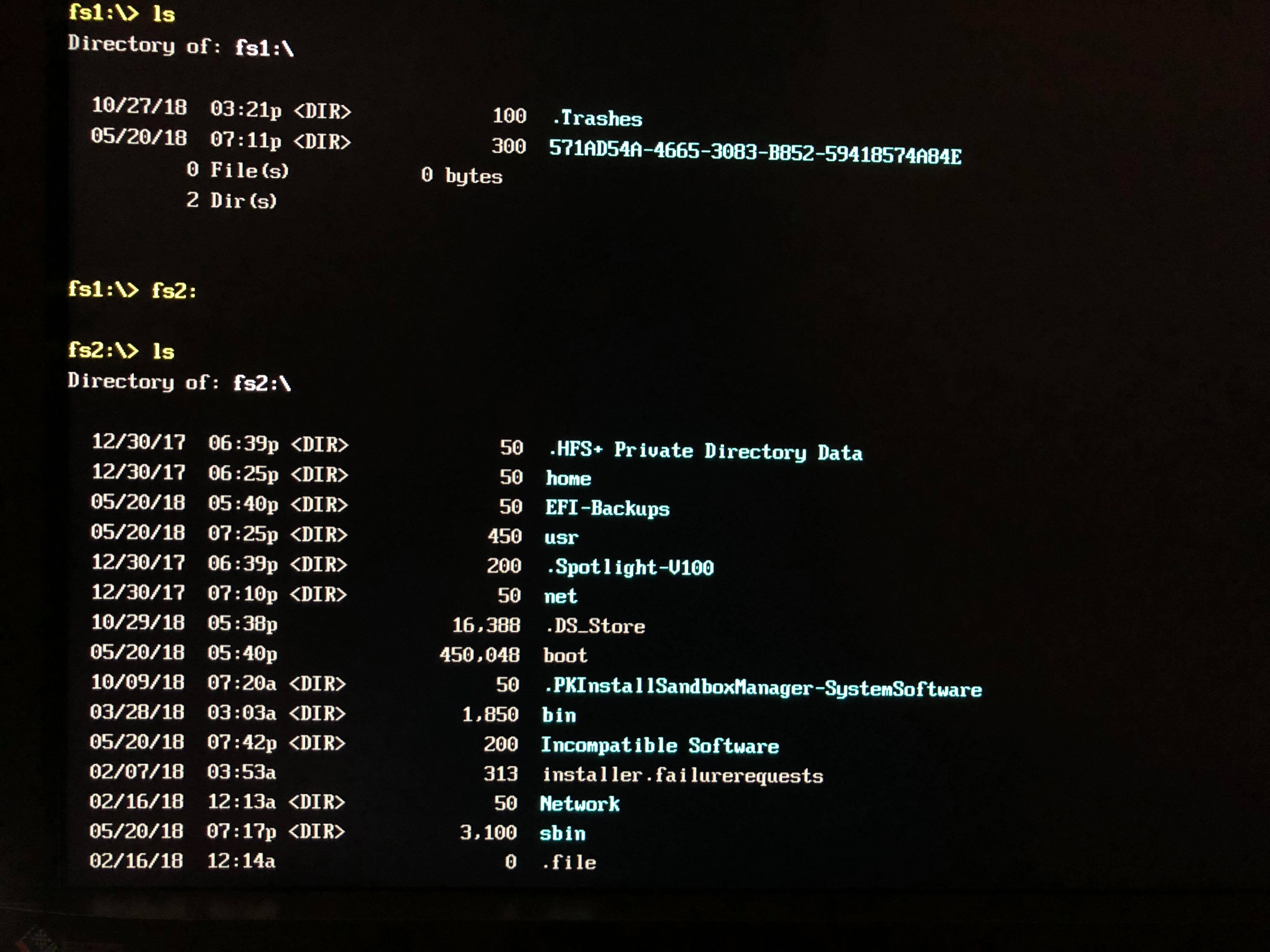

1.thumb.jpg.e529588a20709a8b9bc99376f8f66e38.jpg2.thumb.jpg.d589f3dbf3e650479b3c7f7efa363e04.jpg3.thumb.jpg.b16cd02defa0ae9942faa26f479bc05f.jpg4.thumb.jpg.6cf6cf614b32fa566f0acbf1e5c04d99.jpg

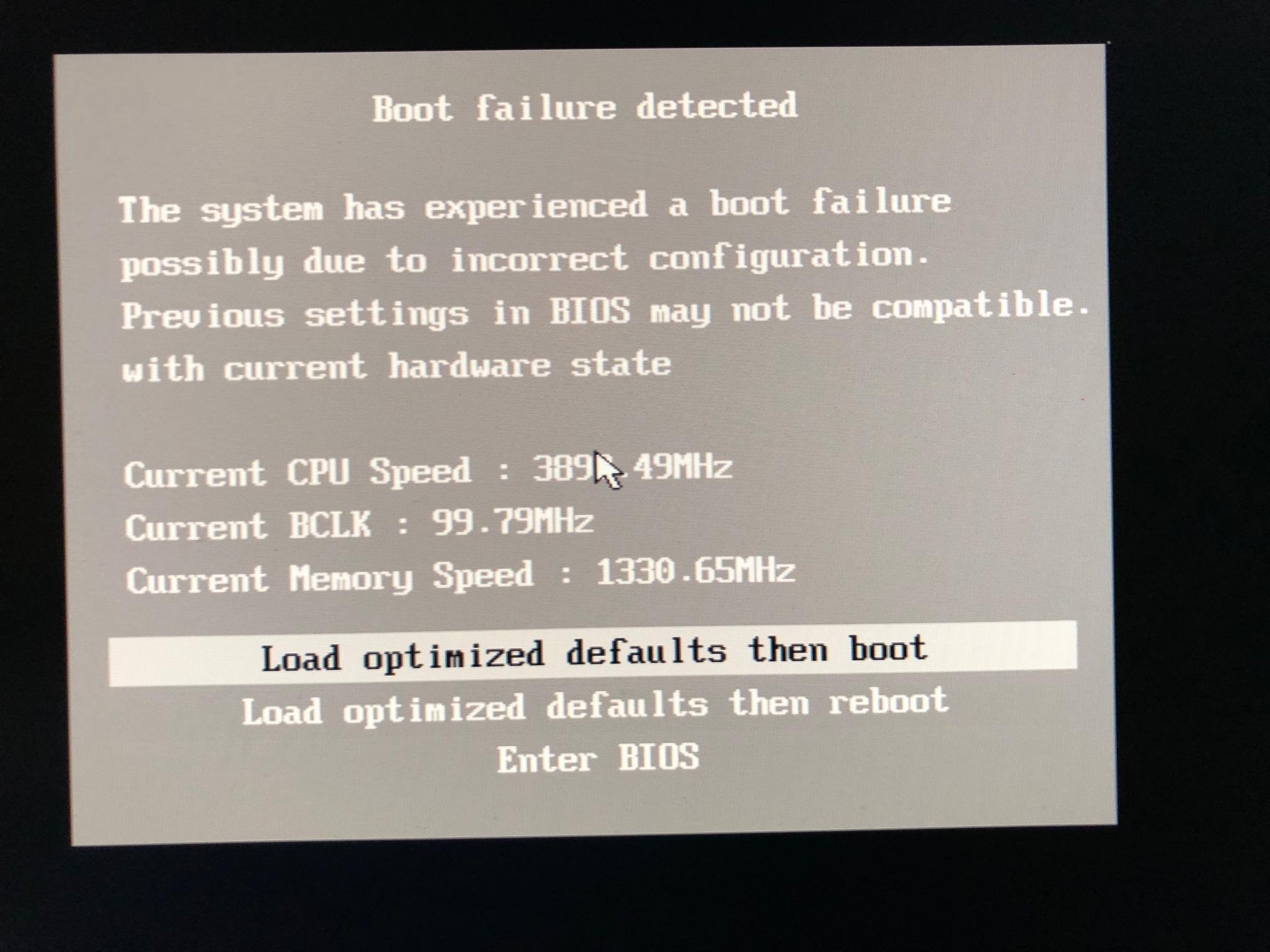

and sometimes i got this but i think it happend when i reset/turn off computer while its loading.



my cpu clock is 3.5ghz stock and for some reason its in turbo mode



77428666_44977659_196231431272576_3937257736412069888_n(1).thumb.jpg.f0183538eba51689cfc9fc7b1ba5f98b.jpg





i would be more then happy to wipe out ssd clean and reinstal everything if this is the case. I need my computer for work ;/



Edited by bezna
Link to comment
Share on other sites
bezna
bezna
Posted
Posted (edited)
17 minutes ago, IronManJFF said:

In OS X, select your startup drive in system preferences.

Now that you know that your OS is on fs2: do the bcfg part from my previous post



how ? ;/



u mean this ?



Adding the new boot entry





Now issue theses commands (replacing italic by values we found earlier)

fsn:
bcfg boot addp highest number +1 System\Library\CoreServices\boot.efi "Name that you want to appear in F12 Menu"


You should get a message saying that the boot entry was added

Restart the system by issuing this command


reset


and go to F12 menu ..it should be there. Select it and it should boot you into High Sierra



The boot entry will persist until you do a nvram reset or flash a new ROM.

Edited by bezna
Link to comment
Share on other sites
IronManJFF
IronManJFF
Posted
Posted
  small offtopic

i have 2 x8gb ram



when i put 2x8gb in bank 1 and 3 my computer is restarting again and agai but when ram is just in bank 1 its all working fine and i check them both.( is my mobo damage by the water)

aaah and my gtx 1060 is working to but fan starts in the beggining and stops.





Sounds like a defective RAM stick or slot .

GTX1060 normal behavior, the fan spin at boot but then waits until the card reaches 70 Celsius before cooling. Run a benchmark utility like Heaven and make sure the fan starts spinning when reaching 70 degrees... normally it should stop when the card goes back down to 55 degrees





Link to comment
Share on other sites
shoxx1122
shoxx1122
Posted
Posted (edited)
On 9/26/2018 at 11:08 PM, humba said:

hmmm..



just tried today with Mojave on this board.



Installer runs fine but after reboot and final installation I get the error:



macOS could not be installed.



There is an error checking the firmware ...



might not be accurate error message as its German on my Mac.



Any idea?

macOS could not be installed.

There is an error checking the firmware ...



I face to the same problem when upgrading my Sierra to Mojave...

What should I do to get over this error?

Here below is my system detail:



1. OS: 10.12.6 iMac 13,2

2. Bios: Z77MXQUOAOS.H20.167X-XMAX.ROM

3. EFI location: disk0s1 Boot Disk: disk0s2

4. Default.plist location: EFI\Efi\Oz

5. Default.plist content ▼

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>Date</key>
	<integer>0</integer>
	<key>Defaults:1F8E0C02-58A9-4E34-AE22-2B63745FA101</key>
	<dict>
		<key>BootEntryTemplate</key>
		<string>$label</string>
		<key>DarwinDiskTemplate</key>
		<string>$label $platform.$major.$minor</string>
		<key>DarwinRecoveryDiskTemplate</key>
		<string>$label $platform.$major.$minor</string>
		<key>DisableNvidiaInjection</key>
		<true/>
	</dict>
	<key>Defaults:4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102</key>
	<dict>
		<key>BaseBoardSerial</key>
		<string>C02K6214DNMP12345</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.010A.B05.1210121459</string>
		<key>ProductFamily</key>
		<string>iMac</string>
		<key>ProductId</key>
		<string>Mac-FC02E91DDD3FA6A4</string>
		<key>ProductName</key>
		<string>iMac13,2</string>
		<key>SystemSerial</key>
		<string>C02K6214DNMP</string>
	</dict>
	<key>Defaults:7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
	<dict>
		<key>boot-args</key>
		<string>-v nvda_drv=1</string>
		<key>csr-active-config</key>
		<integer>103</integer>
	</dict>
	<key>Version</key>
	<string>1.0.1</string>
</dict>
</plist>

6. Mojave installation file source: appstore 14.0.22



thanks to your kindly help





Edited by shoxx1122
Link to comment
Share on other sites
IronManJFF
IronManJFF
Posted
Posted

Incomplete Defaults.plist file ... make sure that section is complete. And clear NVRAM before re-launching the installer



<key>Defaults:4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102</key>
	<dict>
		<key>BiosDate</key>
		<string>04/09/2018</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.0115.B00.1804091830</string>
		<key>FirmwareFeatures</key>
		<integer>0xE00DE137</integer>
		<key>FirmwareFeaturesMask</key>
		<integer>0xFF1FFF3F</integer>
		<key>ProductId</key>
		<string>Mac-FC02E91DDD3FA6A4</string>
		<key>ProductFamily</key>
		<string>iMac</string>
		<key>ProductName</key>
		<string>iMac13,2</string>
		<key>SystemSerial</key>
		<string>Insert Yours Here</string>
		<key>BaseBoardSerial</key>
		<string>Insert Yours Here</string>
	</dict>



Link to comment
Share on other sites
shoxx1122
shoxx1122
Posted
Posted (edited)
11 hours ago, IronManJFF said:

Incomplete Defaults.plist file ... make sure that section is complete. And clear NVRAM before re-launching the installer




<key>Defaults:4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102</key>
	<dict>
		<key>BiosDate</key>
		<string>04/09/2018</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.0115.B00.1804091830</string>
		<key>FirmwareFeatures</key>
		<integer>0xE00DE137</integer>
		<key>FirmwareFeaturesMask</key>
		<integer>0xFF1FFF3F</integer>
		<key>ProductId</key>
		<string>Mac-FC02E91DDD3FA6A4</string>
		<key>ProductFamily</key>
		<string>iMac</string>
		<key>ProductName</key>
		<string>iMac13,2</string>
		<key>SystemSerial</key>
		<string>Insert Yours Here</string>
		<key>BaseBoardSerial</key>
		<string>Insert Yours Here</string>
	</dict>





1. recreate iMac13,2 Default.plist section by Ozmosis Configurator

2. flash BIOS Z77MXQUOAOS.H20.167X-XMAX.ROM again

3. nvram reset

4. install Mojave



BOOM! All set!



thanks to IronManJFF





Edited by shoxx1122
Link to comment
Share on other sites
jjrecort
jjrecort
Posted
Posted
On 10/19/2018 at 5:00 PM, guido13456 said:

hi what is the suppler of your mount case



Hi Guido,



I'm not finding it, no labels no brand..  I bought it a physical shop while shopping, they had it as surpluss, it costed me 90 bucks.. it tried to find the invoice to check if it was some more info, but no luck.



Anyway I found similar enclosures at amazon

This one is very similar

https://www.amazon.com/iStarUSA-Group-D-214-MATX-Compact-Rackmount/dp/B00A7NBO6E/ref=sr_1_fkmr1_1?ie=UTF8&amp;qid=1541251378&amp;sr=8-1-fkmr1&amp;keywords=2u+rack+enclosure+mini+ATX

Link to comment
Share on other sites
IronManJFF
IronManJFF
Posted
Posted
6 hours ago, shoxx1122 said:



1. recreate iMac13,2 Default.plist section by Ozmosis Configurator

2. flash BIOS Z77MXQUOAOS.H20.167X-XMAX.ROM again

3. nvram reset

4. install Mojave



BOOM! All set!



thanks to IronManJFF







No Problemo..... I am having problem install Security Update 2018-002 on High Sierra .... investigating...

Link to comment
Share on other sites
shoxx1122
shoxx1122
Posted
Posted
1 minute ago, IronManJFF said:



No Problemo..... I am having problem install Security Update 2018-002 on High Sierra .... investigating...



I am trying to have Mojave APFS partition on boot manager..............

or 10.14.1 update will fail........

Link to comment
Share on other sites
shoxx1122
shoxx1122
Posted
Posted (edited)
13 hours ago, IronManJFF said:



YES! I've get Mojave APFS partition shown on the boot list(f12).

I set APFS partition as first order to boot from.

During installing 10.14.1 update process, system restart twice then back to Majave login screen and the update is not work..

Anything I missed?



1. Download 10.14.1(6g) from appstore and make a bootable installation disk

2. reboot into installation disk and do a clean install (remember to erase target partition to Mac OS Extended (Journaled), APFS will due to some problem)

3. wait for installation process and automatic restart

4. After finishing installation process, it may reboot into install screen, just use select boot device to boot into new Majave OSX partition.

5. Transfer your data from backup or etc.

6. do bcfg to boot into APFS partition



it's all good now!

Edited by shoxx1122
Link to comment
Share on other sites
ntsmkfob
ntsmkfob
Posted
Posted (edited)
On 11/3/2018 at 3:19 PM, IronManJFF said:



No Problemo..... I am having problem install Security Update 2018-002 on High Sierra .... investigating...

Have you got anywhere with the SU for HS? As mentioned by shoxx1122, the 10.14.1 update doesn't work either. It might be for the same reason.

Edited by ntsmkfob
grammar
Link to comment
Share on other sites
IronManJFF
IronManJFF
Posted
Posted

I had not much time to work on it .. I tried 10.14.1 update on my 'beta partition' and it exhibits the same problem ... I need to find time to read Ozmosis thread and see if there is something about kernel patching since 10.14.1/10.13.6SU



I noticed that both updates included a new firmware for iMac13 and updated BiosDate and BiosVersion in Defaults.plist but still no go ...



Link to comment
Share on other sites
Casm101
Casm101
Posted
Posted (edited)

Hi everyone, I was wondering if someone could help me with a quick question.... :frantics:



I need Windows for one of my courses at UNI, and I'd like to install it on my main machine (it obviously runs on the Quo motherboard), so I repartitioned my boot drive, and created a Windows 10 installer USB (using the correct method and it has been tested on a normal PC), but for whatever reason, my main system doesn't recognise the installer.... :|



Any ideas?



EDIT: worst case scenario, I can run Windows in a virtual machine, but preferably, I'd like to run it as a normal system, separate from MacOS....

Edited by Casm101
Link to comment
