miliuco Posted January 13 Share Posted January 13 (edited) @Slice @LAbyOne Not tried all values, this statement follows from the OCLP guide. In my experience, when SIP is not 0x803 OCLP says to set SIP to 0x803 and reboot before applying root patch. Edited January 13 by miliuco 1 Link to comment Share on other sites More sharing options...
cankiulascmnfye Posted January 13 Share Posted January 13 13 hours ago, rramon said: Hmm, I have a mid 2012 MacBook Pro 9,1 running fine with OCLP (Ventura) and completely disabled SIP - but I‘m not sure about Clover in combination with OCLP.. Does OCLP actually „know“ the 0x67 value? OCLP has 2 main features: Installing OpenCore Bootloader (on real Macs) Applying patches to the system volume (installing removed kexts, frameworks, patching system files, etc) to make macOS work with legacy hardware So, you can patch the system with OCLP but use Clover to boot (if it is configured correctly) As far as SIP "0x67" is concerned: 0x67 = Big Endian, used by Clover. OpenCore uses Little Endian, in this case: 07060000 which is insufficient for patching macOS with OCLP For patching macOS when using Clover, you must change the CsrActiveConfig to 0x803 as mentioned by miliuco And: OCLP doesn't need to "know" the value, because it gets it from the system, which gets it from NVRAM which gets it form the bootloader (injected value set in config.plist). 1 1 Link to comment Share on other sites More sharing options...
rramon Posted January 13 Share Posted January 13 12 hours ago, LAbyOne said: Who cares? I do 😊 11 minutes ago, cankiulascmnfye said: OCLP has 2 main features: Installing OpenCore Bootloader (on real Macs) Applying patches to the system volume (installing removed kexts, frameworks, patching system files, etc) to make macOS work with legacy hardware So, you can patch the system with OCLP but use Clover to boot (if it is configured correctly) As far as SIP "0x67" is concerned: 0x67 = Big Endian, used by Clover. OpenCore uses Little Endian, in this case: 07060000 which is insufficient for patching macOS with OCLP For patching macOS when using Clover, you must change the CsrActiveConfig to 0x803 as mentioned by miliuco And: OCLP doesn't need to "know" the value, because it gets it from the system, which gets it from NVRAM which gets it form the bootloader (injected value set in config.plist). Great and very informative, thank you! Link to comment Share on other sites More sharing options...
Slice Posted January 13 Share Posted January 13 I don't know but OCLP may contains check as if (SIP != 0x803) exit; although it is not really needed. They should say the recommendation and let user to try. 1 Link to comment Share on other sites More sharing options...
matxpa Posted January 13 Share Posted January 13 (edited) On 1/11/2024 at 7:35 PM, Slice said: Again "csr-active-config" = <03080000> is right But About_This_Hack shows 0x03080000 which is wrong. https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/?do=findComment&comment=2815397 Hi A more satisfying version ? or this one Regards Edited January 13 by matxpa 4 Link to comment Share on other sites More sharing options...
miliuco Posted January 13 Share Posted January 13 @matxpa I can’t add anything more. Perfect. Better without green checks. Is it in yout repo? 1 Link to comment Share on other sites More sharing options...
MakAsus Posted January 13 Share Posted January 13 1 hour ago, matxpa said: Hi A more satisfying version ? or this one Regards It seems to me that without green checks is better. Where can I download it? 1 Link to comment Share on other sites More sharing options...
matxpa Posted January 13 Share Posted January 13 2 hours ago, miliuco said: @matxpa I can’t add anything more. Perfect. Better without green checks. Is it in yout repo? @miliuco @MakAsus Hi In my Repo, get (select all & copy) only HardwareCollectors/HCVersion.swift, the only one which was modified and GREEN checkMark use in comment https://github.com/matxpa/About-This-Hack/blob/main/About This Hack/HardwareCollectors/HCVersion.swift Regards 2 Link to comment Share on other sites More sharing options...
cankiulascmnfye Posted January 13 Share Posted January 13 9 hours ago, Slice said: I don't know but OCLP may contains check as if (SIP != 0x803) exit; although it is not really needed. They should say the recommendation and let user to try. No, you shouln't let users just try it. Because OCLP is for Apple users who don't know isht about the inner workings of macOS 1 Link to comment Share on other sites More sharing options...
MakAsus Posted January 13 Share Posted January 13 (edited) On 1/13/2024 at 8:58 PM, matxpa said: @miliuco @MakAsus Hi In my Repo, get (select all & copy) only HardwareCollectors/HCVersion.swift, the only one which was modified and GREEN checkMark use in comment https://github.com/matxpa/About-This-Hack/blob/main/About This Hack/HardwareCollectors/HCVersion.swift Regards Thanks for regexps. I'm not very good with them, and I would spend a week to do this. I got only HardwareCollectors/HCVersion.swift from yours repository and clone the remain sources from the main repository 0xCUB3/About-This-Hack, but I took the old icons from repository Slice (I like them better) until I make my own. Edited January 15 by MakAsus Link to comment Share on other sites More sharing options...

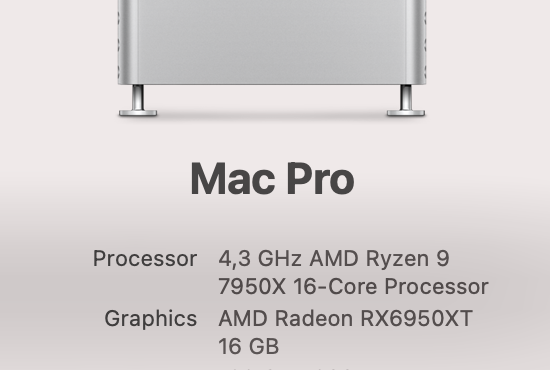

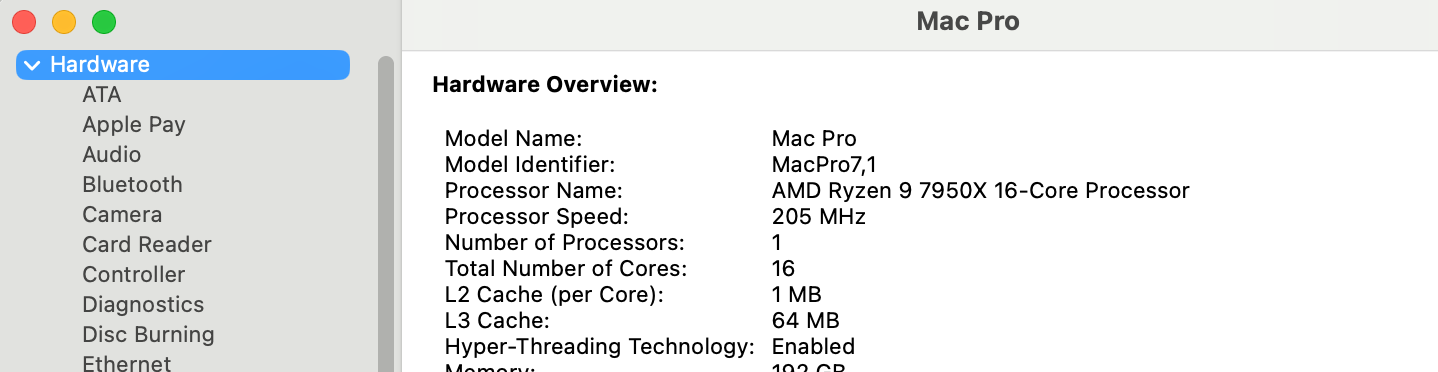

MakAsus Posted January 13 Share Posted January 13 (edited) Now it looks like this: Edited January 14 by MakAsus 1 Link to comment Share on other sites More sharing options...
Henry2010 Posted January 14 Share Posted January 14 Thanks for the 5157 update and happy new year! 1 1 Link to comment Share on other sites More sharing options...
odemolay Posted January 14 Share Posted January 14 (edited) happy new year (we are going to need some wishes and hopes this year again) wonderful work Clover runs my hacks....and they love it Edited January 14 by odemolay 2 1 Link to comment Share on other sites More sharing options...
MakAsus Posted January 14 Share Posted January 14 (edited) On 1/11/2024 at 9:22 PM, MakAsus said: I changed my config file: <dict> <key>Memory</key> <dict> <key>Channels</key> <integer>2</integer> </dict> <key>Trust</key> <true/> </dict> and nothing has changed. preboot.log 67.5 kB · 3 downloads I found my old preboot log, when the order of the dims was determined correctly still to Clover revision: 5119 (HEAD, commit a0948b2). Maybe this will help localize the problem. preboot.log Edited January 15 by MakAsus Link to comment Share on other sites More sharing options...
mariosun Posted January 15 Share Posted January 15 (edited) hi @Slice i have followed this instructions to convert some Kernel patches to Clover: Name seems to be skipped: Warning: Unknown key '/KernelAndKextPatches/KernelToPatch[10]/Name:636'. Skipped. Warning: Unknown key '/KernelAndKextPatches/KernelToPatch[11]/Name:668'. Skipped. Attached the patches used for Opencore and Clover Bootloaders Could you help to understand? Thank you patches.zip Edited January 15 by mariosun Link to comment Share on other sites More sharing options...
Slice Posted January 15 Share Posted January 15 Kernel has no Name. It is for kext patching. 2 Link to comment Share on other sites More sharing options...
mariosun Posted January 15 Share Posted January 15 (edited) 35 minutes ago, Slice said: Kernel has no Name. It is for kext patching. In Opencore there is only a patch section So in Clover i have to use it in Kext to patch also with latest opencore implementation done in Clover? Edit: Ok in KextToPatch works as Slice said (different from OpenCore also in latest implementation) Edited January 15 by mariosun Link to comment Share on other sites More sharing options...
PG7 Posted January 15 Share Posted January 15 Report Error boot Clover r5157 Lenovo ThinkCentre M810z intel i3-7100 KabyLake intel HD630 Clover r5156 OK Clover r5157 No Boot Preboot.log preboot Clover r5156 work.log preboot Clover r5157 no work.log Link to comment Share on other sites More sharing options...
Slice Posted January 15 Share Posted January 15 3 hours ago, PG7 said: Report Error boot Clover r5157 Lenovo ThinkCentre M810z intel i3-7100 KabyLake intel HD630 Clover r5156 OK Clover r5157 No Boot Preboot.log preboot Clover r5156 work.log 60.19 kB · 1 download preboot Clover r5157 no work.log 57.86 kB · 1 download You have different quirks 5156: 5:982 0:000 Kernel quirks 5:982 0:000 ACPCL 1 AXCL 1 AXEM 0 AXFB 0 CSG 0 DIM 1 DLJ 1 DRC 0 DPM 0 EBTFF 0 EDI 0 IPBS 0 LKP 0 PNKD 1 PTKP 1 TPD 1 XPL 0 PCC 0 5157: 7:890 0:000 Kernel quirks 7:890 0:000 ACPCL 0 AXCL 0 AXEM 0 AXFB 0 CSG 0 DIM 1 DLJ 1 DRC 0 DPM 0 EBTFF 0 EDI 0 FAI 0 IPBS 0 LKP 0 PNKD 1 PTKP 1 TPD 1 XPL 0 PCC 0 Simple way is to use same config.plist. 2 Link to comment Share on other sites More sharing options...

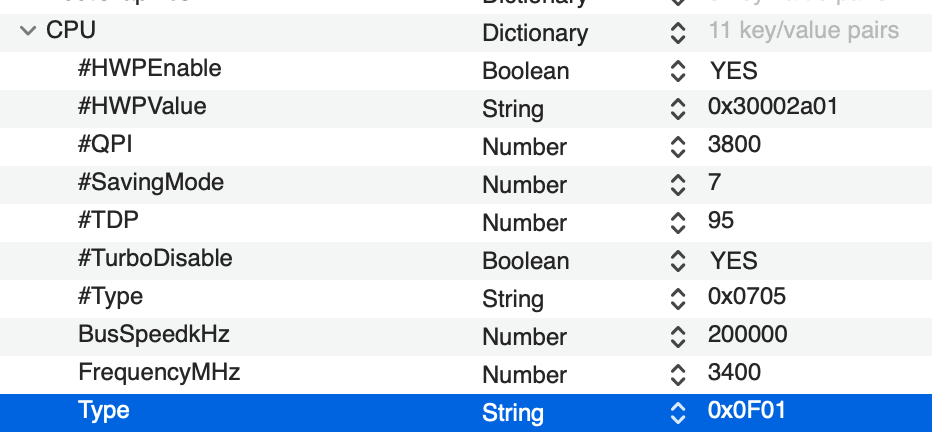

mariosun Posted January 15 Share Posted January 15 (edited) @big thanks goes @Jief_Machak now also AM5 AMD users could use Clover Bootloader with a perfectly working audio i suggest to test when it is available his Clover commit to all user who have had audio problem in the past solved using some weird CPU parameters in config . plist Maybe could help also for older platform than AM5 Edited January 15 by mariosun 2 Link to comment Share on other sites More sharing options...
Jief_Machak Posted January 15 Share Posted January 15 4 minutes ago, mariosun said: @big thanks goes @Jief_Machak now also AM5 AMD users could use Clover Bootloader with a perfectly working audio i suggest to test when it is available his Clover commit to all user who have add audio problem in the past solved used some weird CPU parameters in config . plist Maybe could help also for older platform than AM5 Thanks, That's not even committed yet... 2 Link to comment Share on other sites More sharing options...
mariosun Posted January 15 Share Posted January 15 5 minutes ago, Jief_Machak said: Thanks, That's not even committed yet... it will be when you will be ready 1 Link to comment Share on other sites More sharing options...
PG7 Posted January 15 Share Posted January 15 (edited) 50 minutes ago, Slice said: You have different quirks 5156: 5:982 0:000 Kernel quirks 5:982 0:000 ACPCL 1 AXCL 1 AXEM 0 AXFB 0 CSG 0 DIM 1 DLJ 1 DRC 0 DPM 0 EBTFF 0 EDI 0 IPBS 0 LKP 0 PNKD 1 PTKP 1 TPD 1 XPL 0 PCC 0 5157: 7:890 0:000 Kernel quirks 7:890 0:000 ACPCL 0 AXCL 0 AXEM 0 AXFB 0 CSG 0 DIM 1 DLJ 1 DRC 0 DPM 0 EBTFF 0 EDI 0 FAI 0 IPBS 0 LKP 0 PNKD 1 PTKP 1 TPD 1 XPL 0 PCC 0 Simple way is to use same config.plist. no, I use exactly the same ones without changing anything only change is the Clover.efi nothing else! * up excuse me, this preboot.log is true that it is another test I immediately update a new Preboot preboot 5157 No boot.log preboot Clover r5156 work.log Edited January 15 by PG7 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted January 15 Share Posted January 15 22 minutes ago, mariosun said: it will be when you will be ready Done. 3 1 Link to comment Share on other sites More sharing options...
mariosun Posted January 15 Share Posted January 15 58 minutes ago, Jief_Machak said: Done. it works perfectly thanks again 2 Link to comment Share on other sites More sharing options...
