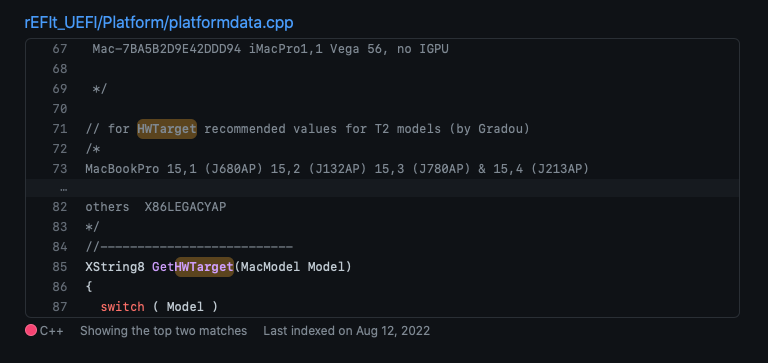

Matgen84 Posted January 18, 2023 Share Posted January 18, 2023 (edited) 6 hours ago, kushwavez said: Hello all! I doesn't seem to receive updates on Ventura, seems like the hwtarget isn't working. Is this known? I have set it to J160AP, it worked on Monterey, but now is not. hwtarget is empty when I get it in Terminal 11:06:46 > kushwavez@X1C6-Pro:~$ softwareupdate -l Software Update Tool Finding available software No new software available. 11:06:55 > kushwavez@X1C6-Pro:~$ sysctl hw.target hw.target: 11:06:58 > kushwavez@X1C6-Pro:~$ csrutil status System Integrity Protection status: enabled. <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x00</string> <key>HWTarget</key> <string>J160AP</string> <key>MLB</key> <string>C02032109R5DC771H</string> <key>ROM</key> <string>UseMacAddr0</string> </dict> SMBIOS I am using is: MacBookPro15,2 on Lenovo X1 Carbon 6th (i7-8650U) Should I change anything? Clover v5151 Hi @kushwavez Do you try J132AP for SMBIOS MacBookPro15,2 instead of J160AP. According to platform file in Clover Github repository, J160AP is for SMBIOS macPro7,1. If I am not mistaken. Edited January 18, 2023 by Matgen84 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800178 Share on other sites More sharing options...
Slice Posted January 18, 2023 Share Posted January 18, 2023 8 hours ago, kushwavez said: Hello all! I doesn't seem to receive updates on Ventura, seems like the hwtarget isn't working. Is this known? I have set it to J160AP, it worked on Monterey, but now is not. hwtarget is empty when I get it in Terminal 11:06:46 > kushwavez@X1C6-Pro:~$ softwareupdate -l Software Update Tool Finding available software No new software available. 11:06:55 > kushwavez@X1C6-Pro:~$ sysctl hw.target hw.target: 11:06:58 > kushwavez@X1C6-Pro:~$ csrutil status System Integrity Protection status: enabled. <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x00</string> <key>HWTarget</key> <string>J160AP</string> <key>MLB</key> <string>C02032109R5DC771H</string> <key>ROM</key> <string>UseMacAddr0</string> </dict> SMBIOS I am using is: MacBookPro15,2 on Lenovo X1 Carbon 6th (i7-8650U) Should I change anything? Clover v5151 I am sorry but HWTarget no more works in Ventura. So to get updates we have to set SMBIOS for models without T2. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800185 Share on other sites More sharing options...
brousseau6933 Posted January 18, 2023 Share Posted January 18, 2023 7 hours ago, Allan said: That's what I made for your EFI folder before 😄 Yeah, but it was my 5151 (and 5150) folder not working but I messed when dropping it on OneDrive the first time... Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800193 Share on other sites More sharing options...
PG7 Posted January 25, 2023 Share Posted January 25, 2023 @Slice @Jief_Machak LEGACY Boot Too bad Clover couldn't do the complete installation or update of the latest system on a non-UEFI PC (Legacy) would there be a solution? thanks team Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800549 Share on other sites More sharing options...
Slice Posted January 25, 2023 Share Posted January 25, 2023 4 minutes ago, PG7 said: @Slice @Jief_Machak LEGACY Boot Too bad Clover couldn't do the complete installation or update of the latest system on a non-UEFI PC (Legacy) would there be a solution? thanks team I don't know what is the issue but I know that since BigSur we need hardware NVRAM which is absent on legacy computers. QEMU works with legacy Clover. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800551 Share on other sites More sharing options...
PG7 Posted January 25, 2023 Share Posted January 25, 2023 2 hours ago, Slice said: know that since BigSur we need hardware NVRAM which is absent on legacy computers and will it be possible to somehow emulate the NVRAM or are we without a solution? 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800558 Share on other sites More sharing options...
LockDown Posted January 26, 2023 Share Posted January 26, 2023 (edited) 12 hours ago, PG7 said: @Slice @Jief_Machak LEGACY Boot Im running r5151 on my Desktop3 with OpenRuntime.efi Edit: didnt notice that i need to update my signature 😄 Edited January 26, 2023 by LockDown Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800572 Share on other sites More sharing options...
Slice Posted January 26, 2023 Share Posted January 26, 2023 21 hours ago, PG7 said: and will it be possible to somehow emulate the NVRAM or are we without a solution? Yes, legacy system is able to emulate NVRAM but when the system installed. The problem is during installation. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800601 Share on other sites More sharing options...
PG7 Posted January 27, 2023 Share Posted January 27, 2023 16 hours ago, Slice said: Yes, legacy system is able to emulate NVRAM but when the system installed. The problem is during installation. yes I use Clover on Legacy machines with Ventura, Monterey and BigSur I just can't even update or install these latest complete systems with Clover Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800653 Share on other sites More sharing options...
STLVNUB Posted January 27, 2023 Share Posted January 27, 2023 (edited) AnyBody Interested In Helping Me Resurrect My OLD CloverGrower To Compile And Do Other Things Maybe OCGrower As Well https://github.com/STLVNUB/CloverGrower Edited January 27, 2023 by STLVNUB Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800660 Share on other sites More sharing options...
LAbyOne Posted January 27, 2023 Share Posted January 27, 2023 @STLVNUB I'm actually now in the process to migrate Clover Suite Builder to something else https://github.com/LAbyOne/Clover-Suite-Builder-SetUp which is most likely a merged version of Clover Suite Builder + Clover Setup (for now i just created the page, i'm still not so sure if it's really a good idea (lol), and files will be up pretty soon) in the meantime i'm also thinking about building a Themes Downloader with a decent GUI, but still evaluating / testing all possible ideas so not really available So if you ever need some advice feel free to ask, and if I can will gladly help. 3 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2800670 Share on other sites More sharing options...
Matgen84 Posted February 18, 2023 Share Posted February 18, 2023 Hi @Slice I build Clover with Xcode 12.4 Commit 777e573 update nasm to 2.16.01. How to update my local existing nasm 2.15.05 ? Just using buildnasm.sh, right ! Let me know, please Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801543 Share on other sites More sharing options...
Slice Posted February 18, 2023 Share Posted February 18, 2023 42 minutes ago, Matgen84 said: Hi @Slice I build Clover with Xcode 12.4 Commit 777e573 update nasm to 2.16.01. How to update my local existing nasm 2.15.05 ? Just using buildnasm.sh, right ! Let me know, please I think the question is to @LAbyOne I will look. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801544 Share on other sites More sharing options...
Slice Posted February 18, 2023 Share Posted February 18, 2023 @Matgen84 Internal build system will check if NASm version is greater then 2.12 to update to newer version. But as you have 2.15 then no update is proposed. You should do it by yourself with the script buildnasm.sh or just download binary from nasm.org. Or just don't bother. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801547 Share on other sites More sharing options...
LAbyOne Posted February 18, 2023 Share Posted February 18, 2023 1 hour ago, Slice said: I think the question is to @LAbyOne I will look. ok updated nasm version check on main script will pull it in a moment also is now safe to remove "isl archive" from repo I guess Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801554 Share on other sites More sharing options...
Slice Posted February 18, 2023 Share Posted February 18, 2023 2 hours ago, LAbyOne said: ok updated nasm version check on main script will pull it in a moment also is now safe to remove "isl archive" from repo I guess I included isl archive into repo because otherwise I can't download it from usual addresses. If now build from scratch works then we can exclude extra file. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801565 Share on other sites More sharing options...
LAbyOne Posted February 18, 2023 Share Posted February 18, 2023 3 hours ago, Slice said: I included isl archive into repo because otherwise I can't download it from usual addresses. If now build from scratch works then we can exclude extra file. Yes it does Now get the files directly from source Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801573 Share on other sites More sharing options...
odemolay Posted February 23, 2023 Share Posted February 23, 2023 (edited) hello, is there any setting with Clover to put in the config.plist,in Platforminfo with CustomMemory under Smbios MacPro 7,1 ? like memory/devices ? restrictevents.kext, does not prevent the warning of the memory installation fault under clover in my config Z390 thanks Edited February 23, 2023 by odemolay Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801731 Share on other sites More sharing options...
Slice Posted February 25, 2023 Share Posted February 25, 2023 On 2/23/2023 at 6:57 PM, odemolay said: hello, is there any setting with Clover to put in the config.plist,in Platforminfo with CustomMemory under Smbios MacPro 7,1 ? like memory/devices ? restrictevents.kext, does not prevent the warning of the memory installation fault under clover in my config Z390 thanks But what is the problem? How it is looked? Yes clover has some setting about memory in SMBIOS section. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801819 Share on other sites More sharing options...
odemolay Posted February 27, 2023 Share Posted February 27, 2023 (edited) ok i make myself clear, rescrictsevent.kext ddoesn't work in my case, i dont know why. i had custumised my config.plist opencore with the personnal settings to not use rescrictsevent.kext but i do prefer tu use clover, so i was wondering if i can do the same in my config.plist Clover. or if there is a special setting to make work restrictesevent with. Spoiler Edited February 27, 2023 by odemolay Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2801865 Share on other sites More sharing options...
deeveedee Posted March 17, 2023 Share Posted March 17, 2023 This is probably a remedial question, so forgive my naivete. Would anyone be able to briefly explain how CLOVER patches macOS kernel and kexts? What I don't understand is how CLOVER is able to implement kernel and kext patches if CLOVER operates before macOS boots. Do CLOVER kernel and kext patches operate on kernel in memory, or do they patch a cache that is stored on disk before macOS boots? Also, are CLOVER kext patches able to patch kexts that are stored in /S/L/E and also kexts that are stored in /L/E? Thank you. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2802503 Share on other sites More sharing options...
Slice Posted March 18, 2023 Share Posted March 18, 2023 16 hours ago, deeveedee said: This is probably a remedial question, so forgive my naivete. Would anyone be able to briefly explain how CLOVER patches macOS kernel and kexts? What I don't understand is how CLOVER is able to implement kernel and kext patches if CLOVER operates before macOS boots. Do CLOVER kernel and kext patches operate on kernel in memory, or do they patch a cache that is stored on disk before macOS boots? Also, are CLOVER kext patches able to patch kexts that are stored in /S/L/E and also kexts that are stored in /L/E? Thank you. In the older system there was prelinkedkernel downloaded into memory by boot.efi. Then boot.efi eject event ExitBootServices which catched by Clover and then Clover find the prebootkernel in memory and applies patches to it. Since BigSur the behavior changed. Now we have KernelCollections where we should make the patches. All gratitudes for the algorithm to Vit9696. We just call OpenCore as a library and commit the patches to it. 2 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2802521 Share on other sites More sharing options...
deeveedee Posted March 18, 2023 Share Posted March 18, 2023 (edited) @Slice Thank you for the explanation. I was trying to help someone patch HD4000 VRAM. In "the old days" the patch was achieved by performing a binary replace in AppleIntelFramebufferCapri.kext/Contents/MacOS/AppleIntelFramebufferCapri as follows: sudo perl -pi -e 's|\x00.{1}\x10\x07\x00\x00\x10\x07|\x00\x80\x10\x07\x00\x00\x10\x07|g' AppleIntelFramebufferCapri.kext/Contents/MacOS/AppleIntelFramebufferCapri I attempted to apply the following kernel patch (to replace the edit of the raw kext), but it doesn't work: Find: <0000100700001007> Identifier: com.apple.driver.AppleIntelFramebufferCapri Mask: <FF00FFFFFFFFFFFF> Replace: <0080100700001007> I am only able to make the AppleIntelFramebufferCapri patch for HD4000 by using WhateverGreen.kext and the following DeviceProperties: framebuffer-patch-enable 1 framebuffer-unifiedmem <00000080> Do you know why the kernel patch (Find/Replace) doesn't work, the perl edit of the raw kext (and then rebuilding KextCache) does work? It seems to me that the kernel patch should achieve the same as the perl edit. Thank you. Edited March 18, 2023 by deeveedee Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2802524 Share on other sites More sharing options...
Slice Posted March 18, 2023 Share Posted March 18, 2023 Yes, graphics kext can't be patched from a bootloader because they are not present in bootkernelcollection. I don't know details. You should write a plugin for Lilu which is able patch kernel and kext when a system is already working. Or other way, like OCLP you should patch a kext and then apply a method like OCLP to use this kext[k] in the system. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2802527 Share on other sites More sharing options...
Matgen84 Posted March 20, 2023 Share Posted March 20, 2023 Hi @Slice and all I would like to go to Monterey on my old ivybridge with Catalina installed. Is this possible? Of course I would like to keep Clover as my bootloader. How do I do this, if it is possible. Thanks for your help. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/1156/#findComment-2802564 Share on other sites More sharing options...
