evilsquelch Posted November 16, 2010 Share Posted November 16, 2010 thank you, From what i have read i don't think it is a good idea to take this route. I downloaded a VM image that ran but was incredibly slow. I ended up going with a Dual boot option that became a triple boot option. All is well now. Ā thank you for your hard work, I learned a lot from your posts. Link to comment Share on other sites More sharing options...
aragones Posted November 19, 2010 Share Posted November 19, 2010 Hey Guys; Ā So I am having some issues with the CPU error every so often, I am running 10.6.3 Retail on a DELL E6500 with Workstation 7.1.2 build-301548 using the Unlocker. I did add the CPU mask with seems to have cured the error but not all the time, also when trying to do the combo update to 10.6.5 I either get the "power off" your VM black screen message or the update finishes but after 5-10 minutes of boot I get the prohibitive grey stop sign Ā Any Ideas on what to try? ive attached my Log and VMX files Ā thx! Snowy.vmx.txt vmware.log.txt Link to comment Share on other sites More sharing options...
MSoK Posted November 19, 2010 Share Posted November 19, 2010 I do not think your error is related to the CPUID mask, as your processor is not one of the ones that does not work with 10.6.3, so you should be able to remove the CPUID mask. In terms of your VMX looks OK, but the main thing I would change is drop to one processor and one core, rather than the two currently allocated, should not see any performance impact as these are virtual anyway. Ā Finally I would remove the "monitor.virtual_mmu" and "monitor.virtual_exec" settings altogether, they do not even appear in my "Unlocker" VMX, perhaps only relevant if you are using Donk's darwin iso method. Ā I assume you have downloaded 10.6.5 combo update, rather than running the software update from within the OS X guest as this installation method is generally more reliable, hopefully with the above changes it will complete successfully, I can confirm it does work, as I was running 10.6.5 on Workstation 7.1.2 and now 7.1.3 using the "Unlocker", maybe worth updating to 7.1.3 at the same time. Link to comment Share on other sites More sharing options...

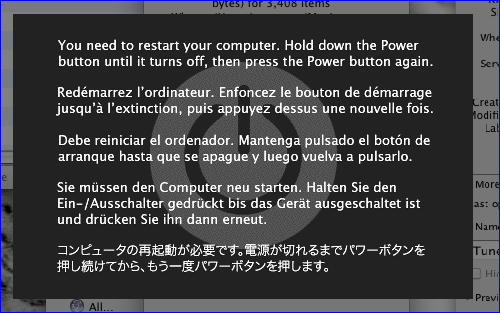

aragones Posted November 19, 2010 Share Posted November 19, 2010 I removed the extra lines and CPUID Mask, working on the Update thru the download method now, I will also update the Workstation version as well, what's curious is that I also did a Fresh install a little while ago and that one let me do the software update without issue through the apple updater. No crashes as of yet Ā thx! Ā P.S. well bummer it seems the update wont work either way, it finishes but wont fully load after the fact I get the Grey Stop Sign, reverting to a snap works fine, But now im getting the picture attached error Ā Ā The newer VM i just built seems to be operating better, I think I will move all my stuff to this one instead Link to comment Share on other sites More sharing options...
cuties Posted November 22, 2010 Share Posted November 22, 2010 I'm having the same problem. Link to comment Share on other sites More sharing options...

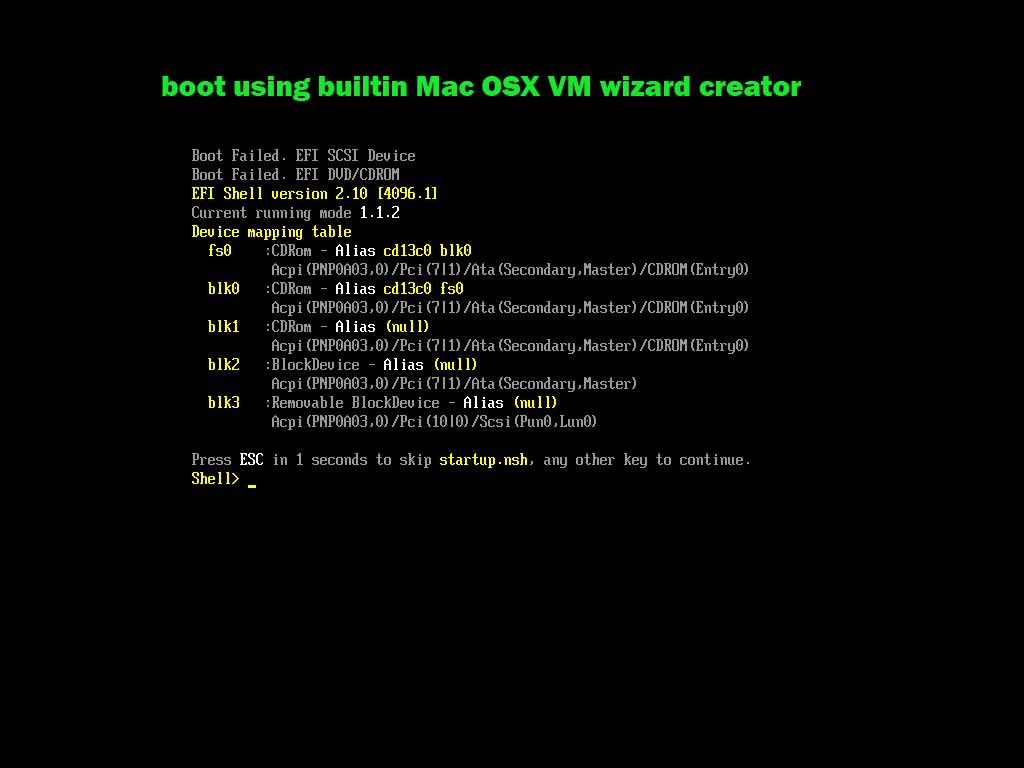

cuties Posted November 22, 2010 Share Posted November 22, 2010 I'm having the cpu error. 1. I'v patch using the unlocker. 2. Install snow leopard 10.6.432 3. boot using darwin.iso 4. get cpu error Ā read the whole post already. Ā create the VM using the unlocker wizzard doesn't help at all. it doesn't even boot the cdrom. using VMware 7.1.2 build-301548. Ā The logs sent are for only the "Mac OS X Server 10.6 (experimental).vmx" vmware.txt vmware_0.txt vmware_1.txt Copy_of_Mac_OS_X_Server_10.6__experimental_.txt Link to comment Share on other sites More sharing options...
MSoK Posted November 22, 2010 Share Posted November 22, 2010 As you are using Albert's "Unlocker" and your CPU should not require the CPUID mask, may I suggest just posting in the one place, i.e. the "Unlocker topic" we will try and help you in that topic. Link to comment Share on other sites More sharing options...
loozerboyz Posted December 1, 2010 Share Posted December 1, 2010 thanks so much MSOK! The cpuid mask made it so i can use my retail copy 10.6.3. i kept getting the cpu error. now its updated to 10.6.5 and i removed the cpuid mask. Ā i am still having problems with hanging on grey apple screen every couple of restarts. also sleep problem i believe. if i dont touch vmware for a little while then snow leopard is basically frozen. and when i try and go to some websites, snow leopard freezes and all i get is the little colorful spinny icon instead of the mouse. Ā core i7 920. HP Pavilion Elite HPE-170f. IPMTB-TK mb with the intel x58 express chipset. vmware 7.0.0 build-203739. host os is win7 x64. Ā anymore help is much appreciated! Link to comment Share on other sites More sharing options...
MSoK Posted December 1, 2010 Share Posted December 1, 2010 The freezing screen is a common problem, you need to go to System Preferences and set Computer sleep and Display sleep to Never. Ā Also I would update to the latest version of Workstation 7.1.3, but do not forget it in effect does an uninstall of the current version before installing the new version so you need to re-install either Donk's "darwin iso" or Albert's "Unlocker". Link to comment Share on other sites More sharing options...
loozerboyz Posted December 1, 2010 Share Posted December 1, 2010 cool i will do. Ā I noticed that whenever i try going to youtube in safari, it pretty much locks up and i have to force quit. so i got firefox. and firefox works fine. but safari still locks up.??? pretty strange. anyways thanks for your help Link to comment Share on other sites More sharing options...
MSoK Posted December 2, 2010 Share Posted December 2, 2010 The problem with Safari is probably the latest version of Flash Player 10.1r102 it does not work due to no support for QE/CI in the VM graphics driver, you neeed to go back to the last working version 10r45, see the post from Zenith432 below: Ā http://www.insanelymac.com/forum/index.php...t&p=1583548 Link to comment Share on other sites More sharing options...
samuraik Posted December 9, 2010 Share Posted December 9, 2010 I want to confirm that my new Lenovo T410 with a Core i5 CPU successfully installed a retail 10.6.3 DVD of Snow Leopard via VMWare Workstation 7.1 on Windows 7 Enterprise. Ā Thank you very much for the CPUID trick for the VMX file. I used the Snowy_VM files to boot the image. Since the install I have successfully applied the 10.6.5 combo update as well as the iOS 4.2 SDK with no problems. Link to comment Share on other sites More sharing options...
macgunner Posted December 11, 2010 Share Posted December 11, 2010 i'm using vmware server on a x64 windows 7 box with a i7-960 Ā the cpu error halts the system every time Ā i can't change the guest OS in the config file to darwin, because server doesn't recognize it Ā any ideas where to go from here? Ā i tried changing the bus speed in the verbose options, still nothing config.txt vmware_log.txt Link to comment Share on other sites More sharing options...
MSoK Posted December 12, 2010 Share Posted December 12, 2010 As far as I am aware this will never work, you need to use VMware Player 3.1.3, free download from VMware, as this has support for OS X. You will need Albert's "Unlocker", link below, as well as a retial DVD of OS X, and if it is 10.6.3 the CPUID mask, detailed in this Topic. Ā http://www.insanelymac.com/forum/index.php...t&p=1485873 Link to comment Share on other sites More sharing options...
MSoK Posted January 13, 2011 Share Posted January 13, 2011 I have been asked the following "My OS X 10.6.6 vm is booting fine in VMWare Workstation 7.1.3 on an i7 920 @ stock ghz. Is there any reason to add your CPUID mask to the .vmx file? When running, OS X just sees some kind of generic VMWare processor, so I'm wondering if maybe some of my cpu features are not being fully utilized." Thanks to Aardo for his request and my response. Ā No you do not need the CPUID mask, and yes you are correct, it is actually from a Xeon 5520 Processor, but it was created to solve a specific problem, i.e. installing OS X 10.6.3 on a mchaine with a Core i3, i5 or i7 processor, since you are at 10.6.6 it is not relevant, in fact it is not required from 10.6.4 up. Ā However, since the latest retail OS X DVD is at 10.6.3, a fresh install would fail without the mask until an update to 10.6.4 or later was applied, finally the mask is not required if you have the original retail OS X DVD 10.6.0. Link to comment Share on other sites More sharing options...
WladVVVVVVVVV Posted April 11, 2011 Share Posted April 11, 2011 Guys, Ā I just want to say that I've just solved "virtual CPU has entered to the shutdown state" issue on my PC (have spent almost 1 week for the research). Ā Configuration is Core i5 2500, ASUS P8H67-M. Ā The solution: Ā Add the following line to your vmx file: cpuid.1.eax = "0000:0000:0000:0001:0000:0110:1010:0101" Ā Ā from here (http://www.hackint0sh.org/f185/119787.htm) Ā Thanks. Link to comment Share on other sites More sharing options...
MSoK Posted April 14, 2011 Share Posted April 14, 2011 The solution was posted here in this topic last September, see post 2, your link, does actually give credit back to this topic for the solution, so the moral of the story is look here on InsanelyMac first, LoL MSoK. Link to comment Share on other sites More sharing options...
alienz Posted April 14, 2011 Share Posted April 14, 2011 Hi, Ā I have been struggling for a long time with VMWare server 2.0.2 running on ubuntu 9.10 on a dual Xeon 5160 server. Ā I have a snow leopard retail disc (10.6 10a432) and darwin.iso. Ā I consistently get the front side bus cpu disabled error. Ā What am I doing wrong?! I have poured through a LOT of sites and topics on this forum before finally posting.. Ā here is my vmx: Ā #!/usr/bin/vmware.encoding = "windows-1252" config.version = "8" virtualHW.version = "4" scsi0.present = "TRUE" memsize = "1792" scsi0:0.present = "TRUE" scsi0:0.fileName = "Mac OS X Server 10.6 (experimental).vmdk" ide1:0.present = "TRUE" ide1:0.fileName = "/var/lib/vmware/Virtual Machines/My Downloads/darwin.iso" ide1:0.deviceType = "cdrom-image" floppy0.autodetect = "FALSE" ethernet0.present = "TRUE" ethernet0.wakeOnPcktRcv = "FALSE" usb.present = "TRUE" ehci.present = "TRUE" sound.present = "TRUE" sound.fileName = "-1" sound.autodetect = "TRUE" svga.autodetect = "FALSE" pciBridge0.present = "TRUE" mks.keyboardFilter = "allow" displayName = "MacOSX" guestOS = "freebsd-64" nvram = "Mac OS X Server 10.6 (experimental).nvram" deploymentPlatform = "windows" virtualHW.productCompatibility = "hosted" tools.upgrade.policy = "upgradeAtPowerCycle" Ā ide1:0.autodetect = "FALSE" Ā ide1:0.startConnected = "TRUE" ethernet0.addressType = "generated" uuid.location = "56 4d fe a5 49 da d4 53-bd 7b ef 32 a7 85 3e 53" uuid.bios = "56 4d fe a5 49 da d4 53-bd 7b ef 32 a7 85 3e 53" ide0:0.redo = "" checkpoint.vmState = "" pciBridge0.pciSlotNumber = "-1" scsi0.pciSlotNumber = "-1" ethernet0.pciSlotNumber = "-1" sound.pciSlotNumber = "-1" ehci.pciSlotNumber = "-1" ethernet0.generatedAddress = "00:0c:29:85:3e:53" ethernet0.generatedAddressOffset = "0" tools.remindInstall = "FALSE" floppy0.startConnected = "FALSE" tools.syncTime = "TRUE" Ā ethernet0.connectionType = "bridged" Ā Ā hgfs.mapRootShare = "TRUE" unity.useCustomColor = "TRUE" isolation.tools.hgfs.disable = "TRUE" sharedFolder.maxNum = "1" vmotion.checkpointFBSize = "66846720" Ā svga.numDisplays = "2" svga.maxWidth = "4720" svga.maxHeight = "3540" svga.vramSize = "66835200" Ā debugStub.winOffsets.version = "1" debugStub.winOffsets.value = "0x88,0x84,0x18,0x190,0x174,16,0x22c,0x1f0,0x224,0x20,0x18,0x18,0x20,0x24,4" Ā ethernet0.linkStatePropagation.enable = "FALSE" Ā ide1:0.allowGuestConnectionControl = "FALSE" Ā floppy0.present = "FALSE" Ā sound.startConnected = "FALSE" Ā Ā sound.allowGuestConnectionControl = "FALSE" Ā Ā numvcpus = "1" cpuid.coresPerSocket = "1" Ā Ā mks.enable3d = "TRUE" pciBridge4.present = "TRUE" pciBridge5.present = "TRUE" pciBridge6.present = "TRUE" pciBridge7.present = "TRUE" vmci0.present = "TRUE" pciBridge4.virtualDev = "pcieRootPort" pciBridge4.pciSlotNumber = "-1" pciBridge4.functions = "8" pciBridge5.virtualDev = "pcieRootPort" pciBridge5.pciSlotNumber = "-1" pciBridge5.functions = "8" pciBridge6.virtualDev = "pcieRootPort" pciBridge6.pciSlotNumber = "-1" pciBridge6.functions = "8" pciBridge7.virtualDev = "pcieRootPort" pciBridge7.pciSlotNumber = "-1" pciBridge7.functions = "8" Ā usb.pciSlotNumber = "35" vmci0.pciSlotNumber = "-1" usb:0.present = "TRUE" usb:1.present = "TRUE" vmci0.id = "160092377" usb:1.deviceType = "hub" usb:0.deviceType = "mouse" Ā scsi0:0.redo = "" Ā Ā scsi0.virtualDev = "lsilogic" Ā debugStub.linuxOffsets = "0x0,0xffffffff,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0" Ā bios.forceSetupOnce = "FALSE" Ā ide0:0.present = "FALSE" ide0:0.fileName = "MacOSX.vmdk" ide0:0.writeThrough = "TRUE" Ā scsi0.sharedBus = "none" scsi0:0.writeThrough = "TRUE" Ā ide1:0.clientDevice = "FALSE" Ā smc.present = "FALSE" Ā cpuid.1.eax = "0000:0000:0000:0001:0000:0110:1010:0101" Link to comment Share on other sites More sharing options...
MSoK Posted April 15, 2011 Share Posted April 15, 2011 alienz, Ā VMware Server 2.0.2 is now very old and will not support OS X, you need to switch to VMware Player 3.1.4 for Linux, and use Albert's "Unlocker". Provided you have a retail DVD of OS X 10.6 all should progress well, have a look at the following topic, it has all the details and links you should need. Ā http://www.insanelymac.com/forum/index.php...t&p=1622074 Ā Ā Good luck, MSoK Link to comment Share on other sites More sharing options...
alienz Posted April 15, 2011 Share Posted April 15, 2011 Thanks. Will workstation work as well? Player doesn't let you create right? Link to comment Share on other sites More sharing options...
alienz Posted April 15, 2011 Share Posted April 15, 2011 Thanks, this solved my problems!! I installed vmware 7.1.4 and followed your guides. I wish google had pointed me to that previous thread a long time ago. Link to comment Share on other sites More sharing options...
MSoK Posted April 18, 2011 Share Posted April 18, 2011 Thanks. Will workstation work as well? Player doesn't let you create right? alienz, Ā No Player will let you create, for OS X it should be fine using Alberts "Unlocker", but needs Donks updated installation script, in a Windows environment. However Workstation is fine, I only mentioned Player as it is free. Ā Thanks, this solved my problems!! I installed vmware 7.1.4 and followed your guides. I wish google had pointed me to that previous thread a long time ago. alienz, Ā Glad you were able to make progress, hey Google is not perfect, but you know where to look in future, LoL MSoK! Link to comment Share on other sites More sharing options...
Tianon Posted June 18, 2011 Share Posted June 18, 2011 I've got the newer Intel Core i7-2720QM, and 10.6 "gold master" installed just fine, but after I updated to 10.6.7 I ran into the "CPU disabled" issues. Your cpuid tweak worked perfectly, thanks! I guess Apple is saving my specific model for "support" in Lion, or they're going to skip it and go straight for the Ivy Bridge. Cheers! Link to comment Share on other sites More sharing options...
Rashed Alee Posted June 22, 2011 Share Posted June 22, 2011 ohh guys, you are fabolous!!! Ā The CPUID tweak worked for me as well, great work! Link to comment Share on other sites More sharing options...
Tiger770 Posted October 18, 2011 Share Posted October 18, 2011 I'm having the same CPU disabled message, but the CPUID value is not fixing my issue. Ā My hardware is a bit dated - I'm running it on a Pentium D with VT-x. I'm also running 10.6 OSX server (no updates) installed from a retail DVD. I installed this on vmware 7.1.2 using darwin_snow.iso on my intel 990x machine and moved it to my Pentium D (my vmware "server"). Ā Here are my files. Ā VMX ~~~~~~~~~~~~~~~~~~~ .encoding = "UTF-8" config.version = "8" virtualHW.version = "7" numvcpus = "1" scsi0.present = "TRUE" scsi0.virtualDev = "lsilogic" memsize = "1024" scsi0:0.present = "TRUE" scsi0:0.fileName = "Mac OS X Server 10.6 (experimental)-000001.vmdk" ethernet0.present = "TRUE" ethernet0.virtualDev = "e1000" ethernet0.wakeOnPcktRcv = "FALSE" ethernet0.linkStatePropagation.enable = "TRUE" usb.present = "TRUE" ehci.present = "TRUE" serial0.present = "TRUE" serial0.fileType = "thinprint" pciBridge0.present = "TRUE" pciBridge4.present = "TRUE" pciBridge4.virtualDev = "pcieRootPort" pciBridge4.functions = "8" pciBridge5.present = "TRUE" pciBridge5.virtualDev = "pcieRootPort" pciBridge5.functions = "8" pciBridge6.present = "TRUE" pciBridge6.virtualDev = "pcieRootPort" pciBridge6.functions = "8" pciBridge7.present = "TRUE" pciBridge7.virtualDev = "pcieRootPort" pciBridge7.functions = "8" vmci0.present = "TRUE" ich7m.present = "TRUE" smc.present = "TRUE" roamingVM.exitBehavior = "go" tools.syncTime = "TRUE" displayName = "Mac OS X Server 10.6 (experimental)" guestOS = "darwin10-64" nvram = "Mac OS X Server 10.6 (experimental).nvram" virtualHW.productCompatibility = "hosted" ft.secondary0.enabled = "TRUE" printers.enabled = "TRUE" keyboardAndMouseProfile = "macProfile" tools.upgrade.policy = "upgradeAtPowerCycle" powerType.powerOff = "soft" powerType.powerOn = "soft" powerType.suspend = "soft" powerType.reset = "soft" extendedConfigFile = "Mac OS X Server 10.6 (experimental).vmxf" sound.present = "TRUE" sound.fileName = "-1" sound.autodetect = "TRUE" ethernet0.addressType = "generated" uuid.location = "56 4d 1b 72 0e e7 f3 26-4d fe 66 f9 ff 1b a8 65" uuid.bios = "56 4d 56 da a3 5a 0e 79-b7 57 f7 a6 84 12 fb 6d" cleanShutdown = "TRUE" replay.supported = "FALSE" replay.filename = "" scsi0:0.redo = "" pciBridge0.pciSlotNumber = "17" pciBridge4.pciSlotNumber = "21" pciBridge5.pciSlotNumber = "22" pciBridge6.pciSlotNumber = "23" pciBridge7.pciSlotNumber = "24" scsi0.pciSlotNumber = "16" usb.pciSlotNumber = "32" ethernet0.pciSlotNumber = "33" sound.pciSlotNumber = "34" ehci.pciSlotNumber = "35" vmci0.pciSlotNumber = "36" vmotion.checkpointFBSize = "16777216" usb:0.present = "TRUE" usb:1.present = "TRUE" ethernet0.generatedAddress = "00:0c:29:12:fb:6d" ethernet0.generatedAddressOffset = "0" vmci0.id = "-2079130771" usb:1.deviceType = "hub" usb:0.deviceType = "mouse" scsi0:1.present = "TRUE" scsi0:1.fileName = "darwin_snow.iso" scsi0:1.deviceType = "cdrom-image" scsi0:1.autodetect = "TRUE" ide1:0.present = "FALSE" floppy0.present = "FALSE" usb.autoConnect.device0 = "" checkpoint.vmState = "" cpuid.1.eax = "0000:0000:0000:0001:0000:0110:1010:0101" Ā VMWare.log ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Oct 17 20:40:25.824: vmx| Log for VMware Workstation pid=3044 version=7.1.2 build=build-301548 option=Release Oct 17 20:40:25.824: vmx| The process is 32-bit. Oct 17 20:40:25.824: vmx| Host codepage=windows-1252 encoding=windows-1252 Oct 17 20:40:25.824: vmx| Hostname=adminpc Oct 17 20:40:25.870: vmx| IP=(Unknown) Oct 17 20:40:25.870: vmx| IP=(Unknown) Oct 17 20:40:25.870: vmx| IP=(Unknown) Oct 17 20:40:25.870: vmx| IP=192.168.1.97 Oct 17 20:40:25.870: vmx| IP=192.168.187.1 Oct 17 20:40:25.870: vmx| IP=192.168.211.1 Oct 17 20:40:25.870: vmx| Command line: "C:\Program Files\VMware\VMware Workstation\vmware-vmx.exe" "-s" "vmx.stdio.keep=TRUE" "-#" "product=1;name=VMware Workstation;version=7.1.2;buildnumber=301548;licensename=VMware Workstation;licenseversion=7.0;" "-@" "pipe=\\.\pipe\vmx410cc8b49d7389ad;" "D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental).vmx" Oct 17 20:40:25.870: vmx| Msg_SetLocale: HostLocale=windows-1252 UserLocale=NULL Oct 17 20:40:25.995: vmx| UI Connecting to pipe '\\.\pipe\vmx410cc8b49d7389ad' with user '(null)' Oct 17 20:40:25.995: vmx| VMXVmdb: Local connection timeout: 60000 ms. Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:374]: VMAutomation: Initializing VMAutomation. Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:397]: VMAutomation: Detected the VM is not managed Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:658]: VMAutomationOpenListenerSocket() listening Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1870, success=1 Oct 17 20:40:26.089: vmx| Transitioned vmx/execState/val to poweredOff Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=2, newAppState=1877, success=1 Oct 17 20:40:26.089: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=3, newAppState=1881, success=1 Oct 17 20:40:26.089: vmx| HOSTINFO 36218077511 @ 3320234Hz -> 0 @ 1000000Hz Oct 17 20:40:26.089: vmx| HOSTINFO ((x * 2587147349) >> 33) + -10908290652 Oct 17 20:40:26.104: vmx| HD: host version is 6.1.7601 Oct 17 20:40:26.104: vmx| HD: addr 8288662c Oct 17 20:40:26.104: vmx| HD: failed to find the pattern. Oct 17 20:40:26.104: vmx| VMMon: failed memory configuration Oct 17 20:40:26.104: vmx| VMMon_GetkHzEstimate: Calculated 3399919 kHz Oct 17 20:40:26.136: vmx| VMMon_RememberkHzEstimate: Calculated 3399919 kHz Oct 17 20:40:26.136: vmx| TSC kHz estimates: vmmon 3399919, remembered 3399919, osReported 3400000. Using 3399919 kHz. Oct 17 20:40:26.136: vmx| CPU # 0 TSC = 37087467469585 Oct 17 20:40:26.136: vmx| CPU # 1 TSC = 37087467467264 Oct 17 20:40:26.136: vmx| TSC delta 2321 Oct 17 20:40:26.136: vmx| CPU # 0 TSC = 37087467702179 Oct 17 20:40:26.136: vmx| CPU # 1 TSC = 37087467703309 Oct 17 20:40:26.136: vmx| TSC delta 1130 Oct 17 20:40:26.136: vmx| CPU # 0 TSC = 37087467916787 Oct 17 20:40:26.136: vmx| CPU # 1 TSC = 37087467918393 Oct 17 20:40:26.136: vmx| TSC delta 1606 Oct 17 20:40:26.136: vmx| CPU # 0 TSC = 37087468129644 Oct 17 20:40:26.136: vmx| CPU # 1 TSC = 37087468130825 Oct 17 20:40:26.136: vmx| TSC delta 1181 Oct 17 20:40:26.136: vmx| TSC min delta 1130 Oct 17 20:40:26.136: vmx| PTSC: RefClockToTSC 3320234Hz -> 3399919000Hz Oct 17 20:40:26.136: vmx| PTSC: RefClockToTSC ((x * 4294966517) >> 22) Oct 17 20:40:26.136: vmx| PTSC: using TSC Oct 17 20:40:26.151: vmx| CPUID[0] vendor: GenuineIntel Oct 17 20:40:26.151: vmx| CPUID[0] name: IntelĀ® PentiumĀ® D CPU 3.40GHz Oct 17 20:40:26.151: vmx| CPUID[0] level 00000000, 0: 0x00000006 0x756e6547 0x6c65746e 0x49656e69 Oct 17 20:40:26.151: vmx| CPUID[0] level 00000001, 0: 0x00000f64 0x00020800 0x0000e4bd 0xbfebfbff Oct 17 20:40:26.151: vmx| CPUID[0] level 00000002, 0: 0x605b5101 0x00000000 0x00000000 0x007d7040 Oct 17 20:40:26.151: vmx| CPUID[0] level 00000003, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.151: vmx| CPUID[0] level 00000004, 0: 0x04000121 0x01c0003f 0x0000001f 0x00000000 Oct 17 20:40:26.151: vmx| CPUID[0] level 00000005, 0: 0x00000040 0x00000040 0x00000000 0x00000000 Oct 17 20:40:26.151: vmx| CPUID[0] level 00000006, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000000, 0: 0x80000008 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000001, 0: 0x00000000 0x00000000 0x00000001 0x20100000 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000002, 0: 0x20202020 0x20202020 0x20202020 0x6e492020 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000003, 0: 0x286c6574 0x50202952 0x69746e65 0x52286d75 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000004, 0: 0x20442029 0x20555043 0x30342e33 0x007a4847 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000005, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000006, 0: 0x00000000 0x00000000 0x08006040 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000007, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[0] level 80000008, 0: 0x00003024 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] vendor: GenuineIntel Oct 17 20:40:26.182: vmx| CPUID[1] name: IntelĀ® PentiumĀ® D CPU 3.40GHz Oct 17 20:40:26.182: vmx| CPUID[1] level 00000000, 0: 0x00000006 0x756e6547 0x6c65746e 0x49656e69 Oct 17 20:40:26.182: vmx| CPUID[1] level 00000001, 0: 0x00000f64 0x01020800 0x0000e4bd 0xbfebfbff Oct 17 20:40:26.182: vmx| CPUID[1] level 00000002, 0: 0x605b5101 0x00000000 0x00000000 0x007d7040 Oct 17 20:40:26.182: vmx| CPUID[1] level 00000003, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 00000004, 0: 0x04000121 0x01c0003f 0x0000001f 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 00000005, 0: 0x00000040 0x00000040 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 00000006, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000000, 0: 0x80000008 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000001, 0: 0x00000000 0x00000000 0x00000001 0x20100000 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000002, 0: 0x20202020 0x20202020 0x20202020 0x6e492020 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000003, 0: 0x286c6574 0x50202952 0x69746e65 0x52286d75 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000004, 0: 0x20442029 0x20555043 0x30342e33 0x007a4847 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000005, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000006, 0: 0x00000000 0x00000000 0x08006040 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000007, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID[1] level 80000008, 0: 0x00003024 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID vendor: GenuineIntel Oct 17 20:40:26.182: vmx| hostCPUID name: IntelĀ® PentiumĀ® D CPU 3.40GHz Oct 17 20:40:26.182: vmx| hostCPUID level 00000000, 0: 0x00000006 0x756e6547 0x6c65746e 0x49656e69 Oct 17 20:40:26.182: vmx| hostCPUID level 00000001, 0: 0x00000f64 0x00020800 0x0000e4bd 0xbfebfbff Oct 17 20:40:26.182: vmx| hostCPUID level 00000002, 0: 0x605b5101 0x00000000 0x00000000 0x007d7040 Oct 17 20:40:26.182: vmx| hostCPUID level 00000003, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 00000004, 0: 0x04000121 0x01c0003f 0x0000001f 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 00000005, 0: 0x00000040 0x00000040 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 00000006, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 80000000, 0: 0x80000008 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 80000001, 0: 0x00000000 0x00000000 0x00000001 0x20100000 Oct 17 20:40:26.182: vmx| hostCPUID level 80000002, 0: 0x20202020 0x20202020 0x20202020 0x6e492020 Oct 17 20:40:26.182: vmx| hostCPUID level 80000003, 0: 0x286c6574 0x50202952 0x69746e65 0x52286d75 Oct 17 20:40:26.182: vmx| hostCPUID level 80000004, 0: 0x20442029 0x20555043 0x30342e33 0x007a4847 Oct 17 20:40:26.182: vmx| hostCPUID level 80000005, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 80000006, 0: 0x00000000 0x00000000 0x08006040 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 80000007, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| hostCPUID level 80000008, 0: 0x00003024 0x00000000 0x00000000 0x00000000 Oct 17 20:40:26.182: vmx| CPUID Maximum Physical Address Bits supported across all CPUs: 36 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x3a = 0x5 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x3a = 0x5 Oct 17 20:40:26.182: vmx| Common: MSR 0x3a = 0x5 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x480 = 0x1a100000000003 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x480 = 0x1a100000000003 Oct 17 20:40:26.182: vmx| Common: MSR 0x480 = 0x1a100000000003 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x481 = 0x1f00000016 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x481 = 0x1f00000016 Oct 17 20:40:26.182: vmx| Common: MSR 0x481 = 0x1f00000016 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x482 = 0x67b9fffe0401e172 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x482 = 0x67b9fffe0401e172 Oct 17 20:40:26.182: vmx| Common: MSR 0x482 = 0x67b9fffe0401e172 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x483 = 0x3efff00036dff Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x483 = 0x3efff00036dff Oct 17 20:40:26.182: vmx| Common: MSR 0x483 = 0x3efff00036dff Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x484 = 0x1fff000011ff Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x484 = 0x1fff000011ff Oct 17 20:40:26.182: vmx| Common: MSR 0x484 = 0x1fff000011ff Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x485 = 0x401c0 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x485 = 0x401c0 Oct 17 20:40:26.182: vmx| Common: MSR 0x485 = 0x401c0 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x486 = 0x80000021 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x486 = 0x80000021 Oct 17 20:40:26.182: vmx| Common: MSR 0x486 = 0x80000021 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x487 = 0xffffffff Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x487 = 0xffffffff Oct 17 20:40:26.182: vmx| Common: MSR 0x487 = 0xffffffff Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x488 = 0x2000 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x488 = 0x2000 Oct 17 20:40:26.182: vmx| Common: MSR 0x488 = 0x2000 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x489 = 0x27ff Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x489 = 0x27ff Oct 17 20:40:26.182: vmx| Common: MSR 0x489 = 0x27ff Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x48a = 0x2a Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x48a = 0x2a Oct 17 20:40:26.182: vmx| Common: MSR 0x48a = 0x2a Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x48b = 0 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x48b = 0 Oct 17 20:40:26.182: vmx| Common: MSR 0x48b = 0 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x48c = 0 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x48c = 0 Oct 17 20:40:26.182: vmx| Common: MSR 0x48c = 0 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x48d = 0 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x48d = 0 Oct 17 20:40:26.182: vmx| Common: MSR 0x48d = 0 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x48e = 0 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x48e = 0 Oct 17 20:40:26.182: vmx| Common: MSR 0x48e = 0 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x48f = 0 Oct 17 20:40:26.182: vmx| CPU[1]: MSR 0x48f = 0 Oct 17 20:40:26.182: vmx| Common: MSR 0x48f = 0 Oct 17 20:40:26.182: vmx| CPU[0]: MSR 0x490 = 0 Oct 17 20:40:26.198: vmx| CPU[1]: MSR 0x490 = 0 Oct 17 20:40:26.198: vmx| Common: MSR 0x490 = 0 Oct 17 20:40:26.229: vmx| Host ACPI: can't find SRAT Oct 17 20:40:26.229: vmx| Host: SRAT tables not found in memory Oct 17 20:40:26.229: vmx| Setting thread 36 stack size to 1048576. Oct 17 20:40:26.229: WinNotifyThread| WinNotify thread is alive Oct 17 20:40:26.401: vmx| ConfigCheck: No rules file found. Checks are disabled. Oct 17 20:40:26.401: vmx| changing directory to D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\. Oct 17 20:40:26.401: vmx| Config file: D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental).vmx Oct 17 20:40:26.401: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 Oct 17 20:40:26.401: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=2, newAppState=1878, success=1 Oct 17 20:40:26.463: vmx| VMXVmdb_LoadRawConfig: Loading raw config Oct 17 20:40:26.884: vmx| VMXVmdbCbVmVmxExecState: Exec state change requested to state poweredOn without reset, soft, softOptionTimeout: 0. Oct 17 20:40:26.884: vmx| TOOLS delaying state change request to state 3 (callback 0, clientData 0) Oct 17 20:40:26.884: vmx| PowerOn Oct 17 20:40:26.884: vmx| VMX_PowerOn: VMX build 301548, UI build 301548 Oct 17 20:40:26.884: vmx| Host: WIN32 highest NUMA node 0 Oct 17 20:40:26.884: vmx| Host: WIN32 NUMA node 0, CPU mask 0x0000000000000003 Oct 17 20:40:26.931: vmx| VMXVmdb_LoadRawConfig: Loading raw config Oct 17 20:40:26.947: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1871, success=1 Oct 17 20:40:26.947: vmx| HOST Windows version 6.1, build 7601, platform 2, "Service Pack 1", SMP Oct 17 20:40:26.947: vmx| DICT --- USER PREFERENCES C:\Users\admin\AppData\Roaming\VMware\preferences.ini Oct 17 20:40:26.947: vmx| DICT pref.eula.0.appName = VMware Workstation Oct 17 20:40:26.947: vmx| DICT pref.eula.0.buildNumber = 301548 Oct 17 20:40:26.947: vmx| DICT pref.trayicon.enabled = true Oct 17 20:40:26.947: vmx| DICT pref.usbDev.maxDevs = 0 Oct 17 20:40:26.947: vmx| DICT pref.keyboardAndMouse.maxProfiles = 0 Oct 17 20:40:26.947: vmx| DICT pref.placement.left = 133 Oct 17 20:40:26.947: vmx| DICT pref.placement.top = 122 Oct 17 20:40:26.947: vmx| DICT pref.placement.right = 973 Oct 17 20:40:26.947: vmx| DICT pref.placement.bottom = 661 Oct 17 20:40:26.947: vmx| DICT pref.autoSoftwareUpdatePermission = deny Oct 17 20:40:26.947: vmx| DICT pref.componentDownloadPermission = ask Oct 17 20:40:26.947: vmx| DICT prefvmx.defaultVMPath = D:\Virtual Machines Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.list = _SEP_,POWER_OFF,SUSPEND,POWER_ON,RESET,POLICIES,PKG_SETTINGS,NEW_PKG,POCKET_ACE,PREVIEW,SNAPSHOT,REVERT,SNAPSHOT_MANAGER,FAVORITES,QUICK_SWITCH,FULL_SCREEN,UNITY,SUMMARY,APPLIANCE,CONSOLE,QUICK_MINIMIZE,FILE_EXIT,INSTANCE_DETAILS,INSTANCE_REACT,INSTANCE_DEACT,REPLAY_PLAY,REPLAY_RECORD Oct 17 20:40:26.947: vmx| DICT pref.ws.currentObj.path = /vm/#750ff659d5efd94a/ Oct 17 20:40:26.947: vmx| DICT pref.ws.currentObj.type = vm Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj0.present = TRUE Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj0.name = Home Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj.maxNum = 3 Oct 17 20:40:26.947: vmx| DICT pref.view.navBar.width = 100 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.menu.position.ix = 0 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.menu.position.newLine = TRUE Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.power.position.ix = 1 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.power.position.newLine = TRUE Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.power.position.length = 113 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.snapshot.position.ix = 2 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.snapshot.position.length = 88 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.acem.position.ix = 3 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.acem.position.length = 123 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.view.position.ix = 4 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.view.position.length = 196 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.replay.position.ix = 5 Oct 17 20:40:26.947: vmx| DICT pref.view.toolbars.replay.position.length = 1477 Oct 17 20:40:26.947: vmx| DICT hint.monitorEvent.tripleFaultRestart = FALSE Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj1.present = TRUE Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj1.type = vm Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj1.path = /vm/#235c801c9286576f/ Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj1.file = D:\Virtual Machines\srvweb01\srvweb01.vmx Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj1.name = srvweb01 Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj2.present = TRUE Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj2.type = vm Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj2.path = /vm/#750ff659d5efd94a/ Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj2.file = D:\Virtual Machines\Mac OS X Server 10.6 Server.vmwarevm\Mac OS X Server 10.6 (experimental).vmx Oct 17 20:40:26.947: vmx| DICT pref.ws.openedObj2.name = Mac OS X Server 10.6 (experimental) Oct 17 20:40:26.947: vmx| DICT vmWizard.mruISO0.isoLocation = D:\Virtual Machines\darwin_snow.iso Oct 17 20:40:26.947: vmx| DICT hint.vmui.showAllUSBDevs = FALSE Oct 17 20:40:26.947: vmx| DICT hint.vmui.poweroff = FALSE Oct 17 20:40:26.947: vmx| DICT --- USER DEFAULTS C:\Users\admin\AppData\Roaming\VMware\config.ini Oct 17 20:40:26.947: vmx| DICT --- HOST DEFAULTS C:\ProgramData\VMware\VMware Workstation\config.ini Oct 17 20:40:26.947: vmx| DICT installerDefaults.autoSoftwareUpdateEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.componentDownloadEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.dataCollectionEnabled = no Oct 17 20:40:26.947: vmx| DICT --- SITE DEFAULTS C:\ProgramData\VMware\VMware Workstation\config.ini Oct 17 20:40:26.947: vmx| DICT installerDefaults.autoSoftwareUpdateEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.componentDownloadEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.dataCollectionEnabled = no Oct 17 20:40:26.947: vmx| DICT --- COMMAND LINE Oct 17 20:40:26.947: vmx| DICT vmx.stdio.keep = TRUE Oct 17 20:40:26.947: vmx| DICT gui.available = TRUE Oct 17 20:40:26.947: vmx| DICT --- CONFIGURATION D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental).vmx Oct 17 20:40:26.947: vmx| DICT config.version = 8 Oct 17 20:40:26.947: vmx| DICT virtualHW.version = 7 Oct 17 20:40:26.947: vmx| DICT numvcpus = 1 Oct 17 20:40:26.947: vmx| DICT scsi0.present = TRUE Oct 17 20:40:26.947: vmx| DICT scsi0.virtualDev = lsilogic Oct 17 20:40:26.947: vmx| DICT memsize = 1024 Oct 17 20:40:26.947: vmx| DICT scsi0:0.present = TRUE Oct 17 20:40:26.947: vmx| DICT scsi0:0.fileName = Mac OS X Server 10.6 (experimental)-000001.vmdk Oct 17 20:40:26.947: vmx| DICT ethernet0.present = TRUE Oct 17 20:40:26.947: vmx| DICT ethernet0.virtualDev = e1000 Oct 17 20:40:26.947: vmx| DICT ethernet0.wakeOnPcktRcv = FALSE Oct 17 20:40:26.947: vmx| DICT ethernet0.linkStatePropagation.enable = TRUE Oct 17 20:40:26.947: vmx| DICT usb.present = TRUE Oct 17 20:40:26.947: vmx| DICT ehci.present = TRUE Oct 17 20:40:26.947: vmx| DICT serial0.present = TRUE Oct 17 20:40:26.947: vmx| DICT serial0.fileType = thinprint Oct 17 20:40:26.947: vmx| DICT pciBridge0.present = TRUE Oct 17 20:40:26.947: vmx| DICT pciBridge4.present = TRUE Oct 17 20:40:26.947: vmx| DICT pciBridge4.virtualDev = pcieRootPort Oct 17 20:40:26.947: vmx| DICT pciBridge4.functions = 8 Oct 17 20:40:26.947: vmx| DICT pciBridge5.present = TRUE Oct 17 20:40:26.947: vmx| DICT pciBridge5.virtualDev = pcieRootPort Oct 17 20:40:26.947: vmx| DICT pciBridge5.functions = 8 Oct 17 20:40:26.947: vmx| DICT pciBridge6.present = TRUE Oct 17 20:40:26.947: vmx| DICT pciBridge6.virtualDev = pcieRootPort Oct 17 20:40:26.947: vmx| DICT pciBridge6.functions = 8 Oct 17 20:40:26.947: vmx| DICT pciBridge7.present = TRUE Oct 17 20:40:26.947: vmx| DICT pciBridge7.virtualDev = pcieRootPort Oct 17 20:40:26.947: vmx| DICT pciBridge7.functions = 8 Oct 17 20:40:26.947: vmx| DICT vmci0.present = TRUE Oct 17 20:40:26.947: vmx| DICT ich7m.present = TRUE Oct 17 20:40:26.947: vmx| DICT smc.present = TRUE Oct 17 20:40:26.947: vmx| DICT roamingVM.exitBehavior = go Oct 17 20:40:26.947: vmx| DICT tools.syncTime = TRUE Oct 17 20:40:26.947: vmx| DICT displayName = Mac OS X Server 10.6 (experimental) Oct 17 20:40:26.947: vmx| DICT guestOS = darwin10-64 Oct 17 20:40:26.947: vmx| DICT nvram = Mac OS X Server 10.6 (experimental).nvram Oct 17 20:40:26.947: vmx| DICT virtualHW.productCompatibility = hosted Oct 17 20:40:26.947: vmx| DICT ft.secondary0.enabled = TRUE Oct 17 20:40:26.947: vmx| DICT printers.enabled = TRUE Oct 17 20:40:26.947: vmx| DICT keyboardAndMouseProfile = macProfile Oct 17 20:40:26.947: vmx| DICT tools.upgrade.policy = upgradeAtPowerCycle Oct 17 20:40:26.947: vmx| DICT powerType.powerOff = soft Oct 17 20:40:26.947: vmx| DICT powerType.powerOn = soft Oct 17 20:40:26.947: vmx| DICT powerType.suspend = soft Oct 17 20:40:26.947: vmx| DICT powerType.reset = soft Oct 17 20:40:26.947: vmx| DICT extendedConfigFile = Mac OS X Server 10.6 (experimental).vmxf Oct 17 20:40:26.947: vmx| DICT sound.present = TRUE Oct 17 20:40:26.947: vmx| DICT sound.fileName = -1 Oct 17 20:40:26.947: vmx| DICT sound.autodetect = TRUE Oct 17 20:40:26.947: vmx| DICT ethernet0.addressType = generated Oct 17 20:40:26.947: vmx| DICT uuid.location = 56 4d 1b 72 0e e7 f3 26-4d fe 66 f9 ff 1b a8 65 Oct 17 20:40:26.947: vmx| DICT uuid.bios = 56 4d 56 da a3 5a 0e 79-b7 57 f7 a6 84 12 fb 6d Oct 17 20:40:26.947: vmx| DICT cleanShutdown = TRUE Oct 17 20:40:26.947: vmx| DICT replay.supported = FALSE Oct 17 20:40:26.947: vmx| DICT replay.filename = Oct 17 20:40:26.947: vmx| DICT scsi0:0.redo = Oct 17 20:40:26.947: vmx| DICT pciBridge0.pciSlotNumber = 17 Oct 17 20:40:26.947: vmx| DICT pciBridge4.pciSlotNumber = 21 Oct 17 20:40:26.947: vmx| DICT pciBridge5.pciSlotNumber = 22 Oct 17 20:40:26.947: vmx| DICT pciBridge6.pciSlotNumber = 23 Oct 17 20:40:26.947: vmx| DICT pciBridge7.pciSlotNumber = 24 Oct 17 20:40:26.947: vmx| DICT scsi0.pciSlotNumber = 16 Oct 17 20:40:26.947: vmx| DICT usb.pciSlotNumber = 32 Oct 17 20:40:26.947: vmx| DICT ethernet0.pciSlotNumber = 33 Oct 17 20:40:26.947: vmx| DICT sound.pciSlotNumber = 34 Oct 17 20:40:26.947: vmx| DICT ehci.pciSlotNumber = 35 Oct 17 20:40:26.947: vmx| DICT vmci0.pciSlotNumber = 36 Oct 17 20:40:26.947: vmx| DICT vmotion.checkpointFBSize = 16777216 Oct 17 20:40:26.947: vmx| DICT usb:0.present = TRUE Oct 17 20:40:26.947: vmx| DICT usb:1.present = TRUE Oct 17 20:40:26.947: vmx| DICT ethernet0.generatedAddress = 00:0c:29:12:fb:6d Oct 17 20:40:26.947: vmx| DICT ethernet0.generatedAddressOffset = 0 Oct 17 20:40:26.947: vmx| DICT vmci0.id = -2079130771 Oct 17 20:40:26.947: vmx| DICT usb:1.deviceType = hub Oct 17 20:40:26.947: vmx| DICT usb:0.deviceType = mouse Oct 17 20:40:26.947: vmx| DICT scsi0:1.present = TRUE Oct 17 20:40:26.947: vmx| DICT scsi0:1.fileName = darwin_snow.iso Oct 17 20:40:26.947: vmx| DICT scsi0:1.deviceType = cdrom-image Oct 17 20:40:26.947: vmx| DICT scsi0:1.autodetect = TRUE Oct 17 20:40:26.947: vmx| DICT ide1:0.present = FALSE Oct 17 20:40:26.947: vmx| DICT floppy0.present = FALSE Oct 17 20:40:26.947: vmx| DICT usb.autoConnect.device0 = Oct 17 20:40:26.947: vmx| DICT checkpoint.vmState = Oct 17 20:40:26.947: vmx| DICT cpuid.1.eax = 0000:0000:0000:0001:0000:0110:1010:0101 Oct 17 20:40:26.947: vmx| DICT --- USER DEFAULTS C:\Users\admin\AppData\Roaming\VMware\config.ini Oct 17 20:40:26.947: vmx| DICT --- HOST DEFAULTS C:\ProgramData\VMware\VMware Workstation\config.ini Oct 17 20:40:26.947: vmx| DICT installerDefaults.autoSoftwareUpdateEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.componentDownloadEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.dataCollectionEnabled = no Oct 17 20:40:26.947: vmx| DICT --- SITE DEFAULTS C:\ProgramData\VMware\VMware Workstation\config.ini Oct 17 20:40:26.947: vmx| DICT installerDefaults.autoSoftwareUpdateEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.componentDownloadEnabled = yes Oct 17 20:40:26.947: vmx| DICT installerDefaults.dataCollectionEnabled = no Oct 17 20:40:26.947: vmx| DICT --- GLOBAL SETTINGS C:\ProgramData\VMware\VMware Workstation\settings.ini Oct 17 20:40:26.947: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 Oct 17 20:40:26.962: vmx| VMXVmdb_LoadRawConfig: Loading raw config Oct 17 20:40:26.978: vmx| hostCpuFeatures = 0x4c001fc Oct 17 20:40:26.978: vmx| hostNumPerfCounters = 26 Oct 17 20:40:26.978: vmx| MONITOR MODE: allowed modes : BT32 HV Oct 17 20:40:26.978: vmx| MONITOR MODE: user requested modes : BT32 HV HWMMU Oct 17 20:40:26.978: vmx| MONITOR MODE: guestOS preferred modes: HWMMU HV BT32 Oct 17 20:40:26.978: vmx| MONITOR MODE: filtered list : HV BT32 Oct 17 20:40:26.978: vmx| HV Settings: virtual exec = 'hardware'; virtual mmu = 'software' Oct 17 20:40:26.978: vmx| Basic VMX Information (0x001a100000000003) Oct 17 20:40:26.978: vmx| VMCS revision ID 3 Oct 17 20:40:26.978: vmx| VMCS region length 4096 Oct 17 20:40:26.978: vmx| VMX physical-address width natural Oct 17 20:40:26.978: vmx| SMM dual-monitor mode yes Oct 17 20:40:26.978: vmx| Advanced INS/OUTS info no Oct 17 20:40:26.978: vmx| True VMX MSRs no Oct 17 20:40:26.978: vmx| VMCS memory type WB Oct 17 20:40:26.978: vmx| Pin-Based VM-Execution Controls (0x0000001f00000016) Oct 17 20:40:26.978: vmx| External-interrupt exiting {0,1} Oct 17 20:40:26.978: vmx| NMI exiting {0,1} Oct 17 20:40:26.978: vmx| Virtual NMIs { 0 } Oct 17 20:40:26.978: vmx| Activate VMX-preemption timer { 0 } Oct 17 20:40:26.978: vmx| Primary Processor-Based VM-Execution Controls (0x67b9fffe0401e172) Oct 17 20:40:26.978: vmx| Interrupt-window exiting {0,1} Oct 17 20:40:26.978: vmx| Use TSC offsetting {0,1} Oct 17 20:40:26.978: vmx| HLT exiting {0,1} Oct 17 20:40:26.978: vmx| INVLPG exiting {0,1} Oct 17 20:40:26.978: vmx| MWAIT exiting {0,1} Oct 17 20:40:26.978: vmx| RDPMC exiting {0,1} Oct 17 20:40:26.978: vmx| RDTSC exiting {0,1} Oct 17 20:40:26.978: vmx| CR3-load exiting { 1 } Oct 17 20:40:26.978: vmx| CR3-store exiting { 1 } Oct 17 20:40:26.978: vmx| CR8-load exiting {0,1} Oct 17 20:40:26.978: vmx| CR8-store exiting {0,1} Oct 17 20:40:26.978: vmx| Use TPR shadow {0,1} Oct 17 20:40:26.978: vmx| NMI-window exiting { 0 } Oct 17 20:40:26.978: vmx| MOV-DR exiting {0,1} Oct 17 20:40:26.978: vmx| Unconditional I/O exiting {0,1} Oct 17 20:40:26.978: vmx| Use I/O bitmaps {0,1} Oct 17 20:40:26.978: vmx| Monitor trap flag { 0 } Oct 17 20:40:26.978: vmx| Use MSR bitmaps { 0 } Oct 17 20:40:26.978: vmx| MONITOR exiting {0,1} Oct 17 20:40:26.978: vmx| PAUSE exiting {0,1} Oct 17 20:40:26.978: vmx| Activate secondary controls { 0 } Oct 17 20:40:26.978: vmx| Secondary Processor-Based VM-Execution Controls (0x0000000000000000) Oct 17 20:40:26.978: vmx| Virtualize APIC accesses { 0 } Oct 17 20:40:26.978: vmx| Enable EPT { 0 } Oct 17 20:40:26.978: vmx| Descriptor-table exiting { 0 } Oct 17 20:40:26.978: vmx| Enable RDTSCP { 0 } Oct 17 20:40:26.978: vmx| Virtualize x2APIC mode { 0 } Oct 17 20:40:26.978: vmx| Enable VPID { 0 } Oct 17 20:40:26.978: vmx| WBINVD exiting { 0 } Oct 17 20:40:26.978: vmx| VM-Exit Controls (0x0003efff00036dff) Oct 17 20:40:26.978: vmx| Save debug controls { 1 } Oct 17 20:40:26.978: vmx| Host address-space size {0,1} Oct 17 20:40:26.978: vmx| Load IA32_PERF_GLOBAL_CTRL { 0 } Oct 17 20:40:26.978: vmx| Acknowledge interrupt on exit {0,1} Oct 17 20:40:26.978: vmx| Save IA32_PAT { 0 } Oct 17 20:40:26.978: vmx| Load IA32_PAT { 0 } Oct 17 20:40:26.978: vmx| Save IA32_EFER { 0 } Oct 17 20:40:26.978: vmx| Load IA32_EFER { 0 } Oct 17 20:40:26.978: vmx| Save VMX-preemption timer { 0 } Oct 17 20:40:26.978: vmx| VM-Entry Controls (0x00001fff000011ff) Oct 17 20:40:26.978: vmx| Load debug controls { 1 } Oct 17 20:40:26.978: vmx| IA-32e mode guest {0,1} Oct 17 20:40:26.978: vmx| Entry to SMM {0,1} Oct 17 20:40:26.978: vmx| Deactivate dual-monitor mode {0,1} Oct 17 20:40:26.978: vmx| Load IA32_PERF_GLOBAL_CTRL { 0 } Oct 17 20:40:26.978: vmx| Load IA32_PAT { 0 } Oct 17 20:40:26.978: vmx| Load IA32_EFER { 0 } Oct 17 20:40:26.978: vmx| VPID and EPT Capabilities (0x0000000000000000) Oct 17 20:40:26.978: vmx| R=0/W=0/X=1 no Oct 17 20:40:26.978: vmx| Page-walk length 3 no Oct 17 20:40:26.978: vmx| EPT memory type WB no Oct 17 20:40:26.978: vmx| 2MB super-page no Oct 17 20:40:26.978: vmx| INVEPT support no Oct 17 20:40:26.978: vmx| Type 1 INVEPT no Oct 17 20:40:26.978: vmx| Type 2 INVEPT no Oct 17 20:40:26.978: vmx| INVVPID support no Oct 17 20:40:26.978: vmx| Type 0 INVVPID no Oct 17 20:40:26.978: vmx| Type 1 INVVPID no Oct 17 20:40:26.978: vmx| Type 2 INVVPID no Oct 17 20:40:26.978: vmx| Type 3 INVVPID no Oct 17 20:40:26.978: vmx| Miscellaneous VMX Data (0x00000000000401c0) Oct 17 20:40:26.978: vmx| TSC to preemption timer ratio 0 Oct 17 20:40:26.978: vmx| Activity State HLT yes Oct 17 20:40:26.978: vmx| Activity State shutdown yes Oct 17 20:40:26.978: vmx| Activity State wait-for-SIPI yes Oct 17 20:40:26.978: vmx| CR3 targets supported 4 Oct 17 20:40:26.978: vmx| Maximum MSR list size 512 Oct 17 20:40:26.978: vmx| MSEG revision ID 0 Oct 17 20:40:26.978: vmx| VMX-Fixed Bits in CR0 (0x0000000080000021/0x00000000ffffffff) Oct 17 20:40:26.978: vmx| Fixed to 0 0xffffffff00000000 Oct 17 20:40:26.978: vmx| Fixed to 1 0x0000000080000021 Oct 17 20:40:26.978: vmx| Variable 0x000000007fffffde Oct 17 20:40:26.978: vmx| VMX-Fixed Bits in CR4 (0x0000000000002000/0x00000000000027ff) Oct 17 20:40:26.978: vmx| Fixed to 0 0xffffffffffffd800 Oct 17 20:40:26.978: vmx| Fixed to 1 0x0000000000002000 Oct 17 20:40:26.978: vmx| Variable 0x00000000000007ff Oct 17 20:40:26.978: vmx| VMCS Enumeration (0x000000000000002a) Oct 17 20:40:26.978: vmx| Highest index 0x15 Oct 17 20:40:26.994: vmx| Host display topology 1280x1024. Oct 17 20:40:26.994: vmx| SVGA: Max size 2560x1600 Oct 17 20:40:26.994: vmx| WSSCAN: reserved mem (in MB) min=32 max=2932 recommended=2932 Oct 17 20:40:26.994: vmx| WSSCAN: used rec mem (in MB) 2932 Oct 17 20:40:26.994: vmx| PShare: enabled 1 adaptive 1 local 0 scanRate [16, 400] Oct 17 20:40:26.994: vmx| WSSCAN: 296521 13301 262144 32768 Oct 17 20:40:27.087: vmx| WSSCAN 1 1 579708 587900 750592 639438 50 0 Oct 17 20:40:27.087: vmx| LICENSE using: 'HKEY_LOCAL_MACHINE\SOFTWARE\VMware, Inc.\VMware Workstation\Dormant\License.ws.7.0.e1.200904' Oct 17 20:40:27.134: vmx| LOG failed to rename stats\stats32-1 -> stats\stats32-2: The system cannot find the path specified Oct 17 20:40:27.134: vmx| LOG failed to rename stats\stats32-0 -> stats\stats32-1: The system cannot find the path specified Oct 17 20:40:27.134: vmx| LOG failed to rename stats\stats32 -> stats\stats32-0: The system cannot find the path specified Oct 17 20:40:27.134: vmx| LOG failed to rename stats\stats64-1 -> stats\stats64-2: The system cannot find the path specified Oct 17 20:40:27.134: vmx| LOG failed to rename stats\stats64-0 -> stats\stats64-1: The system cannot find the path specified Oct 17 20:40:27.134: vmx| LOG failed to rename stats\stats64 -> stats\stats64-0: The system cannot find the path specified Oct 17 20:40:27.134: vmx| Host IPI vectors: 0xe1 0 Oct 17 20:40:27.134: vmx| Monitor_PowerOn: HostedVSMP skew tracking is disabled Oct 17 20:40:27.134: vmx| Monitor_PowerOn: HostedVSMP crosscall yielding is disabled Oct 17 20:40:27.134: vmx| vmm32-modules: [vmm.vmm32 .data:0x2b000-0x700 .sdata:0x2c000-0x4e4 .statvars:0x2d000-0x3a0 .peer:0x2e000-0x26200 .shared:0x5a000-0x143c0 .bss:0x6f000-0x5e08 .rodata:0x76000-0xb740 .text:0x82000-0x5c7fd .kstatvars:0x3000-0x0, mmu-nohv.vmm32 .rodata:0x81740-0x44 .data:0x2b700-0x10 .peer:0x54200-0x5640 .shared:0x6e3c0-0x340 .bss:0x74e20-0x51c .text:0xde800-0xa4e3 .comment:0x40000d5c-0x10e .statvars:0x2000-0x0 .kstatvars:0x2000-0x0 .scb:0x40003cc0-0x180 .shared_meta:0x400042f0-0x330 .peer_meta:0x40000f90-0x1e0 .patchtext:0x40000500-0xb0, pv-none.vmm32 .shared:0x6e700-0x180 .bss:0x75340-0x84 .text:0xe8ce4-0xe2 .comment:0x40000e6a-0x48 .shared_meta:0x40004620-0x90, vprobe-none.vmm32 .text:0xe8dc8-0x19 .comment:0x40000eb2-0x12, hv-vt.vmm32 .rodata:0x81784-0x4 .data:0x1000-0x0 .peer:0x1000-0x0 .shared:0x1000-0x0 .bss:0x1000-0x0 .text:0xe8df0-0x10f .comment:0x40000ec4-0x12 .statvars:0x1000-0x0 .kstatvars:0x1000-0x0 .patchtext:0x400005b0-0x10, gphys-sw.vmm32 .peer:0x59840-0x40 .shared:0x6e880-0x80 .bss:0x2000-0x0 .text:0xe8f00-0x7d1 .comment:0x40000ed6-0x12 .scb:0x40003e40-0x60 .shared_meta:0x400046b0-0x240 .peer_meta:0x40001170-0x30, vassert-none.vmm32 .text:0xe96d4-0x39 .comment:0x40000ee8-0x12, vmsafe-none.vmm32 .text:0xe9710-0x1b .comment:0x40000efa-0x12, .rodata:0x81788-0x3b1] Oct 17 20:40:27.524: vmx| KHZEstimate 3399919 Oct 17 20:40:27.524: vmx| MHZEstimate 3400 Oct 17 20:40:27.524: vmx| NumVCPUs 1 Oct 17 20:40:27.524: vmx| Guest OS (20521) not supported for replay debugging. Oct 17 20:40:27.540: vmx| PShare: checkRate 16 Oct 17 20:40:27.540: vmx| UUID: location-UUID is 56 4d 58 42 3a e2 93 c7-5b 2c 58 03 e0 e2 93 95 Oct 17 20:40:27.540: vmx| UUID: location-UUID is 56 4d 1b 72 0e e7 f3 26-4d fe 66 f9 ff 1b a8 65 Oct 17 20:40:27.540: vmx| UUID: location-UUID is 56 4d 1b 72 0e e7 f3 26-4d fe 66 f9 ff 1b a8 65 Oct 17 20:40:27.540: vmx| AIOGNRC: numThreads=18 ide=0, scsi=1, passthru=1 Oct 17 20:40:27.540: vmx| WORKER: Creating new group with numThreads=18 (18) Oct 17 20:40:27.540: vmx| CPU0: PMC: P4 [c:0 f:0 e:0] Oct 17 20:40:27.540: vmx| CPU1: PMC: P4 [c:0 f:0 e:0] Oct 17 20:40:27.664: vmx| Replay State = 0 Oct 17 20:40:27.664: vmx| minDEThreshold: 77 Oct 17 20:40:27.727: vmx| MM: Using partialmap, 262144 pages AC 0 CE 1 TM 0 DOHU 0 Oct 17 20:40:27.898: vmx| MMC: Initialized PLS=0 PLR=0 PFS=0 TS=1 BS=1 WZ=0 BufM=0 LOR=96 SOR=1 BlkP=32 W=50 PF=1024 Oct 17 20:40:27.898: vmx| UUID: location-UUID is 56 4d 1b 72 0e e7 f3 26-4d fe 66 f9 ff 1b a8 65 Oct 17 20:40:27.898: vmx| MM: Opened paging file, 'D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\564d1b72-0ee7-f326-4dfe-66f9ff1ba865.vmem'. Oct 17 20:40:27.898: vmx| MStat: Creating Stat vm.uptime Oct 17 20:40:27.898: vmx| MStat: Creating Stat vm.suspendTime Oct 17 20:40:27.898: vmx| MStat: Creating Stat vm.powerOnTimeStamp Oct 17 20:40:27.898: vmx| Setting thread 37 stack size to 1048576. Oct 17 20:40:27.914: vmx| VMXAIOMGR: Using: simple=Generic unbuf=Compl Oct 17 20:40:27.945: vmx| VMXVmdb_LoadRawConfig: Loading raw config Oct 17 20:40:27.961: vmx| DISK: OPEN scsi0:0 'D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-000001.vmdk' persistent R[] Oct 17 20:40:28.023: vmx| DISKLIB-DSCPTR: Opened [0]: "Mac OS X Server 10.6 (experimental)-000001-s001.vmdk" (0xa) Oct 17 20:40:28.070: vmx| DISKLIB-DSCPTR: Opened [1]: "Mac OS X Server 10.6 (experimental)-000001-s002.vmdk" (0xa) Oct 17 20:40:28.101: vmx| DISKLIB-DSCPTR: Opened [2]: "Mac OS X Server 10.6 (experimental)-000001-s003.vmdk" (0xa) Oct 17 20:40:28.117: vmx| DISKLIB-DSCPTR: Opened [3]: "Mac OS X Server 10.6 (experimental)-000001-s004.vmdk" (0xa) Oct 17 20:40:28.164: vmx| DISKLIB-DSCPTR: Opened [4]: "Mac OS X Server 10.6 (experimental)-000001-s005.vmdk" (0xa) Oct 17 20:40:28.195: vmx| DISKLIB-DSCPTR: Opened [5]: "Mac OS X Server 10.6 (experimental)-000001-s006.vmdk" (0xa) Oct 17 20:40:28.210: vmx| DISKLIB-DSCPTR: Opened [6]: "Mac OS X Server 10.6 (experimental)-000001-s007.vmdk" (0xa) Oct 17 20:40:28.257: vmx| DISKLIB-DSCPTR: Opened [7]: "Mac OS X Server 10.6 (experimental)-000001-s008.vmdk" (0xa) Oct 17 20:40:28.257: vmx| DISKLIB-DSCPTR: Opened [8]: "Mac OS X Server 10.6 (experimental)-000001-s009.vmdk" (0xa) Oct 17 20:40:28.273: vmx| DISKLIB-DSCPTR: Opened [9]: "Mac OS X Server 10.6 (experimental)-000001-s010.vmdk" (0xa) Oct 17 20:40:28.288: vmx| DISKLIB-DSCPTR: Opened [10]: "Mac OS X Server 10.6 (experimental)-000001-s011.vmdk" (0xa) Oct 17 20:40:28.320: vmx| DISKLIB-DSCPTR: Opened [11]: "Mac OS X Server 10.6 (experimental)-000001-s012.vmdk" (0xa) Oct 17 20:40:28.320: vmx| DISKLIB-DSCPTR: Opened [12]: "Mac OS X Server 10.6 (experimental)-000001-s013.vmdk" (0xa) Oct 17 20:40:28.351: vmx| DISKLIB-DSCPTR: Opened [13]: "Mac OS X Server 10.6 (experimental)-000001-s014.vmdk" (0xa) Oct 17 20:40:28.382: vmx| DISKLIB-DSCPTR: Opened [14]: "Mac OS X Server 10.6 (experimental)-000001-s015.vmdk" (0xa) Oct 17 20:40:28.398: vmx| DISKLIB-DSCPTR: Opened [15]: "Mac OS X Server 10.6 (experimental)-000001-s016.vmdk" (0xa) Oct 17 20:40:28.429: vmx| DISKLIB-DSCPTR: Opened [16]: "Mac OS X Server 10.6 (experimental)-000001-s017.vmdk" (0xa) Oct 17 20:40:28.460: vmx| DISKLIB-DSCPTR: Opened [17]: "Mac OS X Server 10.6 (experimental)-000001-s018.vmdk" (0xa) Oct 17 20:40:28.491: vmx| DISKLIB-DSCPTR: Opened [18]: "Mac OS X Server 10.6 (experimental)-000001-s019.vmdk" (0xa) Oct 17 20:40:28.507: vmx| DISKLIB-DSCPTR: Opened [19]: "Mac OS X Server 10.6 (experimental)-000001-s020.vmdk" (0xa) Oct 17 20:40:28.538: vmx| DISKLIB-DSCPTR: Opened [20]: "Mac OS X Server 10.6 (experimental)-000001-s021.vmdk" (0xa) Oct 17 20:40:28.538: vmx| DISKLIB-LINK : Opened 'D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-000001.vmdk' (0xa): twoGbMaxExtentSparse, 83886080 sectors / 40 GB. Oct 17 20:40:28.585: vmx| DISKLIB-DSCPTR: Opened [0]: "Mac OS X Server 10.6 (experimental)-s001.vmdk" (0xe) Oct 17 20:40:28.600: vmx| DISKLIB-DSCPTR: Opened [1]: "Mac OS X Server 10.6 (experimental)-s002.vmdk" (0xe) Oct 17 20:40:28.632: vmx| DISKLIB-DSCPTR: Opened [2]: "Mac OS X Server 10.6 (experimental)-s003.vmdk" (0xe) Oct 17 20:40:28.632: vmx| DISKLIB-DSCPTR: Opened [3]: "Mac OS X Server 10.6 (experimental)-s004.vmdk" (0xe) Oct 17 20:40:28.647: vmx| DISKLIB-DSCPTR: Opened [4]: "Mac OS X Server 10.6 (experimental)-s005.vmdk" (0xe) Oct 17 20:40:28.694: vmx| DISKLIB-DSCPTR: Opened [5]: "Mac OS X Server 10.6 (experimental)-s006.vmdk" (0xe) Oct 17 20:40:28.725: vmx| DISKLIB-DSCPTR: Opened [6]: "Mac OS X Server 10.6 (experimental)-s007.vmdk" (0xe) Oct 17 20:40:28.741: vmx| DISKLIB-DSCPTR: Opened [7]: "Mac OS X Server 10.6 (experimental)-s008.vmdk" (0xe) Oct 17 20:40:28.788: vmx| DISKLIB-DSCPTR: Opened [8]: "Mac OS X Server 10.6 (experimental)-s009.vmdk" (0xe) Oct 17 20:40:28.803: vmx| DISKLIB-DSCPTR: Opened [9]: "Mac OS X Server 10.6 (experimental)-s010.vmdk" (0xe) Oct 17 20:40:28.819: vmx| DISKLIB-DSCPTR: Opened [10]: "Mac OS X Server 10.6 (experimental)-s011.vmdk" (0xe) Oct 17 20:40:28.834: vmx| DISKLIB-DSCPTR: Opened [11]: "Mac OS X Server 10.6 (experimental)-s012.vmdk" (0xe) Oct 17 20:40:28.850: vmx| DISKLIB-DSCPTR: Opened [12]: "Mac OS X Server 10.6 (experimental)-s013.vmdk" (0xe) Oct 17 20:40:28.866: vmx| DISKLIB-DSCPTR: Opened [13]: "Mac OS X Server 10.6 (experimental)-s014.vmdk" (0xe) Oct 17 20:40:28.881: vmx| DISKLIB-DSCPTR: Opened [14]: "Mac OS X Server 10.6 (experimental)-s015.vmdk" (0xe) Oct 17 20:40:28.881: vmx| DISKLIB-DSCPTR: Opened [15]: "Mac OS X Server 10.6 (experimental)-s016.vmdk" (0xe) Oct 17 20:40:28.897: vmx| DISKLIB-DSCPTR: Opened [16]: "Mac OS X Server 10.6 (experimental)-s017.vmdk" (0xe) Oct 17 20:40:28.912: vmx| DISKLIB-DSCPTR: Opened [17]: "Mac OS X Server 10.6 (experimental)-s018.vmdk" (0xe) Oct 17 20:40:28.928: vmx| DISKLIB-DSCPTR: Opened [18]: "Mac OS X Server 10.6 (experimental)-s019.vmdk" (0xe) Oct 17 20:40:28.944: vmx| DISKLIB-DSCPTR: Opened [19]: "Mac OS X Server 10.6 (experimental)-s020.vmdk" (0xe) Oct 17 20:40:28.959: vmx| DISKLIB-DSCPTR: Opened [20]: "Mac OS X Server 10.6 (experimental)-s021.vmdk" (0xe) Oct 17 20:40:28.959: vmx| DISKLIB-LINK : Opened 'D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental).vmdk' (0xe): twoGbMaxExtentSparse, 83886080 sectors / 40 GB. Oct 17 20:40:28.959: vmx| DISKLIB-LIB : Opened "D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-000001.vmdk" (flags 0xa). Oct 17 20:40:28.959: vmx| DiskGetGeometry: Reading of disk partition table Oct 17 20:40:28.990: vmx| DISK: OPEN 'D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-000001.vmdk' Geo (5221/255/63) BIOS Geo (0/0/0) Oct 17 20:40:29.006: vmx| TimeTracker: busMultiplier 31 Oct 17 20:40:29.006: vmx| TimeTracker: apicBusHz 109674806 Oct 17 20:40:29.006: vmx| TimeTracker host to guest rate conversion 37097259664558 @ 3399919000Hz -> 37097259664558 @ 3399919000Hz Oct 17 20:40:29.006: vmx| TimeTracker host to guest rate conversion ((x * 2147483648) >> 31) + 0 Oct 17 20:40:29.006: vmx| USB: Initializing 'Generic' backend Oct 17 20:40:29.006: vmx| USBGW: Write arbitrator op:0 len:4 Oct 17 20:40:29.006: vmx| USBGW: Write arbitrator op:13 len:40 Oct 17 20:40:29.006: vmx| USB: Initializing 'Virtual Hub' backend Oct 17 20:40:29.006: vmx| USB: Initializing 'Virtual Mouse' backend Oct 17 20:40:29.006: vmx| USB: Initializing 'Virtual Keyboard' backend Oct 17 20:40:29.006: vmx| USB: Initializing 'Virtual Mass Storage' backend Oct 17 20:40:29.006: vmx| USB: Initializing 'Virtual CCID' backend Oct 17 20:40:29.022: vmx| Setting thread 38 stack size to 1048576. Oct 17 20:40:29.022: vmx| WORKER: Creating new group with numThreads=1 (19) Oct 17 20:40:29.022: vmx| USBGW: Skipping disk backing for file (D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental).vmx). Oct 17 20:40:29.022: vmx| USBGW: Skipping disk backing for file (D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-000001.vmdk). Oct 17 20:40:29.037: vmx| USBGW: Skipping disk backing for file (D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental).vmdk). Oct 17 20:40:29.037: vmx| USBGW: Skipping disk backing for file (Mac OS X Server 10.6 (experimental).vmdk). Oct 17 20:40:29.037: vmx| USBGW: Skipping disk backing for file (D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-Snapshot1.vmem). Oct 17 20:40:29.037: vmx| USBGW: Skipping disk backing for file (D:\Virtual Machines\Mac OS X Server 10.6 (experimental).vmwarevm\Mac OS X Server 10.6 (experimental)-Snapshot1.vmsn). Oct 17 20:40:29.037: usbCCIDEnumCards| USB-CCID: Card enum thread created. Oct 17 20:40:29.131: vmx| WORKER: Creating new group with numThreads=1 (20) Oct 17 20:40:29.131: vmx| MKS: Base polling period is 1000000us Oct 17 20:40:29.131: vmx| KHBKL: Unable to parse keystring at: '' Oct 17 20:40:29.131: vmx| MKS REMOTE Loading VNC Configuration from VM config file Oct 17 20:40:29.131: vmx| VLANCE: send cluster threshold is 80, size = 2 recalcInterval is 2 ticks Oct 17 20:40:29.131: vmx| VMXNET: send cluster threshold is 80, size = 2 recalcInterval is 2 ticks, dontClusterSize is 128 Oct 17 20:40:29.131: vmx| NetPkt: checksum cycles/kB: C=100 asm1=3036 asm2=3008 Oct 17 20:40:29.131: vmx| NetPkt: copy and sum cycles/kB: C=2009 asm1=2678 asm2=2682 Oct 17 20:40:29.146: vmx| Chipset version: 0x13 Oct 17 20:40:29.240: vmx| LSI: vIC initialized 50/4/100/0 Oct 17 20:40:29.240: vmx| SCSI0: UNTAGGED commands will be converted to ORDER tags. Oct 17 20:40:29.240: vmx| SCSI DEVICE (scsi0:0): Computed value of scsi0:0.useBounceBuffers: always Oct 17 20:40:29.240: vmx| DISKUTIL: scsi0:0 : capacity=83886080 Oct 17 20:40:29.240: vmx| DISKUTIL: scsi0:0 : geometry=5221/255/63 Oct 17 20:40:29.240: vmx| SCSI DEVICE (scsi0:1): Computed value of scsi0:1.useBounceBuffers: always Oct 17 20:40:29.240: vmx| DISKUTIL: scsi0:1 : capacity=0 Oct 17 20:40:29.240: vmx| DISKUTIL: scsi0:1 : geometry=0/0/0 Oct 17 20:40:29.240: vmx| SVGA: Device capabilities 0x003f83e2 Oct 17 20:40:29.240: vmx| Host display topology 1280x1024. Oct 17 20:40:29.240: vmx| SVGA: Max size 2560x1600 Oct 17 20:40:29.287: vmx| Host display topology 1280x1024 with 1 displays. Oct 17 20:40:29.287: vmx| SVGA: Max size 2560x1600 Oct 17 20:40:29.287: vmx| SVGA: FIFO capabilities 0x000000ff Oct 17 20:40:29.287: vmx| USB: Initializing 'UHCI' host controller Oct 17 20:40:29.302: vmx| Ethernet0 MAC Address: 00:0c:29:12:fb:6d Oct 17 20:40:29.302: vmx| USB: Initializing 'EHCI' host controller Oct 17 20:40:29.302: vmx| MStat: Creating Stat vm.heartbeat Oct 17 20:40:29.302: vmx| TOOLS Generated SessionId 13965534783229255122 Oct 17 20:40:29.302: vmx| VMXVmdbGuest_GetToolsVersion did nothing; tools version has not yet been initialized Oct 17 20:40:29.302: vmx| DISKUTIL: scsi0:0 : toolsVersion = 8258 Oct 17 20:40:29.302: vmx| VMXVmdbGuest_GetToolsVersion did nothing; tools version has not yet been initialized Oct 17 20:40:29.302: vmx| TOOLS setting legacy tools version to '8258', manifest status is 5 Oct 17 20:40:29.302: vmx| VMXVmdb_SetToolsVersionState: status value set to 'oldTools' Oct 17 20:40:29.302: vmx| VMXVmdb_SetToolsVersionState: status value set to 'oldTools' Oct 17 20:40:29.302: vmx| TOOLS INSTALL initializing state to IDLE on power on. Oct 17 20:40:29.302: vmx| PTSC to VMI Wallclock (nsec) 37098266619336 @ 3399919000Hz -> 1318902029000000000 @ 1000000000Hz Oct 17 20:40:29.302: vmx| PTSC to VMI Wallclock (nsec) ((x * 2526511541) >> 33) + 1318891117485161210 Oct 17 20:40:29.302: vmx| PTSC to ParaTime RealCycles 0 @ 3399919000Hz -> 0 @ 3399919000Hz Oct 17 20:40:29.302: vmx| PTSC to ParaTime RealCycles ((x * 1) >> 0) + 0 Oct 17 20:40:29.302: vmx| ParaTime RealCycles to PTSC 0 @ 3399919000Hz -> 0 @ 3399919000Hz Oct 17 20:40:29.302: vmx| ParaTime RealCycles to PTSC ((x * 1) >> 0) + 0 Oct 17 20:40:29.302: vmx| memoryHotplug: Current size = 1024MB, Minimum size = 1024MB, Maximum size = 1024MB Oct 17 20:40:29.302: vmx| memoryHotplug: Entry[0]: 00000000000000A0-00000000000A0000 Oct 17 20:40:29.302: vmx| memoryHotplug: Entry[1]: 00000000001000A0-0000000040000000 Oct 17 20:40:29.302: vmx| guestCpuFeatures = 0x404001fc Oct 17 20:40:29.302: vmx| guestCPUID vendor: GenuineIntel Oct 17 20:40:29.302: vmx| guestCPUID name: IntelĀ® PentiumĀ® D CPU 3.40GHz Oct 17 20:40:29.302: vmx| guestCPUID level 00000000, 0: 0x00000006 0x756e6547 0x6c65746e 0x49656e69 Oct 17 20:40:29.302: vmx| guestCPUID level 00000001, 0: 0x000106a5 0x00010800 0x80002009 0x0febfbff Oct 17 20:40:29.302: vmx| guestCPUID level 00000002, 0: 0x605b5101 0x00000000 0x00000000 0x007d7040 Oct 17 20:40:29.302: vmx| guestCPUID level 00000003, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 00000004, 0: 0x04000121 0x01c0003f 0x0000001f 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 00000005, 0: 0x00001000 0x00001000 0x00000002 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 00000006, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 40000000, 0: 0x40000010 0x61774d56 0x4d566572 0x65726177 Oct 17 20:40:29.302: vmx| guestCPUID level 40000010, 0: 0x0033e0ef 0x0001ac6b 0x00000000 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 80000000, 0: 0x80000008 0x00000000 0x00000000 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 80000001, 0: 0x00000000 0x00000000 0x00000001 0x20100000 Oct 17 20:40:29.302: vmx| guestCPUID level 80000002, 0: 0x20202020 0x20202020 0x20202020 0x6e492020 Oct 17 20:40:29.302: vmx| guestCPUID level 80000003, 0: 0x286c6574 0x50202952 0x69746e65 0x52286d75 Oct 17 20:40:29.302: vmx| guestCPUID level 80000004, 0: 0x20442029 0x20555043 0x30342e33 0x007a4847 Oct 17 20:40:29.302: vmx| guestCPUID level 80000005, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 80000006, 0: 0x00000000 0x00000000 0x08006040 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 80000007, 0: 0x00000000 0x00000000 0x00000000 0x00000000 Oct 17 20:40:29.302: vmx| guestCPUID level 80000008, 0: 0x00003028 0x00000000 0x00000000 0x00000000 Oct 17 20:40:29.318: vmx| BusMemSample: initPercent 75 touched 196608 Oct 17 20:40:29.318: vmx| TOOLS received request in VMX to set option 'enableDnD' -> '1' Oct 17 20:40:29.318: vmx| TOOLS received request in VMX to set option 'copypaste' -> '1' Oct 17 20:40:29.318: vmx| Vix: [3520 mainDispatch.c:844]: VMAutomation_PowerOn. Powering on. Oct 17 20:40:29.318: vmx| VMX_PowerOn: ModuleTable_PowerOn = 1 Oct 17 20:40:29.318: vmx| Setting thread 1 stack size to 2097152. Oct 17 20:40:29.349: vmx| Setting thread 4 stack size to 1048576. Oct 17 20:40:29.349: mks| Async MKS thread is alive Oct 17 20:40:29.365: vcpu-0| APIC: version = 0x14, max LVT = 5 Oct 17 20:40:29.365: vcpu-0| APIC: LDR = 0x2000000, DFR = 0xffffffff Oct 17 20:40:29.365: vcpu-0| CPU reset: hard (mode 2) Oct 17 20:40:29.365: vcpu-0| memoryHotplug: Entry[0]: 00000000000000A0-00000000000A0000 Oct 17 20:40:29.365: vcpu-0| memoryHotplug: Entry[1]: 00000000001000A0-0000000040000000 Oct 17 20:40:29.365: vcpu-0| PIIX4: PM Resuming from suspend type 0x0. Oct 17 20:40:29.412: vcpu-0| SOUND 003.329953 ES1371HostOpenChannel waveOutOpen error: 2. Oct 17 20:40:29.412: vcpu-0| Msg_Post: Warning Oct 17 20:40:29.412: vcpu-0| [msg.sound.defaultbadwaveopen] The default sound device cannot be opened: Oct 17 20:40:29.412: vcpu-0| A device ID has been used that is out of range for your system. Oct 17 20:40:29.412: vcpu-0| [msg.device.startdisconnected] Virtual device sound will start disconnected. Oct 17 20:40:29.412: vcpu-0| ---------------------------------------- Oct 17 20:40:29.583: vcpu-0| VNET: MACVNetConnectToNetwork: Ethernet0: notify available Oct 17 20:40:29.583: vcpu-0| CDROM: Connecting scsi0:1 to 'darwin_snow.iso'. img=1 raw=0 remote=0 Oct 17 20:40:29.583: vcpu-0| Setting thread 39 stack size to 1048576. Oct 17 20:40:29.599: vcpu-0| DMG_Open: Not an unencrypted .dmg file (footer signature 0x00000000). Oct 17 20:40:29.599: vcpu-0| DMG_Close: max cached entries 8 Oct 17 20:40:29.599: vcpu-0| Vix: [3888 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1872, success=1 Oct 17 20:40:29.599: vcpu-0| Vix: [3888 mainDispatch.c:3582]: VMAutomationReportPowerStateChange: Reporting power state change (opcode=0, err=0). Oct 17 20:40:29.599: vcpu-0| Vix: [3888 mainDispatch.c:3582]: VMAutomationReportPowerStateChange: Reporting power state change (opcode=2, err=0). Oct 17 20:40:29.599: vcpu-0| Transitioned vmx/execState/val to poweredOn Oct 17 20:40:29.614: vmx| USB: Connecting device 0x600000010e0f0006 Oct 17 20:40:30.176: vmx| DnDRegisterRpc: DnD rpc already set to 1 Oct 17 20:40:30.176: vmx| CopyPasteRegisterRpc: already set to 1 Oct 17 20:40:30.379: vmx| VMXVmdb_LoadRawConfig: Loading raw config Oct 17 20:40:30.426: vmx| VMXVmdbLoadUsbDevices: New set of 1 USB devices Oct 17 20:40:30.426: vmx| USB: Found device [name:Toshiba\ Ext\ SuperMulti vid:0930 pid:0c06 path:1/4/1 speed:high family:storage] Oct 17 20:40:30.660: mks| HostOps hideCursor before defineCursor! Oct 17 20:40:30.675: mks| Connecting to window system. Oct 17 20:40:30.675: mks| MKS: Base polling period is 10000us Oct 17 20:40:30.675: mks| Setting thread 40 stack size to 1048576. Oct 17 20:40:30.769: mks| GdiBackendConstruct: Using software emulation for overlays. Oct 17 20:40:30.769: mks| VMXAIOMGR: Disallowing USB connect. 4688737 us since last reopen Oct 17 20:40:30.800: vcpu-0| sz=2961376 Oct 17 20:40:30.816: vcpu-0| vmm32 initialized: Releasebuild-301548. cflags: 0x0000000a.01001000.10042000.00080003 Oct 17 20:40:30.816: vcpu-0| MonitorInitNumaUnmapVMM32 Oct 17 20:40:30.925: vcpu-0| Monitor64_PowerOn() Oct 17 20:40:30.940: vcpu-0| vmm64-modules: [vmm.vmm64 .data:0xfffffffffc051000-0xb80 .sdata:0xfffffffffc052000-0x9b8 .statvars:0xfffffffffc053000-0x1f8 .peer:0xfffffffffc054000-0x26200 .shared:0xfffffffffc080000-0x143c0 .bss:0xfffffffffc095000-0xb980 .rodata:0xfffffffffc200000-0x14ee0 .text:0xfffffffffc216000-0x6e2de .kstatvars:0x3000-0x0 .eh_frame:0xfffffffffc29f000-0x13a90, mmu-scratchas.vmm64 .rodata:0xfffffffffc214ee0-0xd2 .data:0xfffffffffc051b80-0x14 .peer:0xfffffffffc07a200-0x5640 .shared:0xfffffffffc0943c0-0x340 .bss:0xfffffffffc0a0980-0x950 .text:0xfffffffffc2842e0-0xb0f1 .statvars:0x2000-0x0 .kstatvars:0x2000-0x0 .scb:0x3cc0-0x180 .shared_meta:0x42f0-0x330 .peer_meta:0xf90-0x1e0 .eh_frame:0xfffffffffc2b2a90-0x1c70 .comment:0xe34-0x10e .patchtext:0x3e0-0xa0, pv-none.vmm64 .shared:0xfffffffffc094700-0x180 .bss:0x1000-0x0 .text:0xfffffffffc28f3d4-0x4 .shared_meta:0x4620-0x90 .eh_frame:0xfffffffffc2b4700-0x48 .comment:0xf42-0x48, vprobe-none.vmm64 .text:0xfffffffffc28f3d8-0x1a .eh_frame:0xfffffffffc2b4748-0xf0 .comment:0xf8a-0x12, hv-vt.vmm64 .rodata:0xfffffffffc214fc0-0x7bc .data:0xfffffffffc051ba0-0x30 .peer:0x2000-0x0 .shared:0x2000-0x0 .bss:0xfffffffffc0a12e0-0x12b70 .text:0xfffffffffc28f400-0xddc1 .statvars:0x2000-0x0 .kstatvars:0x2000-0x0 .eh_frame:0xfffffffffc2b4838-0x26c0 .comment:0xf9c-0x5a .patchtext:0x480-0x10, gphys-sw.vmm64 .rodata:0xfffffffffc215780-0x29 .data:0x1000-0x0 .peer:0xfffffffffc07f840-0x40 .shared:0xfffffffffc094880-0x80 .bss:0xfffffffffc0b3e50-0x10 .text:0xfffffffffc29d1d0-0x158a .statvars:0x1000-0x0 .kstatvars:0x1000-0x0 .scb:0x3e40-0x60 .shared_meta:0x46b0-0x240 .peer_meta:0x1170-0x30 .eh_frame:0xfffffffffc2b6ef8-0x460 .comment:0xff6-0x12, vassert-none.vmm64 .text:0xfffffffffc29e75c-0x3b .eh_frame:0xfffffffffc2b7358-0xc0 .comment:0x1008-0x12, vmsafe-none.vmm64 .text:0xfffffffffc29e798-0x13 .eh_frame:0xfffffffffc2b7418-0xd8 .comment:0x101a-0x12, .rodata:0xfffffffffc2157a9-0x3eb| 0x5a000] Oct 17 20:40:30.940: vcpu-0| APIC: version = 0x14, max LVT = 5 Oct 17 20:40:30.940: vcpu-0| APIC: LDR = 0x2000000, DFR = 0xffffffff Oct 17 20:40:30.940: vcpu-0| HV enabled Oct 17 20:40:30.956: vcpu-0| VMM64 initialized Oct 17 20:40:30.972: vcpu-0| MonitorInitNumaUnmapVMM64 Oct 17 20:40:30.987: vmx| HOSTINFO: Seeing Intel CPU, numCoresPerCPU 2 numThreadsPerCore 1. Oct 17 20:40:30.987: vmx| HOSTINFO: This machine has 1 physical CPUS, 2 total cores, and 2 logical CPUs. Oct 17 20:40:32.422: vcpu-0| SVGA: Registering MemSpace at 0xd0000000(0x0) and 0xd8000000(0x0) Oct 17 20:40:32.438: vcpu-0| SVGA: Unregistering MemSpace at 0xd0000000(0xd0000000) and 0xd8000000(0xd8000000) Oct 17 20:40:32.906: vcpu-0| SVGA: Registering MemSpace at 0xd0000000(0xd0000000) and 0xd8000000(0xd8000000) Oct 17 20:40:32.922: vcpu-0| SVGA: Unregistering MemSpace at 0xd0000000(0xd0000000) and 0xd8000000(0xd8000000) Oct 17 20:40:32.922: vcpu-0| SVGA: Registering IOSpace at 0x10d0 Oct 17 20:40:32.922: vcpu-0| SVGA: Registering MemSpace at 0xd0000000(0xd0000000) and 0xd8000000(0xd8000000) Oct 17 20:40:32.937: vcpu-0| PCIBridge4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.937: vcpu-0| pciBridge4:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.937: vcpu-0| pciBridge4:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.953: vcpu-0| pciBridge4:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.953: vcpu-0| pciBridge4:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.953: vcpu-0| pciBridge4:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.953: vcpu-0| pciBridge4:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.953: vcpu-0| pciBridge4:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.953: vcpu-0| PCIBridge5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.968: vcpu-0| pciBridge5:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.968: vcpu-0| pciBridge5:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.968: vcpu-0| pciBridge5:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.968: vcpu-0| pciBridge5:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.968: vcpu-0| pciBridge5:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.968: vcpu-0| pciBridge5:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.984: vcpu-0| pciBridge5:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.984: vcpu-0| PCIBridge6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.984: vcpu-0| pciBridge6:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.984: vcpu-0| pciBridge6:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.984: vcpu-0| pciBridge6:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:32.984: vcpu-0| pciBridge6:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.000: vcpu-0| pciBridge6:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.000: vcpu-0| pciBridge6:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.000: vcpu-0| pciBridge6:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.000: vcpu-0| PCIBridge7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.000: vcpu-0| pciBridge7:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.000: vcpu-0| pciBridge7:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.015: vcpu-0| pciBridge7:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.015: vcpu-0| pciBridge7:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.015: vcpu-0| pciBridge7:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.015: vcpu-0| pciBridge7:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.015: vcpu-0| pciBridge7:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.390: vcpu-0| PCIBridge4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.390: vcpu-0| pciBridge4:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.390: vcpu-0| pciBridge4:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.405: vcpu-0| pciBridge4:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.405: vcpu-0| pciBridge4:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.405: vcpu-0| pciBridge4:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.405: vcpu-0| pciBridge4:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.405: vcpu-0| pciBridge4:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.405: vcpu-0| PCIBridge5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.421: vcpu-0| pciBridge5:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.421: vcpu-0| pciBridge5:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.421: vcpu-0| pciBridge5:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.421: vcpu-0| pciBridge5:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.421: vcpu-0| pciBridge5:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.421: vcpu-0| pciBridge5:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.436: vcpu-0| pciBridge5:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.436: vcpu-0| PCIBridge6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.436: vcpu-0| pciBridge6:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.436: vcpu-0| pciBridge6:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.436: vcpu-0| pciBridge6:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.436: vcpu-0| pciBridge6:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.452: vcpu-0| pciBridge6:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.452: vcpu-0| pciBridge6:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.452: vcpu-0| pciBridge6:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.452: vcpu-0| PCIBridge7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.452: vcpu-0| pciBridge7:1: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.452: vcpu-0| pciBridge7:2: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.468: vcpu-0| pciBridge7:3: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.468: vcpu-0| pciBridge7:4: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.468: vcpu-0| pciBridge7:5: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.468: vcpu-0| pciBridge7:6: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.468: vcpu-0| pciBridge7:7: ISA/VGA decoding enabled (ctrl 0004) Oct 17 20:40:33.483: vcpu-0| DISKUTIL: scsi0:0 : geometry=5221/255/63 Oct 17 20:40:33.483: vcpu-0| DISKUTIL: scsi0:0 : capacity=83886080 Oct 17 20:40:33.483: vcpu-0| SCSI0: RESET BUS Oct 17 20:40:33.889: vcpu-0| BIOS-UUID is 56 4d 56 da a3 5a 0e 79-b7 57 f7 a6 84 12 fb 6d Oct 17 20:40:34.388: mks| HostOps hideCursor before defineCursor! Oct 17 20:40:34.435: vcpu-0| TOOLS INSTALL entering BEGINNING state. Oct 17 20:40:34.435: vcpu-0| TOOLS INSTALL 'C:\Program Files\VMware\VMware Workstation\darwin.iso' not present or not readable Oct 17 20:40:34.435: vcpu-0| Msg_Post: Warning Oct 17 20:40:34.435: vcpu-0| [msg.tools.inaccessible] Unable to install VMware Tools. An error occurred while trying to access image file "C:\Program Files\VMware\VMware Workstation\darwin.iso" needed to install VMware Tools: The system cannot find the file specified. Oct 17 20:40:34.435: vcpu-0| If your product shipped with the VMware Tools package, please reinstall VMware Workstation, then try again to install the VMware Tools package in your virtual machine. Oct 17 20:40:34.435: vcpu-0| ---------------------------------------- Oct 17 20:40:34.528: vcpu-0| TOOLS INSTALL Initialization failed. Oct 17 20:40:34.528: vcpu-0| TOOLS INSTALL entering IDLE state. Oct 17 20:40:34.544: vcpu-0| TOOLS INSTALL entering BEGINNING state. Oct 17 20:40:34.544: vcpu-0| TOOLS INSTALL 'C:\Program Files\VMware\VMware Workstation\darwin.iso' not present or not readable Oct 17 20:40:34.544: vcpu-0| Msg_Post: Warning Oct 17 20:40:34.544: vcpu-0| [msg.tools.inaccessible] Unable to install VMware Tools. An error occurred while trying to access image file "C:\Program Files\VMware\VMware Workstation\darwin.iso" needed to install VMware Tools: The system cannot find the file specified. Oct 17 20:40:34.544: vcpu-0| If your product shipped with the VMware Tools package, please reinstall VMware Workstation, then try again to install the VMware Tools package in your virtual machine. Oct 17 20:40:34.544: vcpu-0| ---------------------------------------- Oct 17 20:40:34.544: vcpu-0| TOOLS INSTALL Initialization failed. Oct 17 20:40:34.544: vcpu-0| TOOLS INSTALL entering IDLE state. Oct 17 20:40:34.560: vcpu-0| TOOLS INSTALL entering BEGINNING state. Oct 17 20:40:34.560: vcpu-0| TOOLS INSTALL 'C:\Program Files\VMware\VMware Workstation\darwin.iso' not present or not readable Oct 17 20:40:34.560: vcpu-0| Msg_Post: Warning Oct 17 20:40:34.560: vcpu-0| [msg.tools.inaccessible] Unable to install VMware Tools. An error occurred while trying to access image file "C:\Program Files\VMware\VMware Workstation\darwin.iso" needed to install VMware Tools: The system cannot find the file specified. Oct 17 20:40:34.560: vcpu-0| If your product shipped with the VMware Tools package, please reinstall VMware Workstation, then try again to install the VMware Tools package in your virtual machine. Oct 17 20:40:34.560: vcpu-0| ---------------------------------------- Oct 17 20:40:34.560: vcpu-0| TOOLS INSTALL Initialization failed. Oct 17 20:40:34.560: vcpu-0| TOOLS INSTALL entering IDLE state. Oct 17 20:40:37.881: mks| SVGA: display status changed, using optimizations for local consoles. Oct 17 20:40:48.259: mks| HostOps hideCursor before defineCursor! Oct 17 20:40:48.899: vcpu-0| APIC THERMLVT write: 0xdc Oct 17 20:40:49.503: vcpu-0| Vix: [3888 vmxCommands.c:9705]: VMAutomation_HandleCLIHLTEvent. Do nothing. Oct 17 20:40:49.503: vcpu-0| MsgHint: msg.monitorevent.halt Oct 17 20:40:49.503: vcpu-0| The CPU has been disabled by the guest operating system. You will need to power off or reset the virtual machine at this point. Oct 17 20:40:49.503: vcpu-0| --------------------------------------- Oct 17 20:40:56.656: mks| USBGW: Write arbitrator op:13 len:40 Oct 17 20:41:07.315: vmx| VMXVmdbCbVmVmxExecState: Exec state change requested to state poweredOff without reset, hard, softOptionTimeout: 20000000. Oct 17 20:41:07.315: vmx| Stopping VCPU threads... Oct 17 20:41:07.346: mks| Ending MKSRole pseudocalls, state was 1 Oct 17 20:41:07.346: mks| Detaching from window system. Oct 17 20:41:07.361: mks| MKS: Base polling period is 1000000us Oct 17 20:41:07.361: mks| Async MKS thread is exiting Oct 17 20:41:07.361: vmx| USB: Disconnecting device 0x600000010e0f0006 Oct 17 20:41:07.361: vmx| Vix: [3520 mainDispatch.c:1015]: VMAutomation_PowerOff: Powering off. Oct 17 20:41:07.361: vmx| TOOLS received request in VMX to set option 'enableDnD' -> '0' Oct 17 20:41:07.361: vmx| TOOLS received request in VMX to set option 'copypaste' -> '0' Oct 17 20:41:07.361: vmx| TOOLS received request in VMX to set option 'copypaste' -> '0' Oct 17 20:41:07.361: vmx| VMXVmdb_SetToolsVersionState: status value set to 'ok' Oct 17 20:41:07.361: vmx| USB: Disconnecting device 0x200000010e0f0002 Oct 17 20:41:07.361: vmx| USB: Disconnecting device 0x400000010e0f0003 Oct 17 20:41:07.361: vmx| HostOps hideCursor before defineCursor! Oct 17 20:41:07.408: vmx| MKS local poweroff Oct 17 20:41:07.517: usbCCIDEnumCards| USB-CCID: Card enum thread exiting. Oct 17 20:41:07.533: vmx| scsi0:0: numIOs = 1937 numMergedIOs = 316 numSplitIOs = 102 (24.4%) Oct 17 20:41:08.032: vmx| AIOWIN32C: asyncOps=2646 syncOps=374 bufSize=0Kb fixedOps=0 sgOps=2723 sgOn=1 Oct 17 20:41:08.048: aioCompletion| AIO thread processed 2646 completions Oct 17 20:41:08.048: vmx| AIOWIN32: asyncOps=0 syncOps=0 bufSize=0Kb delayed=0 fixed=0 sgOp=0 sgOn=1 Oct 17 20:41:08.095: vmx| WORKER: asyncOps=77 maxActiveOps=1 maxPending=0 maxCompleted=0 Oct 17 20:41:08.126: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=1, newAppState=1873, success=1 Oct 17 20:41:08.126: vmx| Vix: [3520 mainDispatch.c:3667]: VMAutomation: Ignoring ReportPowerOpFinished because the VMX is shutting down. Oct 17 20:41:08.157: vmx| Vix: [3520 mainDispatch.c:3661]: VMAutomation_ReportPowerOpFinished: statevar=0, newAppState=1870, success=1 Oct 17 20:41:08.157: vmx| Vix: [3520 mainDispatch.c:3667]: VMAutomation: Ignoring ReportPowerOpFinished because the VMX is shutting down. Oct 17 20:41:08.157: vmx| Transitioned vmx/execState/val to poweredOff Oct 17 20:41:08.251: vmx| VMXVmdb_LoadRawConfig: Loading raw config Oct 17 20:41:08.266: vmx| VMX idle exit Oct 17 20:41:08.266: WinNotifyThread| WinNotify thread exiting Oct 17 20:41:08.282: vmx| Vix: [3520 mainDispatch.c:747]: VMAutomation_LateShutdown() Oct 17 20:41:08.282: vmx| Vix: [3520 mainDispatch.c:697]: VMAutomationCloseListenerSocket. Closing listener socket. Oct 17 20:41:08.282: vmx| Flushing VMX VMDB connections Oct 17 20:41:08.329: vmx| VMX exit (0). Oct 17 20:41:08.329: vmx| AIOMGR-S : stat o=2 r=6 w=0 i=0 br=98304 bw=0 Oct 17 20:41:08.329: vmx| FileTrack_Exit: done Link to comment Share on other sites More sharing options...
