-Bj Posted July 18, 2006 Share Posted July 18, 2006 I have a X300 mobility card from dell (Device #5460) and its been a while with HUNDREDS of different 7utorials and all have failed on getting either one working. So I took a chance and now it works with QE/CL and Widescreen Stuff Required: Callisto drivers (I'm using b005 but b003 might work also) Koverg Patch 9700 version 2 Steps: 1) Install callisto drivers using the install instructions given in the package (DO NOT REBOOT YET) 2) Edit the ATIRadeon9700GA.plugin/Contents/Info.plist file with the following instructions // Under the "IOProviderClass" there should be "IONDRVFramebuffer" and change "IONDRVFramebuffer" to "CallistoFB" 3) Install Koverg patch using the install instructions located inside that package also 4) Reboot and pray you did everything correct Koverg's install might conflict somethings that you've already done from the Callisto driver (Removing Extensions.kext and Extensions.kextcache files) but ignore that since you have removed those files already. After reboot, the resolution would be returned to 1024x768 but you can change it in the "Display" within "System Preferences" afterwards. So far, I have found some mouse tearing but I'm not really bothered by it. This is my first guide so please tell me if theres anything wrong. Disclaimer: I'm not responsible for any damage done to your PC. This is my personal experience that have proven to work several times on my personal install. qeclwide.tiff Link to comment Share on other sites More sharing options...
Cabbio540 Posted July 21, 2006 Share Posted July 21, 2006 Thank you sooo much. This works a treat. Now i am running 1440x900. Link to comment Share on other sites More sharing options...
seti007 Posted July 27, 2006 Share Posted July 27, 2006 Just wanted to let everyone know that this thread really helped me get my wide screen res on my presario x6000. However, the only drivers that worked were the callisto b005. I could not get the b006 or 008 to work. All I got was a black screen after boot. Link to comment Share on other sites More sharing options...
BryanP Posted July 27, 2006 Share Posted July 27, 2006 cabbio and seti, do you both have x300 cards or something else? Link to comment Share on other sites More sharing options...
clockworks Posted July 29, 2006 Share Posted July 29, 2006 Anyone use this method to get the x300 running at 1920x1200? I tried, but failed. When OSX starts, the screen kinda freezes and fades to be all messed up. Link to comment Share on other sites More sharing options...
seti007 Posted July 29, 2006 Share Posted July 29, 2006 Mine is an x300 in a Compaq X6000 (x6050us) notebook. Link to comment Share on other sites More sharing options...
_M3 Posted August 1, 2006 Share Posted August 1, 2006 Had someon get the X300 Mobile to work with VGA Out and the notebook LCD at the same time...??? Link to comment Share on other sites More sharing options...
RHF Posted August 2, 2006 Share Posted August 2, 2006 please somebody send me Callisto driver i cant find it. tks ricardohofer(a)hotmail.com Link to comment Share on other sites More sharing options...
Antoniya001 Posted August 3, 2006 Share Posted August 3, 2006 Which version of the 9700 kext do you use ??? I've tried several times with all possible configs but I either get blocky colors or a complete black screen I can get the high res with calisto or QE CI with 1024x768 but not both at the same time... :-( Have installed in the last days dozens of times... (all native fortunatly so it doesn't take that much time for a completre reinstall) A Dell 9300 Ati Mobile X300 Mac OSX 10.4.7 (at the moment) from jas update and Semjas update Link to comment Share on other sites More sharing options...
-Bj Posted August 7, 2006 Author Share Posted August 7, 2006 http://omni.starchaser.org/callisto/ ^ Thats where you find the drivers. I used the ATIRadeon9700.kext file.. it was explained in the Koverg driver instructions. I didn't change much of the instructions provided so... yeah Link to comment Share on other sites More sharing options...
Antoniya001 Posted August 7, 2006 Share Posted August 7, 2006 Ehh... I meant to say which version of OSX 10.4.??? 4 / 5 / 6 / 7 ..... Link to comment Share on other sites More sharing options...
-Bj Posted August 9, 2006 Author Share Posted August 9, 2006 oh that.. I have 10.4.6, thats the only version that worked on my PC.. Link to comment Share on other sites More sharing options...
tino86 Posted August 9, 2006 Share Posted August 9, 2006 i tried everything above.. running a dell inspiron 9300 with x300 graphics.. I had the koverg patch alone working before on .5 now i did a fresh reinstall of .5 and JaS pateched to .7 tried the above with callisto b008 and koverg .2 but no luck.. everything seems to load right but when the login window launches i just get a black screen.. i notiece that the messages dumped by callisto said it was using a 1920x1200@60 res by default.. im not sure if this is the correct refresh for my laptop and could be causing the black screen. -Bj when you boot in -v whats your default res and refresh saying from callisto? Link to comment Share on other sites More sharing options...
skeezen1 Posted August 10, 2006 Share Posted August 10, 2006 What is the quickest way to get back to a working desktop after getting the black screen? I am have the same situation where it is defaulting to 1920x1200 and I am having trouble getting back to where I can make changes. Link to comment Share on other sites More sharing options...
clockworks Posted August 10, 2006 Share Posted August 10, 2006 at the boot loader prompt, type: "Graphics Mode"="1024x768" That will force OSX to boot into that resolution instead of defaulting to 1920x1200. Alternatively, if you know your way around the command prompt, you can boot into single user mode by typing -s at the boot loader prompt. So has anyone got 1920x1200 with QE/CL working yet? Hell, how about just 1920x1200 without QE/CL? Link to comment Share on other sites More sharing options...

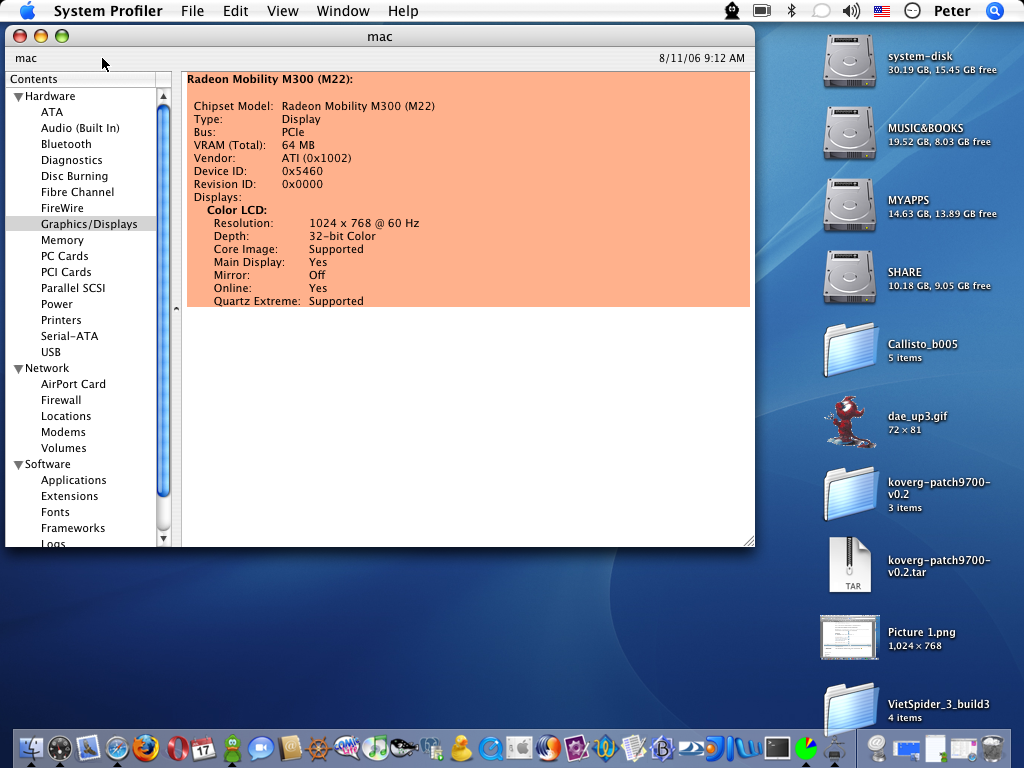

maweiba Posted August 11, 2006 Share Posted August 11, 2006 My M300 works well now,Thanks Link to comment Share on other sites More sharing options...
neon_eddy Posted August 12, 2006 Share Posted August 12, 2006 yes, I'm also in the 1920x1200 boat, I can't get more than 1600x1200 but we'll see. I have a 9700 mobilty on a sony VGN-A290 17" LCD LAPPY Link to comment Share on other sites More sharing options...
neon_eddy Posted August 12, 2006 Share Posted August 12, 2006 I have it working on my laptop .. 1920x1200!!!!! the step Iwas always missing was adding in my monitor 128bit hex number from the callisto drivers. Link to comment Share on other sites More sharing options...
pcdthebum Posted August 13, 2006 Share Posted August 13, 2006 Anyone know how to fix it if when OSX is starting it loads omni's drivers then just goes black and does nothing? i have no idea of how i can fix it except to reformat. thanks for any help Link to comment Share on other sites More sharing options...
Antoniya001 Posted August 14, 2006 Share Posted August 14, 2006 Usually means the graphics are on the other VGA output... connect your monitor to the other output and restart the machine fully. Link to comment Share on other sites More sharing options...
tino86 Posted August 15, 2006 Share Posted August 15, 2006 I have it working on my laptop .. 1920x1200!!!!! the step Iwas always missing was adding in my monitor 128bit hex number from the callisto drivers. how did you do this.. i dual booted into windows and used the monitor info program mentioned in the callisto readme but couldnt get the 128bit data anywhere.. how did you find the number for your monitor? Link to comment Share on other sites More sharing options...
forivadel Posted August 16, 2006 Share Posted August 16, 2006 im having trouble with the koverg patch part, i followed instructions exactly as it say in the readme of koverg patch but when os x loads, QE and CI are not loaded, i got callisto drivers to work build 005 and QE and CI were working before koverg patch. anyone have any ideas, i really want to get this working. i have an firegl t2 (m10) 0x4e54 Link to comment Share on other sites More sharing options...
shtoink Posted August 27, 2006 Share Posted August 27, 2006 I'm getting really wierd results from this. I believe that I followed the instructions exactly as I should have, but I get a very wierd pattern of funky colored blocks instead of what should show up when it loads the GUI. I can't really explain it any other way than OSX on a really bad drug trip. The colors.... The geometrics shapes... You can move stuff around and it makes all sorts of cool paterns, but it completely unusable. Since that happened I have been trying to figure out how to get it back to the way I had it previously. Like an idiot, I forgot the back up the files that I modified before hand. D'Oh! -BJ, any further suggestions on what actions to take? It appears I have the exact same hardware setup as you, I just wonder if there are any slight differences in the file versions installed on my machine as compared to yours that caused my issue. Do you know what version of the files you used to your setup working with QE/CI? *update* I haven't been sucessfull at getting my system working with the previous res, but I did stumble on something else. Since my video is working 100% like it should, I don't know if it has much weight to it, but I found that sleep and waking from sleep works. I just don't know if it'll stay working if I keep messing with it, though. Link to comment Share on other sites More sharing options...
shtoink Posted August 29, 2006 Share Posted August 29, 2006 So far, I haven't been succesful at getting this to work. I have gotten sleep to work propperly, hi-res to work, and still trying to get QE/CI to work. The only problem it seems is that I have not been able to get more than one working at any given time. I'd love all three, but will settle for two out of three. Link to comment Share on other sites More sharing options...
osxgus Posted August 29, 2006 Share Posted August 29, 2006 best build for x300 is b003 alternative build! running inspiron 6000. 1680x1050 wide. it works perfect also with my VGA port to my projector, change res first to fit projector and then Fn+F8 ;-) cheers osxG Link to comment Share on other sites More sharing options...
